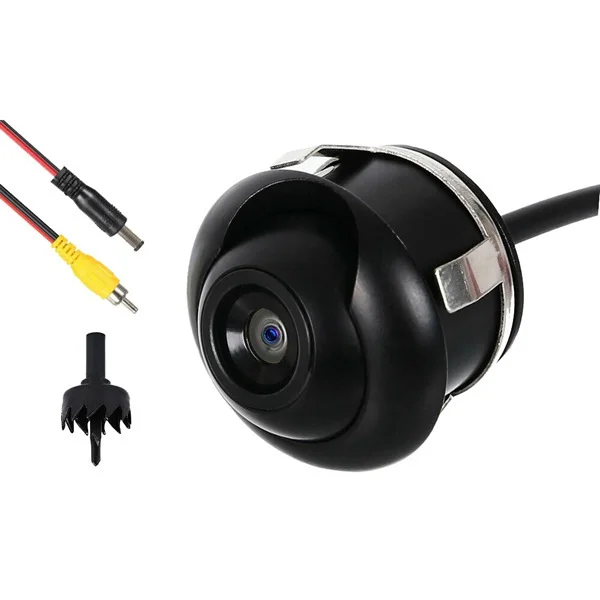

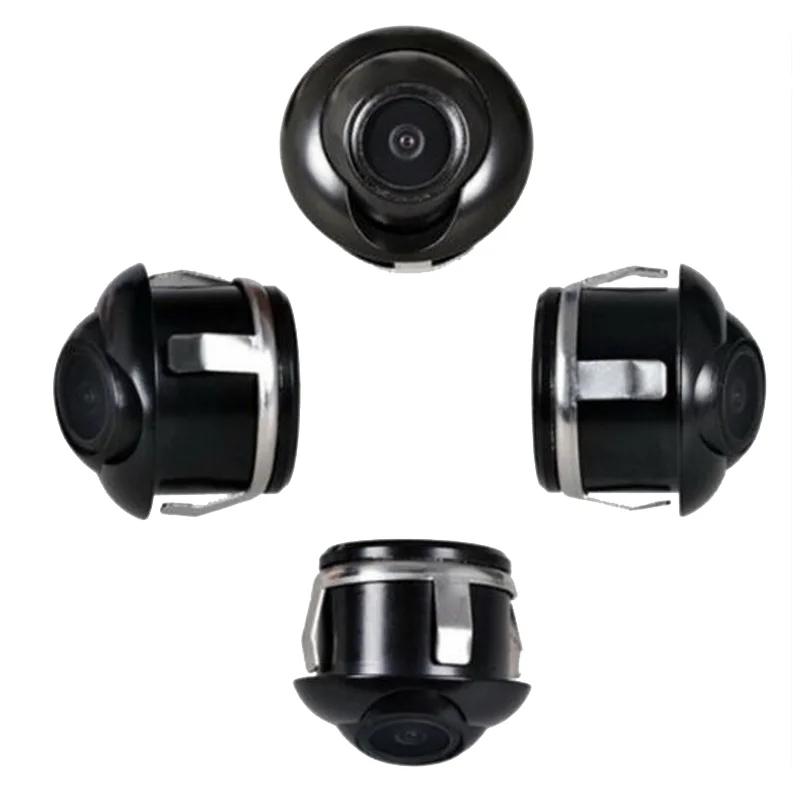

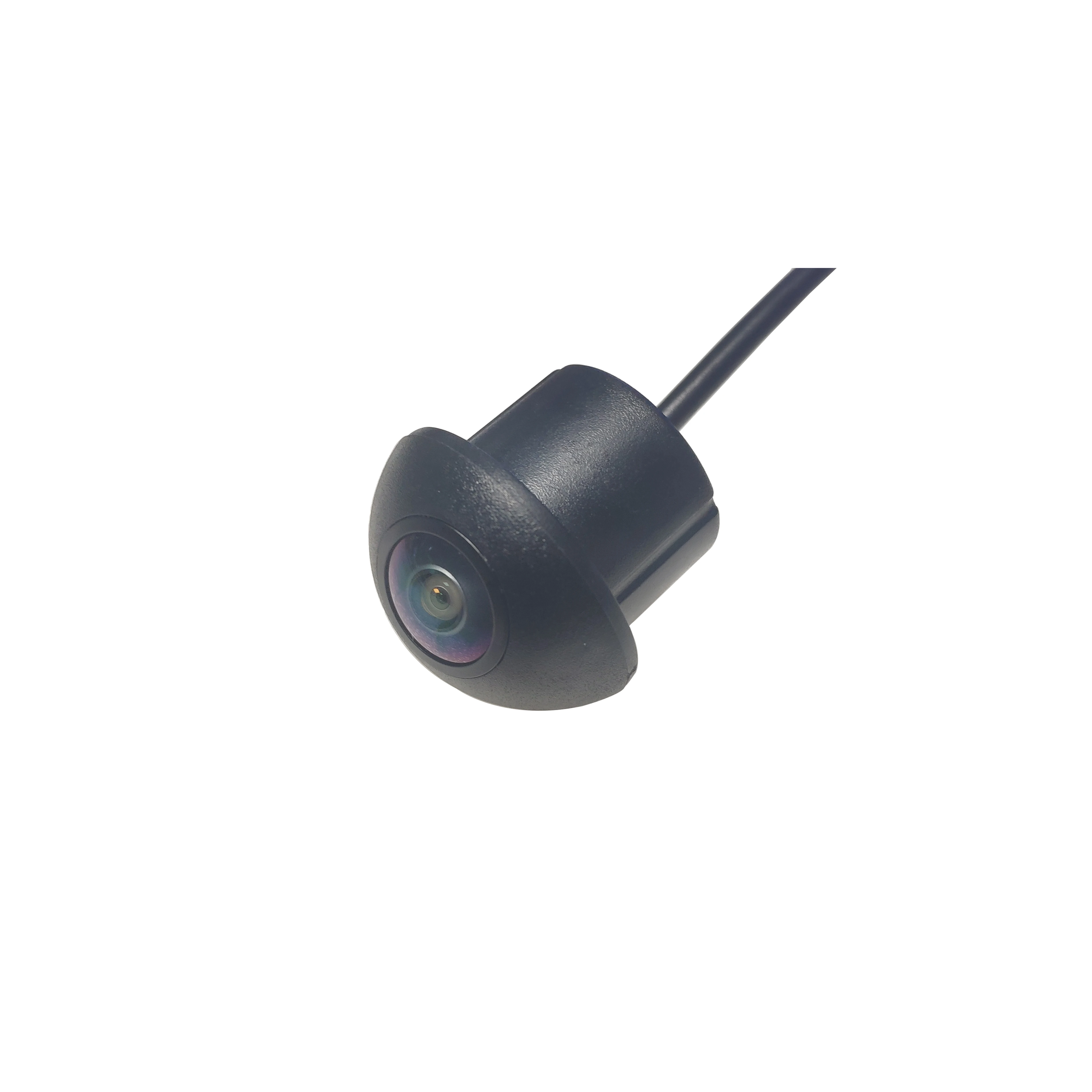

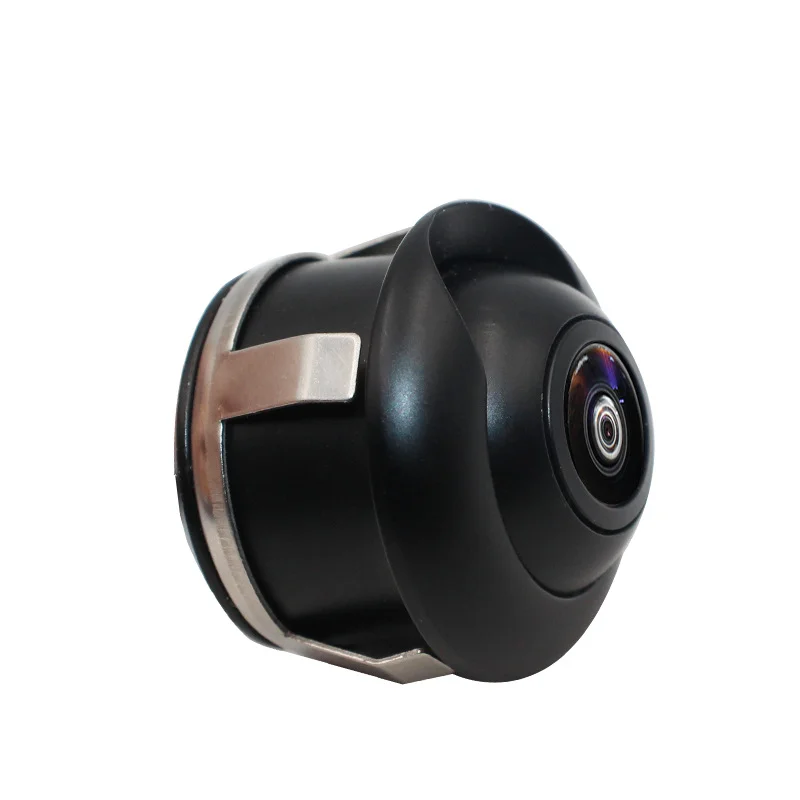

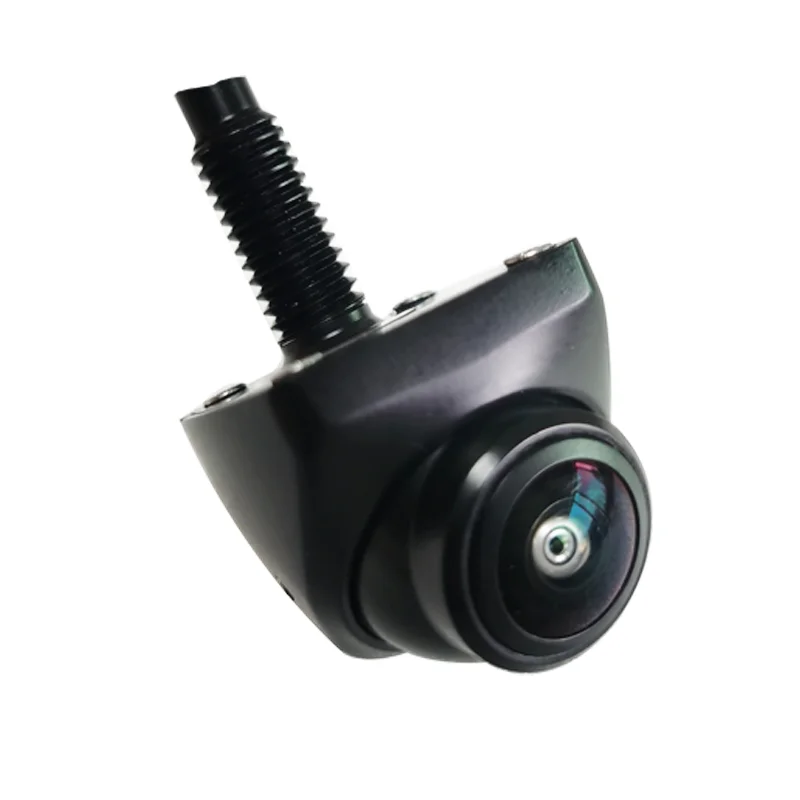

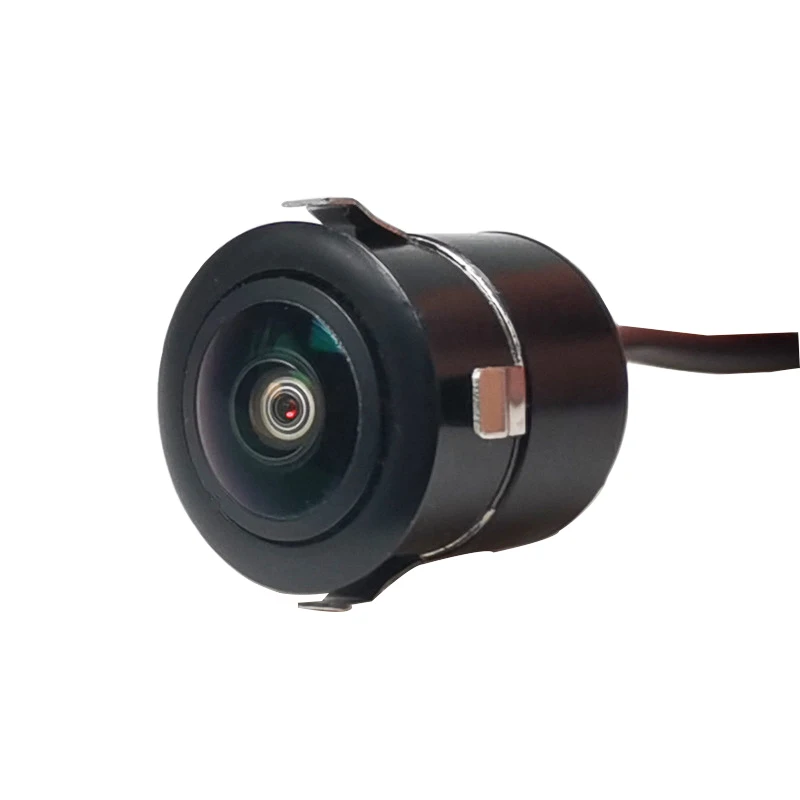

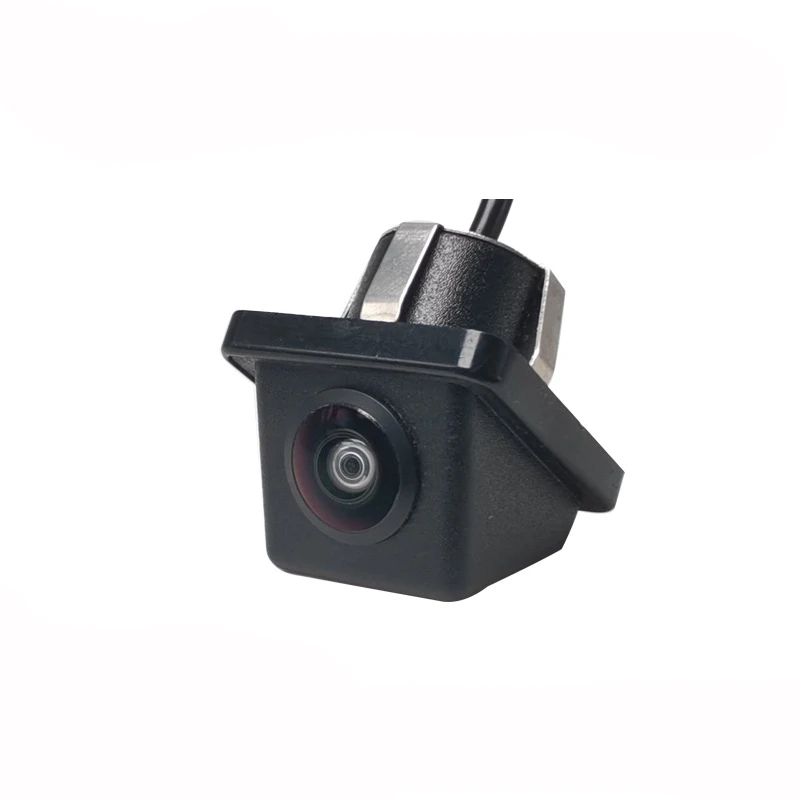

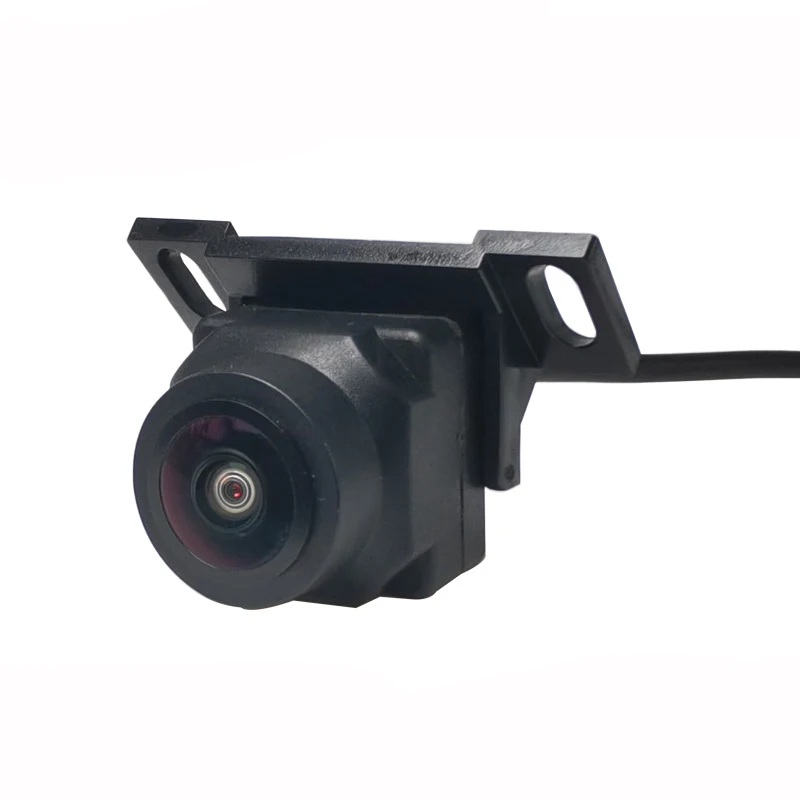

Hesida Car Rear Front Side View Camera Wide Angle 360 Degree Rotatable Resolution 1280x720 Reverse Camera Night Vision Full HD
- Category: >>>
- Supplier: Shenzhen Hesida Electronics Ltd.
Share on (1600957991812):
Product Overview
Description
1. Worked with more than 10+ car plant .
2. Annual sales is more than 50 million US dollars for parking reverse aid,we supply car reverse aid product to all over the world.
3.Support Free customization logo.
4. Strong supply capacity,We have 12 production line.
5. Customized products function and housing. we private owned industied design team,including PCB,UI,products shap.
6. Woked with 20+ car dealer, 3000+ car showroom around the world.
2. Annual sales is more than 50 million US dollars for parking reverse aid,we supply car reverse aid product to all over the world.
3.Support Free customization logo.
4. Strong supply capacity,We have 12 production line.
5. Customized products function and housing. we private owned industied design team,including PCB,UI,products shap.
6. Woked with 20+ car dealer, 3000+ car showroom around the world.
Hesida Car Rear Front Side View Camera Wide Angle 360 Degree Rotatable Resolution 1280x720 Reverse Camera Night Vision Full HD
Multiple Sensor for you optional | ||||||||||
Image Sensor | Color PC7070(1/4) | Color MT 9V136(1/4) | Color FPX8341 (1/3) | Color PC3089K (1/3) | Color PC1058K(1/3) | |||||
TV System | PAL/NTSC | PAL/NTSC | PAL/NTSC | PAL/NTSC | PAL/NTSC | |||||
Effective Pixels | 640*40Pixels | 720*576 Pixels | 736*592 Pixels | 756*504 Pixels | 976*592 Pixels | |||||
Horizontal resolution | 420TVL | 480TVL | 480TVL | 500TVL | 600TVL | |||||
Effective image area | 3.63mm*2.73mm | 3.584mm*2.688mm | 4.732mm*3.57mm | 4.8mm*3.73mm | 4.88mm*3.67mm | |||||
Shutter speed | 1/60-1/5000 | 1/60-1/510000 | 1/60-1/510000 | 1/60-1/510000 | 1/60-1/510000 | |||||
Min Illumination | 0.1lUX/F=1.2(OLux with ON | 0.01lUX/F=1.2(OLux with ON | 0.01lUX/F=1.2(OLux with ON | 0.01lUX/F=1.2(OLux with ON | 0.01lUX/F=1.2(OLux with ON | |||||
Video output | 1.0vP-Pat 75 ohm | 1.0vP-Pat 75 ohm | 1.0vP-Pat 75 ohm | 1.0vP-Pat 75 ohm | 1.0vP-Pat 75 ohm | |||||
Power Supply | DC12V | DC12V | DC12V | DC12V | DC12V | |||||
Operating temperature | -30°C-70°C,RH 95% MAX | -30°C-70°C,RH 95% MAX | -40°C-85°C,RH 95% MAX | -40°C-85°C,RH 95% MAX | -40°C-85°C,RH 95% MAX | |||||
Storage temperature | -40°C-85°C,RH 95% MAX | -40°C-85°C,RH 95% MAX | -40°C-85°C,RH 95% MAX | -40°C-85°C,RH 95% MAX | -40°C-85°C,RH 95% MAX | |||||

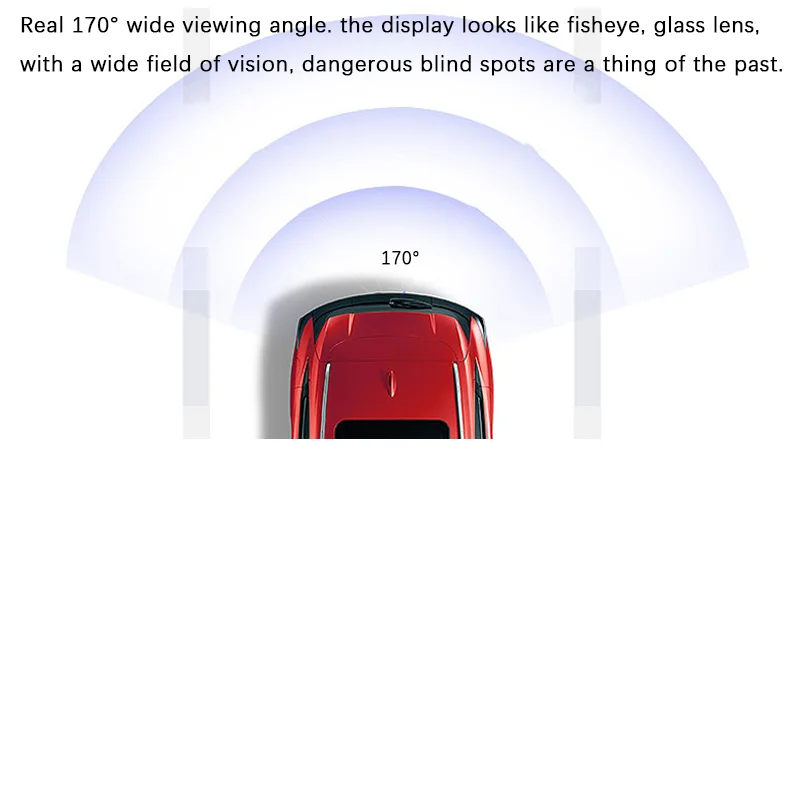

Lens angle | 170deree | 170deree | 170deree | 170deree | 170deree | |||||
Waterproof | IP68 | IP68 | IP68 | IP68 | IP68 | |||||
White Balance | Auto | Auto | Auto | Auto | Auto | |||||
Wide view angle AHD/CVBS/LVDS/TVI Car Camera:

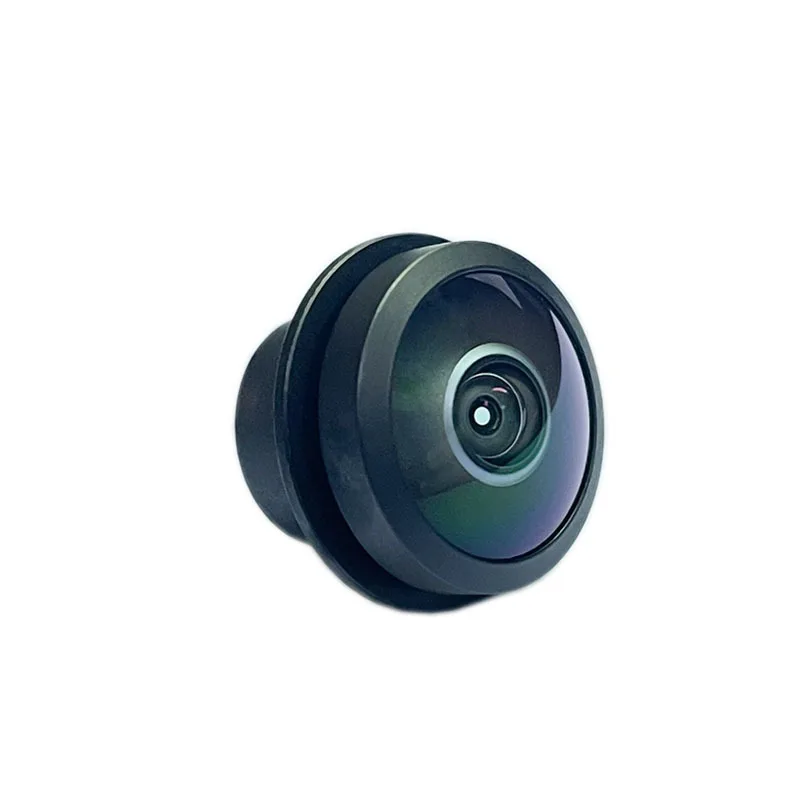

120~175degree optional ,we have different lens for you choose ;720p/1080p optional,the resolution is 1080*720p and 1920*1080p.
120~175degree optional ,we have different lens for you choose ;720p/1080p optional,the resolution is 1080*720p and 1920*1080p.
Support to Switch CVBS/AHD video signal:
This Car camera supports AHD and CVBS screen,you can choose the camera’s video signal according screen’s signal.The default set is AHD signal,you only cut the the brown loop wire when you want CVBS video signal and reboot the power supply.

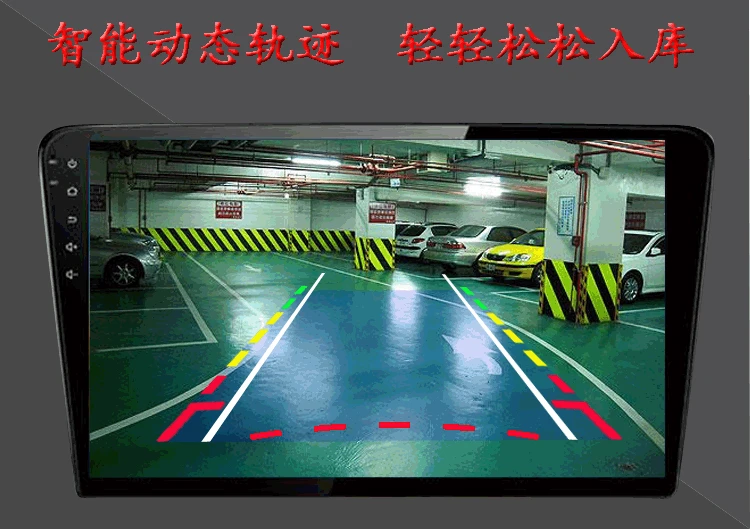

Switch parking line on and off:
The default set have parking line,please cut the green loop wire when you don't want the parking line,then reboot the power supply.
Switch mirror iamge and erect iamge.
The default set is mirror image (for rear view) ,please cut the white loop wire when you want erect image (for front view),then reboot the power supply.
This Car camera supports AHD and CVBS screen,you can choose the camera’s video signal according screen’s signal.The default set is AHD signal,you only cut the the brown loop wire when you want CVBS video signal and reboot the power supply.
Switch parking line on and off:
The default set have parking line,please cut the green loop wire when you don't want the parking line,then reboot the power supply.
Switch mirror iamge and erect iamge.
The default set is mirror image (for rear view) ,please cut the white loop wire when you want erect image (for front view),then reboot the power supply.

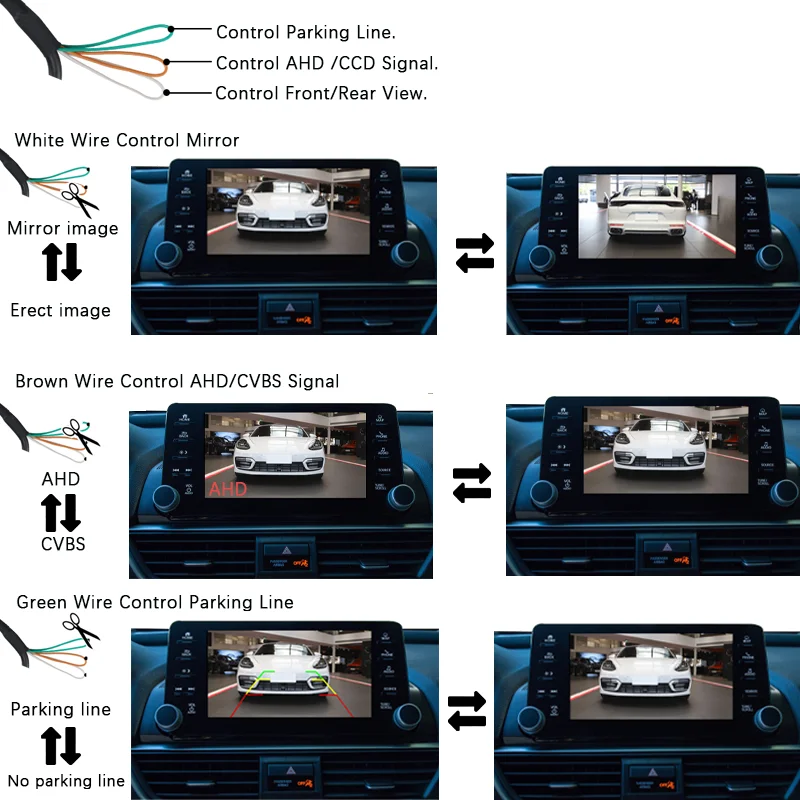

3Wires to Control Parking line,AHD/CVBS,Rear/front view
Support waterproof IP68
Adopting precise glue filling technology and undergoing strict water bubble and vibration testing, it can work normally even in complex weather and road conditions
Installation

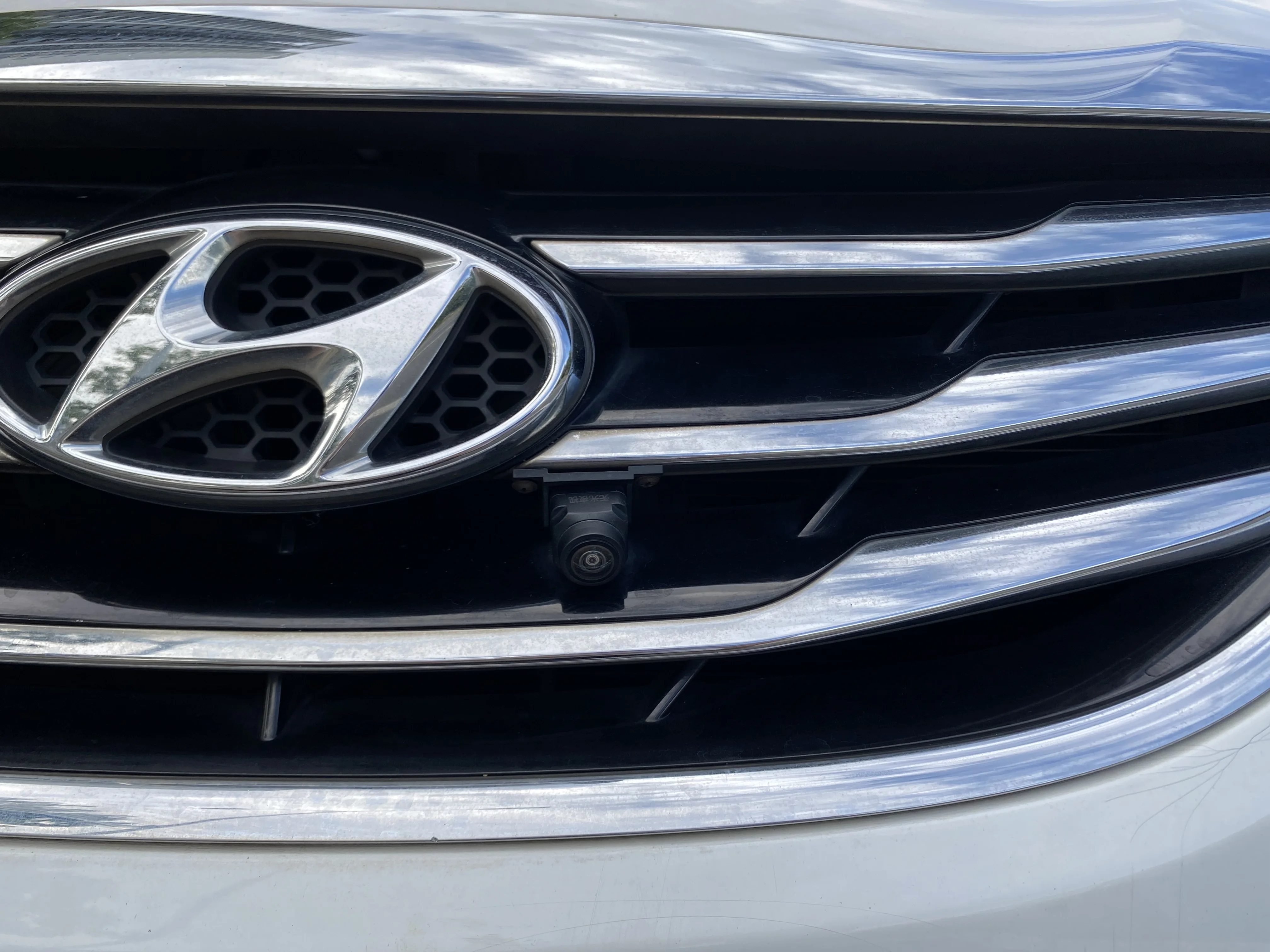

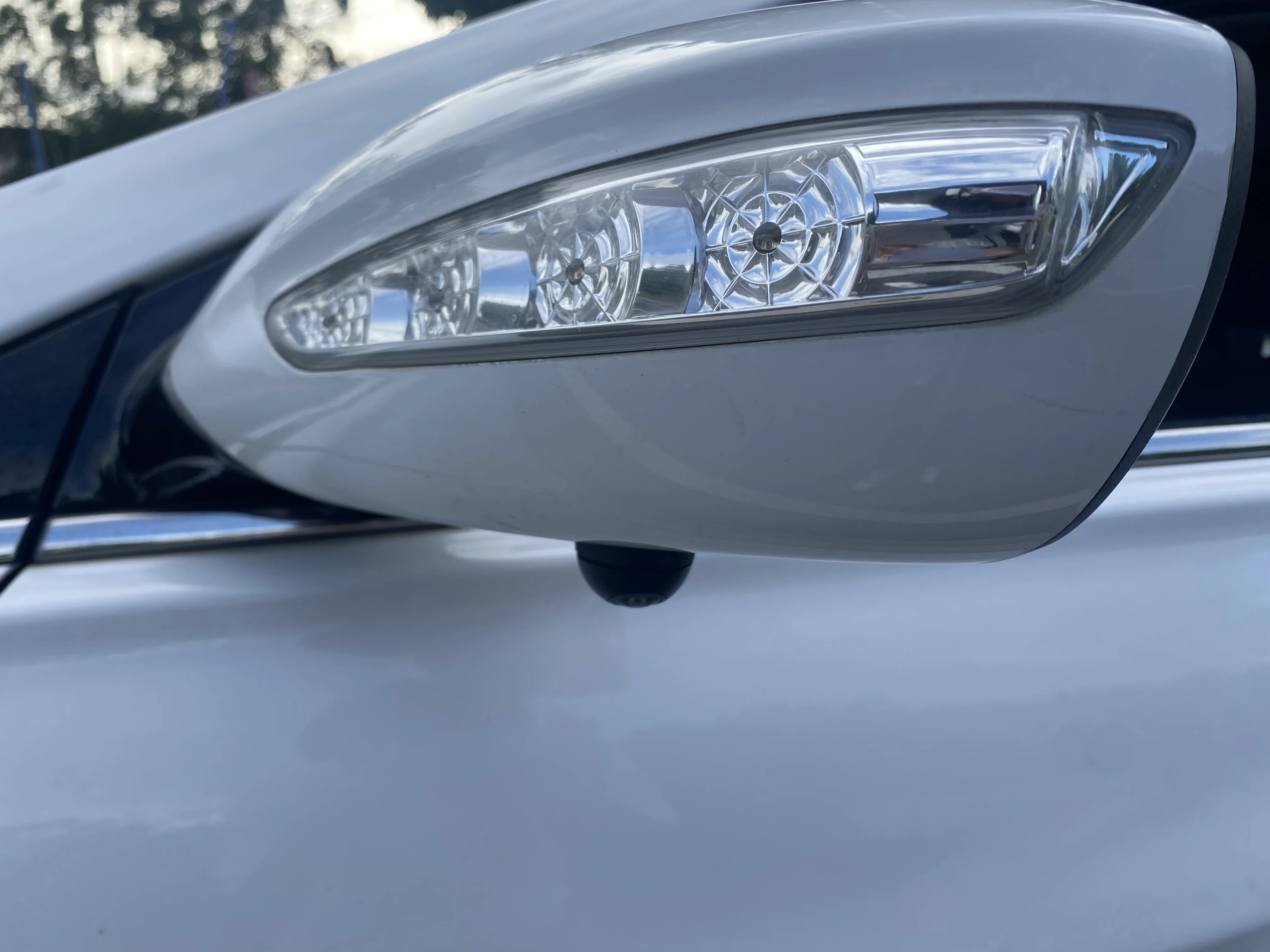

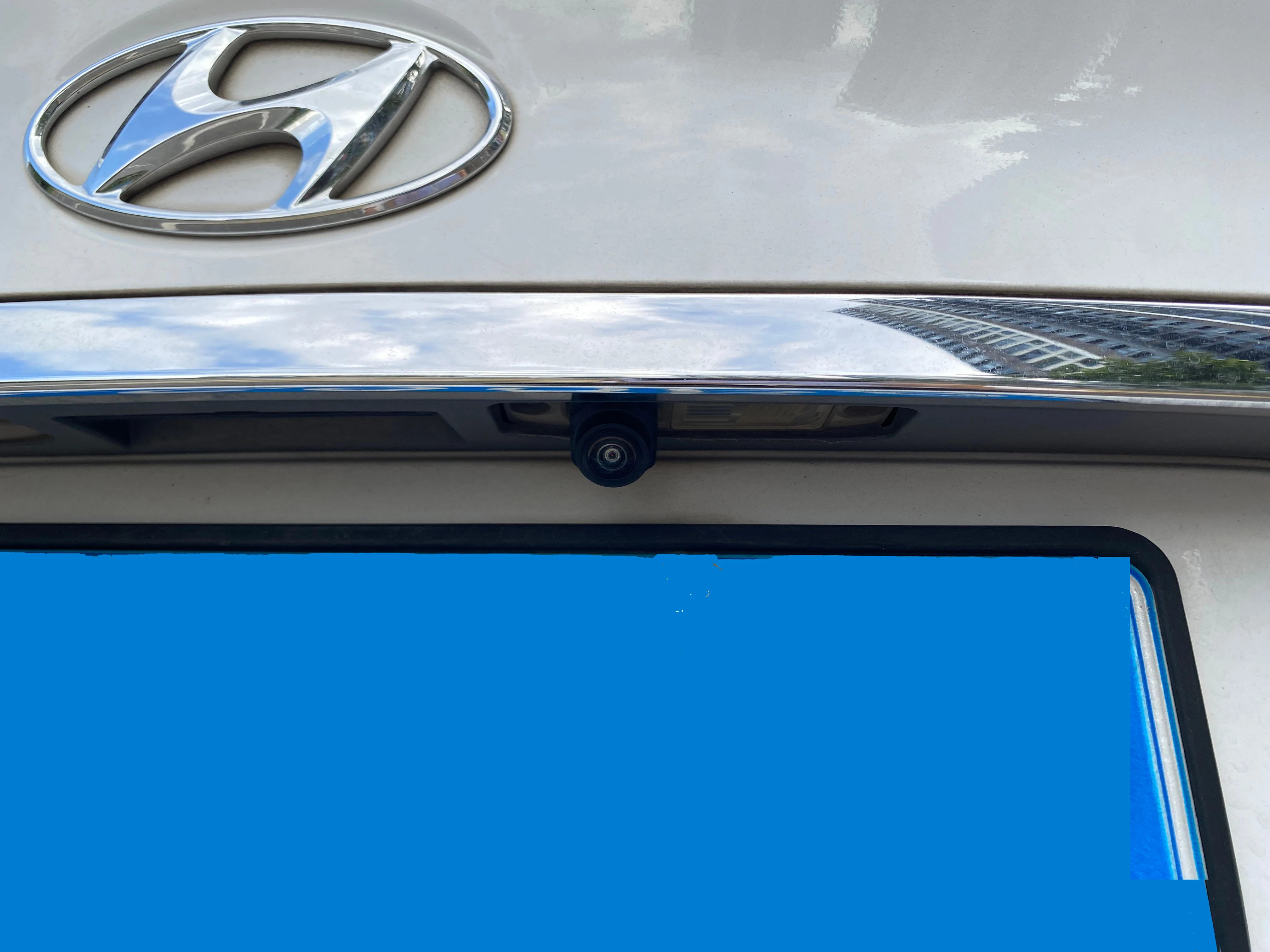

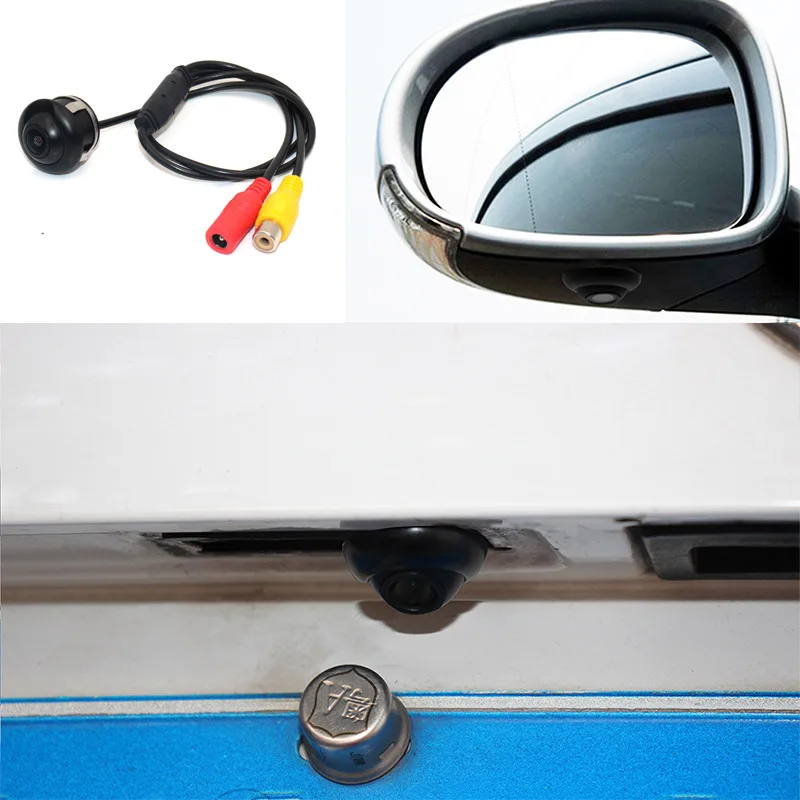

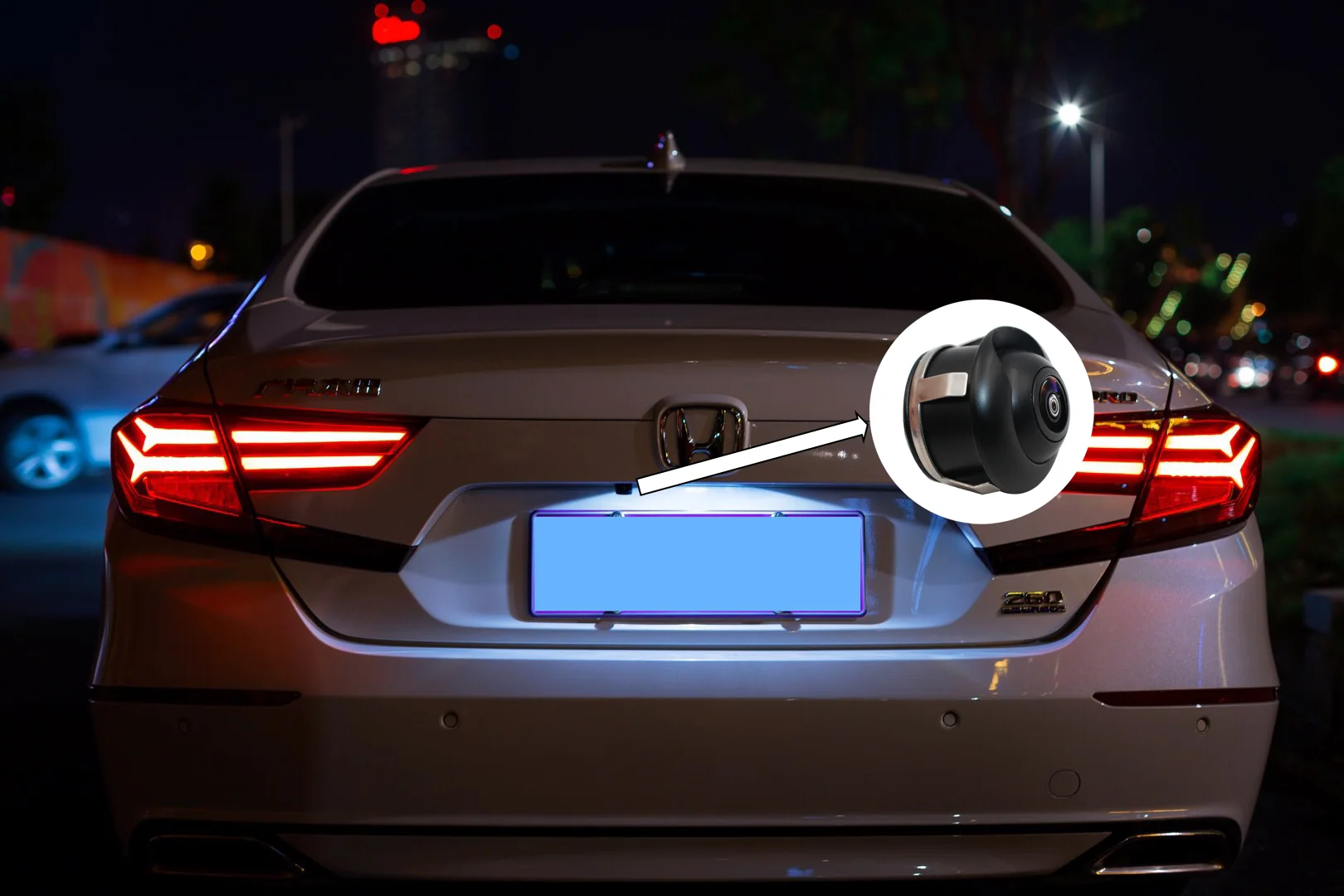

Supports various installation locations

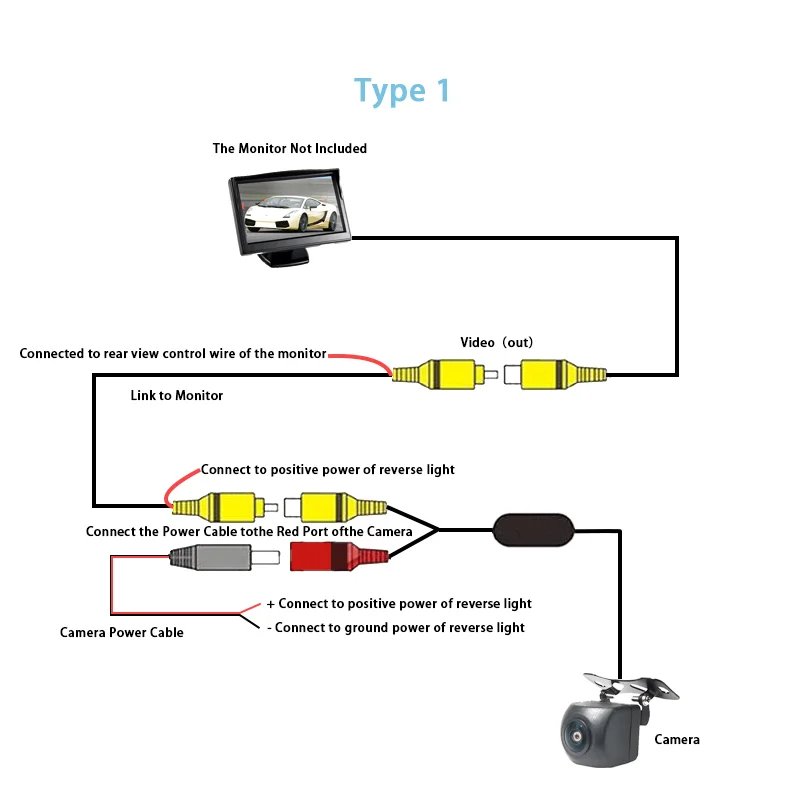

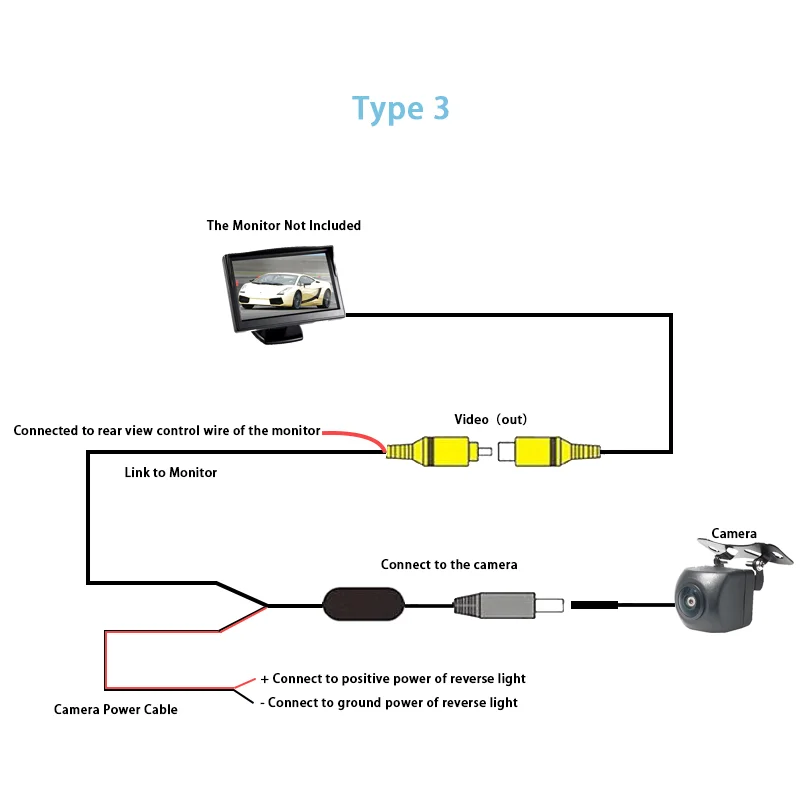

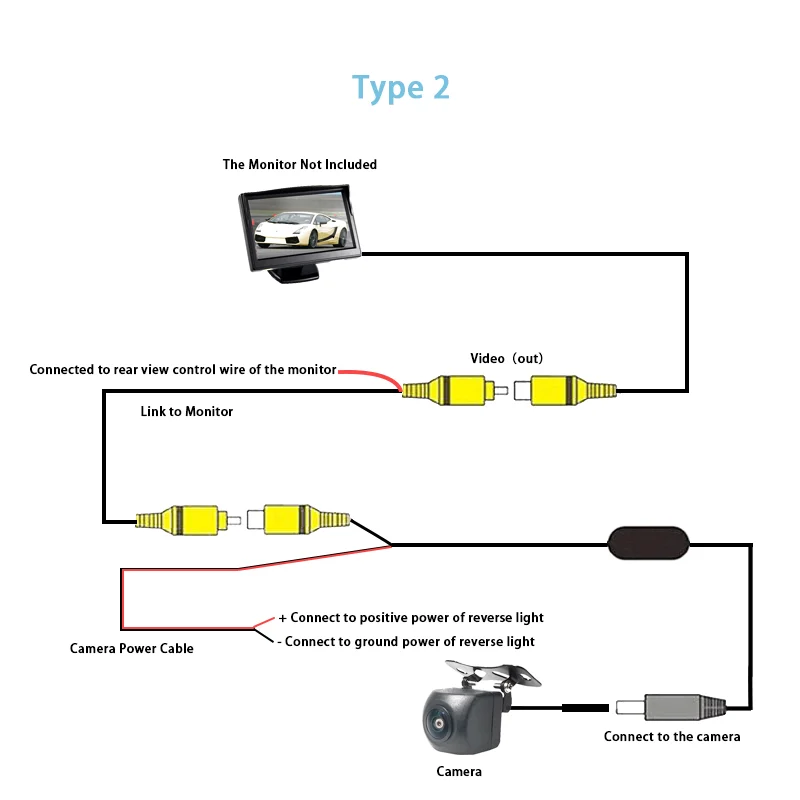

Installation method

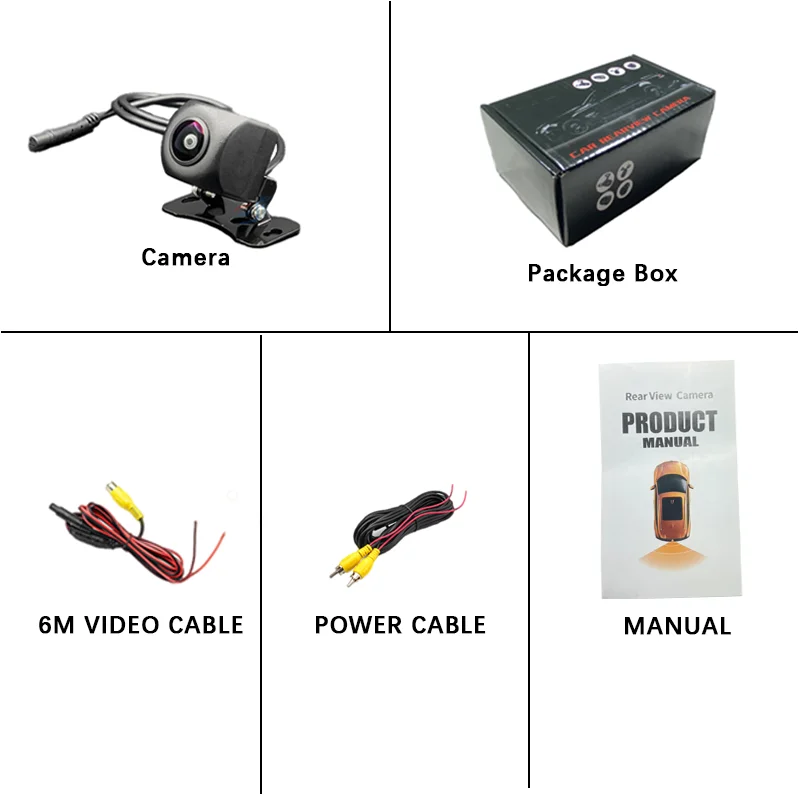

Packing & Delivery
Recommend Products
Company Profile

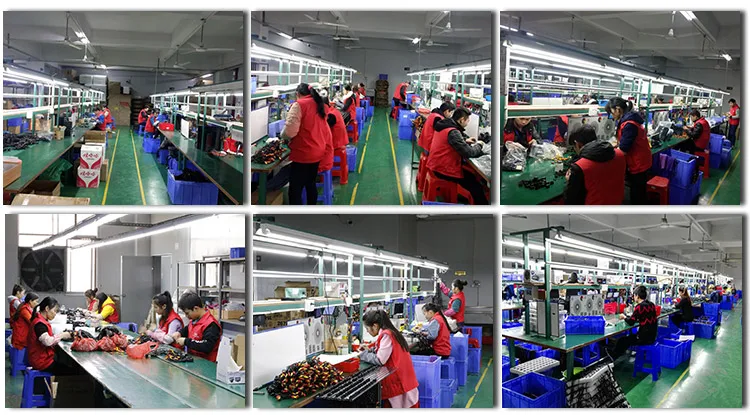

Shenzhen Hesida Electronics Co.,Ltd was founded in 2006, We are specialized in the developing, designing and manufacturing of Auto Electronics ,Such as car camera,parking sensor system, car mointor ,DVR. We have 12+ production lines/3000+㎡ factory area and innovative technology Experienced R&D team &10+ ready engineers. Our talented engineers & skilled workers have more than 15 years of design & manufacturing experience, which ensures our products always in high quality & most reliability.
As a professional auto electronics manufacturer, we have competitive supply chain ,industry -leading high precision automation equipment and production process, we will support our customer to open the Auto electronics market base on our mature technology and complete production line. We can also provide OEM/ODM service:LOGO，Packaging design and customization services,our professional development team to create your brand and value.
In the last ten years, We have supplied our products to Nissan, Citroen, LADA,BRP car plant.Annual sales is more than 50 million US dollars. In 2014, we become the supplier of Best Buy in USA.
As a professional auto electronics manufacturer, we have competitive supply chain ,industry -leading high precision automation equipment and production process, we will support our customer to open the Auto electronics market base on our mature technology and complete production line. We can also provide OEM/ODM service:LOGO，Packaging design and customization services,our professional development team to create your brand and value.
In the last ten years, We have supplied our products to Nissan, Citroen, LADA,BRP car plant.Annual sales is more than 50 million US dollars. In 2014, we become the supplier of Best Buy in USA.
In future,We concentrate more on developing innovative products to meet our customer needs.
Our Services
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
FAQ
Q1 Why Choose us?
A1: We have several engineers with more than ten years of design experience, and have skilled production
technology and quality.
technology and quality.
Q2 Are the machines sold by the company designed and produced by ourselves?
A2: Yes, we design, produce
and sell them ourselves.
and sell them ourselves.
Q3 What's the payment terms you accept?
A3: We accept many payment terms: T/T(30% deposit. 70% before
shipment). Trade Assurance. 100%-T in advance.
shipment). Trade Assurance. 100%-T in advance.
Q4 About delivery time?
A4: Goods mostly in stock, delivery time is normally 3-10
working days, which depends on models and quantity.
working days, which depends on models and quantity.
Q5 How about the shipping?
A5: We do provide international Express door-to
door, Airline and Ocean transportation: your can choose the shipping way you prefer, and different shipping way have different shipping cost.
door, Airline and Ocean transportation: your can choose the shipping way you prefer, and different shipping way have different shipping cost.
