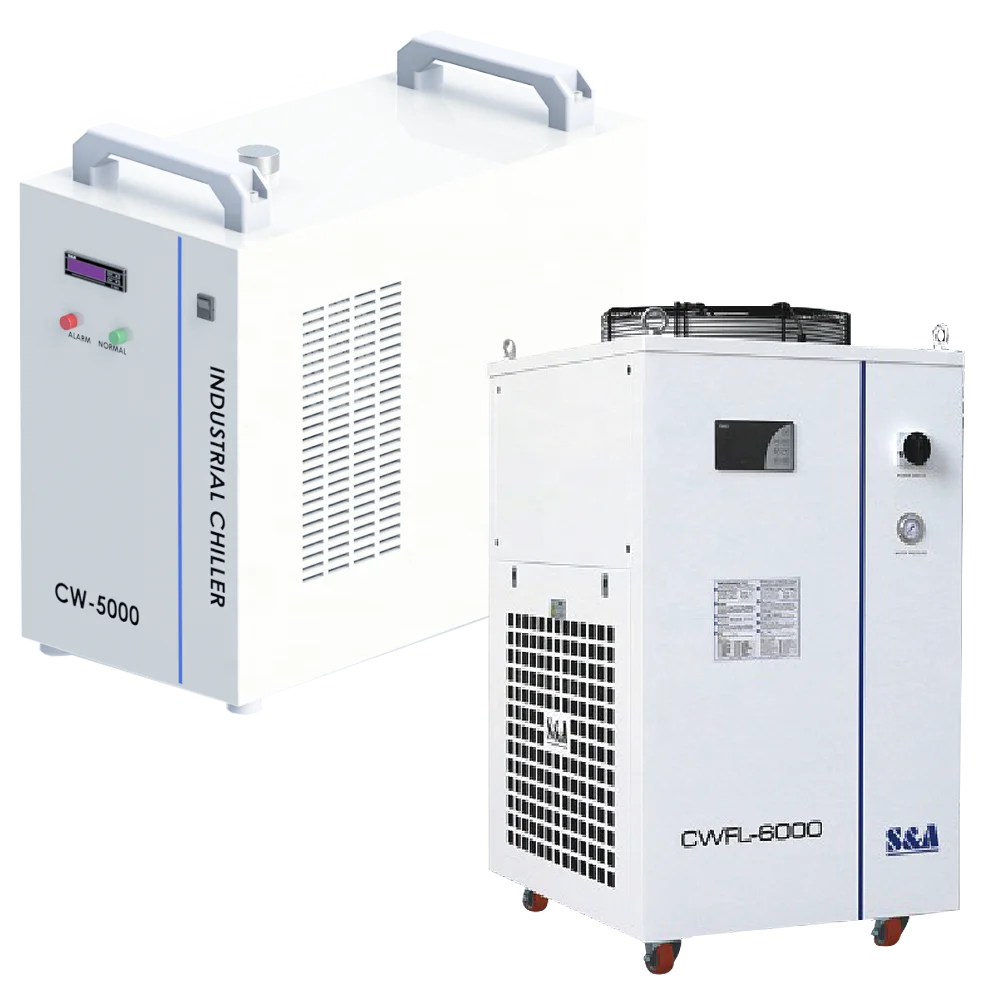

Yongli industrial 220v guangzhou S&A CW3000 cw5200 mini air cooled water chiller
- Category: >>>
- Supplier: Jilin Yongli Laser Technology Co. Ltd.
Share on (1600958002497):
Product Overview
Description

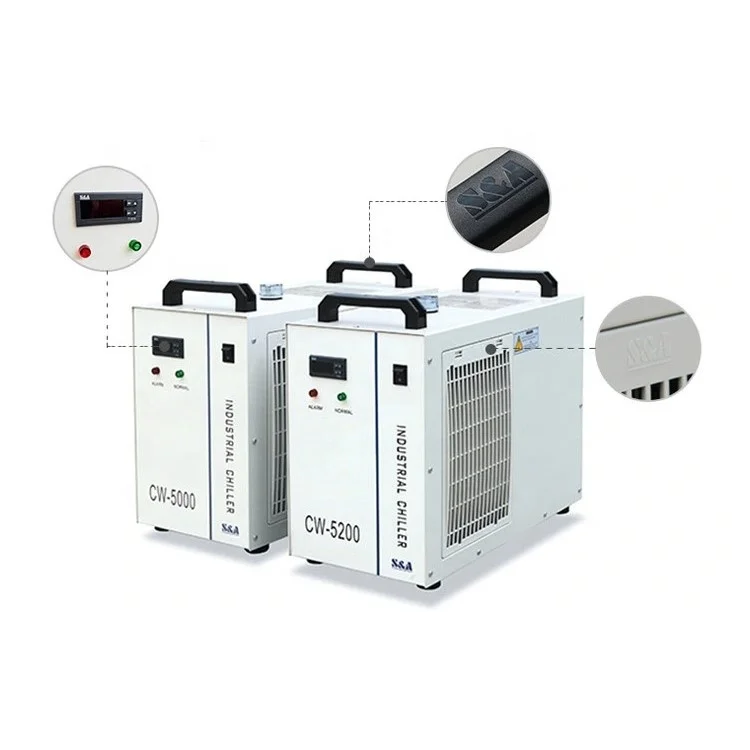

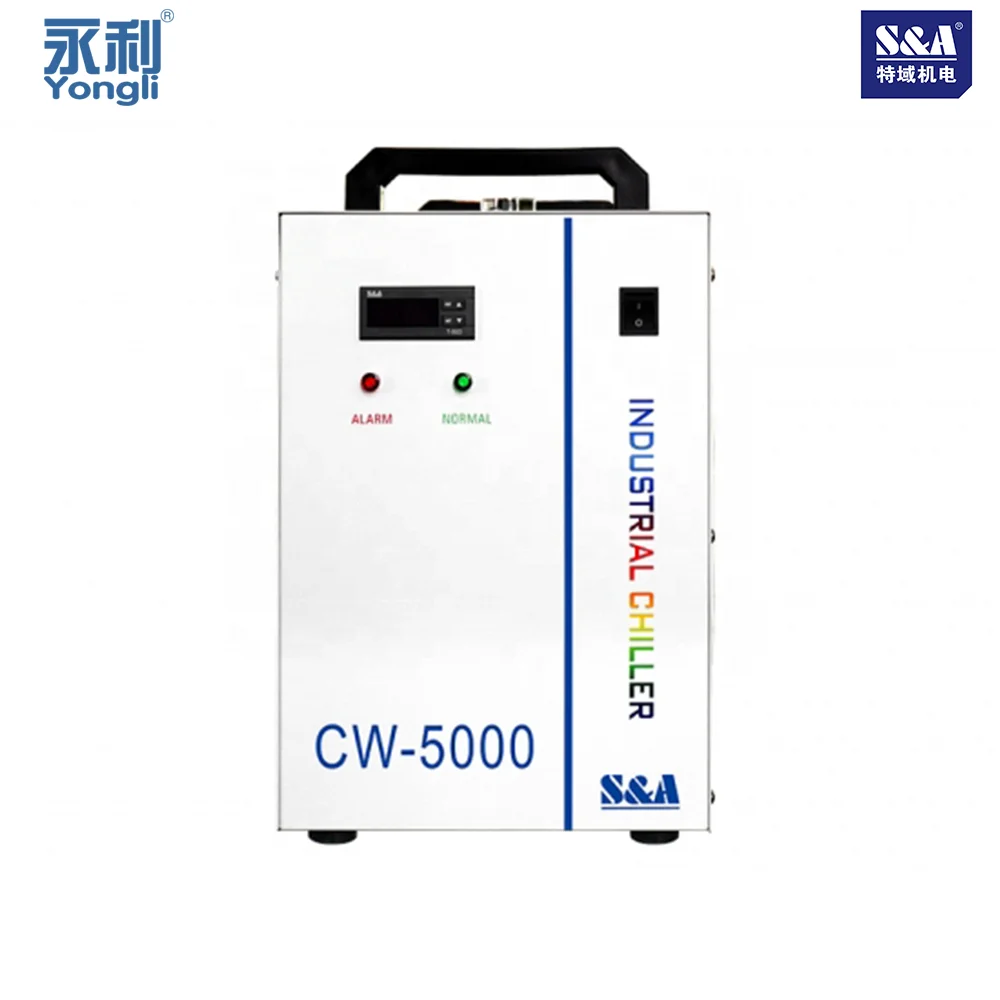

Yongli industrial 220v guangzhou S&A CW3000 cw5200 mini air cooled water chiller
Product Description
With water chiller CW 5200, your CO2 laser can be properly cooled. Up to 130W DC CO2 laser or 60W RF CO2 laser, this mini water chiller unit can offer highly reliable cooling. It has temperature stability of ±0.3°C as well as cooling capacity up to 1400W. With compact design, CW 5200 chiller takes up less floor space for CO2 laser cutter engraver users. Multiple choices of pumps are available and the whole chiller system conforms to CE, RoHS and REACH standards. Heater is optional to help rising water temperature quickly in winter. UL certified version is available.
Product Details

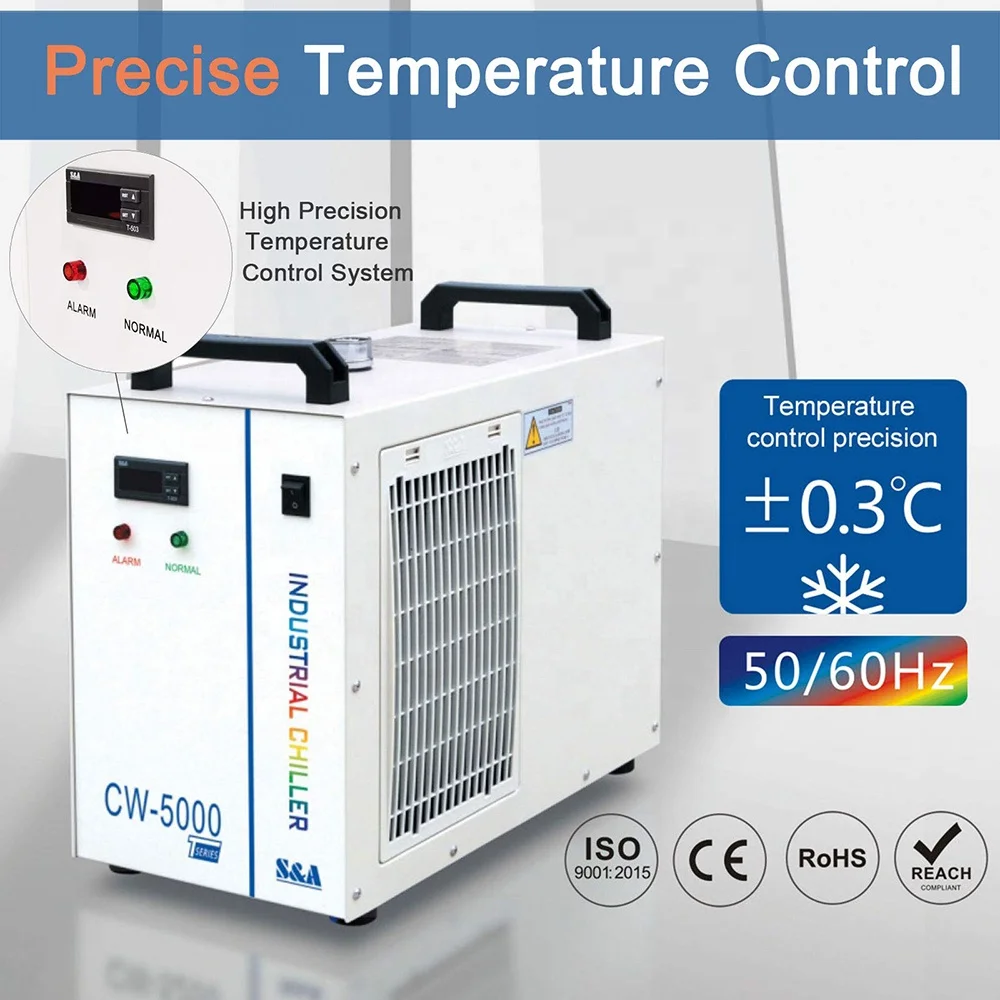

User-friendly control panel
The temperature controller of cw 5000 water chiller offers high precision temperature control of ±0.3°C and two user-adjustable temperature control modes -constant temperature mode and intelligent control mode.

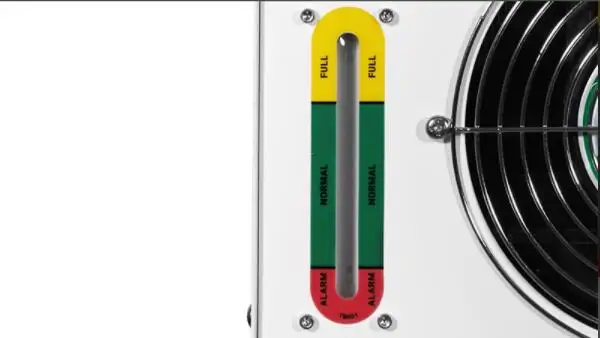

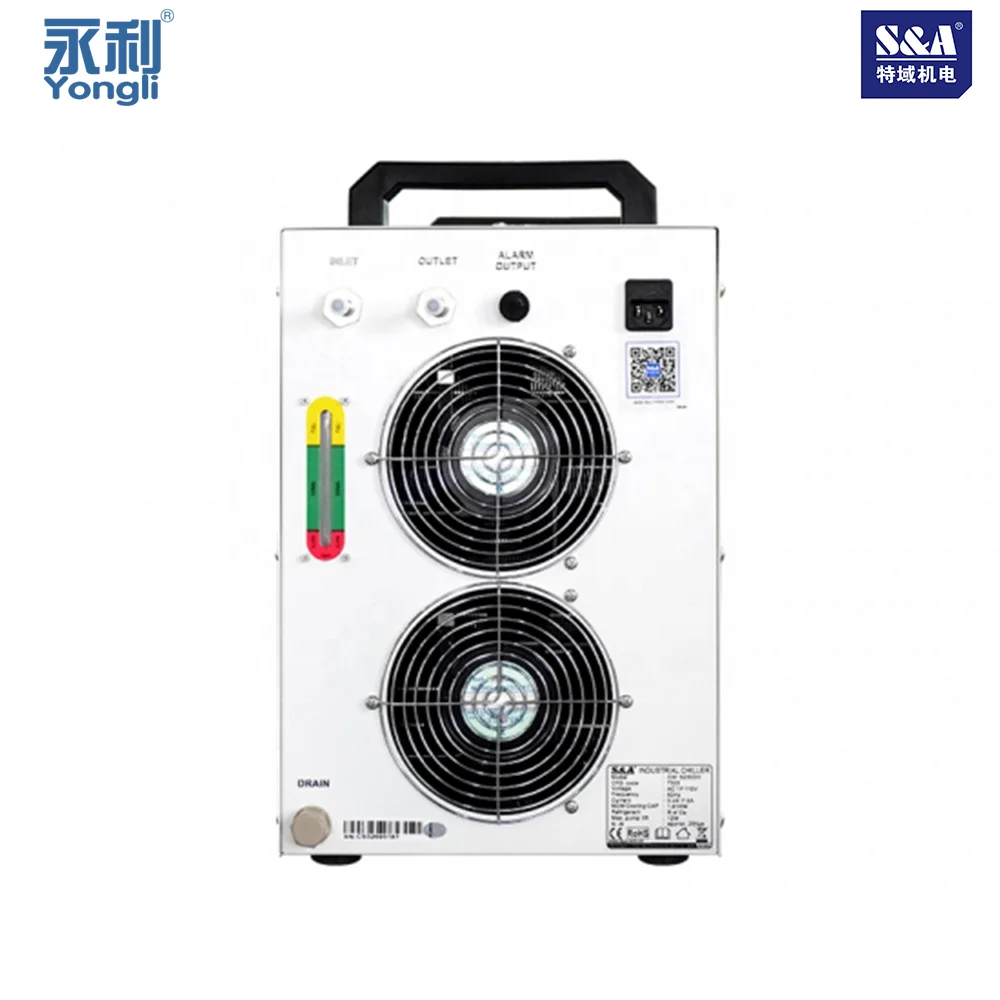

The chiller water level indicator has 3 color areas - yellow, green and red.
Yellow area - high water level.
Green area - normal water level.
Red area - low water level.
Yellow area - high water level.
Green area - normal water level.
Red area - low water level.

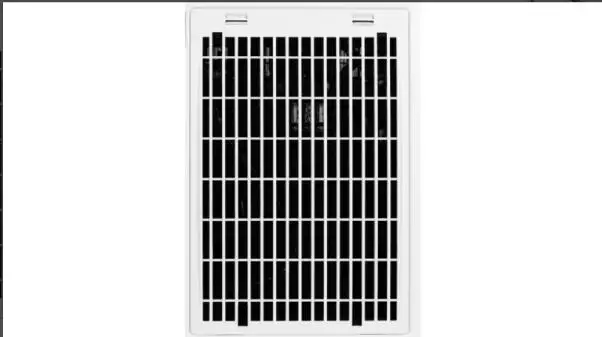

Integrated with the grill of the side panels, easy mounting and removal.
Technical Parameters
Model | CW-5200TH | CW-5200DH | CW-5000 TI | CW-5000DI | ||||
Voltage | AC 1P 220V | AC 1P 110V | AC 1P 220V | AC 1P 110V | ||||
Frequency | 50/60Hz | 60Hz | 50/60Hz | 60Hz | ||||
Current | 0.5~4.6A | 0.5~8.9A | 0.8~5.8A | 0.8~9.2A | ||||
Machine power | 0.74/0.82kW | 0.77kW | 0.77/0.86kW | 0.82kW | ||||
Compressor power | 0.6/0.62kW | 0.66kW | 0.82/0.95kW | 0.66kW | ||||
0.82/0.84HP | 0.9HP | 0.5/0.53HP | 0.9HP | |||||
Nominal cooling capacity | 6040/7303Btu/h | 5699Btu/h | 6040/7098Btu/h | 5699Btu/h | ||||
1.77/2.14kW | 1.67kW | 1.77/2.08kW | 1.67kW | |||||
1521/1839Kcal/h | 1435Kcal/h | 1521/1788Kcal/h | 1435Kcal/h | |||||
Refrigerant charge | 370g | 330g | 420g | 330g | ||||
Pump power | 0.05kW | 0.1kW | ||||||
Max. lift | 12m | 25M | ||||||
Max.flow | 13L/min | 16L/min | ||||||
N.W. | 26kgs | 23Kgs | 27Kgs | 26Kgs | ||||
G.W. | 29kgs | 26Kgs | 30Kgs | 29Kgs | ||||
Refrigerant | R-407C | R-410a | R-407c | R-410a | ||||
Precision | ±0.3℃ | |||||||
Reducer | Capillary | |||||||
Tank capacity | 6L | |||||||
Inlet and outlet | OD 10MM barbed connector | 10mm fast connector | ||||||
Dimension | 58*29*47cm | 58 X 29 X 54cm | 63 X 29 X 54cm | |||||
Package Dimension | 65*39*56cm | 65 X 39 X 62cm | 68 X 42 X 56cm | |||||
The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product. | ||||||||

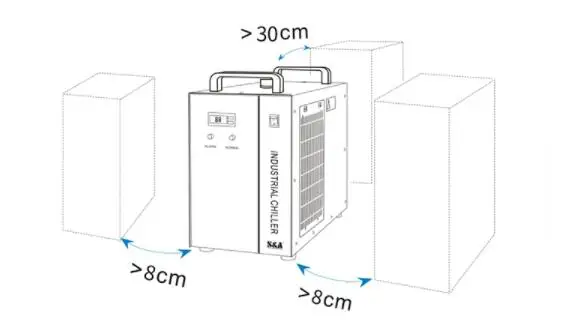

Ventilation Distance |

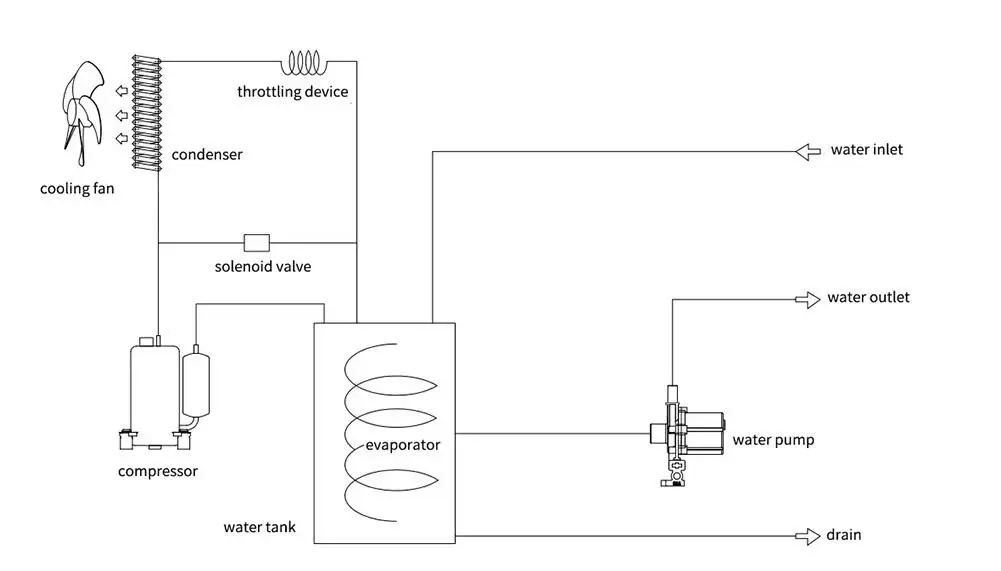

Product Working Principle |
Application

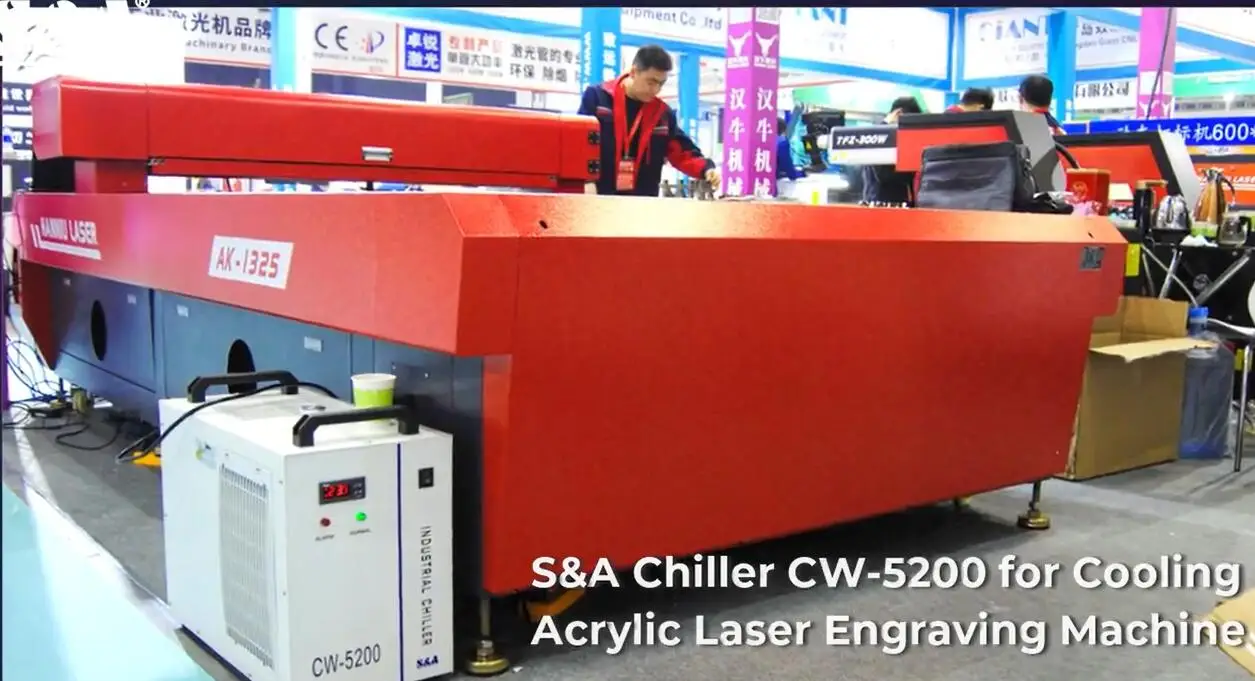

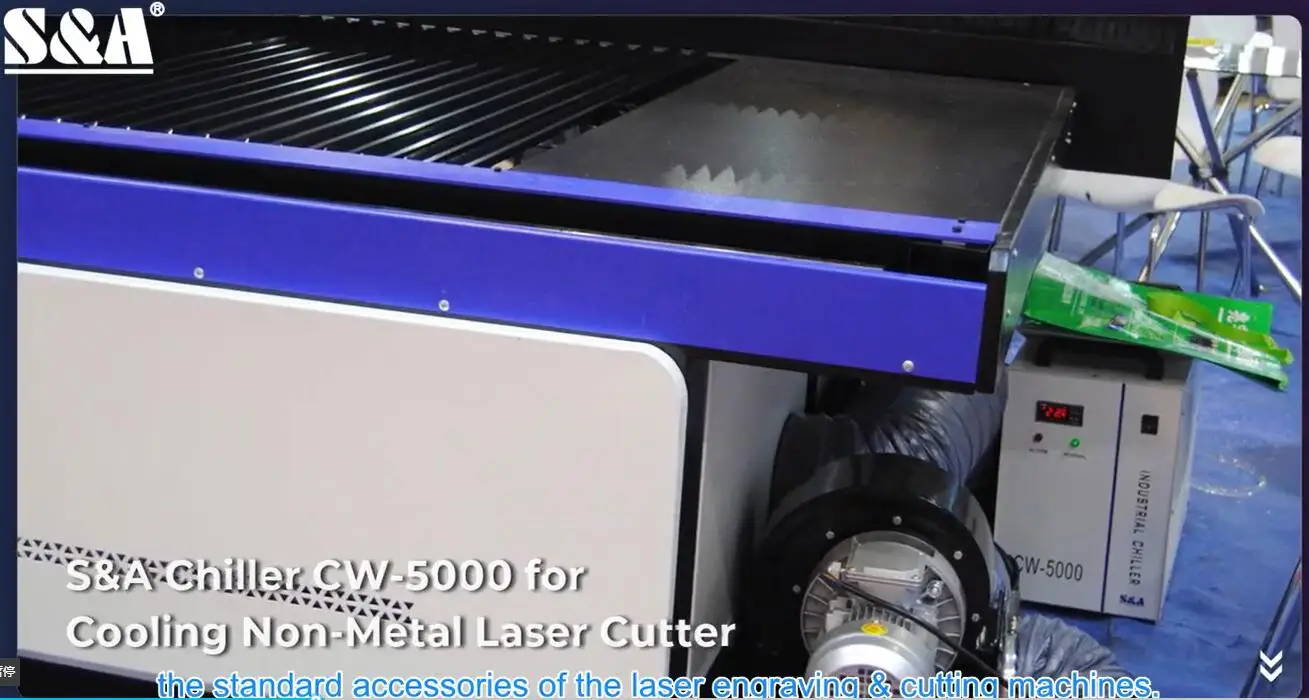

Industrial water chiller: suitable for cooling CO2 laser, YAG laser, laser diode and so on
1.industrial water Chiller for Fiber Laser Cutting Machine
2.industrial Water Chiller for UV Laser marking machine
3.industrial Water Chiller for Laser Cutting Machine

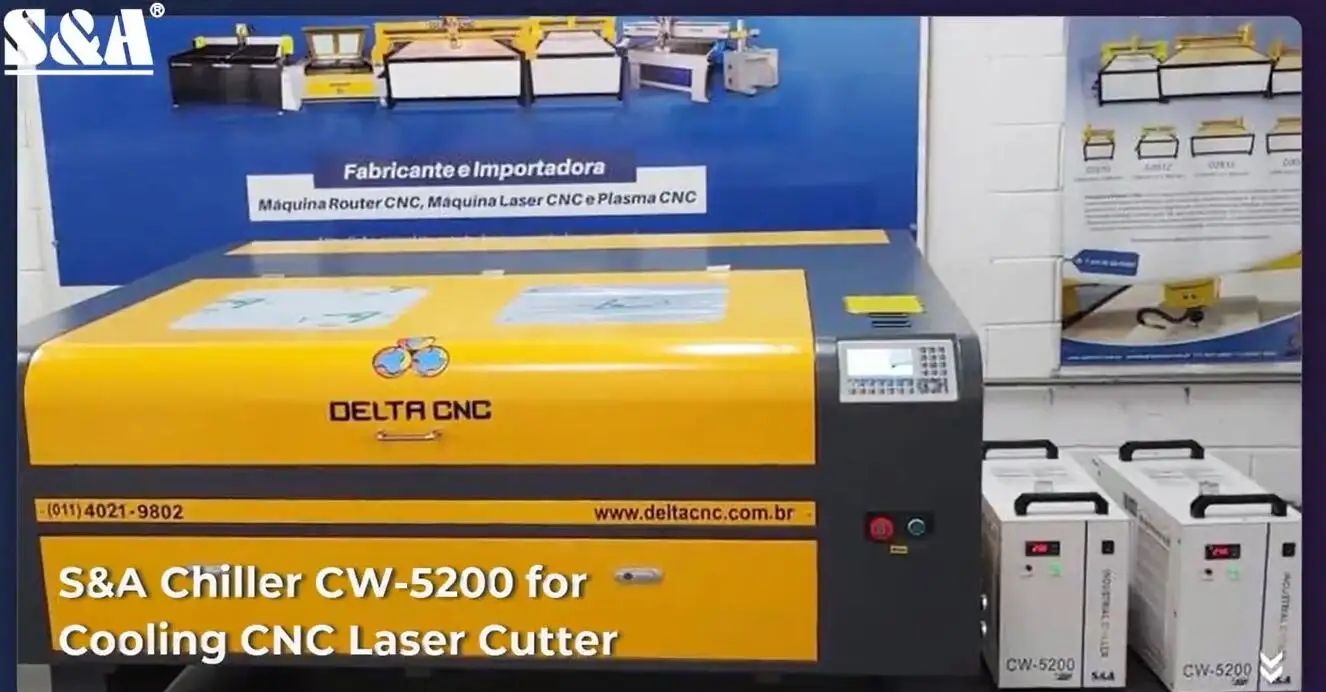

4.industrial Water Chiller for CO2 Laser Tube
5.industrial Water Chiller for CO2 Laser engraver
6.industrial Water Chiller for Co2 Laser Cutter
Packing&Shipping

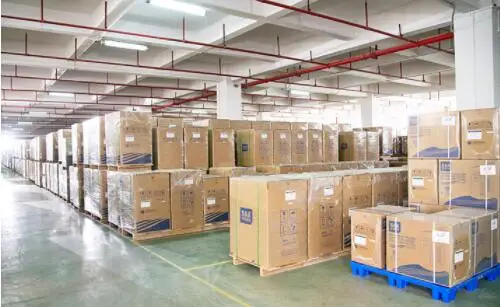

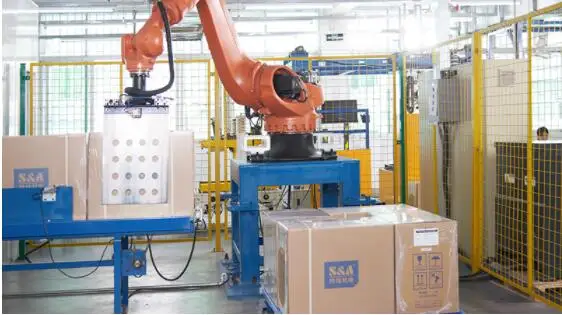

Package
Every S&A CO2 laser chillers we deliver to our clients is well packed in durable materials that can protect the chiller from
moisture and dust during the long-distance transportation so that it stays intact and in perfect condition when it arrives to the clients' places.
Shipping
We can offer delivery by express, air and sea. Different delivery time,and different cost.
For the express: 5~7 working days to North America, Asia,Europe. 7~9 working days to South America, and Africa.
Recommend Products
Company Profile
FAQ
What is the recommended water used in the industrial water chiller? |
The ideal water should be deionised water, distilled water or purified water. |
How often should I change out the water? |
Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter. |
What is the ideal room temperature for the chiller? |
The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C. |
How to prevent my chiller from freezing? |
For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team (techsupport@teyu.com.cn) first. |
