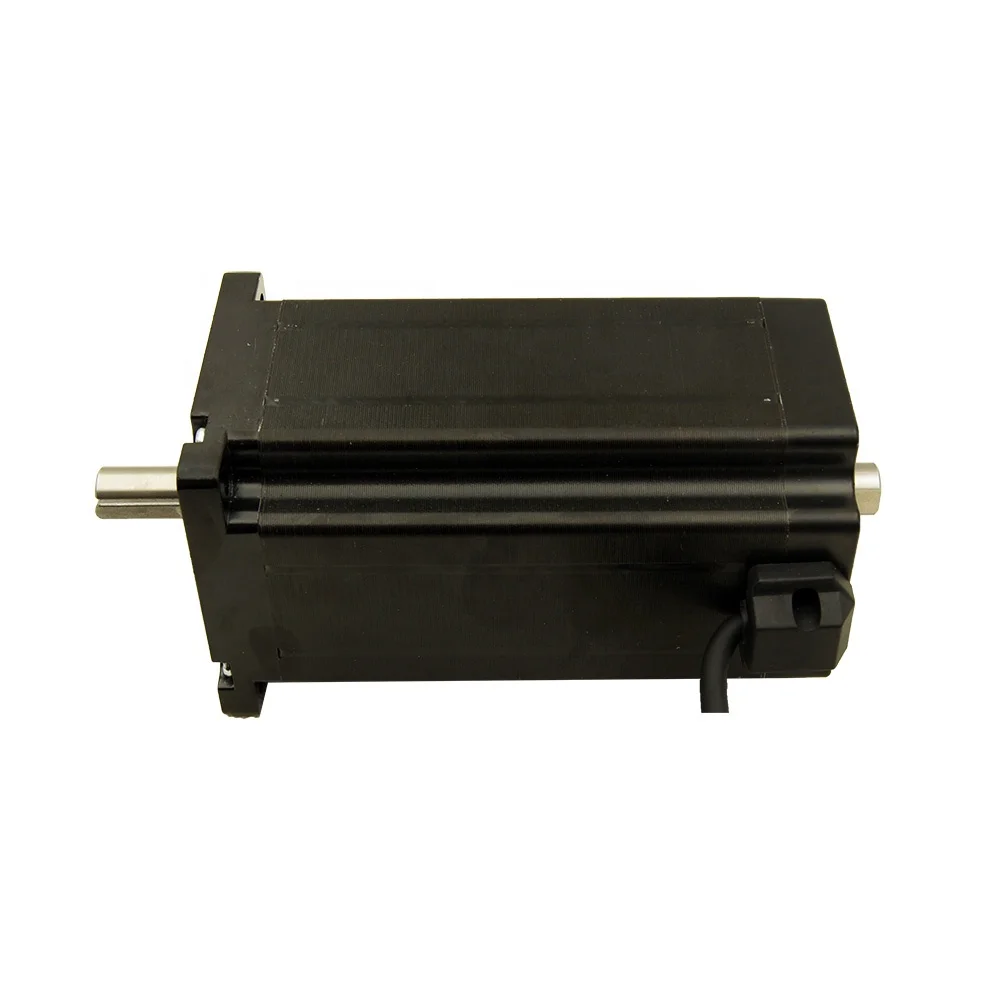

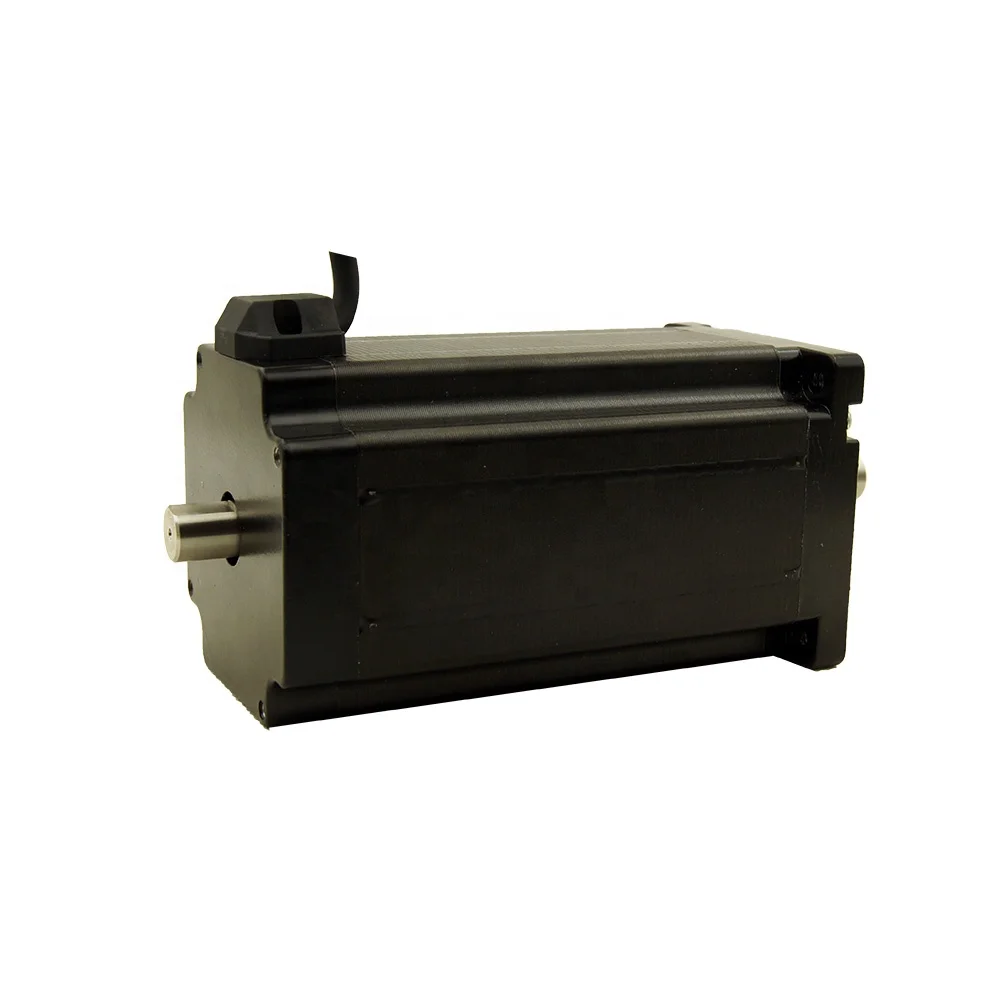

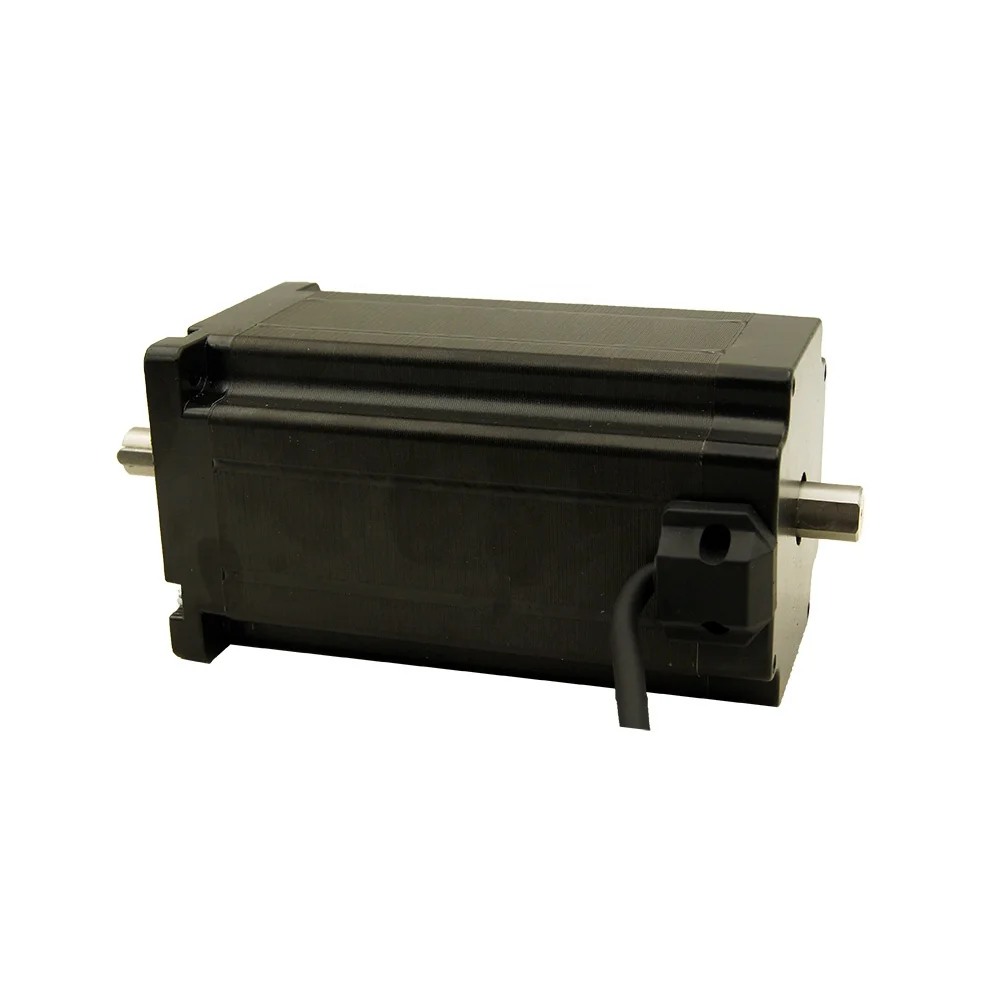

Dual shaft diameter 14mm Frame 86mm High torque 12NM Length 156mm 120KGCM Nema 34 Stepper Motor
- Category: >>>
- Supplier: Shenzhen Jingbo Mechanical & Electrical Co. Ltd.
Share on (1600958083754):
Product Overview
Description
If you need 3D model of the motor, please give us your email address and we will email you it.
General specifications
Step Angle (°) | 1.8° |
Step Angle Accuracy | 5% |
Temperature Rise | MAX 80°C |
Use Environment | Temperature: -20~+50°C; Humidity: 85% MAX |
Insulation Class | B |
Insulation Resistance | MIN 100 MΩ, 500VDC |
Withstand Voltage | 500V AC, 1minute |
Shaft Radial Deviation | 0.02mm MAX (load 5N) |
Shaft Axial Deviation | 0.08mm MAX (load 10N) |
Radial Maximum Load | 75N(At 10mm from the flange) |
Axial Maximum Load | Motor weight |

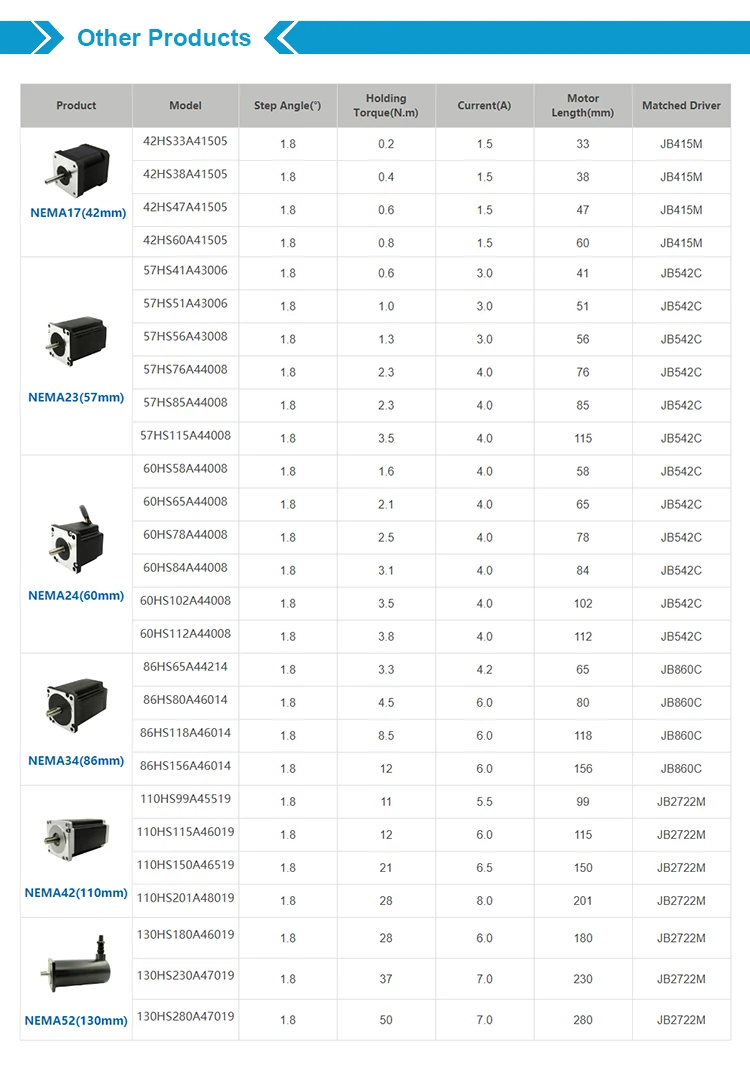

Specifications
Model | Length L(mm) | Holding Torque (N.m) | Current (A/Phase) | Resistance (Ω) | Inductance (mH) | Rotor inertia (g.cm2) | Shaft diameter (D:mm) | Weight (kg) | Matched driver | |
Single shaft | Dual shaft | |||||||||
86HS65A44209 |
| 65 | 3.3 | 4.2 | 1.4 | 3.9 | 1000 | 9.5 | 1.7 | JB860C JB2522M |
86HS65A44213 |
| 12.7 | ||||||||
86HS65A44214 | 86HS65B44214 | 14 | ||||||||
86HS80A46013 |
| 80 | 4.5 | 6.0 | 0.8 | 3.4 | 1400 | 12.7 | 2.3 | |
86HS80A46014 | 86HS80B46014 | 14 | ||||||||
86HS118A46013 |
| 118 | 8.5 | 6.0 | 1.2 | 6.0 | 2700 | 12.7 | 3.8 | |
86HS118A46014 | 86HS118B46014 | 14 | ||||||||
86HS156A46013 |
| 156 | 12 | 6.0 | 1.25 | 8.0 | 4000 | 12.7 | 5.4 | |
86HS156A46014 | 86HS156B46014 | 14 | ||||||||
Only the representation of the products, we can design according to clients’ requirement

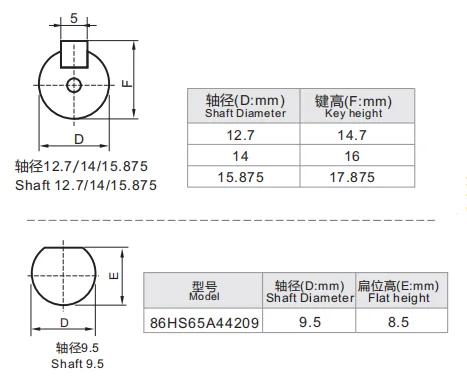

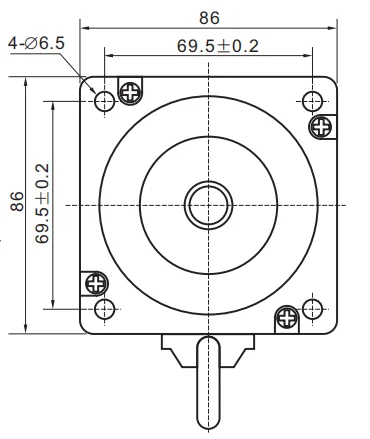

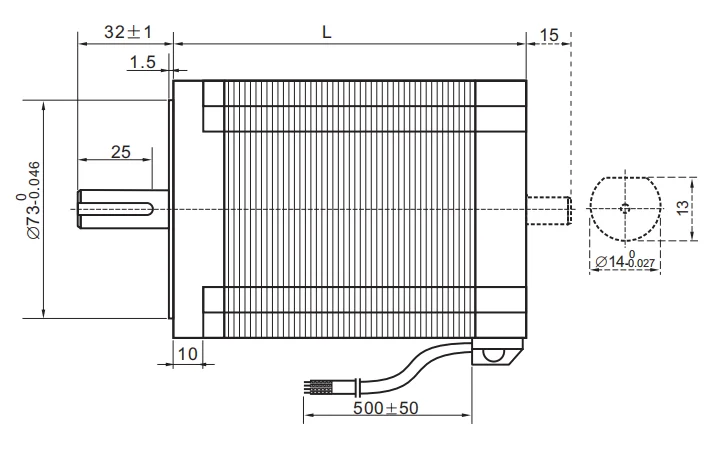

Dimension unit:mm

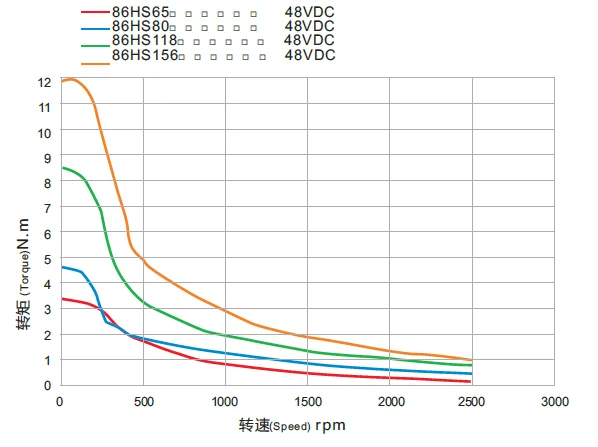

Frequency-torque characteristics

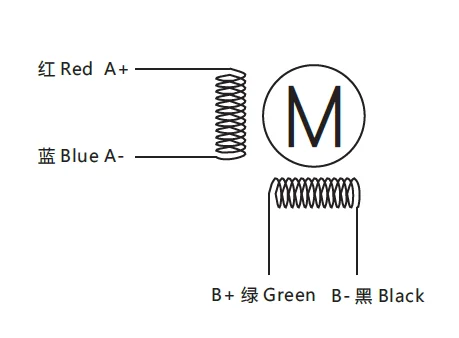

Wiring Diagram
Note:
When installing the motor, be sure to fix the position by using the front end cover of motor, and pay attention to the tolerance, strictly guarantee the concentricity of the motor shaft and the load.
