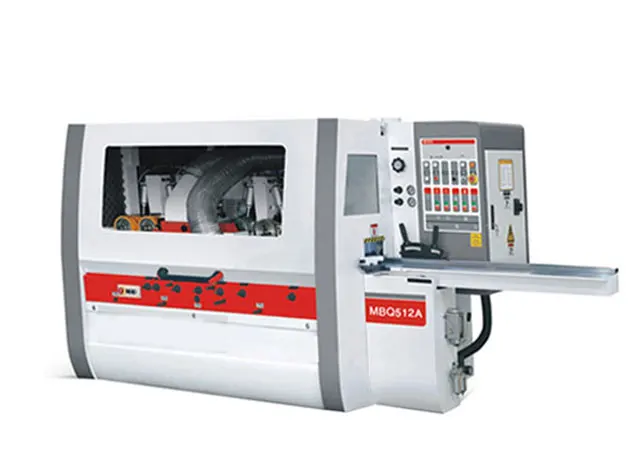

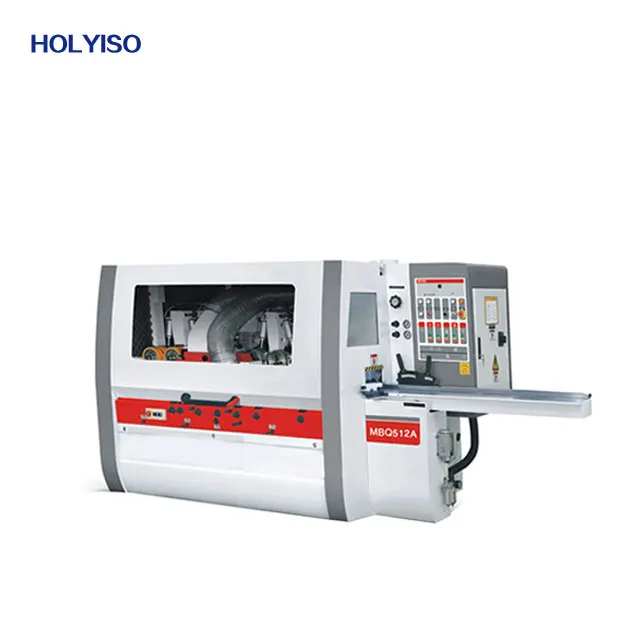

HOLYISO Heavy Duty 4 Side Planer for Solid Wood Mass Processing MBQ512A For Furniture manufacturers
- Category: >>>
- Supplier: Foshan Holyiso Machinery Co. Ltd.
Share on (1600958101156):
Product Overview
Description
Wood Processing Multiple Rip Saw Spindle Shaper Moulding Machine Four Side Planer Moulder
Product Description
Application:

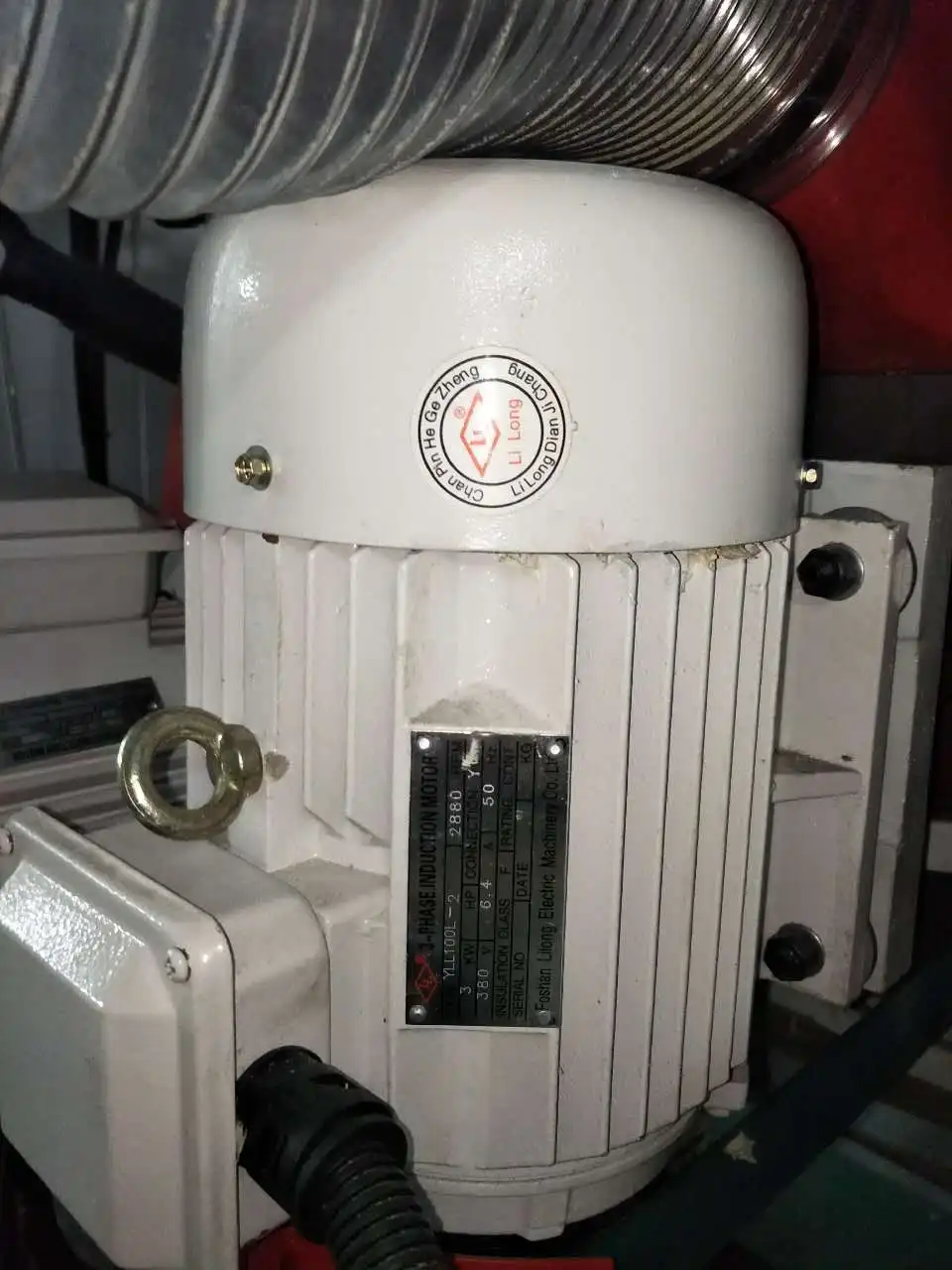

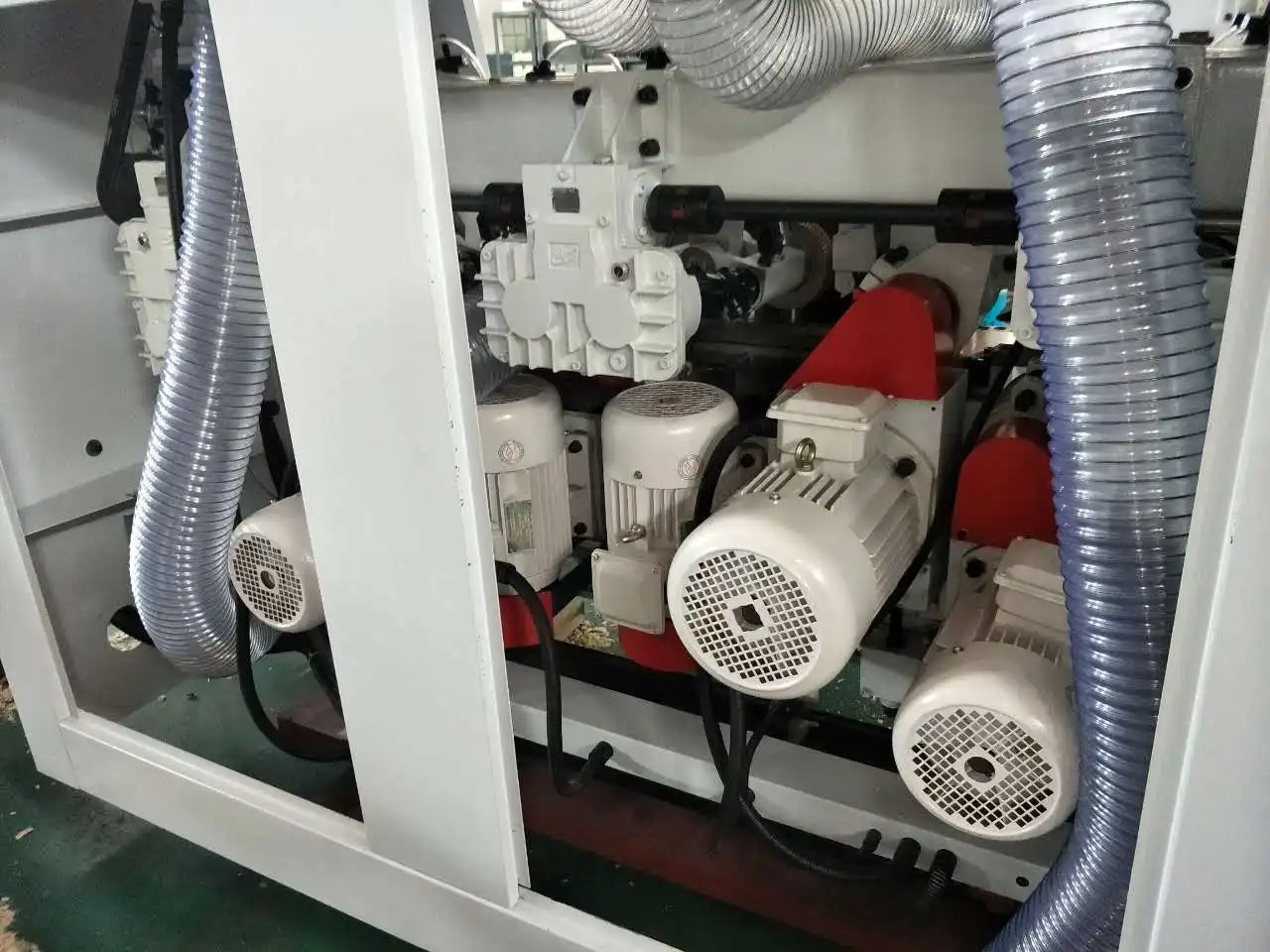

1.Each main shaft is driven by independent electric motor,cutting force is powerful
2.Main shaft is adjusted to focus on the front,operation is convenient.
3.Hard chrome plating work table is durable.
4.Equips with auxiliary unit alarming lack of material,it effectively improves smooth feed-in while lack of material.
5.Multi-group drive rollers improve feeding efficiency.
6.Pneumatic compressed feeding roller is applied,the pressing force can be adjusted by stages which is favorable for smooth feeding of timbers with different thickness.
7.Adopts central charging system,features convenience and promptness.
8.International brands electrical parts are applied for good stability.
9.Spare parts are thick and solid to maintain high precision,high stability and high reliability.
10.Completely sealed safety shield can avoid flying of saw dust and isolate noise efficiently and protect operators.
11.The universal shaft system is designed specially for machining various complicated products.
Advantages of our products
1. We make the machine aggravating in order to improve equipment stability and is much heavier than ordinary ones and running more stable.
2. The saw axis is equipped after two dynamic balance so it is much more life-saving and high precision.
3. Movable table guide track is plating chromium steel bars structure,
exact and durable.
4.High precision and can reach 0.05mm.and the cutting surface is smoother without jagged
5.Electrical seal, preventing saw dust and objects from entering.
6.SCM Structure ,quick adjustment of the scoring saw
7.The belt of saw axis is changed from the table top
Technical Parameters
Model | MBQ512A |
Max.working width | 120mm |
Min.working width | 25mm |
Max.working thickness | 100mm |
Min.working thinkness | 8mm |
Spindle amounts | 5pcs |
Spindle speed | 6000rpn |
Feed speed | 6-35m/min |
Spindle diameter | φ40mm |
Cutter diameter First bottom cutter | φ125 |
Right vertical cutter | φ125-φ160 |
Left vertical cutter | φ125-φ160 |
First top cutter | φ125-φ160 |
Second bottom spindle | φ125-φ160 |
Motor power First bottom cutter | 3kw/4hp |
Right vertical cutter | 3kw/4hp |
Left vertical cutter | 3kw/4hp |
Fist top cutter | 4kw/5.5hp |
Second bottom cutter | 3kw/4hp |
Feed motor | 3kw/4hp |
Beam elevation | 0.55kw/0.75hp |
Total power | 18.75kw/23.25hp |
Feeding wheel Dia. | 140*35*50 |
Suction hood Dia. | φ125 |
Overall dimensions | 2900*1200*1610mm |
Packing dimensions | 3100x1400x1700mm |
Weight | 1830kg |
Detailed Images
Packaging & Shipping
1.Delivery:
We can guarantee delivery on time.
We also can sign on-time delivery contracts. If we can’t deliver on time, we will give the product a corresponding discount.
2.Package:
We will take care of your machinery packages well like picture show.
Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.
3.Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem ,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.
4.Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
5.After sales services:
Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine.
If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
