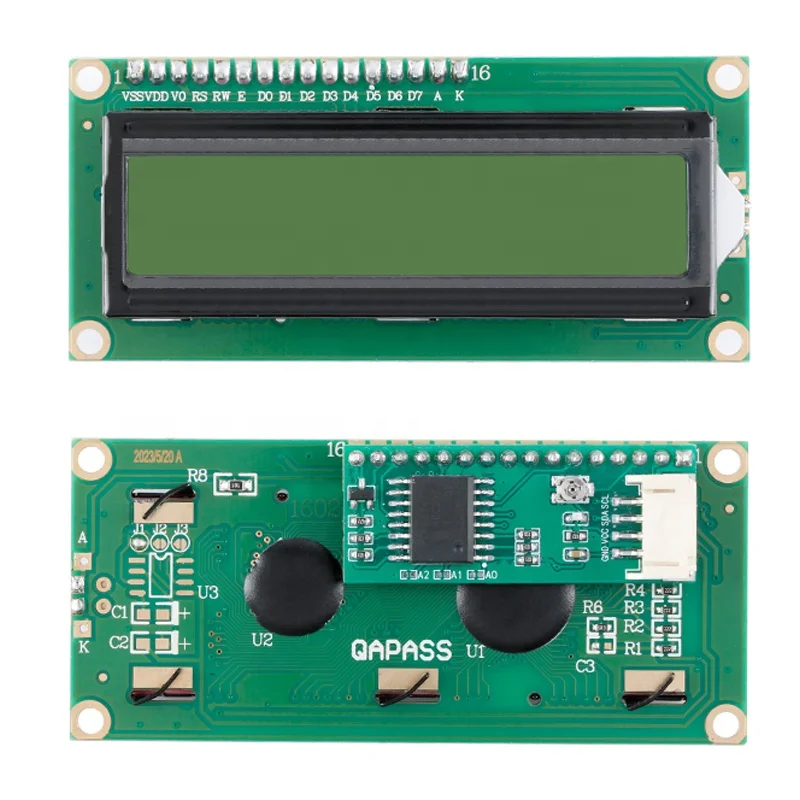

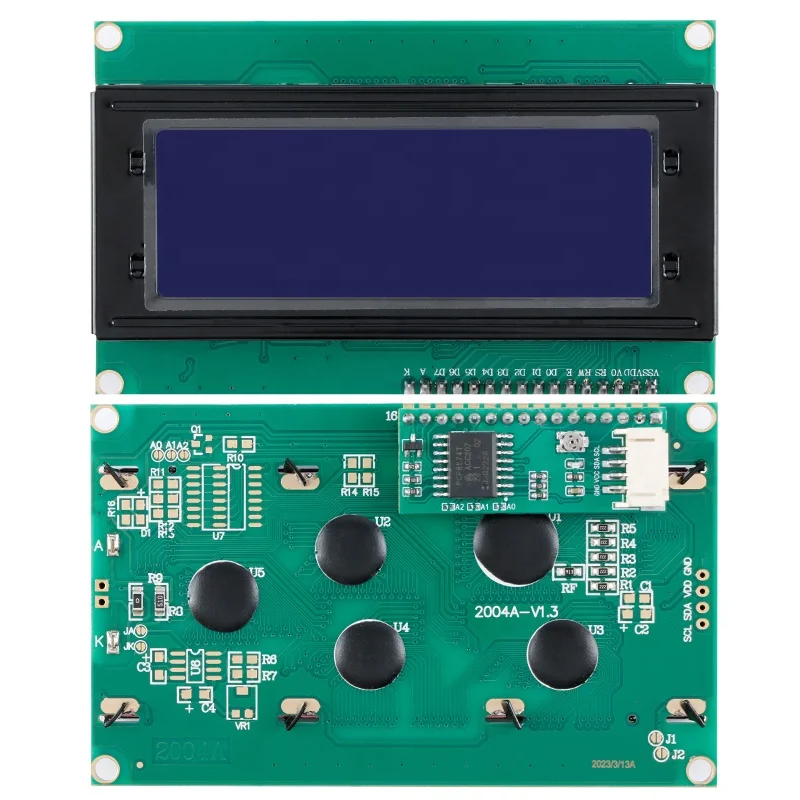

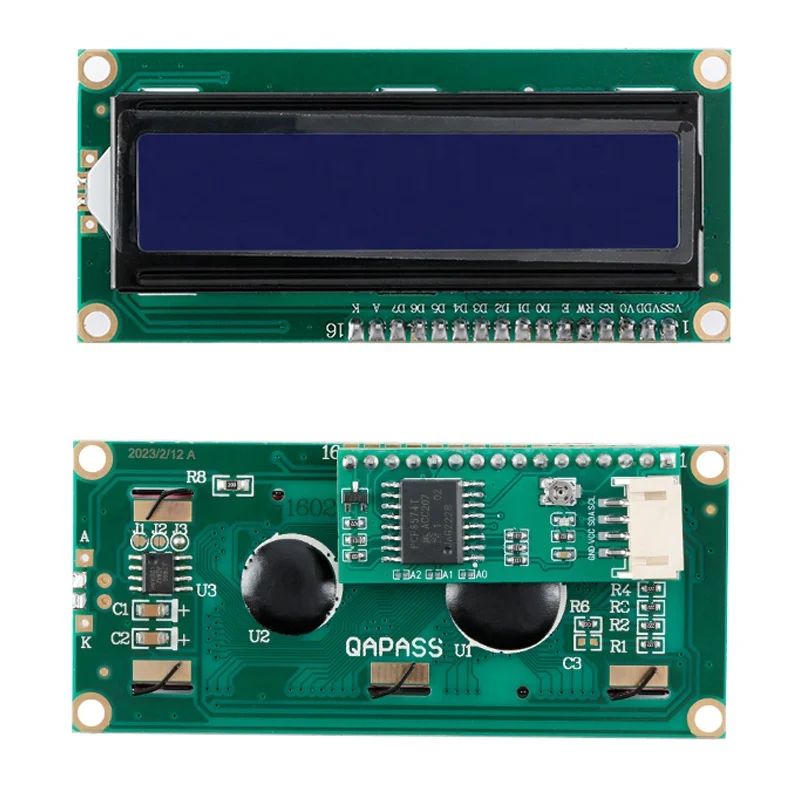

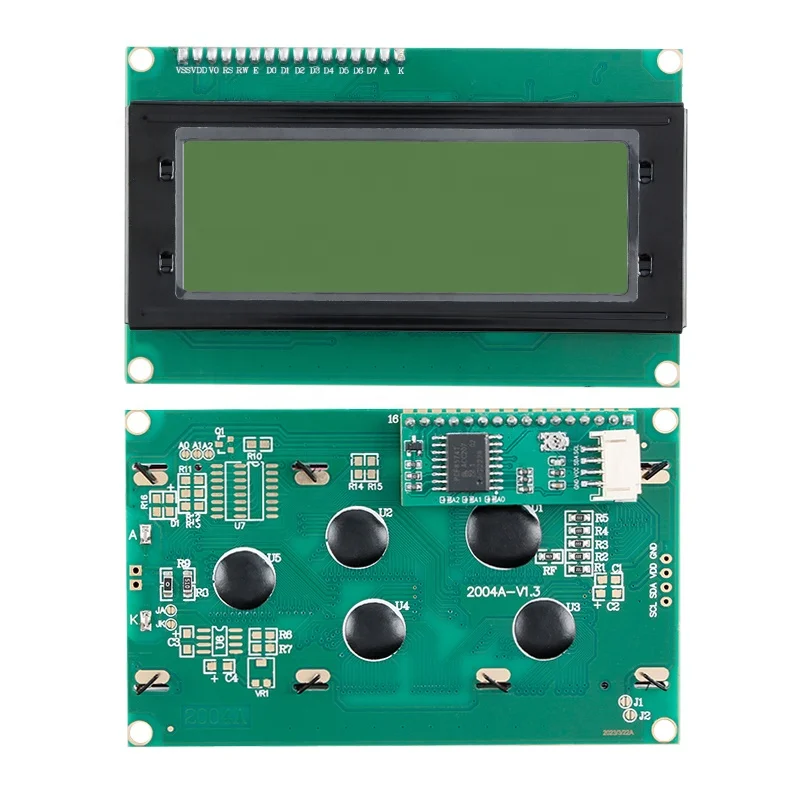

LCD Display 5V Solder Pin PCF8574 IIC I2C Module PH2.0 Interface LCD1602A LCD2004A
- Category: >>>
- Supplier: Shenzhen Gui Yi Technology Co. Ltd.
Share on (1600958196655):
Product Overview
Description
Specification
item | value |
Type | IIC |
Display Size | 2.59inch |
Supplier Type | - |
Place of Origin | China |
Guangdong | |
Brand Name | yourcee |
Interface | PH2.0 |
Size | 98.0X60.0X13.5mm |
Display Character | 20 character X 4 line |
Viewing angle | 6:00 |
View area | 76.0X25.2 |
Character size | 2.95X4.75 |
Dots size | 0.55X0.55 |
Character pitch | 3.55X5.35 |
POWER | +5V |
GENERAL SPECIFICATION
Interface with 4-bit or 8-bit MPU (directly connected M6800 serial MPU)
Display Specification
Display Character: 20 character X 4 line Character Font:5X7dors+cursor
Display color-Display background color : STN, Blue-Yellow
Polarize mode: positive, Transflective
Viewing angle: 6:00
Display duty: 1/16 Driving bias: 1/5
Character Generator ROM (CGROM): 8320 bits (192 characterX5X7 dots) &(32
characterX5X10 dots)
Character Generator RAM (CGRAM): 64X8 bits (8 charactersX5X8 dots)
Display Data RAM (DDRAM) :80X8 bits (80 characters max)
Mechanical characteristics (Unit: mm)
Extenal dimension: 98.0X60.0X13.5
View area : 76.0X25.2 Character font: 5X7 dots + cursor
Character size: 2.95X4.75 Dots size:0.55X0.55
Character pitch: 3.55X5.35
Weight：60g
POWER： +5V
Display Specification
Display Character: 20 character X 4 line Character Font:5X7dors+cursor
Display color-Display background color : STN, Blue-Yellow
Polarize mode: positive, Transflective
Viewing angle: 6:00
Display duty: 1/16 Driving bias: 1/5
Character Generator ROM (CGROM): 8320 bits (192 characterX5X7 dots) &(32
characterX5X10 dots)
Character Generator RAM (CGRAM): 64X8 bits (8 charactersX5X8 dots)
Display Data RAM (DDRAM) :80X8 bits (80 characters max)
Mechanical characteristics (Unit: mm)
Extenal dimension: 98.0X60.0X13.5
View area : 76.0X25.2 Character font: 5X7 dots + cursor
Character size: 2.95X4.75 Dots size:0.55X0.55
Character pitch: 3.55X5.35
Weight：60g
POWER： +5V

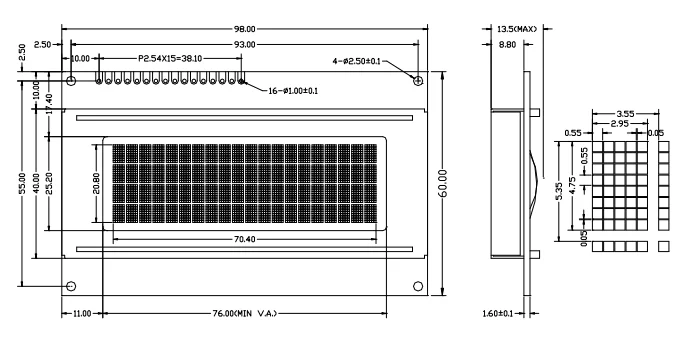

OUTLINE DEMENSION:

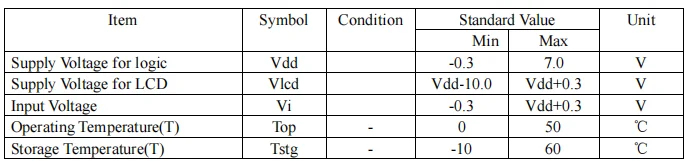

Absolute Maximum Ratings

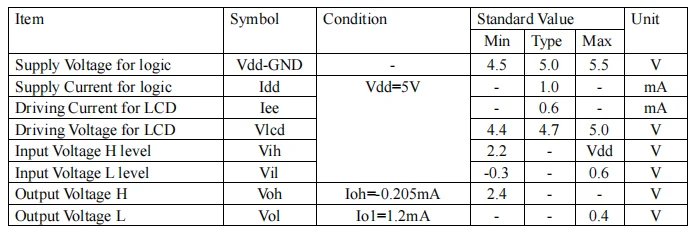

ELECTRICAL SPECIFICATIONS(Ta=250℃,Vdd=5.0V)
Absolute Maximum Ratings For Bottom LED Backlight
