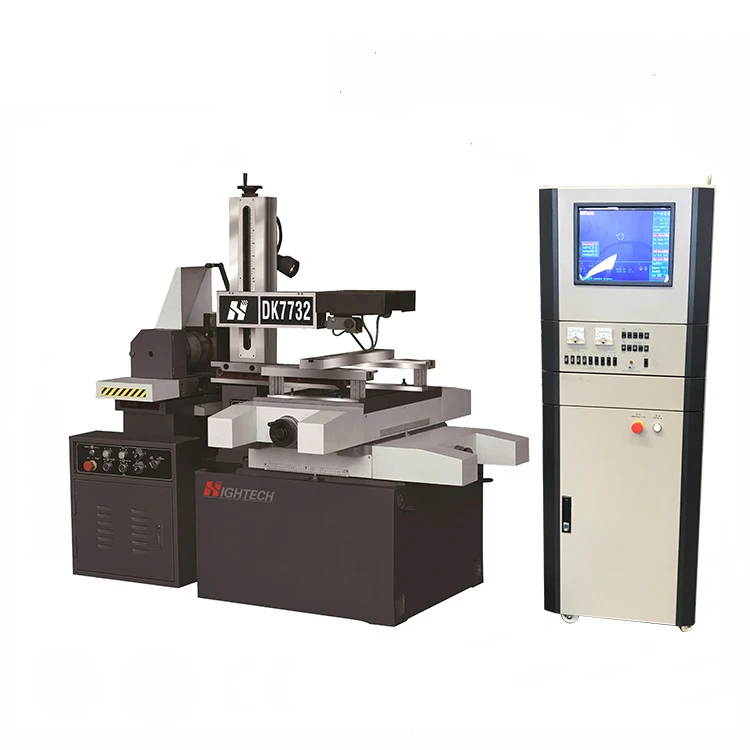

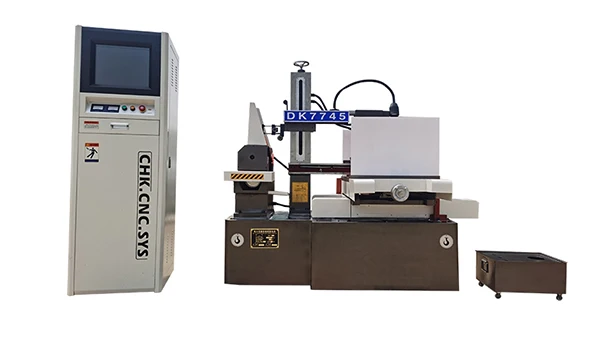

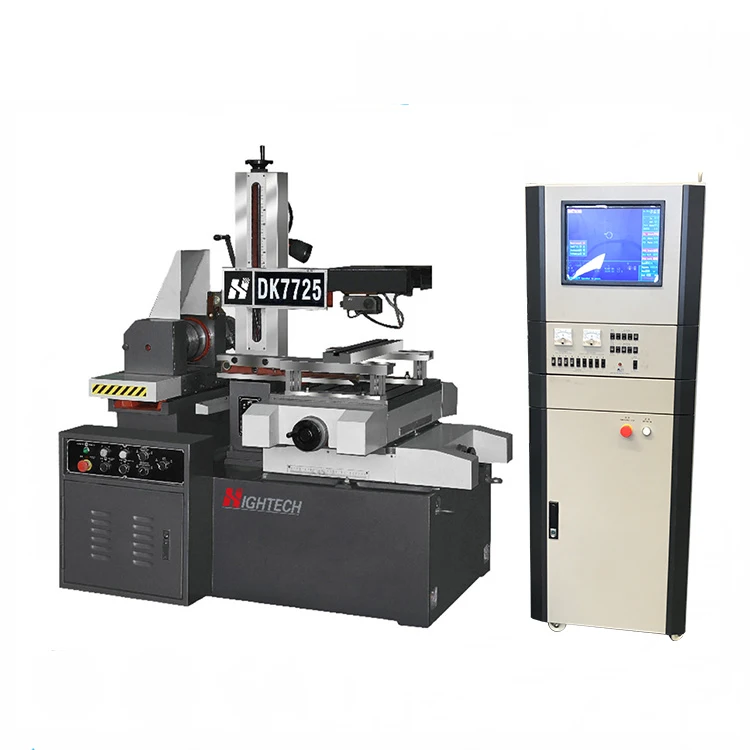

Custom Made Servo Motor Drive High Precision CNC Wire EDM Dk7725 CNC Wire Cut EDM Cutting Machine
- Category: >>>
- Supplier: Taizhou Hitech Nc Machine Tool Co. Ltd.
Share on (1600958245113):
Product Overview
Description
Details Images
Model | Worktable size (mm) | Worktable travel (mm) | Max. cutting thickness (mm) | Processing taper | Max. load weight (kg) | Main machine weight(kg) |
DK7720 | 250x320 | 200x250 | 200 | 6°/80mm | 100 | 800 |
DK7725 | 270x420 | 250x320 | 400 | 6°/80mm | 200 | 1200 |
DK7732 | 380x600 | 320x400 | 400 | 6°/80mm | 300 | 1400 |

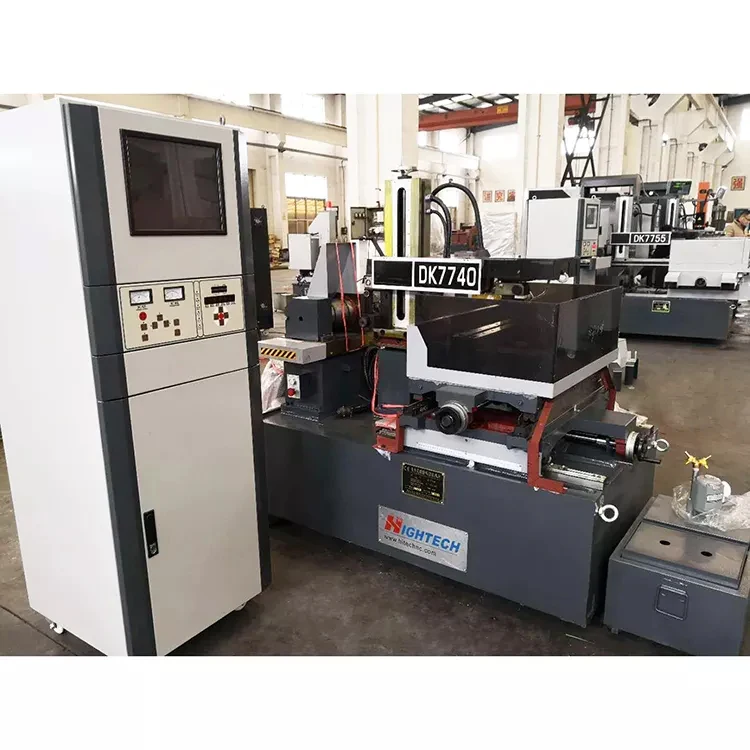

DK7740 | 410x710 | 400x500 | 400 | 6°/80mm | 450 | 1600 |
DK7745 | 500x750 | 450x550 | 400 | 6°/80mm | 450 | 1650 |

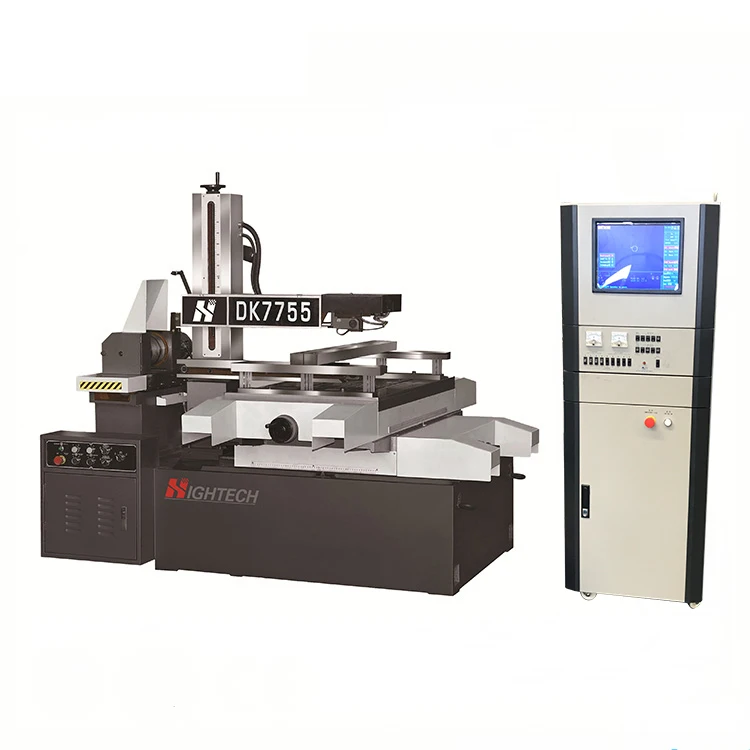

DK7755 | 596x880 | 550x650 | 500 | 6°/80mm | 800 | 2500 |
DK7763 | 790x1260 | 630x1000 | 600 | 6°/80mm | 1000 | 3500 |
DK7780 | 900x1500 | 800x1200 | 600 | 6°/80mm | 1500 | 5500 |
DK77120 | 1300x1900 | 1200x1600 | 600 | 6°/80mm | 4000 | 10000 |

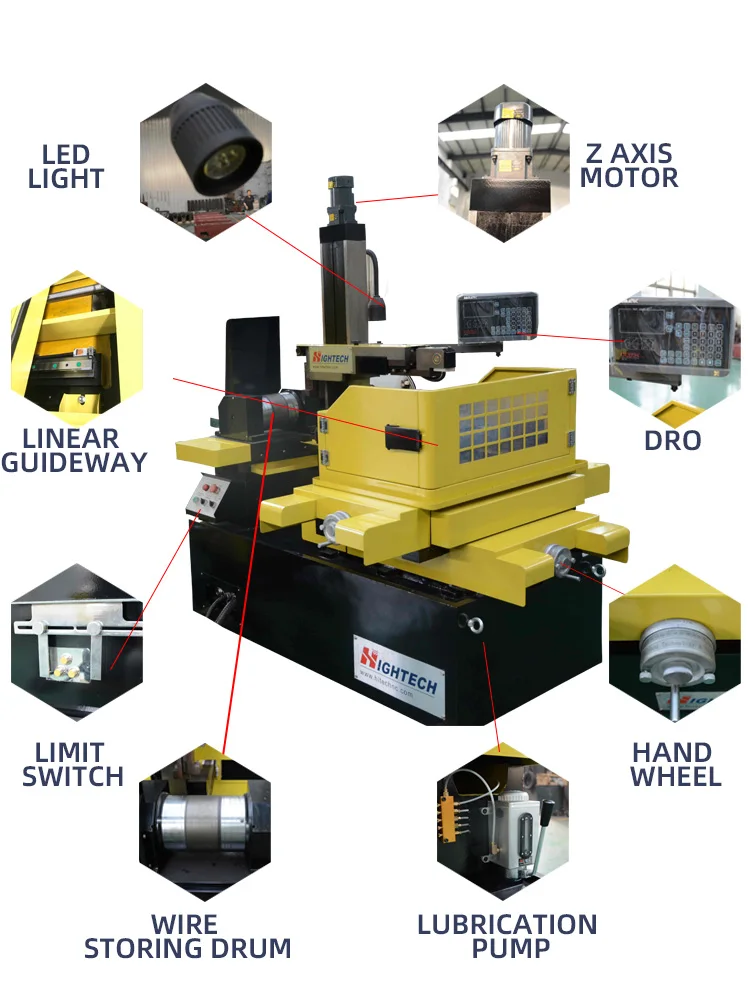

Our company produces DK77 series wire EDM machines, models are complete, structure is reasonable, rigidity is good, and precision
is high. High-grade machine adopts precision linear guide rail, and high column optionally equips electric lifting roller span
adjustment. Swinging big taper series machine tools are equipped with wire electrode wire agencies, and produce semi-hermetic
environmental protection machine tools. Molybdenum wire diameter range is from 0.12-0.18mm, maximum processing speed is more than
120 mm² / min, the best surface roughness ≤Ra2.5um(single cut)Ra1.6mm(multicut).
is high. High-grade machine adopts precision linear guide rail, and high column optionally equips electric lifting roller span
adjustment. Swinging big taper series machine tools are equipped with wire electrode wire agencies, and produce semi-hermetic
environmental protection machine tools. Molybdenum wire diameter range is from 0.12-0.18mm, maximum processing speed is more than
120 mm² / min, the best surface roughness ≤Ra2.5um(single cut)Ra1.6mm(multicut).
With double-sided large guide wheel，the cutting is more stable,and the molybdenum wire is put into the guide wheel.no hook is needed to wear molybdenum wire, whitch is conwenient for operation.
The chromium plating process is adopted to reduce the runout of the barrel and increase its smoothness.
Second annealing of castings,appearance spraying process is corrosion-resistant,wear-resistant and durable.
Flexible electronic induction switch,no physical contact ,stable and not easy to damage.

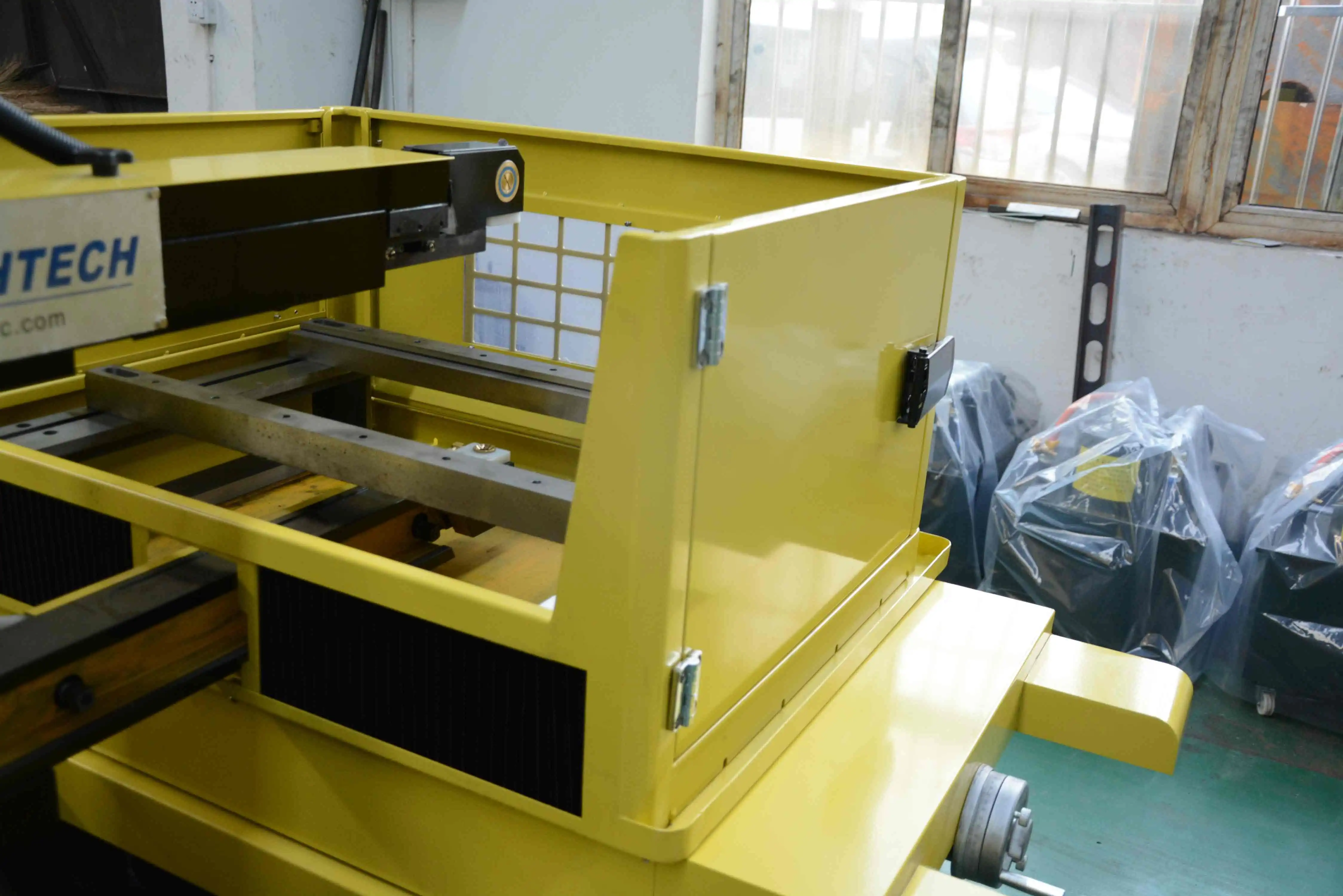

Metal water retaining cover with better water retaining effect, and more convenient open-door operation

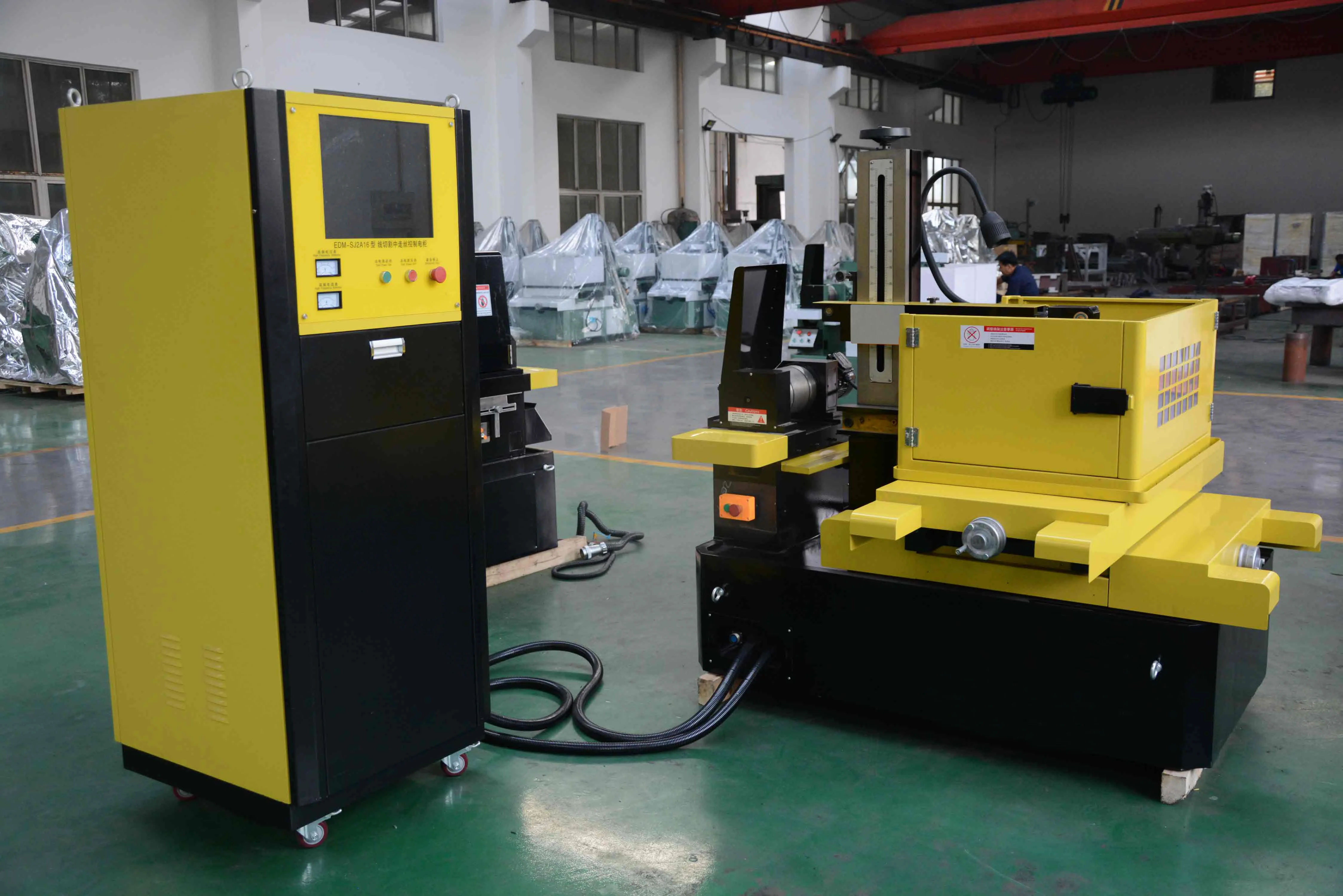

stable operation electrical cabinets guarantee the processing stability and the compatibility between processing surface roughness and speed, so that the failure rate is very low

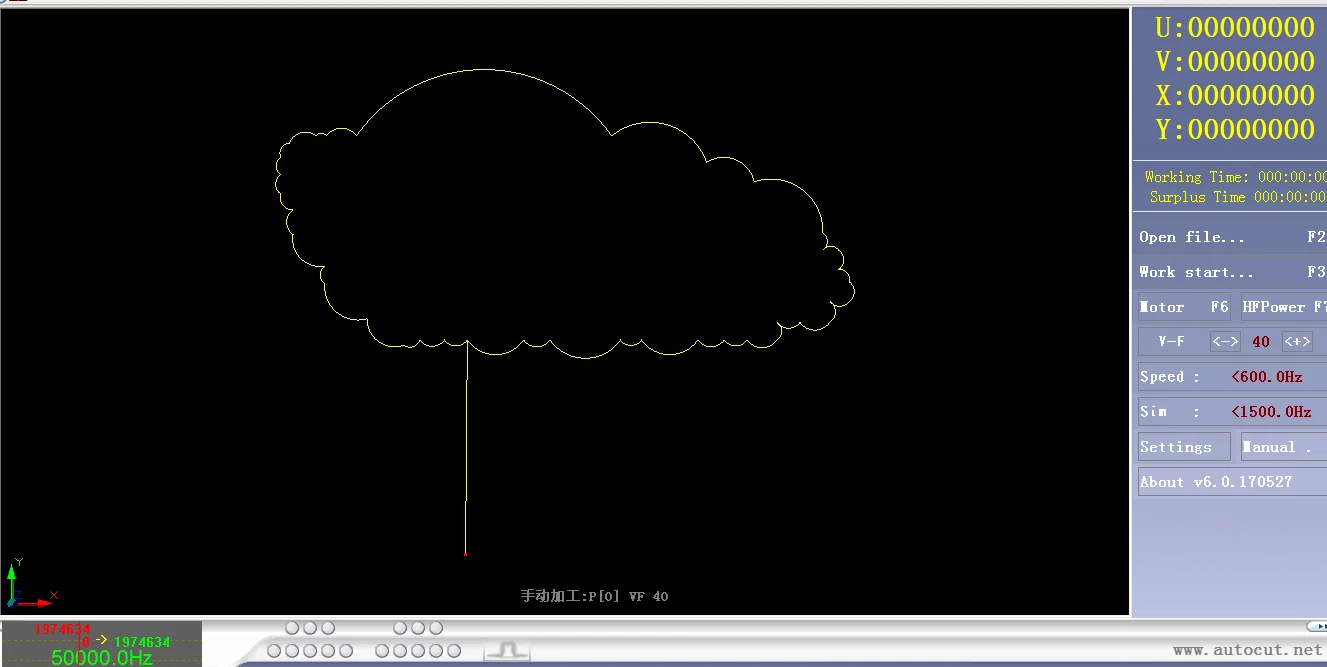

operation softwares could be Autocut, HL, X8 and other softwares to meet the processing all requirements of customers. several operation languages are optional

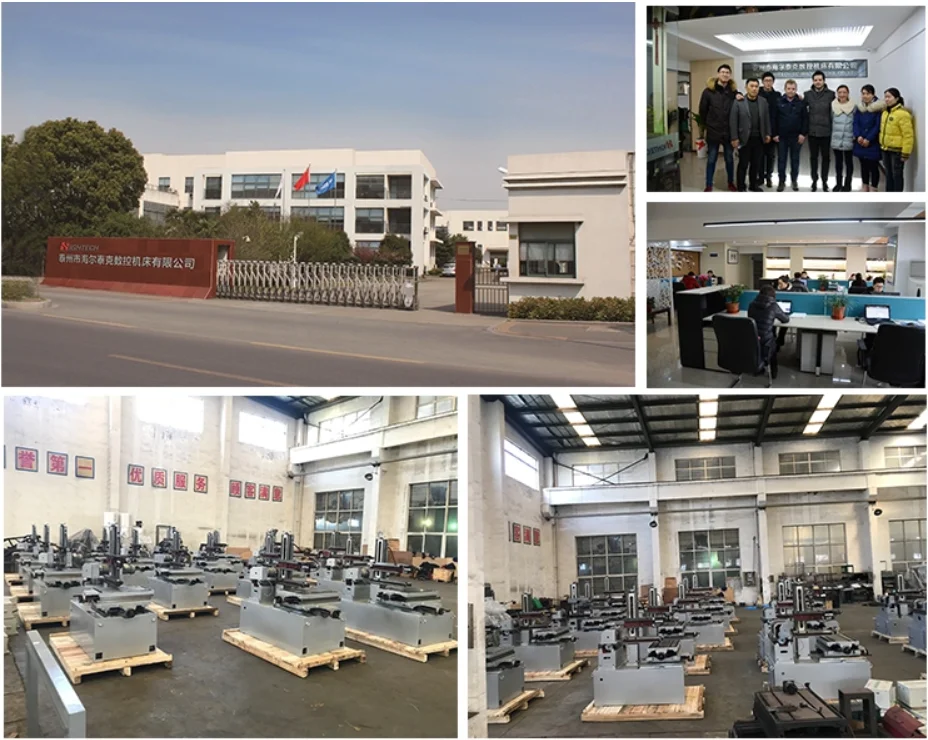

Company Profile
Main Products
Our company specializes in researching,manufacturing and selling quality EDM machines all over the world.Our products include:
Single cut EDM wire cutting machine
Multicut EDM wire cutting machine
EDM die sinking machine
EDM drill machine
Emery wire cutting machine
Brass wire EDM cutting machine
Main Market
Taizhou Hitech NC Machine Tool Co.,Ltd has build long-term and close cooperation relationships with many foreign friends,covering
more than 20 countries,and we are looking forward to more cooperations with friends all over the world and hope our machines can
help more friends in their local industry and business market development.
Service and Quality Promise
We always keep our enterprise mission--"Quality Changes The World" in mind.We start our work from each trivial matter and do our
best to complete each detail well and offer solid technical service and good service to our customers.
Our company specializes in researching,manufacturing and selling quality EDM machines all over the world.Our products include:
Single cut EDM wire cutting machine
Multicut EDM wire cutting machine
EDM die sinking machine
EDM drill machine
Emery wire cutting machine
Brass wire EDM cutting machine
Main Market
Taizhou Hitech NC Machine Tool Co.,Ltd has build long-term and close cooperation relationships with many foreign friends,covering
more than 20 countries,and we are looking forward to more cooperations with friends all over the world and hope our machines can
help more friends in their local industry and business market development.
Service and Quality Promise
We always keep our enterprise mission--"Quality Changes The World" in mind.We start our work from each trivial matter and do our
best to complete each detail well and offer solid technical service and good service to our customers.
Related Products
FAQ
Q:Are you manufacturer?
A:Yes,we are manufacturer of brass wire EDM cutting machine.Welcome to visit us!
Q:What payment terms do you accept?
A:We are flexible on payment terms,please contact us for details!
Q:What information do you need before making quotation?
A:Worktable size or table travel you need.Surface roughness and cutting speed requirements.
Q:What should I do to start a new business in EDM wire cutting machine area?
A:Please contact us immediately,we provide free pre-sales consultant service of brass slow wire EDM cutting machine.
Q:Why choose you?What is the difference between you and other Chinese supplier?
A:We have specialized in this area for over 20 years.Our EDM wire cutting machines are exported to Russia,India,UAE,South Korea,Canada,Vietnam,Thailand,Mexico,Turkey and etc.
You can get higher quality product & better professional service from Hitech with same price.
Q:I`m worried about after-sales service!
A:Warranty is one year.
Any parts damaged during warranty will be replaced for free!
We provide spare parts for life time at cost price.
Electrical parts such as boards and servo drives,we`ll provide them for life time as well at cost price.
Our engineers are available to service overseas!
A:Yes,we are manufacturer of brass wire EDM cutting machine.Welcome to visit us!
Q:What payment terms do you accept?
A:We are flexible on payment terms,please contact us for details!
Q:What information do you need before making quotation?
A:Worktable size or table travel you need.Surface roughness and cutting speed requirements.
Q:What should I do to start a new business in EDM wire cutting machine area?
A:Please contact us immediately,we provide free pre-sales consultant service of brass slow wire EDM cutting machine.
Q:Why choose you?What is the difference between you and other Chinese supplier?
A:We have specialized in this area for over 20 years.Our EDM wire cutting machines are exported to Russia,India,UAE,South Korea,Canada,Vietnam,Thailand,Mexico,Turkey and etc.
You can get higher quality product & better professional service from Hitech with same price.
Q:I`m worried about after-sales service!
A:Warranty is one year.
Any parts damaged during warranty will be replaced for free!
We provide spare parts for life time at cost price.
Electrical parts such as boards and servo drives,we`ll provide them for life time as well at cost price.
Our engineers are available to service overseas!
