Factory Direct Supplier Good Performance High Efficiency Limestone Quarry Granite Basalt PE Jaw Crusher
- Category: >>>
- Supplier: Henan Gomine Industrial Technology Co. Ltd.
Share on (1600958330375):
Product Overview
Description
Product Description
Product Description

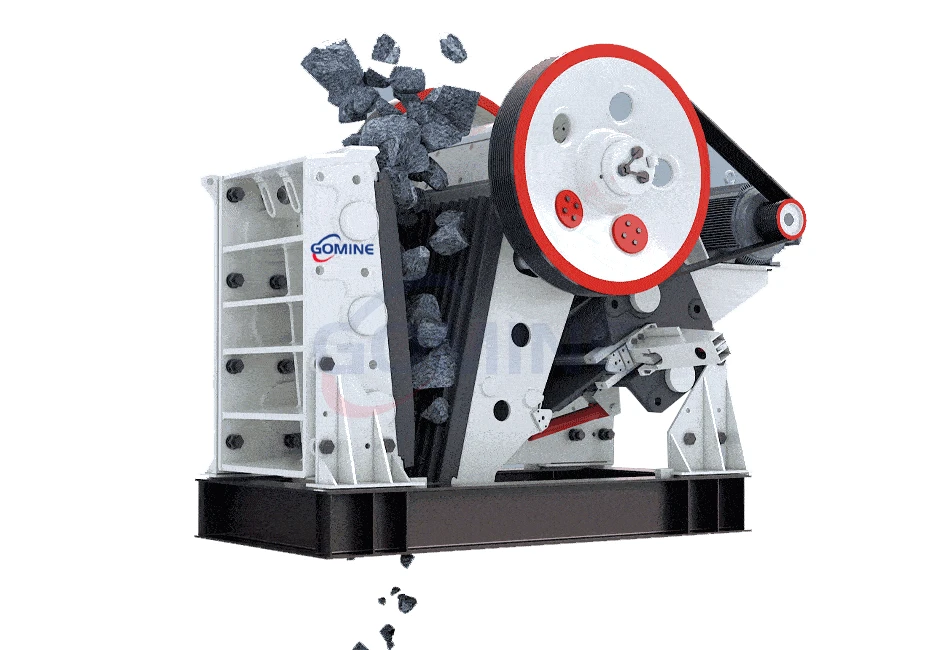

Working principle
When a jaw crusher works, the motor starts the belt wheel to drive the centrifugal shaft to rotate. The movable jaw blade suspension shaft gets to and away the fixed shaft periodically, which causes a press, rubbing and grinding, etc. to the raw materials. Crushed stone falls down gradually and are discharged out of the jaw crusher when the particle size meets the requirements.
Specification
Specification
Model | Feed opening (mm) | Max.feeding size (mm) | Processing capacity (t/h) | Total weight (t) | Dimensions (L×W×H) (mm) |
PE-200×300 | 200×300 | 180 | 2-6 | 1.2 | 910×750×990 |
PE-200×350 | 200×350 | 180 | 3-10 | 1.5 | 1000×870×990 |
PE-400×600 | 400×600 | 340 | 16-60 | 7 | 1730×1730×1630 |
PE-600×900 | 600×900 | 500 | 50-160 | 17 | 2190×2206×2300 |
PE-750×1060 | 750×1060 | 630 | 110-320 | 29 | 2660×2430×2800 |
PE-800×1060 | 800×1060 | 640 | 130-330 | 29.8 | 2710×2430×2800 |
PE-1500×1800 | 1500×1800 | 1200 | 500-1000 | 139 | 5160×3660×4248 |
PE-1600×2100 | 1600×2100 | 1500 | 1300-2200 | 150.6 | 6210×4013×4716 |
PEX-150×750 | 150×750 | 120 | 8-25 | 3.8 | 1200×1530×1060 |
PEX-250×750 | 250×750 | 210 | 13-35 | 5.5 | 1380×1750×1540 |
PEX-250×1200 | 250×1200 | 210 | 20-61 | 9.7 | 2140×1660×1500 |
PEX-300×1300 | 300×1300 | 250 | 16-105 | 15.6 | 2720×1950×1600 |

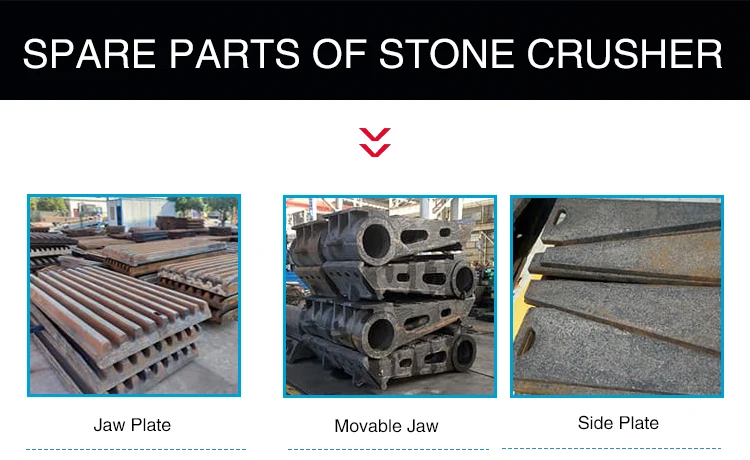

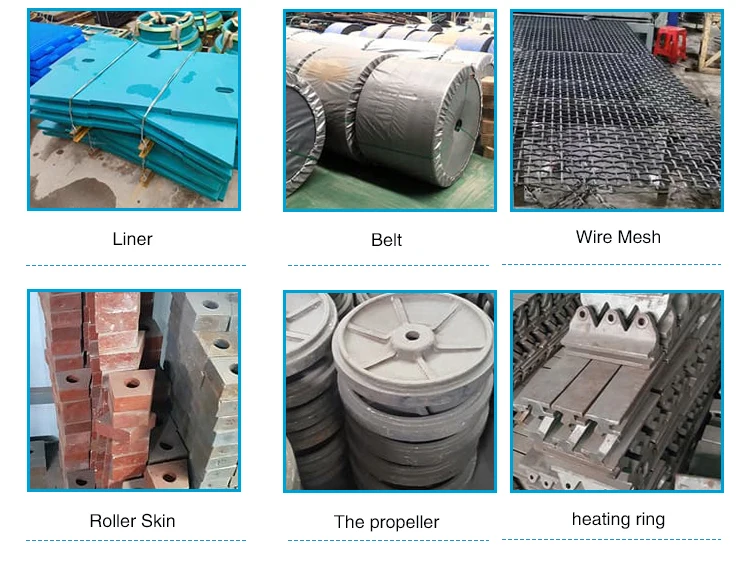

Spare Parts of stone crusher
Spare Parts of stone crusher

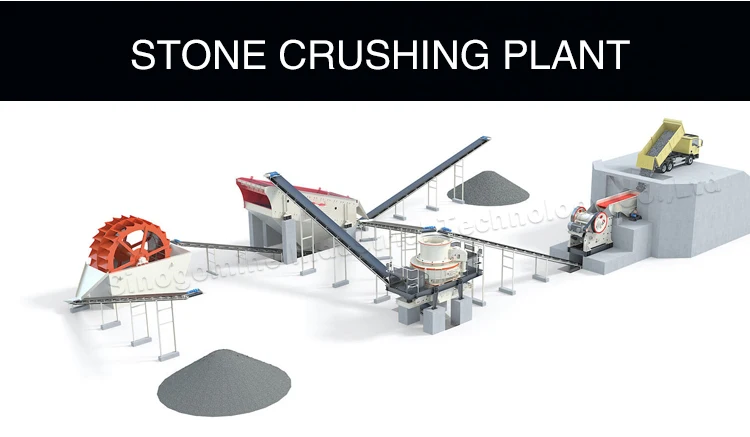

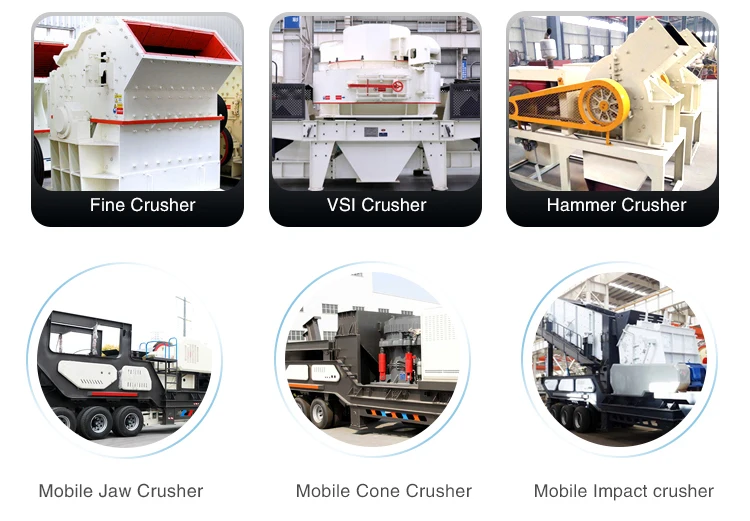

Stone crushing plant
Stone crushing plant

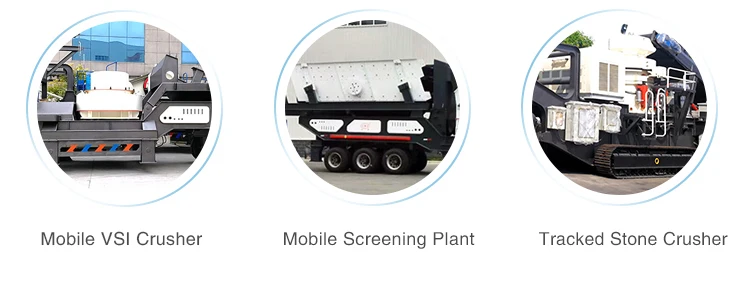

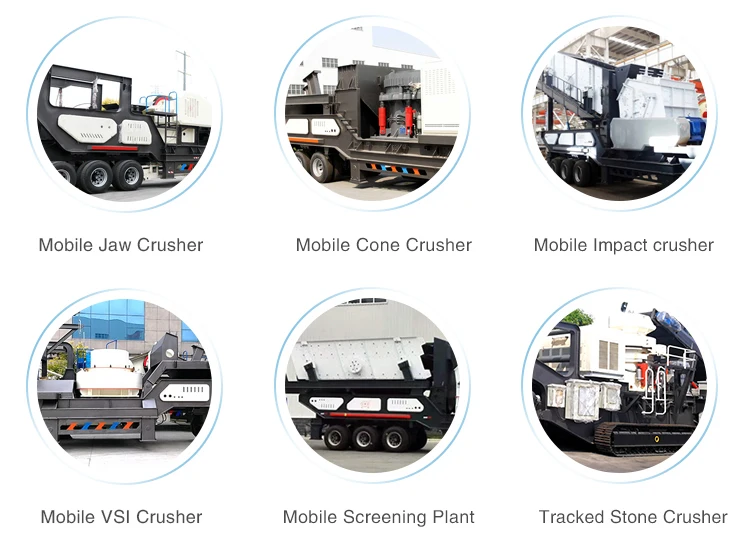

Mobile Stone Crusher
Mobile crushing solutions are also available! You just need to tell our engineer your demand, and we will equip you the right mobile crushers with low energy consumption, low cost, and high efficiency.

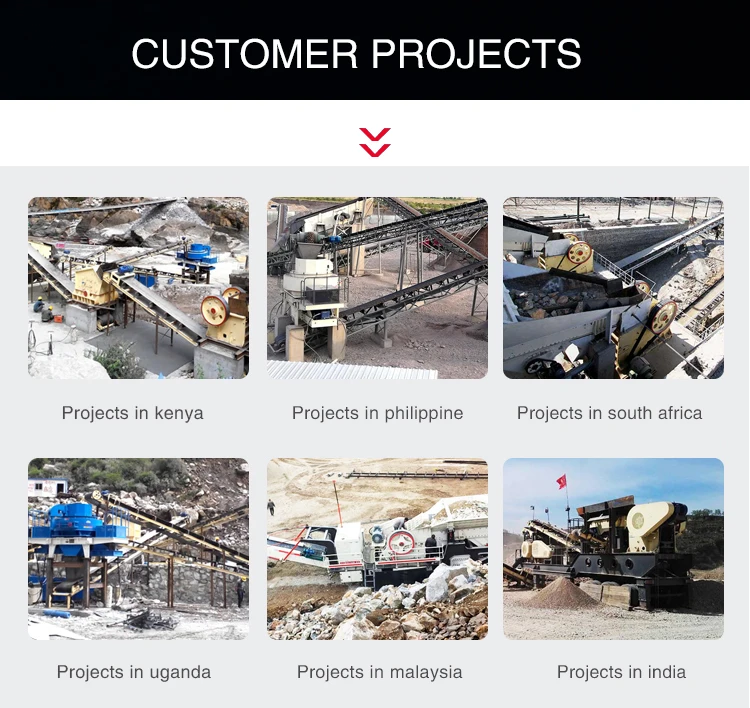

customer projects
customer projects
Company Profile
Company Profile
Sinogomine Industrial Technology Co.,Ltd is a famous industrial company in the world, which is focusing on the provision of aggregate, mining, industrial powder, Construction waste processing equipment,technology upgrading and systematic solutions.
At present,it has production base of an area about 600,000 square meters. It has over 60sets of advanced machining lathes,advanced
skill workers take up 36%, excellent produce technology, complete measuring equipment,complete quality controlled system.
At present,it has production base of an area about 600,000 square meters. It has over 60sets of advanced machining lathes,advanced
skill workers take up 36%, excellent produce technology, complete measuring equipment,complete quality controlled system.
Packing & Delivery
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.(YTJ)
