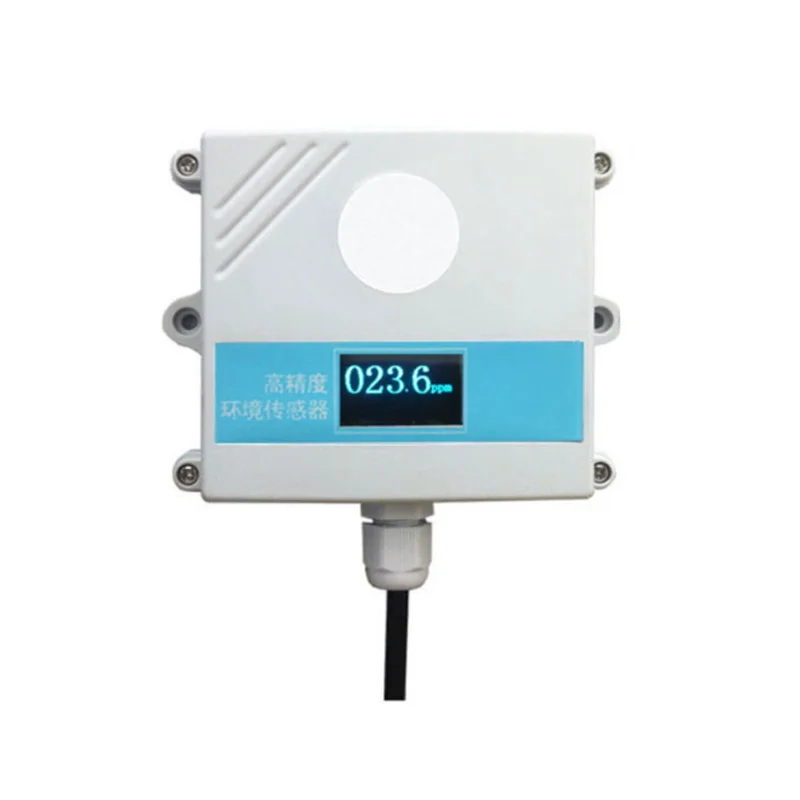

Carbon dioxide transmitter collector Wall Mount Analog RS485/4G/NB iot/LORA agricultural greenhouse ndir CO2 sensor
- Category: >>>
- Supplier: Dongguan Bailing Electronics Co. Ltd.
Share on (1600958382969):
Product Overview
Description
| Product Features | |
| Usage | Carbon dioxide detection |
| Description | RS485 CO2 sensor |
| Place of Origin | Guangdong, China |
| WORKING TEMPERATURE ENVIRONMENT | -10-50 °C |
| MEASURING RANGE | 5000ppm/1%/3%/65%/100% |
| POWER | ≤1W(@12V DC 25°C) |
| NON-LINEAR | <1%F.S |
| Model Number | BL-CO2-E47 |
| PRECISION | ±(50ppm+3%Readings) (25°C) |
| Payment Terms | L/C,D/A,T/T,MoneyGram |
| Brand Name | GBeeleee |
| POWER SUPPLY | 12-24V DC |
| Type | Air quality sensor,Gas Sensor |
| OUTPUT SIGNAL | RS485 Modbus |
| AVERAGE CURRENT | <85mA |
| WORKING HUMIDITY ENVIRONMENT | 0-95%RH |
THE CARBON DIOXIDE SENSOR uses the specialized carbon dioxide concentration sensor probe as core detecting device, which has the characteristics of wide measurement range, high precision, good linearity, good versatility, convenient using, easy installation, long transmission distance and moderate price.

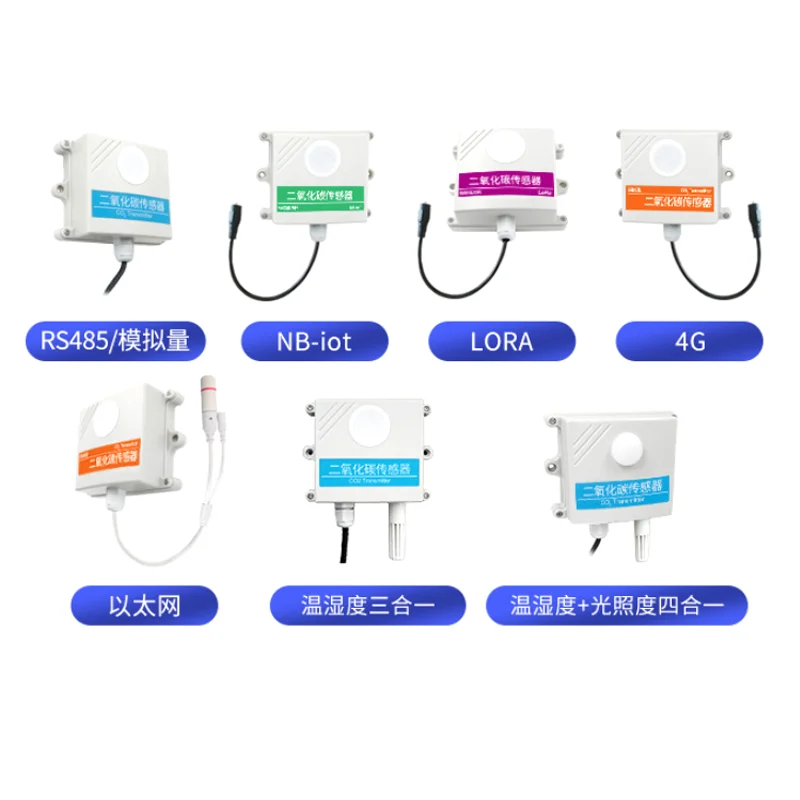

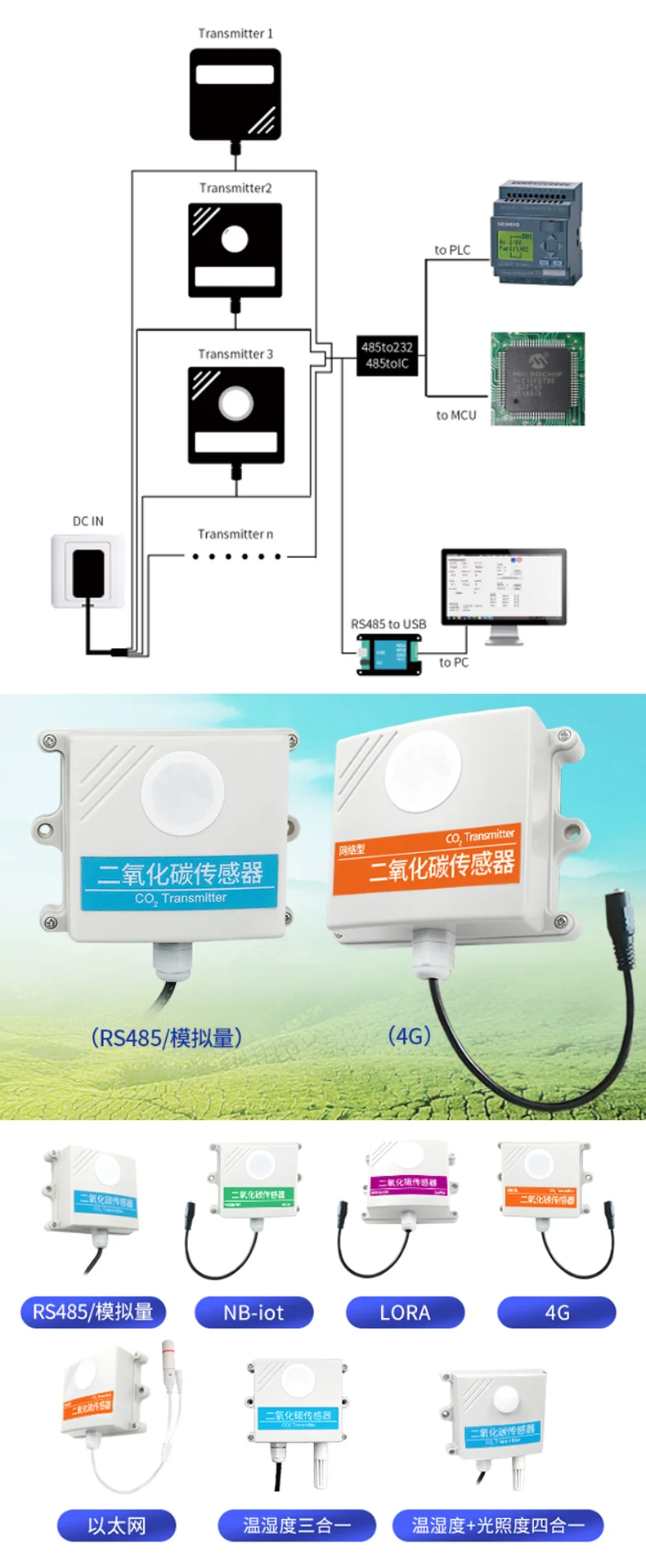

Support RS485/4-20mA/0-5V/0-10V/NB iot/LORA/WIFI/Ethernet and other signal outputs to meet different environmental requirements. Wireless transmission, no wiring, low power consumption, stable performance.
| PARAMETERS | TECHNICAL SPECIFICATIONS |
| MEASURING RANGE | 5000ppm/1%/3%/65%/100% |
| POWER SUPPLY | 12-24V DC |
| PRECISION | ±(50ppm 3%Readings) (25°C) |
| AVERAGE CURRENT | <85mA |
| NON-LINEAR | <1%F.S |
| OUTPUT SIGNAL | RS485 Modbus |
| POWER | ≤1W(@12V DC 25°C) |
| WARRANTY PERIOD | 2 years(Host)/1 year(Sensor) |
| WORKING HUMIDITY ENVIRONMENT | 0-95%RH |
| WORKING TEMPERATURE ENVIRONMENT | -10-50 °C |
| PRESSURE RANGE | 0.9-1.1atm |
