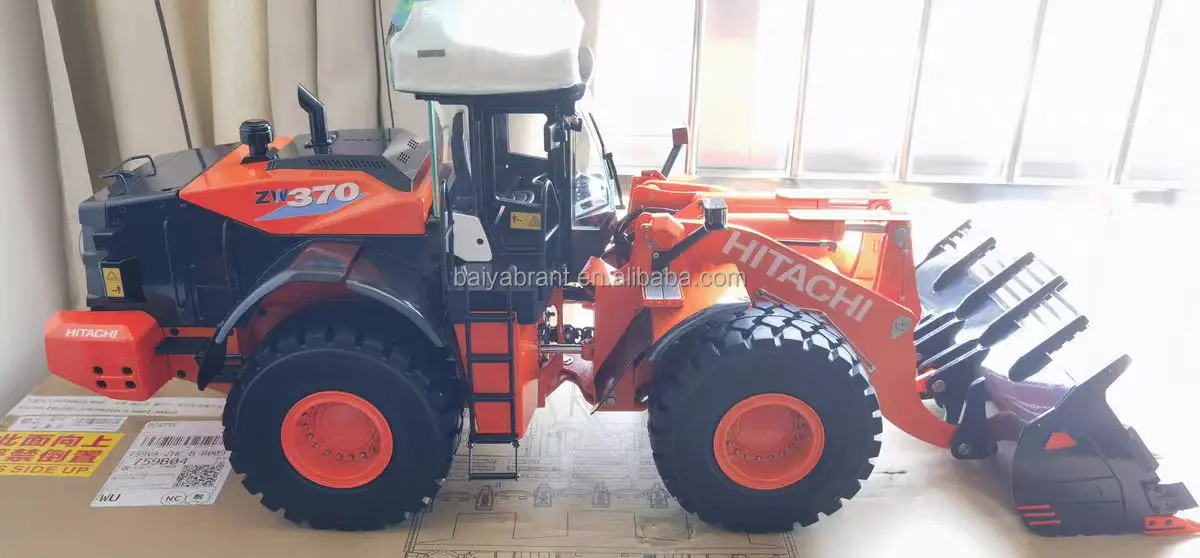

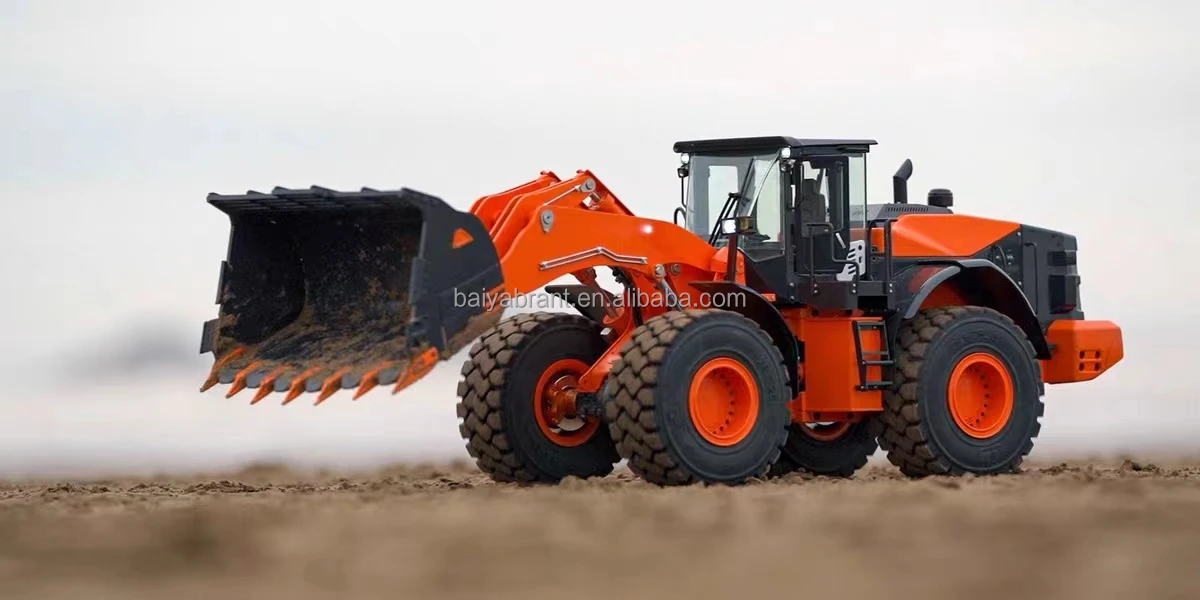

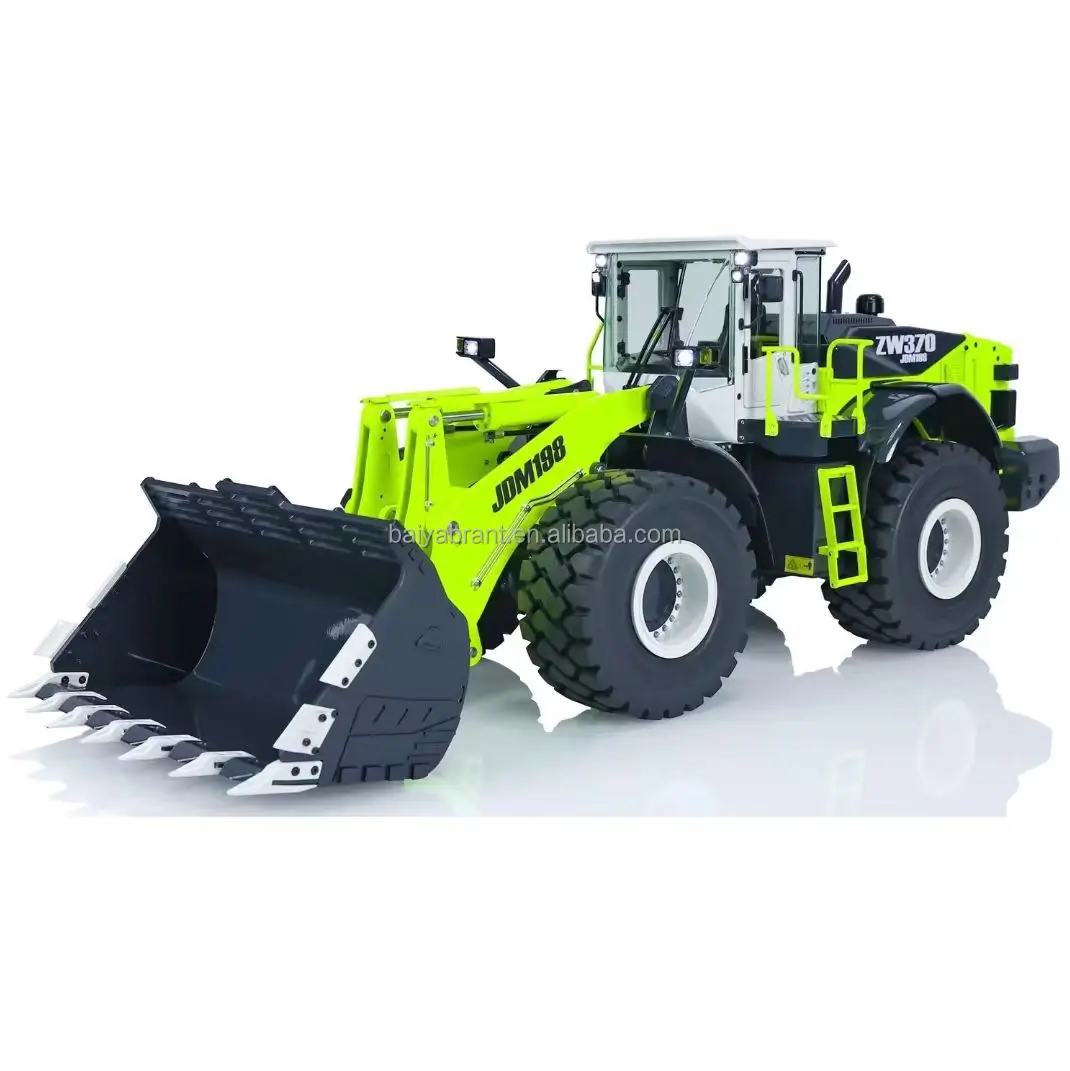

Adult toy model JDM 198 Remote control hydraulic wheel loader
- Category: >>>
- Supplier: Hainan Free Trade Zone Baiya Plastic Products Co. Ltd.
Share on (1600958402083):
Product Overview
Description
Product Description
Name | Model | size | N./G. wieght | package size |
RC loader | JDM-198 | 710x250x268mm | 16.5kg/22kg | 885x380x380mm |
Specification
Full metal hydraulic loader model Scale: 1:14
The whole vehicle is RTR configuration, with standard remote control, ESC, steering gear, lights, sound group, and motor. You just need to buy the battery yourself.
Scale:1:14

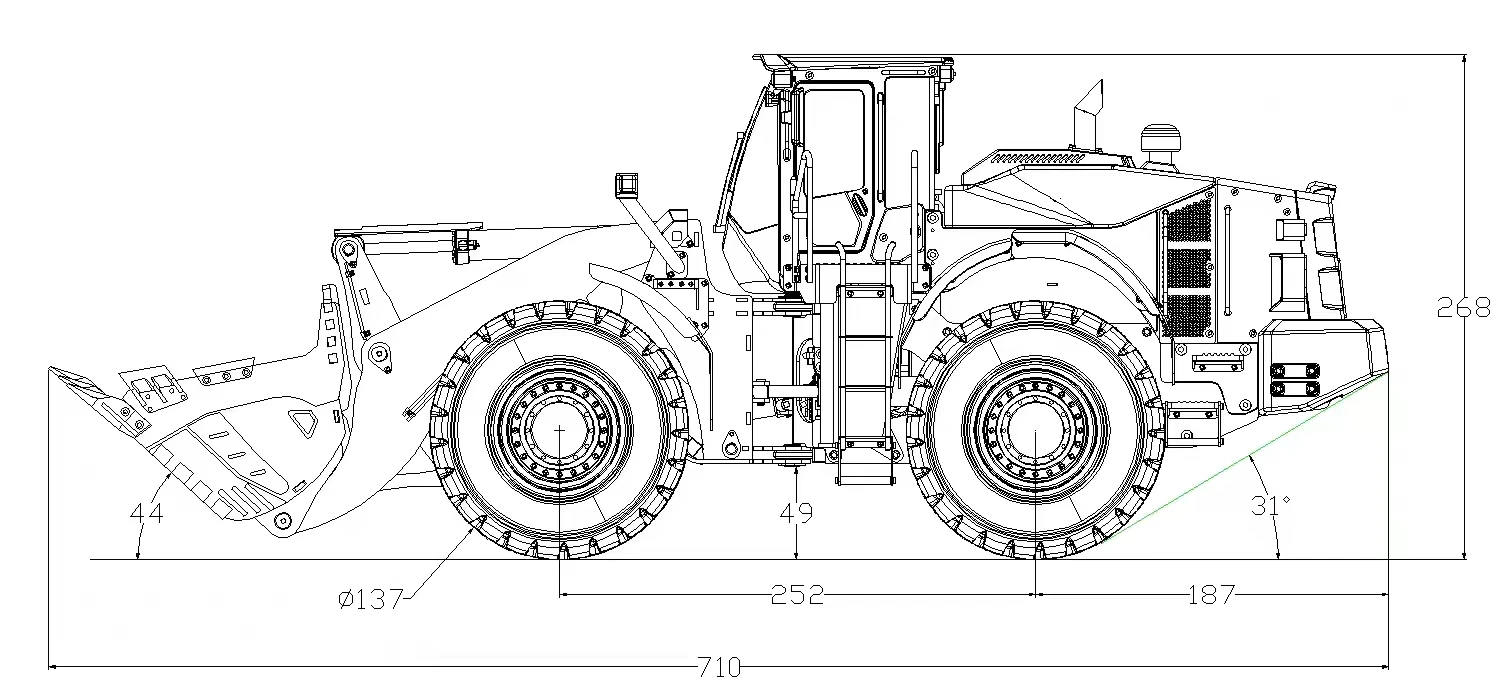

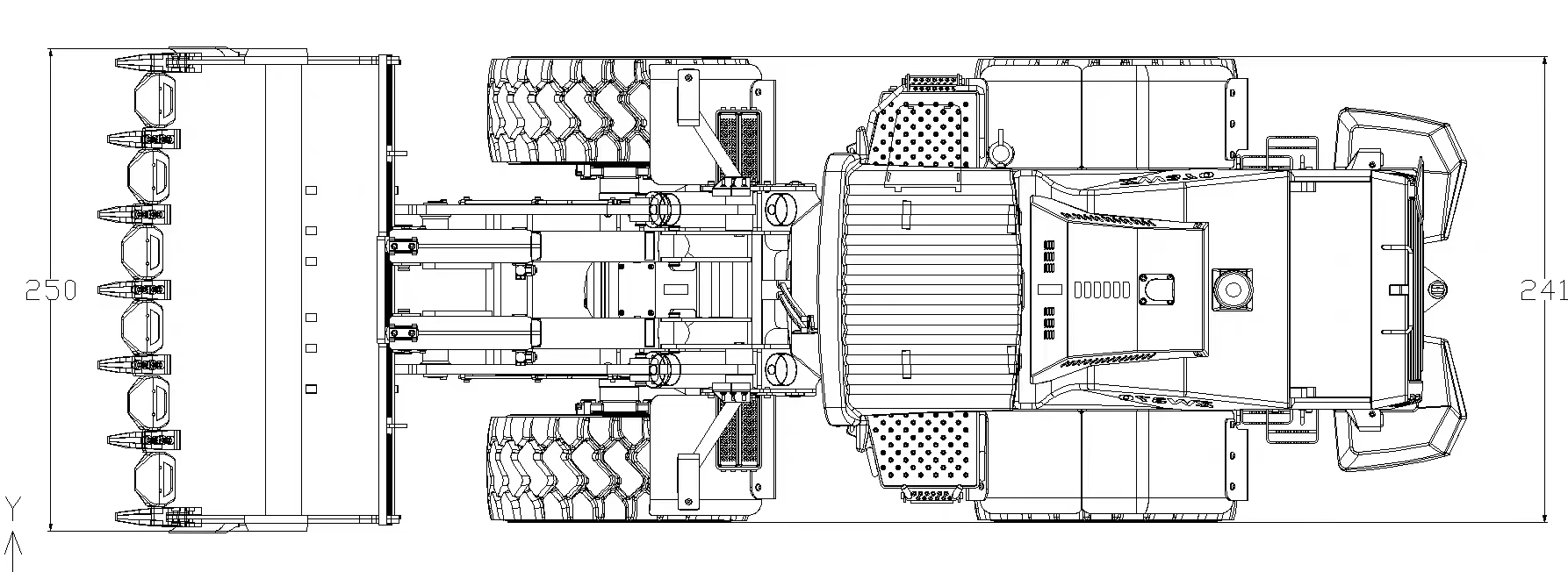

Size:L710xW250xH268mm
Vehicle weight: 16.5KG
Theoretical lifting force: 15KG (big arm lifting) Theoretical traction force: 30KG
Remote control: Fusi FS-i6S uses 4 AA batteries (please confirm the positive and negative poles when connecting). Power supply voltage: 12V, uses 3S lithium battery (within the size of 150MM in length, 45MM in height and 35MM in height)
Sound system: standard

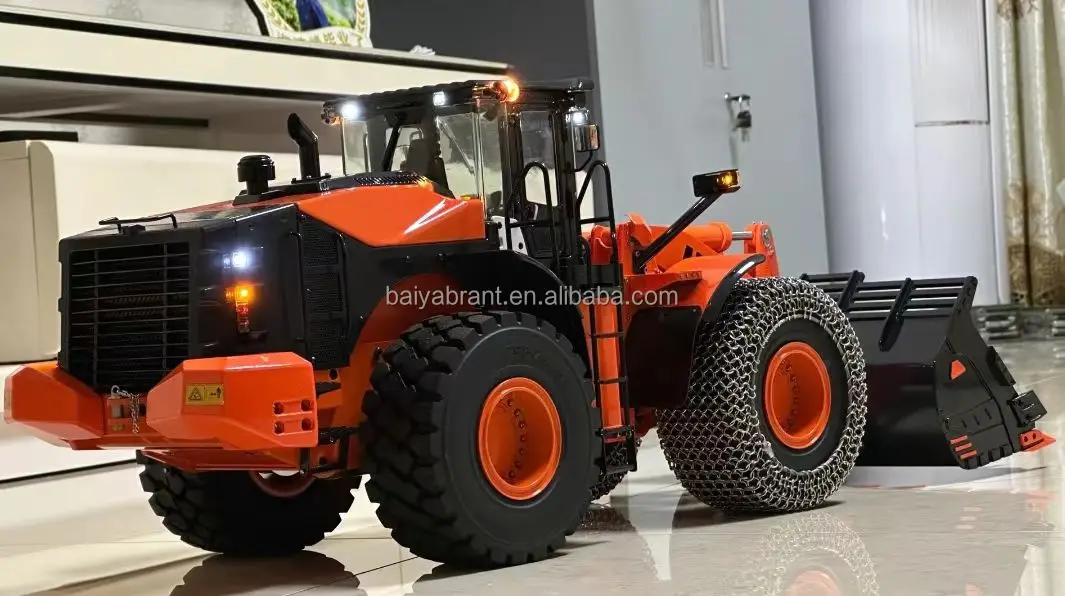

Hydraulic pump: flow rate 0.8L/MIN, rated pressure 2.5MPa, ultimate pressure 5Mpa. Directional valve: Miniature 3-way plug type directional valve with center oil return. Lighting system: standard, low beam, high beam, fog light, dome light
Transmission: planetary two-speed, first gear 1:64, second gear 1:16 Axle: speed ratio 1:10.4, lockable differential
Note: When the boom is in the lowest position and the bucket is unloading materials, the boom cannot be lifted up, otherwise the bucket cylinder may be damaged.
Due to the large mass of the vehicle, collisions need to be avoided during transportation, otherwise the axle and bucket cylinder will be damaged. New car hydraulic oil should be added to 150 to 200 ml
The packed carton size is 885*380*380MM, and the packed product weight is 22KG.
Important note: The parts Inside these RC models should not get wet, or this will cause mechanlcal fallure.
The whole vehicle is RTR configuration, with standard remote control, ESC, steering gear, lights, sound group, and motor. You just need to buy the battery yourself.
Scale:1:14
Size:L710xW250xH268mm
Vehicle weight: 16.5KG
Theoretical lifting force: 15KG (big arm lifting) Theoretical traction force: 30KG
Remote control: Fusi FS-i6S uses 4 AA batteries (please confirm the positive and negative poles when connecting). Power supply voltage: 12V, uses 3S lithium battery (within the size of 150MM in length, 45MM in height and 35MM in height)
Sound system: standard
Hydraulic pump: flow rate 0.8L/MIN, rated pressure 2.5MPa, ultimate pressure 5Mpa. Directional valve: Miniature 3-way plug type directional valve with center oil return. Lighting system: standard, low beam, high beam, fog light, dome light
Transmission: planetary two-speed, first gear 1:64, second gear 1:16 Axle: speed ratio 1:10.4, lockable differential
Note: When the boom is in the lowest position and the bucket is unloading materials, the boom cannot be lifted up, otherwise the bucket cylinder may be damaged.
Due to the large mass of the vehicle, collisions need to be avoided during transportation, otherwise the axle and bucket cylinder will be damaged. New car hydraulic oil should be added to 150 to 200 ml
The packed carton size is 885*380*380MM, and the packed product weight is 22KG.
Important note: The parts Inside these RC models should not get wet, or this will cause mechanlcal fallure.
