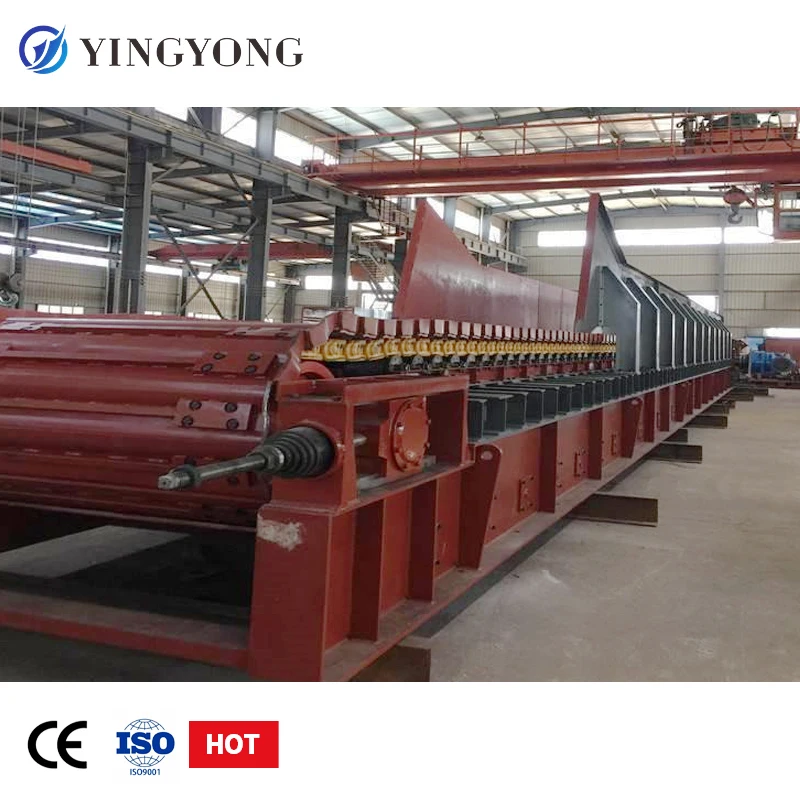

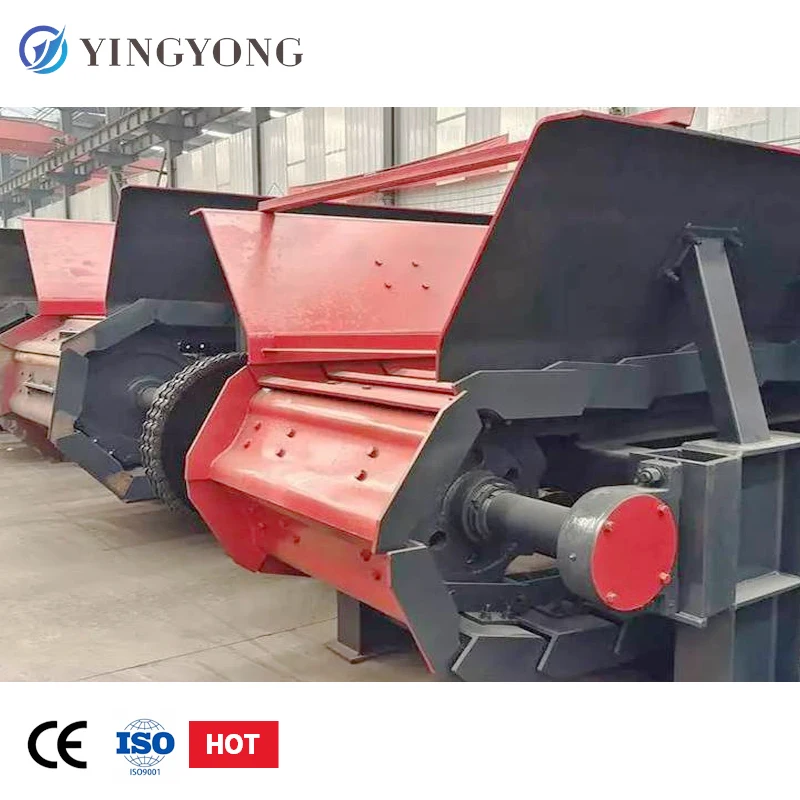

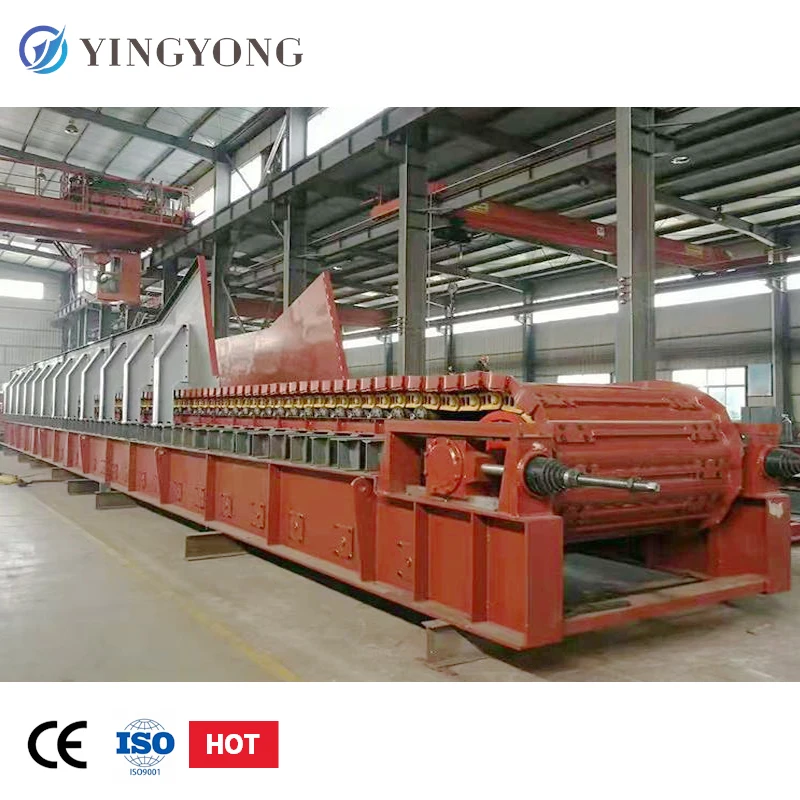

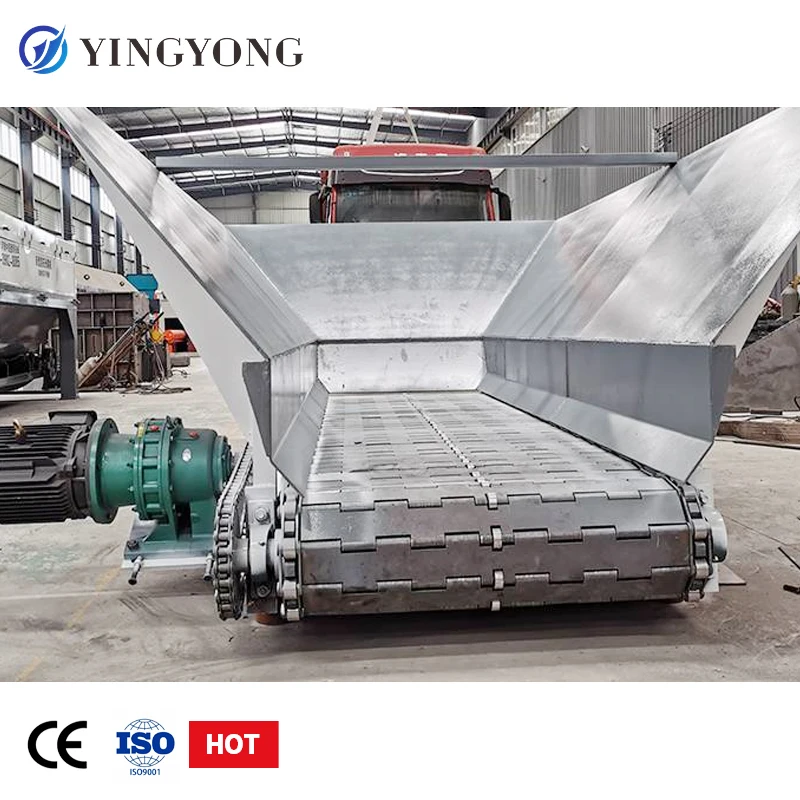

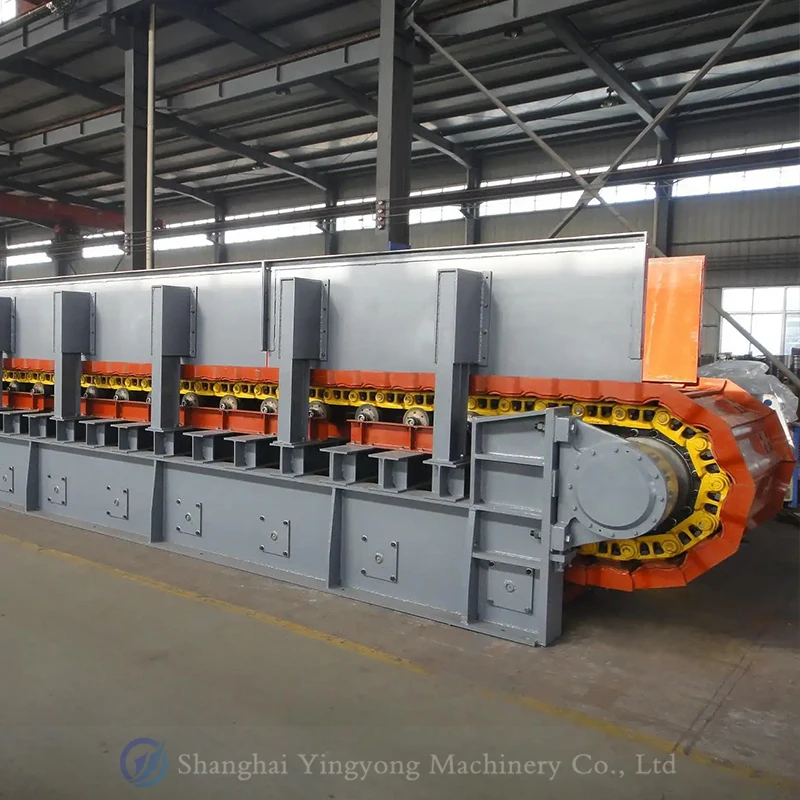

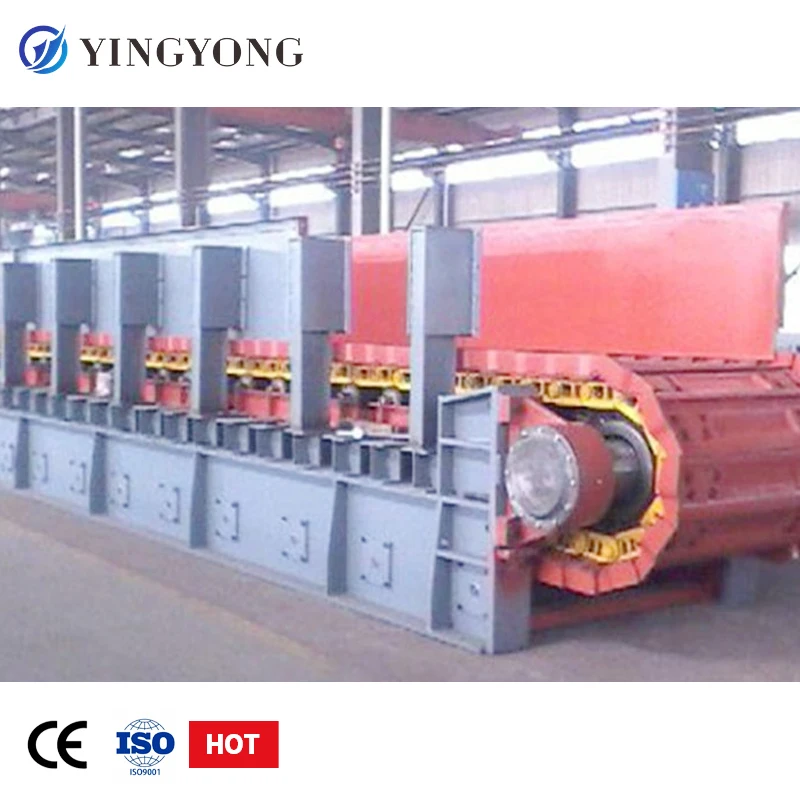

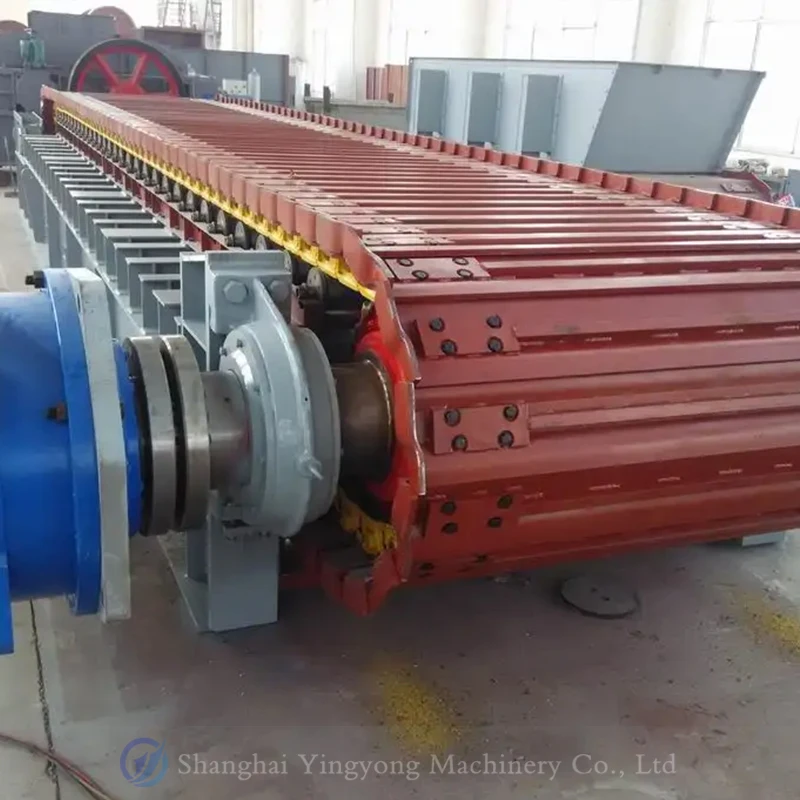

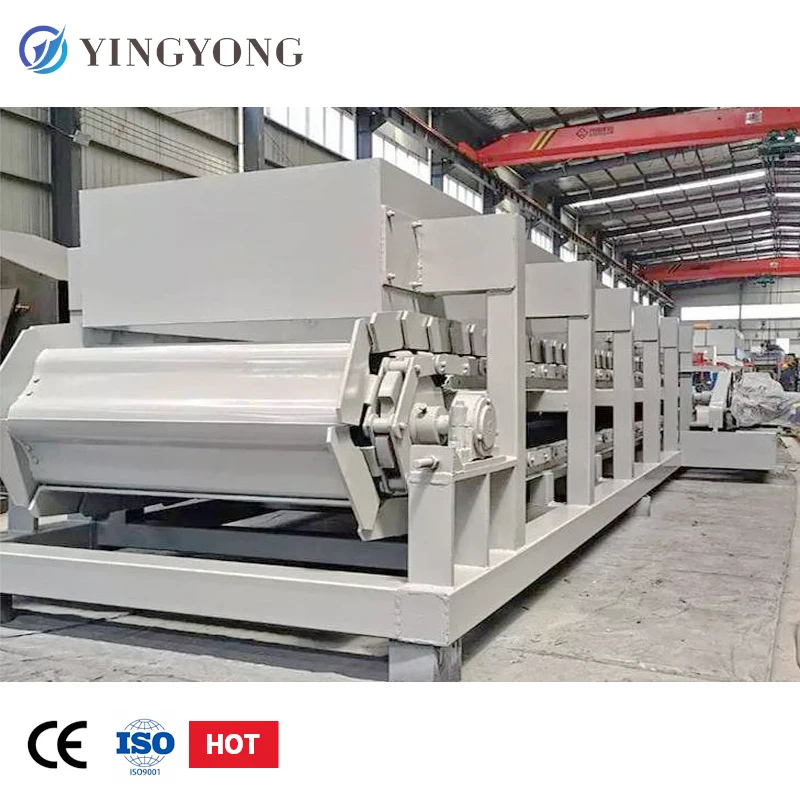

Large Capacity Mining Plate Apron Feeder Coal / heavy duty apron plate feeder chain Machine
- Category: >>>
- Supplier: Shanghai Yingyong Machinery Co. Ltd.
Share on (1600958412900):
Product Overview
Description
Product Overview
Apron chain plate feeder is a large machine that carries materials through the parts of a manufacturing or industrial process.These machines resemble short conveyor belts, and may also be known as plate feeders or apron conveyors. Apron feeder machines allow engineers and process managers to automatically control the volume of materials that are added to a process, and regulate the rate at which these materials are added. To withstand the heavy weight of these types of materials, the belt portion of the apron feeder is made from thick steel trays, pans or caterpillar chain plate. Chains along either end of the feeder help move the trays along the conveyor area, and are powered by an industrial motor or engine. In mining, the apron feeder carries rocks and minerals for crushing, or further processing.
Plate feeder
Apron feeder is a kind of continuous conveying material machinery, used in the horizontal or inclined direction to the crusher, conveyor, or other mechanical work continuously evenly distribution and transport materials, suitable for large and medium-sized cement production line in loose, block, large amount of feeding process, can lift large, can be in high temperature and high humidity in the bad environment and reliable work, Suitable for transporting large, high temperature and sharp materials, and can work reliably in open air and humid harsh environment.
FEATURES AT A GLANCE
Working Principle:
The devices are installed on the bottom of the ore bin outlet, the ore fall onto the leakage board at the chute bottom, the bottom of the leakage board is fixed on the idler, and through the eccentric institutions to connect the leakage board and the reducer together, and then through the coupling lined the motor. During the operation the motor drive the reducer through the coupling, and through the eccentric dish and the leaking plate, which is at the bottom of the frame also between the idlers, to move in reciprocating linear way, and achieve the feed uniformly.
Plate feeder is generally divided into heavy, medium and light three, is commonly used in concentrator feeding equipment.
In mining, dressing plant, chemical industry, cement, building materials and other departments, widely used from storage bin to crushing, transportation and other machinery for uniform continuous feeding. It can be installed horizontally or tilted upwards.
PRODUCT SPECIFICATIONS
Apron Feeder Technical Specifications
model | Pan Width (mm) | Max Feeding Size(mm) | Capacity (m3/h) | Length (m) |
BWZ800 | 800 | 350 | 50~350 | 4.5~15 |
BWZ1000 | 1000 | 470 | 100~510 | 4.5~20 |
BWZ1200 | 1200 | 650 | 120~595 | 4.5~20 |
BWZ1400 | 1400 | 680 | 140~850 | 6~20 |
BWZ1600 | 1600 | 700 | 320~1300 | 6~20 |
BWZ1800 | 1800 | 800 | 500~1560 | 8~20 |
BWZ2000 | 2000 | 1000 | 500~1850 | 8~20 |
BWZ2400 | 2400 | 1500 | 500~2700 | 8~20 |
BWZ2800 | 2800 | 1800 | 1000~4000 | 10~20 |

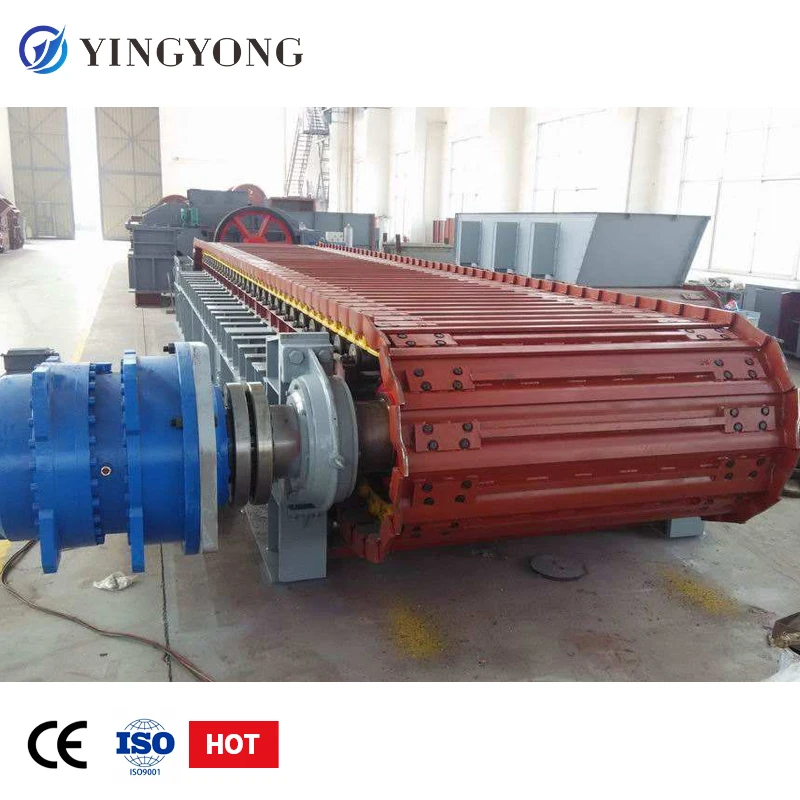

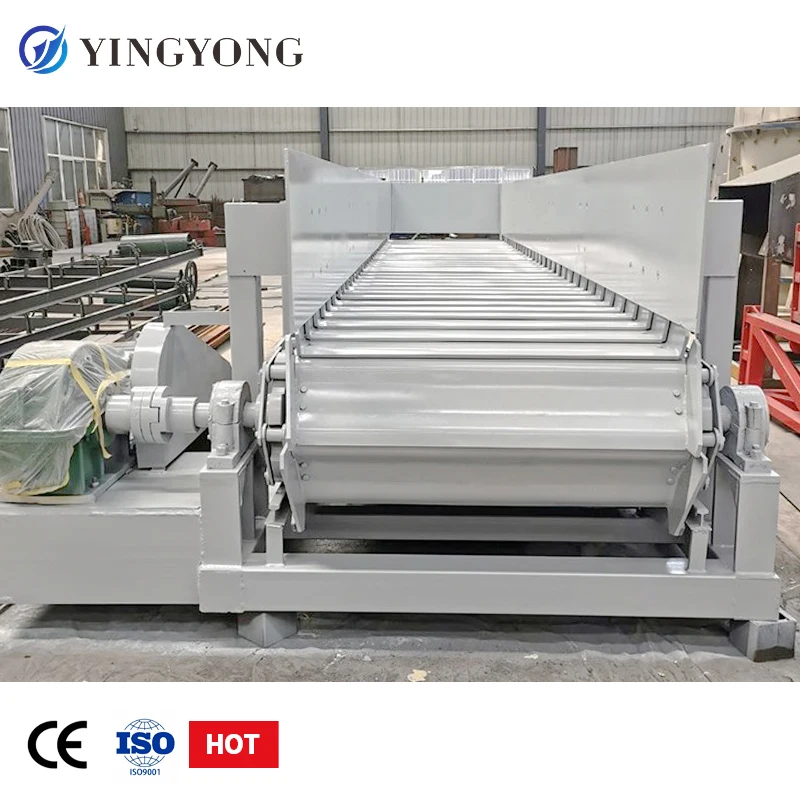

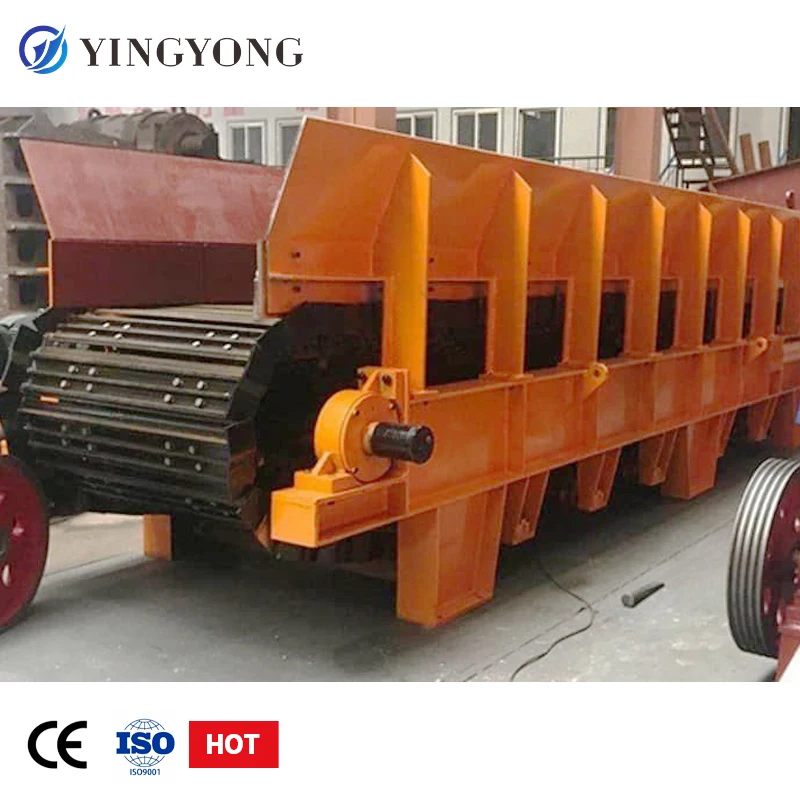

Product Display
Main Features:
1.Smoothly running and long service life
2. Super-large capacity with combination of crusher equipment
3. Low noise and power consumption
4. Supporting high impact loads came from strength of body
5.Good performance-conditioning, no flushing phenomenon of materials
6.Sealing structure body is employed, no pollution
2. Super-large capacity with combination of crusher equipment
3. Low noise and power consumption
4. Supporting high impact loads came from strength of body
5.Good performance-conditioning, no flushing phenomenon of materials
6.Sealing structure body is employed, no pollution
Application:Transporting high temperature material for cement, lime, clinker, mining industry.
Features:1. Apron bucket made by wear-resistant steel plate with high precision, the cumulative error is small, running accurate, stable and reliable; 2. Adaptable, can transport material with bigger size & sharp edges & high temperature. In the transportation process the conveyor will complete material cooling and cleaning at the same time.
