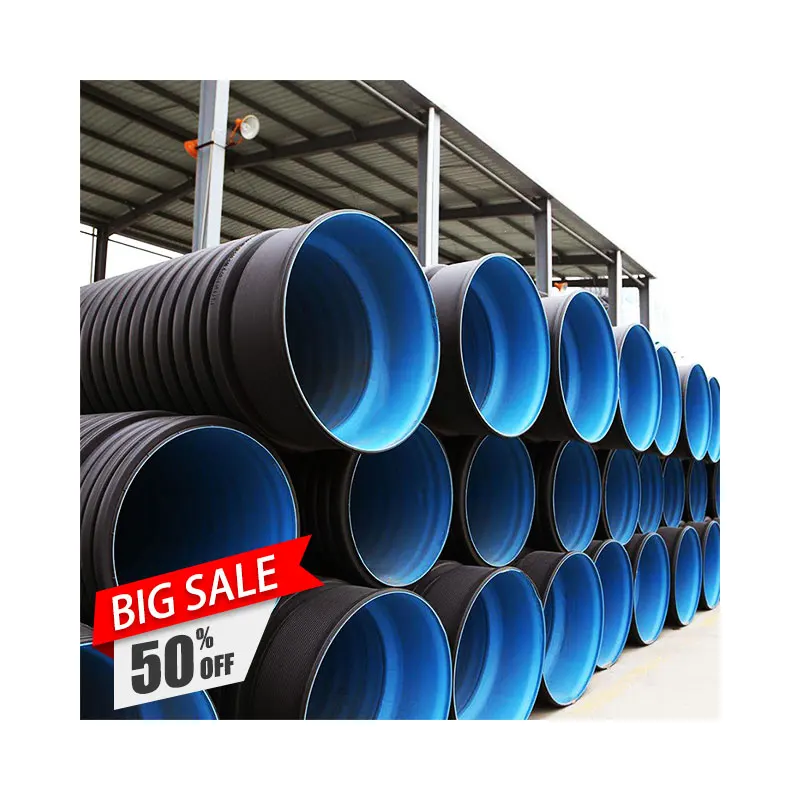

hdpe double wall corrugated pipe price list corrugated pipe coil fresh air duct 800mm hdpe double wall corrugated pipe
- Category: >>>
- Supplier: Henan Hesu Group Co. Ltd.
Share on (1600958424764):
Product Overview
Description
Welcome to HESU HOME
Professional HDPE pipe/ PVC pipe manufacture
we are sincerely recruit agents from all over the world.
Manufacturer Sn8 Black HDPE Double Wall Corrugated Pipe PE Sewerage HDPE tube Drainage System plastic corrugate pipe
Product Description
Product Name | HDPE Double-wall Corrugated Pipe |
Color | Black |
Specification | DN200-DN800mm |
Ring stiffness | SN4 SN6 SN8 |
Length | 6m / piece or according to your requirements |
Main application | Drainage and sewage, irrigation, water conveyance, waterlogging drainage, fluid transportation，etc |
Guarantee | 70 years |
Double-wall plastic corrugated pipe is made of "HDPE (high-density polyethylene) corrugated pipe", "PVC-U (hard polyvinyl chloride) corrugated pipe", "PP (polypropylene) corrugated pipe", etc. as the main raw materials. , The external extruder co-extrudes, one-time molding, the inner wall is smooth, the outer wall is corrugated, and there is a hollow layer of plastic pipe between the inner and outer walls. The pipe is suitable for a large temperature range (+60℃－ -20℃). Because of its unique structure, the product has high ring stiffness, high strength, light weight, sound insulation and shock absorption, UV resistance, long service life, pressure resistance, and It has many advantages such as high impact strength, strong corrosion resistance, cold and heat resistance. HDPE perforated corrugated pipe, soft permeable pipe, and plastic blind ditch have become the three main products in civil engineering construction in my country.
Product Paramenters
Inner diameter DN (mm) | Minimum Average Inner Diameter d (mm) | Minimum joints layer thickness e (mm) | Minimum inner layer thickness e 1 (mm) | Jointing length A(mm) | EXW price (USD/M) | ||
SN4 | SN8 | ||||||
200 | 195 | 1.5 | 1.1 | 54 | 3.762 | 4.918 | |
300 | 294 | 2.0 | 1.7 | 64 | 6.443 | 8.73 | |
400 | 392 | 2.5 | 2.3 | 74 | 11.066 | 14.508 | |
500 | 490 | 3.0 | 3.0 | 85 | 14.164 | 21.639 | |
600 | 588 | 3.5 | 3.5 | 96 | 27.541 | 30.492 | |
700 | 687 | 4.0 | 4.0 | 107 | 43.796 | 51.338 | |
800 | 785 | 4.5 | 4.5 | 118 | 48.492 | 55.377 | |
Physical properties of double-wall plastic corrugated pipe GB/T19472.1-2004：
Item | Index | |||
Ring stiffness（KN/㎡） | SN2 | ≥2 | ||
SN4 | ≥4 | |||
(SN6.3) | ≥6.3 | |||
SN8 | ≥8 | |||
(SN12.5) | ≥12.5 | |||
SN16 | ≥16 | |||
Impact performance（TIR）/ % | ≤10 | |||
Ring flexibility | The sample is smooth, no reverse bending, no cracking, no disengagement of the two walls | |||
Oven test | No bubbles, no delamination, no cracking | |||
Creep ratio | ≤4 | |||
Note: The values in parentheses are non-preferred ring stiffness grades. | ||||

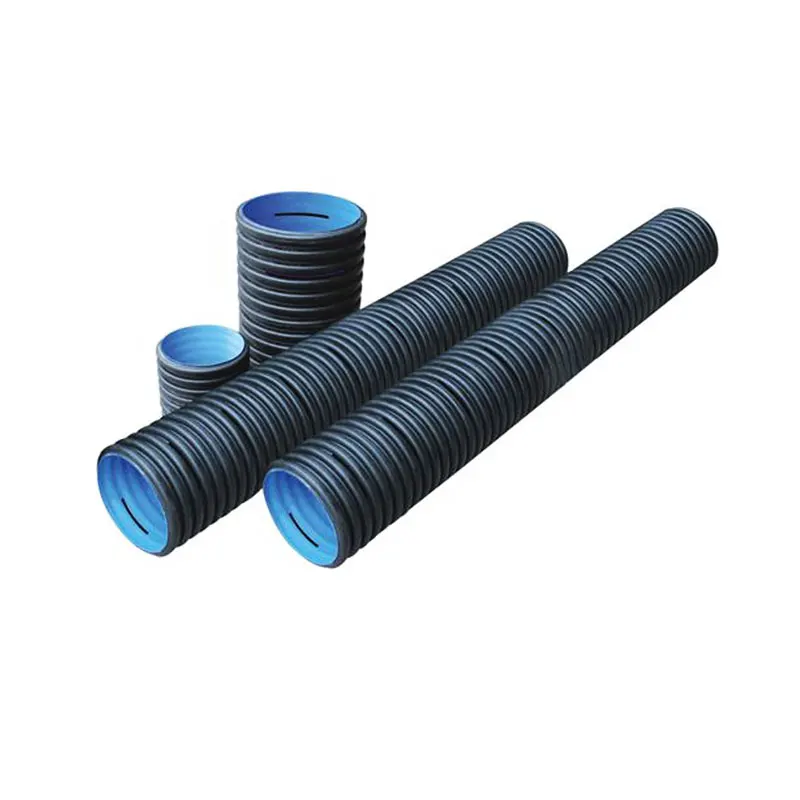

Details Images
Features:
1. Unique structure, high strength, compression and impact resistance.
2, the connection is convenient, the joint is well sealed, and there is no leakage.
3, light weight, quick construction and lower cost.
4. The buried service life is more than 50 years.
5. Polyethylene is a hydrocarbon polymer with non-polar molecules and resistant to acid and alkali corrosion.
6. The raw materials are green environmental protection materials, non-toxic, non-corrosive, non-scaling, and can be recycled and used.
7. The use temperature range is wide, the pipe will not break in the environment of -60℃, and the temperature of the conveying medium is 60℃.
8. The comprehensive project cost is basically the same as that of the concrete, and the operating cost is low.
9. No foundation is needed if the soil quality is good.
1. Unique structure, high strength, compression and impact resistance.
2, the connection is convenient, the joint is well sealed, and there is no leakage.
3, light weight, quick construction and lower cost.
4. The buried service life is more than 50 years.
5. Polyethylene is a hydrocarbon polymer with non-polar molecules and resistant to acid and alkali corrosion.
6. The raw materials are green environmental protection materials, non-toxic, non-corrosive, non-scaling, and can be recycled and used.
7. The use temperature range is wide, the pipe will not break in the environment of -60℃, and the temperature of the conveying medium is 60℃.
8. The comprehensive project cost is basically the same as that of the concrete, and the operating cost is low.
9. No foundation is needed if the soil quality is good.

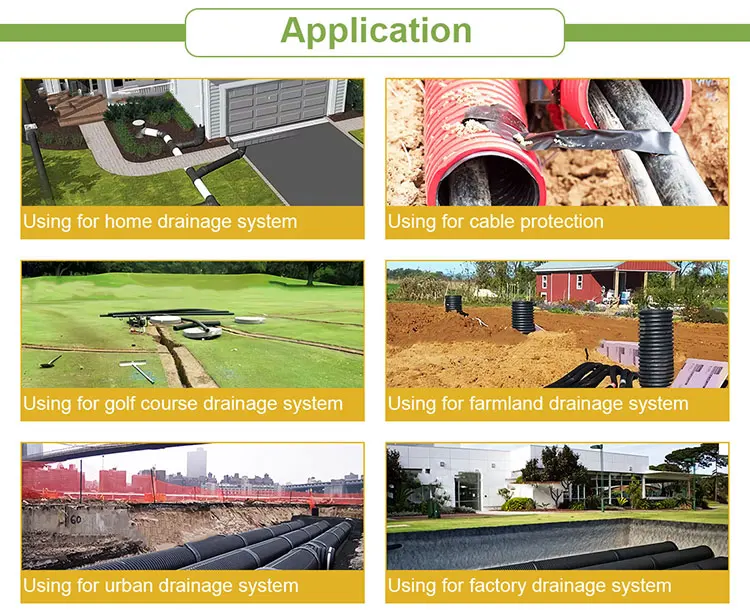

Application Field
1. Drainage and ventilation pipes for mines and buildings;
2. Municipal engineering, underground drainage and sewage pipelines in residential quarters;
3. Irrigation and drainage of farmland water conservancy; drainage pipes for sewage treatment plants and garbage disposal sites;
4. Chemical ventilation pipes and chemical and mining fluid conveying pipes;
5. The overall processing of pipeline inspection wells; high-speed kilometers of pre-buried pipelines;
6, high-voltage cables, post and telecommunications cable protection sleeves, etc.
2. Municipal engineering, underground drainage and sewage pipelines in residential quarters;
3. Irrigation and drainage of farmland water conservancy; drainage pipes for sewage treatment plants and garbage disposal sites;
4. Chemical ventilation pipes and chemical and mining fluid conveying pipes;
5. The overall processing of pipeline inspection wells; high-speed kilometers of pre-buried pipelines;
6, high-voltage cables, post and telecommunications cable protection sleeves, etc.

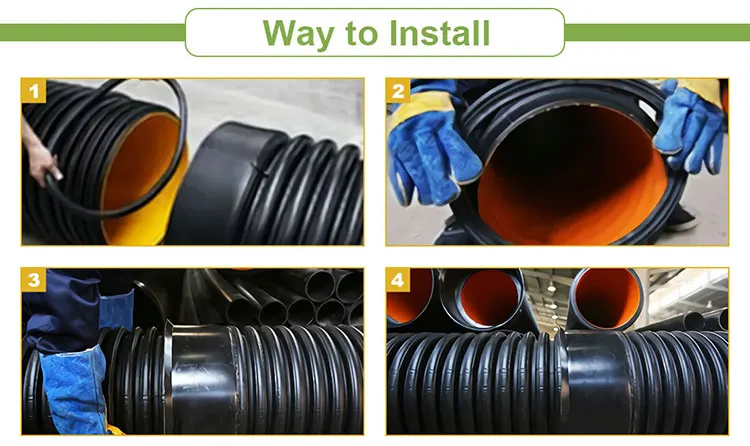

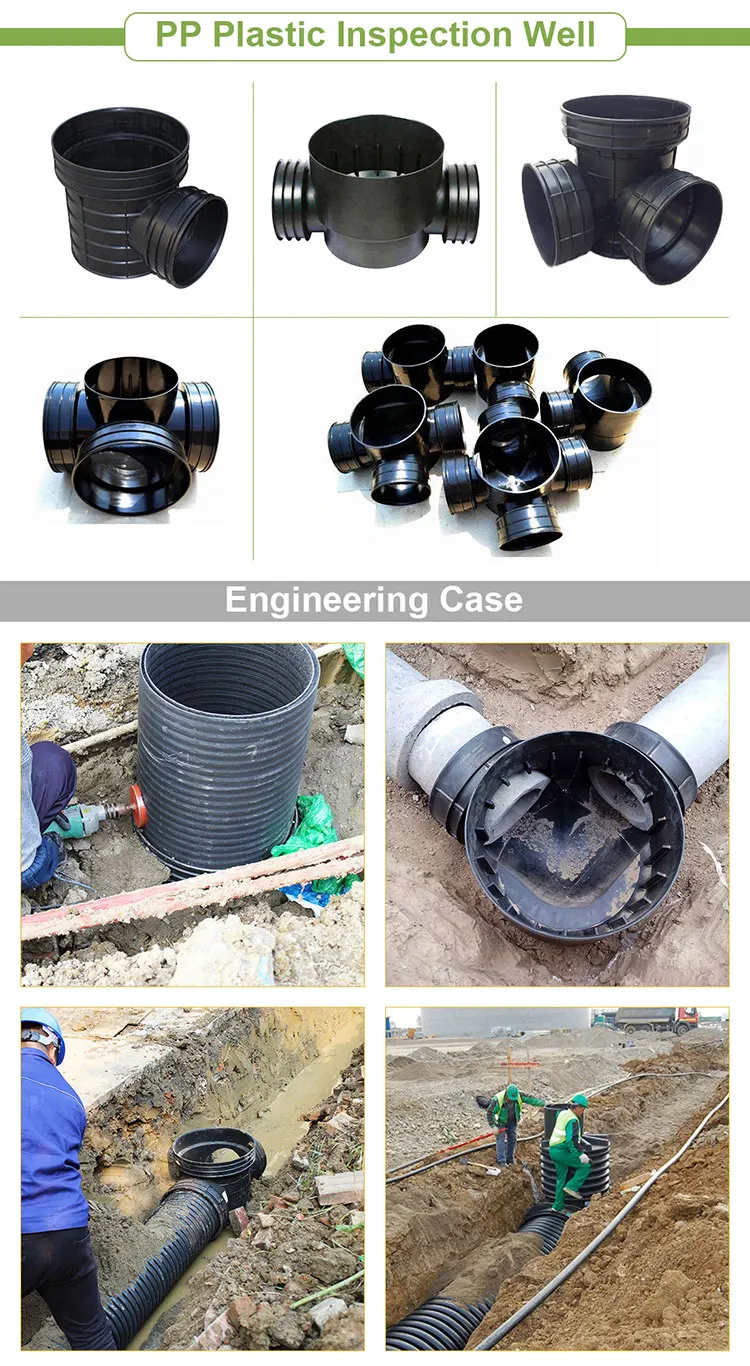

Accessories：

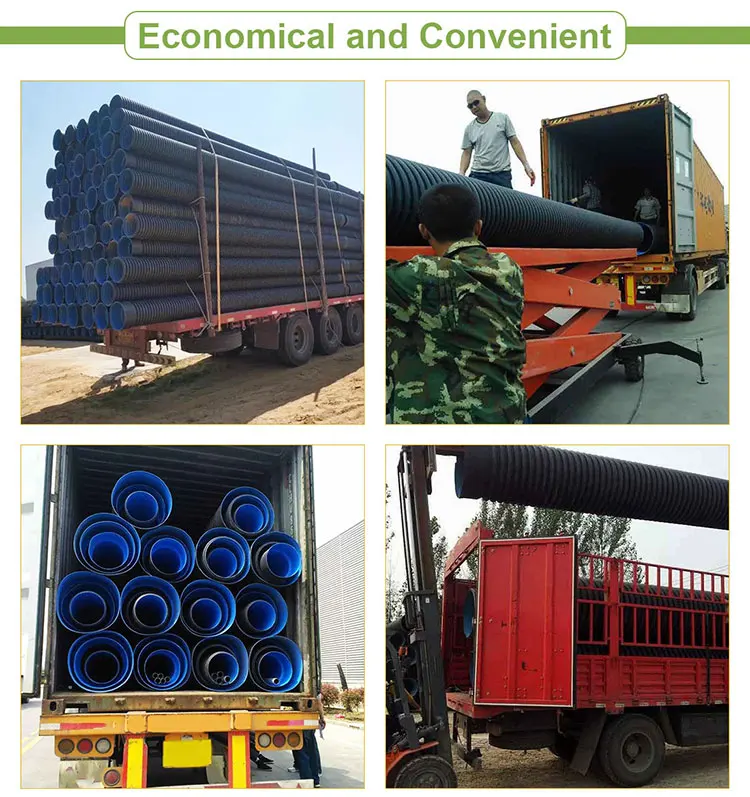

Packing & Delivery
Company Profile
CORE COMPETITVENESS：
Professional------60 sets of advanced HDPE pipe production lines and production capacity of more than 80,000 MT per year .Owing expeirnced producing and international marketing teams.
Quality-----Well-equipped laboratory and advanced test machines ensure each process from HDPE raw materials to finished HDPE pipe meet the international standards.
Service------Providing professional support and guanrantee in each stages of the sales of the HDPE pipe.
Professional------60 sets of advanced HDPE pipe production lines and production capacity of more than 80,000 MT per year .Owing expeirnced producing and international marketing teams.
Quality-----Well-equipped laboratory and advanced test machines ensure each process from HDPE raw materials to finished HDPE pipe meet the international standards.
Service------Providing professional support and guanrantee in each stages of the sales of the HDPE pipe.
FAQ
Q: what is your minimum order quantity?
A: It depends on your order (if different kinds of products have different minimum order quantity)
Q: Trading company or manufacturer?
A: Manufacturer.
Q: Can I get free samples?
A: Yes, but you need to pay for the transportation. If there's a follow-up Cooperation, sample fee can be deducted from the purchase price.
Q: Can we visit your company or factory?
A: Of course, and we are always looking forward to your visit.
Q: How do you guarantee your product?
A: We use 100% new materials and every product will be tested by raftsmen.
Q: What is your delivery time?
A: According to the quantity requirements, generally within 10 days.
Q: What trade incoterms are acceptable for you ?
A: FOB, EXW, etc.
Q: What kind of pipes do you specialize in?
A: We mainly produce HDPE pipe, PVC pipe, PPR pipe, MPP pipe, hot-dip galvanized steel pipe series, plastic
coated steel pipe, plastic lined steel pipe and valve series.
coated steel pipe, plastic lined steel pipe and valve series.
