Combi Valves pressure independent combi valve with P/T plugs
- Category: >>>
- Supplier: Qingdao I-Flow Co. Ltd.Qingdao Ltd.
Share on (1600958476676):
Product Overview
Description
Product Description
Application:
In ventilation and air air conditioning plants for control on the water side and automatic hydraulic balancing of terminal units, such as fan coils, air handling units, and in heat exchangers for heating or cooling.
In heating zones like self-contained heating systems, apartments, individual rooms, etc.
Parameters:
Combines an externally presettable adjustable valve, a differential pressure control valve and a full authority modulating control valve.
DN15~200

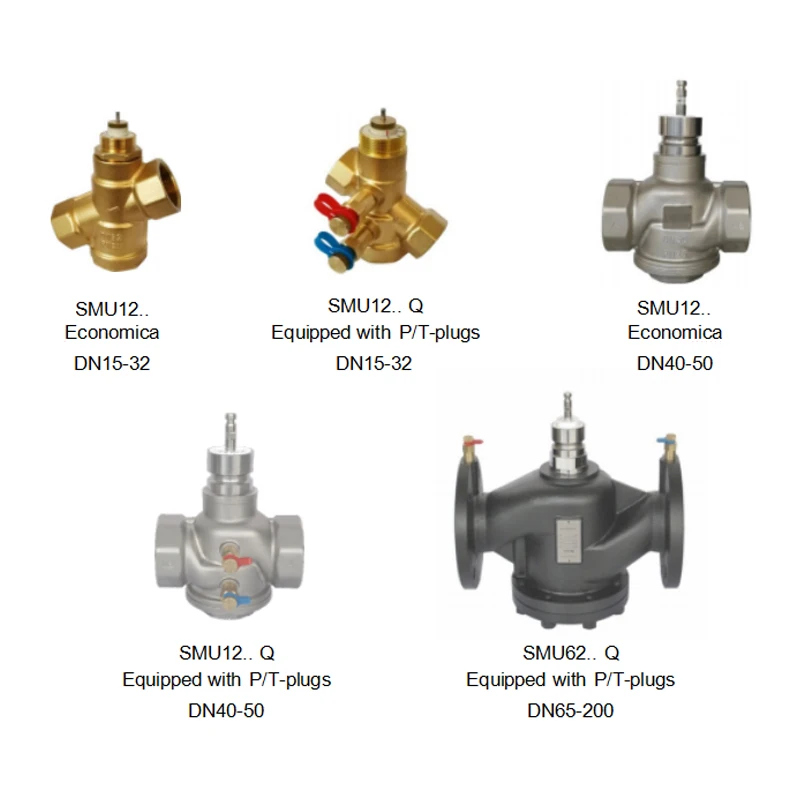

Pipe connections
SMU12... (DN15~DN50):
Internal thread BSP (ISO7/1) PN25 SMU62... (DN65~DN200):
Flanged (ISO7005-2) PN16 PN25 Body materials:
SMT12...
(DN15~DN32): hot-pressed brass
(DN40~DN50): stainless steel
SMT62...
(DN65~DN200): nodular cast iron
Features:
The maximum flow can be preset arbitrarily
according to the actual flow demand, making the control more precise and adjustment more convenient
The presetting function has no impact on the stroke, regulation characteristic remains
unchanged regardless of preset flow
The flow control is only related to the electric control valve opening and is not affected by the fluctuation of the system pressure difference
Optional with pressure test plugs (P/T plugs) (It must be selected before delivery)
Can be equipped with linear electromotor actuators,such as: On/Off or 3 point or
DC0-10V or DC4-20mA.
In ventilation and air air conditioning plants for control on the water side and automatic hydraulic balancing of terminal units, such as fan coils, air handling units, and in heat exchangers for heating or cooling.
In heating zones like self-contained heating systems, apartments, individual rooms, etc.
Parameters:
Combines an externally presettable adjustable valve, a differential pressure control valve and a full authority modulating control valve.
DN15~200
Pipe connections
SMU12... (DN15~DN50):
Internal thread BSP (ISO7/1) PN25 SMU62... (DN65~DN200):
Flanged (ISO7005-2) PN16 PN25 Body materials:
SMT12...
(DN15~DN32): hot-pressed brass
(DN40~DN50): stainless steel
SMT62...
(DN65~DN200): nodular cast iron
Features:
The maximum flow can be preset arbitrarily
according to the actual flow demand, making the control more precise and adjustment more convenient
The presetting function has no impact on the stroke, regulation characteristic remains
unchanged regardless of preset flow
The flow control is only related to the electric control valve opening and is not affected by the fluctuation of the system pressure difference
Optional with pressure test plugs (P/T plugs) (It must be selected before delivery)
Can be equipped with linear electromotor actuators,such as: On/Off or 3 point or
DC0-10V or DC4-20mA.
Functional data | PN class | PN 16, PN25 as per ISO 7268 |
Permissible operating pressure | as per ISO 7005, See previous page “Working pressure and medium temperature staged” | |
Leakage rate | Class IV (0…0.01% of volumetric flow Qmax) as per DIN EN 1349 | |
Volumetric flow deviation | < ±10% within differential pressure range (Different flow, accuracy will be different) | |
Permissible media | Low temperature hot water, medium temperature hot water, chilled water, water with antifreeze Recommendation: Water treatment | |
Operating direction | Valve stem retracts will closed (push to close) | |
Medium temperature | 1...110°C | |
Materials | Valve body | DN15...DN32: Hot-pressed brass DN40...DN50: Stainless steel DN65...DN200: Nodular cast iron |
Stem, | Stainless steel | |
Trim | Brass , Stainless steel, PPS | |
Seals | EPDM (O-ring) | |
Spring | Stainless steel | |
Dimensions / weight | Refer to "Dimensions" | |
Pipe connections | DN15...DN50: Internal thread BSP (ISO7/1) PN25 DN65...DN200: Flanged (ISO7005-2) PN16, PN25 | |
Pressure test plugs (P/T-plugs) | G 1/4″ |
DN15‐20
On/Off
DN25‐32
On/Off
DN15‐32 0‐10V
DN65‐DN80
Equipped VAJ3D.. actuator
DN65 -DN200
Equipped VAJ4.. actuator
