High Density Compressed Fiber Cement Board
$1.65-1.86
fiber cement board sip panel with Steel tower workshop industrial steel structure warehouse
- Category: >>>
- Supplier: Golden Power (fujian) Green Habitat Group Co. Ltd.
Share on (1600958513541):
Product Overview
Description
Products Description
Product Performance
TITLE | VALUE |
Standard Dimensions: | Plain and Patterned: 1220 x 2440 mm, 600 x 2440 mm |

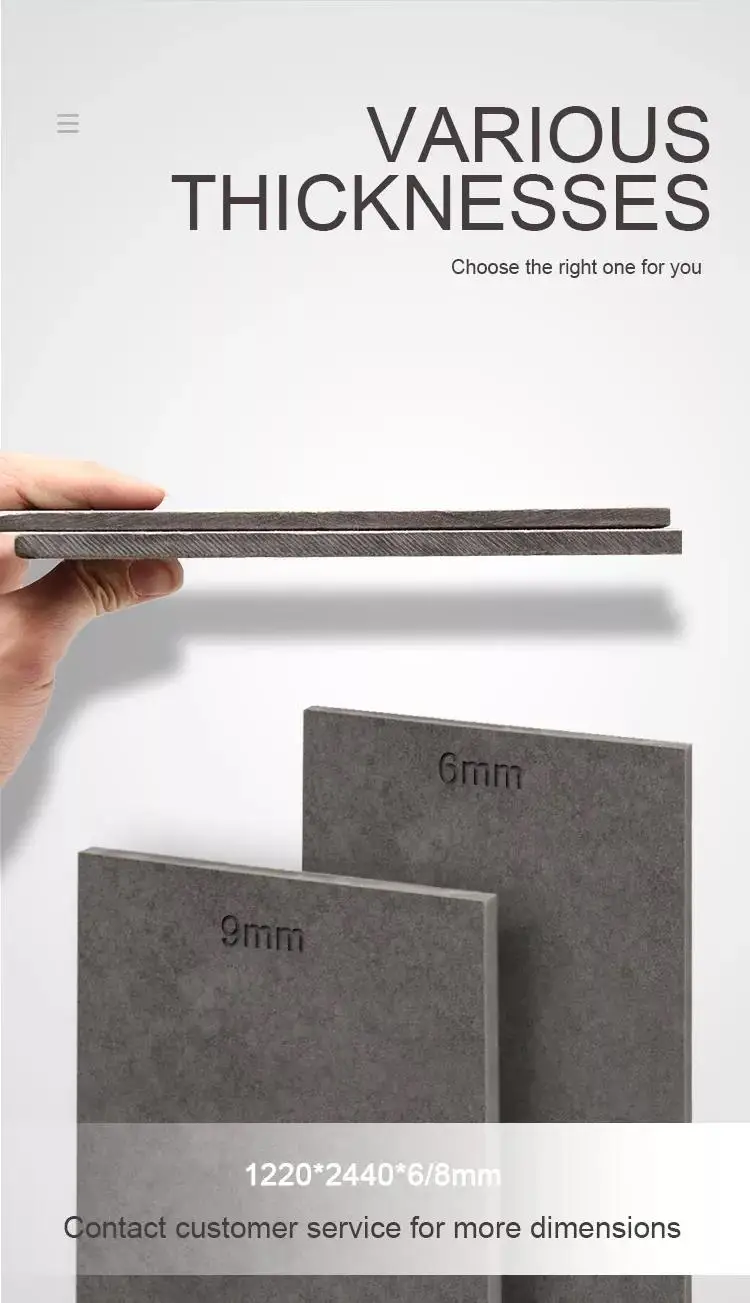

Thickness : | Plain: 6 ~ 20 mm – Patterned: 8 ~ 12 mm |
Length / Width Tolerance: | ± 5 mm / ± 3,75 mm |
Thickness Tolerance (e: board thickness) | Plain: ± %10 e, Patterned: – %10e / +%15e |
Right Angle Deviation: | ± 2 mm/m |
Straighness of the Sides: | ± % 0,1 a ( a : side length ) |

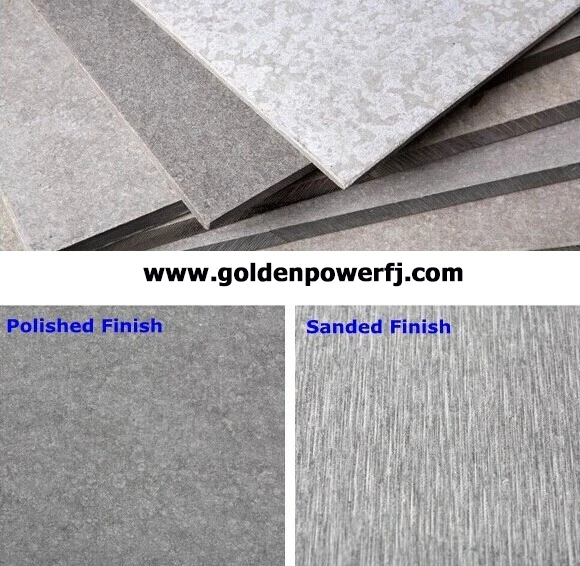

Surface Appearance: | Plain or patterned |
Density: | ~ 1350±50 kg/m3 |
Vapor Diffusion Resistance Factor: | μ ≤ 30 |
Porosity: | ~ % 30 |
Bending Resistance ( Minimum ): | ~ 14,0 N/mm2 ( boyuna ); ~ 9,0 N/mm2 ( enine ) |
Free-Resistance: | Freeze Resistant in accordance with TS EN 12467 |
Water Impermeability: | Impermeable to water in accordance with TS EN 12467 |
Flame Resistance: | Incombustible, A1 class building material according to EN 13501-1 |
Asbestos Content: | Does not contain asbestos ( NT type plate ) |
Emission of Other Hazardous Substances: | No emission of hazardous substances or gases |
Coefficient of Thermal Expansion: | αt = 0,005 mm/mK |
Coefficient of Heat Transmission: | λ = 0,20 W/mK |
Modulus of Elasticity: | 8000 N/mm2 ( longitudinal ), 6000 N/mm2 ( horizontal ) |
Water Absorption Rate: | < % 30 |
Humidity Rate of Boards in Stock: | < %10 ( subject to atmospheric humidity ) |
Water Effect: | 0,5 mm/m ( in full saturation )0.5 mm/m |
Bending Radius (According to Thickness): | 8 mm.. 8 m; 10 mm..12 m; 12 mm..24; 16 mm..50 m |

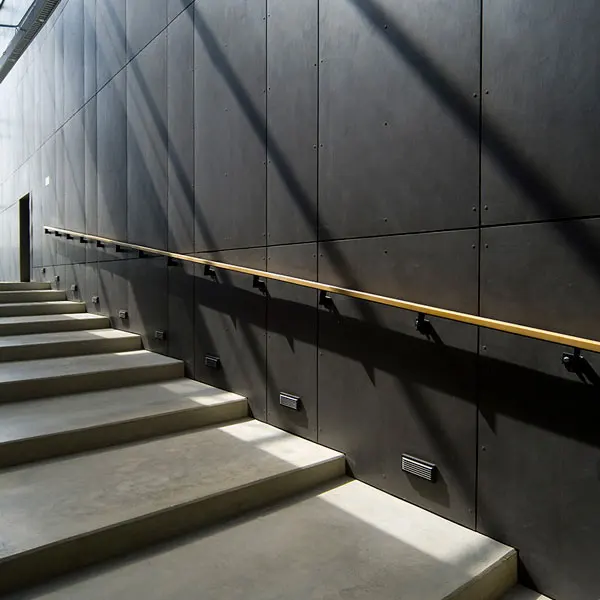

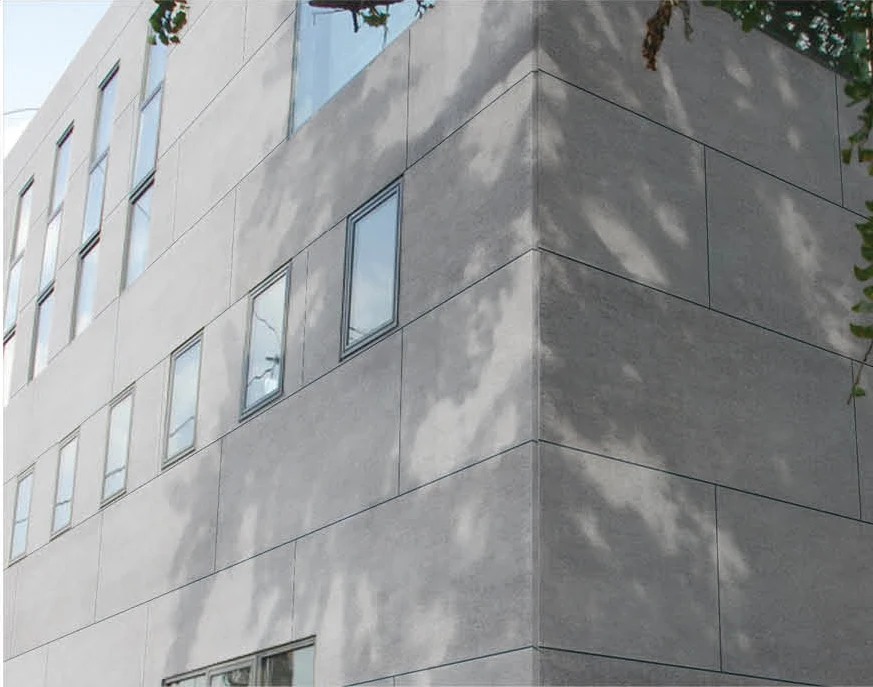

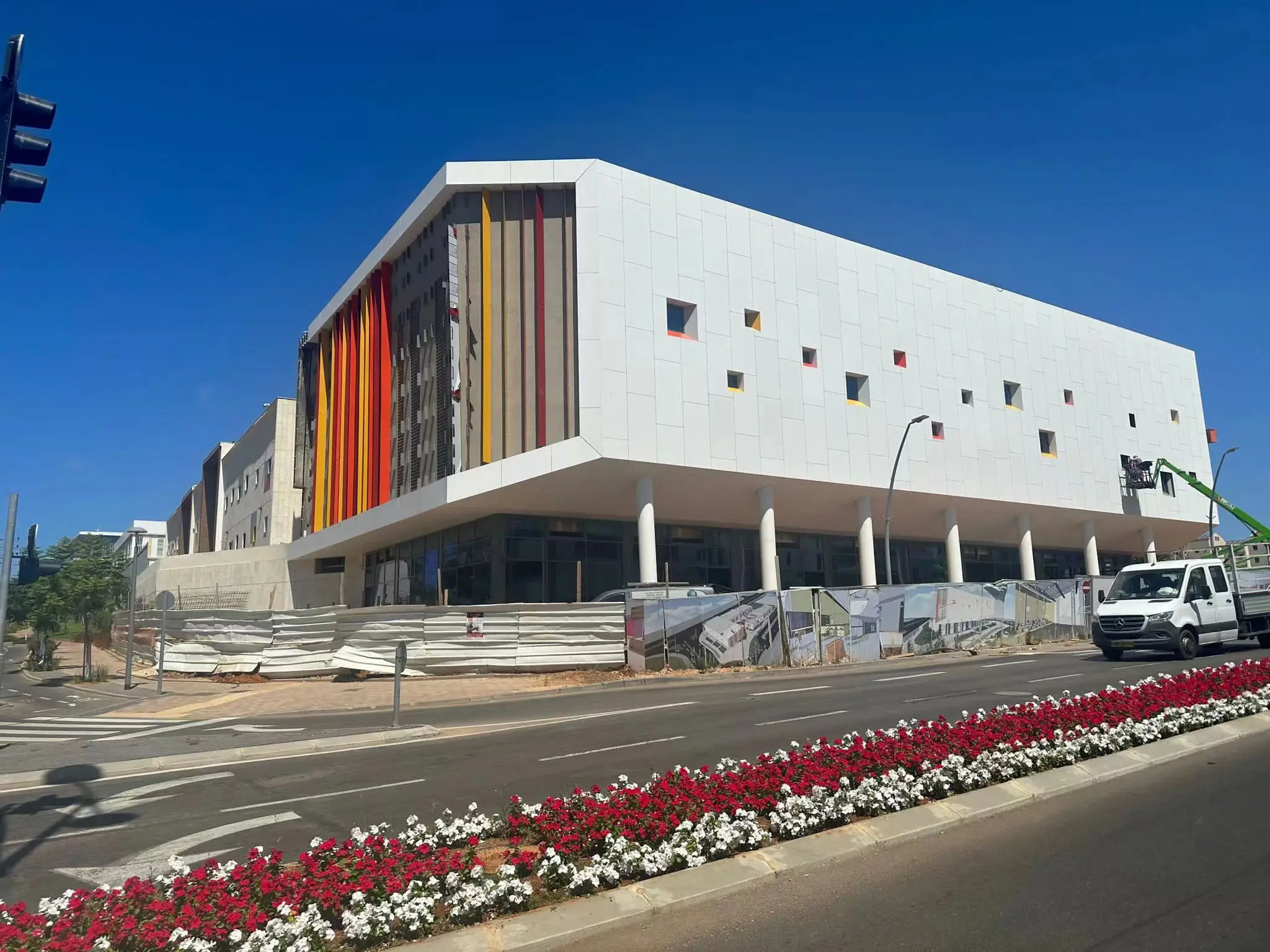

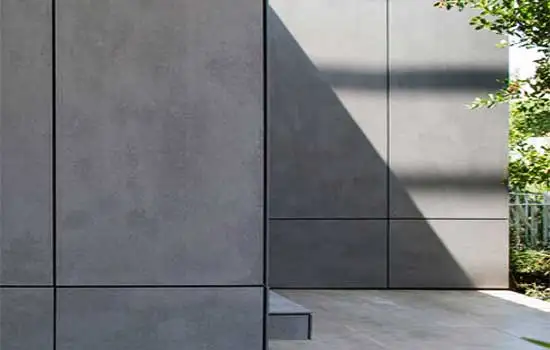

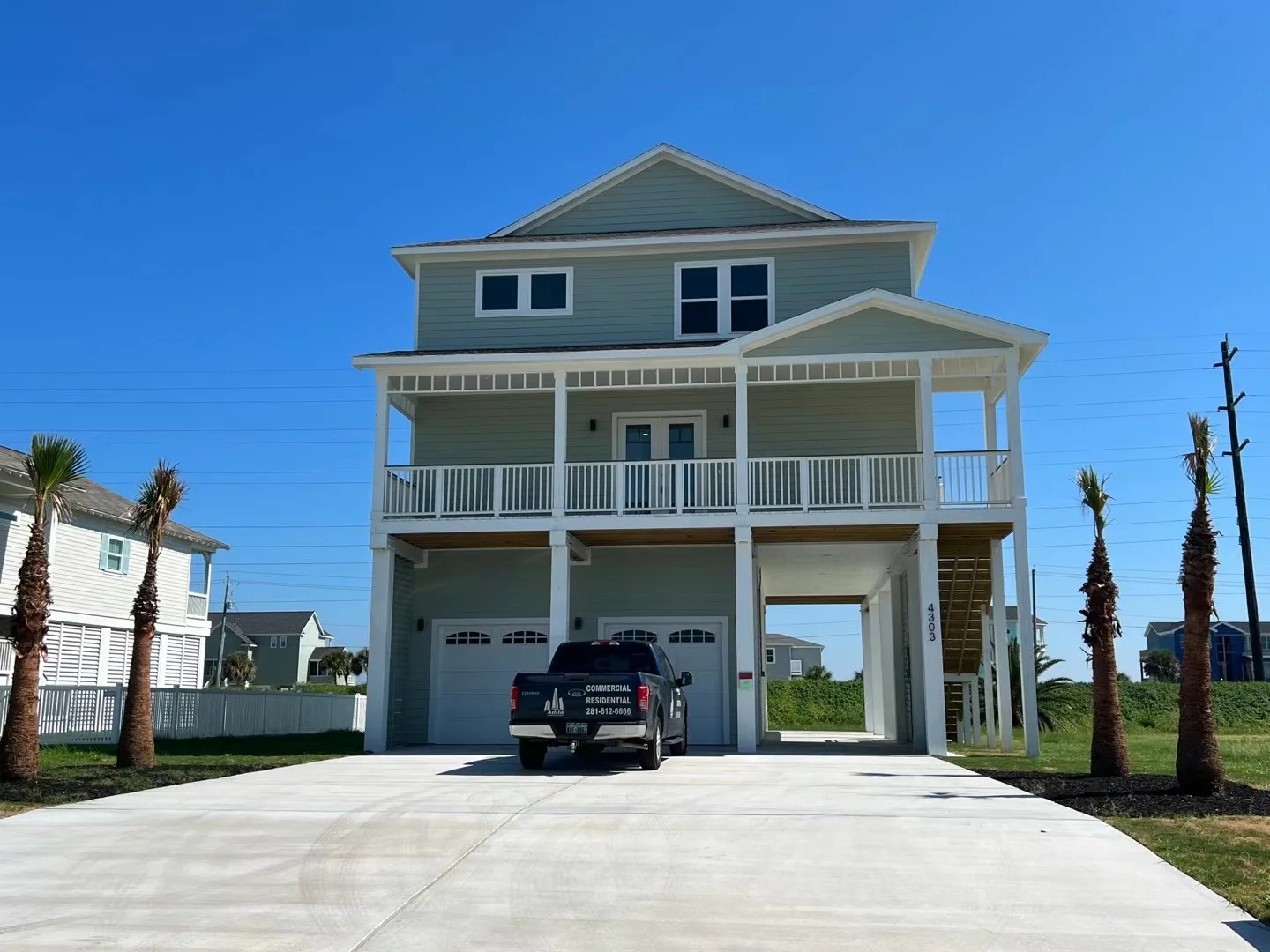

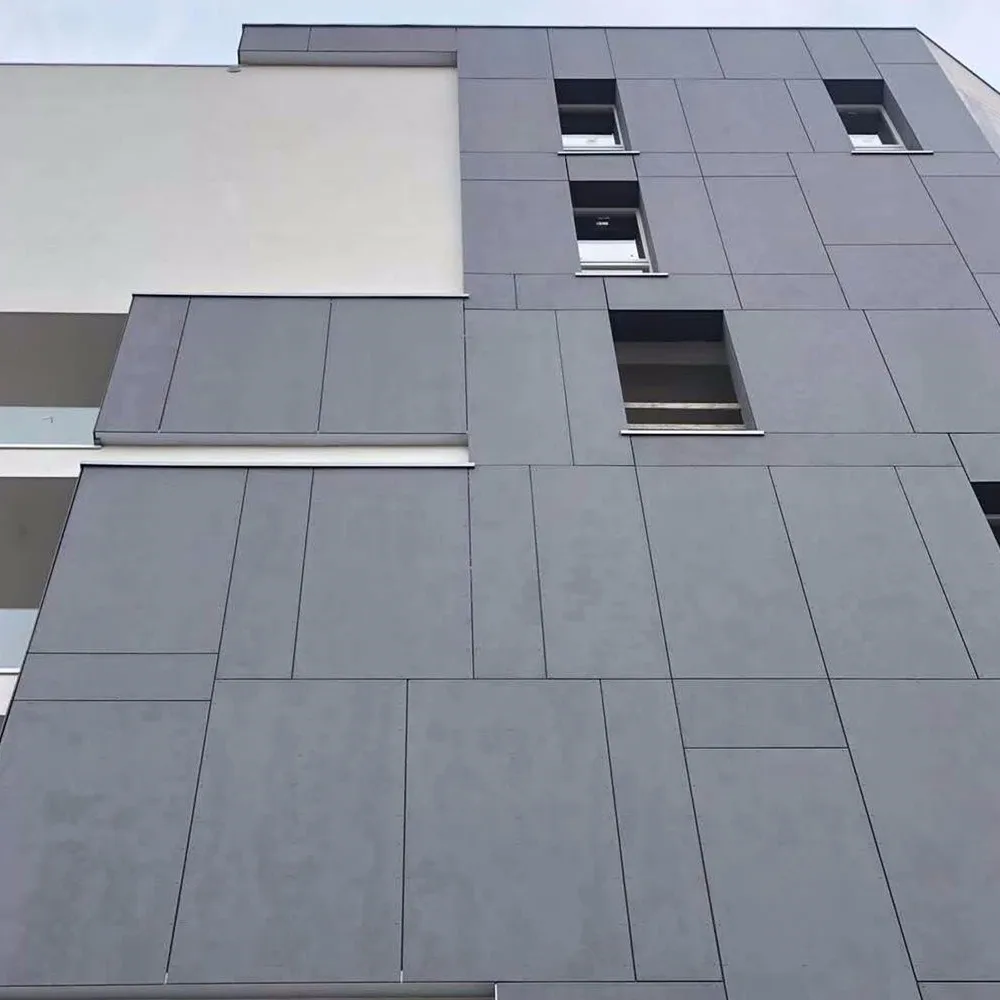

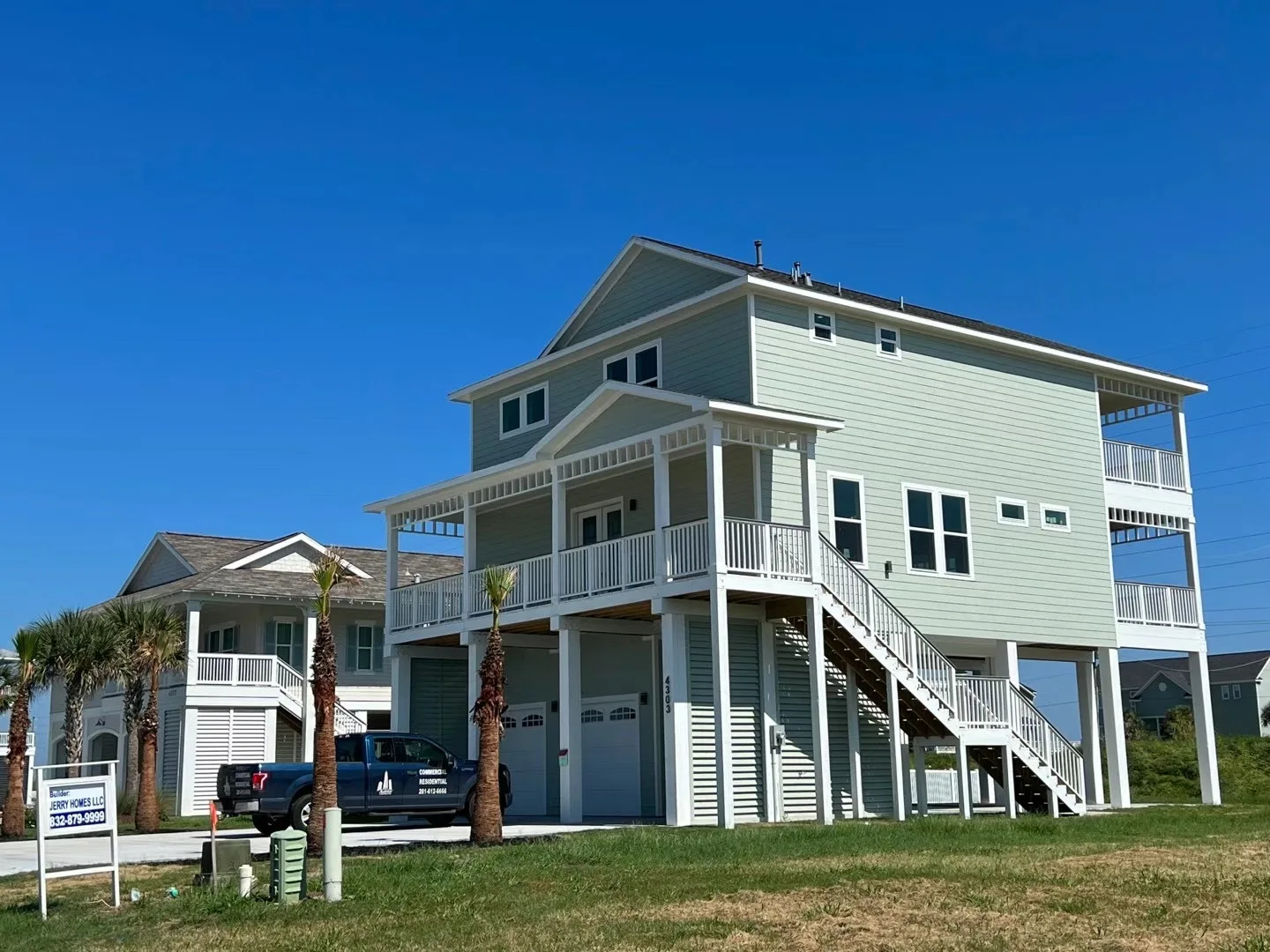

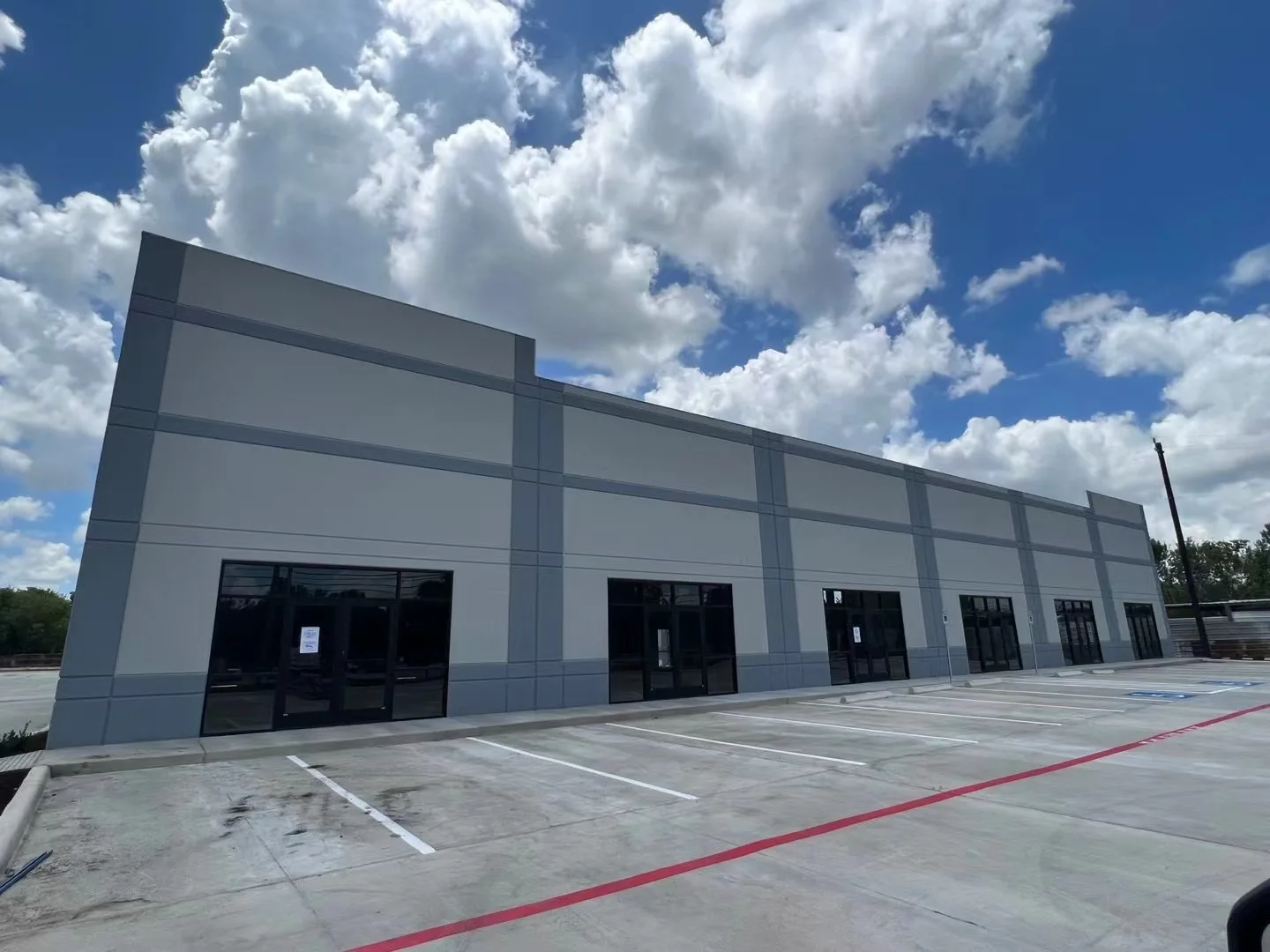

CASE SHOWS

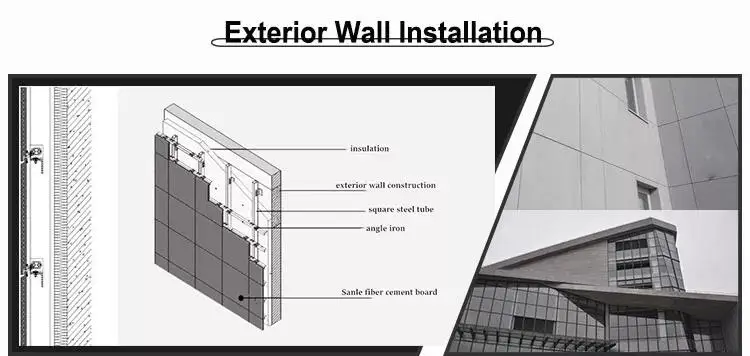

1. Golden power Fiber cement board preparation: according to the size and design requirements, installing the supporting aluminum accessories(six aluminium accessories per sheet) on the back of fiber cement board ( maximum cross section size is 2440 * 1220 mm). Making cross line according to the vertical distance ( 600 mm ) between the transverse keels and length of fiber cement board uniform size, then fixing supporting aluminum fasteners at the intersection,using 10 mm long and 4 mm thick stainless steel screws.
2. Construction wall preparation: cleaning up the wall surface, and then marking out the position lines and partition lines of the steels according to the design drawings and actual needs.
3. Wire hanging: vertical wire hanging should use the 1.0-1.2size steel wire, with 8-10 kgs weight lower counterweight iron,and the upper end is hung on the special wire hanging Angle iron frame. The angle iron frames are fixed on the top corners of the wall with expansion bolts, and marking on the top and bottom of the control line.
4. Keel installation: first fixing 50×50×4 angle iron (with adjustable hole) on the structural surface with Φ8 expansion bolt,that horizontal distance between the angle iron and the 50×50×3.5 vertical square steel tube on the angle steel is 800mm. When installing the vertical square steel tube, it must be checked by hanging steel wire from top to bottom to detect its.Perpendicularity. After that, installing the fastening angle iron and the transverse aluminum keel (with 600mm spacing). The connection between angle iron, square steel tube and transverse keel is made with 10 bolts. Last, using the infrared level meter to detect whether the horizontal aluminum keel is horizontal, and the steel line to detect whether it is vertical.
5. Fiber cement board installation: mounting the advance processing board on the keel according to the design drawings, and using aluminum accessories to connect the panel and keel. Hanging lightly the same level layer fiber cement boards on the keel, and then adjusting the horizontal and vertical degree of board through upper and lower steel wires. After that, checking the boards seam,,whose width should be uniform according to the requirements of design. Last, tightening the stainless steel screws (20mm long and 6mm thick) on the complete set of aluminum accessories.
6. Board joint treatment: using the fiber cement board powder mixing glue to fill the seam, and then painting with special coating twice. When filling the gap, it is necessary to pay attention to the uniform and full filling.
2. Construction wall preparation: cleaning up the wall surface, and then marking out the position lines and partition lines of the steels according to the design drawings and actual needs.
3. Wire hanging: vertical wire hanging should use the 1.0-1.2size steel wire, with 8-10 kgs weight lower counterweight iron,and the upper end is hung on the special wire hanging Angle iron frame. The angle iron frames are fixed on the top corners of the wall with expansion bolts, and marking on the top and bottom of the control line.
4. Keel installation: first fixing 50×50×4 angle iron (with adjustable hole) on the structural surface with Φ8 expansion bolt,that horizontal distance between the angle iron and the 50×50×3.5 vertical square steel tube on the angle steel is 800mm. When installing the vertical square steel tube, it must be checked by hanging steel wire from top to bottom to detect its.Perpendicularity. After that, installing the fastening angle iron and the transverse aluminum keel (with 600mm spacing). The connection between angle iron, square steel tube and transverse keel is made with 10 bolts. Last, using the infrared level meter to detect whether the horizontal aluminum keel is horizontal, and the steel line to detect whether it is vertical.
5. Fiber cement board installation: mounting the advance processing board on the keel according to the design drawings, and using aluminum accessories to connect the panel and keel. Hanging lightly the same level layer fiber cement boards on the keel, and then adjusting the horizontal and vertical degree of board through upper and lower steel wires. After that, checking the boards seam,,whose width should be uniform according to the requirements of design. Last, tightening the stainless steel screws (20mm long and 6mm thick) on the complete set of aluminum accessories.
6. Board joint treatment: using the fiber cement board powder mixing glue to fill the seam, and then painting with special coating twice. When filling the gap, it is necessary to pay attention to the uniform and full filling.
