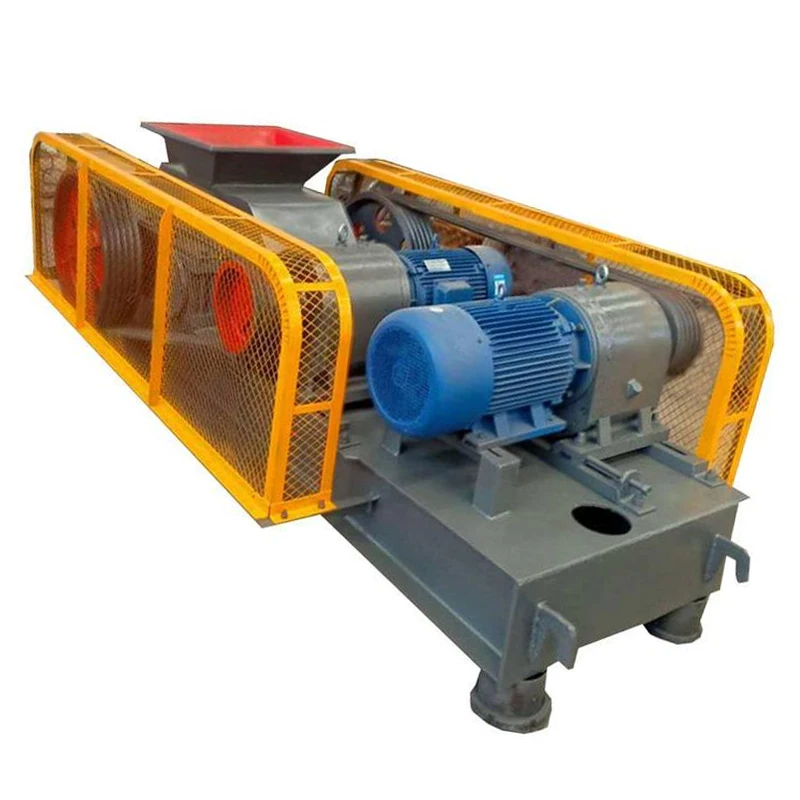

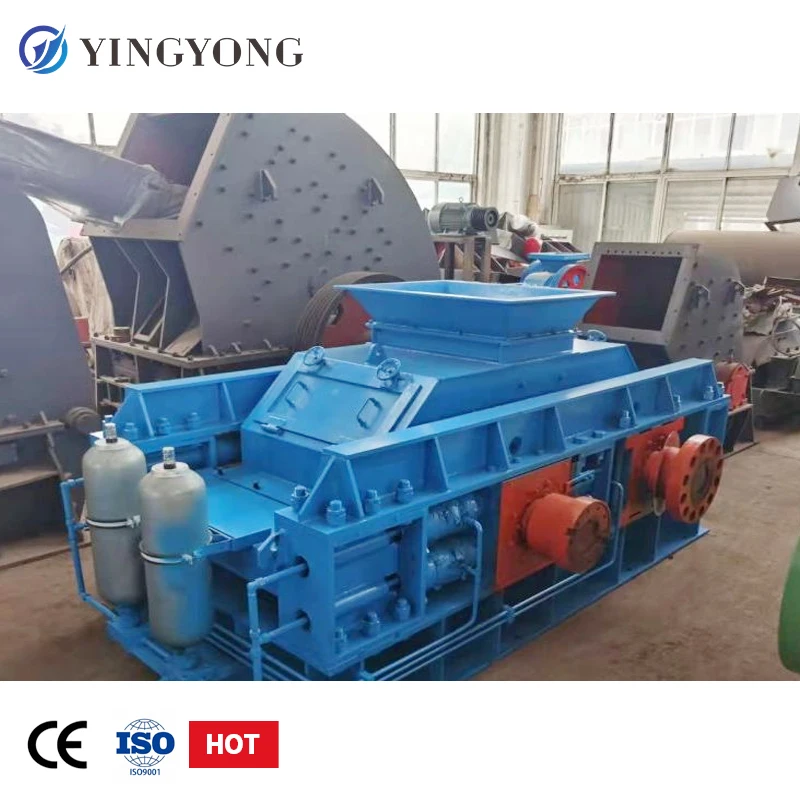

hot sale high quality hydraulic smooth small size Mini Double Roller Crusher machine type 2pg 610*400 gs1500*3600 2pg0425
- Category: >>>
- Supplier: Shanghai Yingyong Machinery Co. Ltd.
Share on (1600958577327):
Product Overview
Description
Product Description
The double roll crusher is specially designed for the fine crushing of limestone.The crusher is equiped with two rollers which rotate towards each other and materials are squeezed, grounded and cut by the shearing force of the rotating roller. When materials enter into the crushing cavity, the materials are subjected to the shearing force of the rotating roller, this causes the materials to pass through the two rollers. At this point, the mineral starts to rupture. The crushed particles move along the tangent direction of the roller, and are discharged through the bottom clearence between the two rollers. Particles that are bigger than the bottom clearance will be crushed continuously until they become small enough to be discharged. It is characterised by high rotation speed of rollers and high capacity. |
Features of Screen-type Double Toothed Roll Crusher |
1. It can be used to crush a wide range of materials, such as coal, limestone, soft rock, hard rock and metallic ore, etc. 2. With double overload protection devices and Iron-pass protection, the crusher works reliably. 3. High adaptability makes it particularly suitable for down-hole operations and open mobile crushing. 4. More granular materials, less powder after crushing. 5. Easy to replace tooth plates and have a longer service life span. 6. Adjustable roll distance extends the scope of application. |

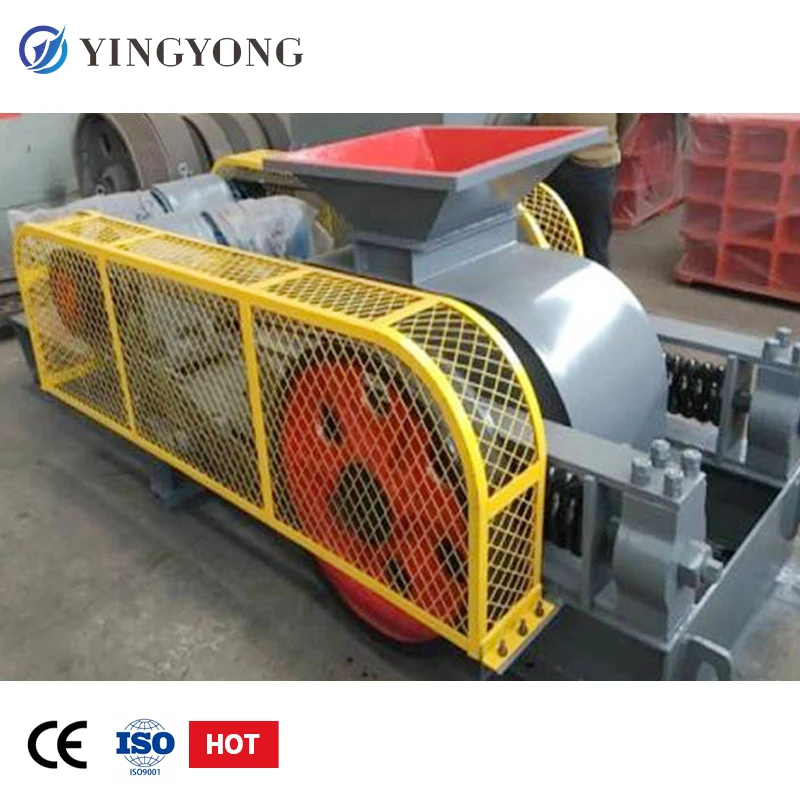

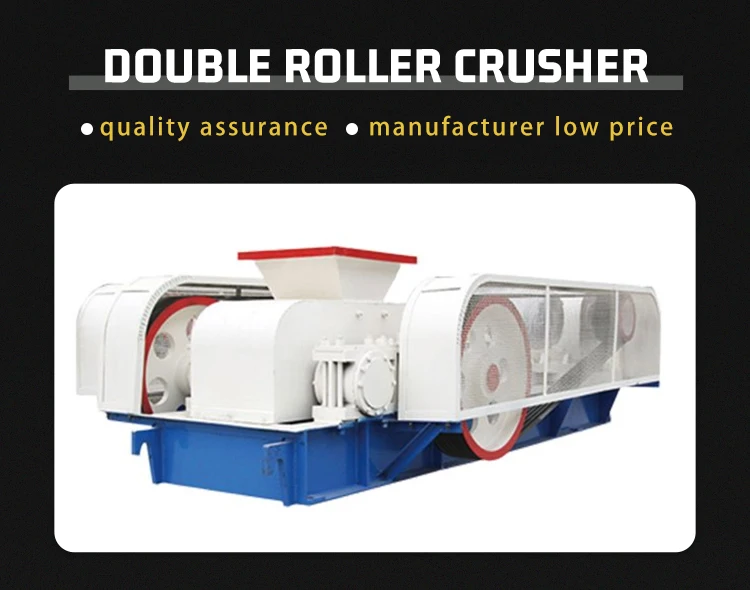

Double Roll Crusher |
The double roll crusher is specially designed for the fine crushing of limestone.The crusher is equiped with two rollers which rotate towards each other and materials are squeezed, grounded and cut by the shearing force of the rotating roller. When materials enter into the crushing cavity, the materials are subjected to the shearing force of the rotating roller, this causes the materials to pass through the two rollers. At this point, the mineral starts to rupture. |
Application
Coal (open pit coal mine, coal mine in pit, coal washery, coal chemical engineering factory, power plant, frozen coal block),limestone ( cement industry, aggregate, lime industry); Cooper ores, gold ores, Nickel Ores, iron ores, bauxite, Gypsum, talc ores, wollastonite ores, kaolin, granite and more other materials. Is used for more than 200 kinds of materials, want to know the specific details, please consult customer service directly, we will give you the most professional answer. |
The double roll crusher is also suitable for mineral separation, chemical, cement, building materials industries’ medium and fine curshing of ores and stones with medium and low hardness and compressive strength of not more than 120-150Mpa. |

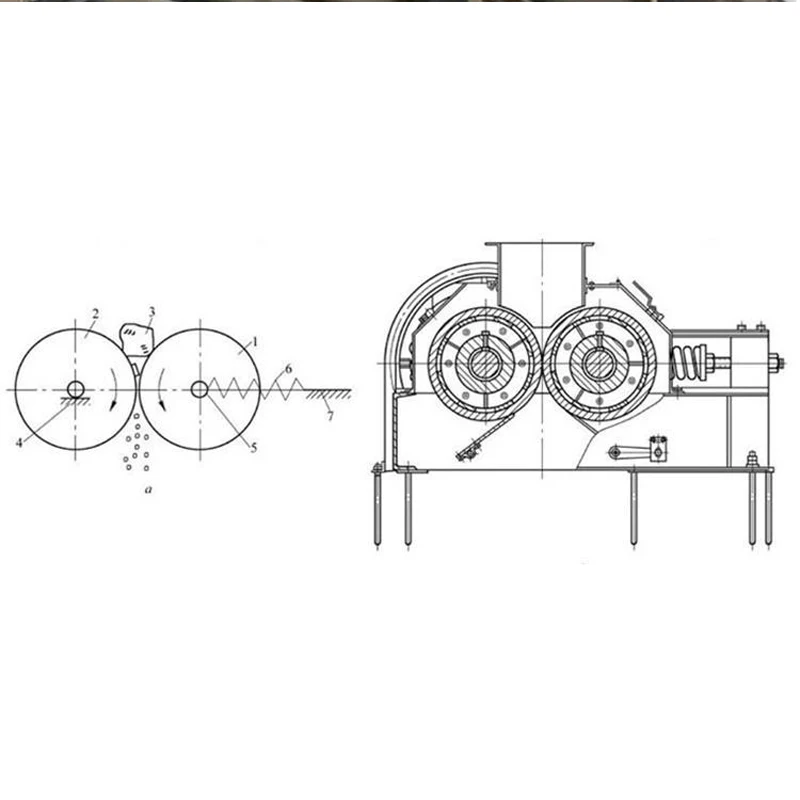

Working Principle

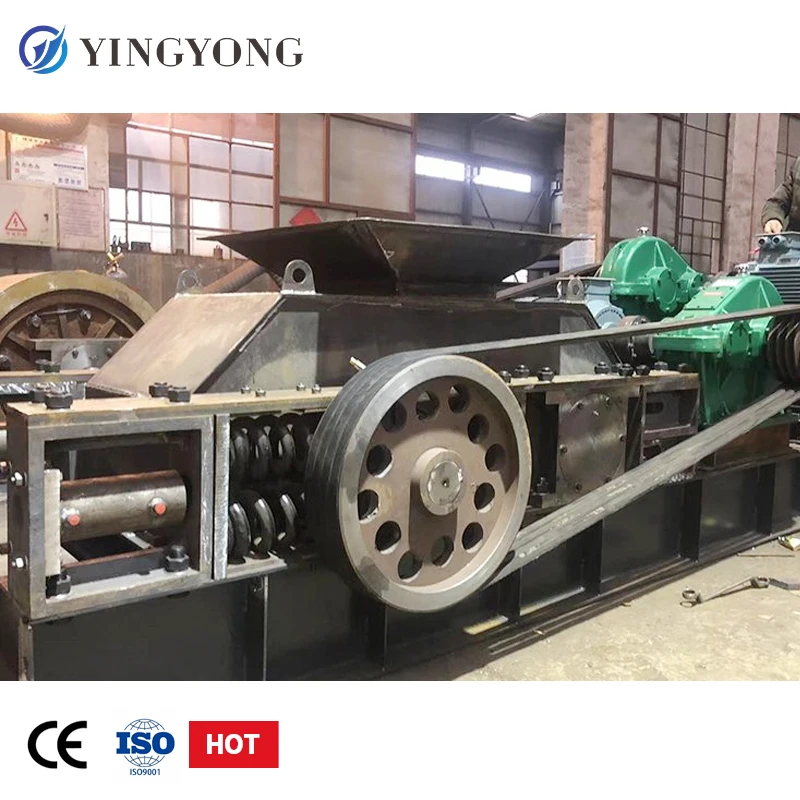

The adjustment of the discharging granularity: with a wedge or gasket between the two roller adjusting device, adjusting bolt, wedge at the top of the device when the adjusting bolt will wedge pulled up, wedge rolling activity to the top from the fixed wheel, namely two roller clearance greatens, discharging granularity, when the wedge downward, activities under the action of the roller in a compression spring two rounds of smaller clearance, discharge size smaller. The gasket device adjusts the size of the discharge grain by increasing or decreasing the quantity or thickness of the gasket. When the gasket is increased, the gap between the two rollers becomes larger, and when the gasket is reduced, the gap between the two rollers becomes smaller, and the size of the discharge becomes smaller. |
Model | Feed size (mm) | Discharge size (mm) | Output (t/h) | Weight (kg) | size（LxWxH） | |||||
2PGC400x250 | 800-100 | 10-50 | 3-10 | 1300 | 2400X950X680 | |||||
2PGC400x400 | 180-260 | 10-50 | 5-20 | 1800 | 2400X1100X680 | |||||
2PGC450x500 | 200-350 | 15-100 | 30-60 | 3800 | 2200X2300X830 | |||||
2PGC600x750 | 250-400 | 20-120 | 60-100 | 7200 | 2400X3100X950 | |||||
2PGC800x600 | 300-500 | 30-150 | 60-100 | 7800 | 3000X3200X1200 | |||||
2PGC900x900 | 300-600 | 30-200 | 80-150 | 11500 | 3000X3480X1210 | |||||
2PGC900x1100 | 300-600 | 30-200 | 100-200 | 14800 | 3000X3660X1210 | |||||
2PGC1000x800 | 300-600 | 30-200 | 120-220 | 19100 | 3200X3400X1380 | |||||
2PGC1200x1000 | 500-800 | 30-200 | 150-250 | 22000 | 3550X3650X1480 | |||||
2PGC1200x1200 | 500-800 | 30-200 | 180-300 | 26000 | 3550X4100X1480 | |||||
The above figure only shows part of the parameters of double-toothed roll crusher. If you want to know more, please consult the customer. Various models can be customized according to different material requirements. | ||||||||||
Specifications of Screen-type Double Toothed Roll Crusher： | ||||||||||
Model | Suitable Materials | Feed Size (mm) | Discharge Size (mm) | Capacity (t/h) | Pitch of Shaft (mm) | |||||
YRC-625 | Coal/Limestone/Shale | ≤500 | ≤200 | 1800-2000 | 625 | |||||
YRC-750 | Coal/Limestone/Shale | ≤800 | ≤250 | 1000-1500 | 750 | |||||
YRC-850 | Coal/Limestone/Shale | 800-1000 | 250-300 | 1800-2200 | 850 | |||||
YRC-850II | Coal/Limestone/Shale | 800-1000 | 250-300 | 2250-2800 | 850 | |||||
YRC-1150 | Coal/Limestone/Shale | 1000-1200 | 300 | 2700-3300 | 1150 | |||||
YRC-1250 | Coal/Limestone/Shale | 1000- 1500 | 250-300 | 3300-4000 | 1250 | |||||
YRC-1500 | Top rock/Limestone | 1500 | 350 | 3500-5000 | 1500 | |||||
To understand the consultation to buy more mine cement machine products, please consult customer service, we will give you the highest quality and the most affordable price |

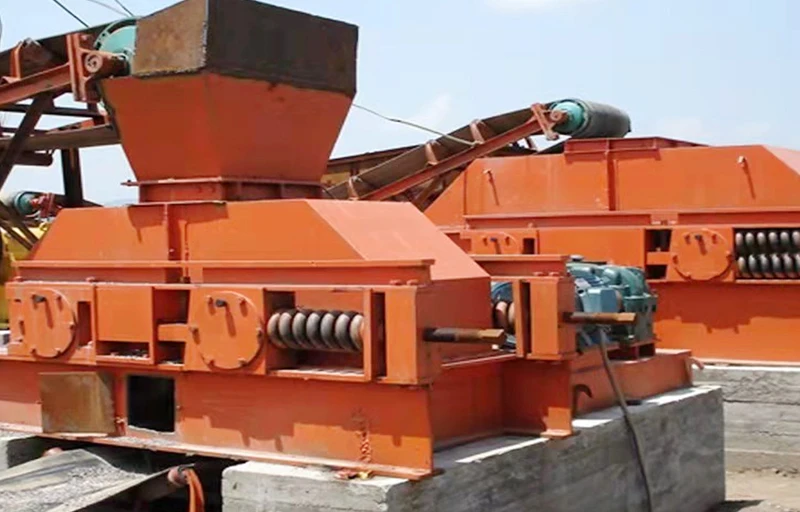

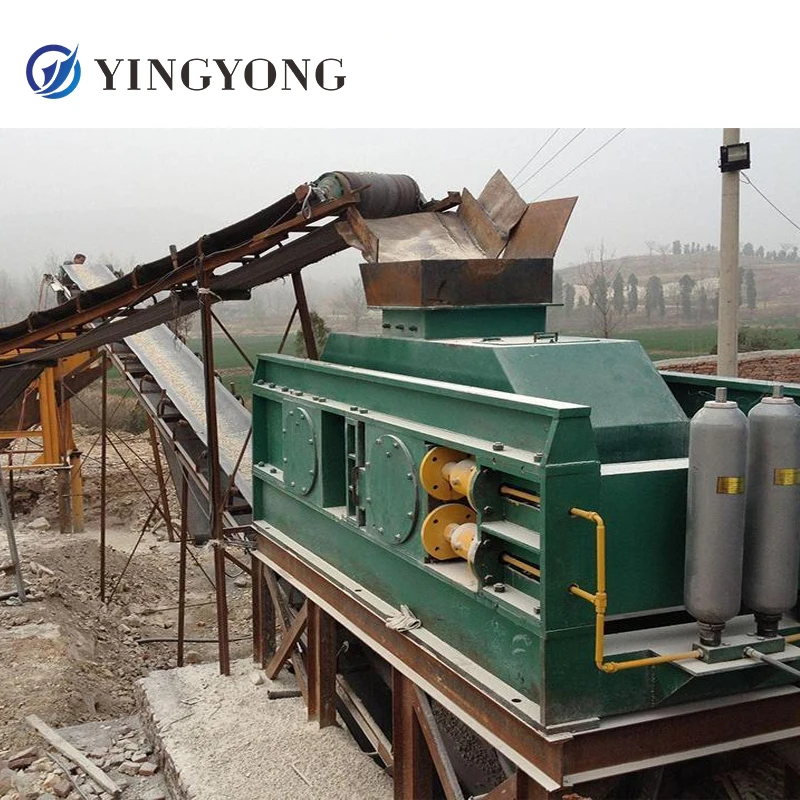

Related Cases
Our Business
Shanghai Yingyong Machinery Co., Ltd. is committed to building integrated service platforms for technical consulting, equipment procurement, installation and commissioning for customers in cement, building materials, thermal power, mining, metallurgy and steel industries. Yingyong combines international advanced technology with China's perfect industrial manufacturing system, in aim to provide users with high-quality solutions for complete sets of production line, reduce enterprise investment costs and shorten project construction cycle. With the principle of maximizing customer benefits, maximizing capital security, and optimizing equipment quality, we provide high-quality, cost-effective customized services to clients around the world. |
we have many real customer cases，please contact customer service，We will give you the most favorable price and the best quality ！！！

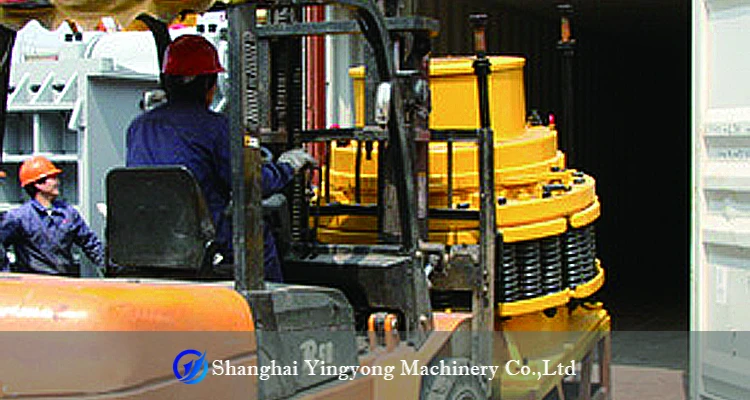

Packaging and Delivering
Spare part with wooden box and overall nude packing etc, as per requirements .Specially need to negotiate with clients. |
FAQ
1.How long is the warranty? Does your company supply the spare parts? One year. Spare parts for you at lowest cost. 2. If I need the complete crushing plant can you help us to build it? Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas. 3. How is the quality of your products?(mining equipment/machine)? Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas. 4.How about price? For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level. 5.Service and Payment Terms? We can accept T/T and L/C; 30% deposit, 70% balance before factory delivery, which is international trade practice; Finished product pictures will be provided to customers before delivery. |
