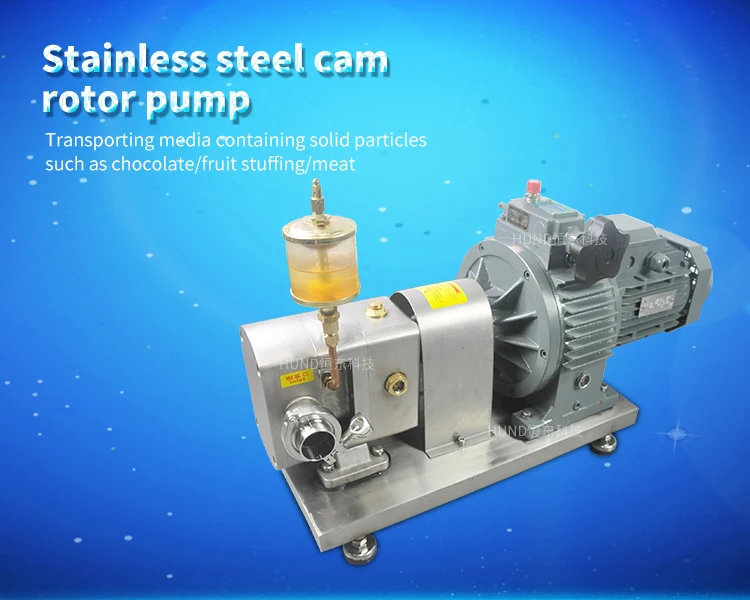

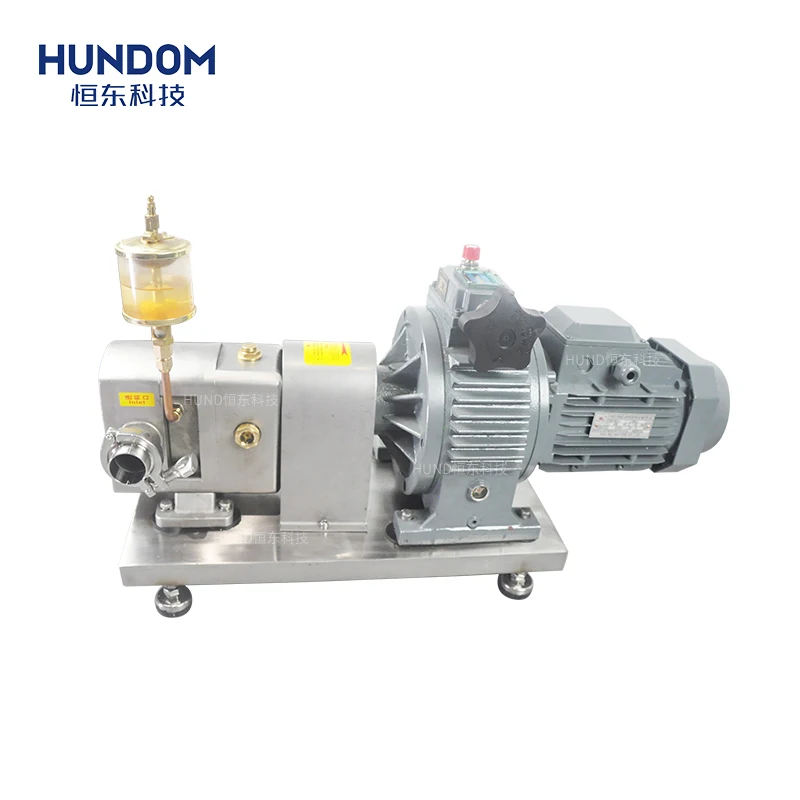

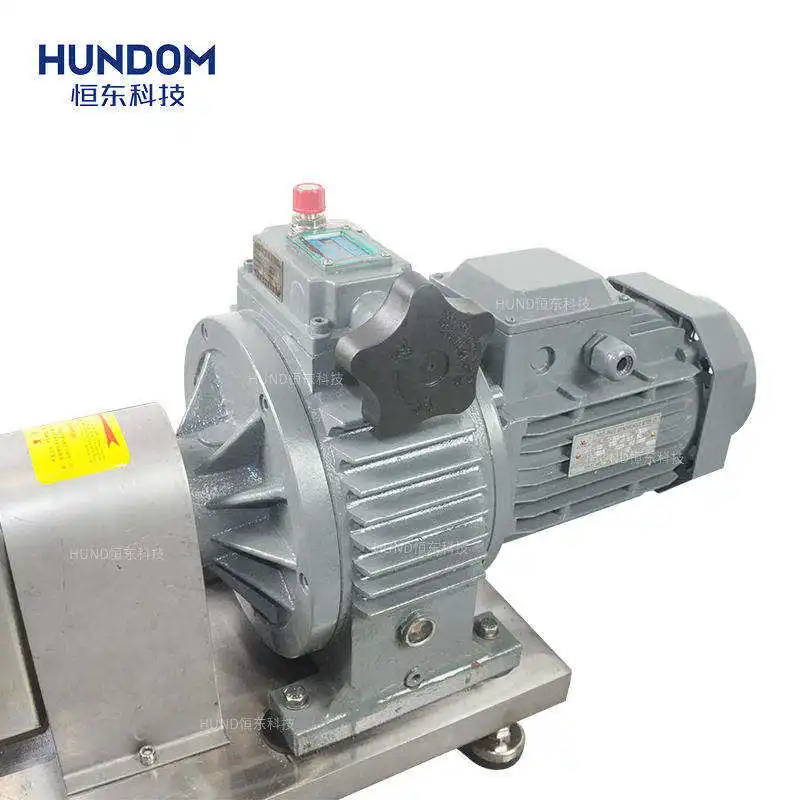

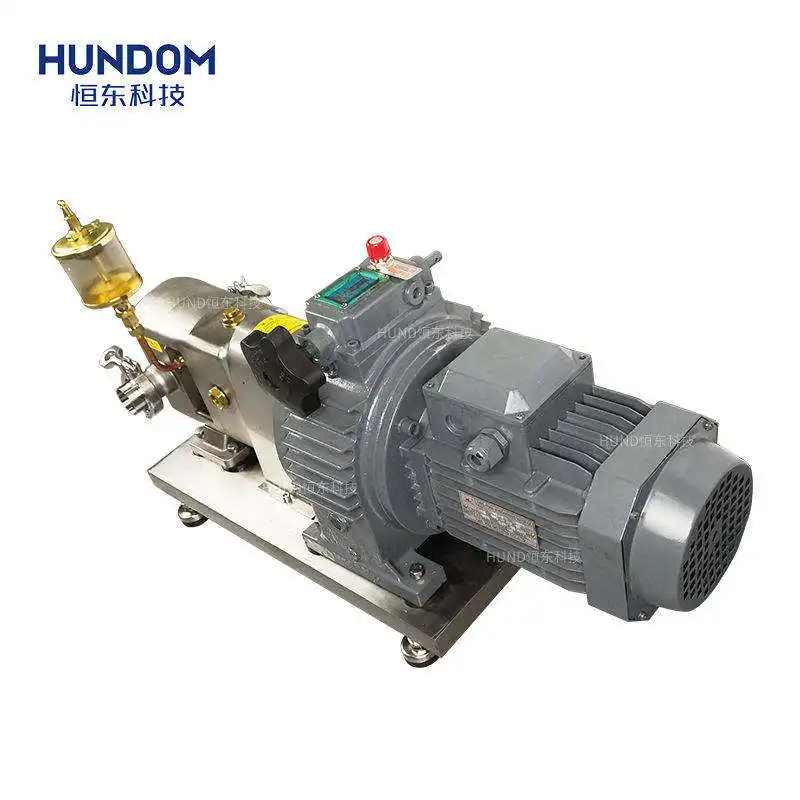

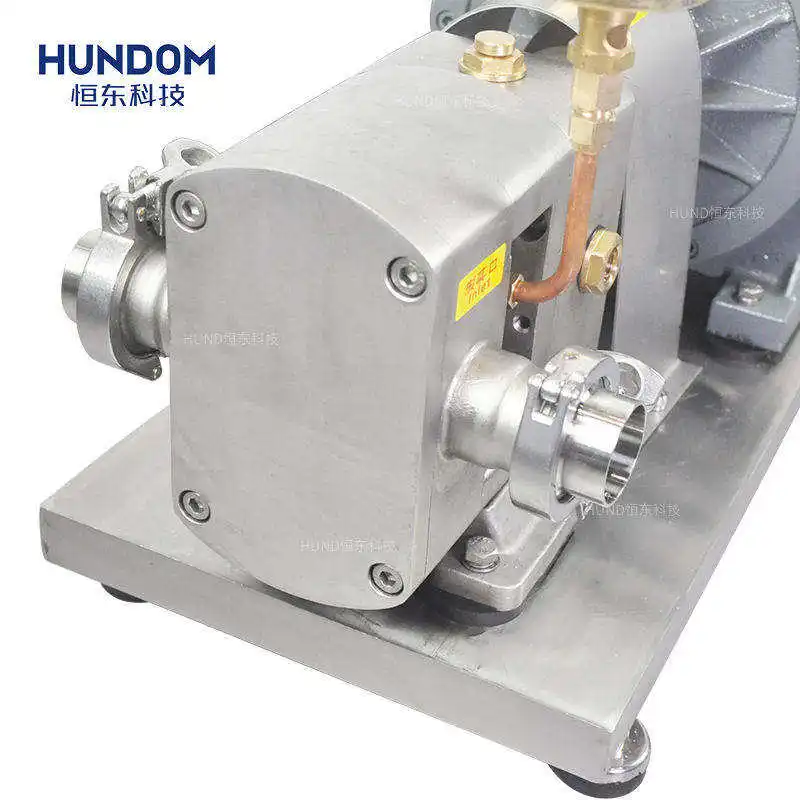

Stainless Steel Filling Metering Pump Special Delivery Pump For Food Industry
- Category: >>>
- Supplier: Zhejiang Hengdong Stainless Steel Co. Ltd.
Share on (1600958620077):
Product Overview
Description
Products Description
Driving System

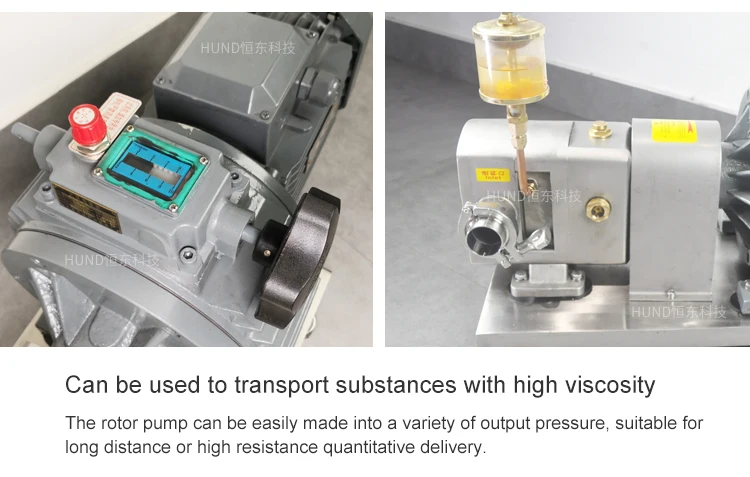

Stepless Speed Regulation:
The speed regulator changes the speed by manual adjustment, which is safe, reliable and infinitive flow adjustment. But the
non-automatic adjustment is also troublesome. Speed regulating should be done in operation not in shut-off state.
Fix Speed Output Reducer:
The driving is easy with constant rotary speed of the rotor, which also leads to non-adjust of flow.
Variable Frequency Motor:
It realizes both automatic adjusting and infinitive adjustment of flow. It is highly automatic and has large torque in low speed.
non-automatic adjustment is also troublesome. Speed regulating should be done in operation not in shut-off state.
Fix Speed Output Reducer:
The driving is easy with constant rotary speed of the rotor, which also leads to non-adjust of flow.
Variable Frequency Motor:
It realizes both automatic adjusting and infinitive adjustment of flow. It is highly automatic and has large torque in low speed.
Characteristic:
Stainless steel material | SS304 or 316L | ||||||
Capacity/Flow | 0-100T (Customized) | ||||||
Pressure | 0-8bar | ||||||
Viscosity | 1~1,000,000 CPS | ||||||

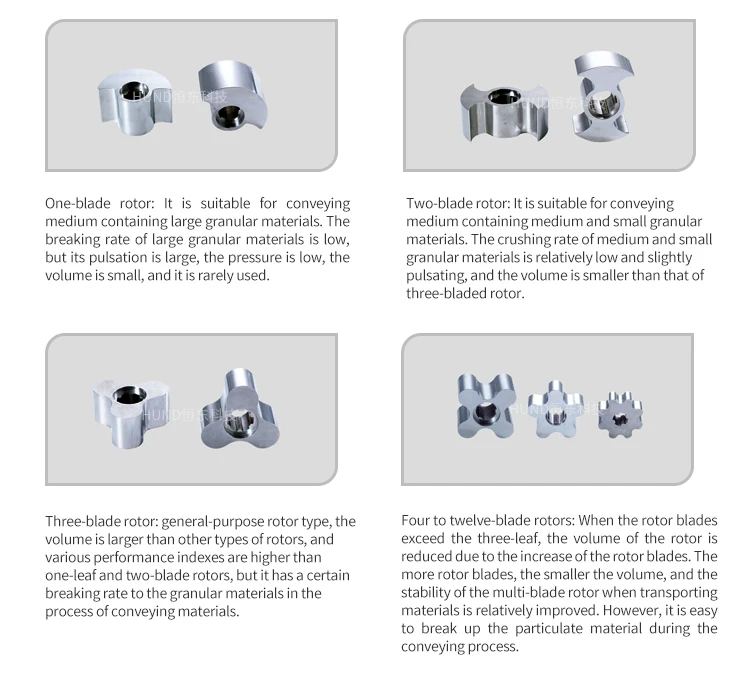

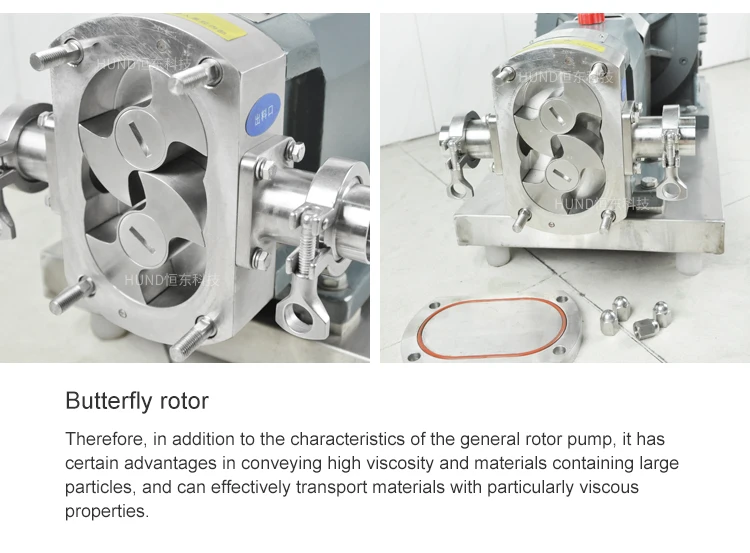

Rotors type | butterfly rotors/Trefoil rotors | ||||||
Temperature | -30 °C to 180°C | ||||||
Mechanical seal type | Single | Double flushed | |||||
Inlet outlet direction | Left and right | Up and down | |||||
Jacket | Yes(hot water) | No | |||||
Connection type | Clamp | Union | Flange | ||||
Motor type | Normal | Planetary | inverter | ||||
Speed | 0-500rpm | ||||||
Parameters

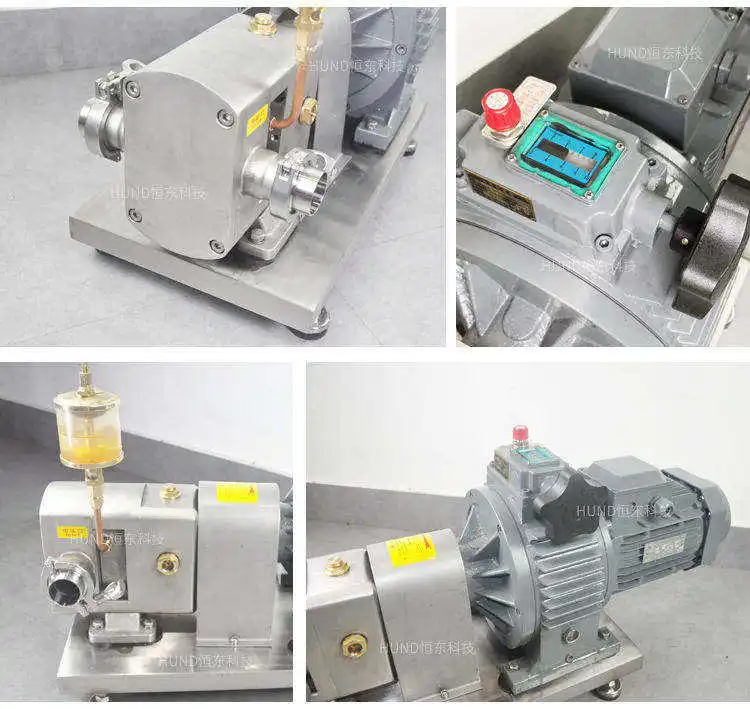

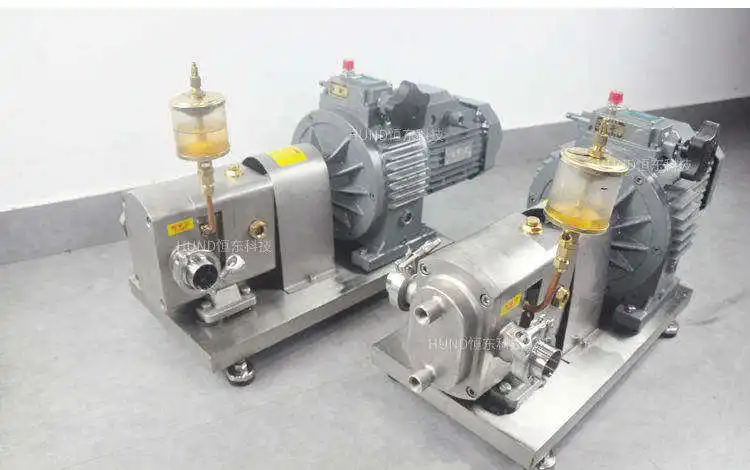

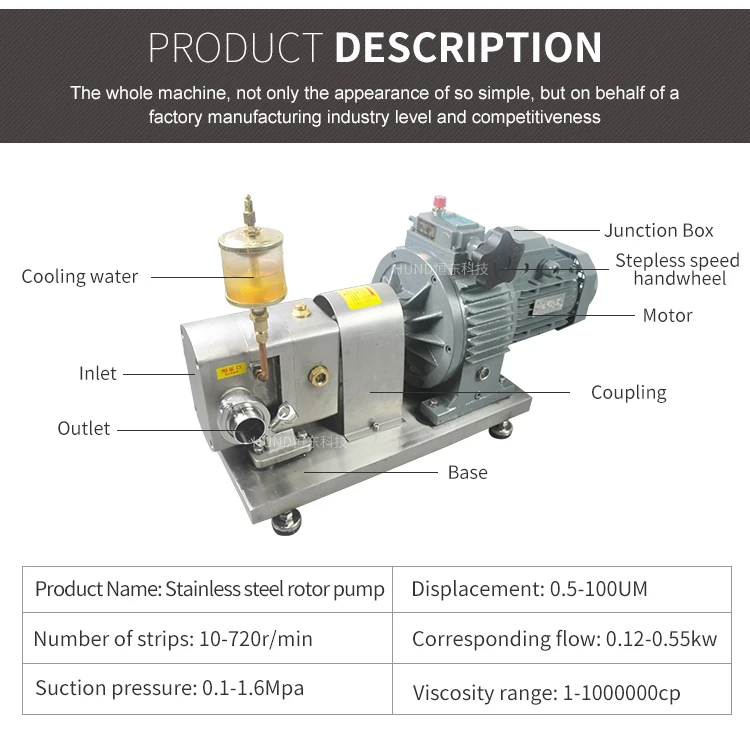

Product showing:
Recommend Products
Company Profile
Guangzhou HUNDOM Machinery Equipment Technology Co., Ltd is a high-tech enterprise integrating R&D, manufacture and sales, with more than 18 years of mechanical manufacturing experience. Main production: Stainless steel mixing tank, in-line high shear mixer, transfer pumps, colloid mill etc. HUNDOM has mature technology, professional engineer team and high quality products to meet various requirements in the field of food, pharmaceutical and household chemical industries. We provide a full range of effective solutions and after-sales service for customers, machines are hot sell all over the world. The mature technology and rigorous attitude are the guarantee of HUNDOM Technology’s product quality.
FAQ
1. About Delivery term
Q: What's the delivery term for doing business with you?
A: EXW/FOB/CIF/DDU… it depends on preference of clients.
2. About Lead time
Q: What's the leading time after placing order?
A: After getting your confirmation, mixing tank about 25 days, pump 15 days, colloid mill 10 days. However, it depends on production schedule is in slack or peak season, and the complication of machines.
3. About Payment time
Q: What's the payment term?
A: T/T 40% as down payment, 60% balance payment before delivery.
4. About Quality
Q: How do you control your quality?
A: All machines before delivery will be tested and send video for customer, if no problem then arrange balance payment. Meanwhile,CE is available for customers' needs.
5. About Packing
Q: How do you pack the machines?
A: Standard export wooden case, to avoid damage during delivery.
6. About Customized
Q: Can you produce according to the samples?
A: Yes,we can produce by your samples or technical drawings.
Q: What's the delivery term for doing business with you?
A: EXW/FOB/CIF/DDU… it depends on preference of clients.
2. About Lead time
Q: What's the leading time after placing order?
A: After getting your confirmation, mixing tank about 25 days, pump 15 days, colloid mill 10 days. However, it depends on production schedule is in slack or peak season, and the complication of machines.
3. About Payment time
Q: What's the payment term?
A: T/T 40% as down payment, 60% balance payment before delivery.
4. About Quality
Q: How do you control your quality?
A: All machines before delivery will be tested and send video for customer, if no problem then arrange balance payment. Meanwhile,CE is available for customers' needs.
5. About Packing
Q: How do you pack the machines?
A: Standard export wooden case, to avoid damage during delivery.
6. About Customized
Q: Can you produce according to the samples?
A: Yes,we can produce by your samples or technical drawings.
