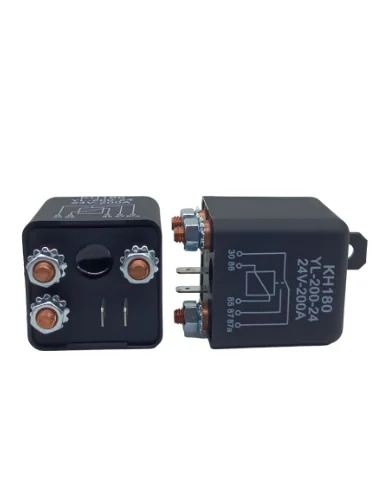

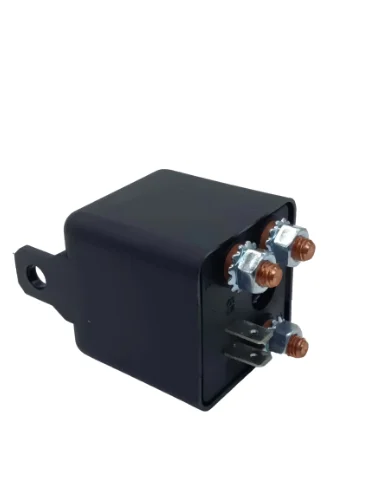

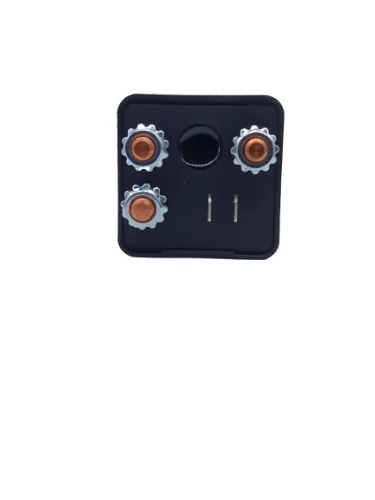

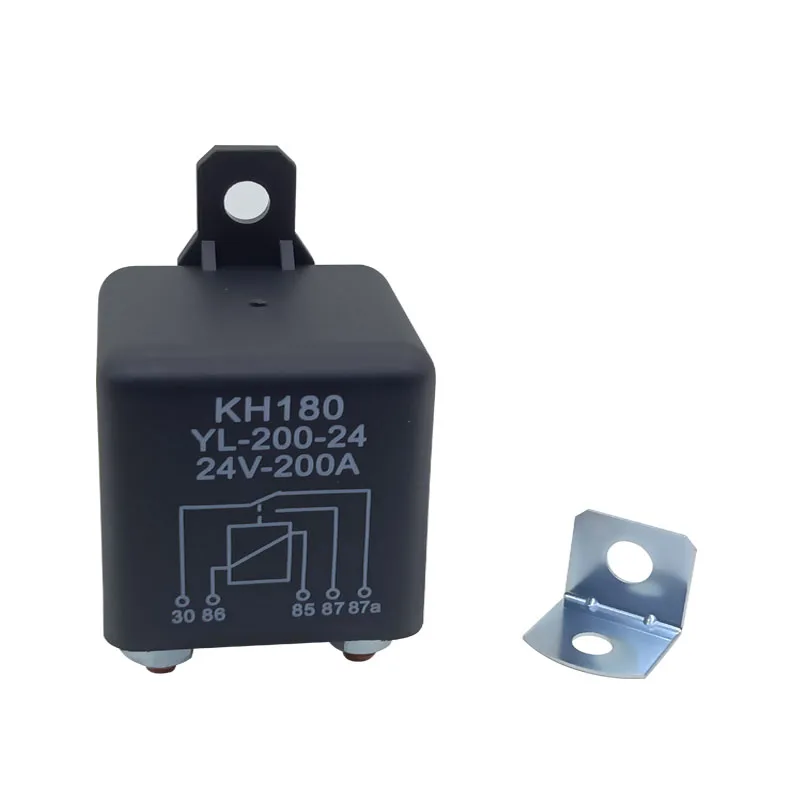

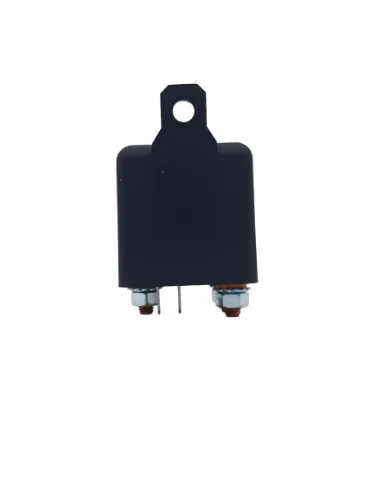

Kuang Hong 200A 12V/24V Heavy Duty Continuous 5 pin for Vehicle
- Category: >>>
- Supplier: Yueqing Kuanghong Electronic Technology Co. Ltd.
Share on (1600958622245):
Product Overview
Description
Product Description
Name | Automotive Relay |
Contact Material | Silver alloy |
Colour | Black |
Shape | Square |
Size | 45*45*62.8mm |
characteristic | Voltage 12V 4.8W |
CONTACT DATA
Contact Material | AgSnO12 |
Contact Form | 1C |
Contact Ratings | NO:200A 14VDC |
Contact Resistance | 100mMax at6VDC 1A |
Max Switching Current | 200A |
Max Switching Voltage | 75VDC |
Max Switching Power | 2800W |
Life Expectancy Electrical | 100,000 Operations(at 30 Operations/minute) |
Life Expectancy Mechanical | 100,000 Operations |
COIL SPECIFICATION
CHARACTERISTICS
Temperature Range | -30℃~+80℃ | ||
Vibration Resistance | 10~55Hz，1.5mm | ||
Shock Resistance | Operations Extremes | 10g | |
Damage Limits | 100g | ||
Humidity | 40%~85% | ||
Insulation Resistance | 100mΩ Min at 500VDC | ||
Safety Standard | CCEE | ||
Dielectric Strength Between Open Contacts | 500VAC（for one minute/sec） | ||
Between Contact And Coil | 750VAC(for one minute/sec) | ||
Operate Time | 7ms | ||
Release Time | 5ms | ||

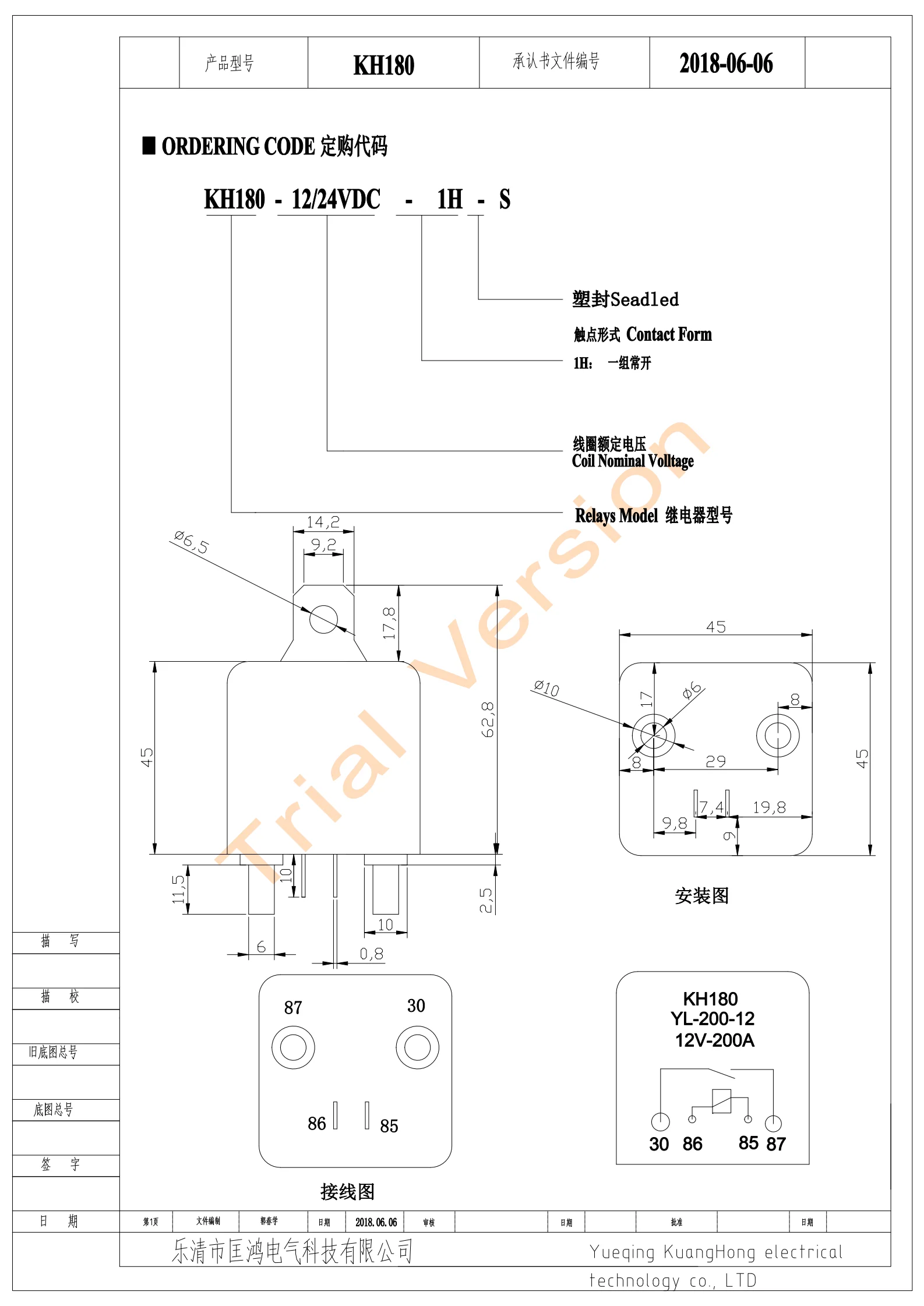

Specification
