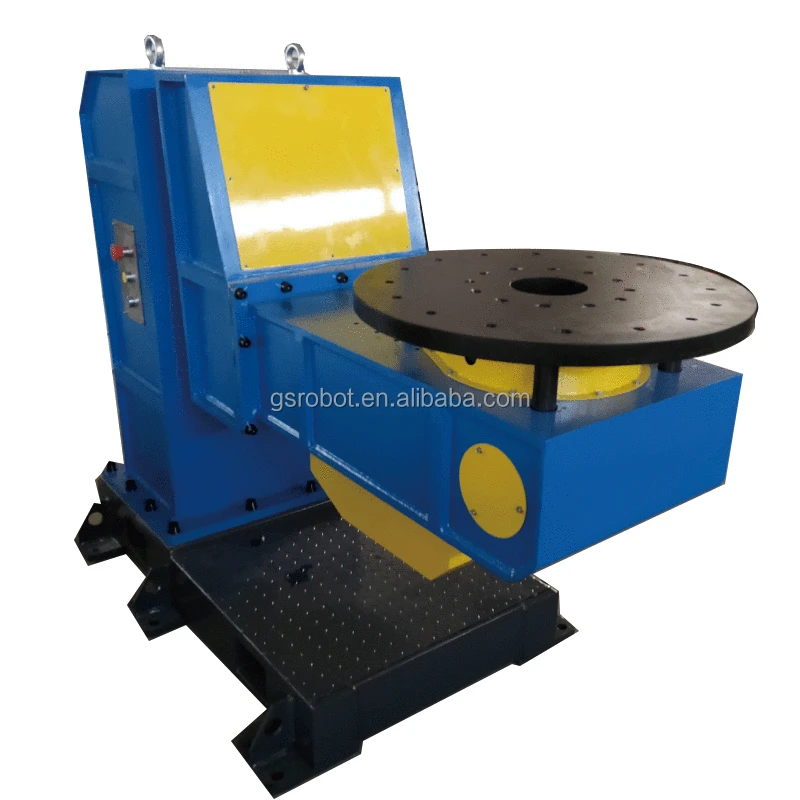

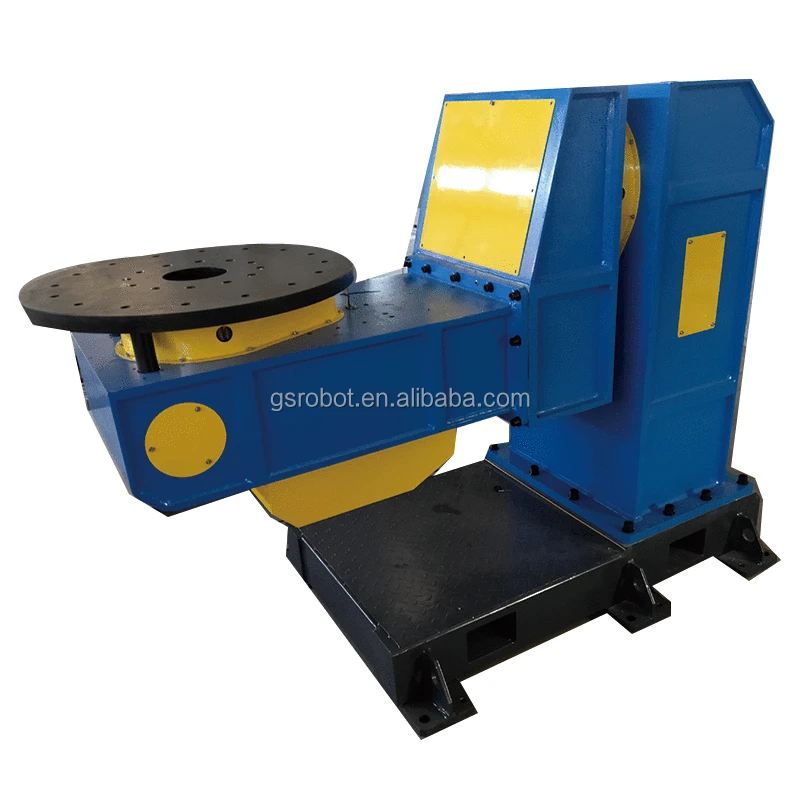

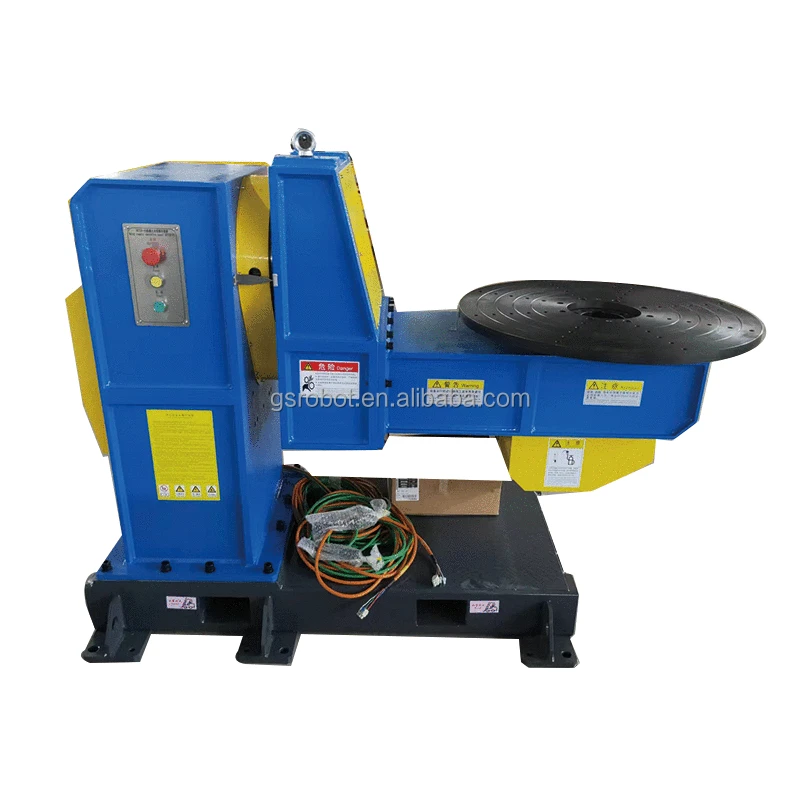

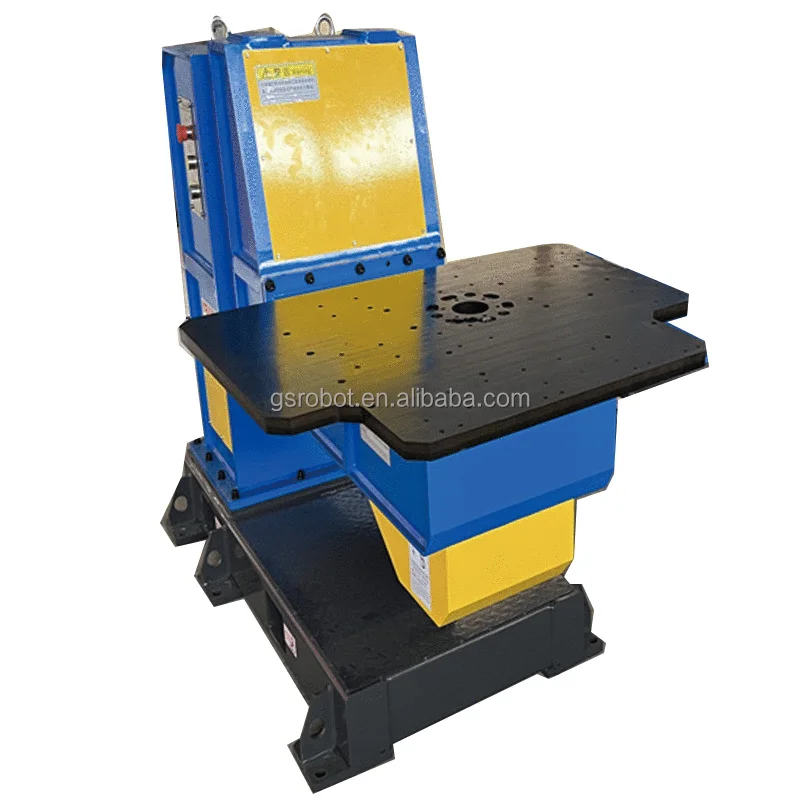

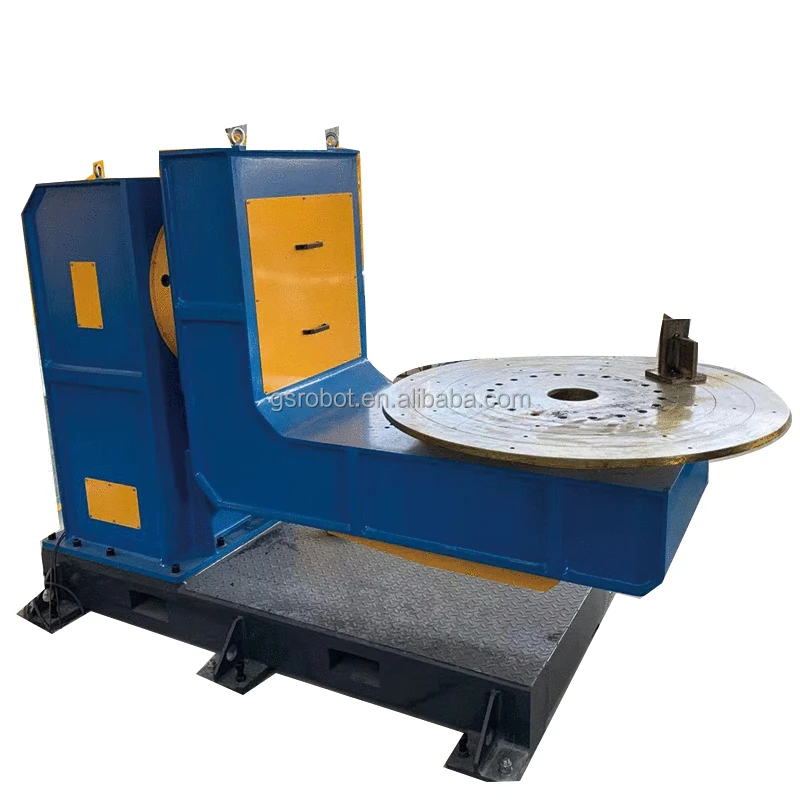

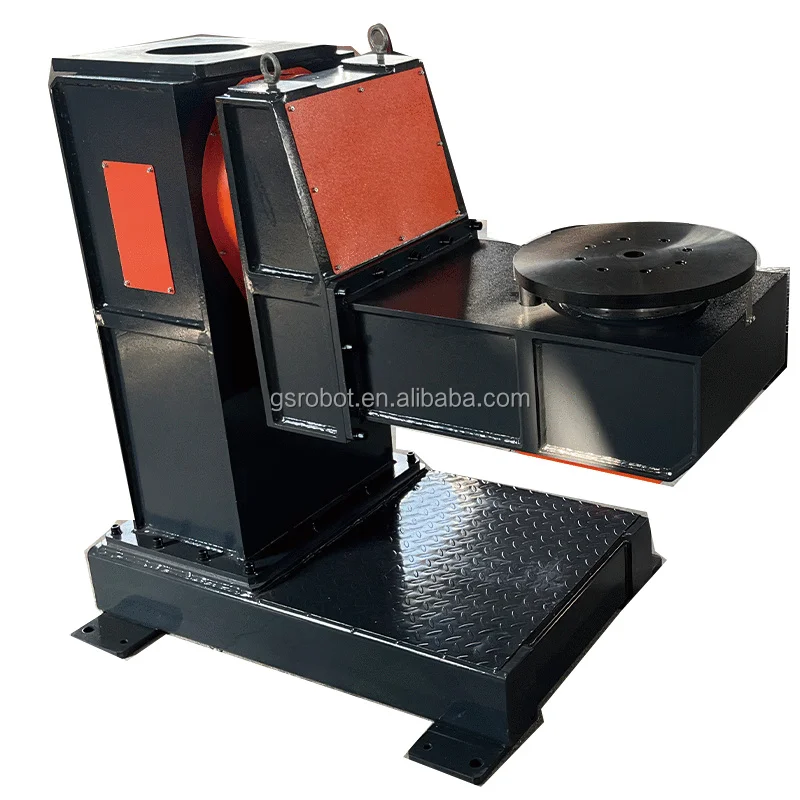

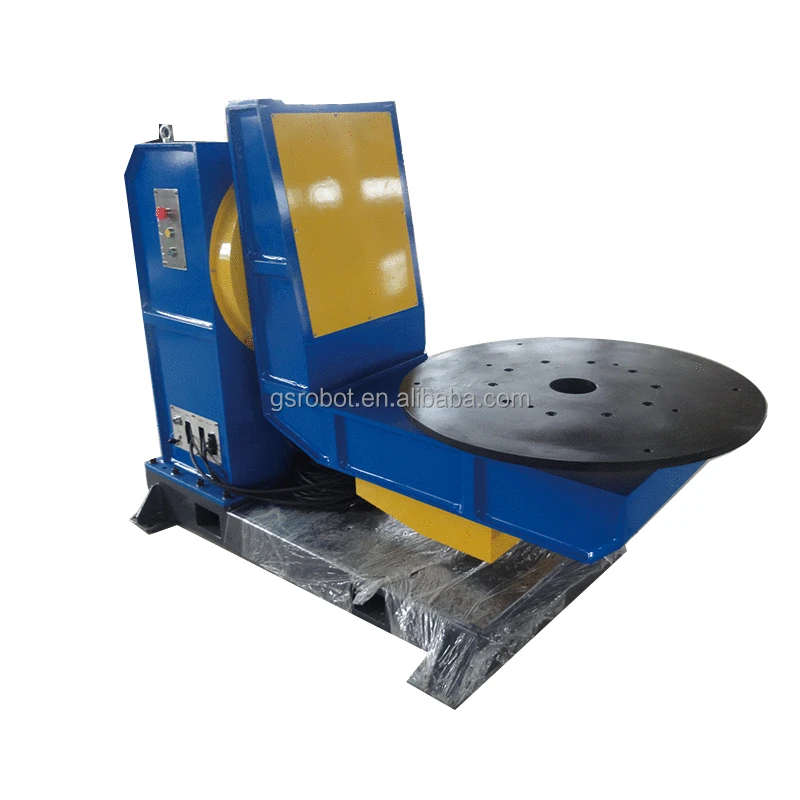

L type rotatable disc welding positioner directly supplied by the factory
- Category: >>>
- Supplier: Jinan Guansen Automation Equipment Co. Ltd.
Share on (1600958629426):
Product Overview
Description
Product Paramenters
Type | Double Axis L Type Welding Positioner | ||||
Model | AUT-DWP-L-500/ZK | AUT-DWP-L-1000/ZK | AUT-DWP-L-2000 | ||
Rated Payload | 500kg(The countershaft's axis radius ≤R500mm) | 1000kg(The countershaft's axis radius ≤R750mm) | 2000kg(The countershaft's axis radius ≤R1000mm) | ||
Standard Radius of Gyration | R600mm | R900mm | R1200mm | ||
Maximum load eccentricity | ≤350mm | ≤500mm | ≤600mm | ||
The height of clamping | ≤700mm(Over 700mm ,the bob-weight will increase with the actual load) | ≤1200mm(Over 1200mm ,the bob-weight will increase with the actual load) | ≤1300mm(Over 1300mm ,the bob-weight will increase with the actual load) | ||
Maximum rotation angle of axis 1 | ±180° | ±180° | ±180° | ||
Maximum gyration angle of axis 2 | ±360° | ±360° | ±360° | ||
Rated rotation speed of axis 1 | 30°/S | 30°/S | 15°/S | ||
Rated gyration speed of axis 2 | 50°/S | 50°/S | 18°/S | ||
Repeat positioning accuracy | ±0.10mm(At R=500mm) | ±0.12mm(At R=750mm) | ±0.16mm(At R=1000mm) | ||
Positioner dimension(L*W*H) | 1500mm*750mm*1200mm | 1900mm*1000mm*1600mm | 2600mm*1350mm*1800mm | ||
Standard axis 2 gyration disc size | Φ600mm(ZK's hollow internal hole diameter Φ50mm) | Φ800mm（ZK's hollow internal hole diameter Φ60mm) | Φ1200mm | ||
Height of axis 1 gyration center | 900mm | 1250mm | 1500mm | ||
Equipment net weight | About 850kg | About 1800kg | About 3000kg | ||
Product Lineup
Product Lineup
Robot peripheral supporting equipment
Standard servo welding positioner
Standard robot welding track
Robot integrated workstations and production lines for welding, cutting, handling, forging, casting, machining, painting, etc.
Peripheral safety protection smoke removal system and other supporting equipment.
Non-standard CNC welding machines, CNC cutting machines and other automatic welding cutting equipment.
※The specifications of non-standard welding positioner and walking track can be customized .
Robot peripheral supporting equipment
Standard servo welding positioner
Standard robot welding track
Robot integrated workstations and production lines for welding, cutting, handling, forging, casting, machining, painting, etc.
Peripheral safety protection smoke removal system and other supporting equipment.
Non-standard CNC welding machines, CNC cutting machines and other automatic welding cutting equipment.
※The specifications of non-standard welding positioner and walking track can be customized .
WELDING POSITIONER
The welding positioner is an auxiliary device for industrial welding robots, which can greatly improve the work efficiency of welding robots. The positioner is suitable for welding and cutting complex workpieces to achieve ideal machining positions and speeds.
TYPE:Single Axis Horizontal Servo Positioner
Company Profile
Jinan Guansen Automation Equipment Co., Ltd
Jinan Guansen Automation Equipment Co., Ltd is located in Jinan, Shandong, China. As a high-tech enterprise, we focus on integrating research and development, design, production, and sales of various types of automation equipment. The company is committed to manufacturing professional industrial peripheral equipment and non-standard automation equipment. The products are widely used in construction machinery, locomotive vehicles, automobile manufacturing, ship heavy industry, petrochemical equipment, power engineering, coal machinery, heavy machinery and other industries.
Certifications
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. Q: Is your company a manufacturer?
A: Yes, we have our own factory in Jining City and our own foreign trade company in Jinan City. We are a company that integrates factory and foreign trade.
2. Q: What is the quality of the company's products?
A: The company's products have been produced in China for over 10 years and have cooperative relationships with multiple trading companies. Our products are exported to various parts of the world.
3. Q: Does the product support personalized customization?
A: Products can be personalized and customized according to the actual needs of customers. Customizable content includes: specifications, colors, logos, etc.
4. Q: What are the transportation and packaging methods?
A: We will use wooden boxes for packaging, and the transportation method can be negotiated and arranged for shipment.
A: Yes, we have our own factory in Jining City and our own foreign trade company in Jinan City. We are a company that integrates factory and foreign trade.
2. Q: What is the quality of the company's products?
A: The company's products have been produced in China for over 10 years and have cooperative relationships with multiple trading companies. Our products are exported to various parts of the world.
3. Q: Does the product support personalized customization?
A: Products can be personalized and customized according to the actual needs of customers. Customizable content includes: specifications, colors, logos, etc.
4. Q: What are the transportation and packaging methods?
A: We will use wooden boxes for packaging, and the transportation method can be negotiated and arranged for shipment.
Accepted Delivery Terms: FOB, EXW
5.Q: What after-sales service can you provide?
A: We provide complete technical support and a one-year warranty.
5.Q: What after-sales service can you provide?
A: We provide complete technical support and a one-year warranty.
