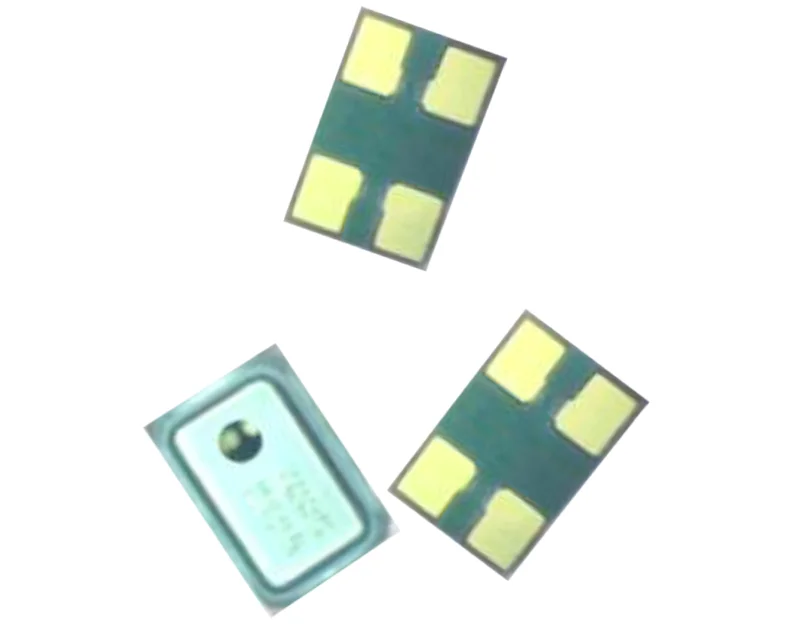

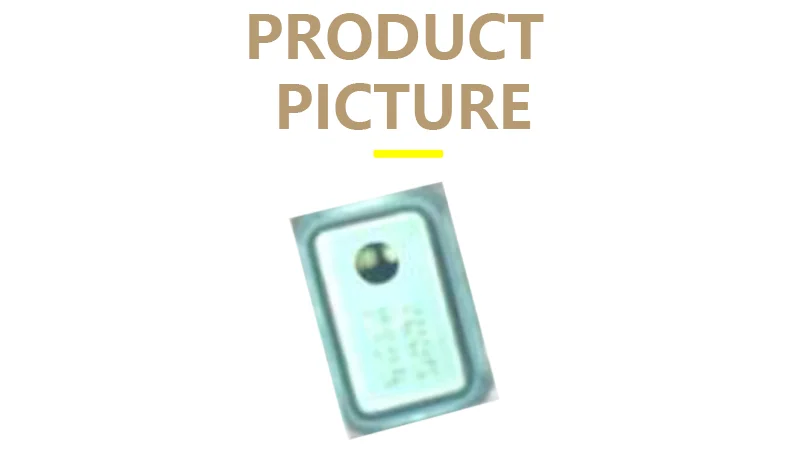

0 700KPa MAP Pressure Sensor Module MEMS Barometric Absolute Test

Product Overview

Description

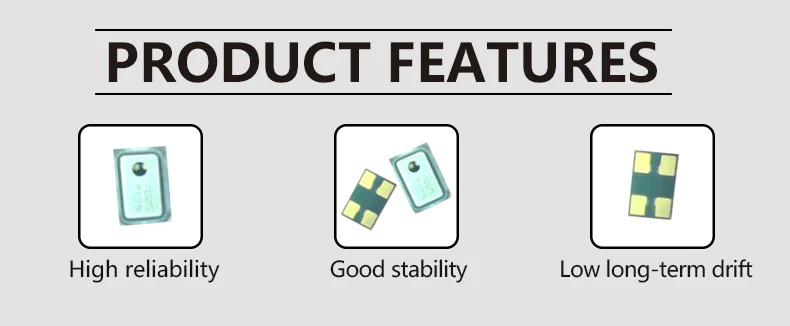

Product Features
Description	Absolute Pressure Sensor Module
Place of Origin	Guangdong, China
Theory	Contact us
Degree of linearity	0.3%FS
Zero point output	-20~20mV
Storage temperature	-40~+150°C
Model Number	BL-GM-SV-MAP-0700AS
Range	0-700kPa
Operating voltage	5V
Payment Terms	L/C,D/A,T/T,MoneyGram
Brand Name	GBeeleee
Type	ABSOLUTE PRESSURE SENSOR
Overload pressure	3X kPa
Output	Contact us
Stress hysteresis	0.2%FS
Full range output	80-120mV
Bridge resistor	4.5-5.5k
working current	1mA

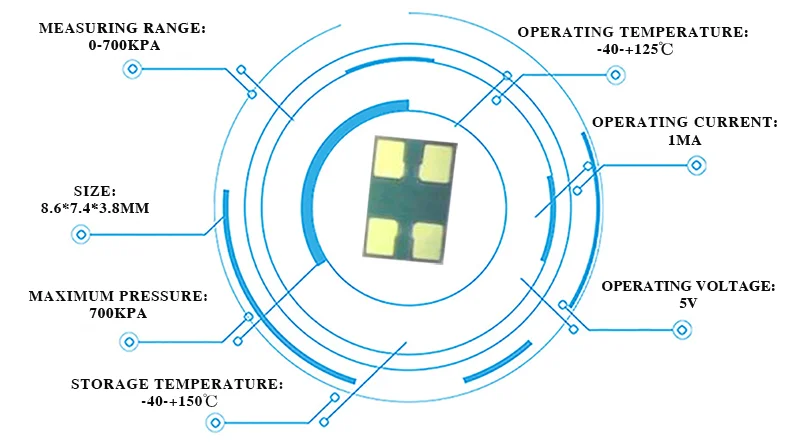

BL-GM-SV-MAP-0700AS pressure pressure sensor internal chip made of microcomputer electric machining process, specially designed for low cost and long-term reliability pressure measurement, sensor internal neutral soft transparent silicone protection, can effectively prevent moisture; can be widely used in industrial pressure measurement and other fields.Using silicon microphone form packaging, specially designed structure and protection measures improve the measurement stability and the service life of the sensor.

Parameter		Min.	Typ.	Max	Unit
Range		0	-	700	kPa
Operating voltage / working current		-	5/1	-	V/mA
Bridge resistor		4.5	5.0	5.5	k
Full range output		80	100	120	mV
Zero point output		-20		20	mV
Temperature coefficient	Zero drift	-0.09	-	0.09	%FS/°C
	Sensitivity	-2.6	-2	-1.7	10-3/°C
	Resistivity	0.6	0.9	1.3	10-3/°C
Degree of linearity		-	-	0.3	%FS
Stress hysteresis		-	-	0.2	%FS
Repetitiveness		-	-	0.3	%FS
Temperature hysteresis		-	-	0.3	%FS
Working temperature		-40	-	125	°C
Storage temperature		-40	-	150	°C
Overload pressure				3X	kPa
