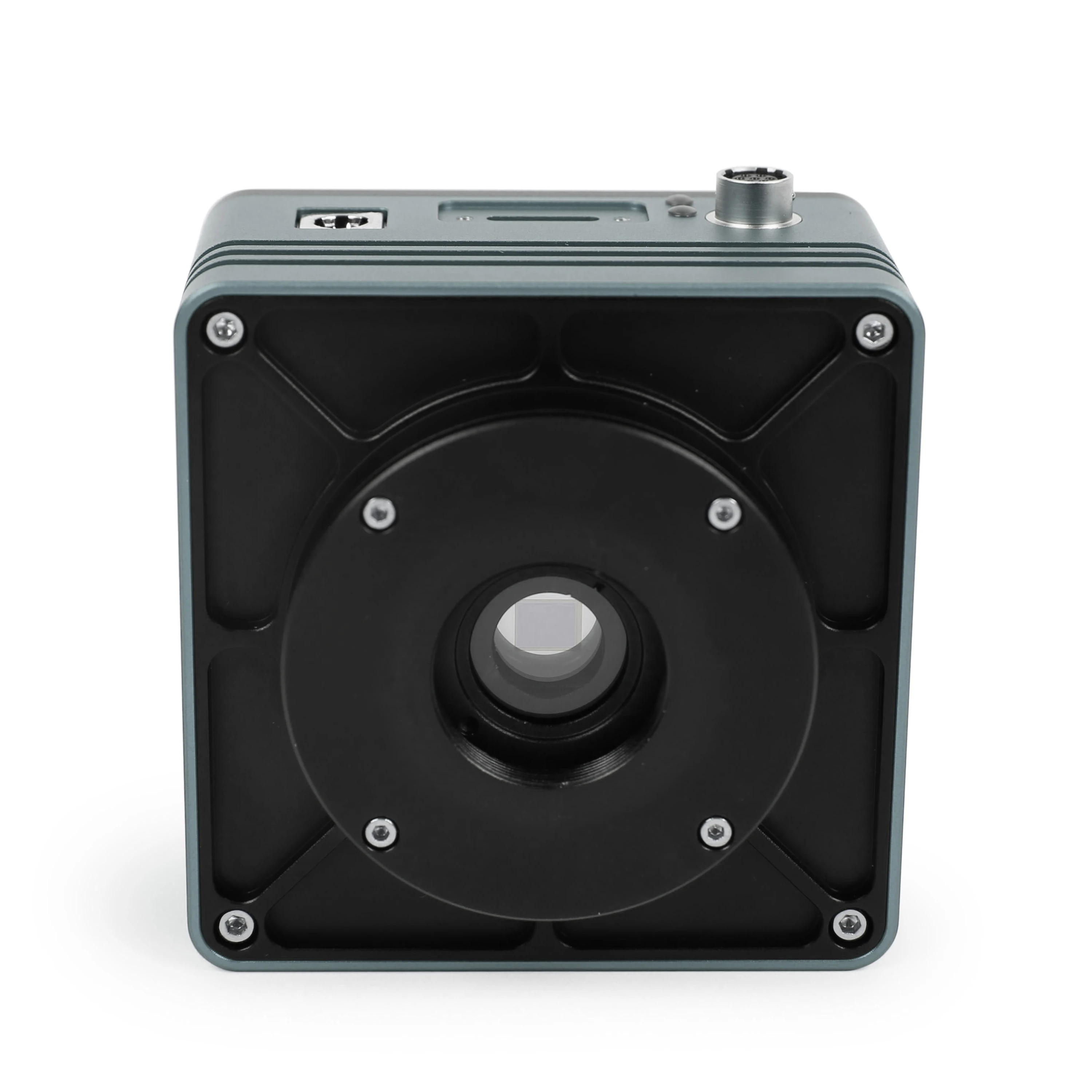

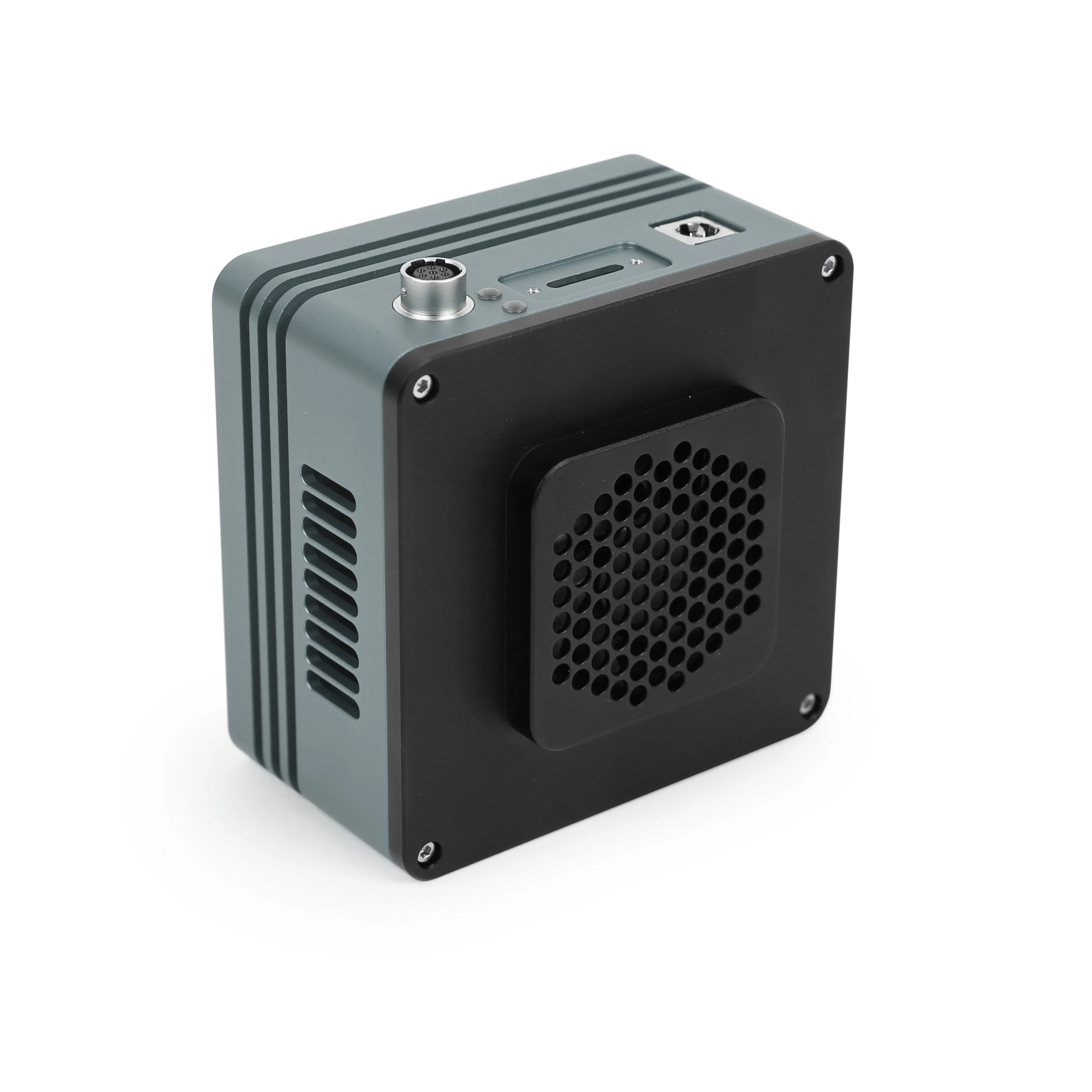

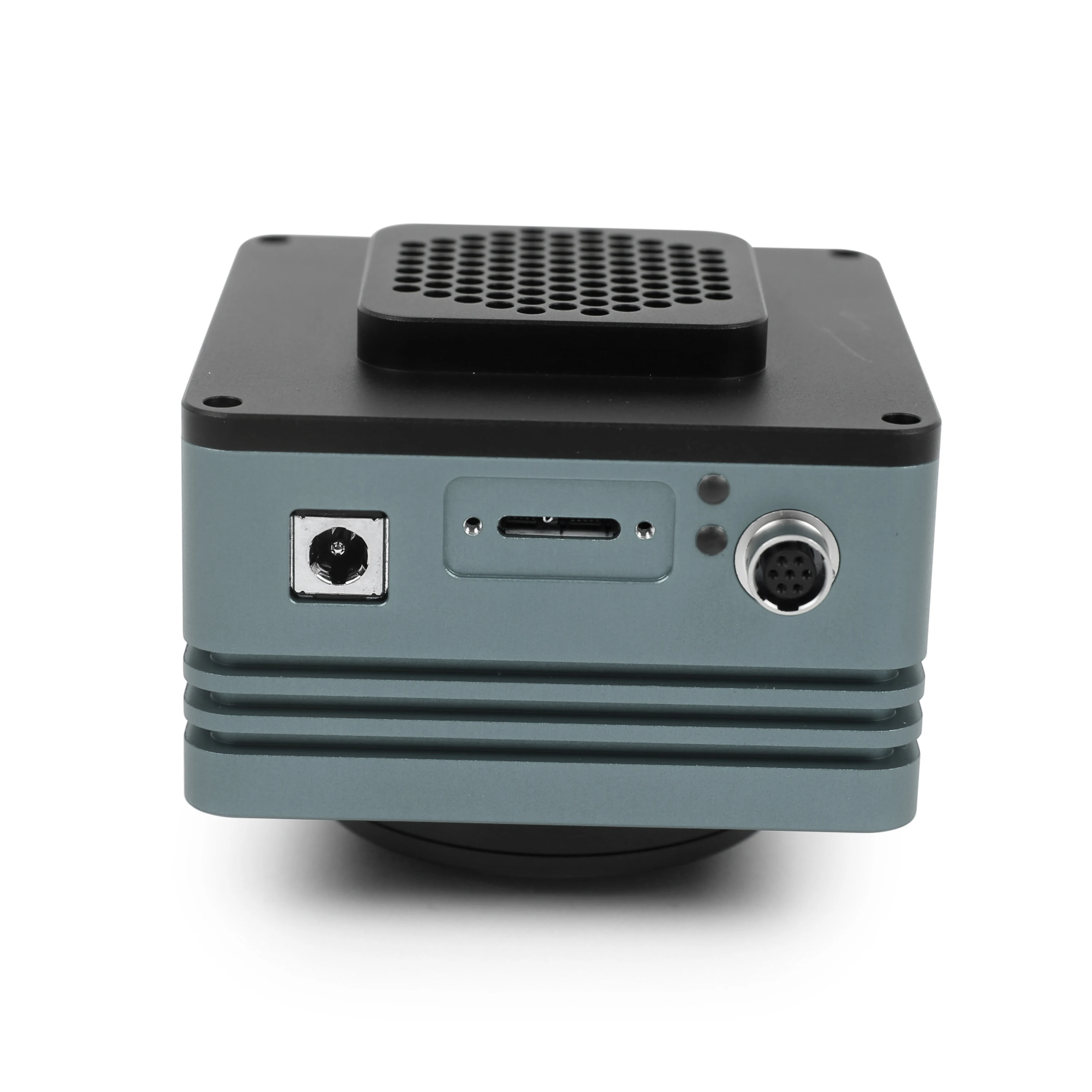

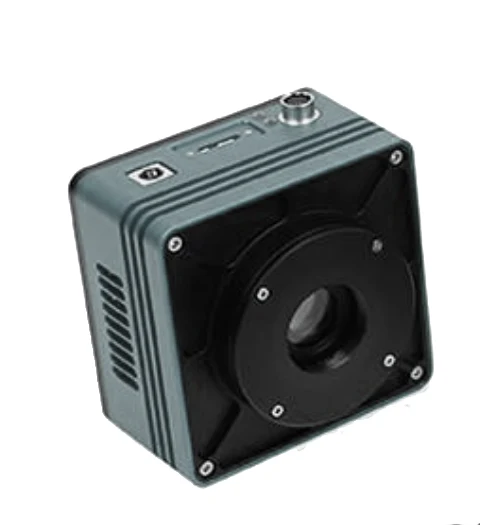

machine vision Infrared wavelength 400 1800nm ir camera USB3.0 camera BT Industrial Camera for Near infrared spot detection
- Category: >>>
- Supplier: Shandong Botu Photoelectric Technology Co. Ltd.
Share on (1600958655323):
Product Overview
Description
Specification
MODEL | BTIR990KMA |
Sensor Type | Sony IMX990-AABA-C |
Effective Pixel | 13MP |
Spectral Range | 400nm-1800nm |
Pixel Size | 5.0 µm x 5.0 µm |
Sensor Format | 1/1.2“ |
ADC | 12 Bit / 8 Bit |
Frame rate & Resolution | 8 Bit：200fps@1280 x 1024、392fps@640 x 512 12 Bit：108fps@1280 x 1024、209fps@640 x 512 |
Hardware Image Cache | 512MByte |
Conversion Gain | 44.3e/ADU |
Dynamic Range | 58.7dB |
Read Noise | 211e |
Full Well Charge | 181.6ke |
Maximum SNR | 52.6dB |
Sensitivity | 121mV |
Gain range | 1x-15x |
Exposure time range | 15 µs-60sec |
Shutter Mode | Global Shutter |
Binning | Software 2x2, 3x3, 4x4 |
Data interface | USB3.0 |
Data format | 8bit / 12bit |
Cooling temperature difference | below room temperature 25°C |
Filter | 400-1800nm (standard);1030-1800nm (optional) |
CRA | 2.35℃ |
Weight | <390g |
Power | < 2.1 W (refrigeration) / < 25 W (refrigeration) |
Temperature | Working temperature -20~60℃, storage temperature -40~85℃ |
Humidity | 20%-80%, no condensation |
Lens interface | C |
Certification | CE, FCC |
Size | 80mm×80mm×45.5mm |
Product Description
More Products
Company Profile

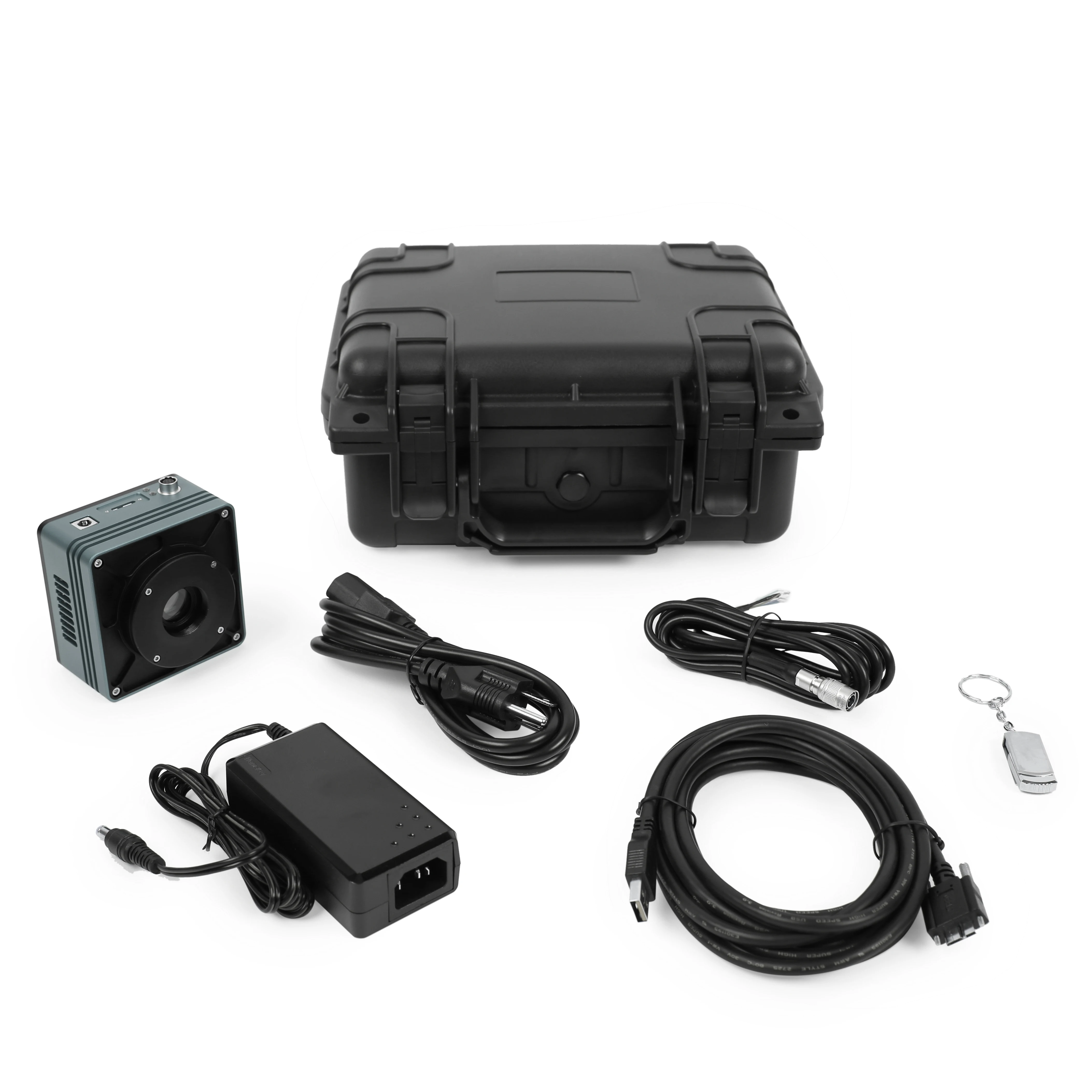

Product packaging
FAQ
1. Any inquiries will be replied within 24 hours
2. Professional manufacturer.
3. OEM/ODM available:Please let us know your details, then we can help you to design and put it into production.
4. After-Sale Service:
1).All the products will have been strictly Quality Checked in the house before packing.
2)All the products will be well packed before shipping.
3)All our products have 1 year warranty.
4).Technology support at any time.
5. Faster delivery:
One week delivery for small orders, and 2~4 weeks for large order(above 50pcs).
6. Payment:
You can pay for the order via:T/T.
7. Shipping
We work with many freight forwarders, such as DHLYou also can choose your own shipping forwarder.
