Product name:CND Hot selling universal led tv board 55 inch led tv motherboard with flip function

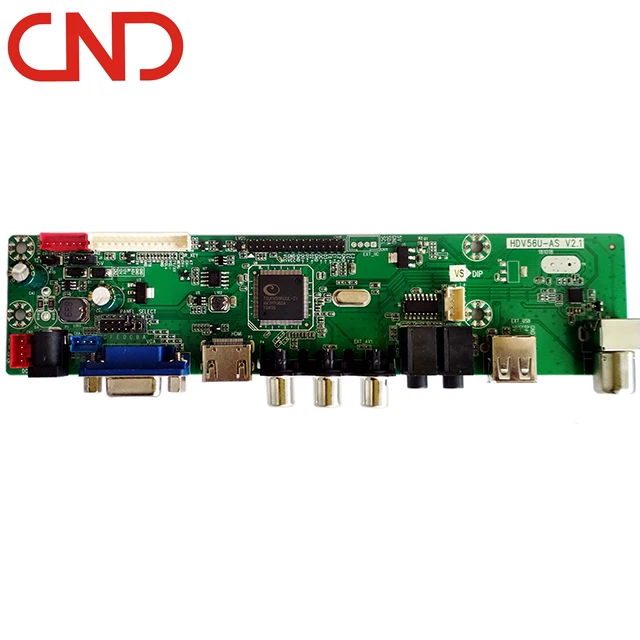

Model: HDV56U-AS

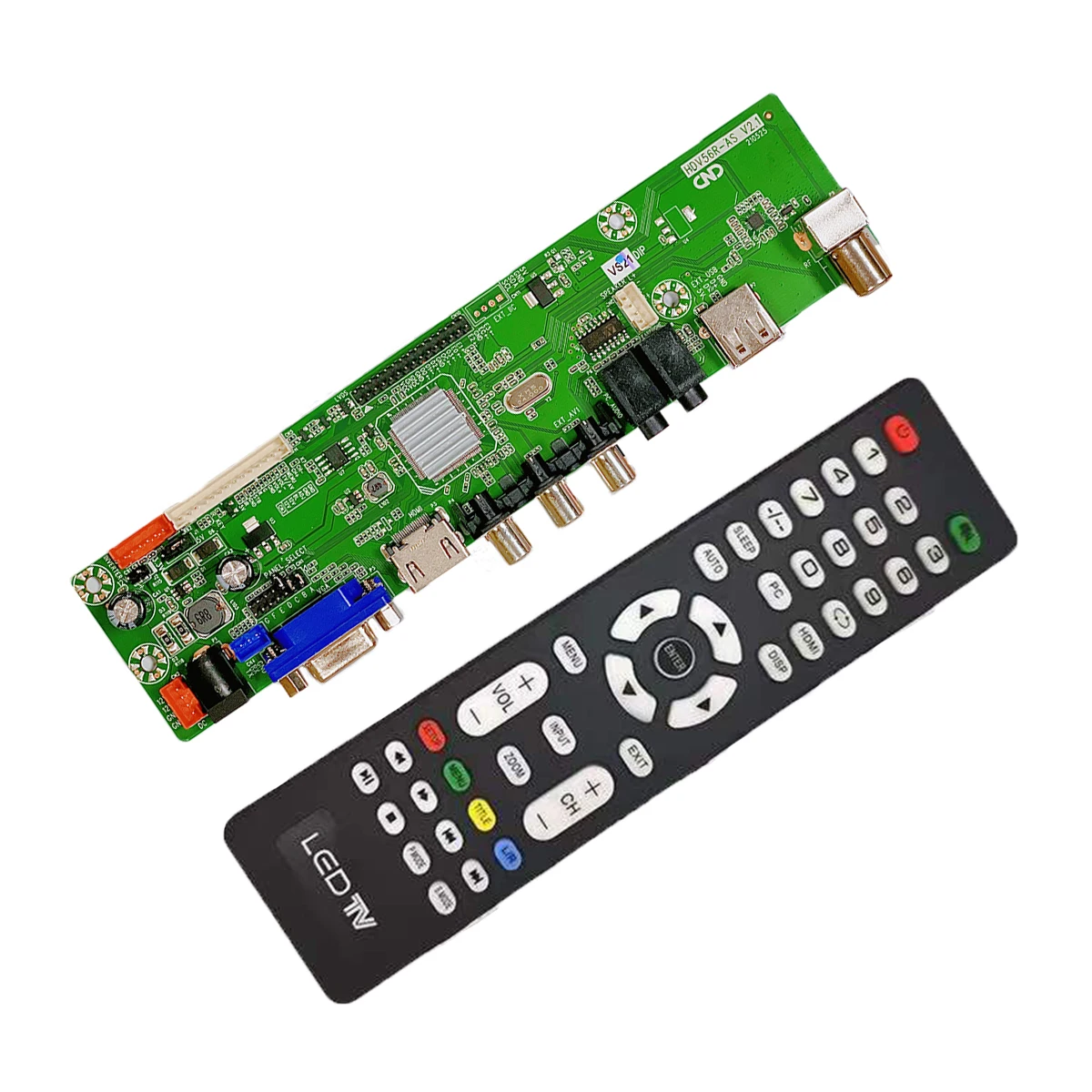

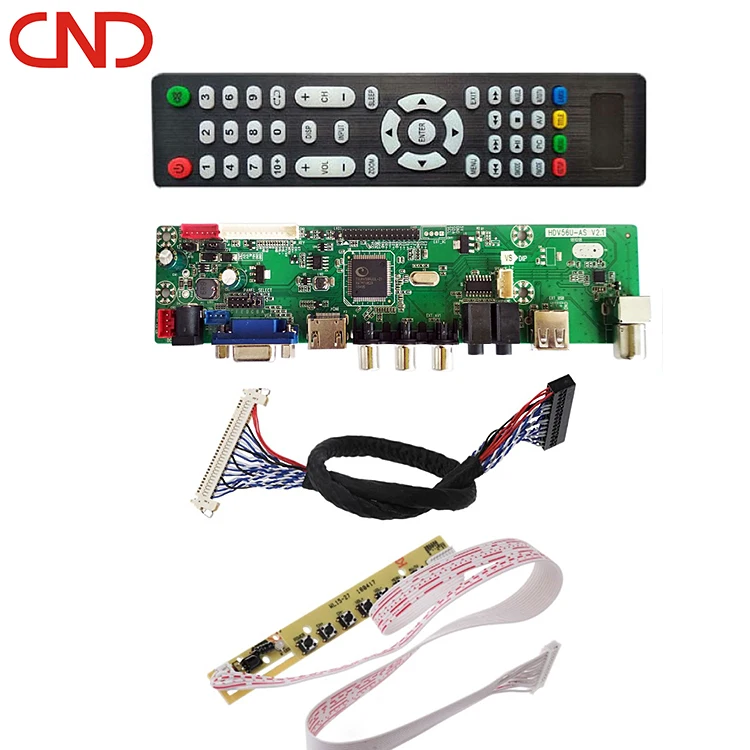

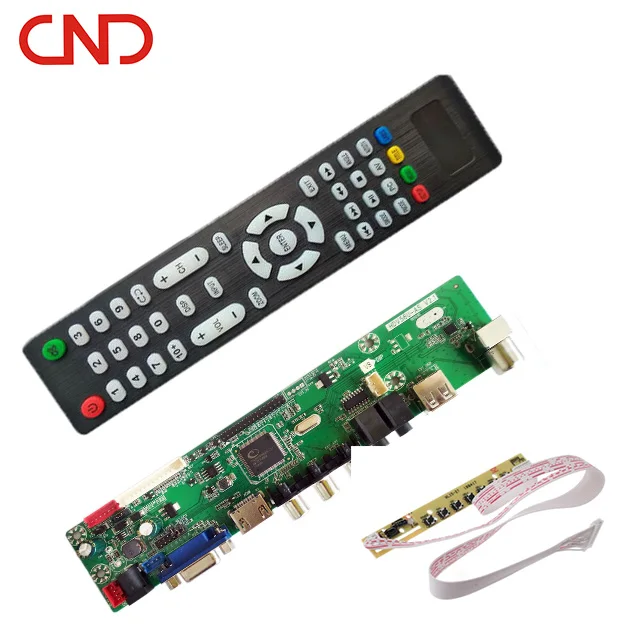

Accessory: TV Motherboard + Remote+LVDS cable + 7key button board with IR
Key Features:
1. Compatible With Various analog TV system PAL/NTSC/SECAM
2. 3D boardsupport
3. Reliable EMC and anti-static treatment;
4. Automatically detecting input video format;
5. VGA +DVI +HDMI+USB inputs;
6. Built-in superior quality stereo speakers;
7. Multi OSD languages support;
8. Full HD 1920X1080 resolution TFT-LCD screen max support
9. Expanded port board supports 1~2 AV input,1AV output,1YPBPR input;
| Product | lcd tv V56 V59 main board | ||
| OSD LANGUAGE | Default Chinese/English, French, German, Italian , Spanish , Portuguese | ||
| PANEL | Interface | Single Dual LVDS,2X15 needle | |
| Resolution | Max 1920x1080@60Hz | ||
| Video Input | TV | Received frequency | 49MHz – 863MHz |
| Input impedance | 75 | ||
| Color system | PAL, SECAM/NTSC | ||
| Sound system | BG, DK, I, L/M,N | ||
| PC Input | R,G,B+H/V | Max 1920x1080@60Hz | |
| HDMI | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p | ||
| USB | USB document support format | ||
| Video | Color system | PAL/SECAM/NTSC | |
| Video range | 1.0 Vp-p ±5% | ||
| Audio input | Computer | Earphone input | 0.2 – 1.5 Vrms |
| Video | L/R RCA Input | 0.2 – 1.5 Vrms | |
| Audio output | Frequency Response | 100Hz - 15000Hz @±3dB (1KHz 0dB benchmark signal) | |
| Power | Loudspeaker output | 2x2W(8 ohm) THD+N<10% | |
| Input requirement | Single +12v | ||
| Screen power supply | 3.3V,5V, 12V | ||
| Power management | Low power consumption mode, stand by <1W(depending on the power supply) | ||

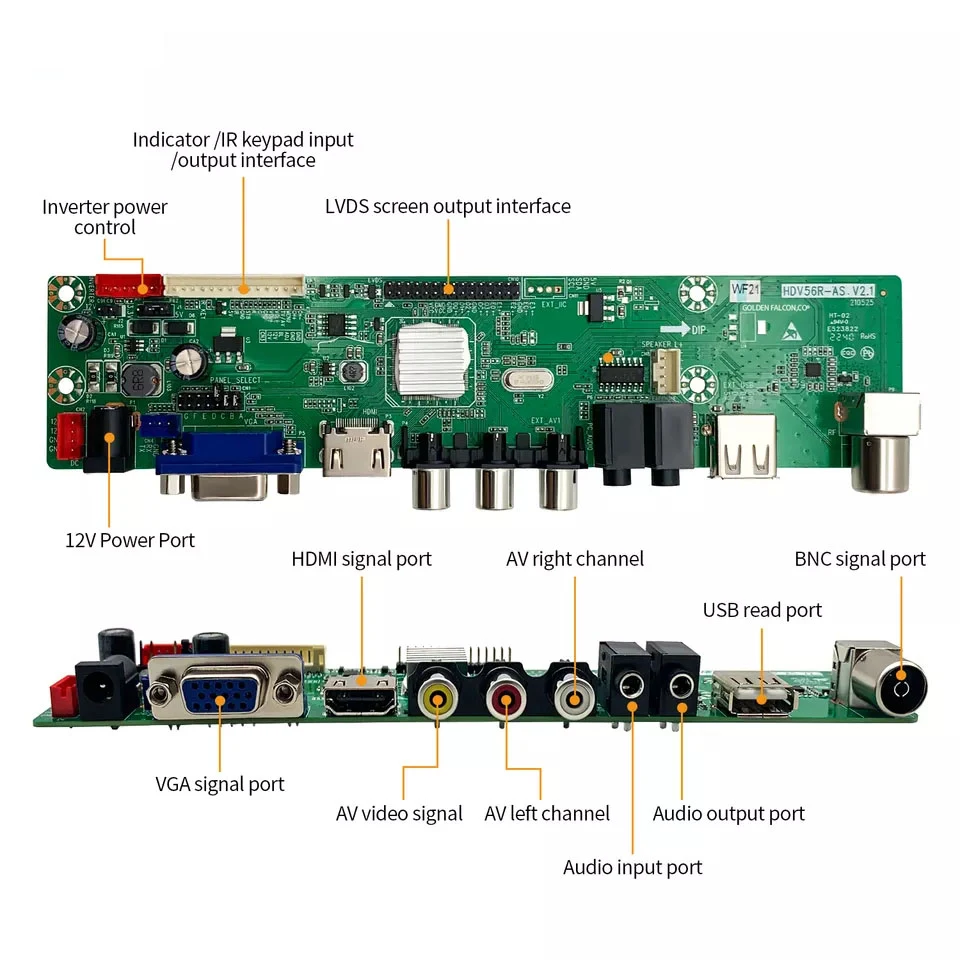

| Port | Input | USB | 1 USB horizontal socket |
| HDMI | 1 HDMI terminal | ||
| Computer | 1 D-SUB 15 pin terminal | ||
| PC-RGB Audio | 1 earphone socket(black) | ||
| Video | 1 RCA terminal(yellow) | ||
| Audio | 2 RCA terminals(white, red) | ||
| TV | 1 IEC connector 75 | ||
| Aberration | No | ||
Key Feature: support any brand of panel with different resolution by Jumper Selecting.
