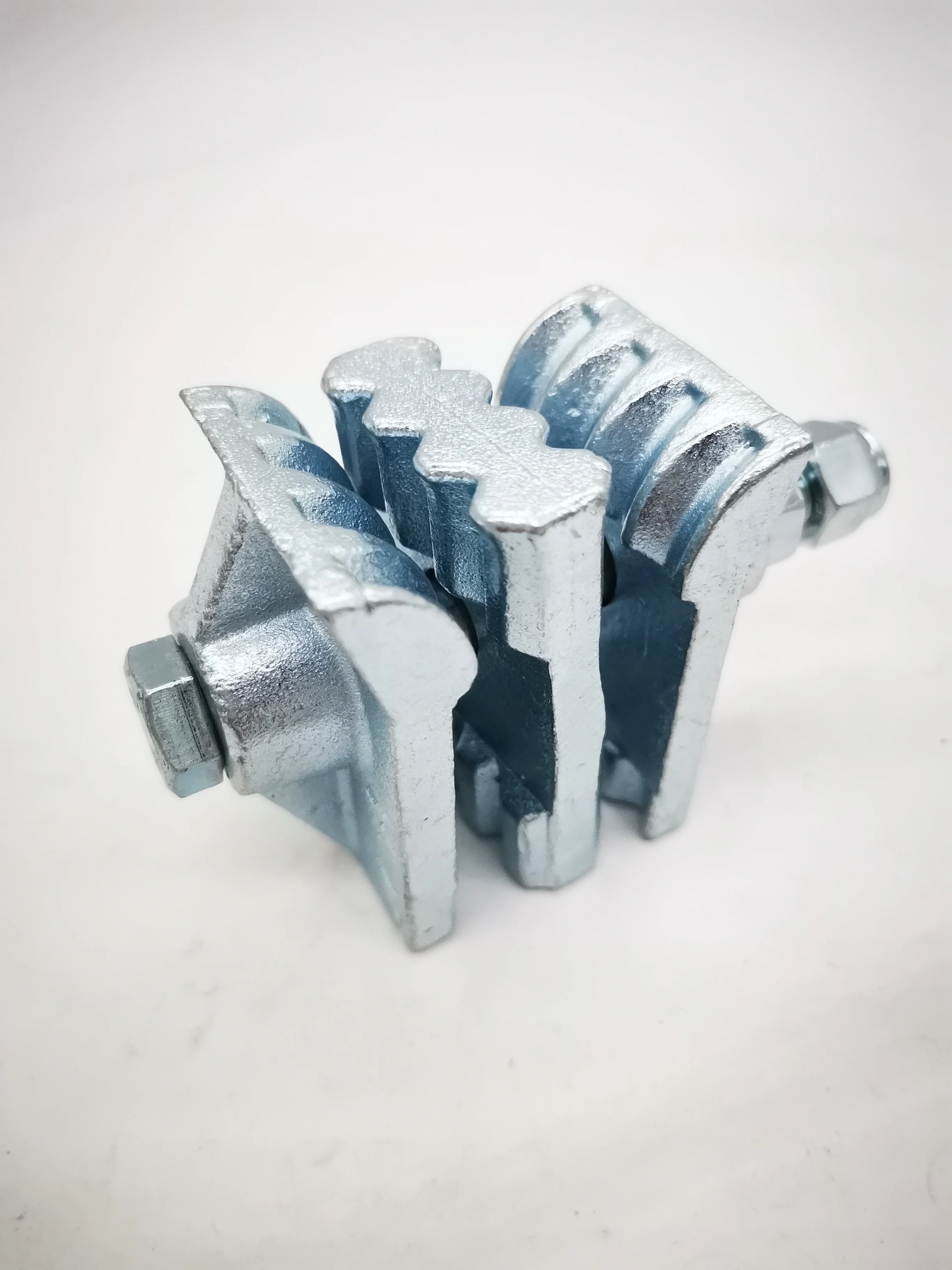

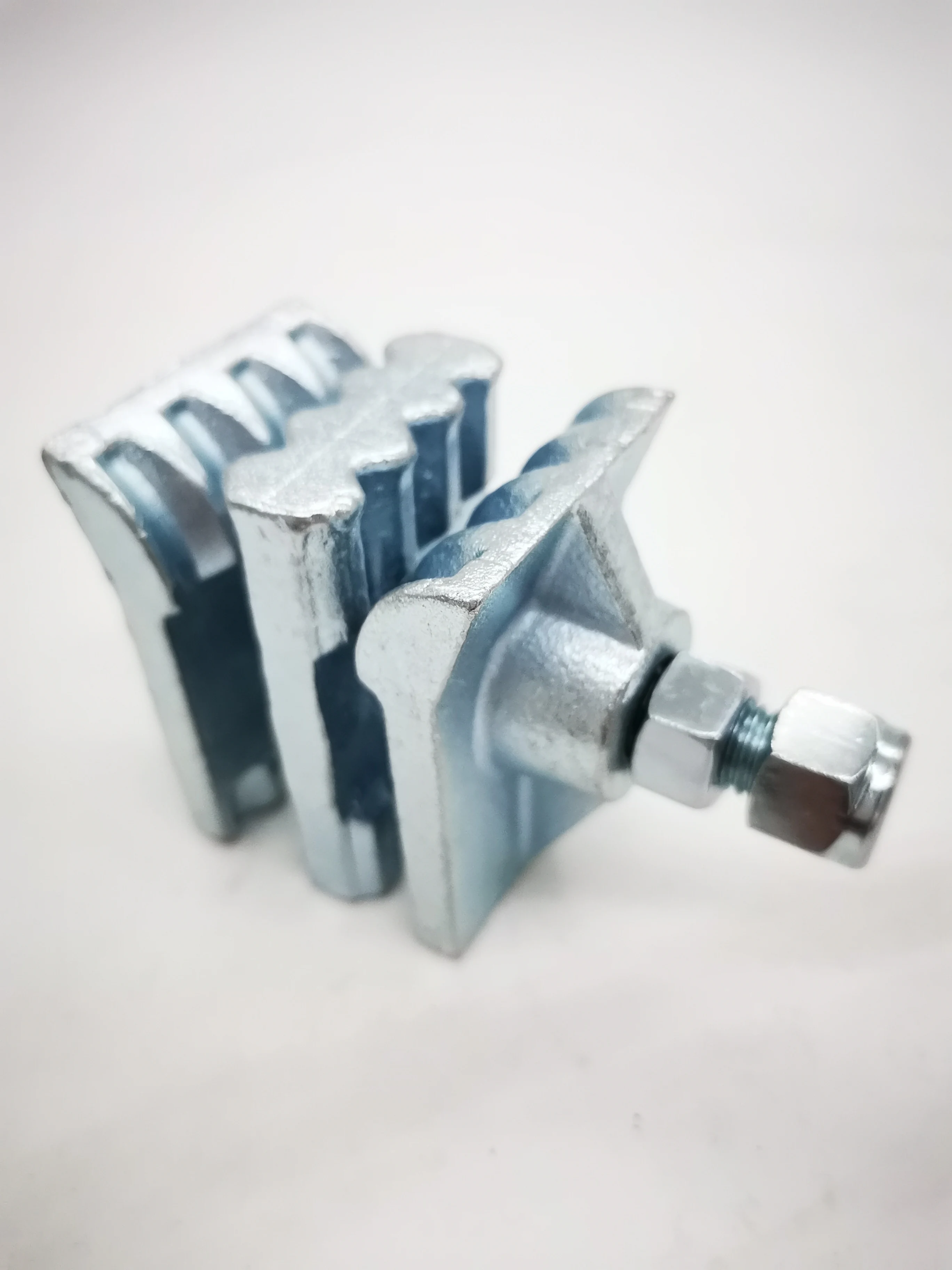

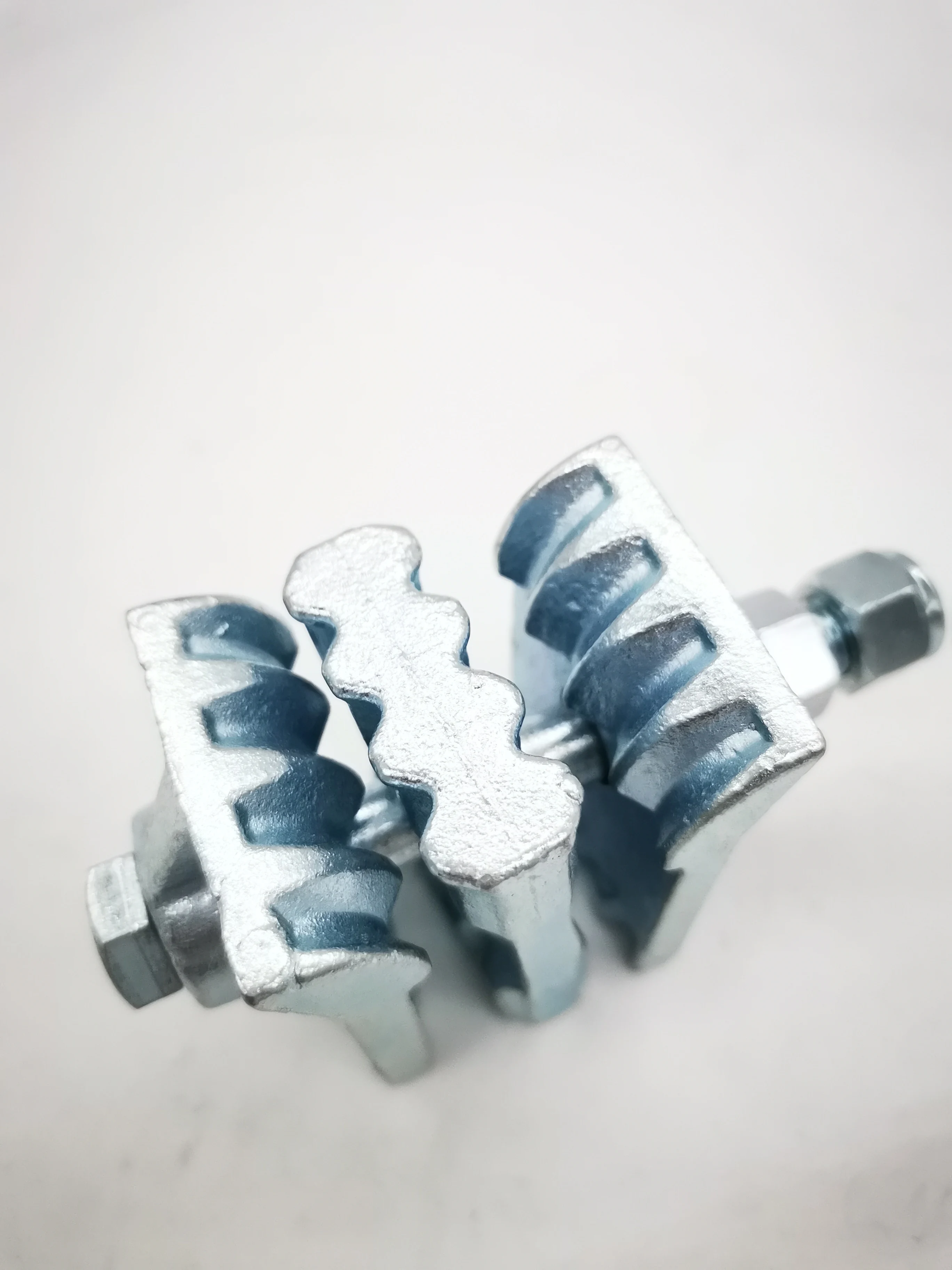

Factory Outlet China Low Price S4 Lifting belt connector, lifting belt fastener,Belt Clamp Fastener
Factory Outlet China Low Price S4 Lifting belt connector, lifting belt fastener,Belt Clamp Fastener
Factory Outlet China Low Price S4 Lifting belt connector, lifting belt fastener,Belt Clamp Fastener
Factory Outlet China Low Price S4 Lifting belt connector, lifting belt fastener,Belt Clamp Fastener
Factory Outlet China Low Price S4 Lifting belt connector, lifting belt fastener,Belt Clamp Fastener
Factory Outlet China Low Price S4 Lifting belt connector, lifting belt fastener,Belt Clamp Fastener
Factory Outlet China Low Price S4 Lifting belt connector, lifting belt fastener,Belt Clamp Fastener

Factory Outlet China Low Price S4 Lifting belt connector, lifting belt fastener,Belt Clamp Fastener

Share on (1600958672908):


Price:$5.00 - $6.00

Quantity:


Product Overview

Description





Products Description






Proper belt clamp will directly infuence the running reliability, safety and life span of the elevator belt. It's the safest, the mosteconomical, and the most widely design up to now. Our belt fasteners are widely used by many conveyor equipment manufacturesand have unanimous recognition and praise of experts.

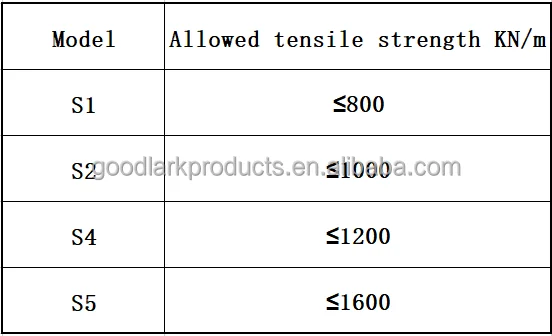

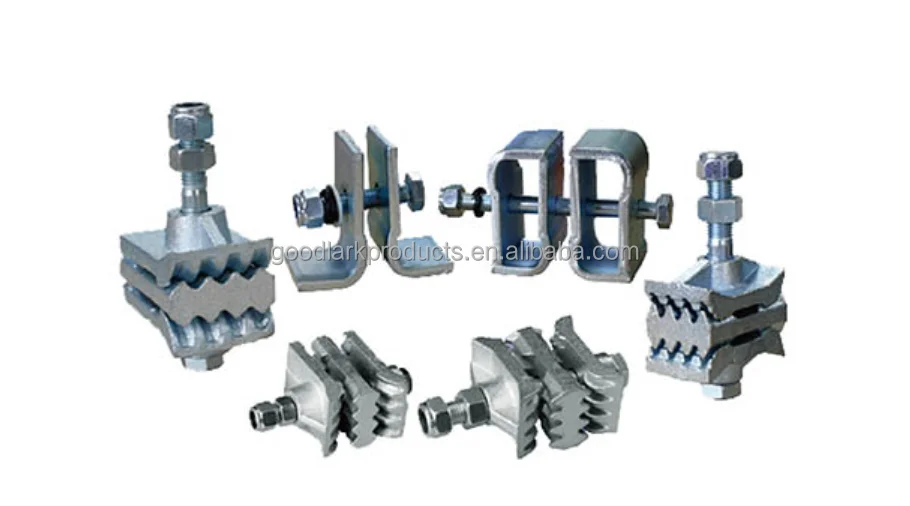

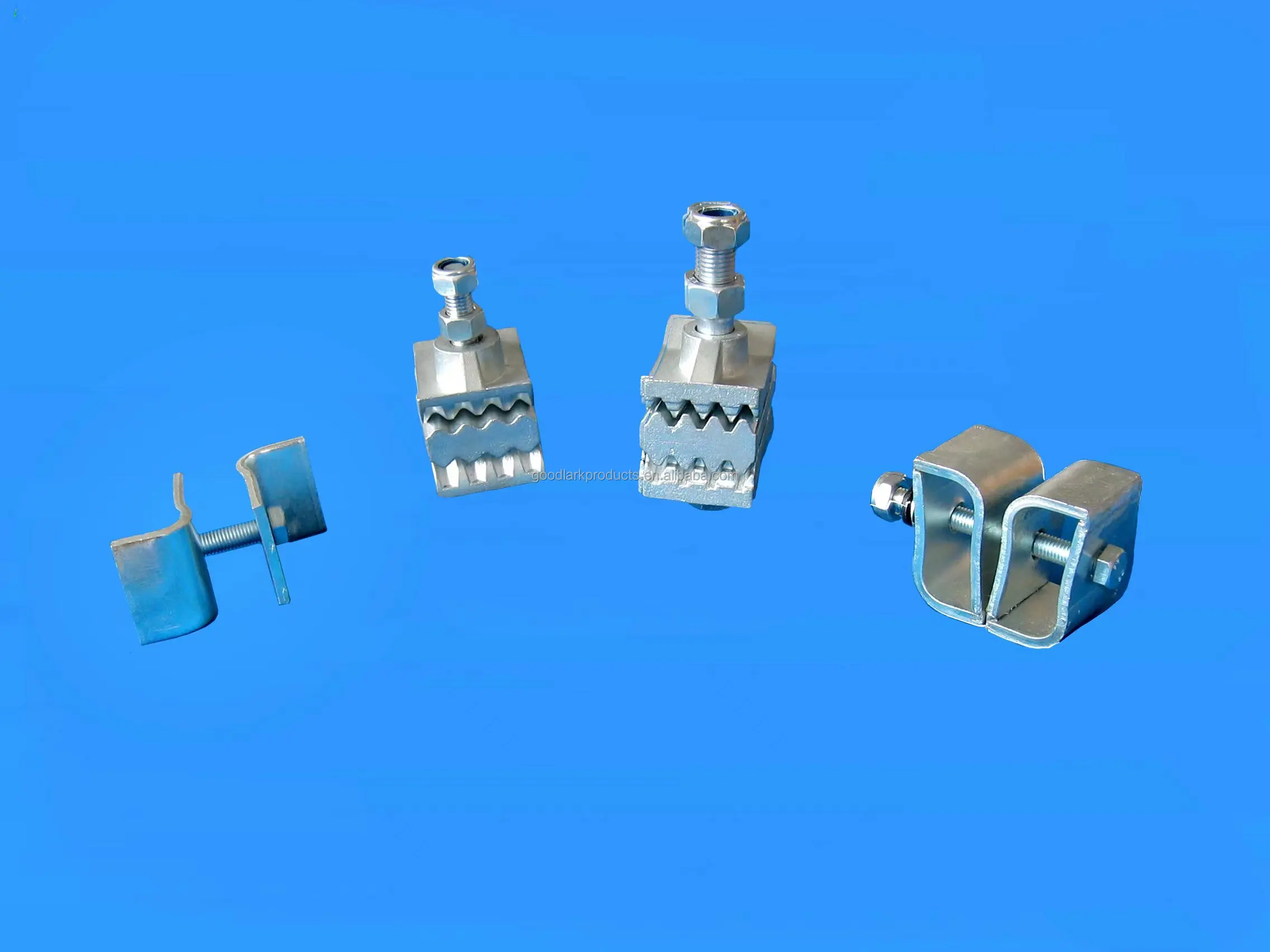

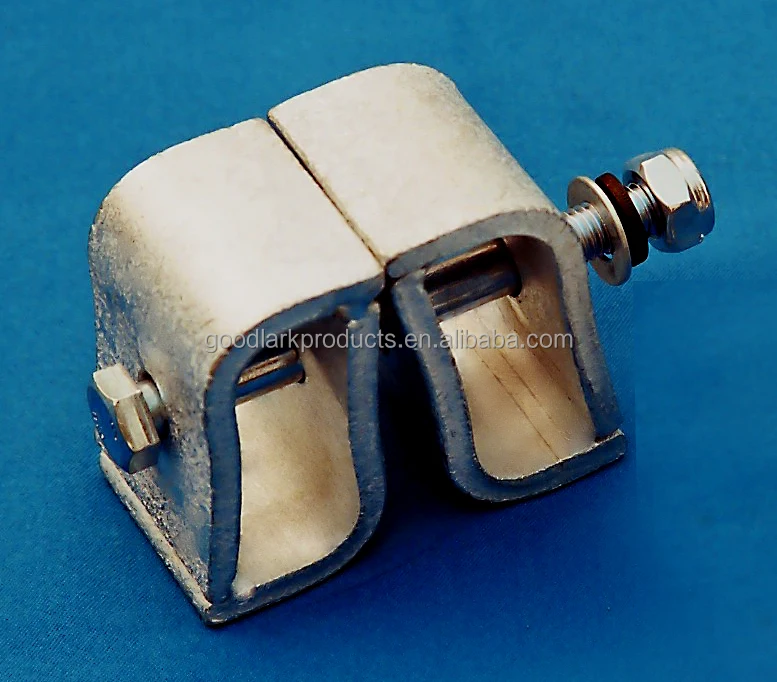

Features of S1， S4 ，S5：

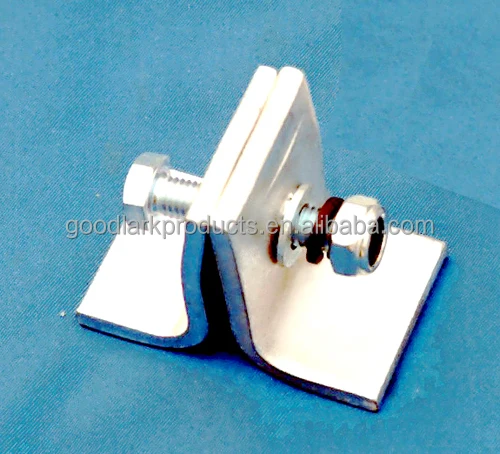

 * Type S1 Whole stamping with accurate dimension, good sizeconsistency and easy interchange and have high precision ofcombination.

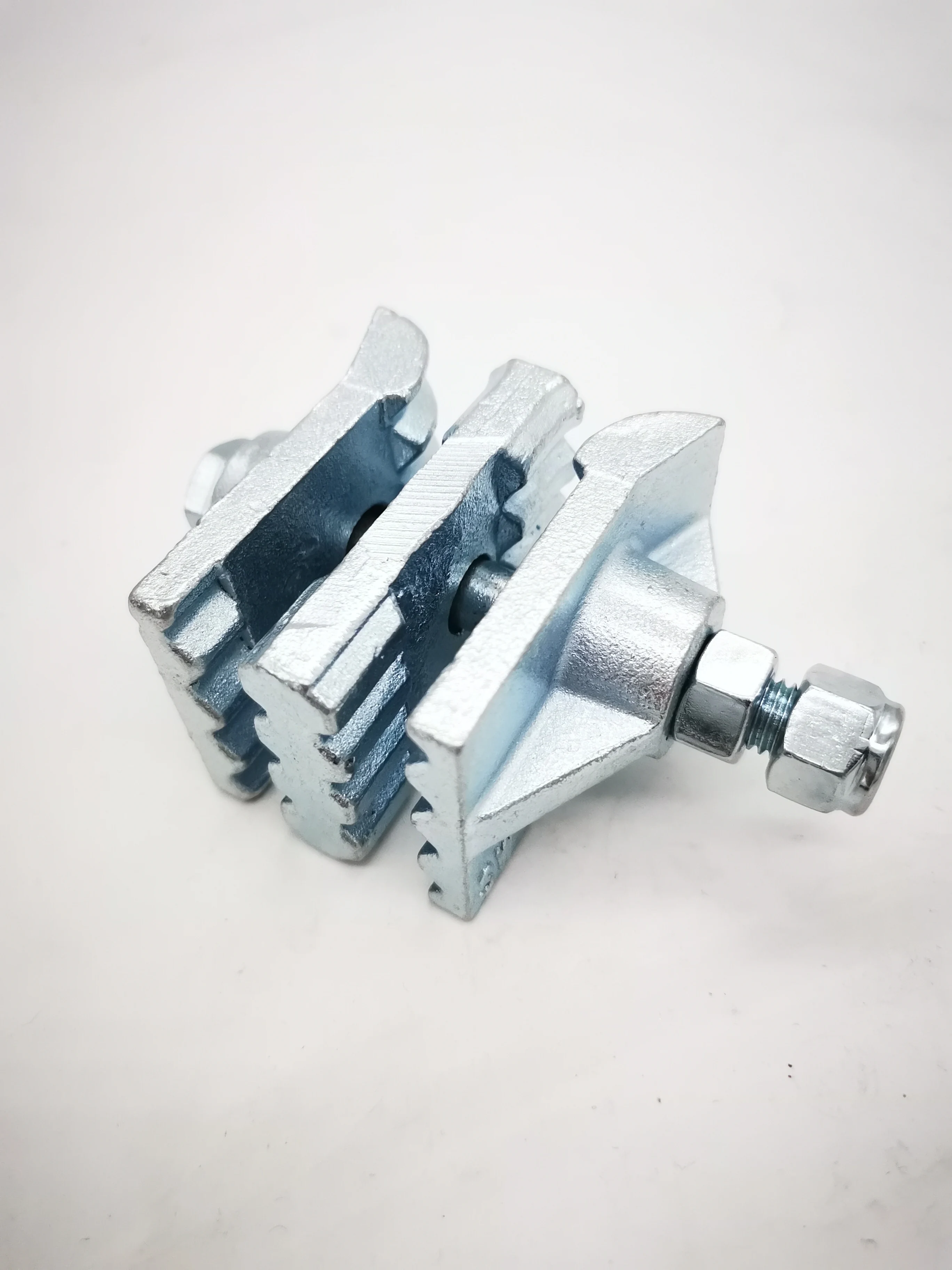

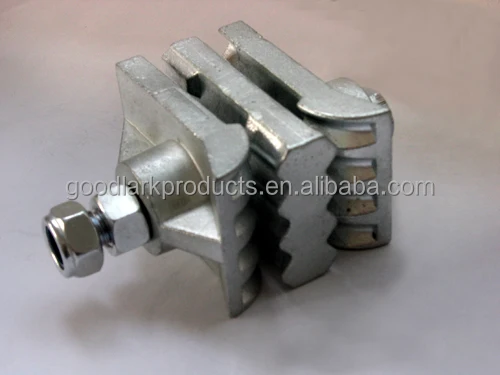

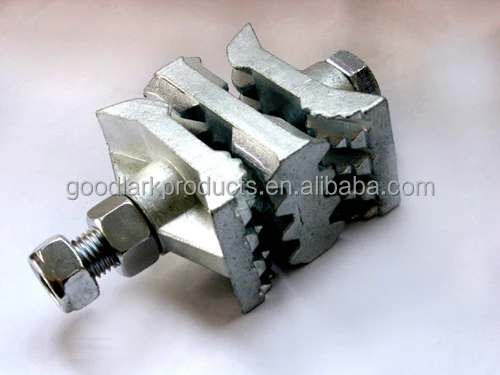

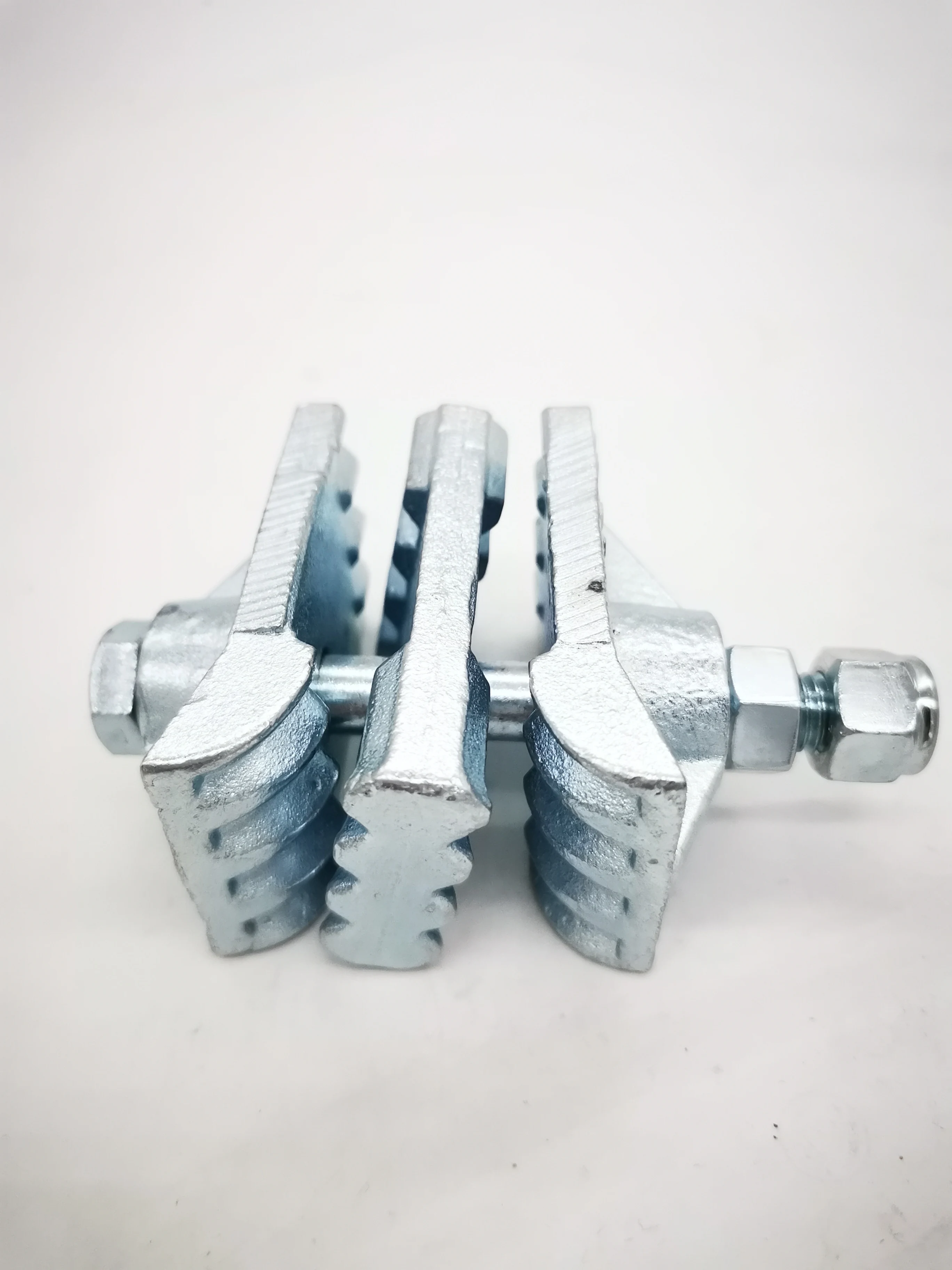

 * Type S4 and S5 made by three special mechanical parts andprecision casting with accurate dimension. Materials includecast steel(Galvanized) and stainless steel, they both havehigher clamping force.
* The fastener applies to different width of belt with good performance of combination.
 * Surface gaivanized, good performance of antirust.
 * Equipped with the locknut which prevent the loose in the operation.




Form and application of lifting belt connector:




Belt Clamp Fastener Operating points:
* Choose different fastener type and quantity according to your belt strength and width.
* Elevator belt round length + Fastener connect belt length = Total belt length.
* Equipped with the locknut which prevent the loose in the operation.
* Set aside some distance (S1&S2-60mm, S4&S5--80mm) from the top of the connect belt, make a center line for the mounting hole.Make sure the center line is perpendicular to elevator belt radial direction or its two edges. It helps make sure the belt won't go deviatedwhen the elevator is running.
