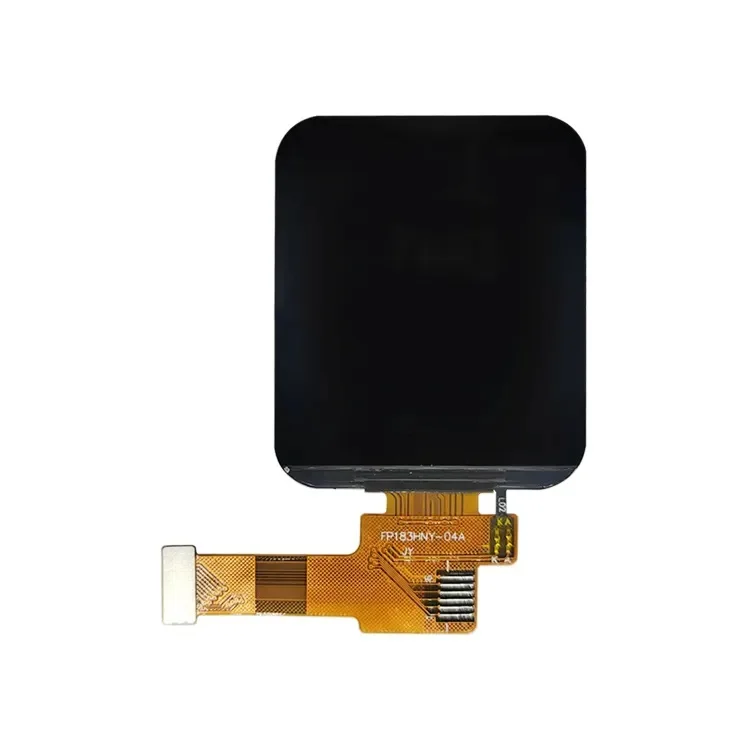

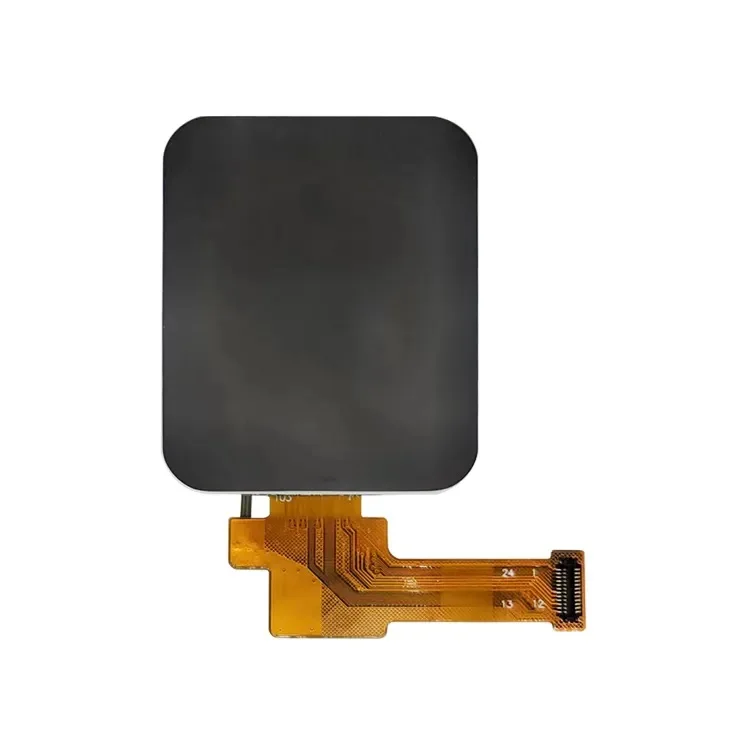

1.83 inch 240x280 TFT LCD Display Module NV3030B IC SPI interface IPS Display
- Category: >>>
- Supplier: Dongguan Shineworld Innovations Technology Co. Ltd.
Share on (1600958674502):
Product Overview
Description
Display General Description

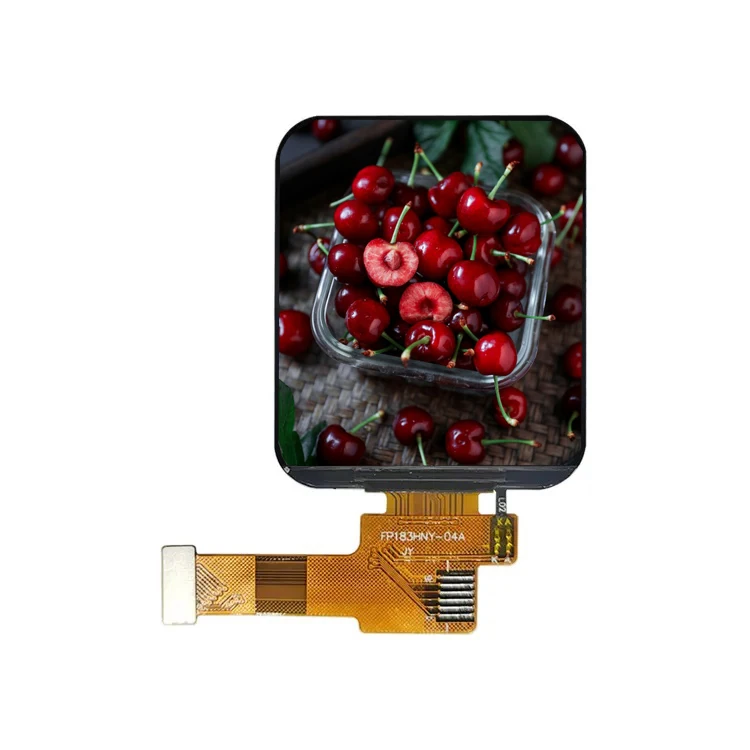

The LHN183TY-PC04 is a module with a 1.83-inch IPS TFT LCD display. Manufactured by SWICN, this module delivers an attractive visual experience with its 240x280 RGB pixel resolution against a black backdrop. With a typical brightness of 500cd/m2, it ensures clear visibility even in various lighting conditions. Equipped with the NV3030B driver IC and supporting an 8 Bit 8080 MCU interface, this module guarantees reliable and consistent performance.
The LHN183TY-PC04 module is highly compatible with a variety of MCUs, including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. Its broad compatibility makes it suitable for a wide range of applications, including embedded systems, industrial devices, wearables, MP3 players, security systems, medical equipment, consumer electronics, and handheld devices.

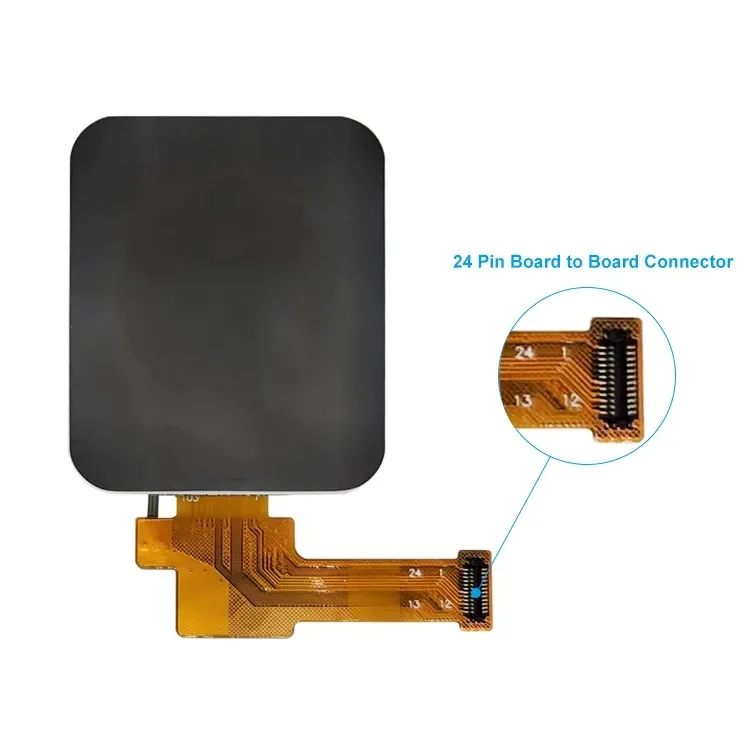

The module's 24-pin Flexible Printed Circuit (FPC) is designed with a Board to Board (B2B) connector, allowing for effortless and
direct connection to the B2B connector on your PCB. This simplifies the integration process and ensures a secure and reliable
connection.
Shineworld Innovations Limited offers customization options to cater to specific requirements. We provide tailored solutions,
including customized FPC, integrated cover lenses, touch screens, or driver boards. This flexibility allows customers to receive
an optimized display solution that perfectly aligns with their unique needs and preferences. Additionally, SWI can provide
customized demo kits upon customer request.
The LHN183TY-PC04 module is highly compatible with a variety of MCUs, including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. Its broad compatibility makes it suitable for a wide range of applications, including embedded systems, industrial devices, wearables, MP3 players, security systems, medical equipment, consumer electronics, and handheld devices.
The module's 24-pin Flexible Printed Circuit (FPC) is designed with a Board to Board (B2B) connector, allowing for effortless and
direct connection to the B2B connector on your PCB. This simplifies the integration process and ensures a secure and reliable
connection.
Shineworld Innovations Limited offers customization options to cater to specific requirements. We provide tailored solutions,
including customized FPC, integrated cover lenses, touch screens, or driver boards. This flexibility allows customers to receive
an optimized display solution that perfectly aligns with their unique needs and preferences. Additionally, SWI can provide
customized demo kits upon customer request.
General Data
NO. | ITEM | SPECIFICATIONS | UNIT |
1 | Display Mode | IPS TFT | - |
2 | Diagonal Size | 1.83 | |
3 | Resolution | 240(H)RGB x280(V) | |
4 | Active Area | 30.1968(H) x 35.2296(V) | |
5 | Outline Dimension | 32.2(H) x 39.23(V) | |
6 | Thickness | 1.46±0.2 | |
7 | Pixel Pitch | 0.12582(H) x 0.12582(V) | |
8 | Pixel Size | 0.12582(H) x 0.12582(V) | |
9 | Display Driver IC | ST7735S | |
10 | Touch Driver IC | NO Touch | - |
11 | Display Color | 262K | - |
12 | Gray Scale | 8 | Bit |
13 | Brightness | 500(Typ) | |
14 | Contrast Ratio | 800:1 | |
15 | Interface | 8 Bit 8080 MCU | |
16 | Module Connecting Type | B2B Connector | |
17 | IC Package Type | COG | - |
18 | Pins | 24 | Pins |
19 | Operating Temperature | -20~70 | ℃ |
20 | Storage Temperature | -30~80 | ℃ |

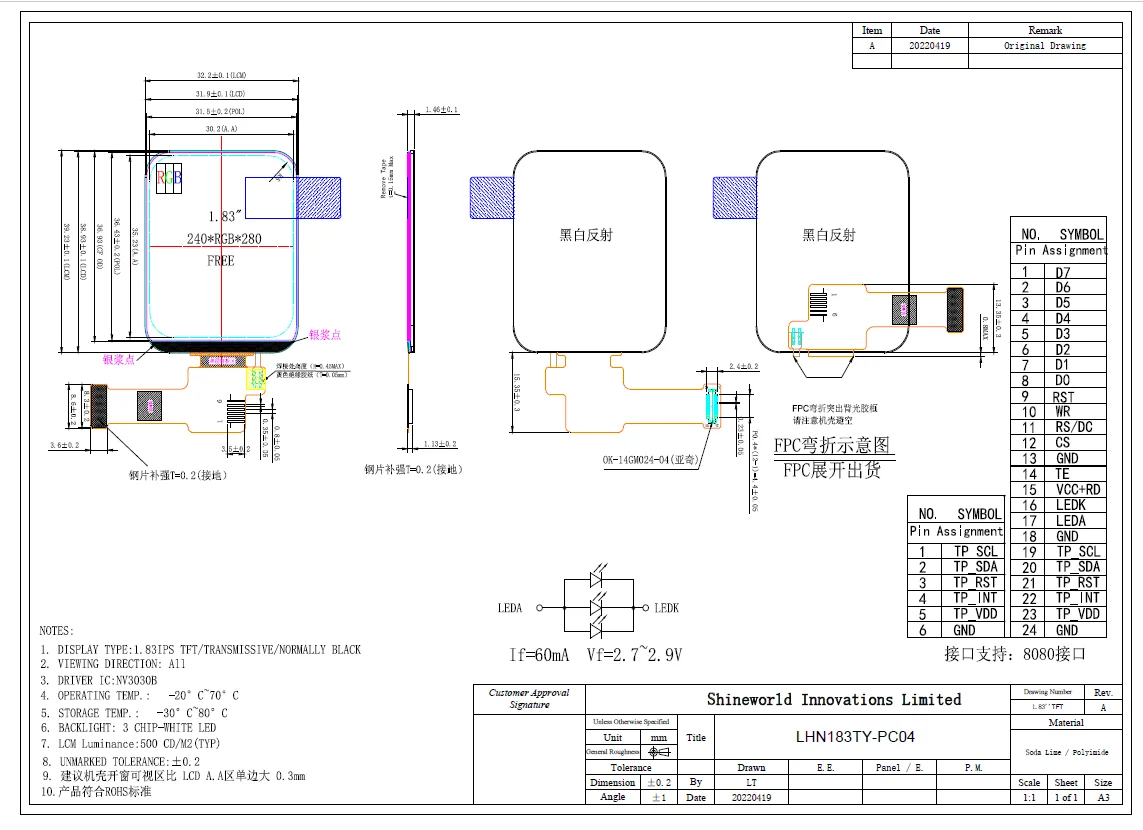

Drawings
Product Details
More TFT Available
Size (inch) | Type | Resolution | Brightness cd/m2 | Active Area (HxV mm) | Outline Dimension (HxVxD mm) | Interface |
0.85'' | IPS | 128x128 | 300 | 15.20x15.20 | 17.58x28.82x1.5 | 4-wire SPI |
0.96'' | IPS | 80x160 | 700 | 10.8x21.7 | 13.5x27.95x1.5 | 4-wire SPI |
0.99'' | IPS | 40x160 | 300 | 6.09x24.38 | 8.6x29.8x1.5 | 4-wire SPI |
0.99'' | IPS | 128x115 | 450 | 24.36x21.88 | 26.71x26.22x1.86 | 4-wire SPI |
1.05'' | IPS | 120x240 | 400 | 11.88x23.76 | 14.25x28.6x1.6 | 4-wire SPI |
1.06'' | TN | 96x160 | 400 | 13.82x23.04 | 16.12x29.76x1.69 | 4-wire SPI |
1.08'' | IPS | 128x220 | 400 | 13.82x23.76 | 16.12x29.76x1.52 | 4-wire SPI |
1.14'' | IPS | 135x240 | 400 | 14.86x24.91 | 17.6x31.0x1.6 | 8 Bit MCU/4-wire SPI |
1.28'' | IPS | 240x240 | 600 | D=32.4 | 35.6x38.1x1.55 | 8 Bit MCU/4-wire SPI |
1.3'' | IPS | 240x240 | 400 | 23.4x23.4 | 26.16x29.22x1.5 | 8 Bit MCU/4-wire SPI |
1.32'' | IPS | 360x360 | 600 | D=33.48 | 35.98x38.54x1.56 | QSPI+MIPI 1 Lane |
1.44'' | TN | 128x128 | 400 | 25.5x26.5 | 30.9x36.51x2.3 | 8 Bit MCU |
1.47'' | IPS | 172x320 | 600 | 17.38x32.35 | 19.39x36.28x1.5 | 8 Bit MCU/4-wire SPI |
1.5'' | IPS | 240x280 | 500 | 24.76x28.89 | 26.77x33.45x1.56 | 4-wire SPI |
1.54'' | IPS | 240x240 | 600 | 27.72x27.72 | 30.07x37.43x1.56 | 4-wire SPI |
1.69'' | IPS | 240x280 | 1000 | 27.97x32.63 | 30.07x37.43x1.56 | 8 Bit MCU/4-wire SPI |
1.77'' | TN | 128x160 | 500 | 28.03x35.04 | 34x43.7x2.5 | 8 Bit MCU/4-wire SPI |
1.83'' | IPS | 240x280 | 500 | 30.19x35.22 | 32.2x39.23x1.46 | 8 Bit MCU |
1.9'' | IPS | 170x320 | 400 | 22.69x42.72 | 25.8x49.72x1.43 | 8 Bit MCU/4-wire SPI |
2.0'' | IPS/TN | 240x320 | 600 | 30.6x40.8 | 37.68x51.32x2.3 | 8 Bit MCU/4-wire SPI |
2.0'' | IPS/TN | 320x240 | 600 | 40.8x30.6 | 45x39x2.03 | 8&16Bit MCU/SPI/RGB |
2.0'' | IPS | 128x160 | 260 | 31.87x39.84 | 35.27x47.14x1.96 | 4-wire SPI |
2.1'' | IPS | 480x480 | 300 | D=53.28 | 56.18x59.71x2.3 | SPI+18Bit RGB/MIPI |
2.2'' | TN | 240x320 | 300 | 33.84x45.12 | 40.1x55.2x2.5 | 4-wire SPI |
2.23'' | IPS | 200x480 | 400 | 21.72x52.41 | 23.82x57.39x1.56 | MIPI 2 Lane |
2.4'' | IPS/TN | 240x320 | 500 | 36.72x48.96 | 44.8x73.03x3.41 | 8&16Bit MCU/SPI/RGB |
2.8'' | IPS/TN | 240x320 | 250 | 43.2x57.6 | 50x69.2x2.3 | 8Bit MCU/4-wire SPI |
3.0'' | TN | 240x400 | 500 | 38.88x64.8 | 45.04x77.05x2.6 | 16 Bit MCU |
3.16'' | IPS | 288x960 | 550 | 23.06x76.89 | 28.63x134.84x3.26 | MIPI 2 Lane |
3.4'' | IPS | 480x480 | 300 | 60.48x60.48 | 70.45x70.32x1.89 | SPI+18 Bit RGB |
3.5'' | IPS/TN | 320x480 | 400 | 48.96x73.44 | 53.4x83x2.0 | 16Bit MCU/RGB/SPI |
3.5'' | IPS/TN | 212x318 | 350 | 48.95x73.43 | 54.12x82.94x2.1 | MCU |
3.6'' | IPS | 1024x768 | 900 | 72.96x54.72 | 79.8x63.7x2.6 | MIPI 4 Lane |
3.95'' | IPS | 480x480 | 300 | 71.85x70.17 | 78.98x74.83x2.14 | MIPI |
3.97'' | IPS/TN | 480x800 | 400 | 51.84x86.4 | 57.14x96.85x2.2 | MIPI/SPI+24 Bit RGB |
4.0'' | IPS | 720x720 | 450 | D=101.52 | 105.3x109.6x2.3 | SPI+18 Bit RGB/MIPI |
4.0'' | IPS | 480x480 | 450 | 71.86x70.08 | 77x80x2.5 | SPI+18 Bit RGB |
4.3'' | IPS/TN | 480x272 | 400 | 95.04x53.85 | 105.4x67.1x2.9 | 8/24 Bit RGB |
4.3'' | TN | 480X800 | 500 | 56.16x93.6 | 60.66x104.25x2.3 | SPI+24 Bit RGB |
4.5'' | IPS | 480x854 | 400 | 55.44x98.64 | 60x109x2.25 | MIPI 2 Lane |
5.0'' | IPS | 1080x1080 | 350 | D=127.008 | 136.53x132.2x1.98 | MIPI 4 Lane |
5.0'' | TN | 480x272 | 300 | 110.88x62.83 | 120.7x75.8x3.1 | 24 Bit RGB |
7.0'' | IPS | 800x480 | 250 | 154.08x85.92 | 164.9x100x3.5 | 18 Bit RGB |
7.0'' | IPS | 800x1280 | 220 | 94.2x150.72 | 99.7x160.93x2.5 | MIPI 4 Lane |
7.0'' | IPS | 1024x600 | 300 | 153.6x90 | 165.75x105.39x3.3 | LVDS 4 Lane |
8.0'' | IPS | 800x1280 | 250 | 107.64x172.22 | 114.6x184.1x2.7 | MIPI 4 Lane |
9.0'' | TN | 1024x600 | 180 | 196.6x114.15 | 203.7x122.1x5 | 24 Bit RGB |
9.0'' | TN | 800x480 | 300 | 198x111.696 | 210.7x126.4x3.5 | 24 Bit RGB |
10.1'' | TN | 1024x600 | 350 | 222.72x125.28 | 235x143x4.3 | 24 Bit RGB |
10.1'' | IPS | 800x1280 | 350 | 135.36x216x57 | 143x2228.6x2.5 | MIPI 4 Lane |
