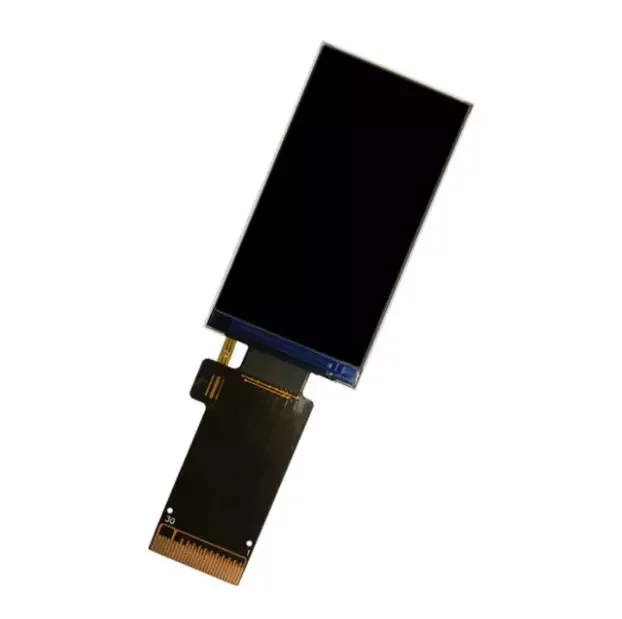

1.9 Inch 170x320 IPS TFT LCD Display for Wearable Products MCU SPI ST7789V
- Category: >>>
- Supplier: Dongguan Shineworld Innovations Technology Co. Ltd.
Share on (1600958723357):
Product Overview
Description
Display General Description
The LBS190TP-PF02 module, manufactured by SWICN, features a 1.9-inch IPS TFT LCD display that delivers an exceptional visual experience. With its 170x320 RGB pixel resolution on black background, this module ensures stunning image quality. It boasts a typical brightness of 400cd/m2, guaranteeing clear visibility even in varying lighting conditions. Powered by the reliable
ST7789P3 driver IC and supporting 8 Bit 8080 MCU and 4-wire SPI interface, this module offers consistent and trustworthy
performance.
Versatile and compatible, the LBS190TP-PF02 module works seamlessly with a wide range of MCUs, including 8051, PIC, AVR,
ARDUINO,ARM, and Raspberry Pi. Its compatibility extends to numerous applications, such as embedded systems, industrial
devices,wearables, MP3 players, security systems, medical equipment, consumer electronics, and handheld devices.
To facilitate seamless integration, the module features a Flexible Printed Circuit (FPC) with FPC-connector mode. This allows for
effortless and direct connection to the ZIF connector on your PCB, simplifying the integration process and ensuring a secure and
reliable connection.
Shineworld Innovations Limited offer customization options for the display module. Our tailored solutions include customized
FPC,integrated cover lenses, touch screens, and driver boards. With this flexibility, customers can receive an optimized display
solution that perfectly aligns with their unique needs and preferences. Additionally, upon customer request, SWI can provide
customized demo kits, further enhancing the customization experience.
ST7789P3 driver IC and supporting 8 Bit 8080 MCU and 4-wire SPI interface, this module offers consistent and trustworthy
performance.
Versatile and compatible, the LBS190TP-PF02 module works seamlessly with a wide range of MCUs, including 8051, PIC, AVR,
ARDUINO,ARM, and Raspberry Pi. Its compatibility extends to numerous applications, such as embedded systems, industrial
devices,wearables, MP3 players, security systems, medical equipment, consumer electronics, and handheld devices.
To facilitate seamless integration, the module features a Flexible Printed Circuit (FPC) with FPC-connector mode. This allows for
effortless and direct connection to the ZIF connector on your PCB, simplifying the integration process and ensuring a secure and
reliable connection.
Shineworld Innovations Limited offer customization options for the display module. Our tailored solutions include customized
FPC,integrated cover lenses, touch screens, and driver boards. With this flexibility, customers can receive an optimized display
solution that perfectly aligns with their unique needs and preferences. Additionally, upon customer request, SWI can provide
customized demo kits, further enhancing the customization experience.
General Data
NO. | ITEM | SPECIFICATIONS | UNIT |
1 | Display Mode | IPS TFT | - |
2 | Diagonal Size | 1.9 | Inch |
3 | Resolution | 170(H)RGB x320(V) | Dots |
4 | Active Area | 22.695(H) x 42.72(V) | mm |
5 | Outline Dimension | 25.8(H) x 49.72(V) | mm |
6 | Thickness | 1.43±0.1 | mm |
7 | Pixel Pitch | 0.1335(H) x 0.1335(V) | mm |
8 | Pixel Size | 0.1335(H) x 0.1335(V) | mm |
9 | Display Driver IC | ST7789P3 | - |
10 | Touch Driver IC | NO Touch | - |
11 | Display Color | 262K | - |
12 | Gray Scale | 8 | Bit |
13 | Brightness | 500 (Typ.) | cd/m2 |
14 | Contrast Ratio | 1500:1 (Typ.) | - |
15 | Interface | 8Bit 8080 MCU & 4 Line SPI | - |
16 | Module Connecting Type | Connector | - |
17 | IC Package Type | COG | - |
18 | Pins | 30 | Pins |
19 | Operating Temperature | -20~70 | ℃ |
20 | Storage Temperature | -30~80 | ℃ |

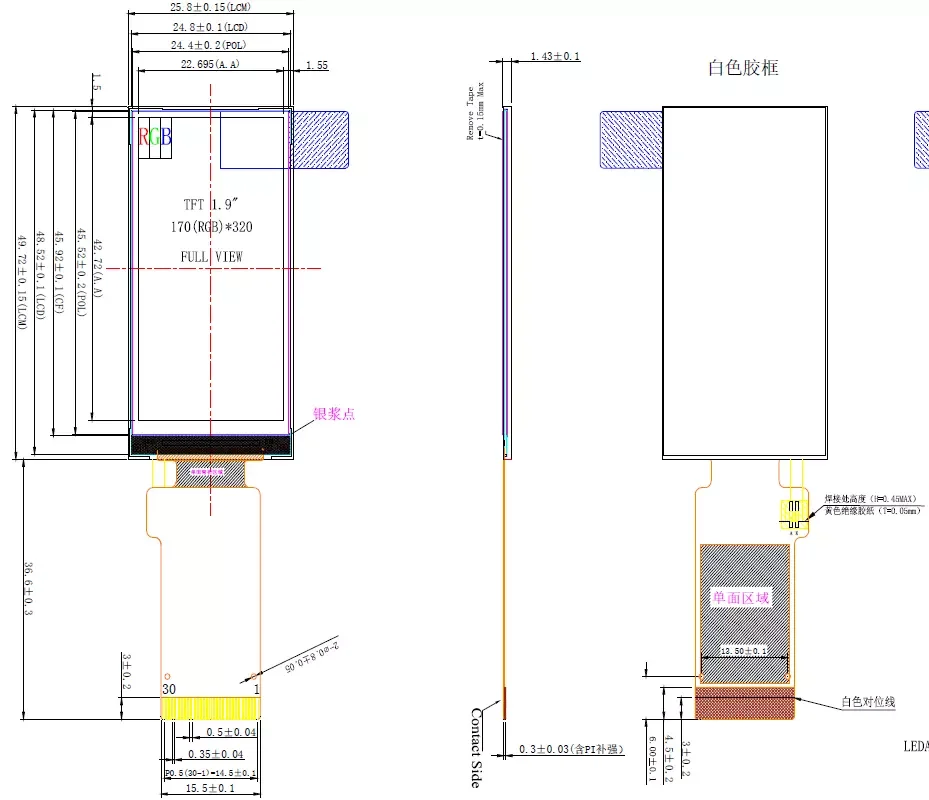

Drawings

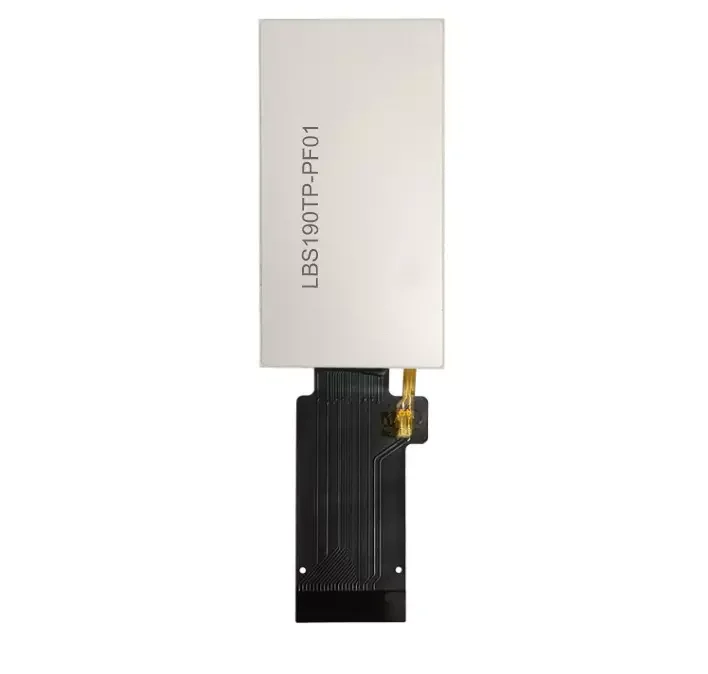

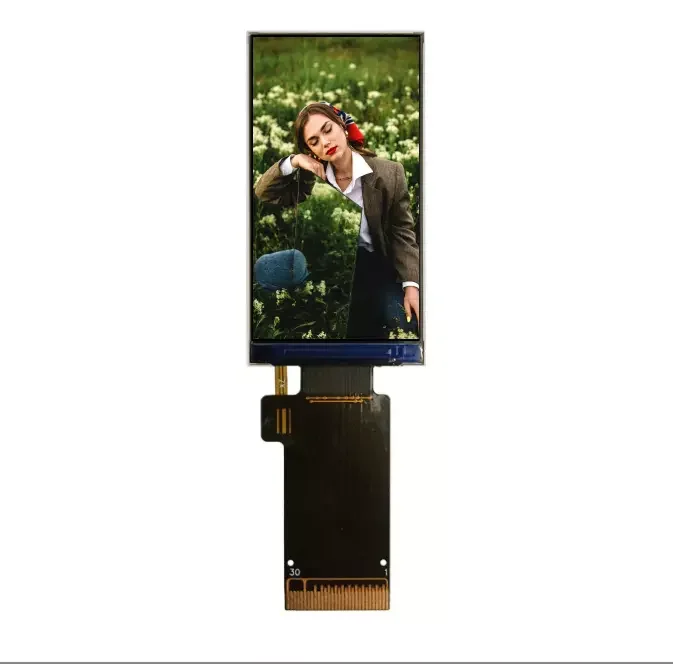

Product Details
More TFT Available
Size (inch) | Type | Resolution | Brightness cd/m2 | Active Area (HxV mm) | Outline Dimension (HxVxD mm) | Interface |
0.85'' | IPS | 128x128 | 300 | 15.20x15.20 | 17.58x28.82x1.5 | 4-wire SPI |
0.96'' | IPS | 80x160 | 700 | 10.8x21.7 | 13.5x27.95x1.5 | 4-wire SPI |
0.99'' | IPS | 40x160 | 300 | 6.09x24.38 | 8.6x29.8x1.5 | 4-wire SPI |
0.99'' | IPS | 128x115 | 450 | 24.36x21.88 | 26.71x26.22x1.86 | 4-wire SPI |
1.05'' | IPS | 120x240 | 400 | 11.88x23.76 | 14.25x28.6x1.6 | 4-wire SPI |
1.06'' | TN | 96x160 | 400 | 13.82x23.04 | 16.12x29.76x1.69 | 4-wire SPI |
1.08'' | IPS | 128x220 | 400 | 13.82x23.76 | 16.12x29.76x1.52 | 4-wire SPI |
1.14'' | IPS | 135x240 | 400 | 14.86x24.91 | 17.6x31.0x1.6 | 8 Bit MCU/4-wire SPI |
1.28'' | IPS | 240x240 | 600 | D=32.4 | 35.6x38.1x1.55 | 8 Bit MCU/4-wire SPI |
1.3'' | IPS | 240x240 | 400 | 23.4x23.4 | 26.16x29.22x1.5 | 8 Bit MCU/4-wire SPI |
1.32'' | IPS | 360x360 | 600 | D=33.48 | 35.98x38.54x1.56 | QSPI+MIPI 1 Lane |
1.44'' | TN | 128x128 | 400 | 25.5x26.5 | 30.9x36.51x2.3 | 8 Bit MCU |
1.47'' | IPS | 172x320 | 600 | 17.38x32.35 | 19.39x36.28x1.5 | 8 Bit MCU/4-wire SPI |
1.5'' | IPS | 240x280 | 500 | 24.76x28.89 | 26.77x33.45x1.56 | 4-wire SPI |
1.54'' | IPS | 240x240 | 600 | 27.72x27.72 | 30.07x37.43x1.56 | 4-wire SPI |
1.69'' | IPS | 240x280 | 1000 | 27.97x32.63 | 30.07x37.43x1.56 | 8 Bit MCU/4-wire SPI |
1.77'' | TN | 128x160 | 500 | 28.03x35.04 | 34x43.7x2.5 | 8 Bit MCU/4-wire SPI |
1.83'' | IPS | 240x280 | 500 | 30.19x35.22 | 32.2x39.23x1.46 | 8 Bit MCU |
1.9'' | IPS | 170x320 | 400 | 22.69x42.72 | 25.8x49.72x1.43 | 8 Bit MCU/4-wire SPI |
2.0'' | IPS/TN | 240x320 | 600 | 30.6x40.8 | 37.68x51.32x2.3 | 8 Bit MCU/4-wire SPI |
2.0'' | IPS/TN | 320x240 | 600 | 40.8x30.6 | 45x39x2.03 | 8&16Bit MCU/SPI/RGB |
2.0'' | IPS | 128x160 | 260 | 31.87x39.84 | 35.27x47.14x1.96 | 4-wire SPI |
2.1'' | IPS | 480x480 | 300 | D=53.28 | 56.18x59.71x2.3 | SPI+18Bit RGB/MIPI |
2.2'' | TN | 240x320 | 300 | 33.84x45.12 | 40.1x55.2x2.5 | 4-wire SPI |
2.23'' | IPS | 200x480 | 400 | 21.72x52.41 | 23.82x57.39x1.56 | MIPI 2 Lane |
2.4'' | IPS/TN | 240x320 | 500 | 36.72x48.96 | 44.8x73.03x3.41 | 8&16Bit MCU/SPI/RGB |
2.8'' | IPS/TN | 240x320 | 250 | 43.2x57.6 | 50x69.2x2.3 | 8Bit MCU/4-wire SPI |
3.0'' | TN | 240x400 | 500 | 38.88x64.8 | 45.04x77.05x2.6 | 16 Bit MCU |
3.16'' | IPS | 288x960 | 550 | 23.06x76.89 | 28.63x134.84x3.26 | MIPI 2 Lane |
3.4'' | IPS | 480x480 | 300 | 60.48x60.48 | 70.45x70.32x1.89 | SPI+18 Bit RGB |
3.5'' | IPS/TN | 320x480 | 400 | 48.96x73.44 | 53.4x83x2.0 | 16Bit MCU/RGB/SPI |
3.5'' | IPS/TN | 212x318 | 350 | 48.95x73.43 | 54.12x82.94x2.1 | MCU |
3.6'' | IPS | 1024x768 | 900 | 72.96x54.72 | 79.8x63.7x2.6 | MIPI 4 Lane |
3.95'' | IPS | 480x480 | 300 | 71.85x70.17 | 78.98x74.83x2.14 | MIPI |
3.97'' | IPS/TN | 480x800 | 400 | 51.84x86.4 | 57.14x96.85x2.2 | MIPI/SPI+24 Bit RGB |
4.0'' | IPS | 720x720 | 450 | D=101.52 | 105.3x109.6x2.3 | SPI+18 Bit RGB/MIPI |
4.0'' | IPS | 480x480 | 450 | 71.86x70.08 | 77x80x2.5 | SPI+18 Bit RGB |
4.3'' | IPS/TN | 480x272 | 400 | 95.04x53.85 | 105.4x67.1x2.9 | 8/24 Bit RGB |
4.3'' | TN | 480X800 | 500 | 56.16x93.6 | 60.66x104.25x2.3 | SPI+24 Bit RGB |
4.5'' | IPS | 480x854 | 400 | 55.44x98.64 | 60x109x2.25 | MIPI 2 Lane |
5.0'' | IPS | 1080x1080 | 350 | D=127.008 | 136.53x132.2x1.98 | MIPI 4 Lane |
5.0'' | TN | 480x272 | 300 | 110.88x62.83 | 120.7x75.8x3.1 | 24 Bit RGB |
7.0'' | IPS | 800x480 | 250 | 154.08x85.92 | 164.9x100x3.5 | 18 Bit RGB |
7.0'' | IPS | 800x1280 | 220 | 94.2x150.72 | 99.7x160.93x2.5 | MIPI 4 Lane |
7.0'' | IPS | 1024x600 | 300 | 153.6x90 | 165.75x105.39x3.3 | LVDS 4 Lane |
8.0'' | IPS | 800x1280 | 250 | 107.64x172.22 | 114.6x184.1x2.7 | MIPI 4 Lane |
9.0'' | TN | 1024x600 | 180 | 196.6x114.15 | 203.7x122.1x5 | 24 Bit RGB |
9.0'' | TN | 800x480 | 300 | 198x111.696 | 210.7x126.4x3.5 | 24 Bit RGB |
10.1'' | TN | 1024x600 | 350 | 222.72x125.28 | 235x143x4.3 | 24 Bit RGB |
10.1'' | IPS | 800x1280 | 350 | 135.36x216x57 | 143x2228.6x2.5 | MIPI 4 Lane |
