MG996R DC High Torque Metal Gear Standard Micro RC Steering Car Servo Motor 180 360 Degree MG996 MG996R Servomotor Arduino Robot
- Category: >>>
- Supplier: Yueqing Yidi Electronic Co. Ltd.
Share on (1600958744607):
Product Overview
Description
Product Show
Note:

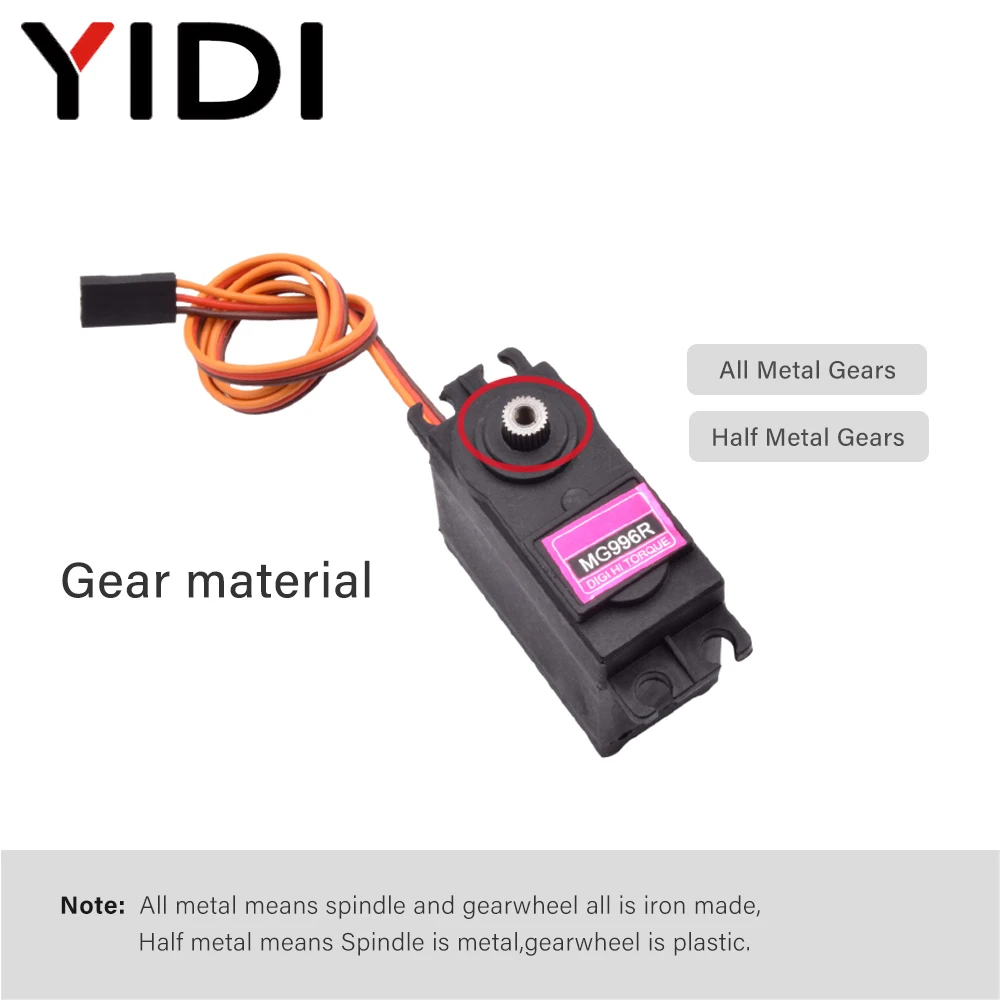

1. Servo all metal means spindle and gearwheel all is iron made; Half metal means spindle is metal, gearwheel is plastic
2. Some controllers can not control the angle accurately; please use a professional PWM Servo Controller to control the angle, as shown in the video: https://youtu.be/zv6vd7eud_o
2. Some controllers can not control the angle accurately; please use a professional PWM Servo Controller to control the angle, as shown in the video: https://youtu.be/zv6vd7eud_o
Steering Gear Control:
The control of the steering gear generally requires a time base pulse of about 20ms, and the high level part of the pulse is
generally the angle control pulse part in the range of 0.5ms~2.5ms.
1. Servo 0-180 Degree
The control of the steering gear generally requires a time base pulse of about 20ms, and the high level part of the pulse is
generally the angle control pulse part in the range of 0.5ms~2.5ms.
1. Servo 0-180 Degree
The corresponding control relationship is as follows:
0.5ms---------------0 degrees;
1.0ms--------------45 degrees;
1.5ms--------------90 degrees
2.0ms--------------135 degrees;
2.5ms--------------180 degrees
For 180 degree servo, please use a professional PWM Servo Controller to control the angle
0.5ms---------------0 degrees;
1.0ms--------------45 degrees;
1.5ms--------------90 degrees
2.0ms--------------135 degrees;
2.5ms--------------180 degrees
For 180 degree servo, please use a professional PWM Servo Controller to control the angle
2. Servo 360 Degree
The steering gear is actually equivalent to a geared motor with infinitely variable speed, which can control the speed and
direction of the rotation. There is no 0-360 degree angle control function.
The steering gear is actually equivalent to a geared motor with infinitely variable speed, which can control the speed and
direction of the rotation. There is no 0-360 degree angle control function.

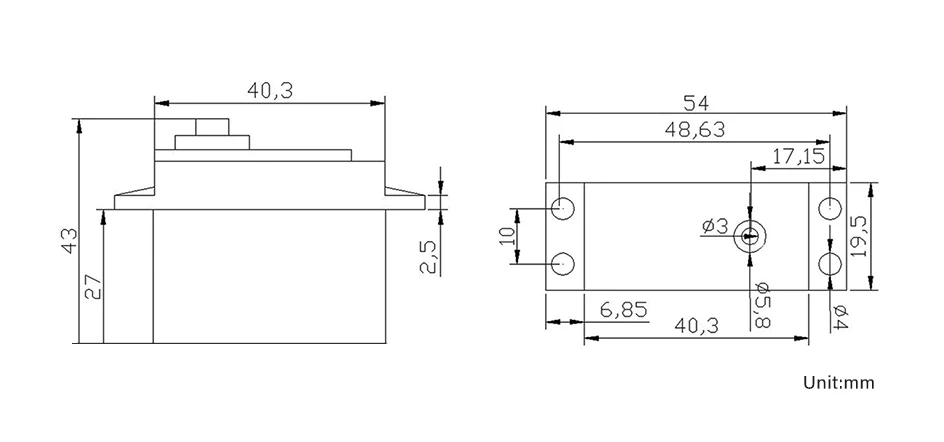

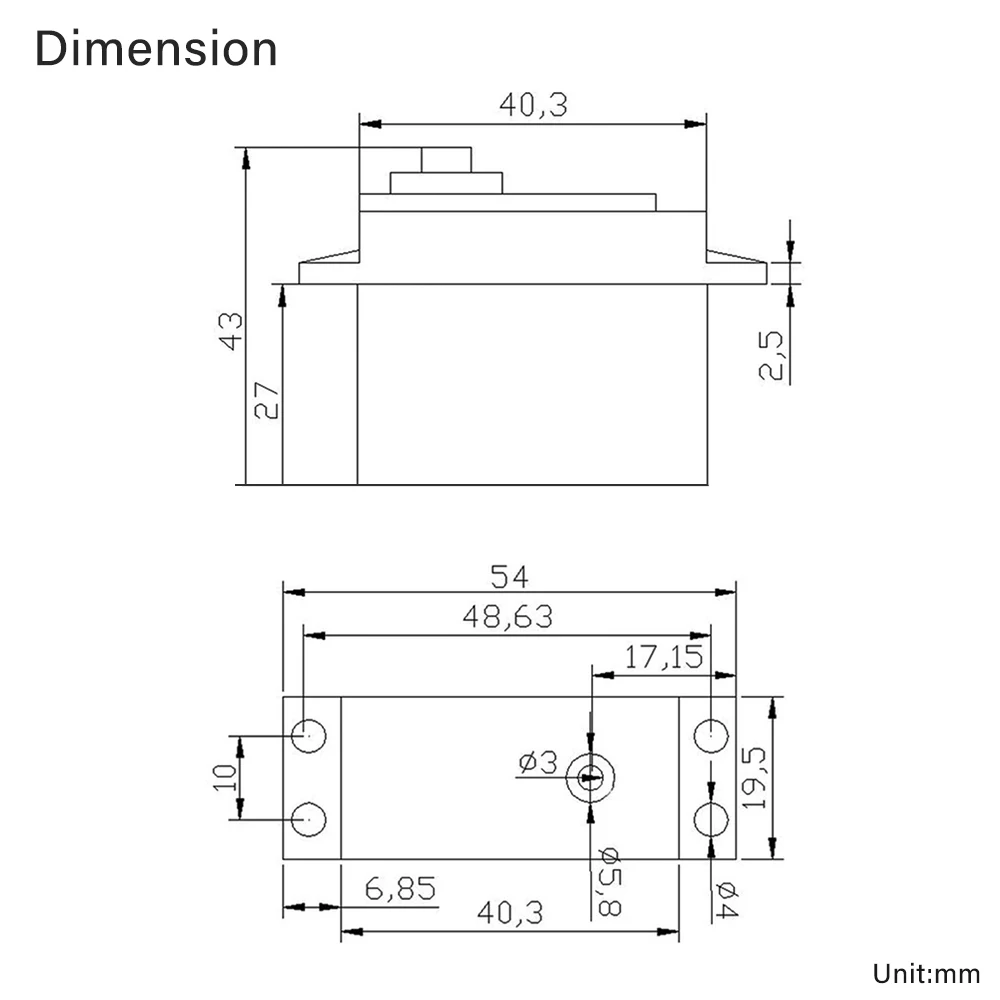

Dimensions
Product Description
Dimensions | 40mm x 19mm x 43mm | Temperature Range | 0 ℃- 55 ℃ |
Operating Speed | 0.20sec/60 degrees (4.8V no load) 0.17sec/60 degrees (6.0V no load) | Stall Torque | 9kg/cm (4.8V) 11kg/cm (6V) |
Gear Material | Half Metal/All Metal | Operating Mode | Analog |
Dead Band Width | 5usec | Rotation Angle | 0-180°/360°(Continuous Rotation) |
Control Signal | PWM | Operating Voltage | 4.8 - 7.2Volts |

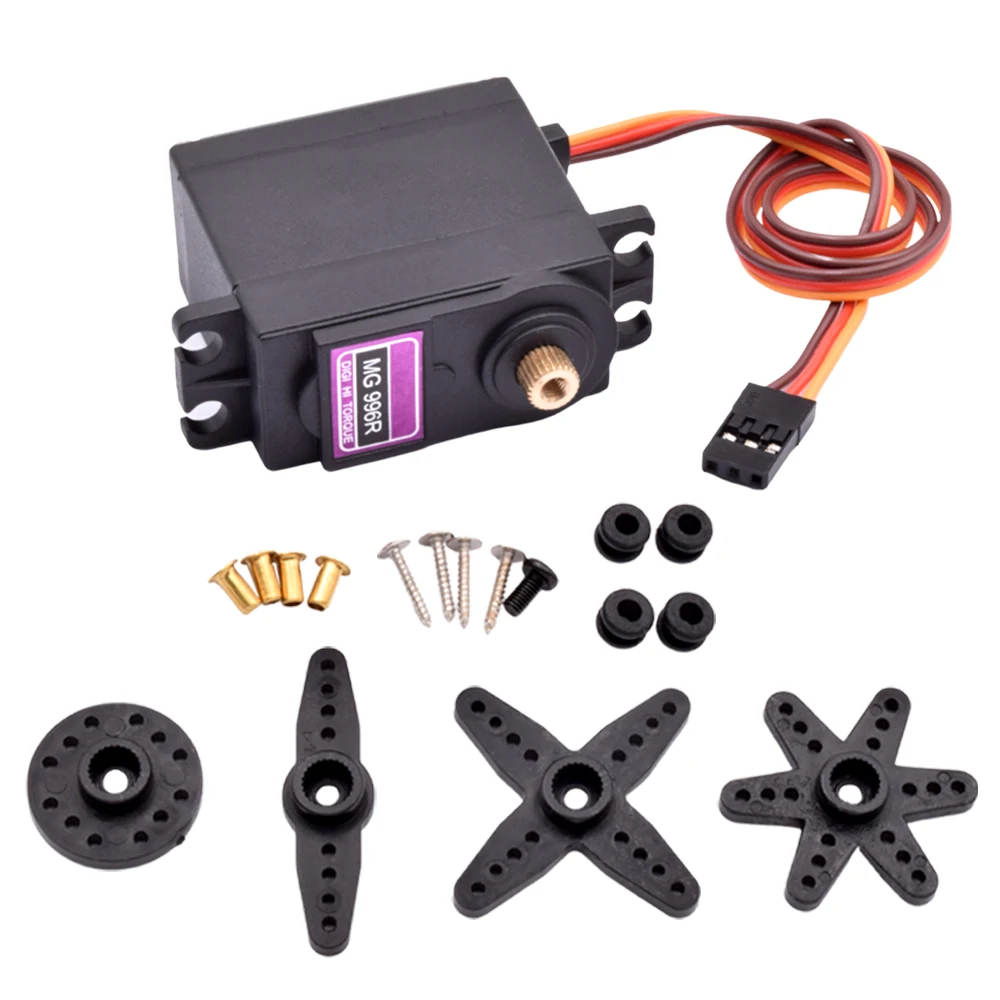

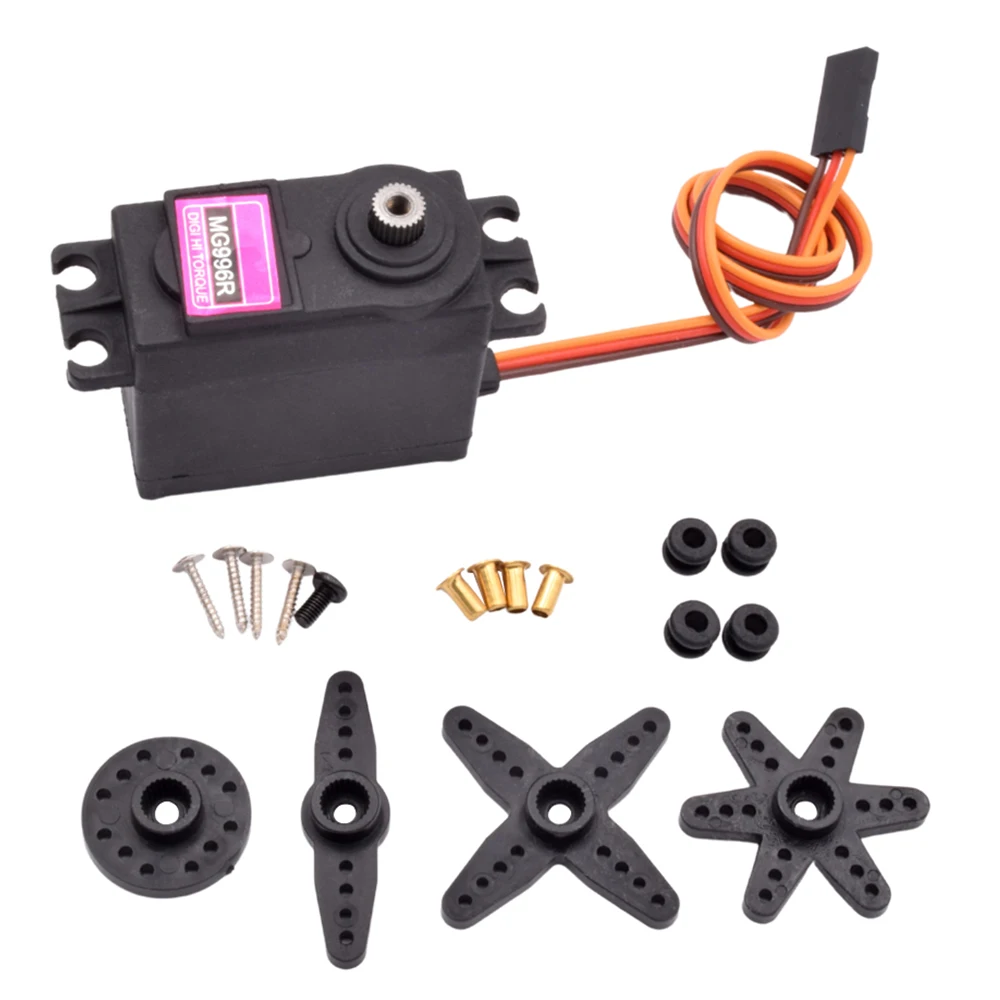

Plug Type | JR, FUTABA General | Accessories | Multi-arm, Fixing screws |
Connector Wire Length | 300mm(Brown: Negative; Red: Positive; Orange: Pulse Input) | Application | Mini Car / Mini Ship / Helicopter & Airplane |
