Product Overview

Description

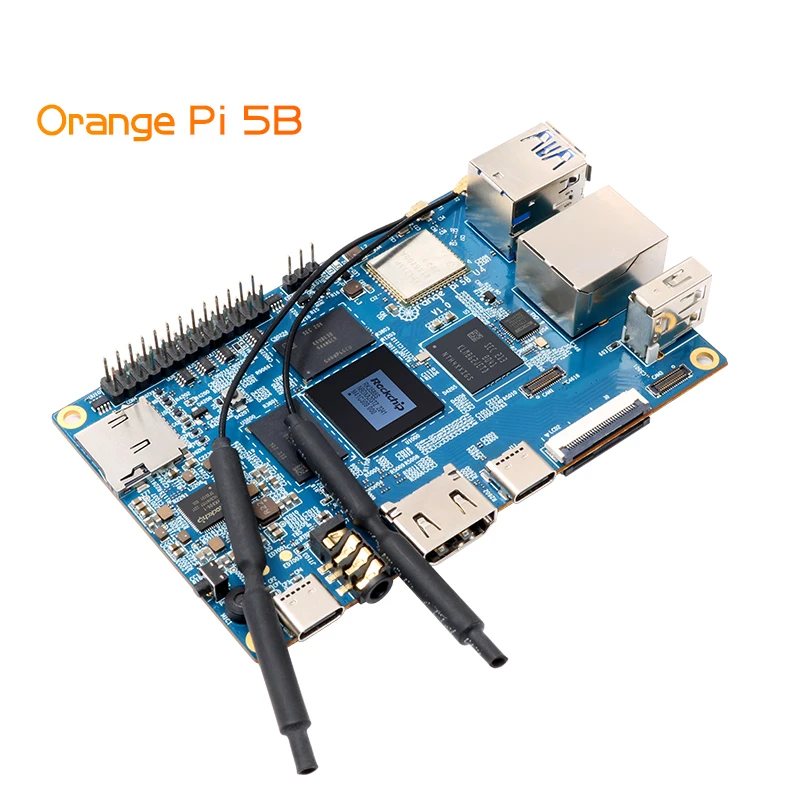

Orange Pi 5B 4GB RAM+32GB EMMC 64-bit Rockchip RK3588S Dual-band On-board WIFI+BT Gigabit Lan Port Mini PC Single Board Computer








Products Details

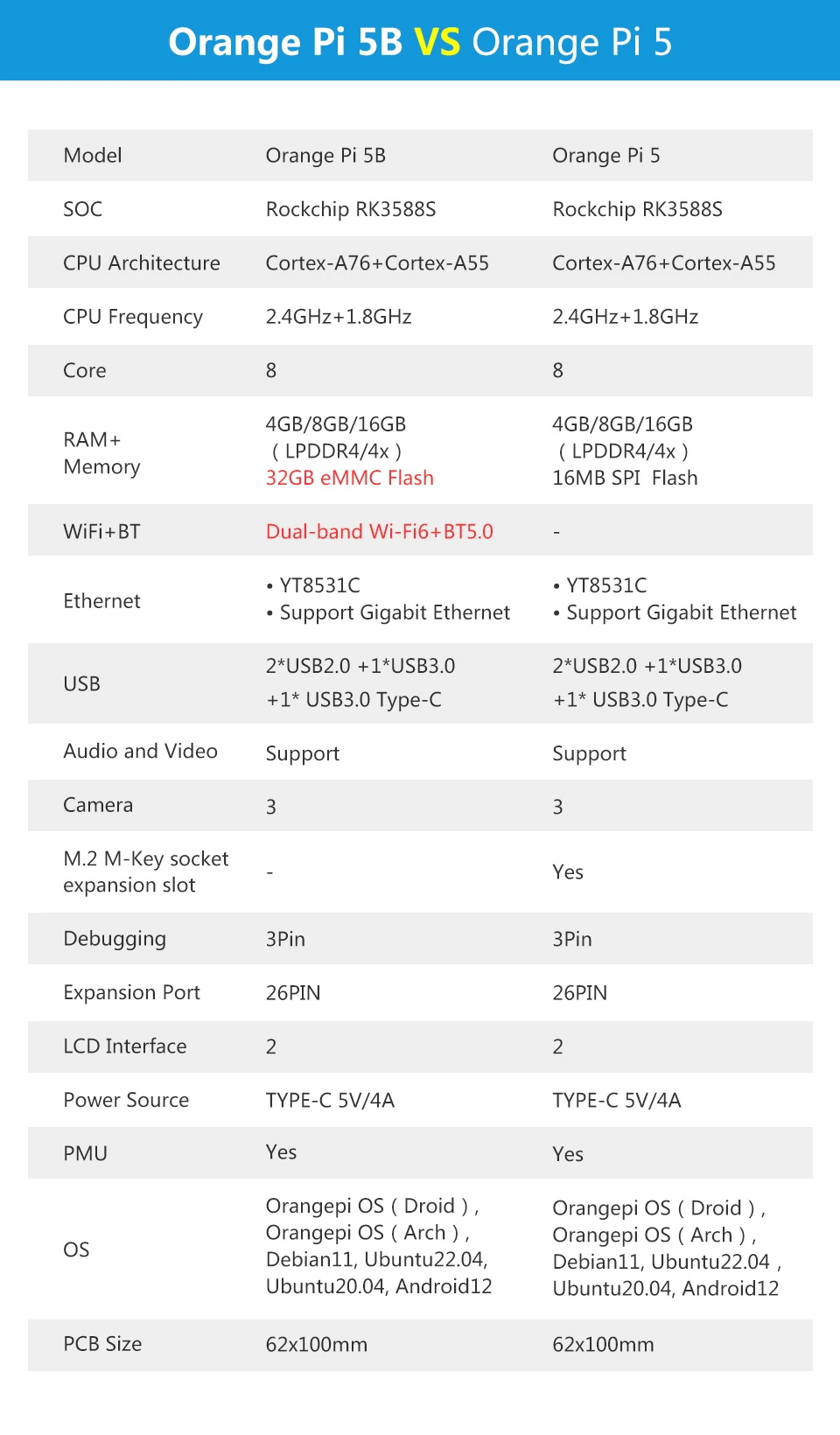

Product Specification




































































































Hardware Specification


SoC


Rockchip RK3588S (8nm LP process)

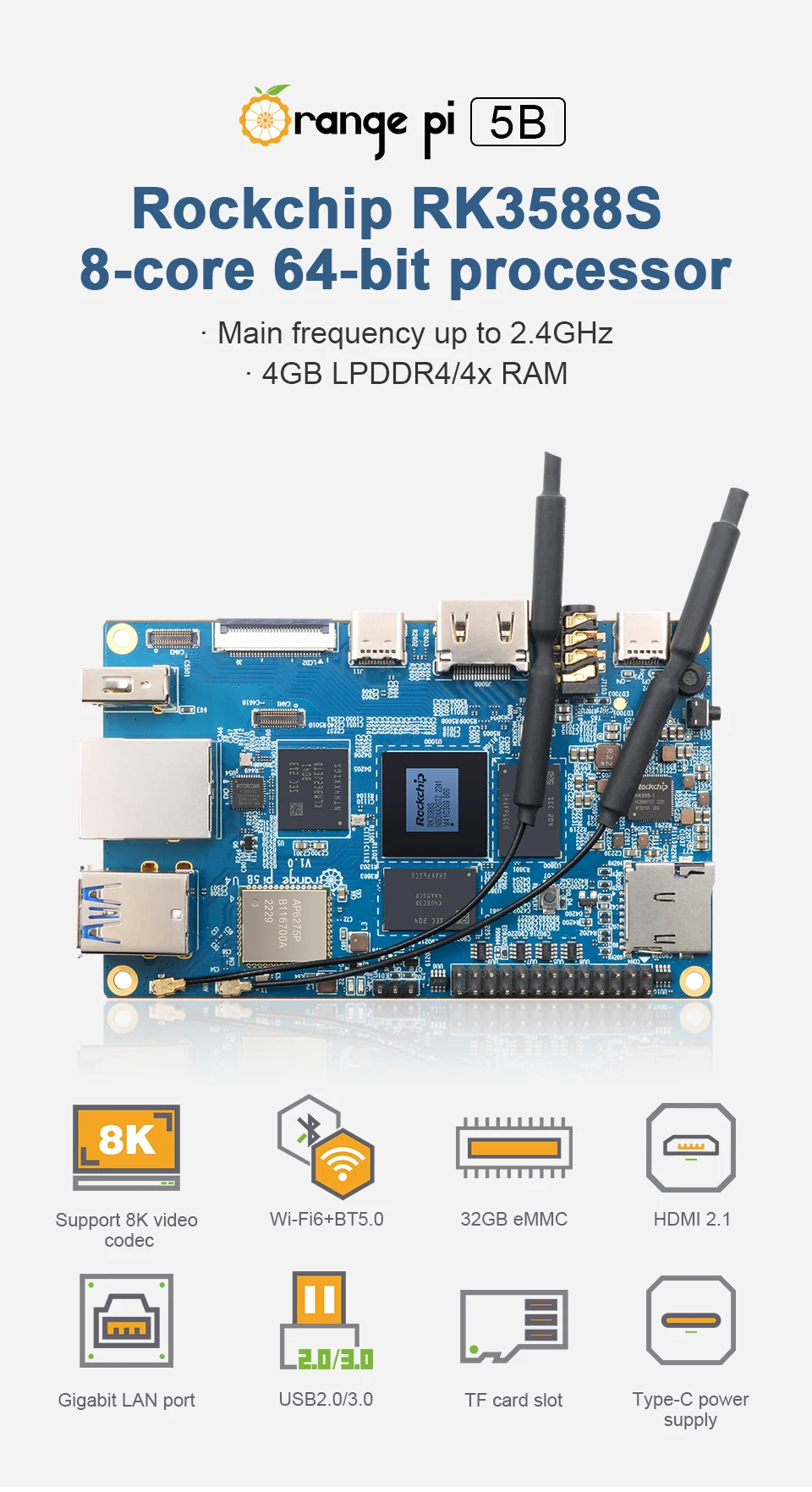

CPU


• 8-core 64-bit processor

• Big.Little Architecture: 4 * Cortex-A76 and 4 * Cortex-A55, Big core cluster is 2.4GHz,

and Little core cluster is 1.8GHz frequency.



GPU


• A r m Mali-G610 MP4 "Odin"GPU

• Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2

• 3D graphics engine and 2D graphics engine


NPU


Built-in AI accelerator NPU with up to 6 TOPS, supports INT4/INT8/INT16 mixed operation


PMU


RK806-1

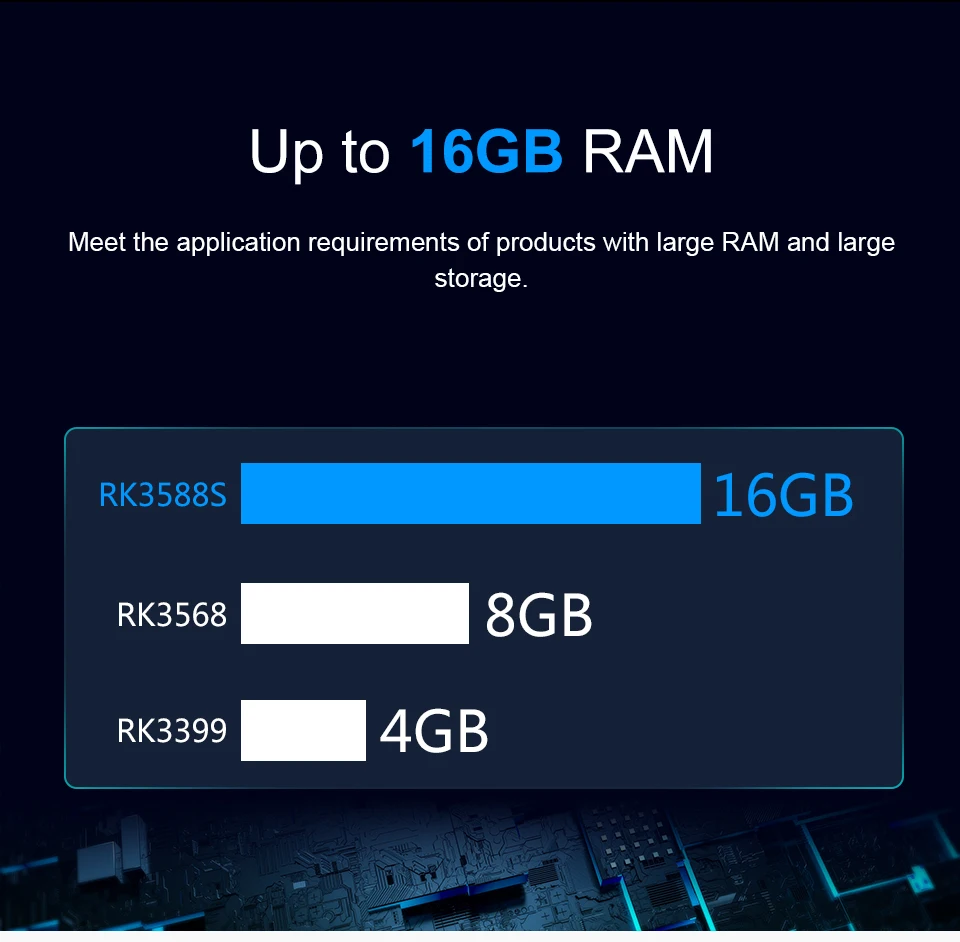

RAM


4GB (LPDDR4/4x)


Memory


• 32GB eMMC

• Mi cro SD (TF) Card Slot


USB


USB3.0 * 1

USB2.0 * 2

Type-C (USB3.0) * 1


Video Output


• HD MI2.1, up to 8K@60Hz

• DP1.4 (DisplayPort), maximum output resolution up to 8K@30Hz

• 2 * MIPI D-PHY TX 4Lane, configurable up to 4K@60Hz


Camera


• MIPI CSI 4Lane

• 2 * MIPI D-PHY RX 4Lane


Audio


CODEC: ES8388

• 3.5mm headphone jack audio input/output

• Input: Onboard MIC

• HD MI 2.1 eARC

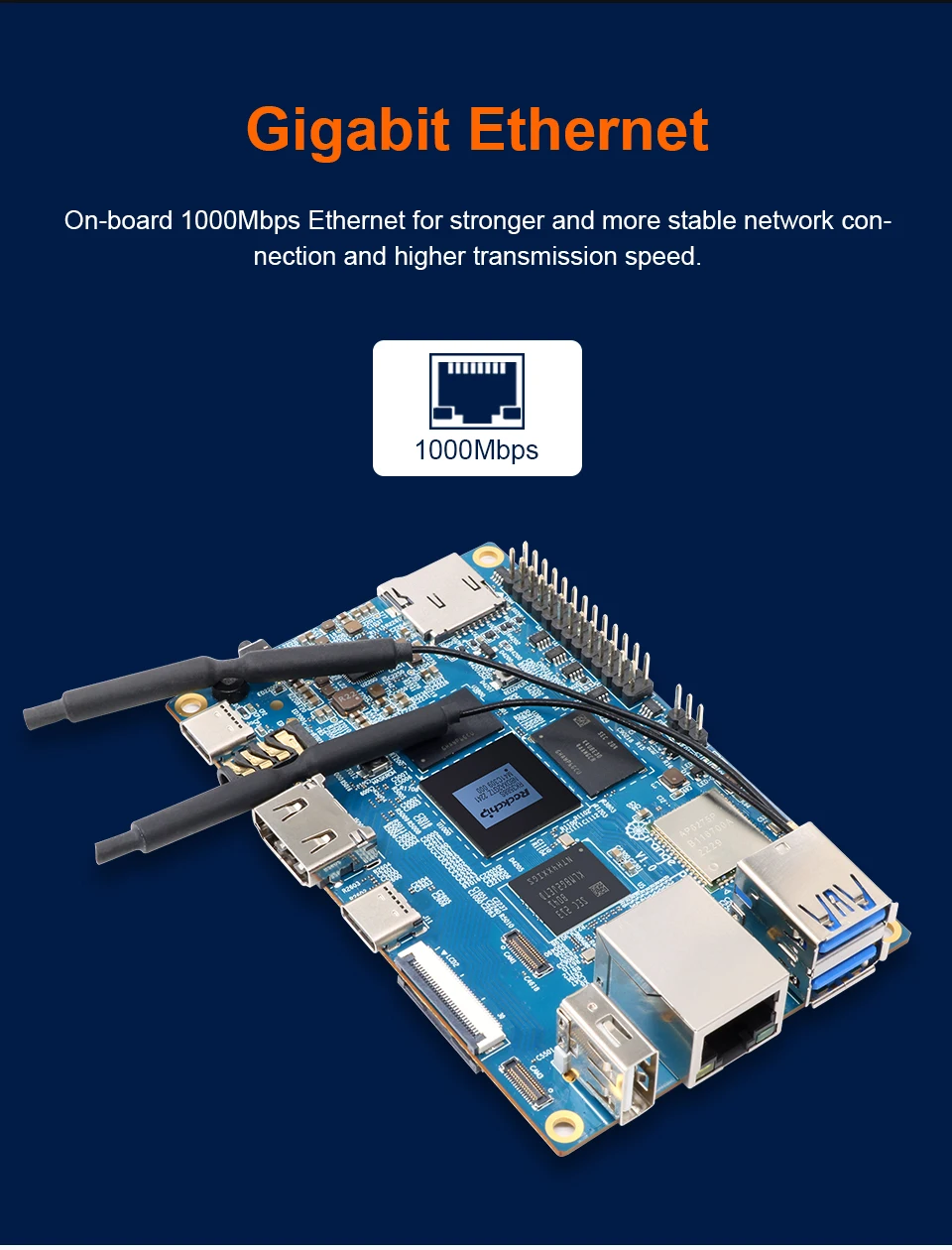

Ethernet


10/100/1000Mbps Ethernet(YT8531C)

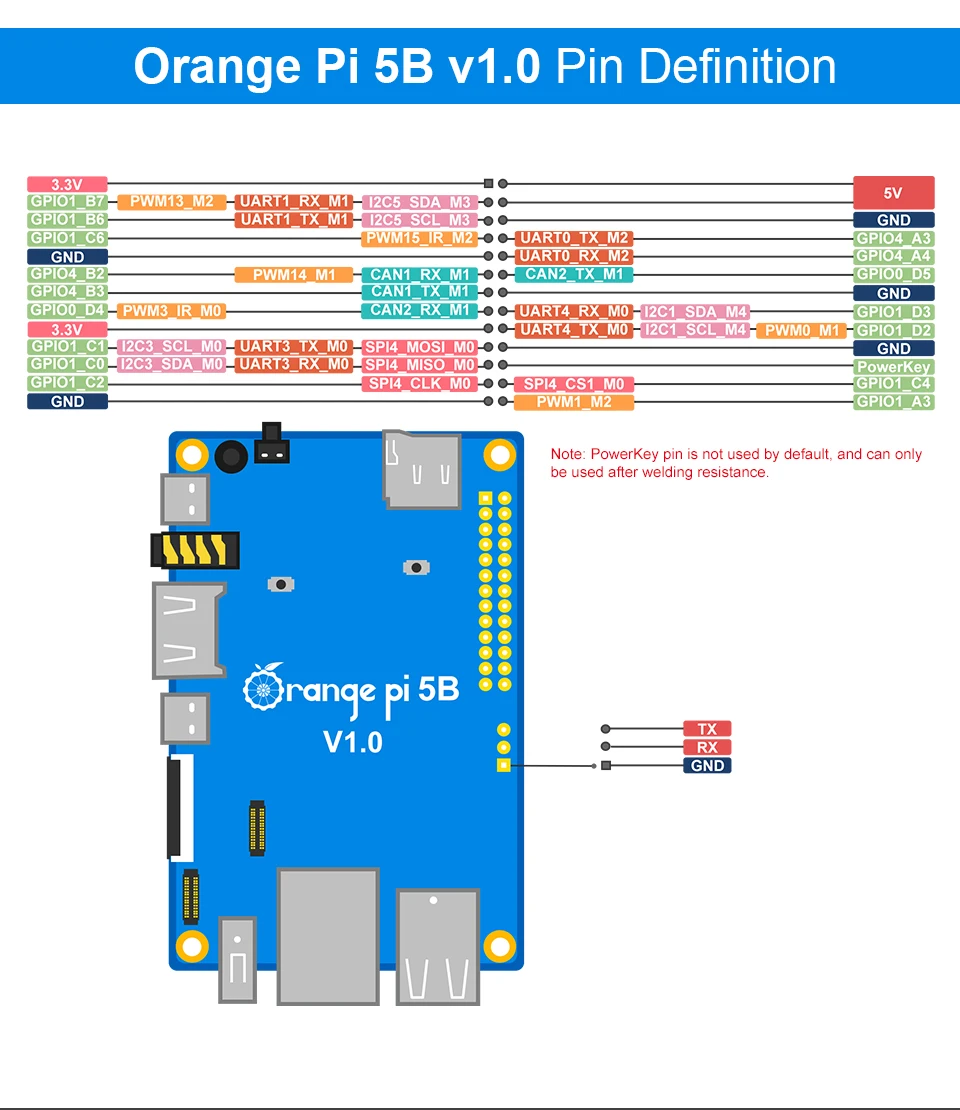

Expansion Port


For extending UART, PWM, I2C, SPI, CAN and GPIO interfaces

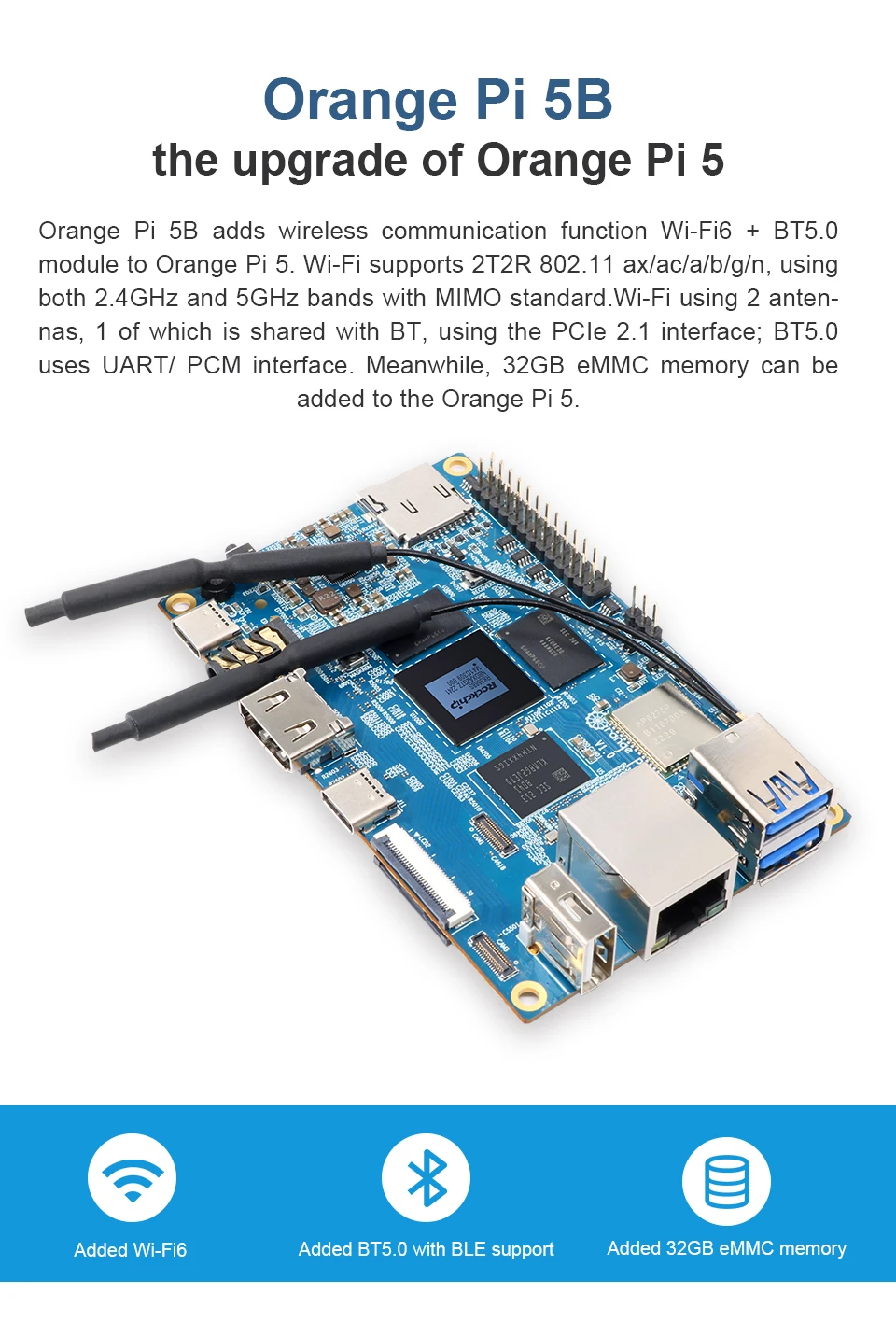

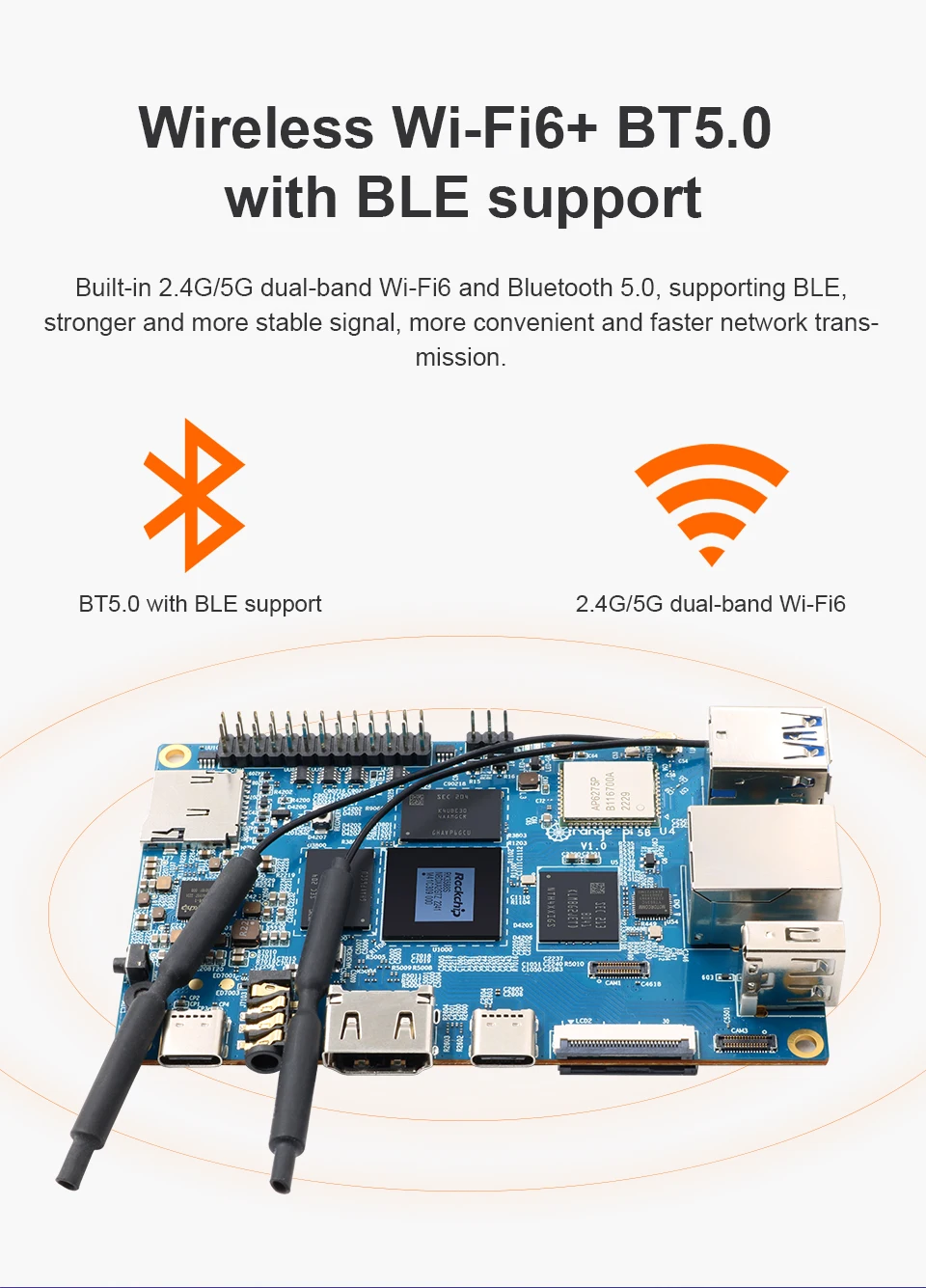

Wi-Fi, BT module


On-board Wi-Fi6+BT 5.0 module,

Wi-Fi6 interface: PCIe,


BT interface: PCM+UART



Button


1 * MaskROM key

1 * Recovery key

1 * On/Off key


Power Source


Support Type-C power supply, 5V 4A


LED


Power indicator: red

Status indicator: green


Debugging


3 Pin debug serial port (UART)


Supported OS


Orangepi OS（Droid）、Orangepi OS（Arch）、Debian11、Ubuntu22.04、Ubuntu20.04、Android12

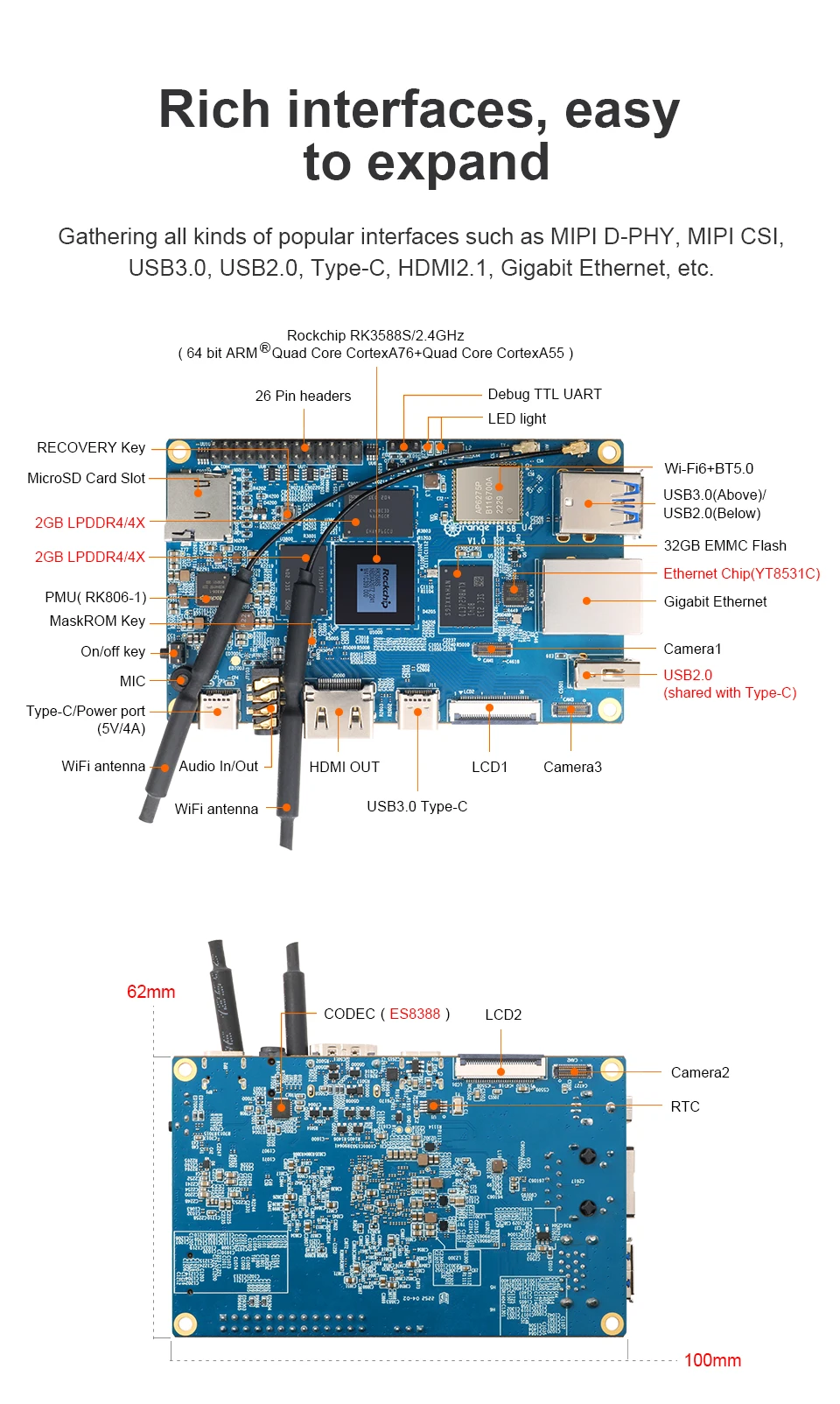

Appearance specification introduction


Dimension


62mm * 100mm


Weight


52g

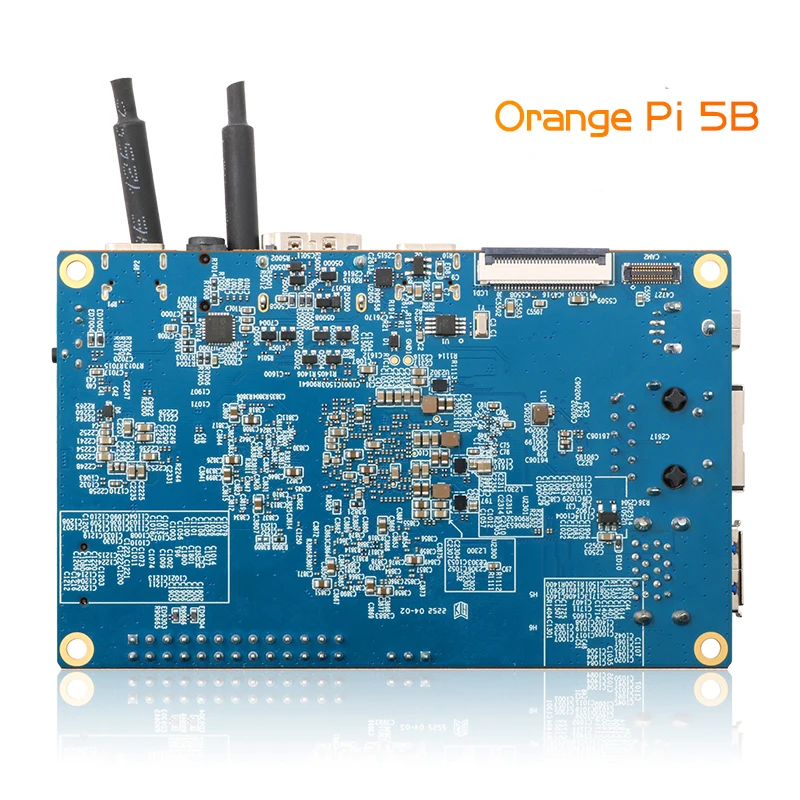

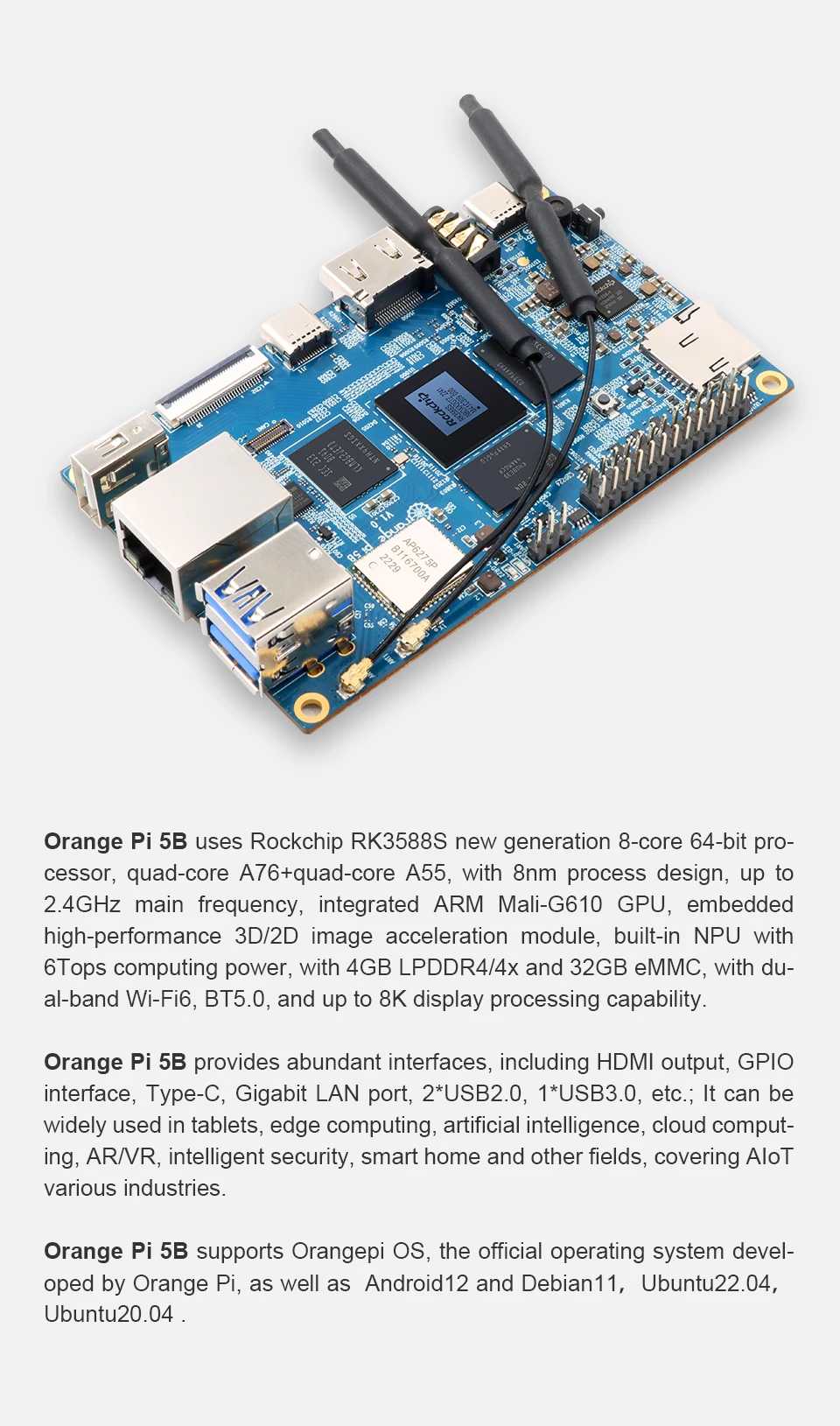

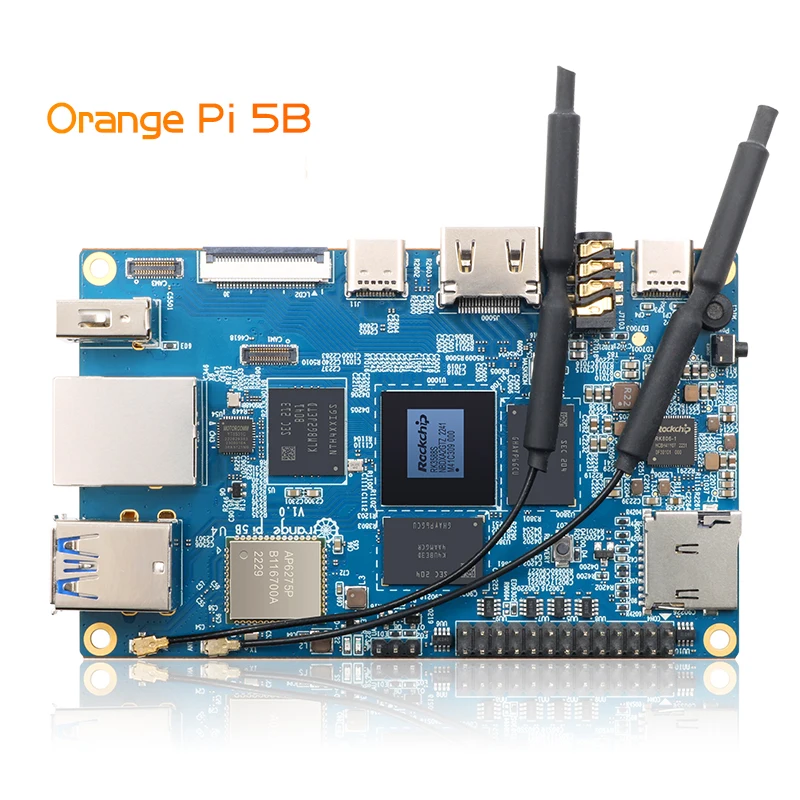

Pictures show
