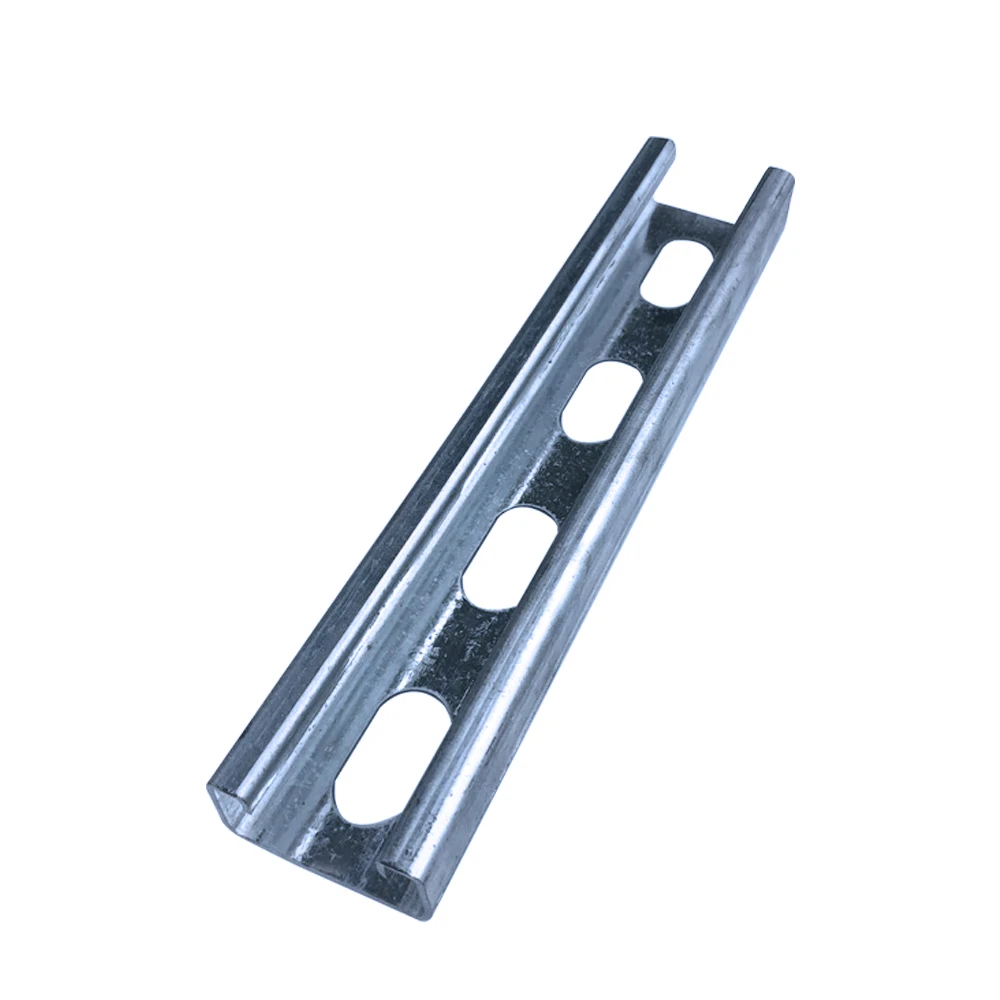

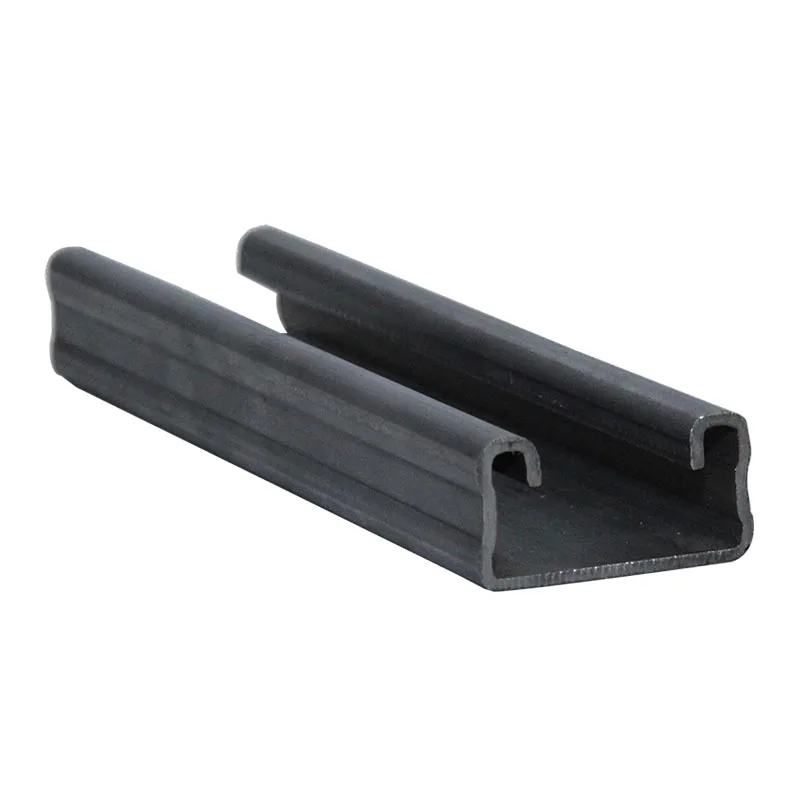

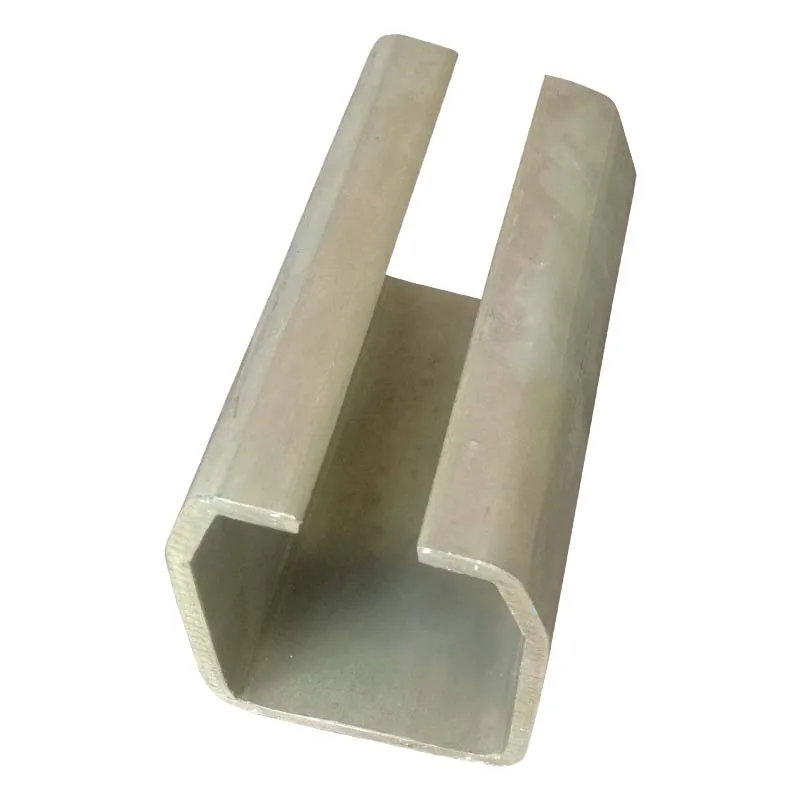

Good price galvanized c u z shape steel profile s235 4 inch c channel c lipped channel for solar bracket
- Category: >>>
- Supplier: Shandong Chengshun Metal Material Co. Ltd.
Share on (1600958832206):
Product Overview
Description
Product Parameter
Product Name | Galvanized C purlin c and z purlin roll forming steel channel beams structural building C100*50*20*2.0mm perforated galvanized c z purlin | |
Grade | Q195-Q345, SS400, S235jr-S275jr, etc | |
Model Number | c u z channel | |
Shape | U Channel | |
Perforated Or Not | Not Perforated | |
Tolerance | ±1% | |
Alloy Or Not | Is Alloy | |
Invoicing | by theoretical weight | |
Delivery Time | within 7 days | |
Standard | GB ASTM AISI DIN,etc | |
MOQ | 1 Ton | |
Material | Q195-Q345/SPCC,etc | |
Length | 6m-12m or customizable | |
Thickness | 1.8mm-3mm or customizable | |
Type | Carbon Structural Steel | |
Payment terms | L/C T/T (30%DEPOSIT) | |
PRICE TERM | CIF CFR FOB EX-WORK | |
Advantage | CE,ISO 9001, SGS, ABS, BV,etc | |
**If your quantity is smaller than our MOQ, kindly pls contact us for inquiry accordingly, sometime we have small stock, thank you. | ||

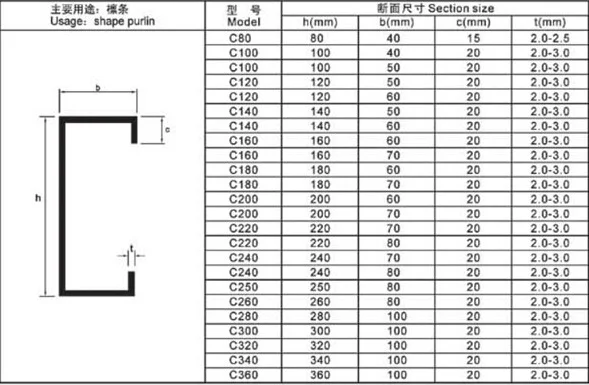

Type | Size | Theoretical Weight | Area | ||||||
Number | H | B | C | T | kg/m | c㎡ | |||
C80 | 80 | 45 | 10 | 2.00 | 2.80 | 3.57 | |||
80 | 45 | 10 | 2.30 | 3.18 | 4.05 | ||||
80 | 45 | 10 | 2.50 | 3.42 | 4.36 | ||||
80 | 45 | 10 | 2.75 | 3.72 | 4.73 | ||||
80 | 45 | 10 | 3.00 | 4.01 | 5.10 | ||||
C100 | 100 | 50 | 15-20 | 2.00 | 3.51 | 4.47 | |||
100 | 50 | 15-20 | 2.30 | 3.99 | 5.08 | ||||
100 | 50 | 15-20 | 2.50 | 4.30 | 5.48 | ||||
100 | 50 | 15-20 | 2.75 | 4.69 | 5.97 | ||||
100 | 50 | 15-20 | 3.00 | 5.07 | 6.45 | ||||
C120 | 120 | 50 | 15-20 | 2.00 | 3.82 | 4.87 | |||
120 | 50 | 15-20 | 2.30 | 4.35 | 5.54 | ||||
120 | 50 | 15-20 | 2.50 | 4.70 | 5.98 | ||||
120 | 50 | 15-20 | 2.75 | 5.12 | 6.52 | ||||
120 | 50 | 15-20 | 3.00 | 5.54 | 7.05 | ||||
C140 | 140 | 60 | 15-20 | 2.00 | 4.45 | 5.67 | |||
140 | 60 | 15-20 | 2.30 | 5.07 | 6.46 | ||||
140 | 60 | 15-20 | 2.50 | 5.48 | 6.98 | ||||
140 | 60 | 15-20 | 2.75 | 5.98 | 7.62 | ||||
140 | 60 | 15-20 | 3.00 | 6.48 | 8.25 | ||||
C160 | 160 | 60 | 15-20 | 2.00 | 4.76 | 6.07 | |||
160 | 60 | 15-20 | 2.30 | 5.43 | 6.92 | ||||
160 | 60 | 15-20 | 2.50 | 5.87 | 7.48 | ||||
160 | 60 | 15-20 | 2.75 | 6.42 | 8.17 | ||||
160 | 60 | 15-20 | 3.00 | 6.95 | 8.85 | ||||
160 | 70 | 15-20 | 2.00 | 5.08 | 6.47 | ||||
160 | 70 | 15-20 | 2.30 | 5.79 | 7.38 | ||||
160 | 70 | 15-20 | 2.50 | 6.27 | 7.98 | ||||
160 | 70 | 15-20 | 2.75 | 6.85 | 8.72 | ||||
160 | 70 | 15-20 | 3.00 | 7.42 | 9.45 | ||||
C180 | 180 | 70 | 15-20 | 2.00 | 5.39 | 6.87 | |||
180 | 70 | 15-20 | 2.30 | 6.16 | 7.84 | ||||
180 | 70 | 15-20 | 2.50 | 6.66 | 8.48 | ||||
180 | 70 | 15-20 | 2.75 | 7.28 | 9.27 | ||||
180 | 70 | 15-20 | 3.00 | 7.89 | 10.05 | ||||
C200 | 200 | 75 | 15-20 | 2.00 | 5.86 | 7.47 | |||
200 | 75 | 15-20 | 2.30 | 5.70 | 8.53 | ||||
200 | 75 | 15-20 | 2.50 | 7.25 | 9.23 | ||||
200 | 75 | 15-20 | 2.75 | 7.93 | 10.10 | ||||
200 | 75 | 15-20 | 3.00 | 8.60 | 10.95 | ||||
C250 | 250 | 75 | 15-20 | 2.00 | 6.65 | 8.47 | |||
250 | 75 | 15-20 | 2.30 | 7.60 | 9.68 | ||||
250 | 75 | 15-20 | 2.50 | 8.23 | 10.48 | ||||
250 | 75 | 15-20 | 2.75 | 9.01 | 11.47 | ||||
250 | 75 | 15-20 | 3.00 | 9.78 | 12.45 | ||||
C300 | 300 | 80 | 15-20 | 2.50 | 9.61 | 12.50 | |||
300 | 80 | 15-20 | 3.00 | 11.49 | 14.64 | ||||
300 | 100 | 15-20 | 2.75 | 11.41 | 14.54 | ||||
300 | 100 | 15-20 | 3.00 | 12.43 | 15.84 | ||||
Product Show

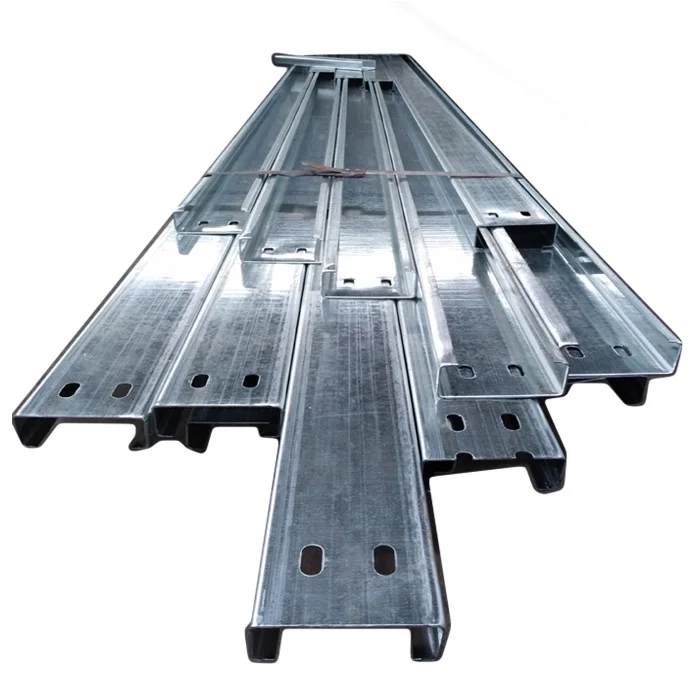

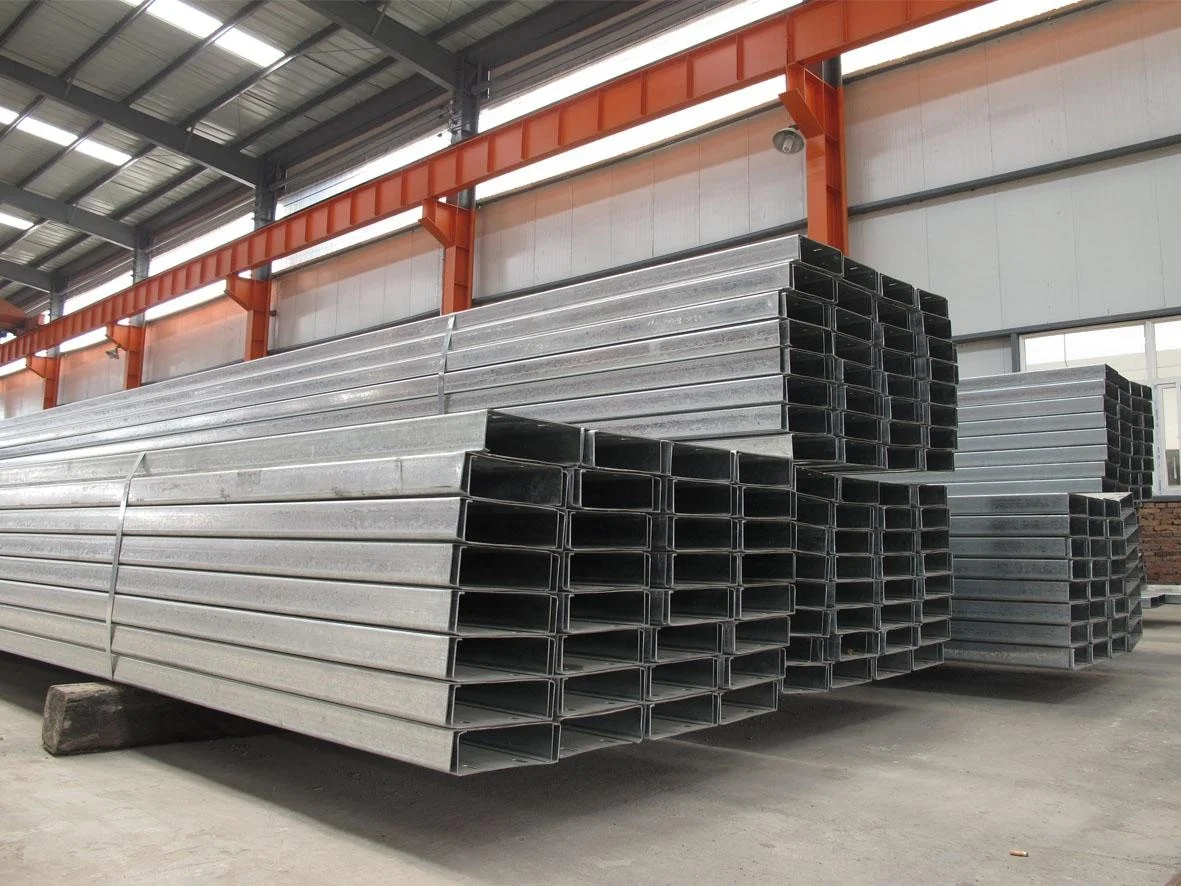

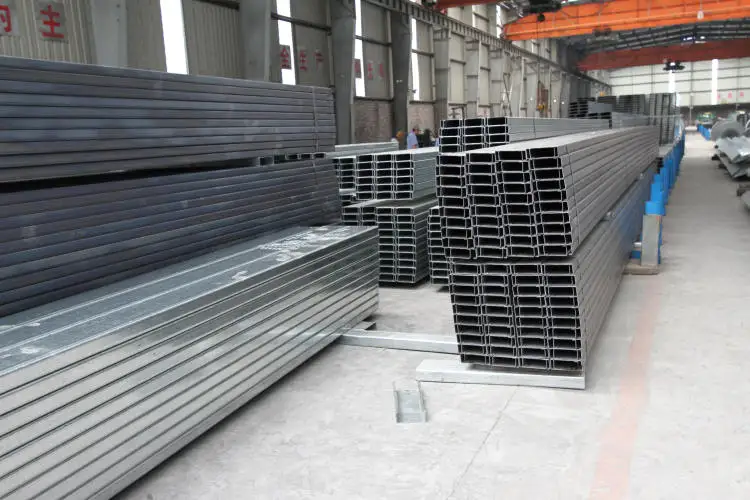

Steel C purlins
The section steel is automatically processed by the C-section steel forming machine. C-shaped steel forming machine can automatically complete the forming process of C-shaped steel according to the given size of C-shaped steel.
Galvanized C-type steel, hot-dip galvanized cable bridge C-type steel, glass slot C-type steel, glass curtain wall C-type steel, cable slot C-type steel, reinforced C-type steel, double-hugging C-type steel, single-side C-type steel, manual forklift C-type steel, Non-equilateral C steel, straight edge C steel, beveled C steel, inner wound C steel, inner beveled C steel, roof (wall) purlin C steel, automobile profile C steel, highway column C steel, solar support C steel (21-80 series), formwork support C steel, precision C steel for equipment and so on.
C-type steel purlins are divided into 80, 100, 120, 140, 160 five specifications according to the height, and the length can be determined according to the engineering design, but considering the conditions of transportation and installation, the total length is generally not more than 12 meters
C-type steel purlins are divided into 80, 100, 120, 140, 160 five specifications according to the height, and the length can be determined according to the engineering design, but considering the conditions of transportation and installation, the total length is generally not more than 12 meters

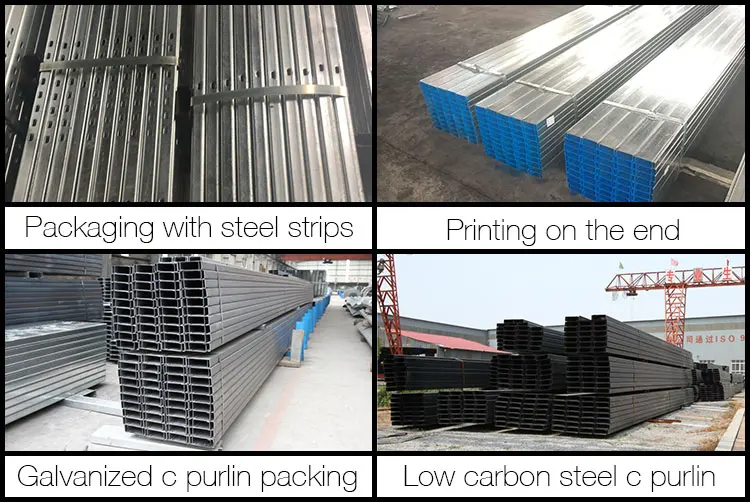

Packing & Delivery
Shipping of Transports----by container or bulk vessel:
1.20feet container loads 25tons coils whose length is under 5.8m.
2.40feet container loads 25tons coils whose length is under 11.8m.
3.If quantity is big , the goods can be delivered by bulk vessel.
1.20feet container loads 25tons coils whose length is under 5.8m.
2.40feet container loads 25tons coils whose length is under 11.8m.
3.If quantity is big , the goods can be delivered by bulk vessel.
Application
1. Construction field
In the field of construction, C-shaped steel is widely used in all kinds of building construction, such as plant, workshop, warehouse, exhibition hall, stage and so on. Due to its lightness, rigidity and high strength characteristics, C-shaped steel can be used for wall supports, beams, roof truss, columns, steel structures, etc. In addition, it can also be used for the partition wall and ceiling of the building.
2. Engineering field
In the field of engineering, C-shaped steel is also a very important structural material, mainly used in Bridges, tunnels, Bridges and other engineering support structures. The superior performance of C-shaped steel can improve the stability and safety of the building, and make the building support more solid.
3. Manufacturing sector
In the field of manufacturing, C-shaped steel can be used to manufacture all kinds of machinery and equipment, rail transit vehicles, electronic equipment, semiconductor manufacturing and other products. With its high strength, light weight and easy processing, C-shaped steel can be used to manufacture machine parts, parts and structures of various complex shapes.
In the field of construction, C-shaped steel is widely used in all kinds of building construction, such as plant, workshop, warehouse, exhibition hall, stage and so on. Due to its lightness, rigidity and high strength characteristics, C-shaped steel can be used for wall supports, beams, roof truss, columns, steel structures, etc. In addition, it can also be used for the partition wall and ceiling of the building.
2. Engineering field
In the field of engineering, C-shaped steel is also a very important structural material, mainly used in Bridges, tunnels, Bridges and other engineering support structures. The superior performance of C-shaped steel can improve the stability and safety of the building, and make the building support more solid.
3. Manufacturing sector
In the field of manufacturing, C-shaped steel can be used to manufacture all kinds of machinery and equipment, rail transit vehicles, electronic equipment, semiconductor manufacturing and other products. With its high strength, light weight and easy processing, C-shaped steel can be used to manufacture machine parts, parts and structures of various complex shapes.
Company Profile
Shandong Chengshun Metal Material Co., LTD We are a professional manufacturer engaged in the research, development, production, sale and service. Our main products include PPGI ,galvanized steel , steel plate , round bar, steel pipe ,Stainless steel product ,angle bar, steel pile ,H beam ,I beam, angle, Channel flat steel etc . Main market distributes in North America, South America, Africa, Southeast Asia as well as Oceania. Up to now, we have established long-term and win-win partnership with many large steel manufacturers, such as Baosteel, Laiwu Steel, Rizhao Steel, Handan Iron and Steel, Angang and Maanshan Iron and Steel. Sincerely wish to build a long and regular business with you forever.
Certificate
Through several years'development,Chengshun has got recognition from all works of life in the world,and succeed in developing a scientific and technologic type enterprise.Chengshun people work with honors and strive for the bright future.
Customer Feedback
Customer Visit
Over the years, Shandong Chengshun Metal Material Co., LTD has established long-term friendly relations of cooperation with many customers from all over the world. Every year, many famous purchasers come to our factory to do Investigation, and our products have been recognized by them.
Other Hot-selling Products
FAQ
1. Q: Are you a factory or trading company?
A: We are a Chinese manufacture of steel pipes with both factories and trading companies.
2. Q: Can I get samples before order?
A: Yes, of course. Usually our samples are free. we can produce by your samples or technical drawings.
3. Q:what is your delivery time?
A:The time of delivery is usually around 1 month. We can send out in 3 days if it has stock.
4. Q:What is your payment terms?
A:Our usual payment term is 30% deposite, and rest against B/L. L/C is also acceptatble EXW, FOB, CFR, CIF.
5.Q:What do your factory do regarding quality control?
A:We have gained ISO, CE,API authentication. From material to products, we inspect each process to keep good quality.
6. Q:How can you ensure what I got will be good?
A: Alibaba will act as our guarantor. If the product fails the inspection before leaving the factory, you can refuse to accept the goods.
7. Q:How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefit ; we respect every customer as our friend and we sincerely do business and make friends with them. No matter where they come from.
Please leave your enquiry in the message box at the bottom of the product page and click SEND, online salesman will contact you at once.
