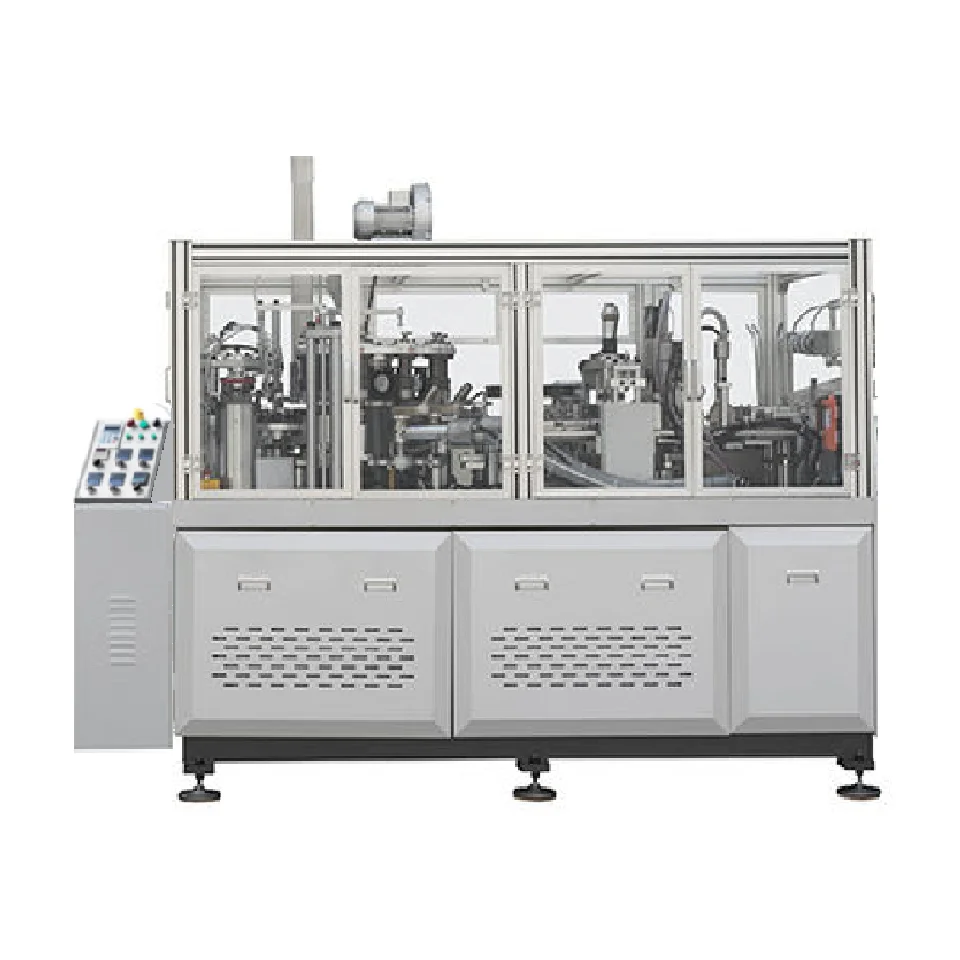

Name | Automatic Cartoon Coffee Paper Cup Making Machines Low Price | |
Model | OC-60AF | |

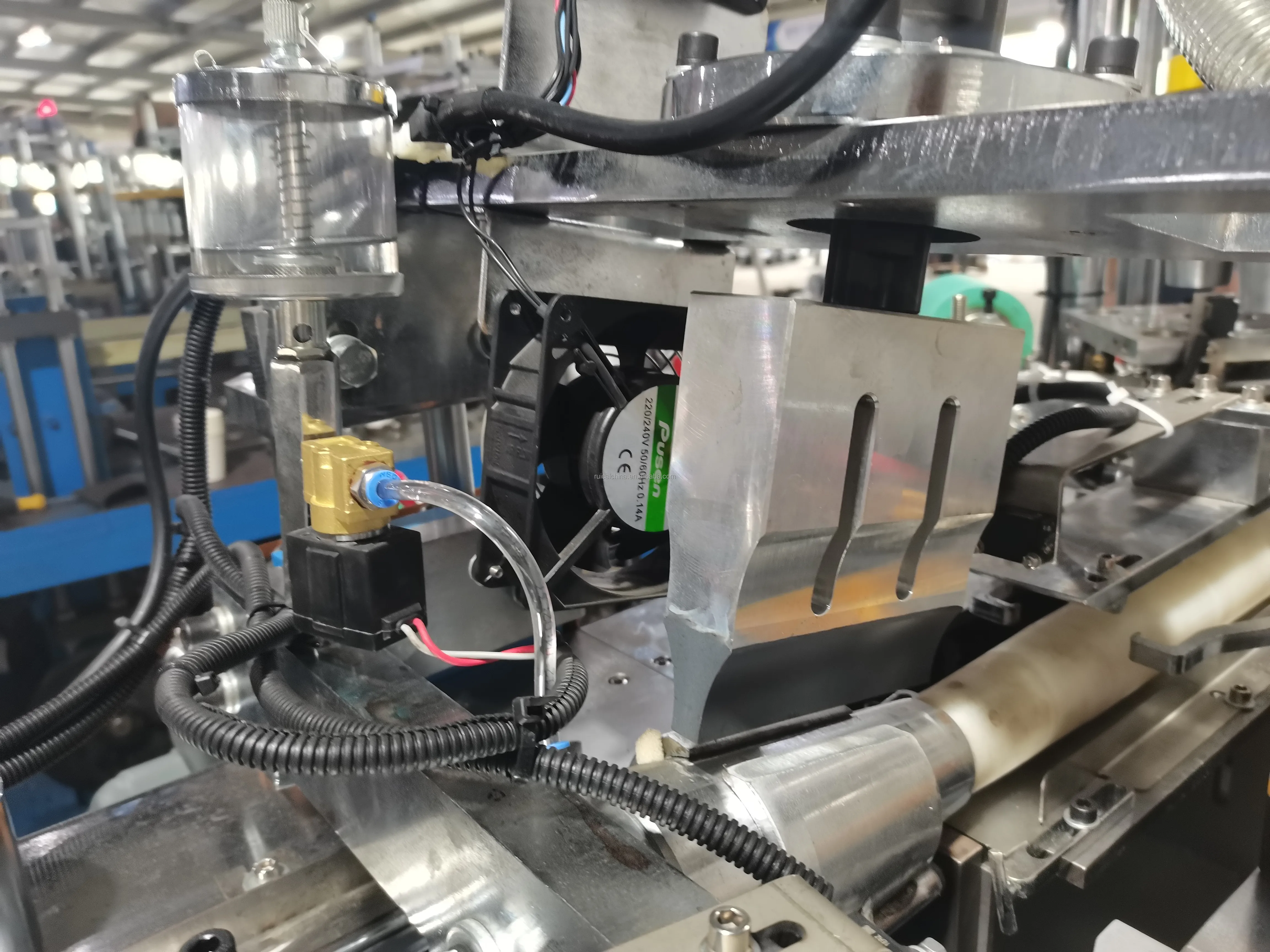

Cup Side Welding | Ultrasonic heater | |

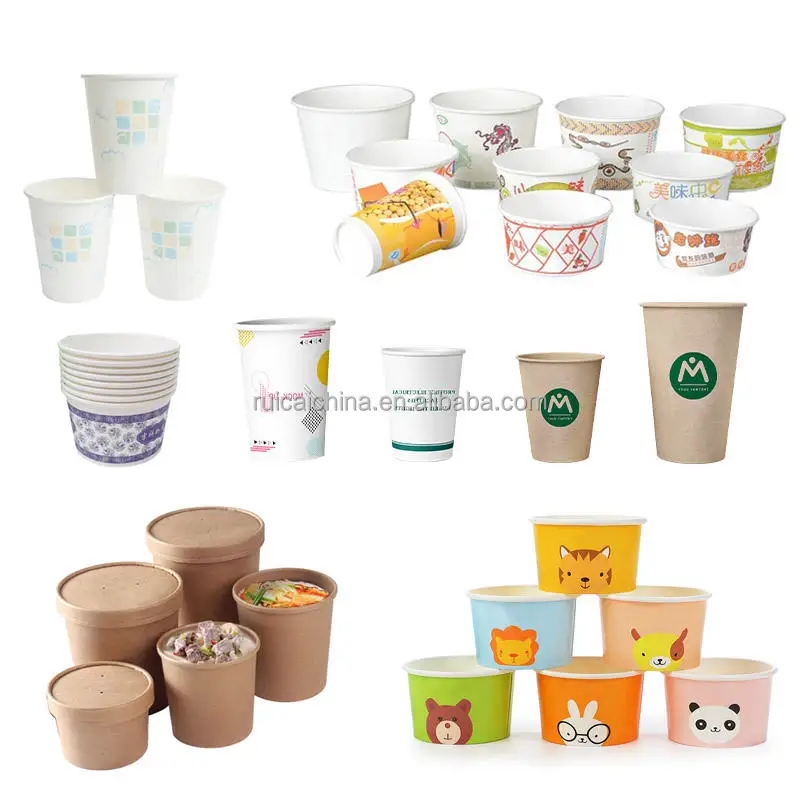

Paper Cup Size | 1.5 ~16OZ (Mould exchangeable, Max Cup Height:136mm, Max Bottom width :80mm) | |
Raw Material | One or Two side PE coated Paper (Popular for Hot and Cold drink Cups) | |
Suitable Paper Weight | 160 - 350GSM | |
Speed | 50-60 pcs/min (Speed affected by cup size, paper quality & thickness) | |
Total Power | 8.5 KW | |
Power Source | 50/60HZ, 380V/220V ( better use 380V, 3 Phase ) or special Power requirement. | |
Weight | GW/NW: 2000KG/1900KG | |
Machine Size(L * W * H) | 2270*1400*1970mm 1000*750*2100mm | |
Working Air Source | Air pressure:0.4Mpa; Air Out-put:0.6m3/minuteNeed to buy Air Compressor(by user) | |

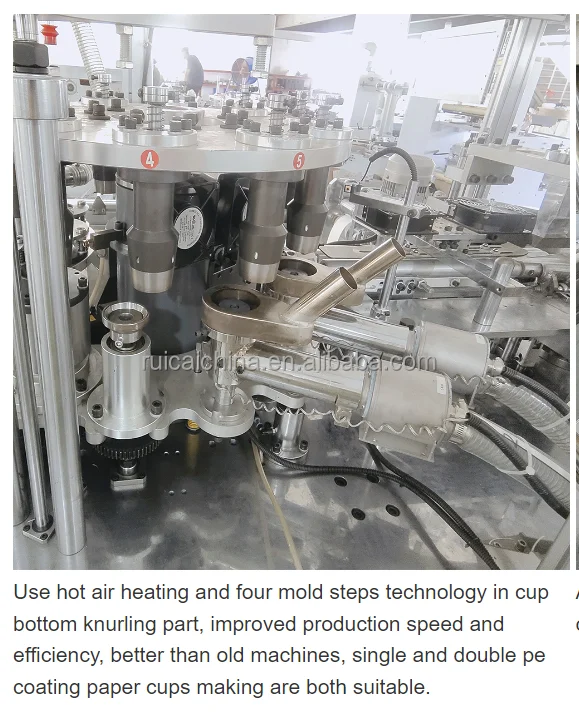

Cup Bottom Heating | 1side PE paper by heater knurling; 2side PE paper by cool device (circle water) knurling. | |
Cup Bottom Knurling | Heater Knurling (if use single PE coated paper) | |
Machine Standard | Full Safety frame | |

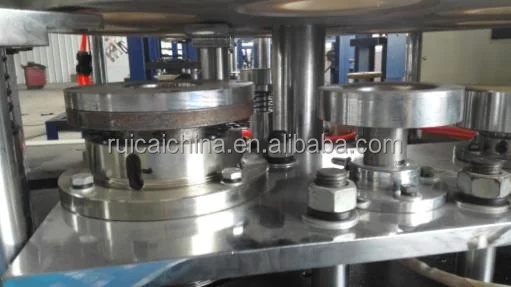

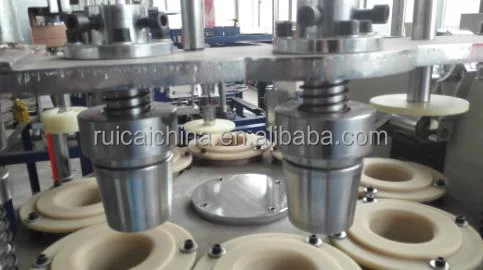

Ultrasonic Automatic Cartoon Coffee Paper Cup Making Machines Low Price 1. Speed 50~60 cup/minute 2. HMI&PLC Program computer control, easy operate, fault auto-stop and easy solution. 3. Adopt Open Cam ( 8divideforthe dividing moving.compare with index gear box, easy maintenance, stable and reliable easy replace broken parts. 4. Mainmechanism and movementcontro byguality gears and shaft/axis. which is more efcient than chain axis 5. Only ONE main tumtable. more effcient and reliable. 6. Self lubricate (automatic oll lubricate). 7. 11 sensors detect all steps, any fault auto stop. 8. Quality bearing and electronic element, long life. 2-16oz Ultrasonic Low Price Double Wall Coffee Paper Cup Forming Machine Low Price | ||
