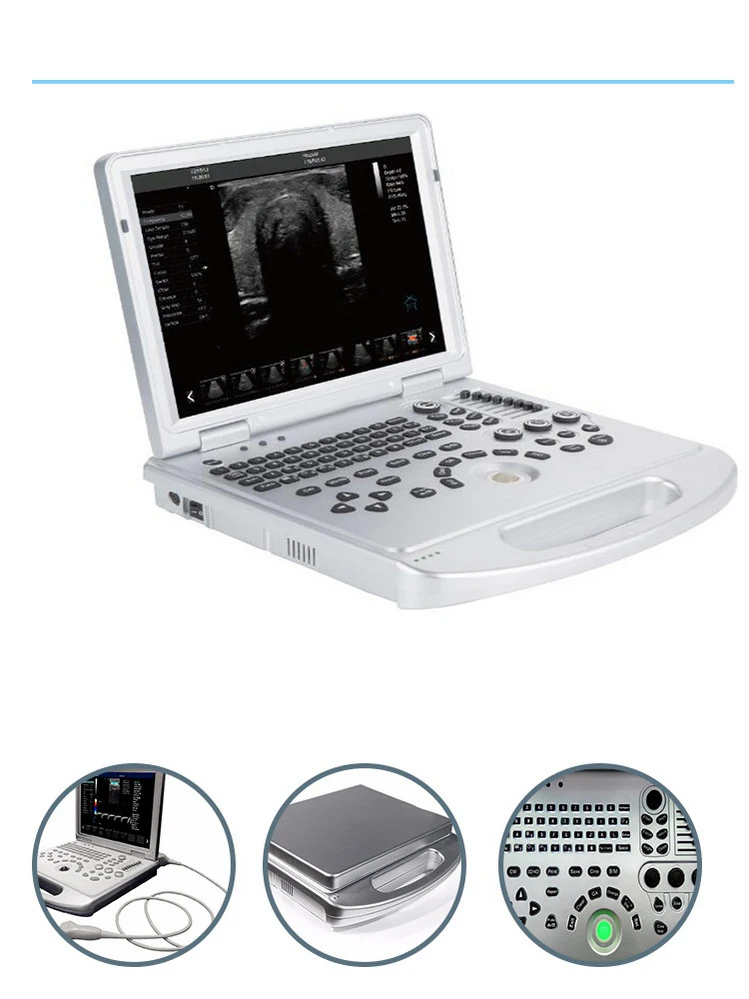

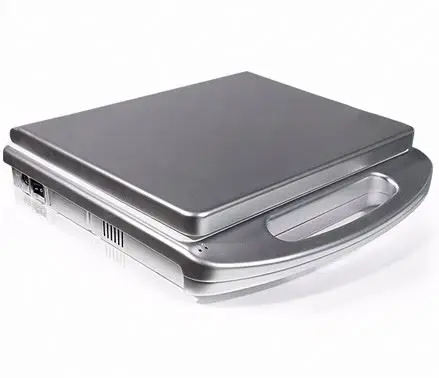

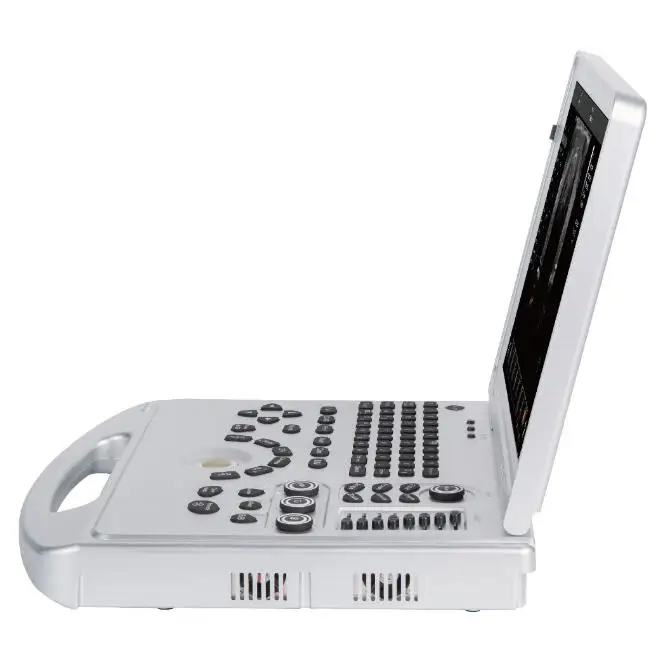

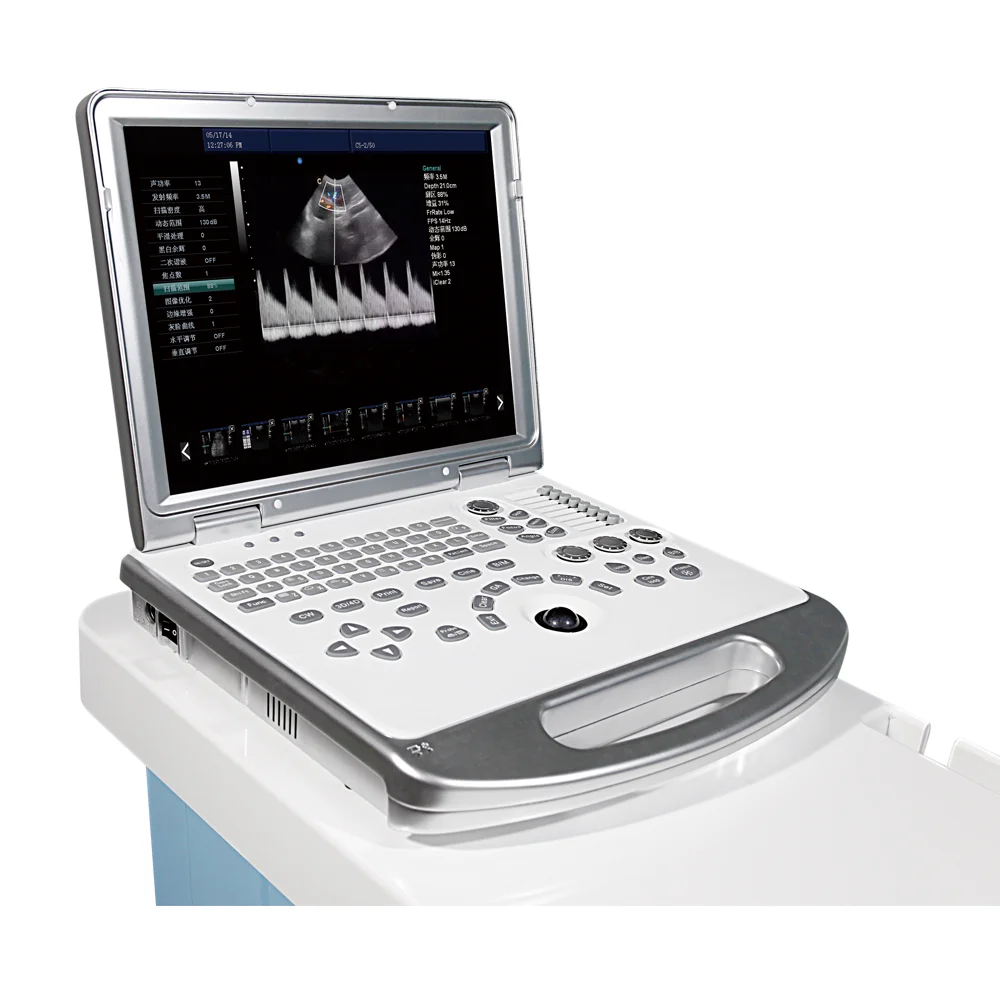

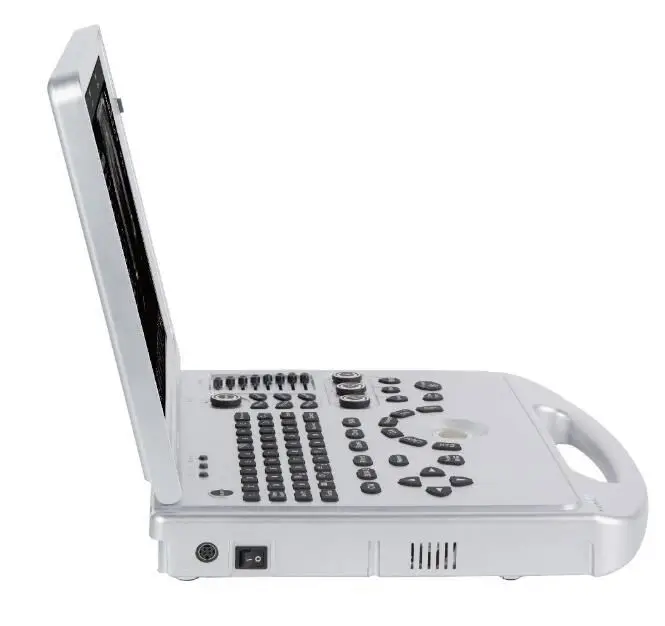

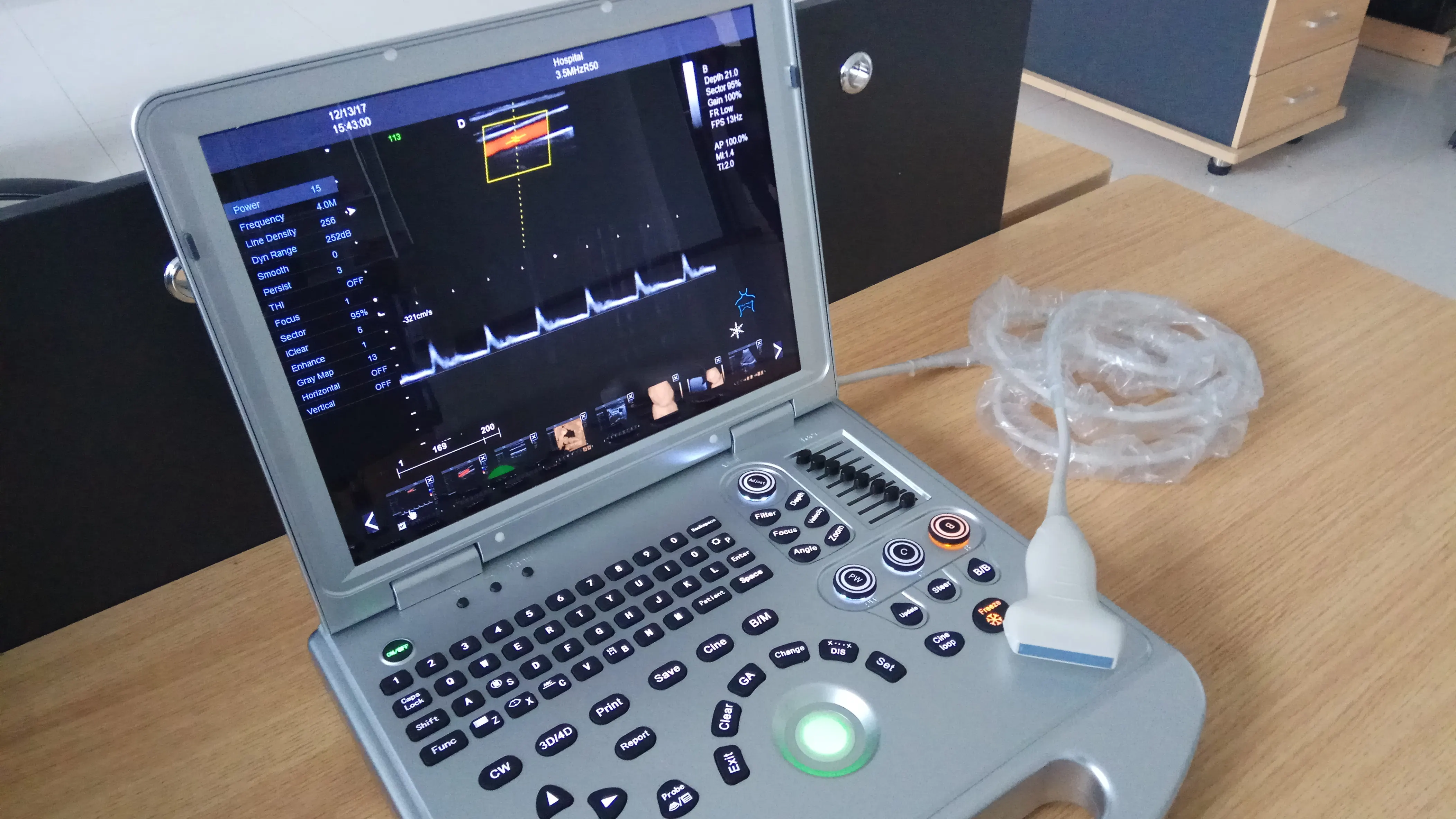

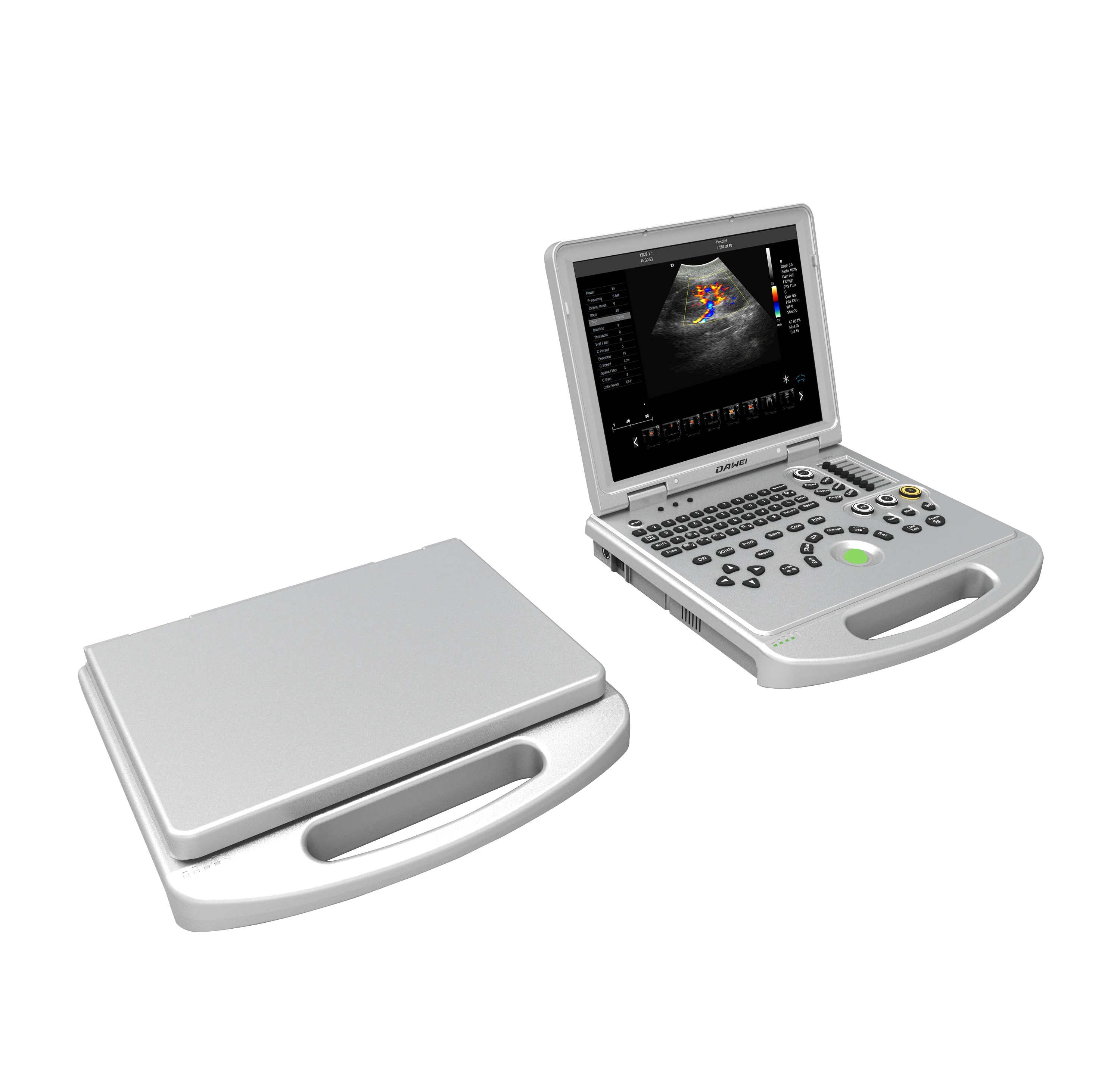

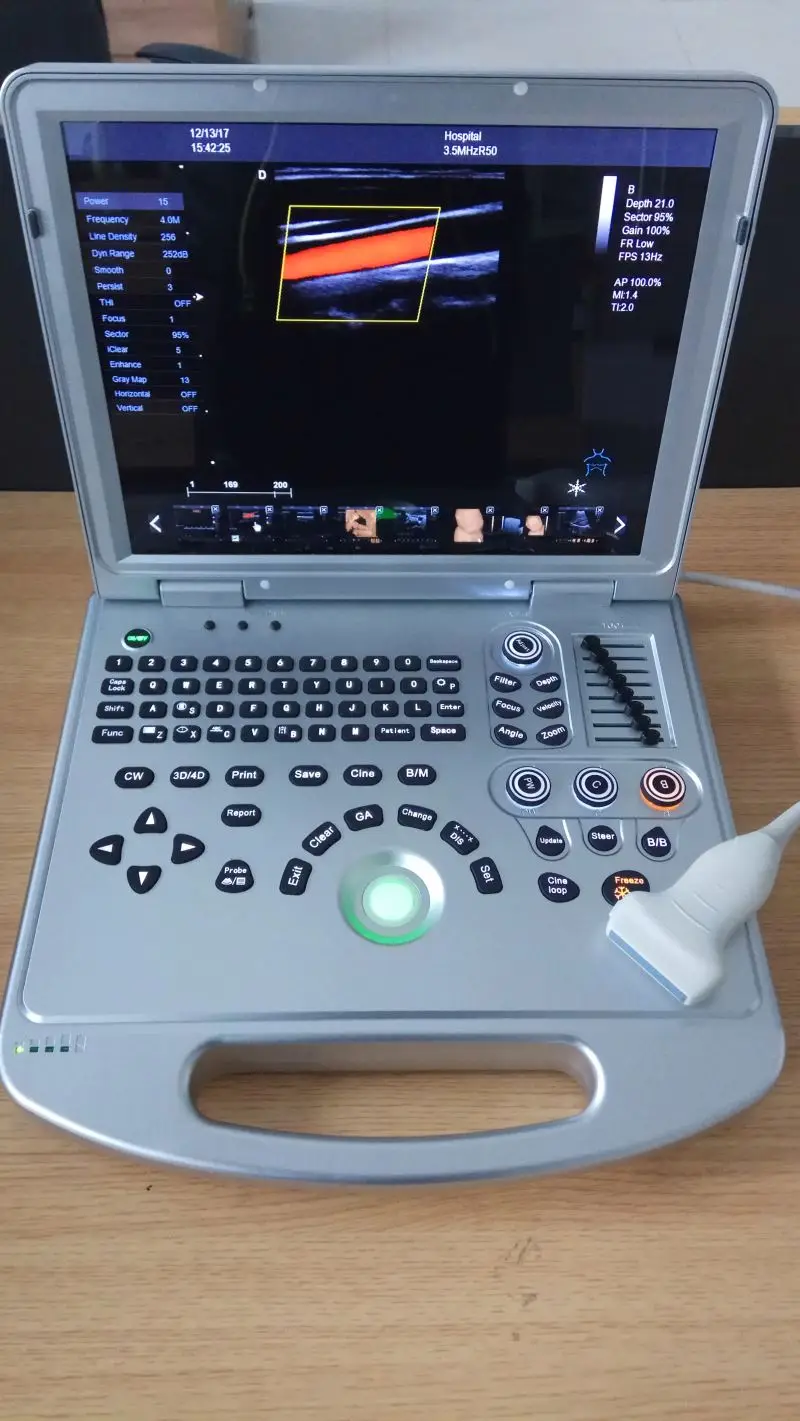

Usg machine 4d 3d ultrasound machine digital portable doppler ultrasound price

Display

15 inch LED medical display

Probe connector

Single 1

Operation interface

English (more languages as option)

Display mode

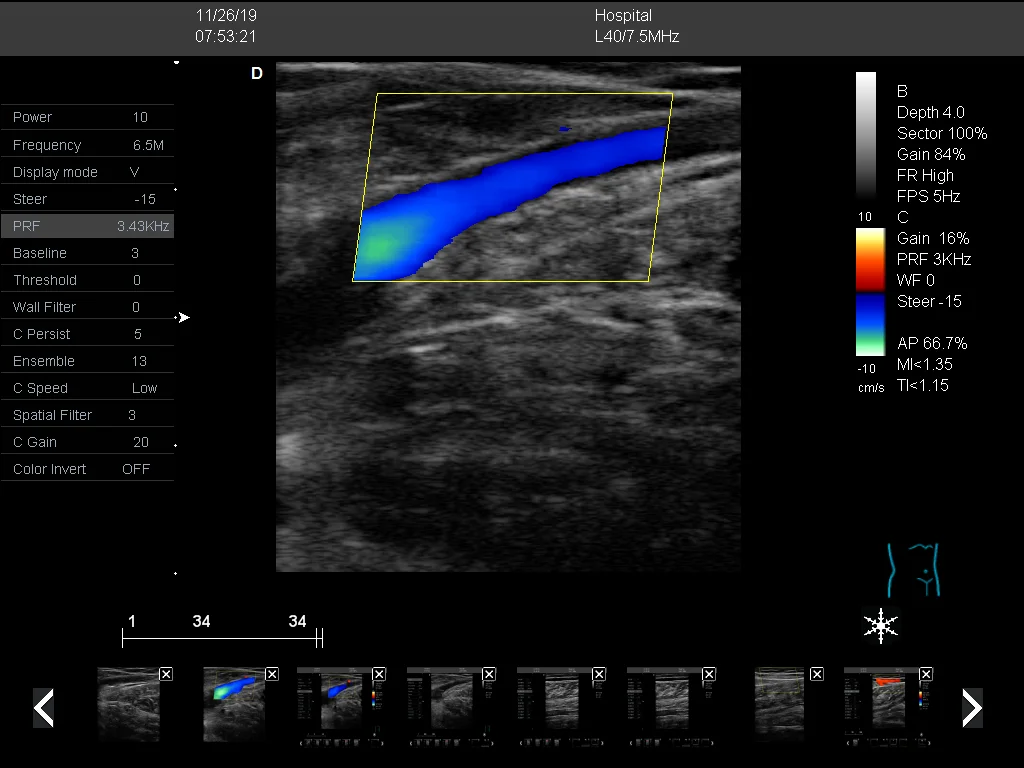

B、B+B、4B、B+M、M、C、PW、CW、4D、B/C、B/C/PW、B/PW

Focus

4 segments

Body mark

≥57

Image processing

Up/Down, Left/Right, Angular variation, Reverse

Measurement

Distance, circumference, area, volume, heart rate, diameter
stenosis rate, area stenosis rate, angle, rhythm, speed

Application

Abdomen,cardiac,skeletal muscle, early obstetrics, middle and late
obstetrics, pelvic (uterine attachment) , small parts, urology,
peripheral blood vessels, GW&EDD, fetal weight

Character display

Date, time, name, sex, age, doctor, hospital, annotation (full screen
character editing)

Cine loop

≥ 1200 frames, continuous playback or view one by one

Storage

Probe parameter, cine loop, measuring result, report can be saved
and transferred to external storage device

Gray scale

256 levels

Puncture guide

Available

Gravel positioning

Available

Dynamic range

0-270dB

TGC control

8 segments

Pre-processing

Variable aperture, dynamic apodization, dynamic digital filtering,
multi-beam parallel processing technology, THI and so on

Post-processing

Dynamic range 0-270DB, black and white afterglow 0-7, smoothing 0-7, gray curve 1-16, frame correlation, SHI, sound power, wall filter,cumulative number, baseline adjustment, sampling frame adjustment , spectral sampling volume, spectral sampling volume
angle, the PRF (pulse repetition frequency) and so on

Blind zone

≤4mm

Max display depth

320mm

Geometric accuracy

horizontal ≤ 5%, vertical ≤ 5%

Resolution

lateral ≤ 2mm, axial ≤ 1mm

External interface

Video, USB, DICOM 3.0

Display magnification

16 kinds

Frame rate

5-1016fps

Scanning range

5% - 100%

Gain adjustment

Overall gain: 0 ~ 100%, PW gain: 0-15, CFM gain: 0-15

Image optimization

6 level adjustable

Smoothing

8 level adjustable

Edge enhancement

8 level adjustable

PRF

16 level adjustable

Gray scale curve

16 level adjustable

Acoustical power

15 level adjustable

Weight

NW: 6.3kg GW: 15kg

Packing size

60*50*27cm

Probe frequency range

3.5MHZ convex probe: 2.0, 3.0, 3.5, 4.0, 5.5Mhz
6.5MHZ trans-vaginal Probe: 5.0, 6.0, 6.5, 7.5, 9.0Mhz
3.0MHZ Phased array probe: 2.0, 3.0, 3.5, 4.0, 5.0Mhz
7.5MHZ High frequency Linear Probe: 6.0, 6.5, 7.5, 10.0, 12.0Mhz
Volume probe: 2.0, 3.0, 3.5, 4.0, 5.5Mhz
Micro-convex probe R11: 2.0, 3.0, 3.5, 4.0, 5.5, 6.5, 7.5, 10.0 Mhz
Micro-convex probe R20: 5.0, 6.0, 6.5, 7.5, 9.0Mhz
