Big Metals Steel Injection Mould Repair Arm/Head Moving High Quality Optic Fiber Laser Welding Machines
- Category: >>>
- Supplier: Wuhan Chuyu Optoelectronic Technology Co. Ltd.
Share on (1600959262913):
Product Overview
Description

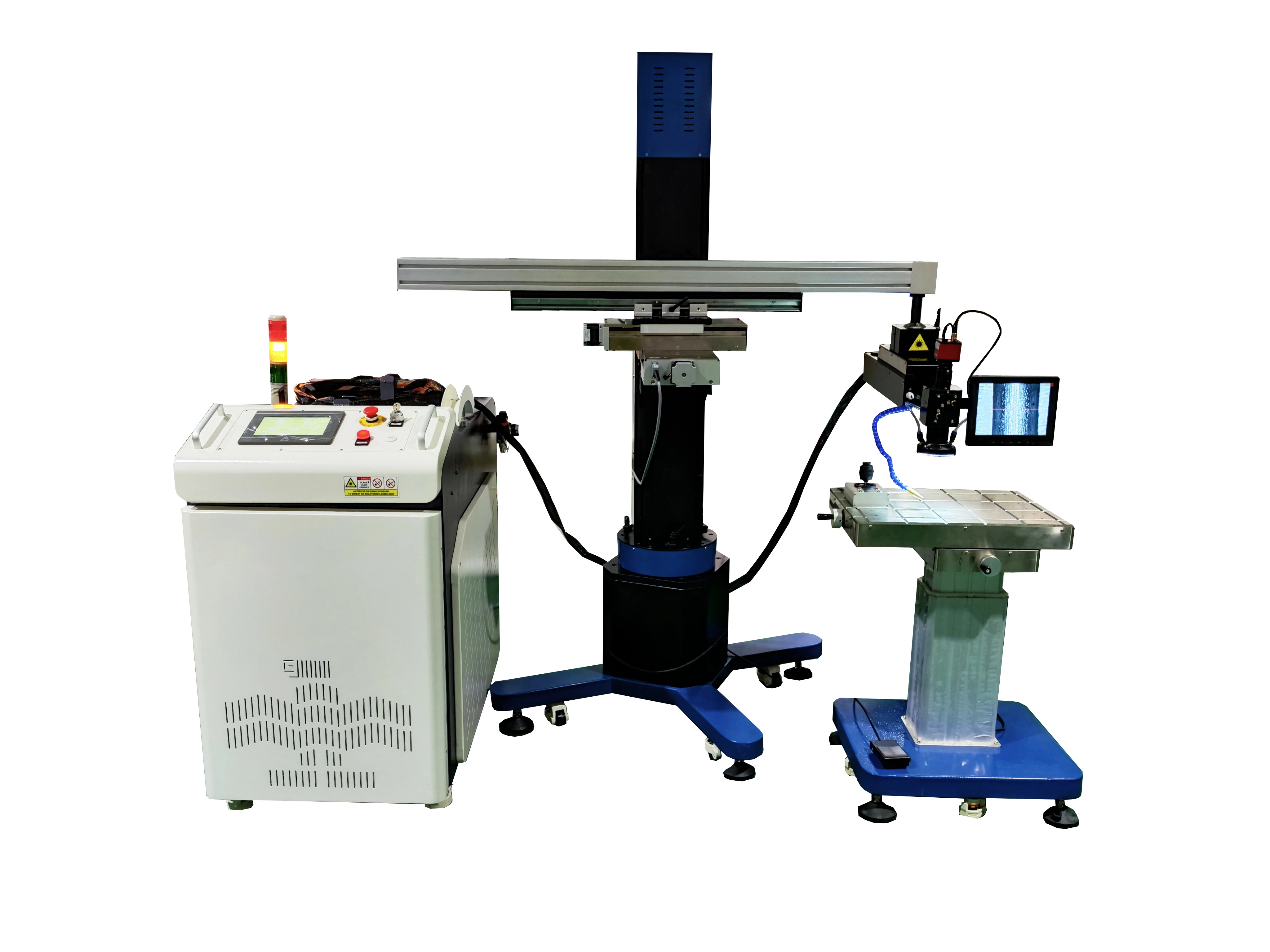

Factory Price Mobile Arm 1000w/1500w/2000w Fiber Laser Mould Welding Machine For Mould Repair
Introduction
Fiber Mold Laser Welder with high energy pulse.The core parts of the machine are imported type, welding depth is large, with strong soldering edge. The dissolution is sufficient, leaving no traces of repair.and the laser welding spot with small diameter and with a small heating range.
No porosity, collapse, or thermal strain ,After Welding,there without the phenomenon of metallographic changes, greatly reduced Post-weld treatment process.
Feature
Laser welding is to irradiate a high energy density laser beam on two parts of the material, so that the local heating melt, and then cooling and solidification into one. Compared with traditional welding technology, laser welding has the following features:
Small heat-affected zone of laser repair welding will not lead to deformation of precision die, large welding depth, strong welding, sufficient melting, no repair marks, no depression in the joint of molten pool melt bump and matrix.

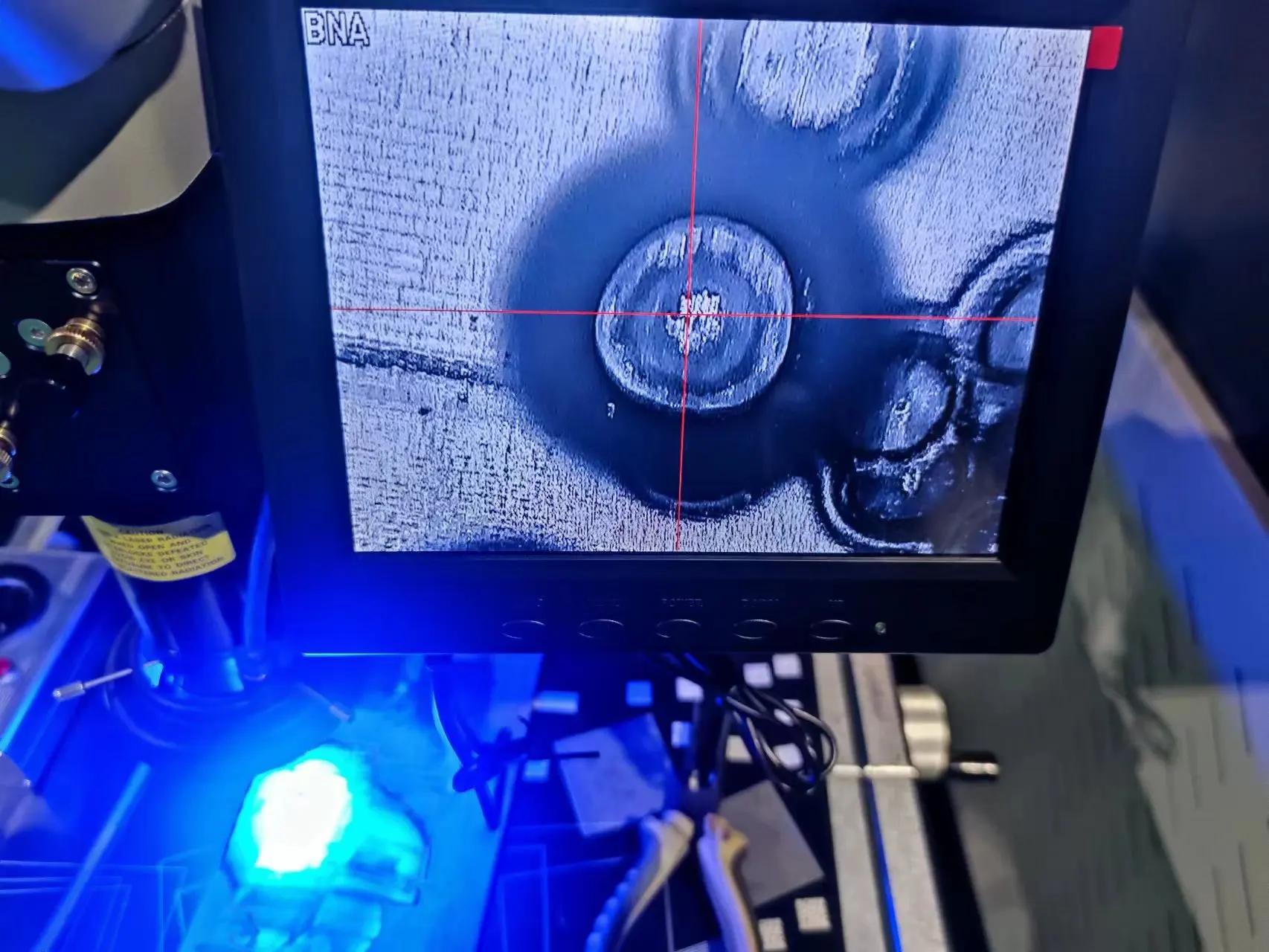

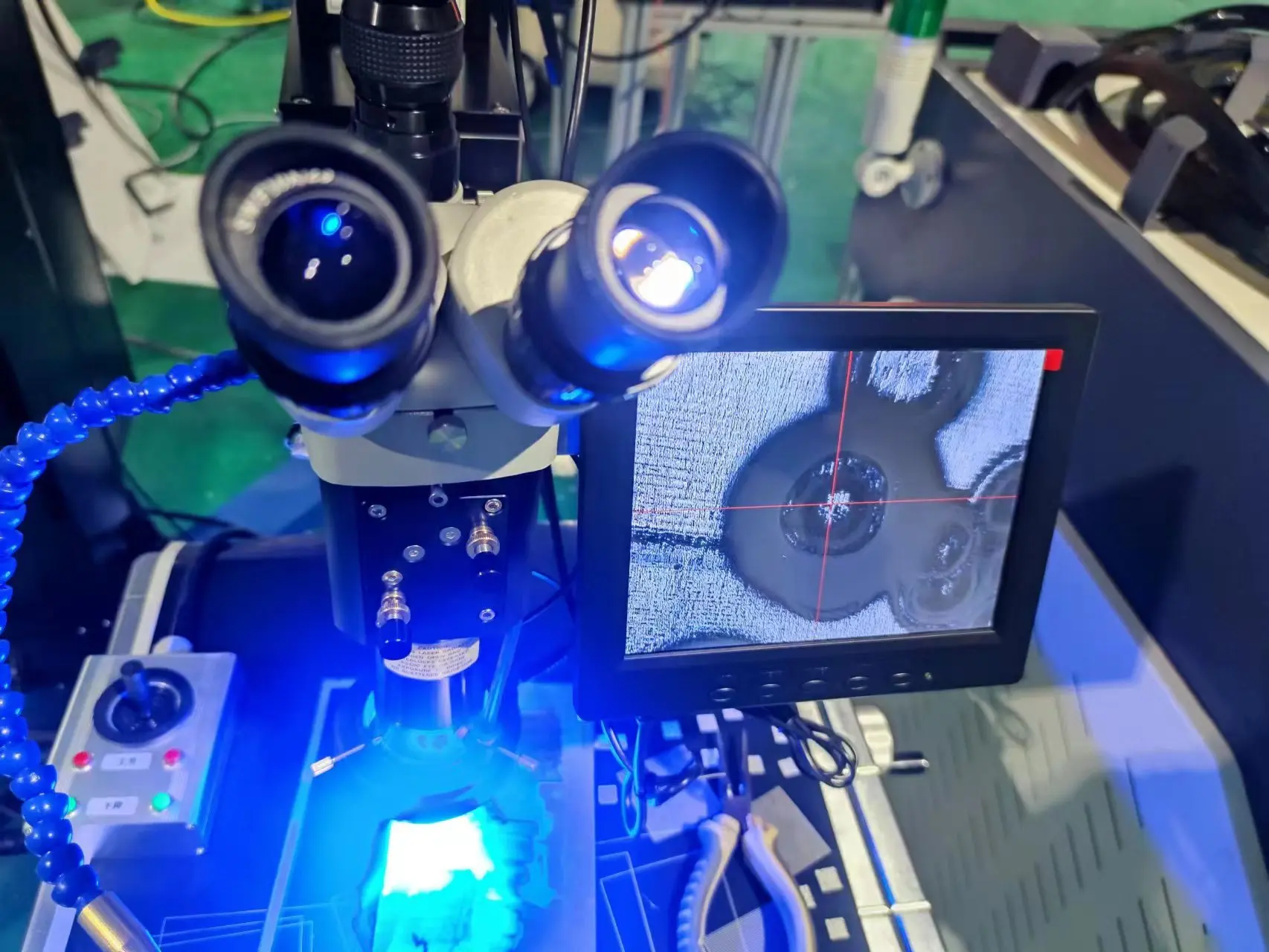

With a special microscope observation system for cross cursor, the magnification can be adjusted to achieve precise alignment.
Application
Laser die repairing welding machine is to weld the special welding wire to the damaged parts of the die through the instantaneous high heat energy generated by the laser, and firmly weld with the original base material. After welding, it is processed into a smooth surface by EDM or grinding, so as to repair the die.
Parameter
| Laser power | 1000W | 1500W | 2000W |
| Laser Source | Fiber laser source | ||
| Pulse Width | 0.3-20ms | ||
| Pulse Frequency | 0.1-50Hz | ||
| Beam Diameter | 0.1-3.0mm | ||
| Filler Wire Diameter | Max 0.6mm | Max 0.8mm | Max 1.0 mm |
| Cooling System | 1P water chiller | 2P water chiller | 3P water chiller |
| Power Supply | 220V50Hz (60Hz optional) | 380V/50Hz (60Hz optional) | 380V/50Hz (60Hz optional) |
| Power Consumption | 9KW | 14KW | 16KW |
| Observing System | Microscope 10X | ||

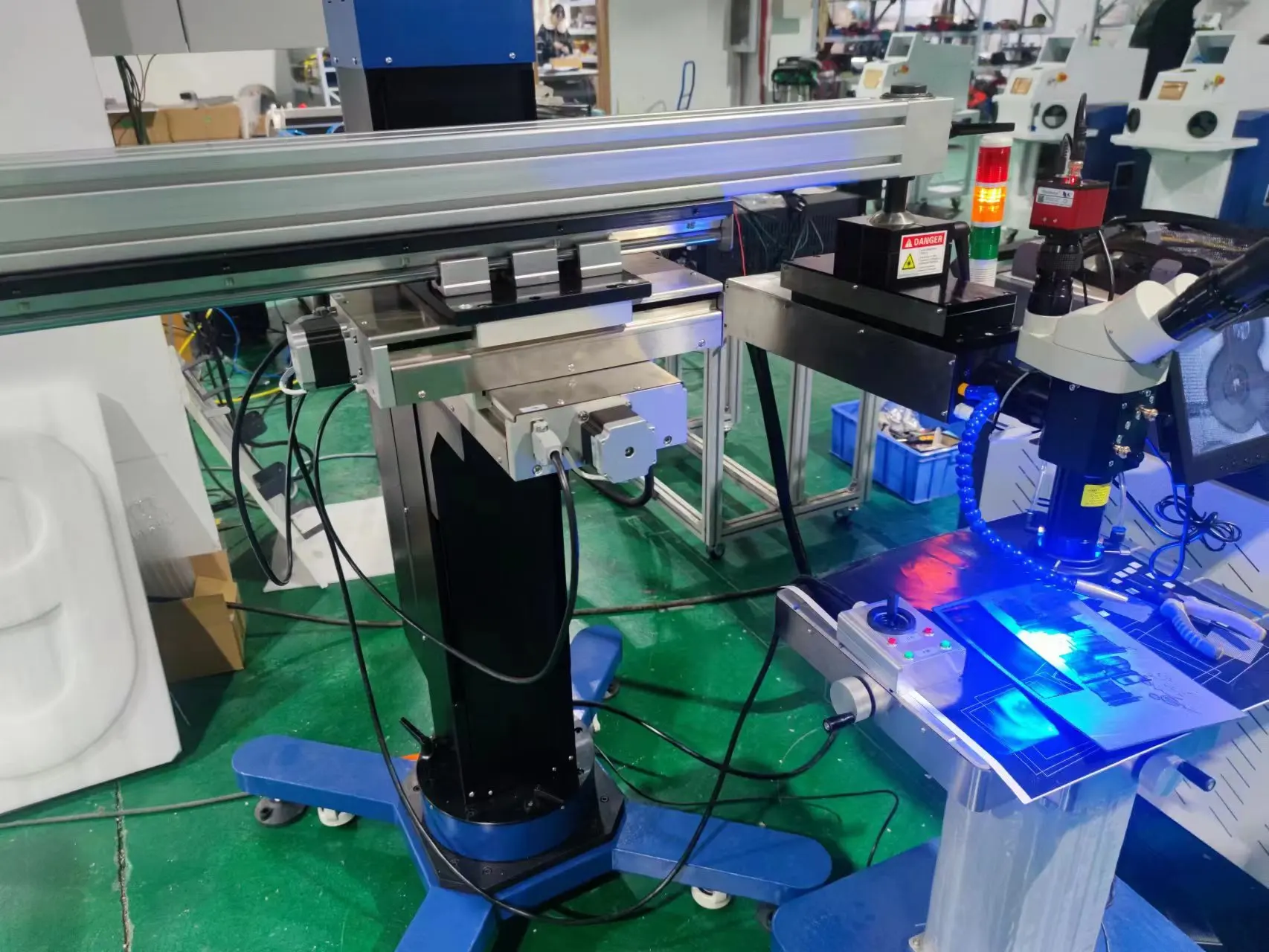

| 3 axis of table | X=250mm, Y=100mm, Z=200mm, XY manual, Z electrical | ||
| Data Memorization | 100 groups | ||
| Illumination | LED ring lights | ||
| Language Display | English & Chinese | ||
| Shield Gas Supply | One line quick connection (argon) | ||
Packaging & Shipping
Despatch port: Shanghai/Guangzhou
Shipping method: Seaway shipping is recommended
Packing: Standard export plywood cases
Payment: T/T 30% in advance and 70% before delivery
Warranty:1 year overall warranty (Fault diagnosis and parts exchange for free)
Our Services
- Lifelong maintenance and spare parts supply
- Free design of fixtures as customers required
- Free training for operation staffs
- Free Welding samples of customer provided
Company Information
About us:
Wuhan Chuyu Optoelectronic Technology Co.,Ltd (known as CY OPTO) manufactures laser equipments based upon a number of key enabling industries: Consumer Electronics, Packaging Industry, Auto Parts, Jewelries, Textile & Leather,Electronic Components,Glass and Optical Units,Medical Devices,House Furnishings and Hardware Formed from leading established companies in these complementary industries.
Honor:
Exhibition:
FAQ
Q: What's your warranty policy?
A: We offer 1 year free overall warranty and life-time technical support to our customers .Thorough check will be done with the help of customer when any problem comes out. After professional diagnosis, we will send you any necessary part via international express and guide you how to replace them in the form of image or video. We’ll cover all the expenses relative.
Q: Is this machine stable to use and is it complicated to maintain?
A: YAG laser welder is already very mature and of cause stable to use after more than 20 years development. It is known as easy operation and easy maintenance. Based on the statistics figure of 2013,our total rework rate is only 0.5% and failure rate only 3%. For daily maintenance, you just need to change the water in the chiller tank every two weeks and do some regular cleaning work.
Q: How can I do if the machine goes wrong?
A: If happens, you can contact our sales directly. We will offer engineer delivery service.
But, pls don't try to fix the machine by yourself or someone else. We will response within 12 hours as soon as we can do for you!
