Hope Wish PTZ camera fire detection 640x512 thermal ip camera long range security camera
- Category: >>>
- Supplier: Jinan Hope-Wish Photoelectronic Technology Co. Ltd.
Share on (1600959348953):
Product Overview
Description
Products Description

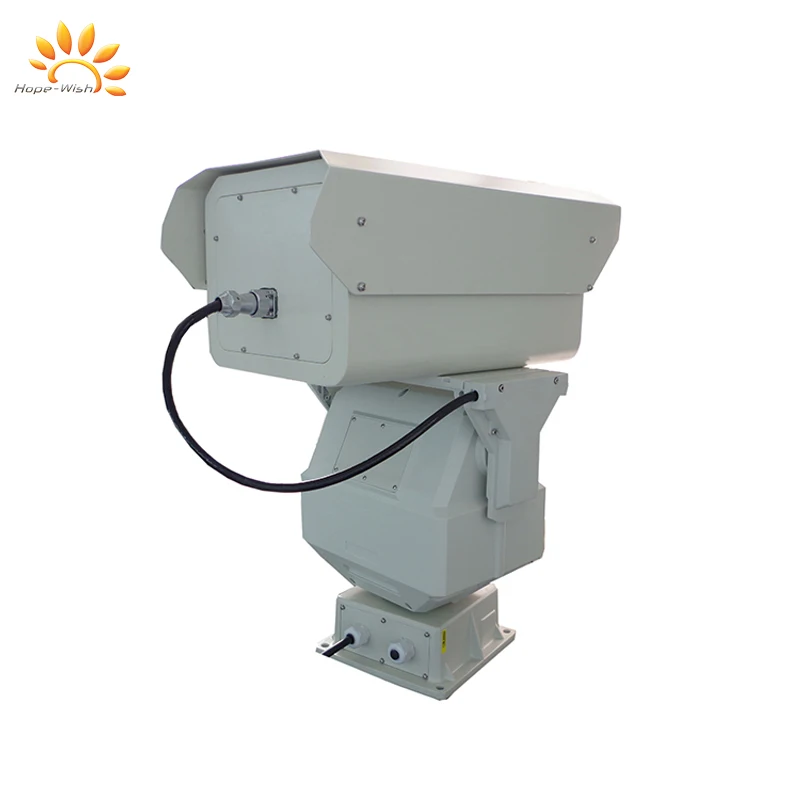

HP-TC61021PT long range zoom thermal camera is based on the latest uncooled IR technology and continuously IR optical zoom. User could get a best imaging details with 336*256/640*512 resolution, advanced digital circuit and image processing algorithm. Special design of 10X optical zooming lens have detection distance 18km, suit for both seeking and watching. One integral aluminum alloy housing make sure the camera IP66 sealing rates and works well in harsh outdoor conditions.
TC41021PT thermal camera integrate high sensitive FPA sensor, electronic and optical systems, could penetrate fog/dirt/rain/snow and image 24 hours.
Feature
NETD 50mk enhance the imaging details even in foggy/rainy/snowy weather.

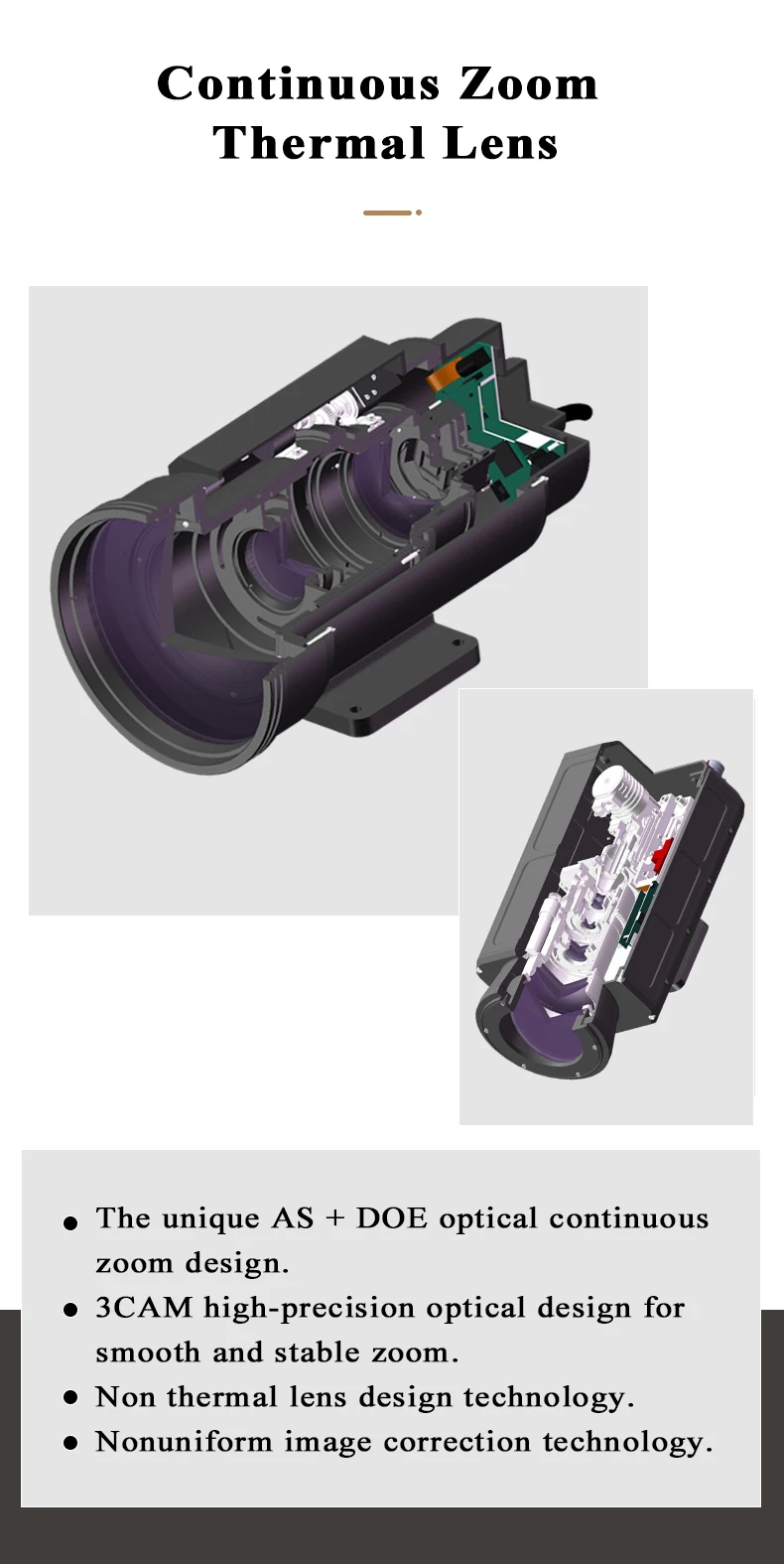

Unique AS+DOE optical design and 3CAM high-precision optomechanical design suit for both large-scale seeking and long-distance watching.
Non-uniform image correction technology, stable working temperature without TEC, good image uniformity and dynamic range. SDE digital image processing, no image noise, 10 pseudo color image and B/W switch.
Digital control PT, 360° continuously rotation observation, no dead corner, stable operation, small dithering.
One integral aluminum alloy housing, weatherproof IP 66, waterproof, anti-dust.
TC41021PT thermal camera integrate high sensitive FPA sensor, electronic and optical systems, could penetrate fog/dirt/rain/snow and image 24 hours.
Feature
NETD 50mk enhance the imaging details even in foggy/rainy/snowy weather.
Unique AS+DOE optical design and 3CAM high-precision optomechanical design suit for both large-scale seeking and long-distance watching.
Non-uniform image correction technology, stable working temperature without TEC, good image uniformity and dynamic range. SDE digital image processing, no image noise, 10 pseudo color image and B/W switch.
Digital control PT, 360° continuously rotation observation, no dead corner, stable operation, small dithering.
One integral aluminum alloy housing, weatherproof IP 66, waterproof, anti-dust.
Product Advantages
Product Paramenters
Model | HP-TC61021-TG |
Detection | Vehicle: 17400m |
Human: 6800m | |
Recognition | Vehicle: 4800m |
Human: 1800m | |
Sensor | 1、Detector：5th generation UFPA Vox Detector ; 2、Resolution：640X512 3、NETD：50mK（@25℃ F1.0） 4、Spectral range：7.5～14μm |
NETD | 50mK（@25℃ F1.0） |
Focal length | 1、Length: 21～210mm 2、FOV：16°×12°～1.6°×1.2° 3、Motorized zoom、focus（auto focus optional ） 4、AS+DOE advanced optical design, high infrared transmission; 5、Applied 3CAM high precision design; |
IFOV | 0.08～0.85mrad |
Image processing | 1. stable operational temperature, starting time less than 4 seconds |
2. SDE digital image processing | |
3. 10 pseudo color and B/W, B/W inverse | |
4. AGC | |
5. 2X digital amplification | |
Housing | 1、Material：aluminum alloy housing，waterproof; 2、Structure：Integral single window design ; 3、Surface：PTA coating, anti sea water corrosion; 4、Sealing rate：IP66 5、Built-in temperature controller，thermal balance design; 6、Interface：aviation waterproof connector ; |
PTZ（optional） | 1、Load：50kg military level digital PT ; 2、Angle：pan 0～360°，tilt -45°～+45° 3、Speed：0.01～30°/S high precision variable speed control and locking ; 4、Preset：80 presets，support lens zoom and focus memory，variable speed scanning 0～30°/S ，support apple peel scanning function; 5、Protocol：Pelco-P、Pelco-D 6、Baud rate：2400、4800、9600、19200 optional ; |
Consumption ,weight | 1、Consumption（PT included）：min.40W，max.120W 2、weight（PT included）：≤40kg |
Interface | 1. RS-485（PELCO D protocol, baud rate 2400bps）、 RS-232（option） |
2. Remote OSD setting | |
3. PAL/NTSC video output | |
4. AC24V( DC12V option) | |
5. Waterproof connector | |
Environment indicator | 1、Working temperature：-25℃～+55℃（-40℃ optional） 2、Storage temperature：-35℃～+75℃ 3、Humidity：<90% 4、Anti-shock：0.2g（GB/T15211—20135.4 harshest level 2 standard） 5、Anti-resistance：15g（GB/T15211—20135.3 harshest level 3 standard） 6、Anti-lightening：power 4000V，signal 2000V 7、Anti salty：PH6.5～7.2，continuous sprarying 48 hours ; 8、Protection rate：IP66 |
Application
Oilfield safety, railway&freeway security, river&airport security, forest fire prevention, city safety.
Company Profile
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.
Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.
Packing & Delivery
Usually shipped by express (DHL, FEDEX UPS and etc).
