20 meters long range UHF integrated Reader 12dBi wall mounted UHF rfid fixed reader with E310 chip
- Category: >>>
- Supplier: Shenzhen Zhonghuanlian Technology Co. Ltd.
Share on (1600959360832):
Product Overview
Description
* NOTE: Before to place order, pls contact with us, to confirm the working frequency and communication interface that you need. Thank you!
3881-12dbi UHF Integrated Reader
General Description
3881-12dbi is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, and anti-counterfeit and industrial production process control system.
Feature
* Self-intellectual property;
* Built-in E310 chip, fully supports electronic tags conforming to EPC CLASS1 G2 (ISO18000-6C)
standard, excellent multi-tags anti-collision function;
* 865~868MHz, 902~928MHz working frequency (customized);
* FHSS or Fix Frequency transmission;
* RF output power up to 33dbm(adjustable);
* 12dbi linear antenna/circular polarized antenna, with effect distance more than 20m*;
* Support auto-running, interactive work modes;
* Low power dissipation with single +9 DC power supply;

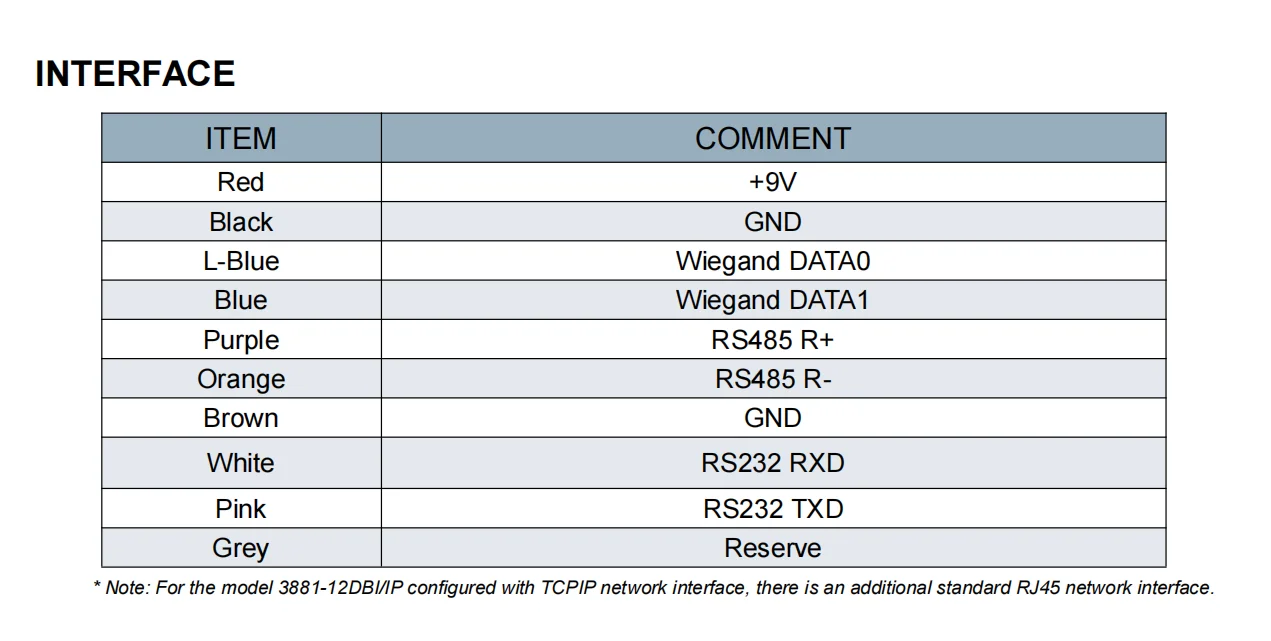

* Support RS232, RS485, Wiegand interface; TCPIP interface is optional;
* Support WI-FI function
* Built-in E310 chip, fully supports electronic tags conforming to EPC CLASS1 G2 (ISO18000-6C)
standard, excellent multi-tags anti-collision function;
* 865~868MHz, 902~928MHz working frequency (customized);
* FHSS or Fix Frequency transmission;
* RF output power up to 33dbm(adjustable);
* 12dbi linear antenna/circular polarized antenna, with effect distance more than 20m*;
* Support auto-running, interactive work modes;
* Low power dissipation with single +9 DC power supply;
* Support RS232, RS485, Wiegand interface; TCPIP interface is optional;
* Support WI-FI function

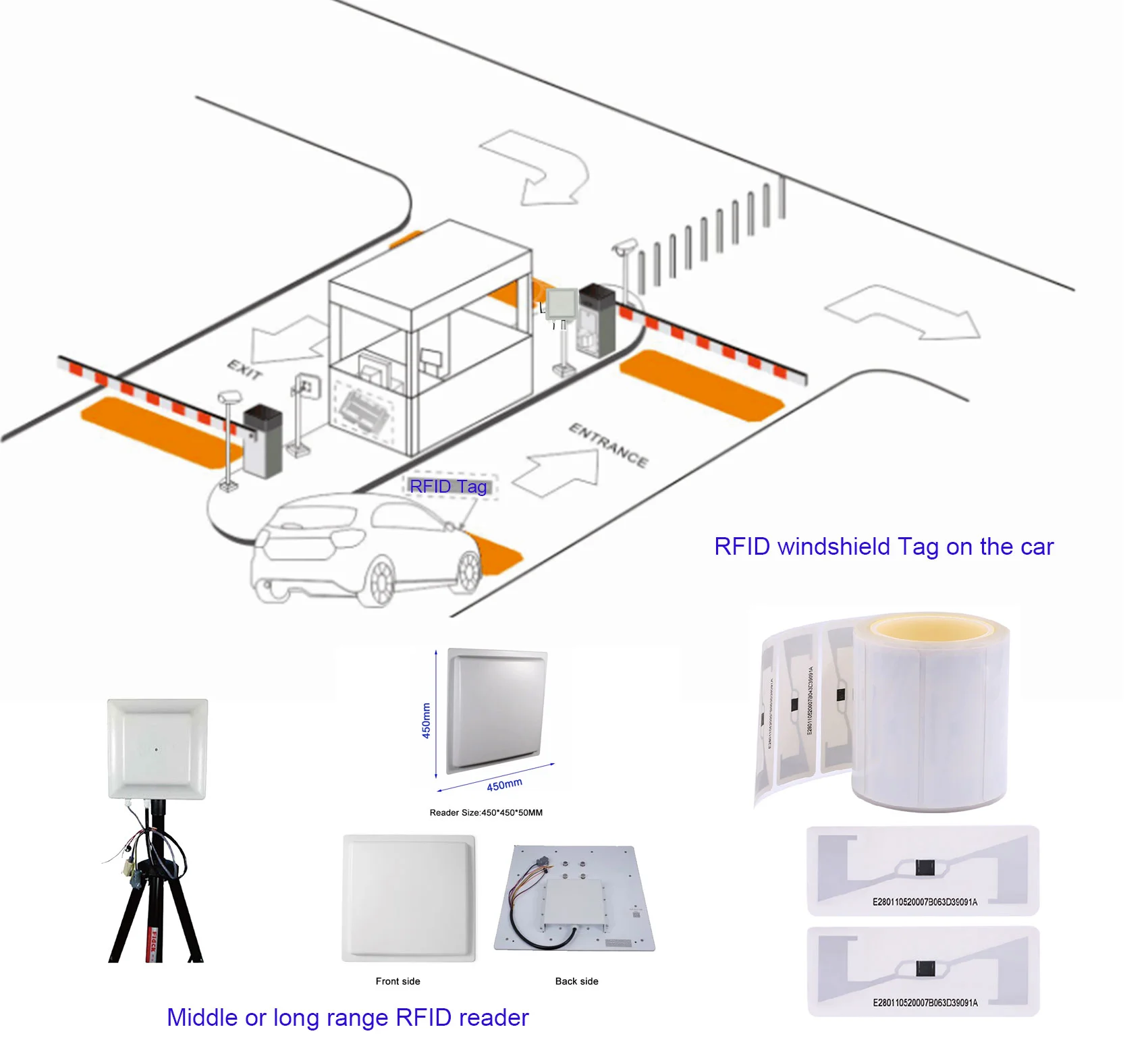

1.Intelligent traffic such as ETC;
2. Customs border-crossing;
3. Warehousing and logistics management: commodity flow and warehousing management and flow management of
mail, parcels, air baggage, etc;
4. automatic weighting;
5. Container management,pallet management , asset management ;
6. Ticketing& access control;
7. Pharmaceuticals such as medical waste management.
Application
Related Products
Company Introduction
FAQ
Q: Are you factory or trade company?
A: We are direct factory.
Q: Do you have stock for this reader?
A: Normally QTY less than 200pcs, we can ship in 5 days.
Q: How long is the reading distance of this integrated reader?
A: 3881-12dbi is a high performance UHF RFID integrated reader, with effect distance more than 20m
Q: What kind of interface does this read support?
A: Default interface: RS232, RS485, Wiegand26/34, WI-FI
A: We are direct factory.
Q: Do you have stock for this reader?
A: Normally QTY less than 200pcs, we can ship in 5 days.
Q: How long is the reading distance of this integrated reader?
A: 3881-12dbi is a high performance UHF RFID integrated reader, with effect distance more than 20m
Q: What kind of interface does this read support?
A: Default interface: RS232, RS485, Wiegand26/34, WI-FI
POE, TCPIP interfaces are optional.
Q: Which payment methods are available?
A: Trade assurance, Alipay, Credit Card, T/T, Paypal, Western Union, etc
Q: How fast it is for delivery?
A: By DHL/Fedex/UPS normally takes 4-6 working days.
Q: Which payment methods are available?
A: Trade assurance, Alipay, Credit Card, T/T, Paypal, Western Union, etc
Q: How fast it is for delivery?
A: By DHL/Fedex/UPS normally takes 4-6 working days.
