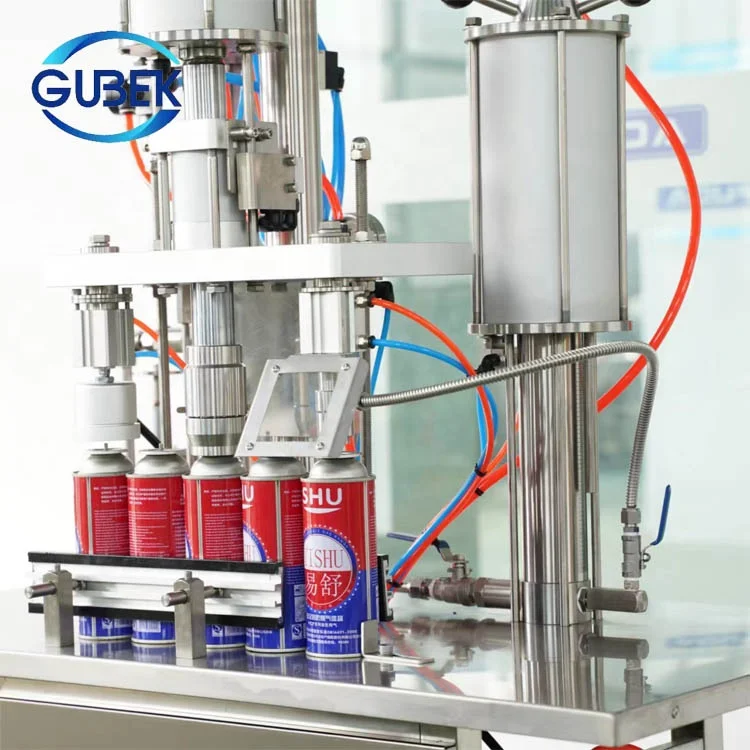

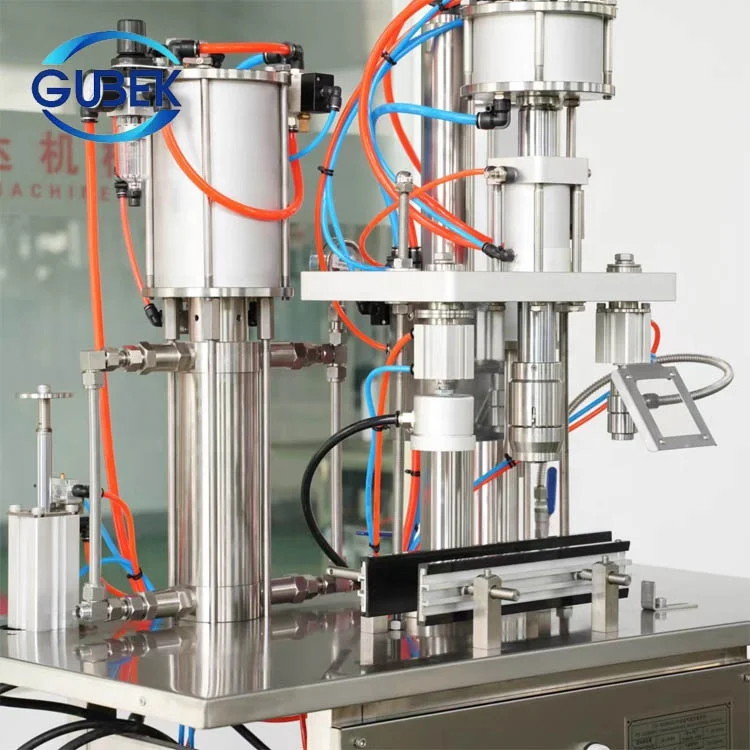

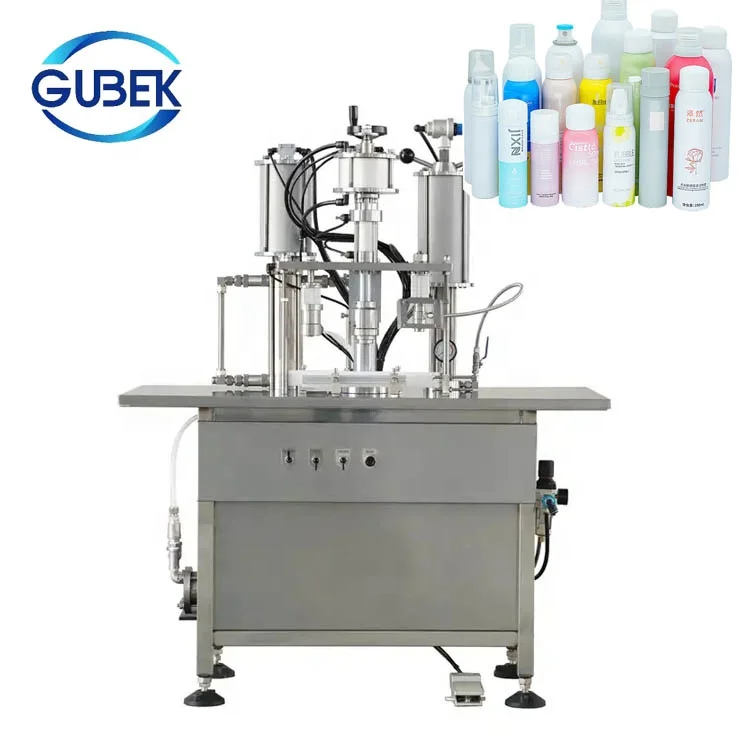

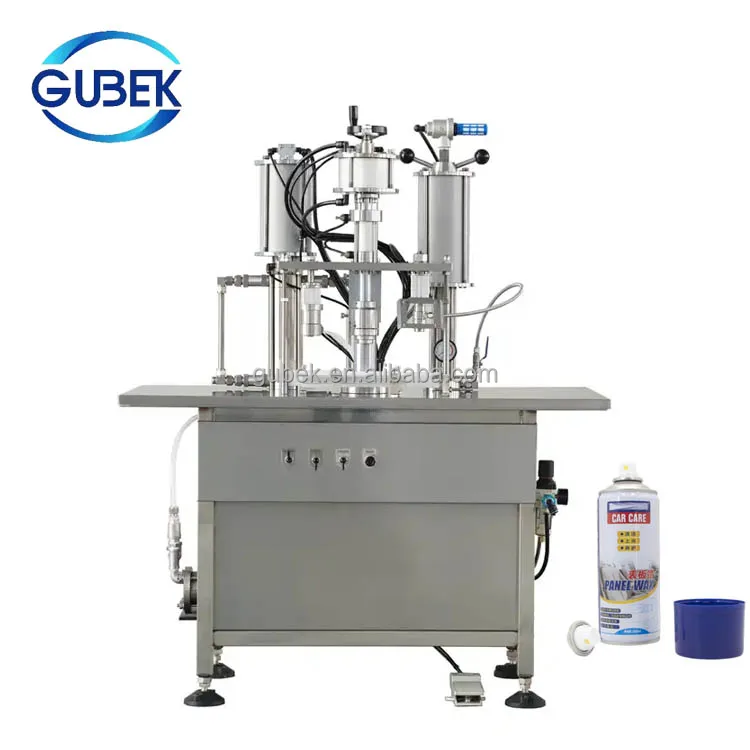

GUBEK semi automatic complete high speed rotory bov aerosol can filling machine manufacturer
- Category: >>>
- Supplier: SHANDONG GUBEK MACHINERY CO. LTD
Share on (1600959370107):
Product Overview
Description
Product Description:

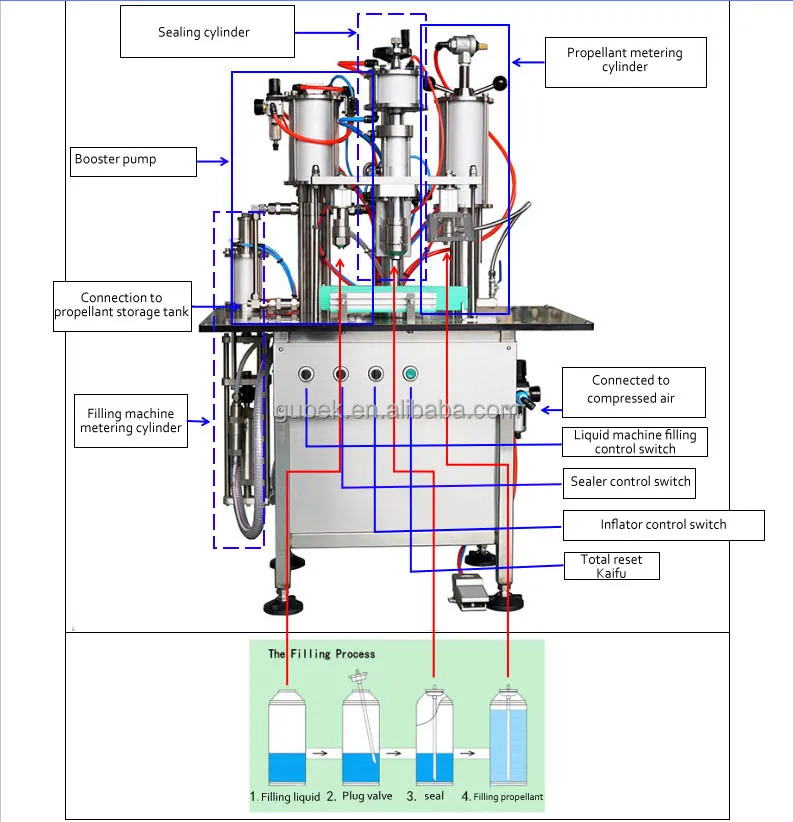

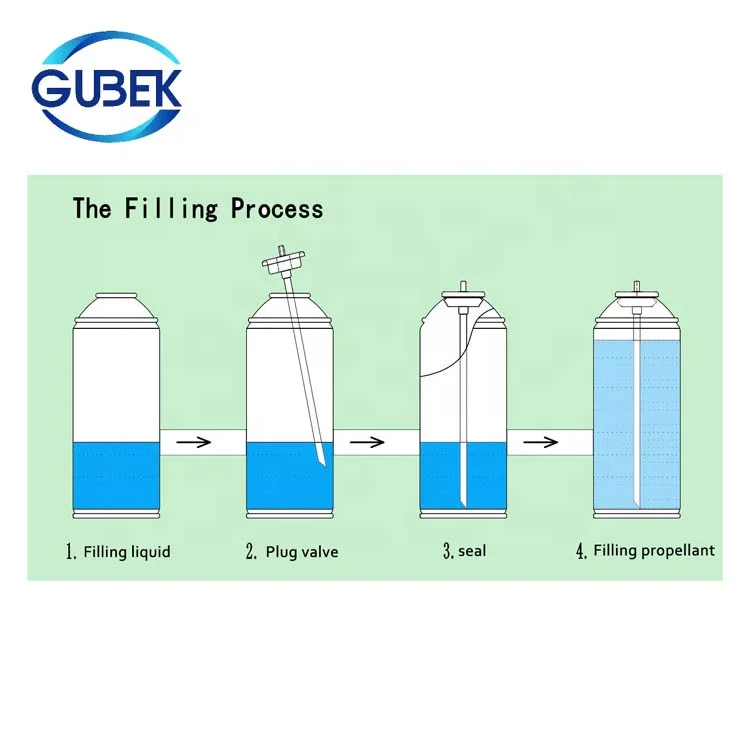

Aerosol filling machine, in terms of design, semi-automatic content filling machine, semi-automatic sealing machine,
semi-automatic propellant filling machine (including booster pump) is combined on a work table to complete, and can work any single machine. Any two machines working in tandem can be adjusted arbitrarily.
semi-automatic propellant filling machine (including booster pump) is combined on a work table to complete, and can work any single machine. Any two machines working in tandem can be adjusted arbitrarily.
Product Paramenters
What We Do For You
1.Machine can be customized according to your requirements
2.Your package sample can be freely test on our machine.
3. Providing free & professional packing solution and technical support.
4. Making a machine layout for you based on your factory.
5. All the machine for 1 year quality warranty. Within a year, if there is any damage, spareparts will be sent to you free of charge.
6. Videos of installation; Online support.
2.Your package sample can be freely test on our machine.
3. Providing free & professional packing solution and technical support.
4. Making a machine layout for you based on your factory.
5. All the machine for 1 year quality warranty. Within a year, if there is any damage, spareparts will be sent to you free of charge.
6. Videos of installation; Online support.
Model | FD-QGB900 |
Driven Type | Pneumatic (driven by compressed air) |
Air supply pressure | 0.6-1.0MPa (6-10bar) |
Voltage for air compressor | 220V/380V 4.0KW |
Dimension (L*W*H) | L1000*W560*H1500mm |
Weight | 180KG |
Diameter of supported cans | 35-70mm |
Height of supported cans | 70-330mm |
Valve type | 1 inch (25.4mm) |
Filling capacity | 0-450ml liquid ,0-450ml gas (can be customized ) |
Productivity | 800-1200 cans/hr |
Air consumption | Max 0.6m3/min |
Machine Material | Stainless Steel 304 |
In terms of design, all pneumatic valves adopt international standard pneumatic valves, and all open design, easy to replace, convenient to buy.The production line has been widely used in food, medicine, health, automobile, environmental protection, fire fighting and daily chemical products and other aerosol products packaging, such as: mousse, hair spray, air freshener, insecticide, disinfectant, fire extinguishing agent, carburetor cleaning agent....
Product Description:
The content filling machine is suitable for filling all kinds of liquid media, and has better self-priming function. Containing a
certain viscosity and concentration of media (such as paint, polyurethane foam sealant of black and white material); The
semi-automatic sealing machine has reliable sealing quality, convenient installation and adjustment, large sealing cylinder, and can also be sealed when the air source pressure is 0.25-0.3MPa; The semi-automatic propellant filling machine is mainly used to fill the non-corrosive liquefied gas such as probutane gas, freon, dimethyl ether and 134a. The main sealing parts are imported. Suitable for filling of various aerosol valves. The booster pump adopts large capacity two-way pressurization. Therefore, the filling speed is fast and the measurement is accurate.
certain viscosity and concentration of media (such as paint, polyurethane foam sealant of black and white material); The
semi-automatic sealing machine has reliable sealing quality, convenient installation and adjustment, large sealing cylinder, and can also be sealed when the air source pressure is 0.25-0.3MPa; The semi-automatic propellant filling machine is mainly used to fill the non-corrosive liquefied gas such as probutane gas, freon, dimethyl ether and 134a. The main sealing parts are imported. Suitable for filling of various aerosol valves. The booster pump adopts large capacity two-way pressurization. Therefore, the filling speed is fast and the measurement is accurate.
The machine covers an area of small, easy to operate. Only one worker can complete the whole process of production.This equipment is suitable for small and medium-sized manufacturers of 100,000 cans per month.
