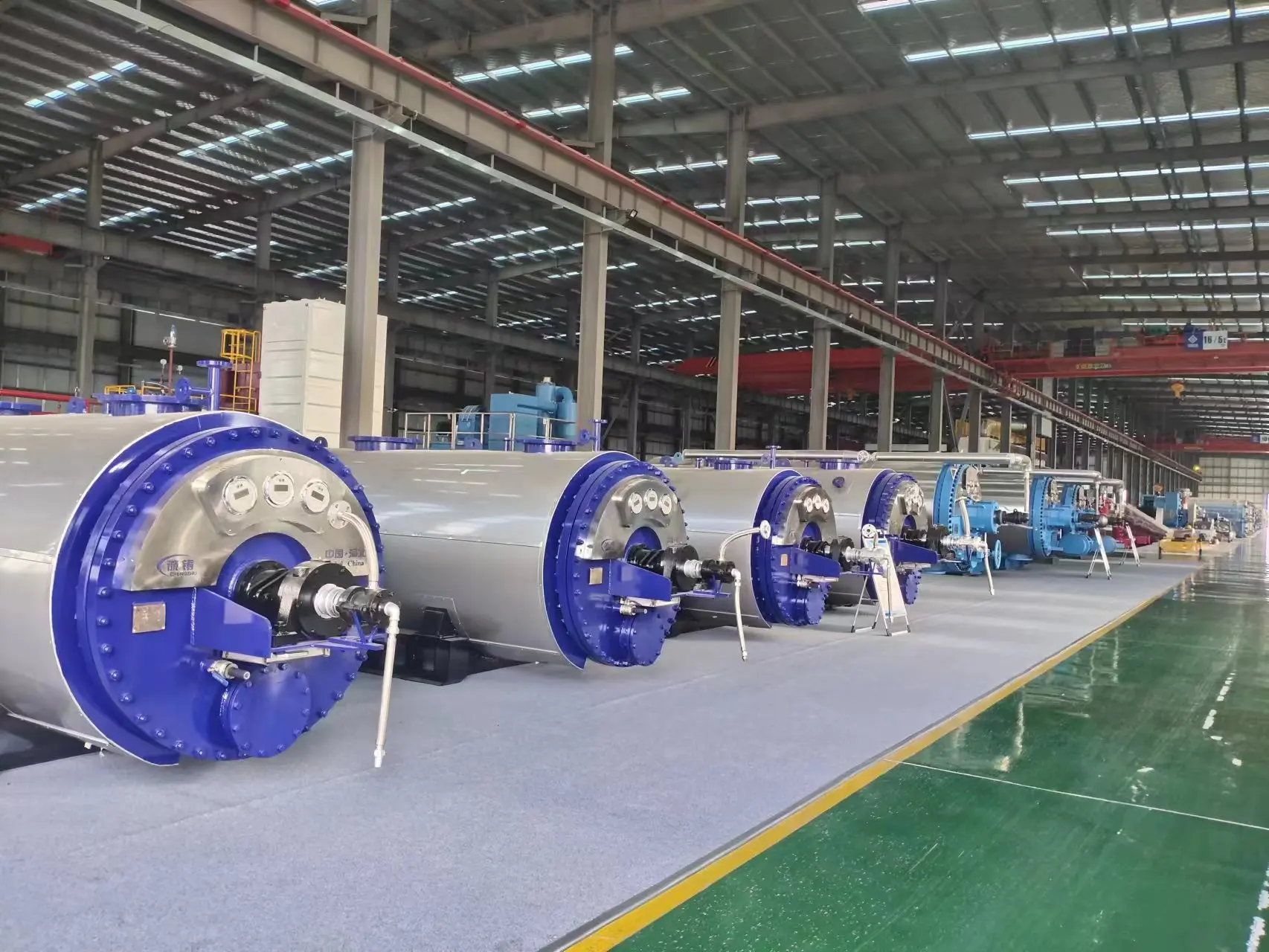

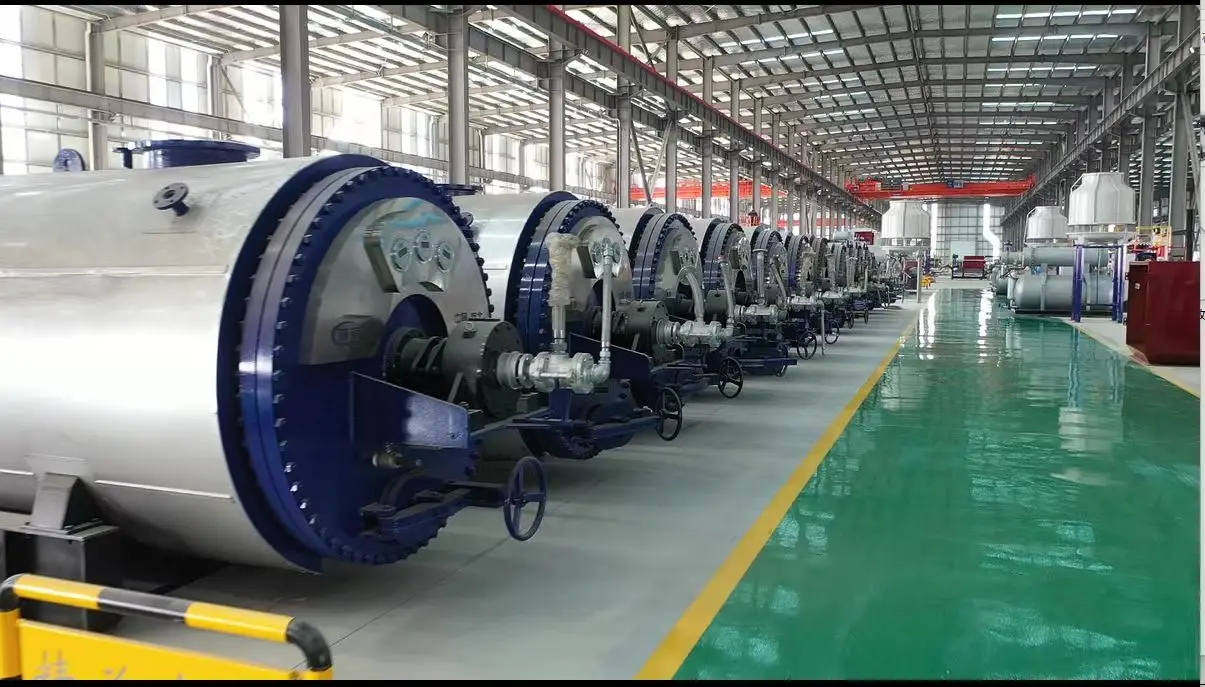

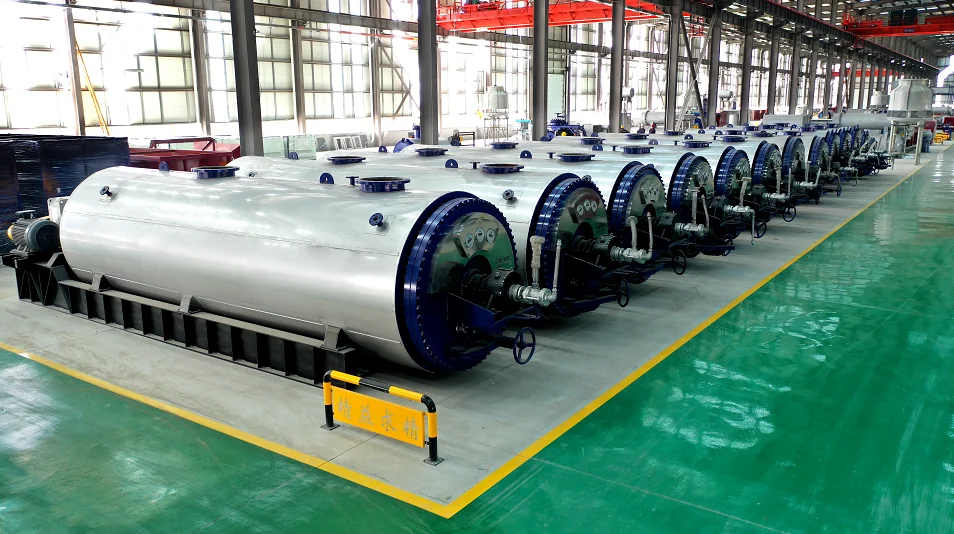

automatic slaughterhouse farm poultry chicken duck waste cooking and drying processing equipment digester machine
- Category: >>>
- Supplier: Ningbo Connect Machinery Co. Ltd.
Share on (1600959372124):
Product Overview
Description
Product Details
1.This equipment have advantages of compact system, Smooth transmission, low noise, Easy installation, Easy maintenance, Reliable operation, Energy savings, etc.
2.It is using the most advanced modular sealing structure, with a high wear resistance and sealing, meanwhile, has the
characteristic of High temperature, can resist the erosion of various types of chemicals.
3.The transmission of Batch Cooker is chain drive system, which has the characteristic of Smooth transmission , vibration , wear ,etc.
4.The machine uses inflatable rotor shaft to accelerate the heat transfer between the body and the material which greatly improves the work efficiency.
Principle of Operation
After raw material hydrolysis in cooker for 30 minutes, Stamp the seal to make temperature reach 130 degrees in order to kill the E., and break the keratin molecules ,keep the working pressure for 15 minutes when it reaches 0.3mpa, discharge vapor in the tank.

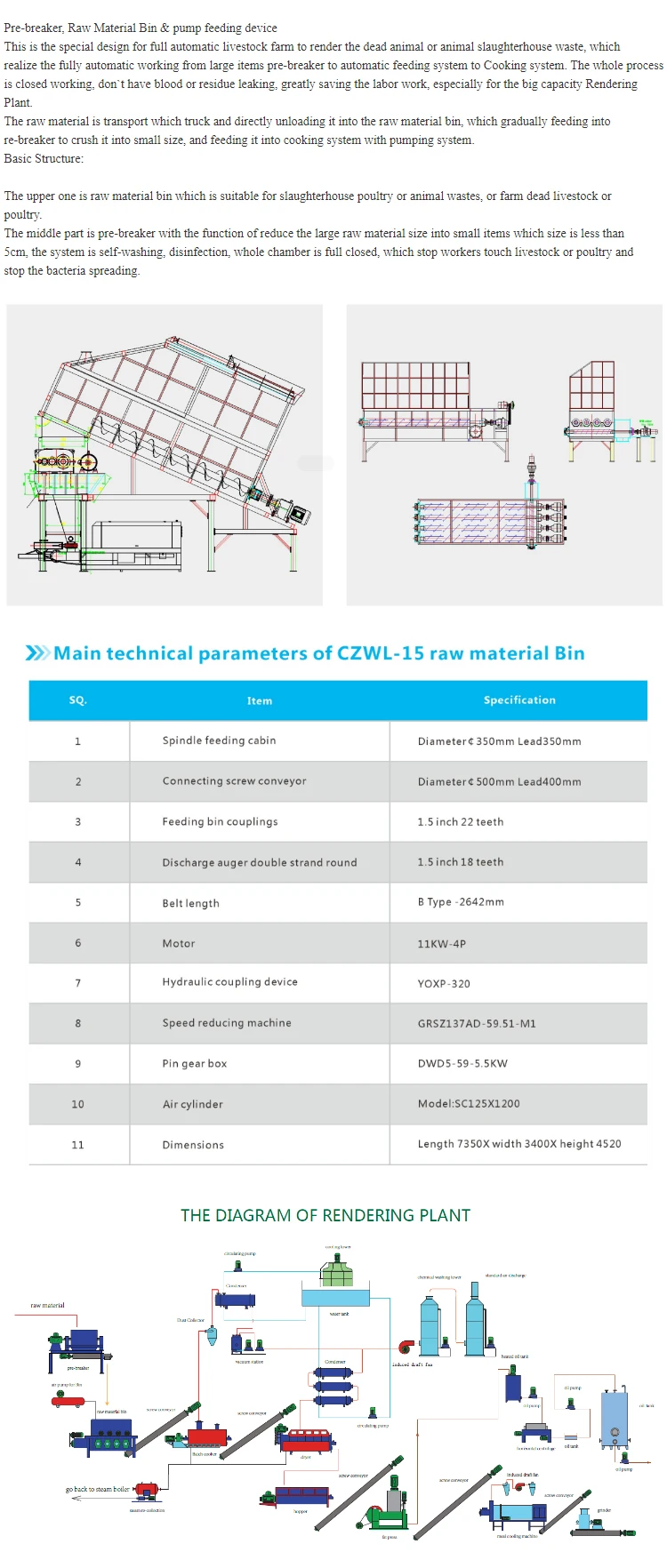

Heating was continued for 20 minutes, then the discharge spout into the dryer for drying, Cooled and crushed into powder. so it Becomes , protein content > 80 %, moisture <10% , tawny hydrolyzed Feather Meal . rendering Raw Material Handling Equipment. After pressure relief, the odor is sent it to Odor System for further processing. The cooked meal will sent it to Meal Cooling Machine, or sent it to Fat Press Machine to press the fat out
Model | Tank Dimension | Steam consumption(kg/h) | Capacity(t/batch) | Motor power(KW) | Reducer | ||
inner(mm) | length(mm) | ||||||
CZS1200 | 1200 | 3200 | 200 | 1.0(3000L) | 22 | JZQ650 | |
CZS1300 | 1300 | 4000 | 300 | 1.5(4500L) | 30 | JZQ 650 | |
CZS1400 | 1400 | 4500 | 350 | 2.0(6000L) | 37 | ZSY 280 | |
CZS1500 | 1500 | 4500 | 500 | 2.2(7000L) | 45 | ZSY380 | |
CZS1600 | 1600 | 5000 | 500 | 2.5(8000L) | 55 | ZSY355 | |
Recommend Products
FAQ
1. how many types of chickens can it be processed?
A: It can process broiler ,layers, quails,goose,ducks and pigeon.
2.what is the capacity of this line?
A: We supply slaughter lines from 300bph to 1200bph, and if about 100-200bph, we suggest client to take manual slaugter system(electric scalder, drum plucker), and 300-500bph, you can take our compact slaughter line.
3.can it be process different weight of birds?
A: of course , but all the birds must be in the range of shackles, if the birds weight is too much different , they will drop from shackles, and the shackle distance is different from different birds.
4.Can you design and install the project for us?
A:We have good design and installation department for help you on this project.
5.What is the differences from Manual EV line to Automatic EV line?
A: as you know ,manual EV line is working by labors, and it can work with different weight of birds, but automatic line will only process almost same birds.
6.What is the differences from screw chiller to air chiller?
A: screw chiller is working with cooling water, so if you want the effect is good, you need arrange water chiller and ice flaker for cooling the normal water into cold water, its okay for the country that water is enough. Air chiller is like a cold room, which uses compressor unit and conveying line to make birds moving in the room, then the cold air meet with carcasses.
7.How is Connect Group?
A: Connect Group is a company in China, which have his own trademark, Our group totally have seven
companies, which including one poultry processing equipment manufacture, two rendering equipment manufacture, one broiler equipment plant, one fridge equipment construction plant, one trading company which responsible for marketing and Import and Export, and one Industrial company, we also cooperate with Netherland poultry processing equipment supplier JM to build fully automatic poultry processing plant, which covers the shortage of fully automatic Evisceration and cut-up equipment in China market.
8: Why we select Connect Group?
A:Connect Group is with the best service for the clients..Can you design and install the project for us?
A: It can process broiler ,layers, quails,goose,ducks and pigeon.
2.what is the capacity of this line?
A: We supply slaughter lines from 300bph to 1200bph, and if about 100-200bph, we suggest client to take manual slaugter system(electric scalder, drum plucker), and 300-500bph, you can take our compact slaughter line.
3.can it be process different weight of birds?
A: of course , but all the birds must be in the range of shackles, if the birds weight is too much different , they will drop from shackles, and the shackle distance is different from different birds.
4.Can you design and install the project for us?
A:We have good design and installation department for help you on this project.
5.What is the differences from Manual EV line to Automatic EV line?
A: as you know ,manual EV line is working by labors, and it can work with different weight of birds, but automatic line will only process almost same birds.
6.What is the differences from screw chiller to air chiller?
A: screw chiller is working with cooling water, so if you want the effect is good, you need arrange water chiller and ice flaker for cooling the normal water into cold water, its okay for the country that water is enough. Air chiller is like a cold room, which uses compressor unit and conveying line to make birds moving in the room, then the cold air meet with carcasses.
7.How is Connect Group?
A: Connect Group is a company in China, which have his own trademark, Our group totally have seven
companies, which including one poultry processing equipment manufacture, two rendering equipment manufacture, one broiler equipment plant, one fridge equipment construction plant, one trading company which responsible for marketing and Import and Export, and one Industrial company, we also cooperate with Netherland poultry processing equipment supplier JM to build fully automatic poultry processing plant, which covers the shortage of fully automatic Evisceration and cut-up equipment in China market.
8: Why we select Connect Group?
A:Connect Group is with the best service for the clients..Can you design and install the project for us?
