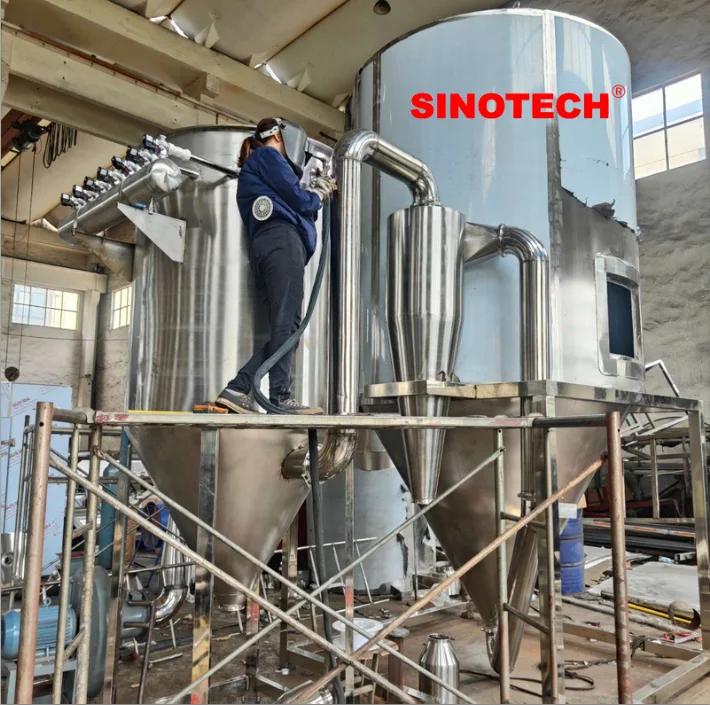

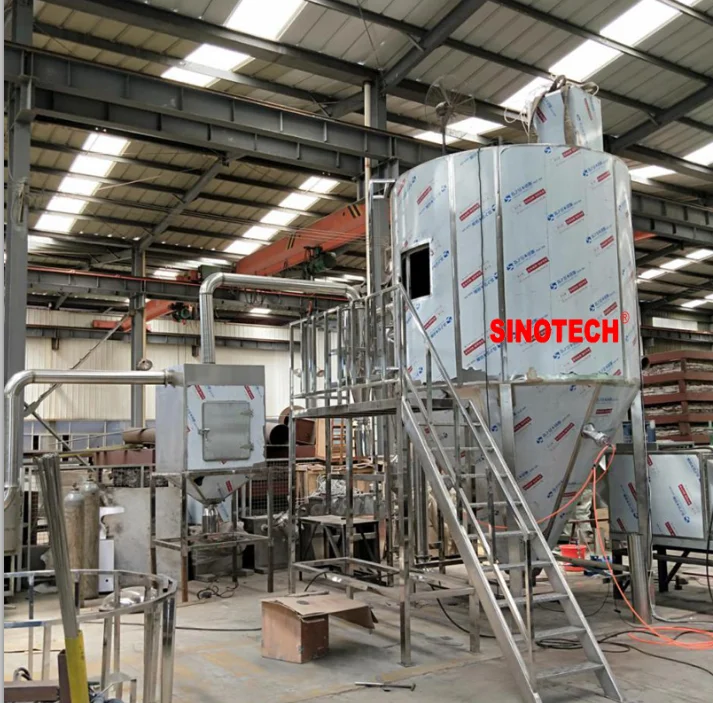

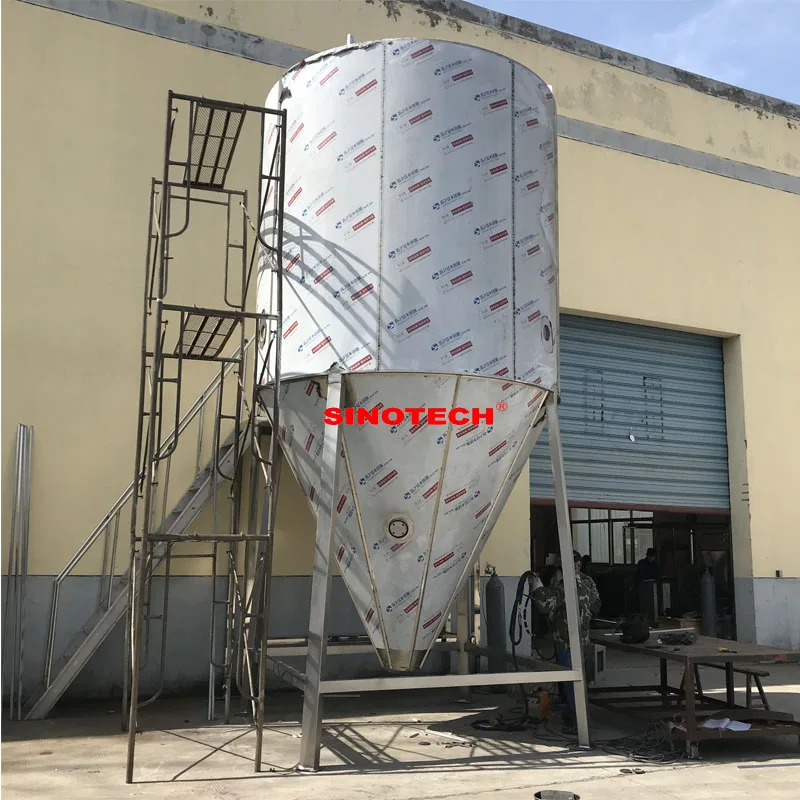

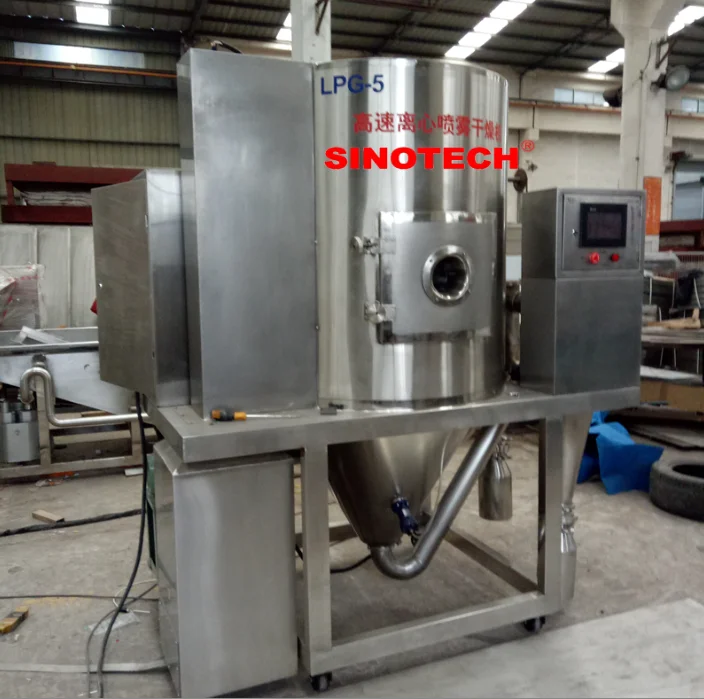

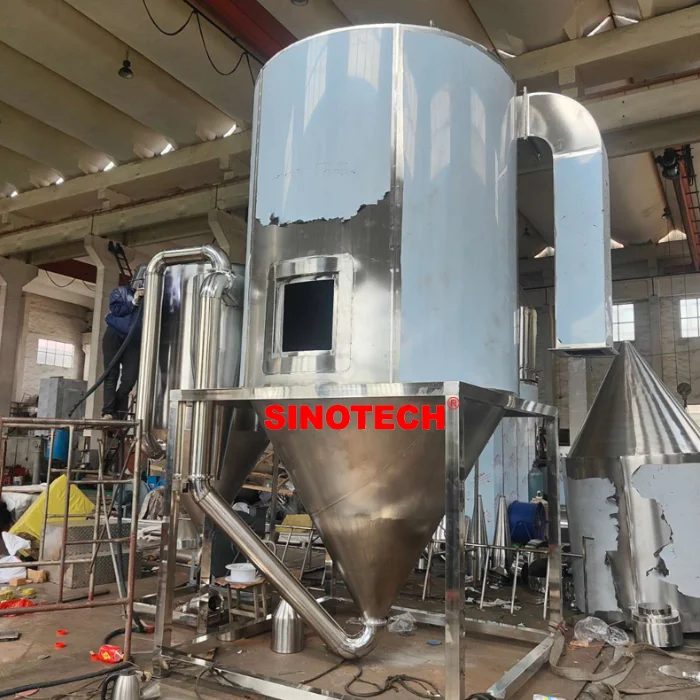

DLP 5 small centrifugal atomizer spray dryer
- Category: >>>
- Supplier: Liaoyang Sinotech Technology Development Co. Ltd.
Share on (1600959373301):
Product Overview
Description
Application
Food Spray dryer is a wide applied process in liquid process shaping and drying industry. Particularly it is suitable for producing powder, granule or block solid product from solution, emulsion, suspending liquid and pumped paste liquid. Therefore when the distribution of granule size, final moisture, bulk density, granule shape of finished product must be conformed to accuracy standard, the spray drying is an ideal process.
Industrial Spray Dryer Application
It's widely used in foodstuff and chemical industry, such as food flavour, egg powder, amino acid product, magnesium citrate, tea, herbal extract, beef powder, protein, maltodextrin, blood, starch, food ingredients, yeast, collagen, whey, Mg citrate, humic acid, ceramic powder, vitamin, urea resin, pectin, stevia, spirulina, microalgae, gum arabic, pigment, PAC, zinc sulfate, organic magnesium compounds, vegetable juice, coffee, creamer, coconut milk, gelatin etc.
Working Principle of Food Spray Dryer
After filtering and heating, the hot fresh air enter into the air distributor at the top of drying chamber, distributed in spiral
way uniformly from up to down. At the same time, the feeding liquid is pumped to the top atomizer, then be sprayed to extremely fine mist liquid drop. Through the short time of direct contact with hot air, the moisture evaporated at once, the solid remains to be powder. The dry powder will be discharged continuously from the bottom of drying tower and cyclone collector, the exhaust air will be discharged after cleaning.
way uniformly from up to down. At the same time, the feeding liquid is pumped to the top atomizer, then be sprayed to extremely fine mist liquid drop. Through the short time of direct contact with hot air, the moisture evaporated at once, the solid remains to be powder. The dry powder will be discharged continuously from the bottom of drying tower and cyclone collector, the exhaust air will be discharged after cleaning.
Technical parameter
Model | DLP-5 | DLP-25 | DLP-50 | DLP-100 | DLP-150 | DLP-200-5000 | |||||
Inlet air temperature | ≤ 350°C | ||||||||||
Outlet air temperature | 80-90°C | ||||||||||
Evaporate capacity (kg/h) | 5 | 25 | 50 | 100 | 150 | 200-5000 | |||||
Atomizer type | compressed air drive | ||||||||||
Rotary speed | 25000 | 22000 | 21500 | 18000 | 18000 | 15000 | |||||
Diameter of atomizer disc (mm) | 120 | 120 | 150 | 180=500 | |||||||

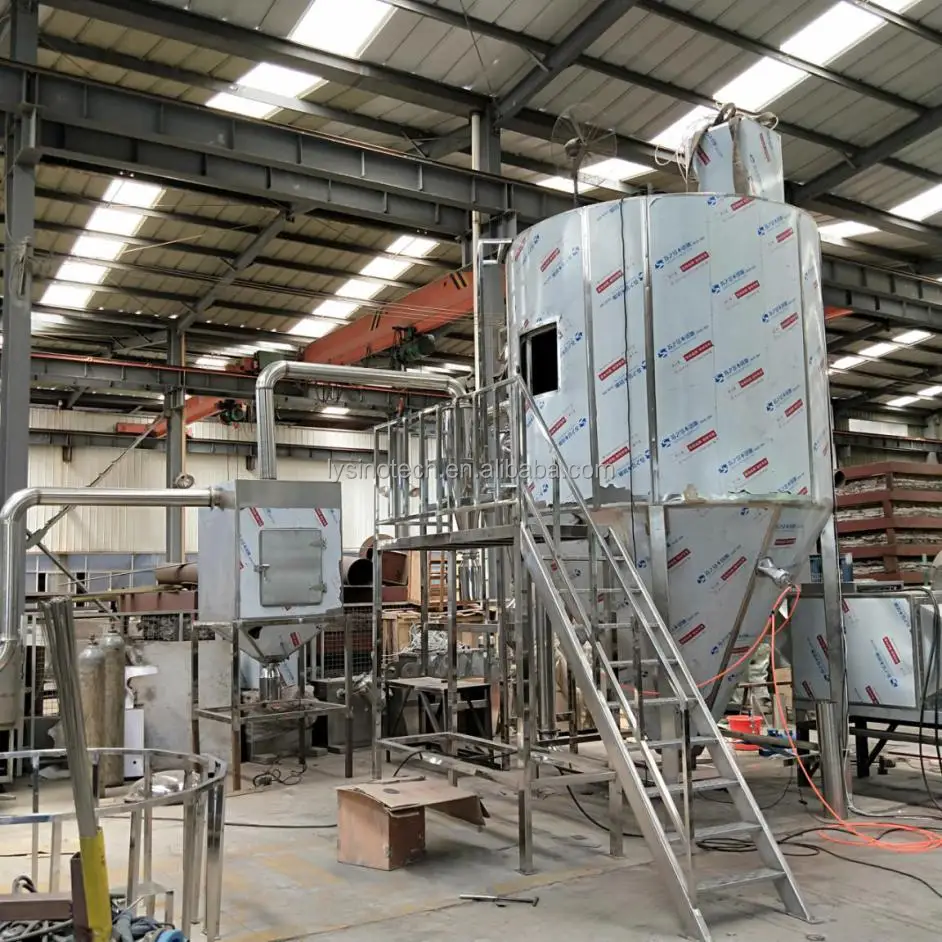

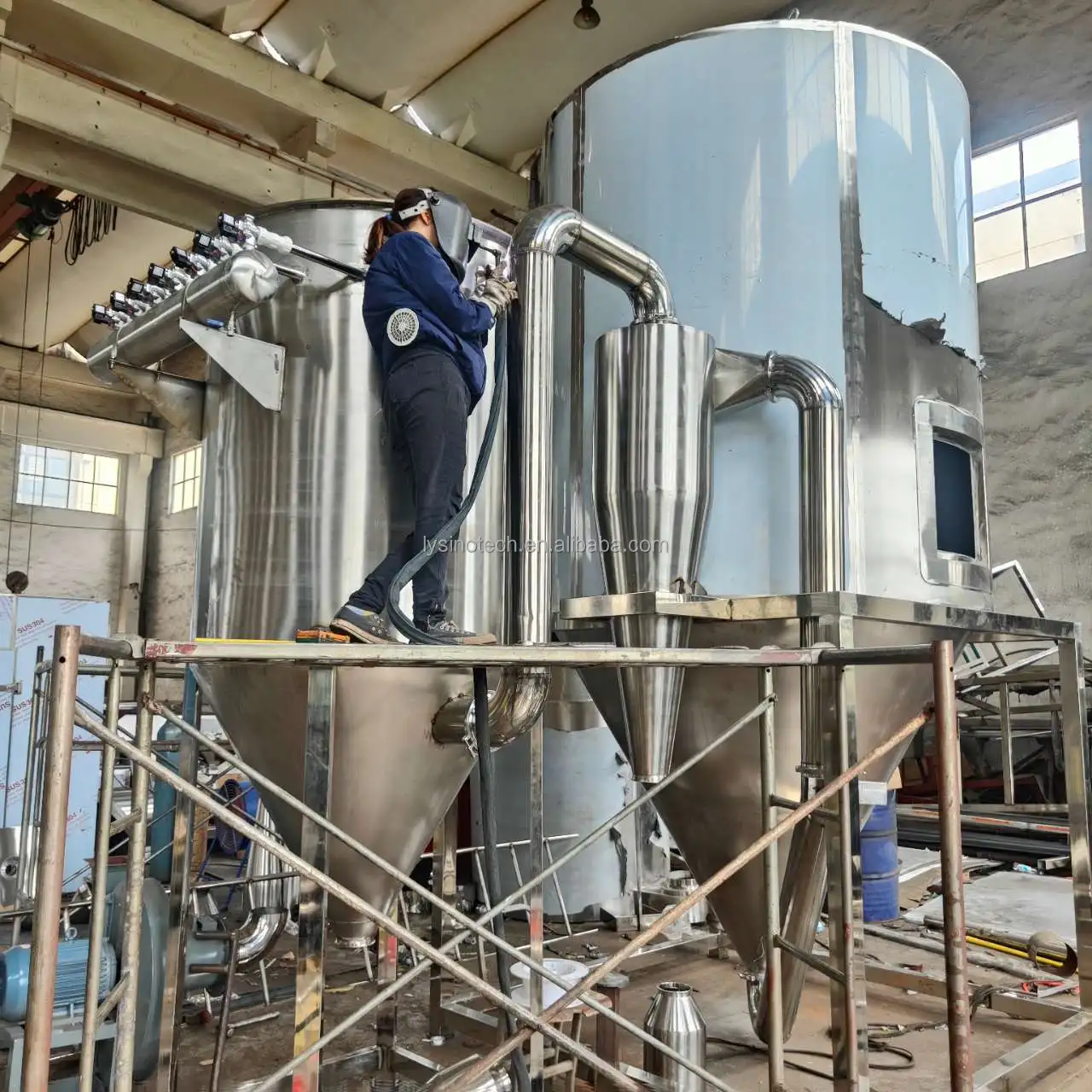

Details Images
Seiko material
Precision work ,low cost and high reliability
Quality Assurance
Reliable quality, assured to buy
Factory outlet
Manufacturer direct to sell, no middlemen , quality assurance
Our company
Customer Photos
FAQ
Q1:Are you a factory or trading company?
We are the manufacturer, and have been in industry for more than ten years.
Q2:What is your company service?
1.SINOTECH provide one-stop service(pre-sale,production,packing&after-sales) and we have independent R&D and design team to help customer solve pre-sale questions what they concern about.
2.At the same time,we will combine our own equipment to demonstrate to customers at sight.During the equipment production process,we will continue to contact customers,and double confirm question.
3.When machine finish production,we will show customers for final confirmation. For Package,we will adopt to
standardwoodencase,also will make waterproof treatment inside.
Q3:Do you have quality warranty?
Yes,we provide quality warranty 1 year under normal conditions,and we will provide extra spare parts for new customer.
At the time,batch purchase our company equipment,we will provide 2-3 years warranty.
Q4:Can you make products with our brand?
Sure
