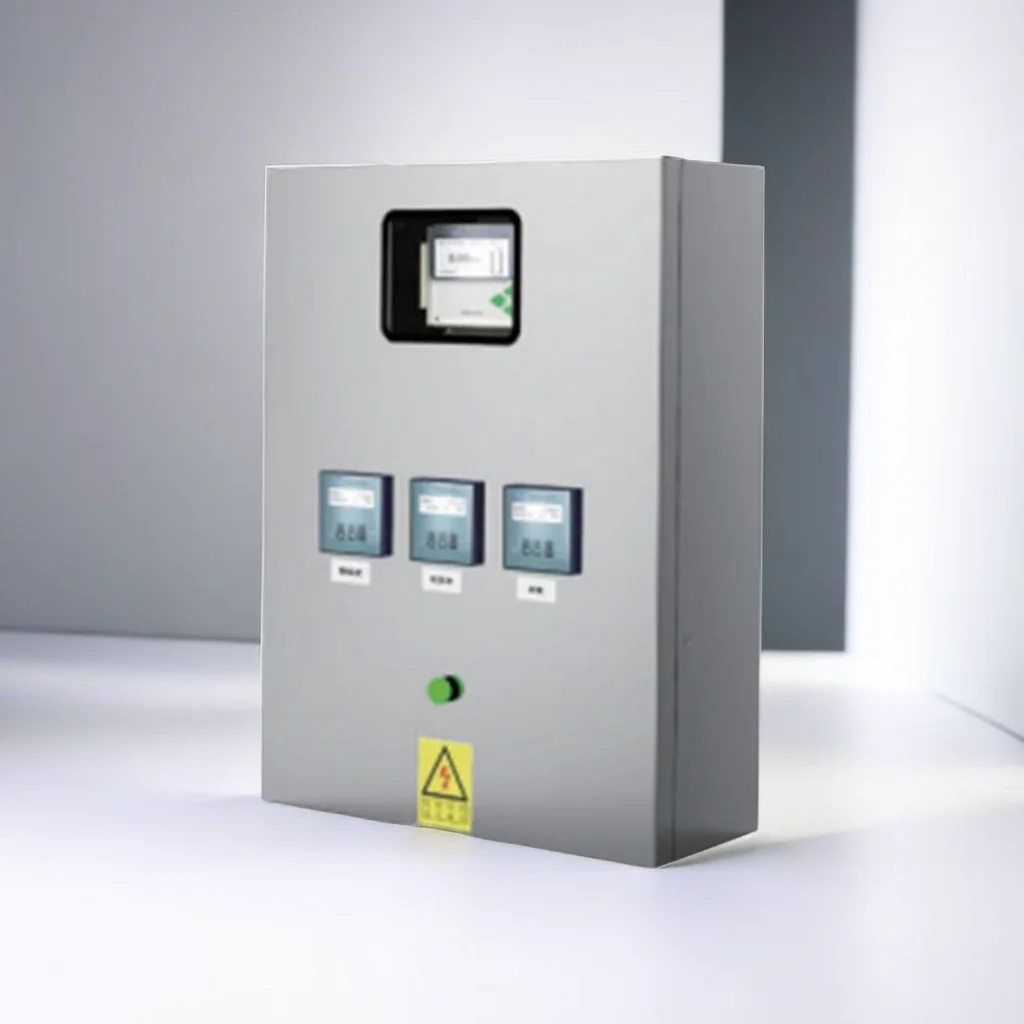

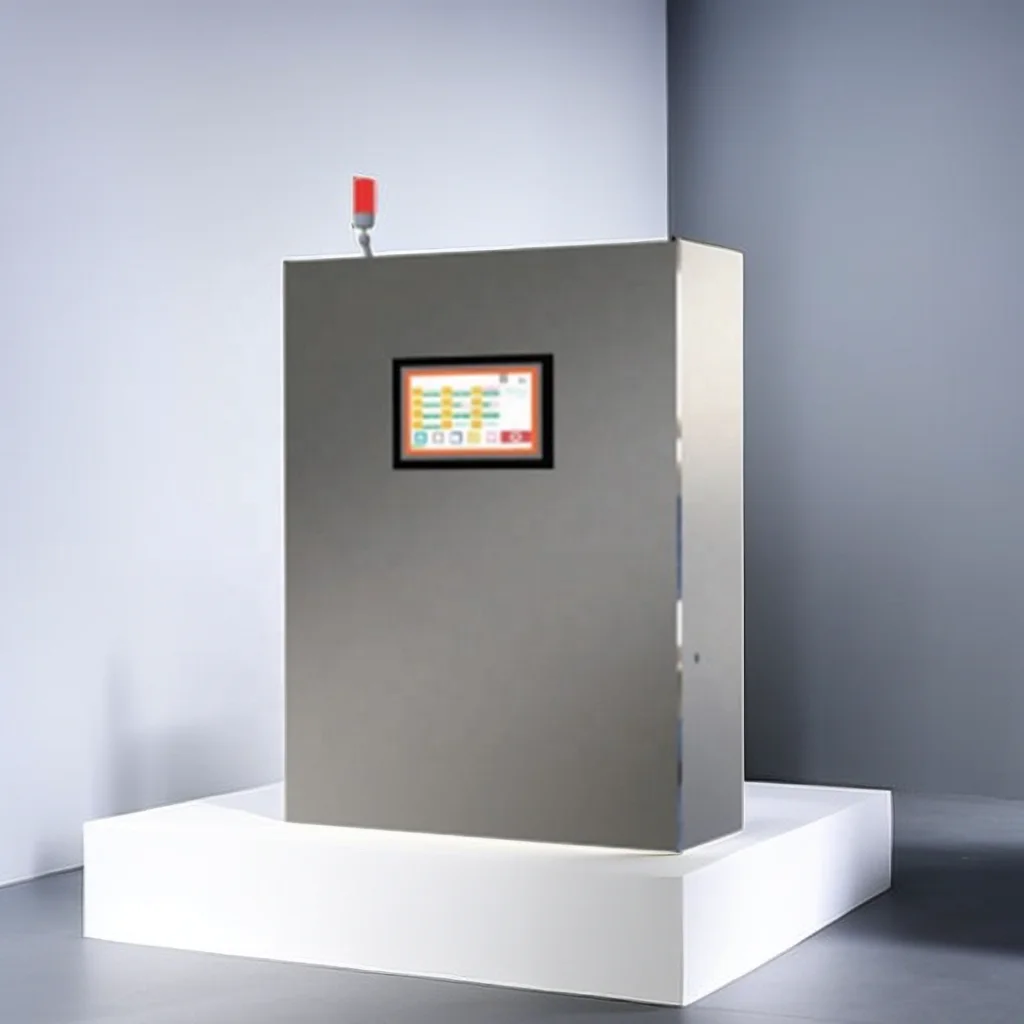

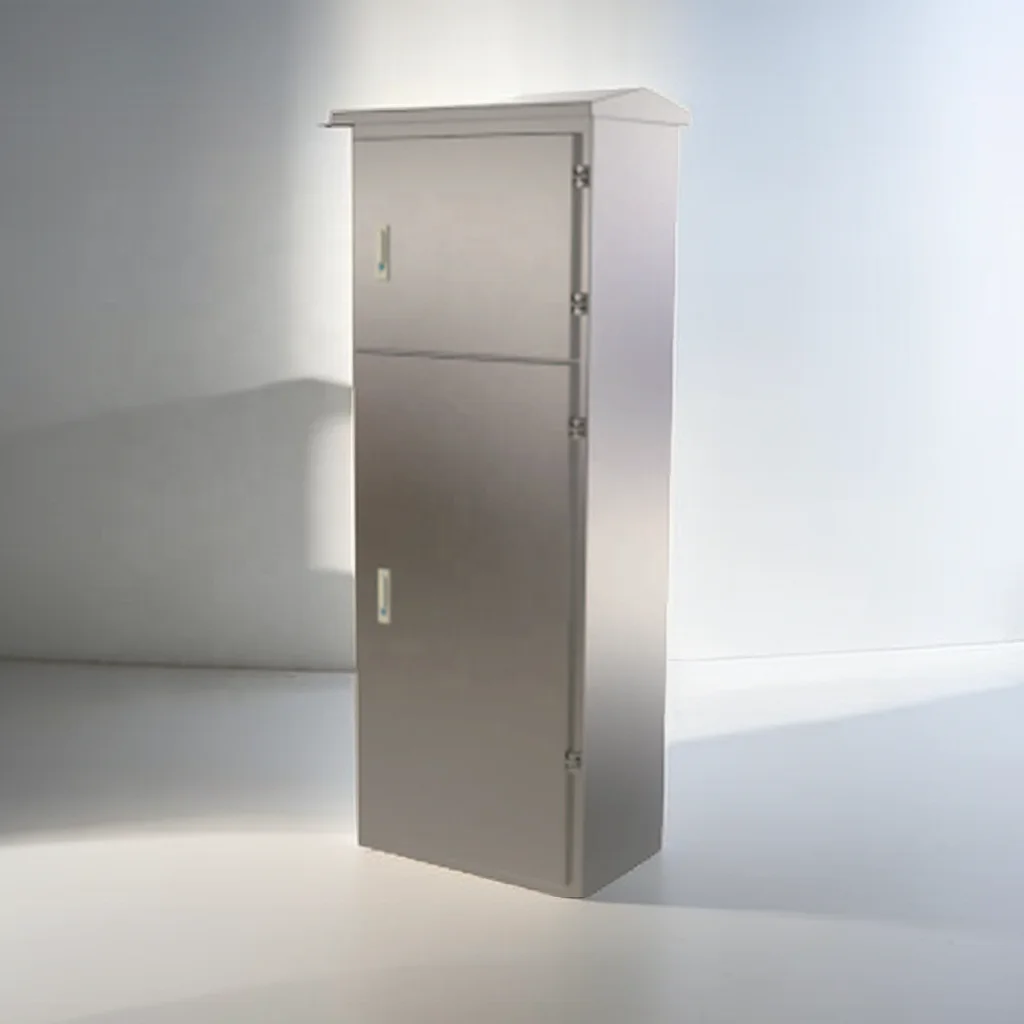

Water Treatment Multi Parameter Stainless Steel Outdoor Cabinet Water Quality Online pH Meter ORP MLSS DO TDS FCL Analyzer
- Category: >>>
- Supplier: Huzhou Xianhe Instrument Technology Co. Ltd.
Share on (1600959378408):
Product Overview
Description
Products Description
1. The description of Multi Parameter Online Water Quality Analyzer :
It can measure single parameter, double parameter and multi-parameters, with high measurement accuracy, simple operation of the practical characteristics. At the same time, the following parameters can be measured: pH/ORP, conductivity, TDS total dissolved solid, residual chlorine, dissolved oxygen, turbidity, sludge concentration, and temperature.

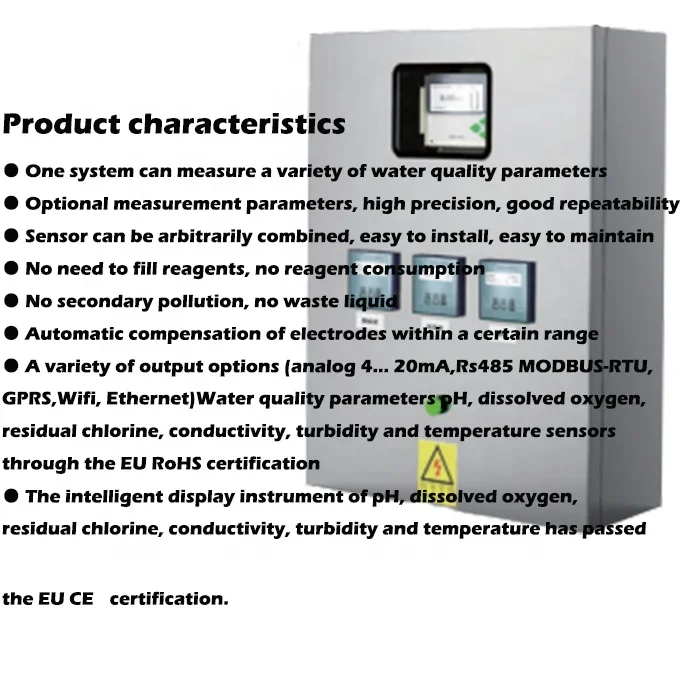

2. The Features of Multi Parameter Online Water Quality Analyzer:
● One system can measure a variety of water quality parameters;● Optional measurement parameters, high precision, good repeatability;
● Sensor can be arbitrarily combined, easy to install, easy to maintain;
● No need to fill reagents, no reagent consumption;
● No secondary pollution, no waste liquid;
● Automatic compensation of electrodes within a certain range
● A variety of output options (analog 4-20mA,RS485 MODBUS-RTU, GPRS ,Wifi, Ethernet)Water quality parameters pH, dissolved oxygen, residual chlorine, conductivity, turbidity and temperature sensors, passed the EU ROHS certification;
● The intelligent display instrument of pH, dissolved oxygen, residual chlorine, conductivity, turbidity and temperature has passed the EU CE certification.
Product Details
1.PH acid and alkali | pH Measuring range | -2---16.00 pH | |
pH Resolution | 0.01 pH | ||
Measurement accuracy | ±0.01 pH | ||
Temperature compensation function | Auto/Manual | ||
2.ORP oxidation-reduction reaction | Measuring range | -2000---2000 mV | |
Reduction Resolution | 1 mV | ||
Measurement accuracy | ±1mV | ||
3.DO Dissolved oxygen | Measuring range | 0.00---400mg/L, 0.00---40mg/L | |
Resolution | 0.1%, 0.01mg/L | ||
Measurement accuracy | ±0.2%FS | ||
Temperature compensation function | Auto/Manual | ||
4. EC Conductivity | Measuring range | 0.00μs/cm---20.00 mS/cm | |
Conductivity Resolution | 0.01μS/cm---0.01 mS/cm | ||
Measurement accuracy | ±0.5% FS | ||
Temperature compensation function | Auto/Manual | ||
5. TDS Total Dissolved Solids | Measuring range | 0.00---20.00 ppm | |
TDS Resolution | 0.01 ppm | ||
Measurement accuracy | ±0.5%FS | ||
Temperature compensation function | Automatic/manual | ||
6. FCL Residual Chlorine | Measuring range | 0.00---20.00 mg/L | |
FCL Resolution | 0.01mg/L | ||
Measurement accuracy | 2% or ±10 ppb max. | ||
Temperature compensation function | Automatic/manual | ||
7. SS Suspended solid | Measuring range | 0---500NTU | |
SS Resolution | 0.01NTU | ||
Measurement accuracy | ±1.0% FS | ||
8. MLSS Mixed Liquor Suspended Solids | Measuring range | 0---30000mg/L | |
MLSS Resolution | 0.01mg/L | ||
Measurement accuracy | ±0.01%FS | ||
9. TEMP. Temperature | Measuring range | 0---100℃ | |
Temperature Resolution | 0.2℃ | ||
Measurement accuracy | ±0.01 | ||
Current signal Output | 4...20mA adjustable | ||
Load 750 Ω | |||
Up to 8 simultaneous outputs | |||
Relay | Output Control mode | 8 SPST relays | |
Load capacity | 5A 250VAC/5A 30VDC | ||
Data communication | RS485(Modbus) | Option | |
Multi-motion GPRS | Option | ||
Unicom GPRS | Option | ||
Telecom GPRS | Option | ||
NB-IOT | Option | ||
Ethernet port | Option | ||
Power supply | City power | AC 220V/20W | |
Solar Battery | DC 24V /15W | ||
Others Current failure protection Option | Electric current quick break shield | Option | |
Sampling function | Option | ||
Washing function | Option | ||

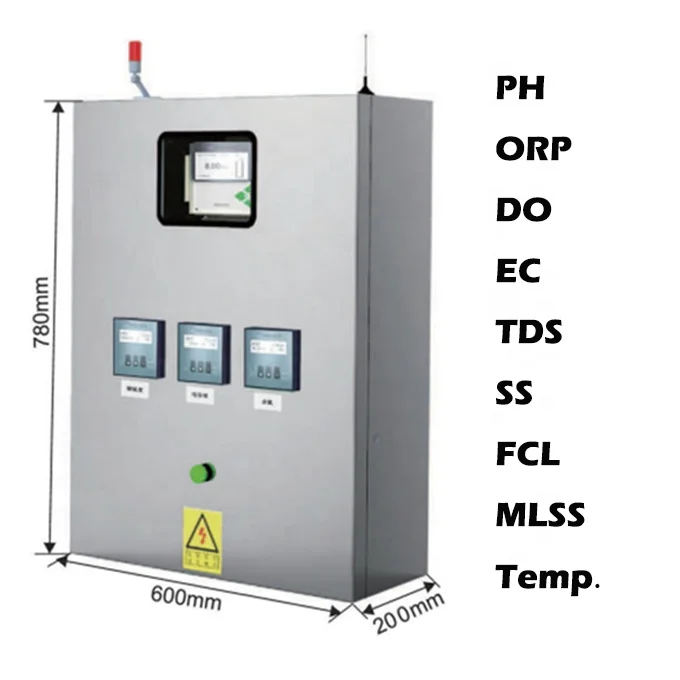

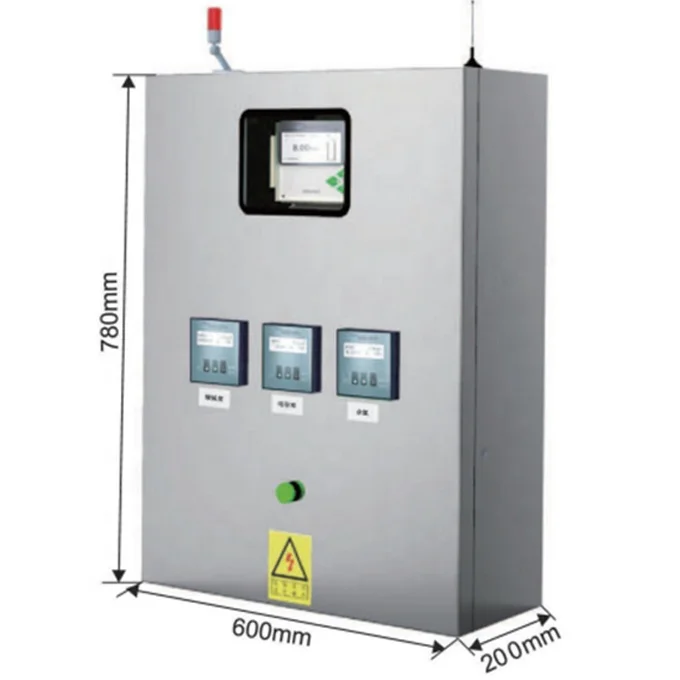

Installation method | Stainless steel control cabinet wall-mounted indoor installation | ||
Fixed ways | Screw fixing | ||

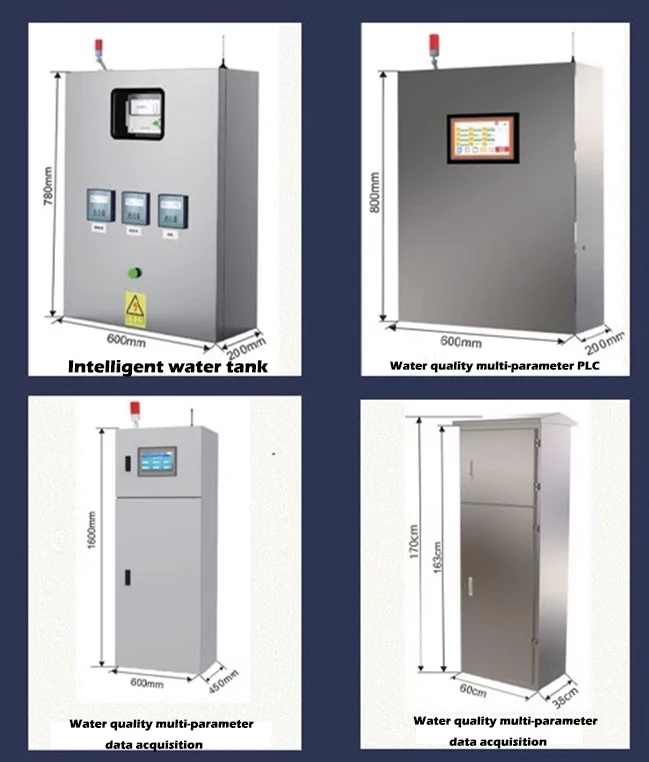

Dimension | 780*600*200 mm(H*W'D) | ||
Weight | 20kg | ||
The Application of Multi Parameter Online Water Quality Analyzer:
★Secondary water supply;
★Surface water;
★Aquaculture Farming;
★Drinking water;
★Tap & River & Lake & Sea water quality monitoring;
★Environmental water discharge monitoring;
★Point source solution monitoring;
★Wastewater treatment works;
★Diffuse pollution monitoring;
★Tap & River & Lake & Sea water quality monitoring;
★Environmental water discharge monitoring;
★Point source solution monitoring;
★Wastewater treatment works;
★Diffuse pollution monitoring;
★Groundwater water quality monitoring etc.

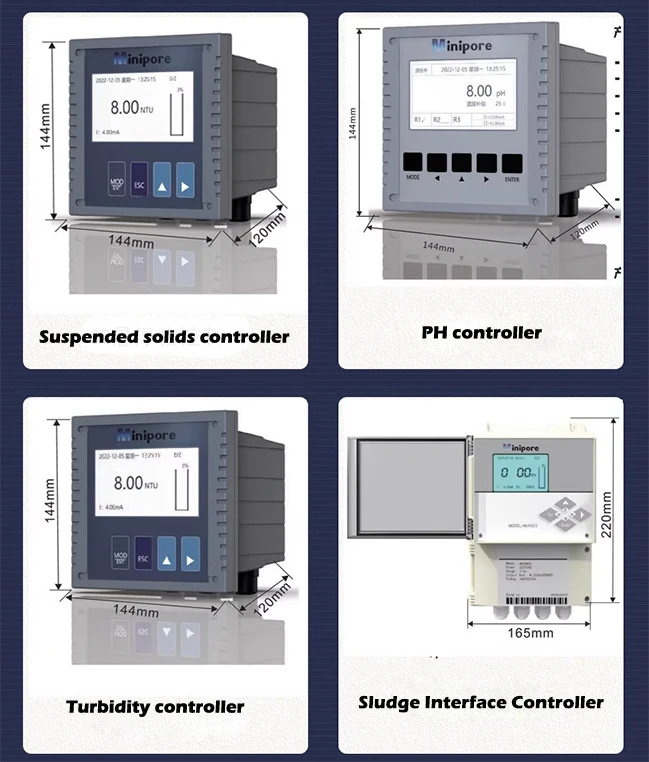

Related products

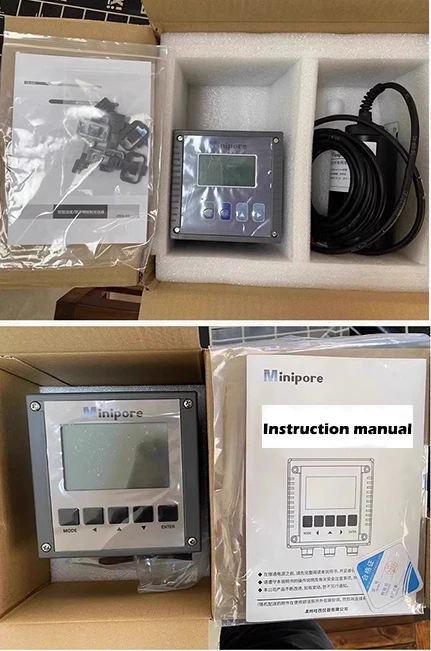

Real pictures show:
Exhibition & Workshop
Shanghai Aqua-tech water exhibition(6th-9th, June, 2023)
Indonesia water exhibition(29th, August-1th, September, 2023)
Why Choose Us
Company Profile
HUAMO MembranceTeam started in Silicon Valley by a group of scientists, engineers and market specialists who are highly motivated, innovative, experienced and knowledgeable in water treatment, filtration and separation technologies. HUAMO Membrane specializes in the development of Ultrafiltration membrane, Reverse Osmosis, Nano filtration membranes and Sea Water membranes for a wide range of industrial applications. HUAMO products are used in chemical&petrochemical, power generation, municipal, food and beverage, oil &gas, dyeing& printing, pulp &paper industries as well as specialty& custom needs.

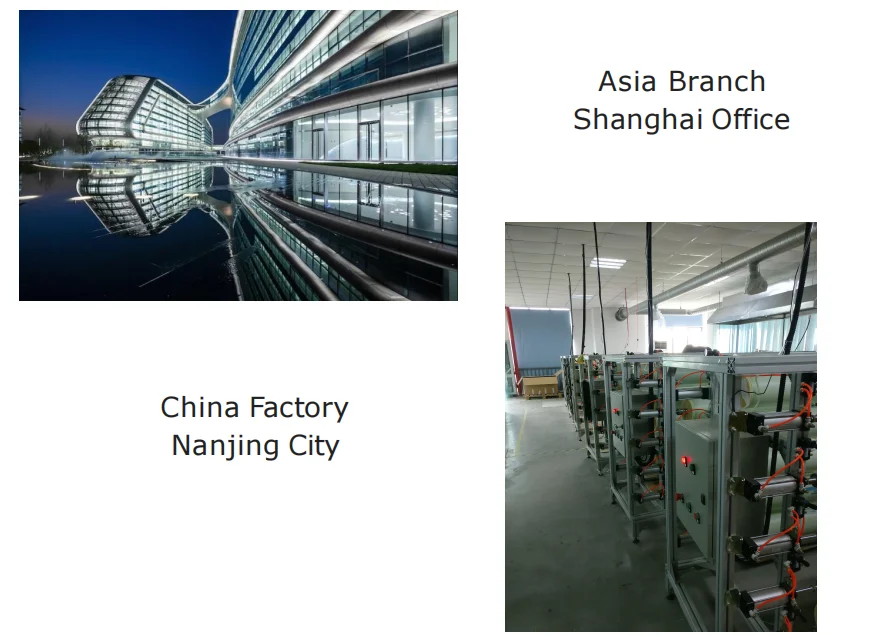

Headquarter in Quanzhou, China
Started by a group of former Koch&Dow experts,set membrane branch in 2013.Huamo markets are developing:USA,Italy,Mexico, Netherlands, China, Middle East,India,Vietnam.......
Asia branch office in Shanghai
By 2020,Huamo had more than 1,000 big plants all over the world,including US, China, Italy, Netherlands, Uzbekistan,Korea,etc.
FAQ
Q:1. Do you provide OEM service?
A:Yes. Any required logo is available.
Q2. Are you trading company or manufacturer?
A: We are truely manufacturer. Huamo Group is super-big group company in China, and we have thousands of waste and pure water treatment products who supports one-stop purchasing. All price are reasonable, and quality is in premier level.
Q3. How could we trust your company by the first time transaction?
A:Trade assurance is supported. We are a company which has more than 20 years history, and the products are popular in domestic and overseas.
Q4. What can we buy from you except for water analysis instruments?

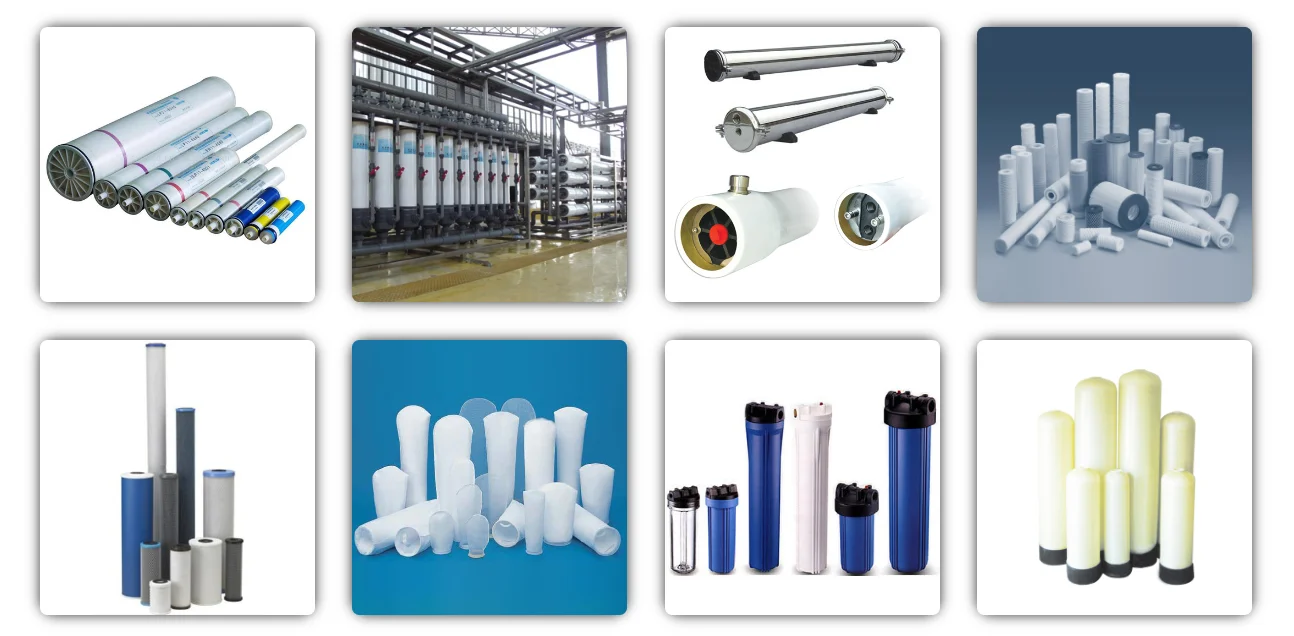

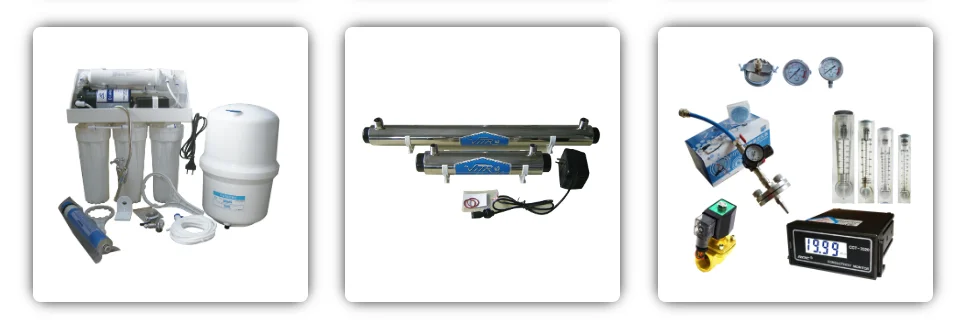

A: UF membrane and UF equipments, RO membrane and RO equiments, MBR membrane, Membrane housing，SS tank and FRP tank, EDI and EDI equipment, ultraviolet sterilizer, kind of water treatment resin, dosing tank and dosing pump and many other water treatment products.
