Product Overview
Description
* NOTE: Before to place order, pls contact with us, to confirm the working frequency and communication interface that you need. Thank you!

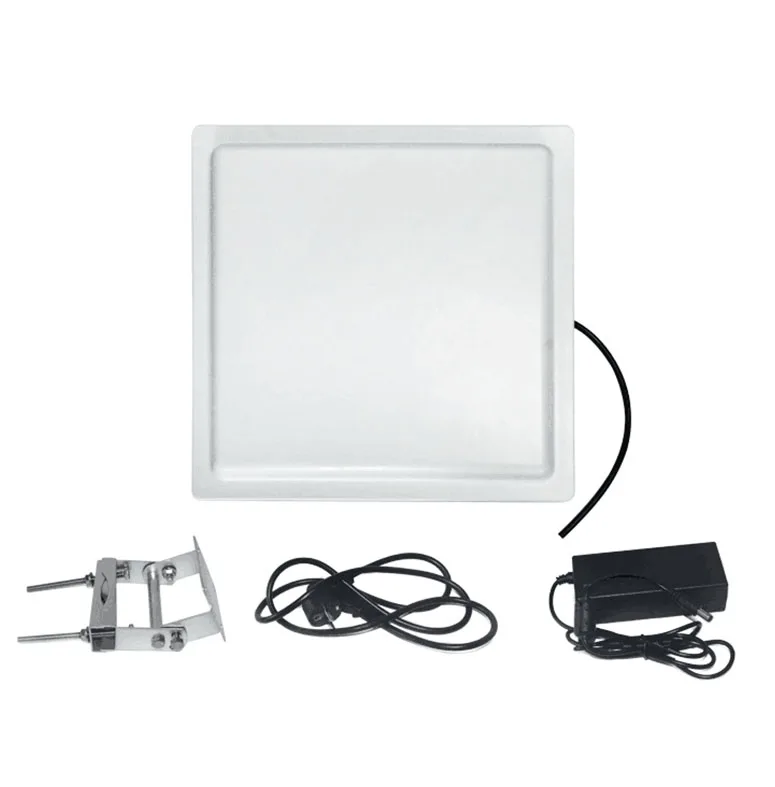

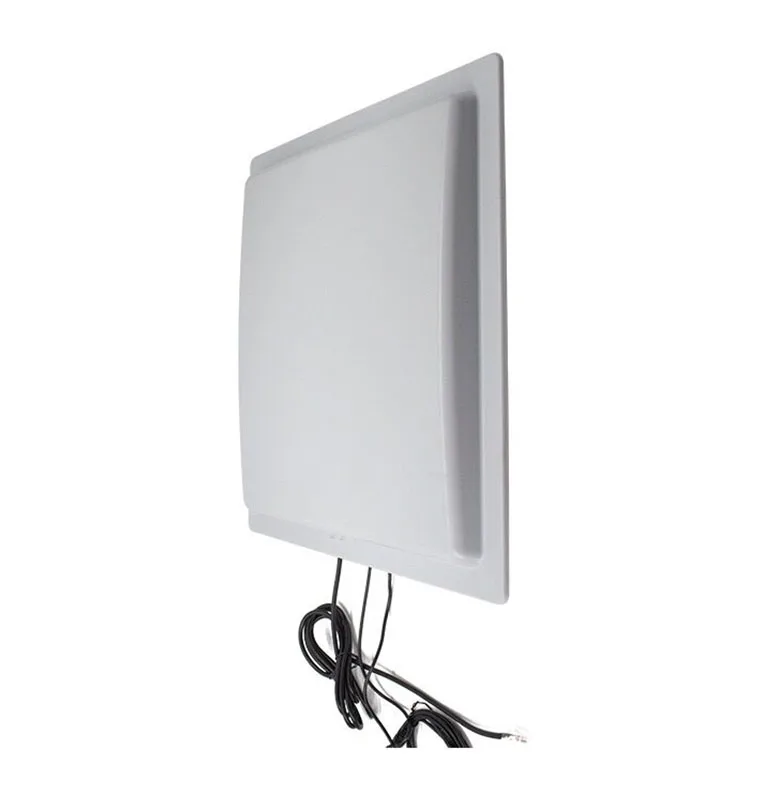

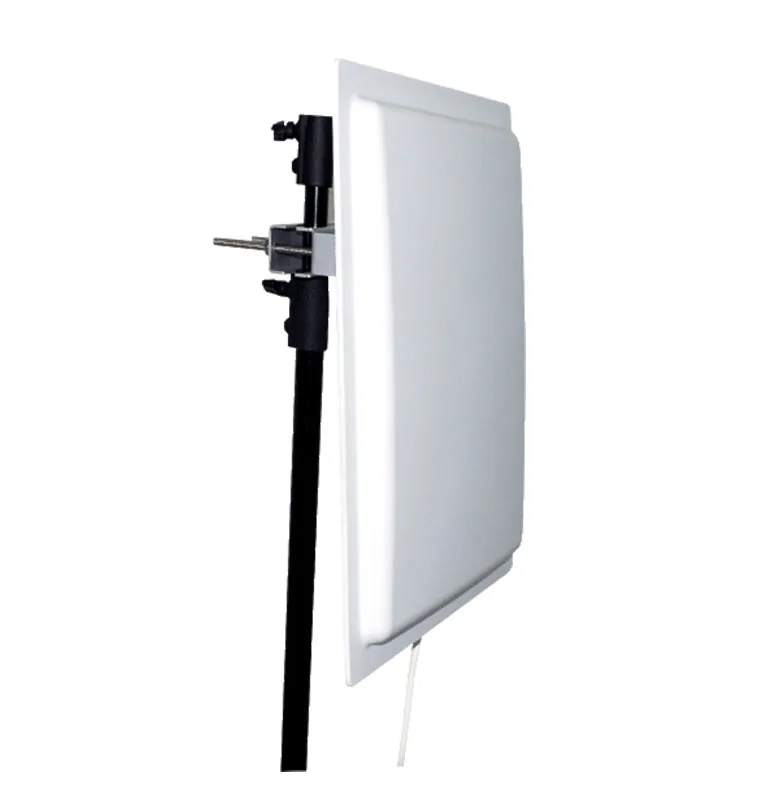

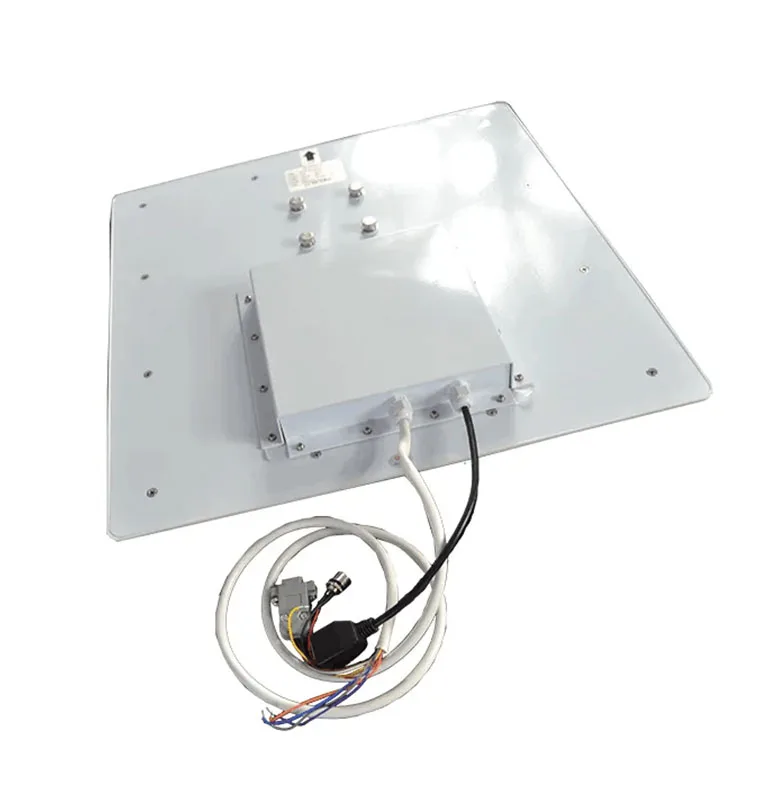

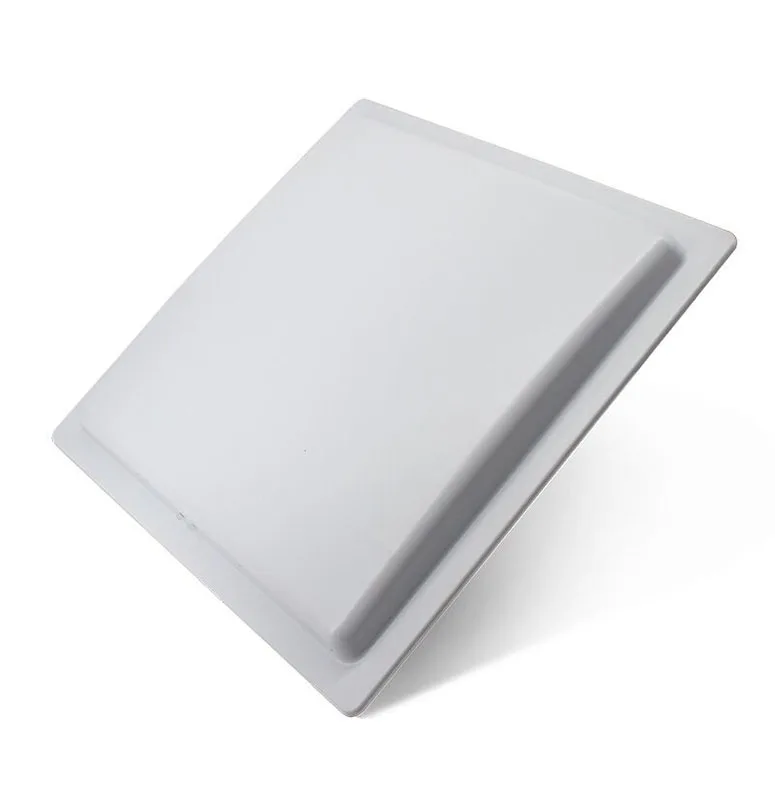

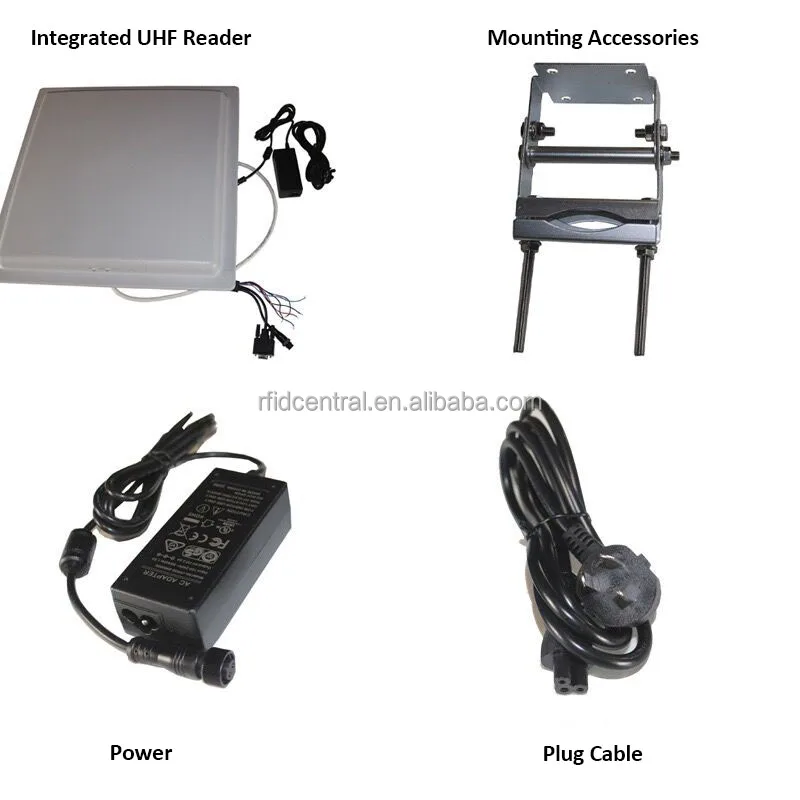

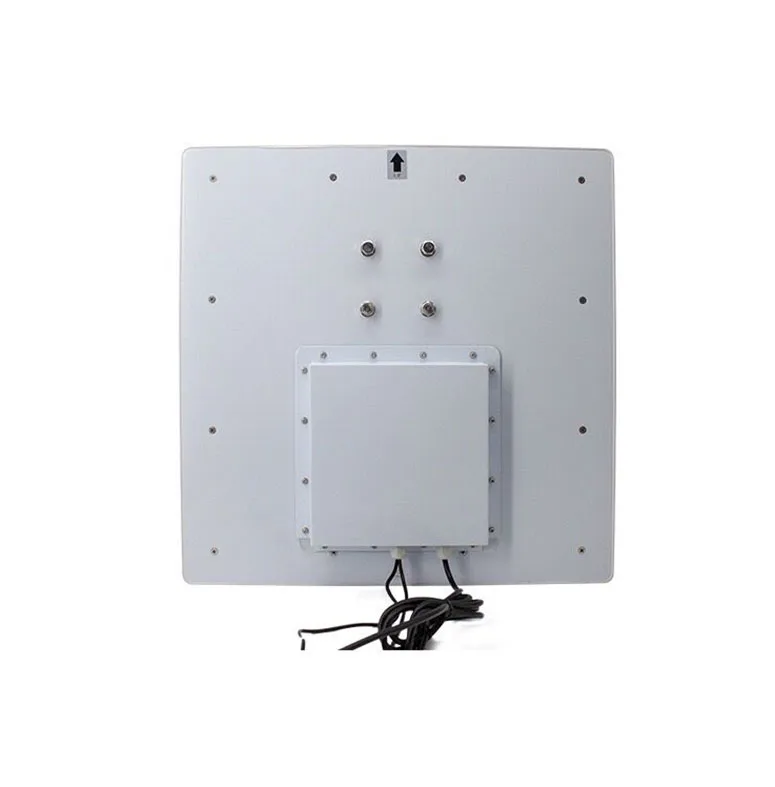

ZK102 UHF Integrated RFID Reader
ZK102 -12dbi is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, and anti-counterfeit and industrial production process control system.
Feature
* Self-intellectual property;
* Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;

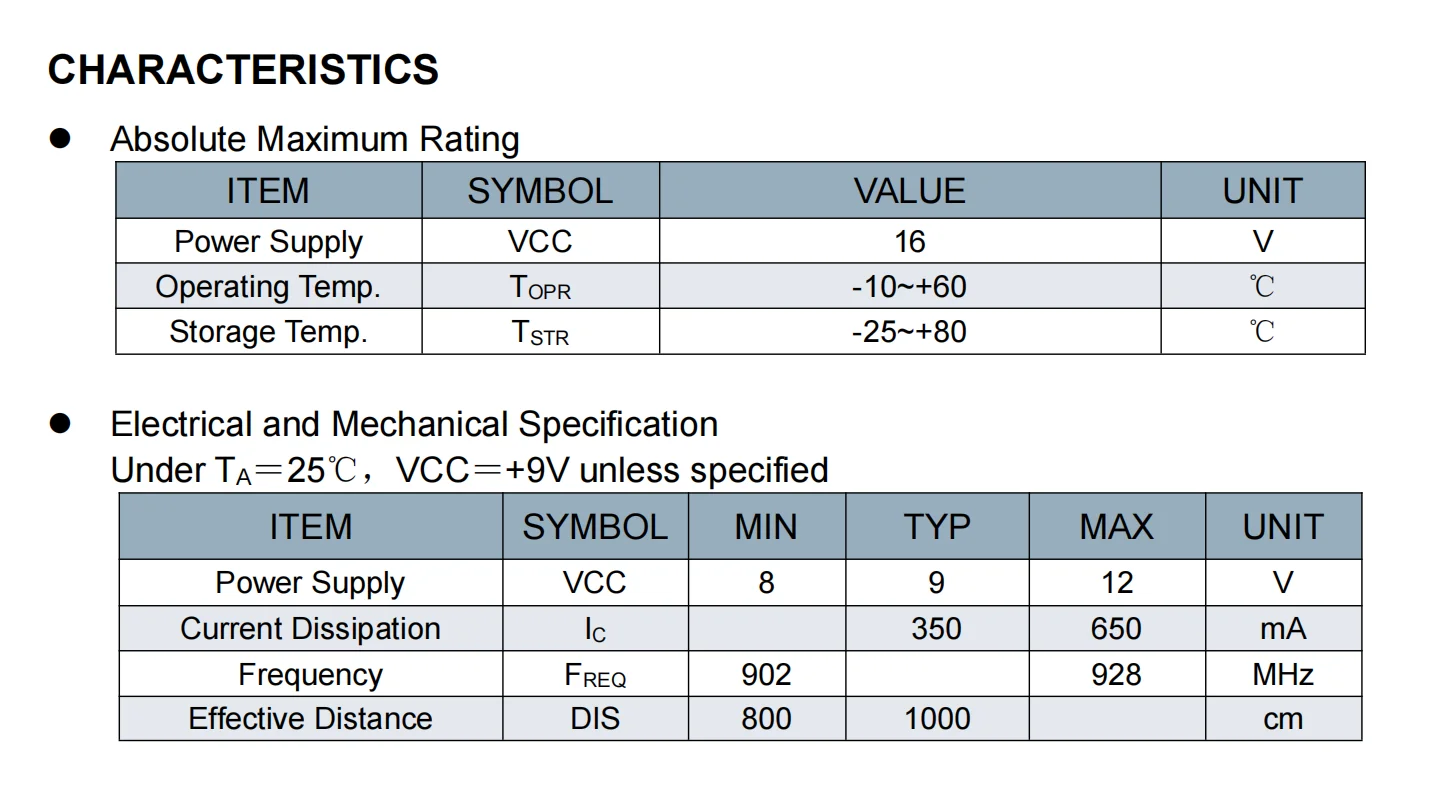

* 902~928MHz frequency band(frequency customization optional);
* FHSS or Fix Frequency transmission;
* RF output power up to 30dbm(adjustable);
* 12dbi antenna optional with effect distance more than10m*;
* Support auto-running, interactive and trigger-activating work mode;
* Low power dissipation with single +9V DC power supply;

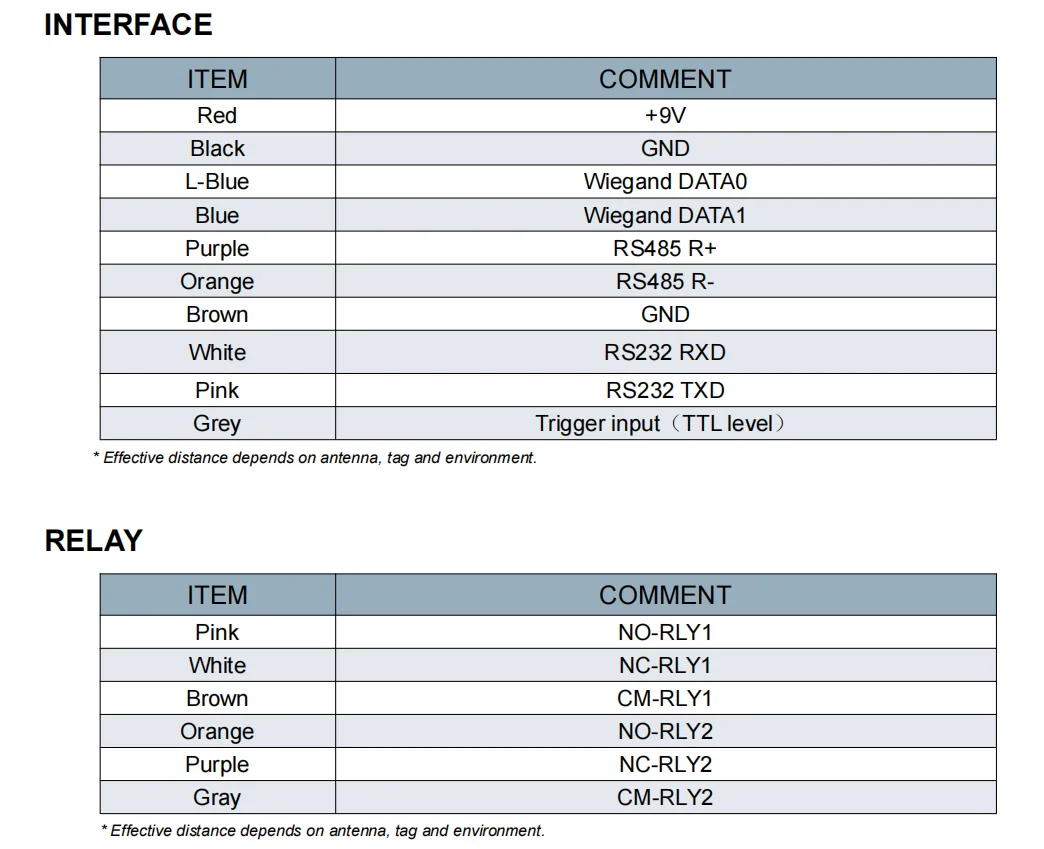

* Support RS232, RS485, Wiegand interface;
* Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;
* 902~928MHz frequency band(frequency customization optional);
* FHSS or Fix Frequency transmission;
* RF output power up to 30dbm(adjustable);
* 12dbi antenna optional with effect distance more than10m*;
* Support auto-running, interactive and trigger-activating work mode;
* Low power dissipation with single +9V DC power supply;
* Support RS232, RS485, Wiegand interface;
* Ethernet, POE, WIFI are optional
* Provide DLL and Demonstration Software Source code to facilitate further development.
* Provide DLL and Demonstration Software Source code to facilitate further development.
1.Intelligent traffic such as ETC;
2. Customs border-crossing;
3. Warehousing and logistics management: commodity flow and warehousing management and flow management of
mail, parcels, air baggage, etc;
4. automatic weighting;
5. Container management,pallet management , asset management ;
6. Ticketing& access control;
7. Pharmaceuticals such as medical waste management.
Application
Related Products
Company Introduction
FAQ
Q: Are you factory or trade company?
A: We are direct factory.
Q: Do you have stock for this reader?
A: Normally QTY less than 200pcs, we can ship in 5 days.
Q: How long is the reading distance of this integrated reader?
A: ZK102 with 12dbi antenna, which reading distance is up to 10 meters, depending on the tag size and using environment.
Q: What kind of interface does this read support?
A: Default interface: RS232, RS485, Wiegand26/34.
A: We are direct factory.
Q: Do you have stock for this reader?
A: Normally QTY less than 200pcs, we can ship in 5 days.
Q: How long is the reading distance of this integrated reader?
A: ZK102 with 12dbi antenna, which reading distance is up to 10 meters, depending on the tag size and using environment.
Q: What kind of interface does this read support?
A: Default interface: RS232, RS485, Wiegand26/34.
RJ45, POE, WIFI interface are optional.
Q: Which payment methods are available?
A: Trade assurance, Alipay, Credit Card, T/T, Paypal, Western Union, etc
Q: How fast it is for delivery?
A: By DHL/Fedex/UPS normally takes 4-6 working days.
Q: Which payment methods are available?
A: Trade assurance, Alipay, Credit Card, T/T, Paypal, Western Union, etc
Q: How fast it is for delivery?
A: By DHL/Fedex/UPS normally takes 4-6 working days.
