Close Cell Cross Linked Polyethylene Foam/xpe Foam/ixpe Foam Sheet
Close Cell Cross Linked Polyethylene Foam/xpe Foam/ixpe Foam Sheet
Close Cell Cross Linked Polyethylene Foam/xpe Foam/ixpe Foam Sheet
Close Cell Cross Linked Polyethylene Foam/xpe Foam/ixpe Foam Sheet
Close Cell Cross Linked Polyethylene Foam/xpe Foam/ixpe Foam Sheet
Close Cell Cross Linked Polyethylene Foam/xpe Foam/ixpe Foam Sheet
Close Cell Cross Linked Polyethylene Foam/xpe Foam/ixpe Foam Sheet

Close Cell Cross Linked Polyethylene Foam/xpe Foam/ixpe Foam Sheet

Share on (1600959397905):


Price:

Quantity:


Product Overview

Description



Product Description

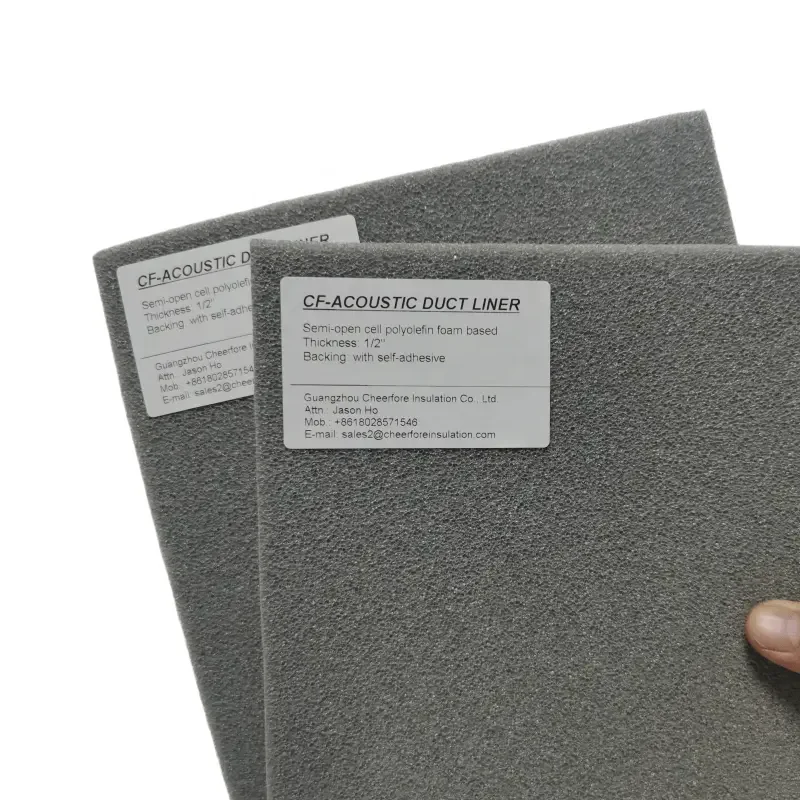

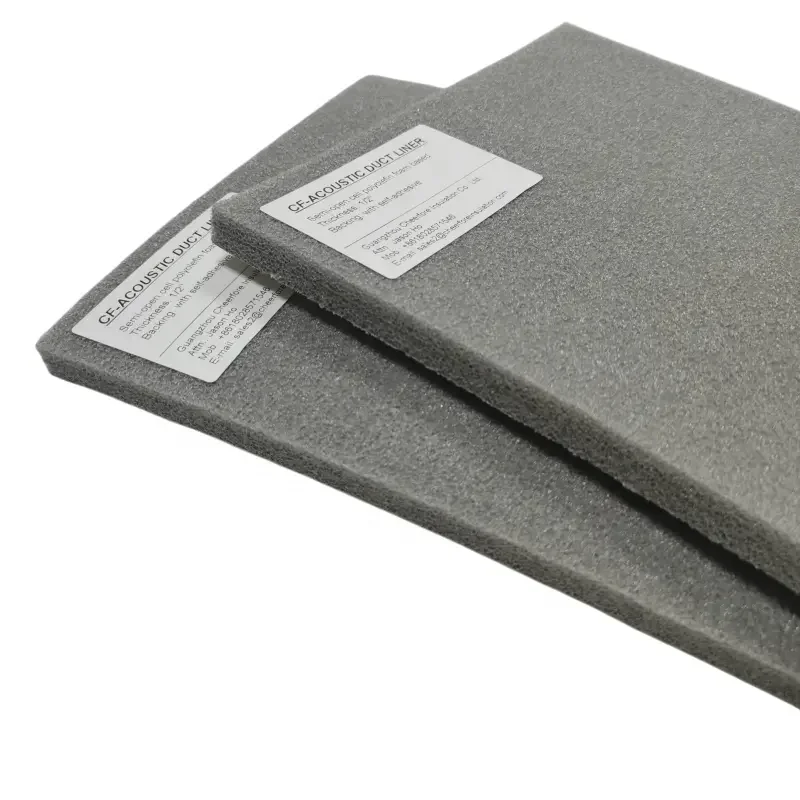

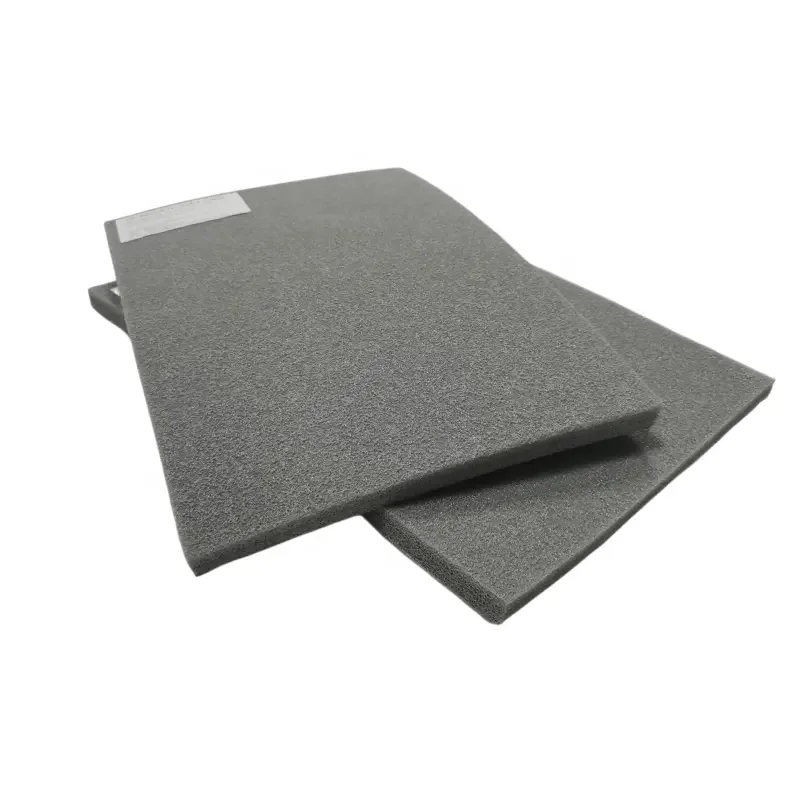

CF-XLPE Duct Liner is a flexible cross-linked semi open cell polyolefin foam with or without pressure sensitive adhesive on one side.
CF-XLPE Dudct liner is designed to reduce the sound pressure level inside air ducts, but it can be successfully used in oprating cabins, silencers, decompression boxes and all kind of casing. CF-XLPE Duct liner is free of harmful irritans making it safe to handle and install, and it is an inherently fire resistant and high temperature foam with excellent sound absorption properties.

Excellent sound absorption at low thickness.
Anti-microbial.
Specially designed for acoustic lining of air ducts.
AS 1530.3 fire rated
Both Anti-Microbial and low VOC for improved indoor air quality.
Fibre free, PVC-free, contains no added biocides.
Extremly light weight, durable and erosion resistant.

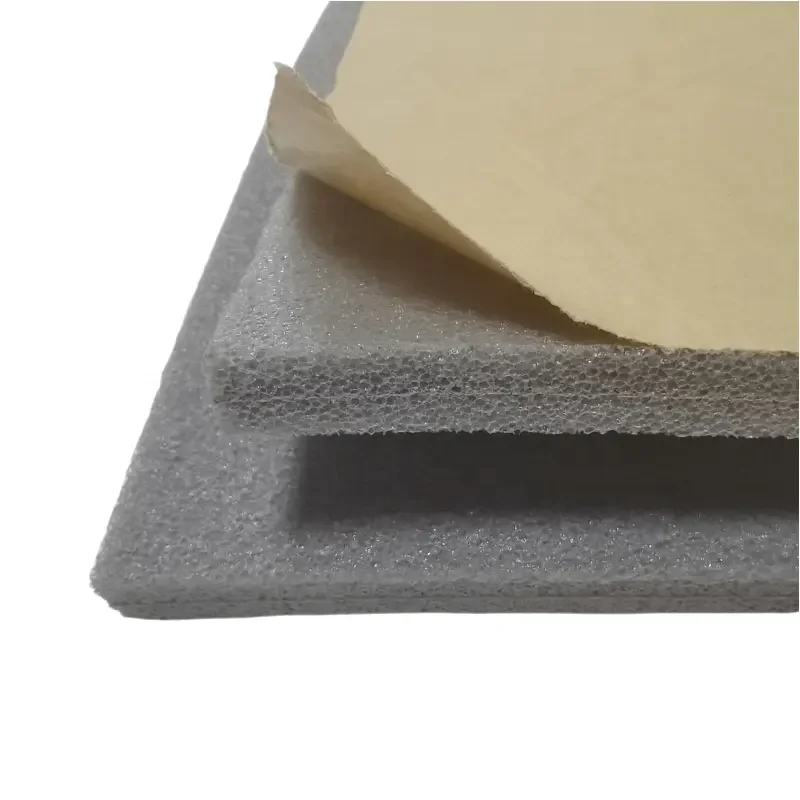

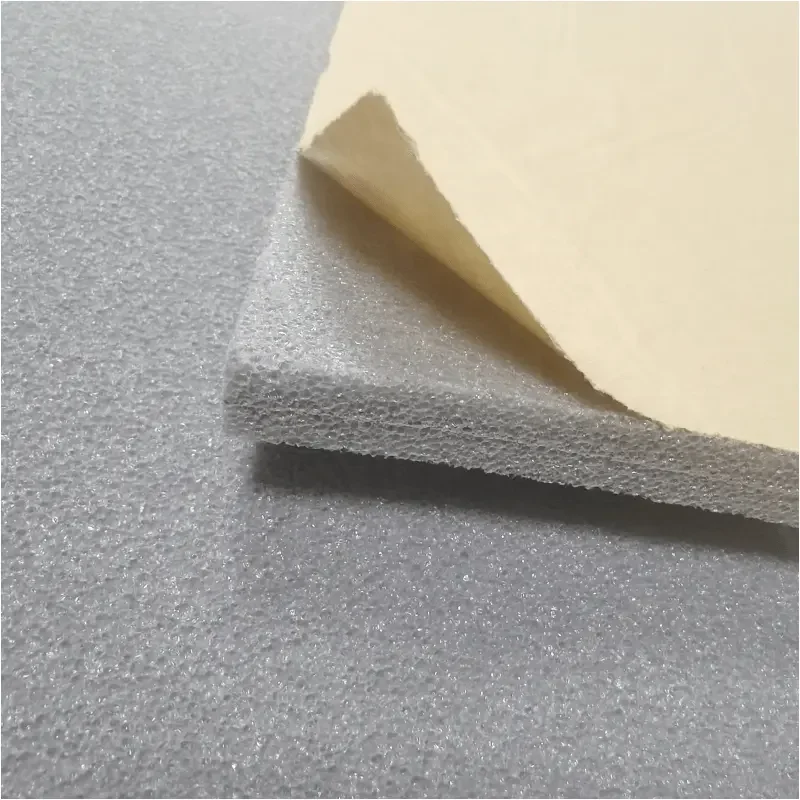

Supplied with factory applied adhesive
NRC: 0.20 (15 mm foam thickness)
NRC: 0.35 (25 mm foam thickness)
NRC: 0.40 (40 mm foam thickness)

Size availability:
15mm: rolls or sheets
25mm: rolls or sheets
40mm: sheets
Other thickness available on request




Specification


item
Application
HVAC system GI Duct Lining
Brand Name
CF
Type
Semi Open Cell Polyolefin Foam
Nosie reduction coeffient
0.20 (15mm thickness foam)
Foam density
28-32 kg/m3
Thermal conductivity
0.034 W/m*K
Resistant to Fungi
Excellent
Ozone resistant
Excellent
UV resistant
Excellent
Operating temperature
-80 to +100 ℃
Fire and smoke behavour
AS1530.3

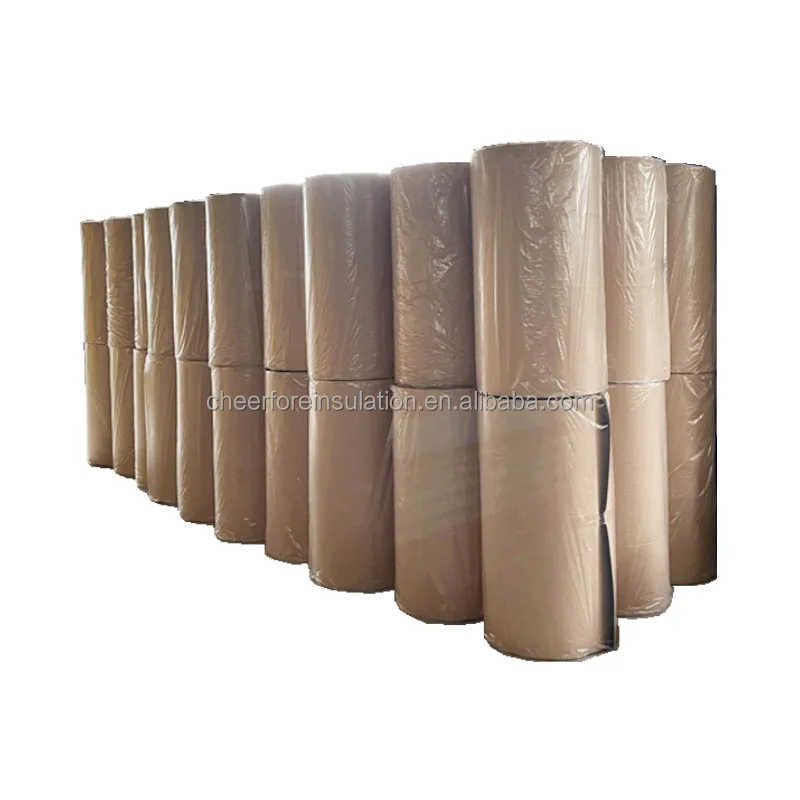

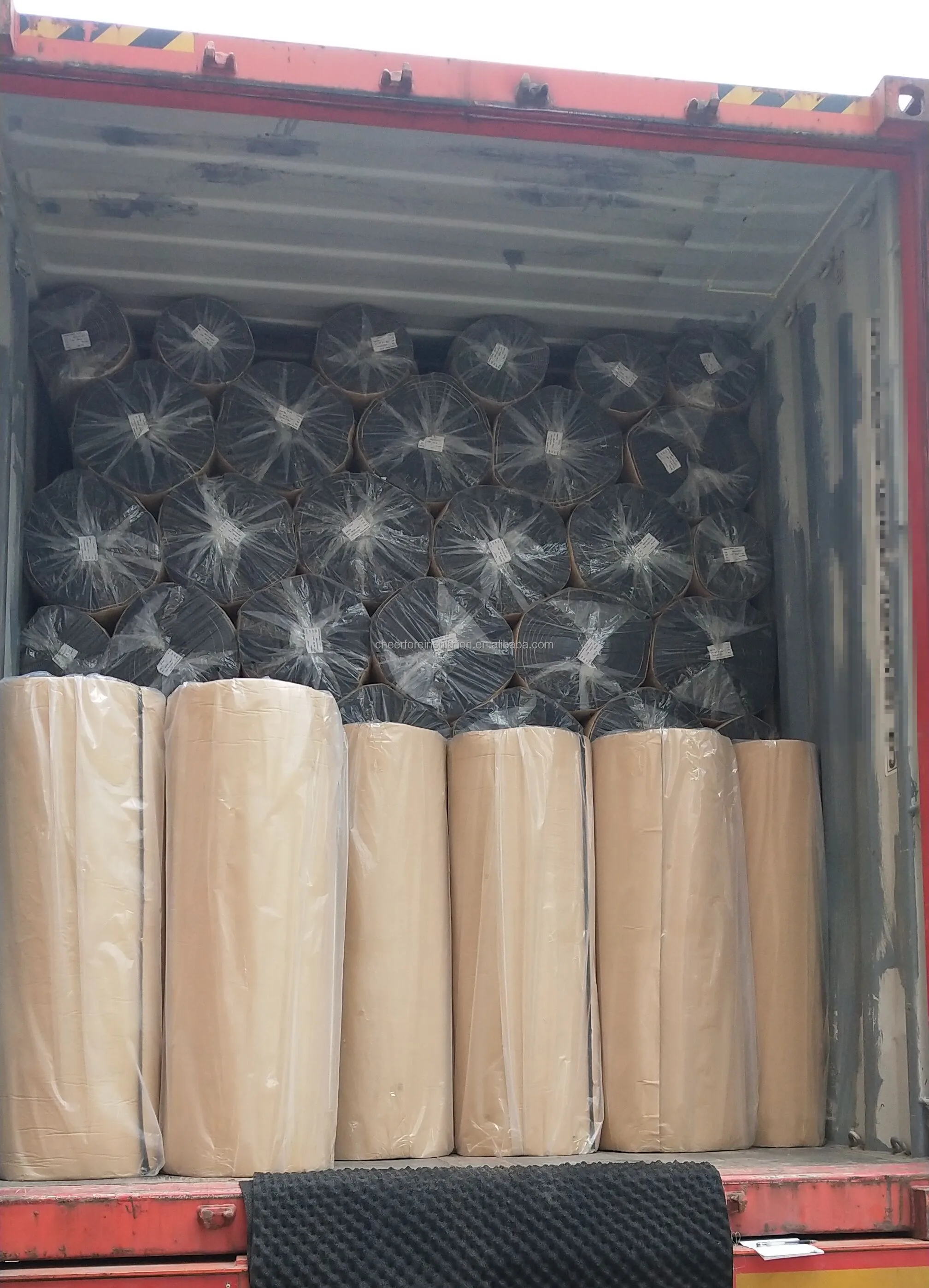

Packing & Delivery




By poly bags or cartons


Company Profile






Guangzhou Cheerfore Insulation Co., Ltd. endeavors in R&D and innovation of thermal insulation, acoustic insulation, vibration absorption and sealing materials since its foundation in 2006. We concentrate on thermal insulation products for power equipments and mechanical facilities, HVAC&R and construction works, etc, and acoustic and vibration insulation products for meeting room, anechoic room, industrial buildings, automobile industry, etc, and the relative accessories which to ensure the insulations work properly and efficiently.


FAQ


1. who are we?
We are based in Guangdong, China, start from 2014,sell to Domestic Market(70.00%),Southeast Asia(8.00%),Mid East(5.00%),North America(3.00%),South America(2.00%),South Asia(2.00%),Oceania(2.00%),Western Europe(2.00%),Eastern Asia(1.00%),Eastern Europe(1.00%),Southern Europe(1.00%),Northern Europe(1.00%),Central America(1.00%),Africa(1.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
PE Foam,NBR Foam,HVAC Insulation,Duct Insulation,Insulation

4. why should you buy from us not from other suppliers?
PROFESSIONAL MAKER AND EXPORTER OF KINDS OF INSULATION PRODUCTS IN CHINA

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,French
