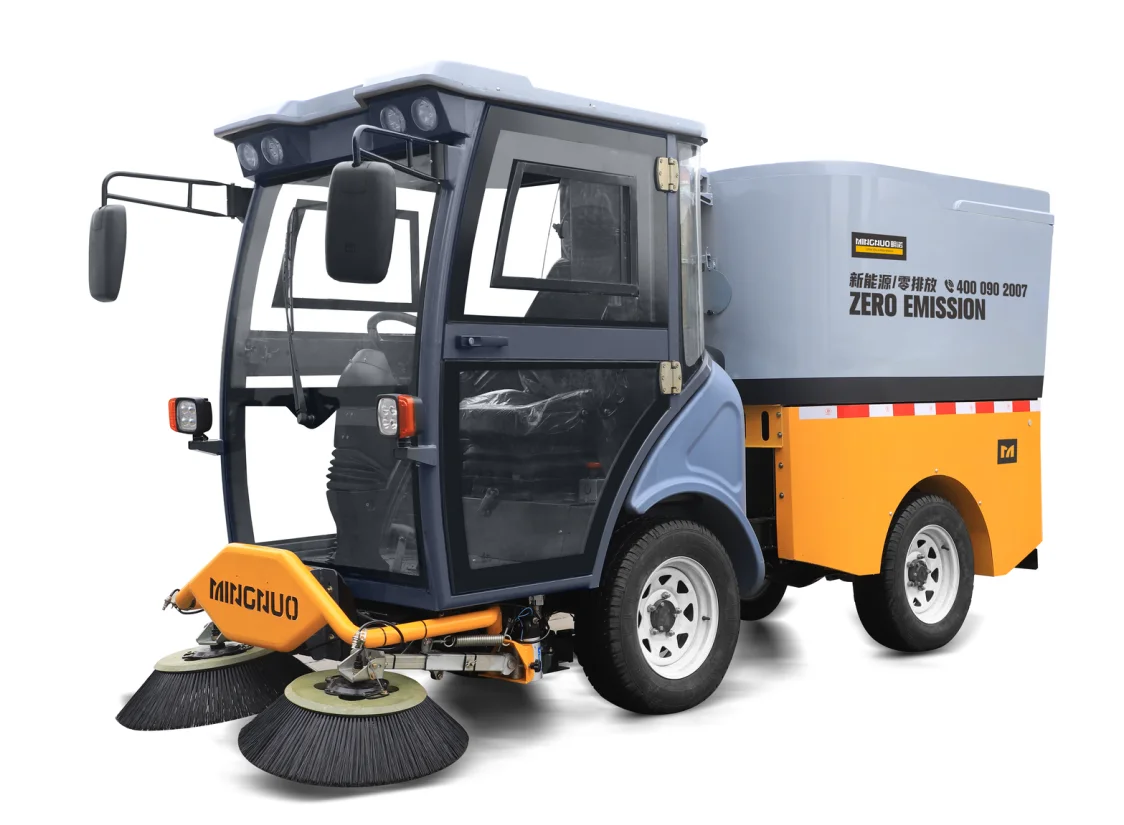

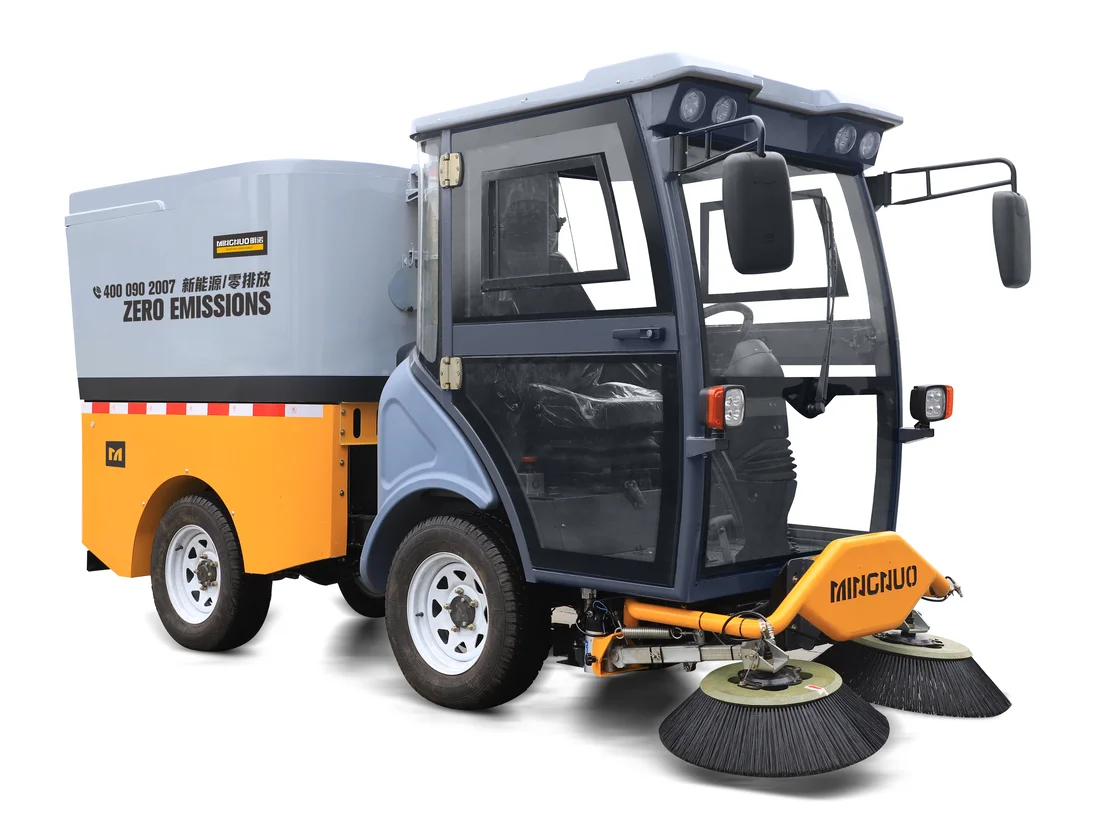

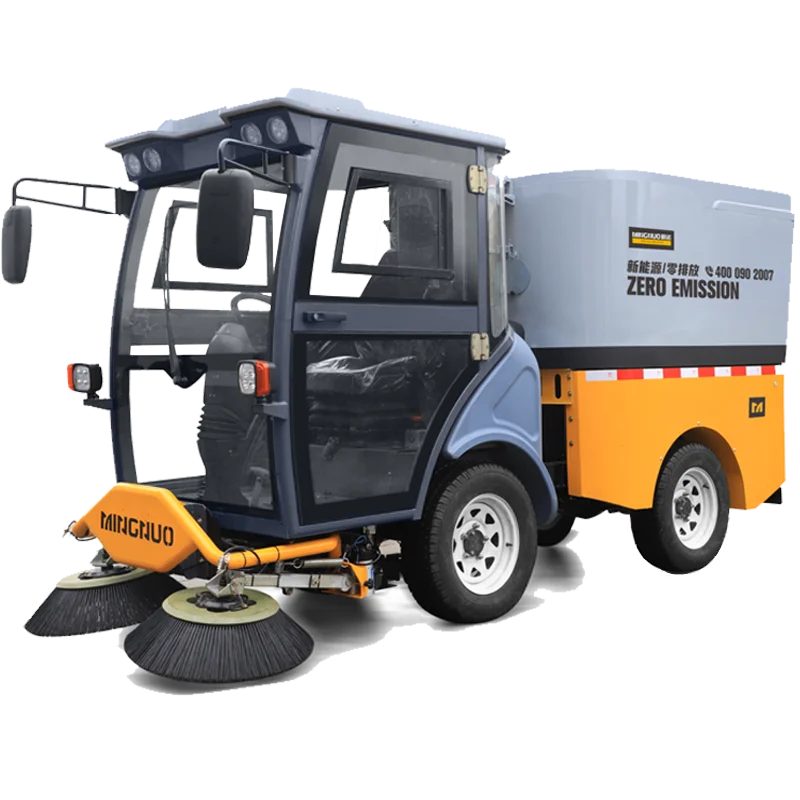

ELECTRIC VACUUM ROAD SWEEPER MN-JS1800
MN-JS1800 is an articulated road sweeper combined with washing and sweeping, with small turning radius and wide operation field of vision
FEATURES AT A GLANCE
Electric articulated vacuum road sweeper
700L ultra-large dustbin
no filter element design

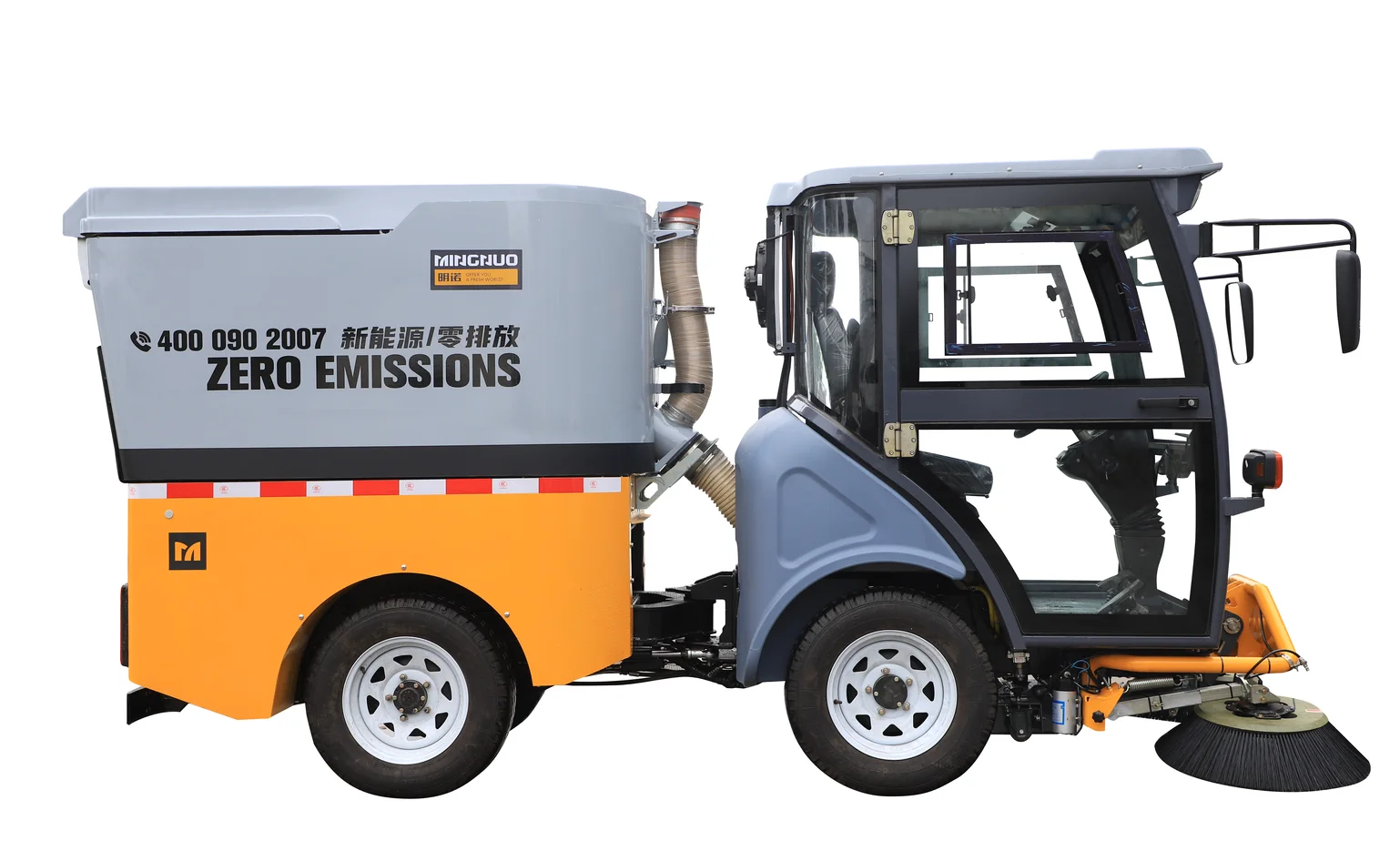

Right side design
Left side design
Front design
PRODUCT SPECIFICATIONS
No | Item | Data | 11 | Min turning radius | ≤2.5m |
1 | Sweeping width without the third brush | 1700mm | 12 | Dustbin capacity | 700L |
2 | Sweeping width with the thrid brush | 2200mm | 13 | Water tank capacity | 150L |
3 | Cleaning efficiency | 17000m2/h | 14 | Working time | 4-5h |
4 | Side brush diameter | 650mm | 15 | Driving power | 7.5kw |
5 | Max gradeability | 25% | 16 | Battery type | Lithium iron phosphate |
6 | Power supply | 36KWH | 16 | Fan motor power | 5000W |
7 | Battery capacity | 72V/500AH lithium battery | 17 | Side brush motor | 500W*2 |
8 | Working speed | 0-8km/h | 18 | Air conditioner | Yes |
9 | Max driving speed | less than 25km/h | 19 | Dimension | 3970*1200*2050mm |
10 | Charging time | 9-10h | 20 | Net weight | 2350kg |
PRODUCT CONFIGURATION
Hydraulic dumping device
Four-point suspension cab design
700L dustbin capacity
