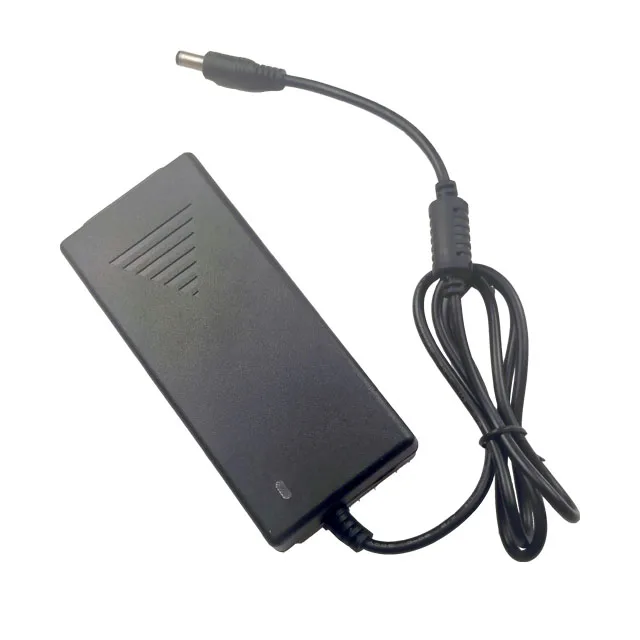

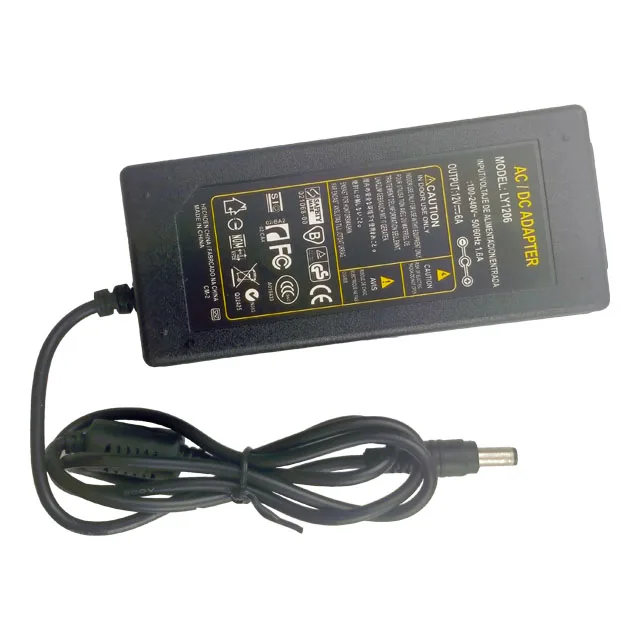

75w 12V 6A US plug power charger adapter 12vdc 180~265vac Power adaptor
- Category: >>>
- Supplier: Shenzhen Zoyea LED Technology Co. Ltd.
Share on (1600959422699):
Product Overview
Description
Universal travel waterproof AC DC Power adaptor 12V 6A 75w 180~265vac US plug power charger adapter
Product Description
- built-in EMI filter
- 100% load test
- Full range of input voltage
- output voltage accurate and stable
- Output over-voltage, over-current and short-circuit protection
- Output low ripple and noise
Two year warranty
| Product Electric Parameters | ||
| Input specification | Input voltage | AC180~265V |
| Input frequency | 50~60HZ | |
| Outputspecification | Output voltage can be adjusted | ±5% |
| Start-up time | 2500ms,80ms(input230V/115VAC ,Io=100%) | |
| keep time | 15ms(input230V -115VAC,Io=100%) | |
| Ripple and noise | 80mvp-p | |
| Protection function | Overload protection | 110% - 150% rated power, automatic recovery |
| Over-voltage protection | Protection mode: hiccup mode, abnormal condition removal can be automatically restored. | |
| Pressure resistance | I/P-0/P:1.5KVAC I/P-FG:1KVAC | |
| Safety standards | CE FCC RoHS | |
| EMC emission | EN55015 ,EN55022 (CISPR22 )CLASS B | |
| Environmental | working temperature | - 25 ° ~ +60 ° c / 20% ~ 90% RH (no frost) |
| Storage temperature | –40 ℃~80 ℃/10%~95%RH | |

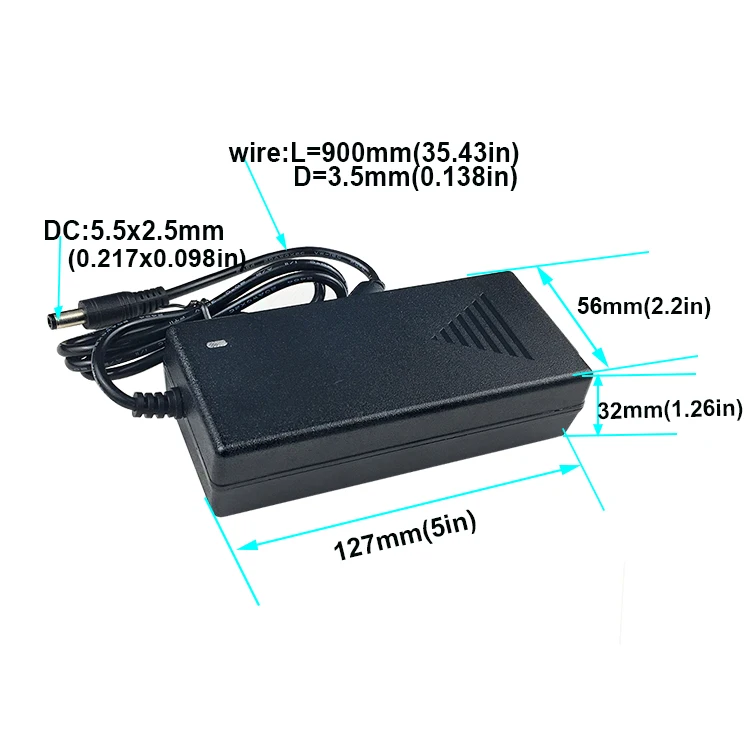

| Structure | Size(mm) | 127*56*32mm |
| Weight | 234G | |
