$6.50-7.00
110V 120V 230V All Touch Screen Temperature Controller Thermoregulator Black Back Light Electric Heating Room Thermostat WiFi
- Category: >>>
- Supplier: Hefei Minco Heating Cable Co. Ltd.Hefei Ltd.
Share on (1600959454658):
Product Overview
Description
Product Description

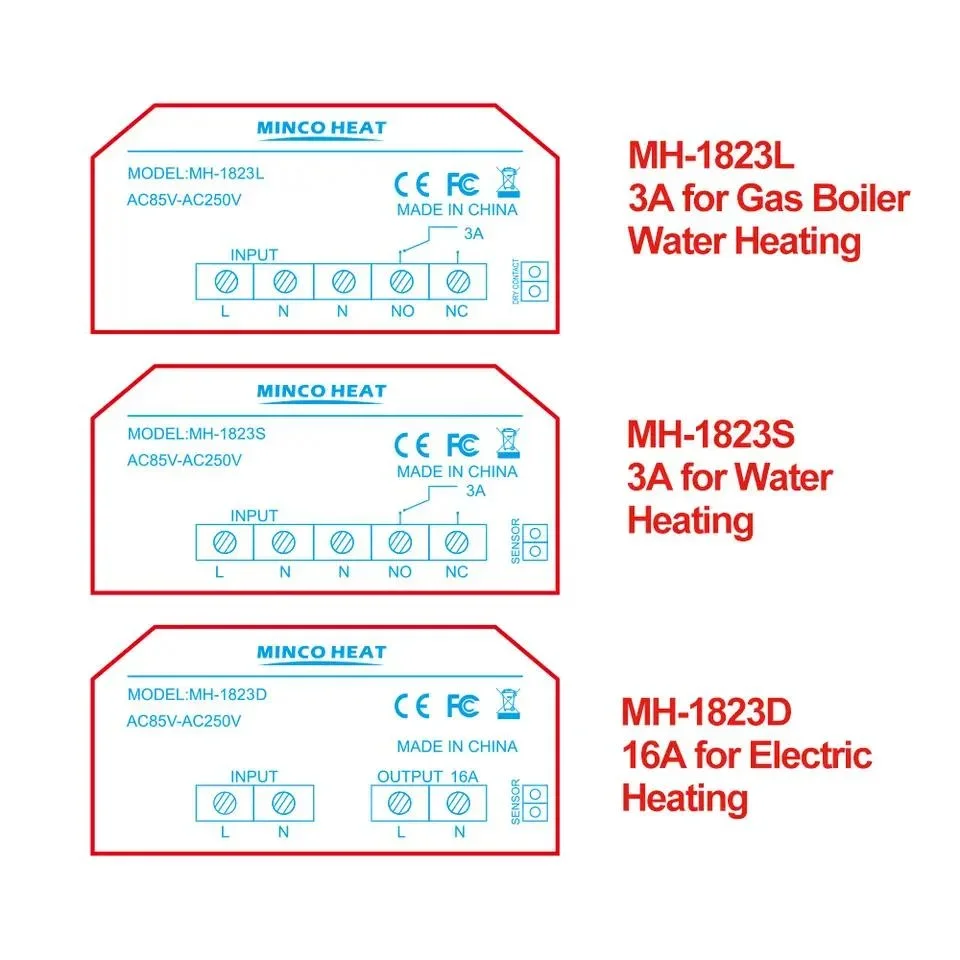

MH1823D WiFi: Electric floor heating with WiFi function, Voice control, 16A.
MH1823S WiFi: Water floor heating to control NO NC actuator or the electromagnetic valve with WiFi function, Voice control, 3A.
MH1823L WiFi: Gas boiler, Water floor heating to control NO NC actuator or the electromagnetic valve with WiFi function, Voice control, 3A.
MH1825E WIFI: Electric floor heating with WiFi function, Voice control, 16A.
Notes:
1. There is a layer of protective film on the screen, please tear off it when you are ready to use.

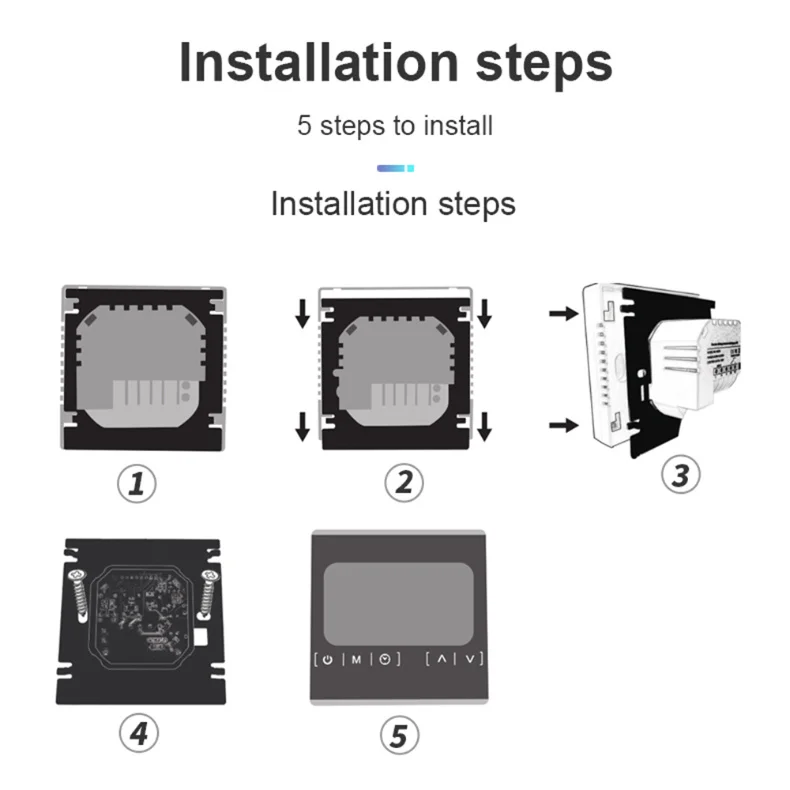

2. Suitable for Square Mounting Box and European Standard Round Box
3. 16A for Electric floor heating, a 3 meters external sensor included
4. 3A for water heating and gas boiler heating, no external sensor included
Product Parameters

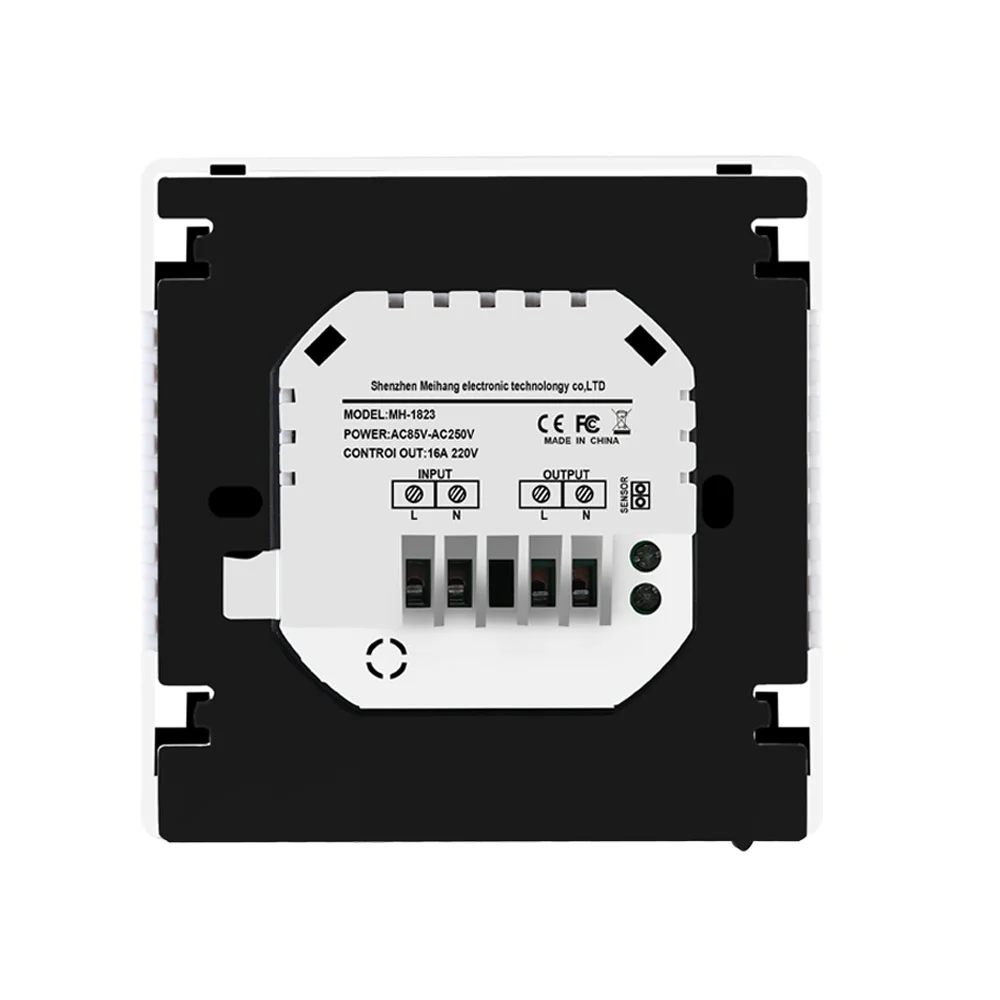

| Power Supply | AC85V-265V 50/60Hz |
| Set temperature range | 5-50ºC |
| Limite Temp. Range | 5-65ºC |
| Accuracy | ±0.5ºC |
| Unilateral return difference | 1°C~9°C |
| Sensor | NTC 10k |
| Power Consumption | < 2W |
| Shell material | PC+ABS (flame retardant) |
| Dimension | 86x86x43mm |
| Installation Hole distance | 60mm (Suit with EU standard round mounting box) |
Functions
1. Memory Function
Memorize all your settings after sudden power-off. When power is on again, you do not need to reset it.
2. Programmable Function
Six periods programmable controlling temperature setting, 5+2 or 6+1 programmable.
3. Insert and external two sensors. 3m external sensor cable is included.
4. Children Lock Function
Lock the thermostat to avoid misoperating by Children.
5. Suit for various kinds of electric heating system
The thermostat is suitable for heating cable, heating mat, heating film and other electric heating devices.

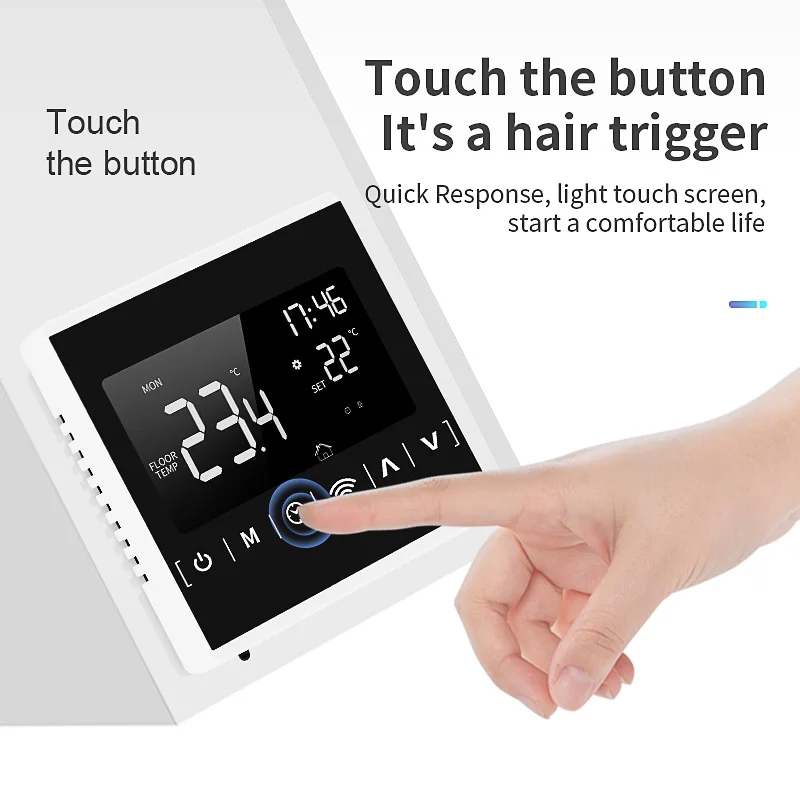

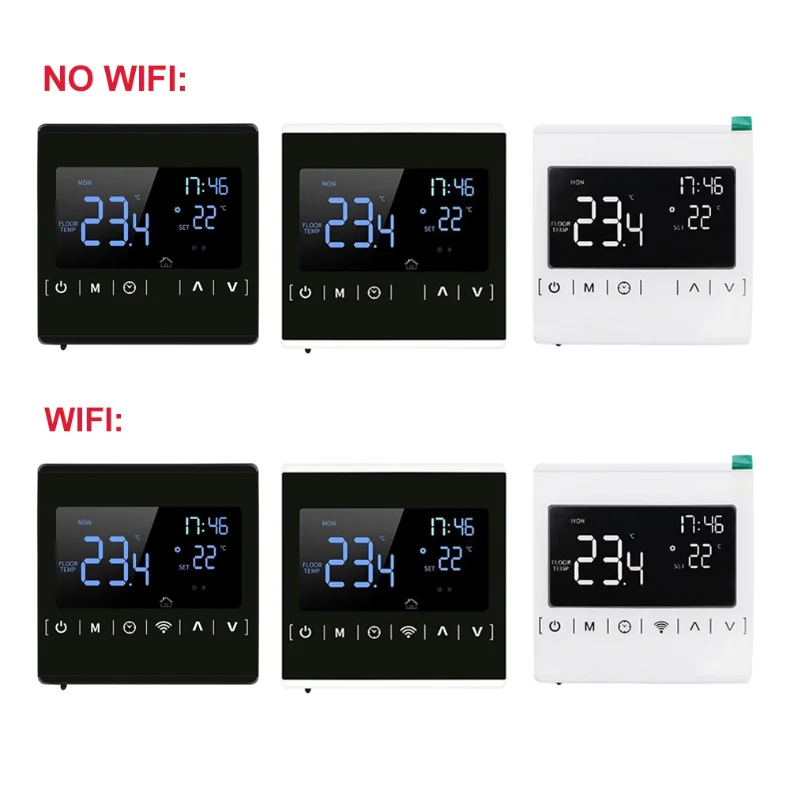

6. LCD All Touch Black Bakc Ligth Screen.
7. Anti-freeze Function:
In the state of shutdown, the thermostat will turn on the heating device automatically when temperature is below 5C degrees, when the room temperature is above 7C degrees, the thermostat will turn off the heating device automatically. (can close this setting in advanced setting).
8. Support to switch to display Fahrenheit (Only WiFi model).
Memorize all your settings after sudden power-off. When power is on again, you do not need to reset it.
2. Programmable Function
Six periods programmable controlling temperature setting, 5+2 or 6+1 programmable.
3. Insert and external two sensors. 3m external sensor cable is included.
4. Children Lock Function
Lock the thermostat to avoid misoperating by Children.
5. Suit for various kinds of electric heating system
The thermostat is suitable for heating cable, heating mat, heating film and other electric heating devices.
6. LCD All Touch Black Bakc Ligth Screen.
7. Anti-freeze Function:
In the state of shutdown, the thermostat will turn on the heating device automatically when temperature is below 5C degrees, when the room temperature is above 7C degrees, the thermostat will turn off the heating device automatically. (can close this setting in advanced setting).
8. Support to switch to display Fahrenheit (Only WiFi model).
