Product Overview
Description
Products Description
Working Principles：
In the cylinder (conical) container, powder materials and binder will be mixed into moist soft materials by the mixed paddles at the bottom. Then they will be cutted into uniform wet-particles by the side high-speed smashed paddles
Wet granulation is tried to be used in solid preparation for mixing when adhesive (such as alcohol, dextrin, etc.) needs to be added.
It also applies to:
1. Adhesive shall be added to enhance the Compressibility and adhesion of the powder.
2. This scheme can be used if there are requirements for material fluidity and dosage.
3. This method can be used in solid preparations to increase the drug dissolution rate by applying appropriate solvents and adhesives.
It also applies to:
1. Adhesive shall be added to enhance the Compressibility and adhesion of the powder.
2. This scheme can be used if there are requirements for material fluidity and dosage.
3. This method can be used in solid preparations to increase the drug dissolution rate by applying appropriate solvents and adhesives.
Products
--Medical industry: It can provide ideal granular raw materials
--Chemical industry: synthetic resin, dye, pigment, yeast, etc.
--Food industry: chemical condiments, dairy products, food additives, etc.
--Chemical industry: synthetic resin, dye, pigment, yeast, etc.
--Food industry: chemical condiments, dairy products, food additives, etc.
Main Technical Data
Model | GHL-200 | GHL-300 | GHL-400 | GHL-600 | |||
Volume | 200L | 300L | 400L | 600L | |||
Output | 30-75kgs/batch | 30-120kgs/batch | 50-150kgs/batch | / | |||
Operating time | Mixing:2min Granulation:7-14min/batch | Mixing:8min Granulation: 15-20 min/batch | |||||
Size of the finished granule | Φ0.14-Φ1.5mm(12mesh-100mesh) | ||||||
Mixing Speed | 30-260rpm | 30-220rpm | 25-220rpm | 20-200rpm | |||
Mixing power | 15kw | 18.5kw | 22kw | 30kw | |||
Granulation Speed | 50-3000rpm | ||||||
Granulation power | 4kw | 5.5kw | 7.5kw | 11kw | |||
Air compressor | 0.5m³ 0.7Mpa (prepared by buyer) | ||||||
Inlet of cooling water and compressed air | Φ10mm | ||||||
Height of the output | 985mm | 1150mm | |||||
Dimension | 2180×810×1950mm | 2420×1060×2150mm | 2420×1060×2150mm | 2980×1200×2500mm | |||
Weight | 1350kg | 1600kg | 1900kg | 2200kg | |||
Features
1. It is the structure of horizontal cylinder (cone).
2. Full sealed driving shaft, to use water when cleaning.
3. Fluidization granulation, the finished granules are similar to roundness with good liquidity.
4. Compared with traditional process, it can reduce 25% binder and the dry time can be shortened.
5. Each batch of materials will be dry-mixed for 2 minutes and be granulated for 1-4 minutes. Compared with traditional process,it has improved by 4-5 times.
6. All the processes of dry-mixing & wet-mixing & granulating are finished in a closed vessel. So that it has reduced the process and also compiles with GMP standard.
7. Whole operation has the strict safety precautions.
2. Full sealed driving shaft, to use water when cleaning.
3. Fluidization granulation, the finished granules are similar to roundness with good liquidity.
4. Compared with traditional process, it can reduce 25% binder and the dry time can be shortened.
5. Each batch of materials will be dry-mixed for 2 minutes and be granulated for 1-4 minutes. Compared with traditional process,it has improved by 4-5 times.
6. All the processes of dry-mixing & wet-mixing & granulating are finished in a closed vessel. So that it has reduced the process and also compiles with GMP standard.
7. Whole operation has the strict safety precautions.
Details Images
Output

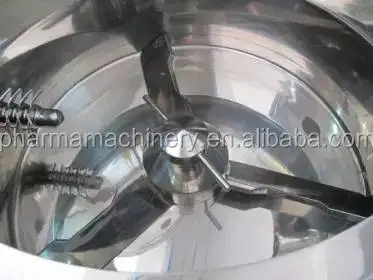

Mixing Pot

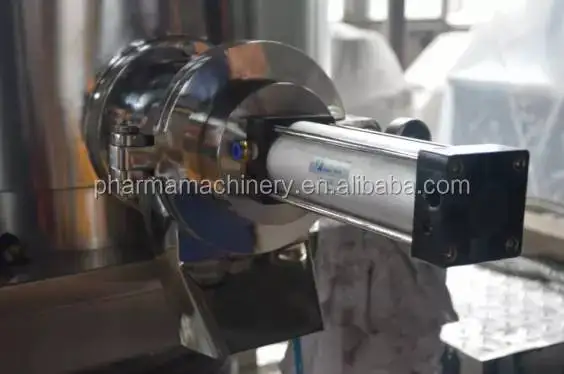

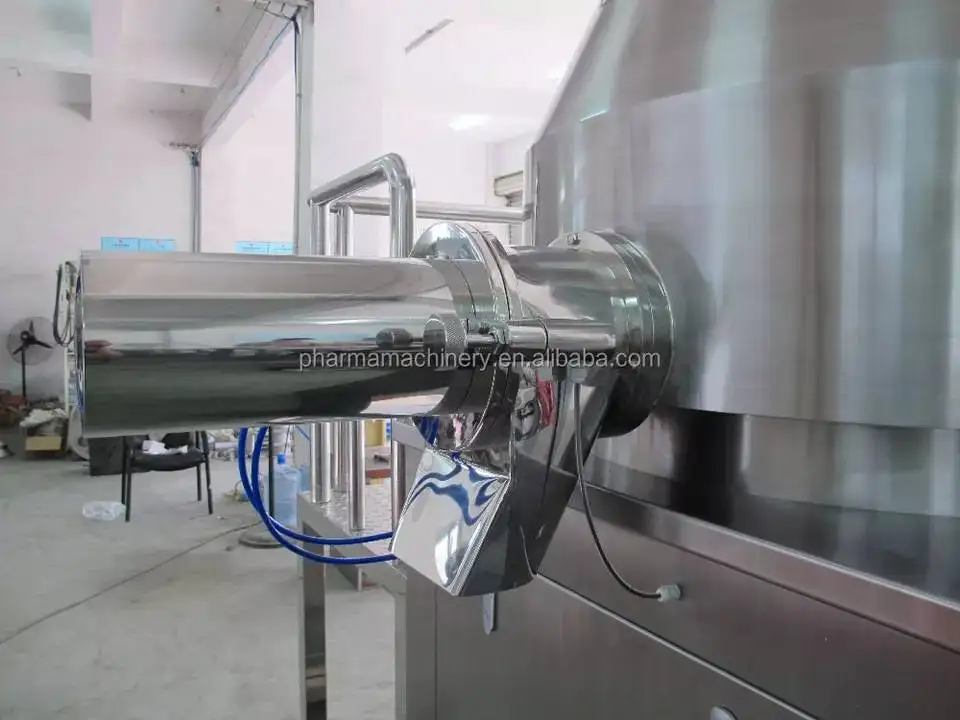

Cylinder For Output

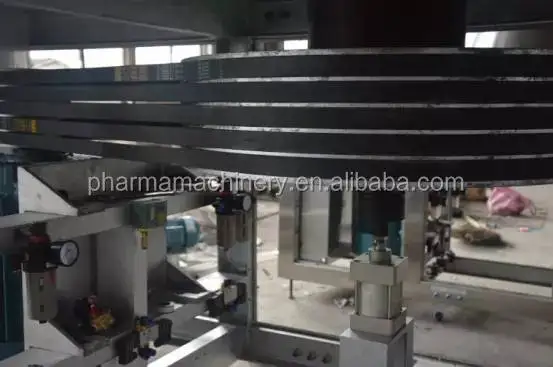

Mixing Blade Lifting System
Company Profile
Our Company
- Since year 1996, LTPM CHINA had started manufacturing Medical and food packaging machines such as Ampoule Filling and Sealing Machine, Blister Packaging Machine, Pill Counting and Bottling Line, Cartoning Machine, Bag Packaging Machine, Liquid Filling and Capping Machine etc. - LTPM CHINA designs different types of packaging lines for customers, including standard or non-standard models.
- LTPM CHINA's machinery = High automation + High precision + More energy saving + Satisfactory warranty and after-sales service + Trusted brand
Our Machinery Workshop
Our Certificates
ISO, CE, SGS, BV Certified Company.
Our Sales Team
Our Customers
Orders from Alibaba
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shiping affordable wooden box.
FAQ
Q: What price terms you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should
bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your schedule in advance and we will arrange
everything for you!
Any other doubts about our machine, please feel easy to contact with us.
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should
bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your schedule in advance and we will arrange
everything for you!
Any other doubts about our machine, please feel easy to contact with us.
