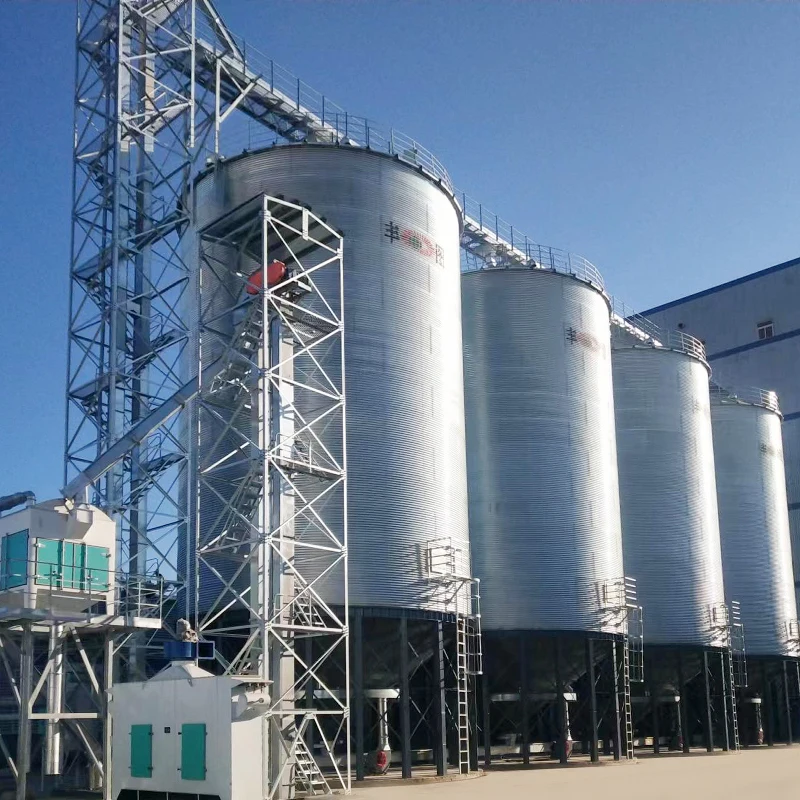

very cheap and good quality after sale FTsilo hopper silo for agriculture
- Category: >>>
- Supplier: Dongying Fengtu Intelligent Storage Co. Ltd.
Share on (1600959501976):
Product Overview
Description
Product Description

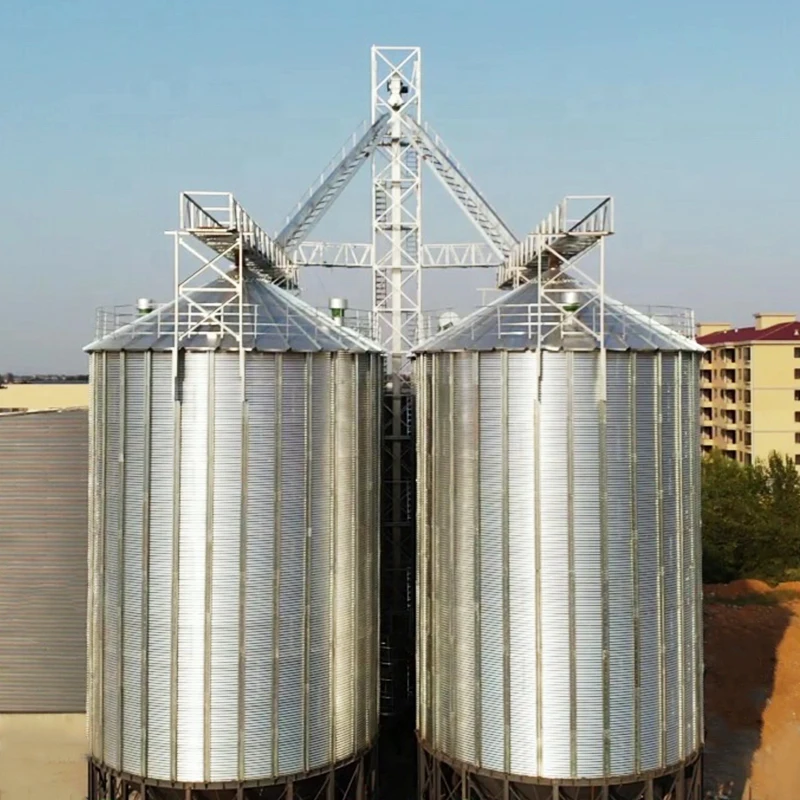

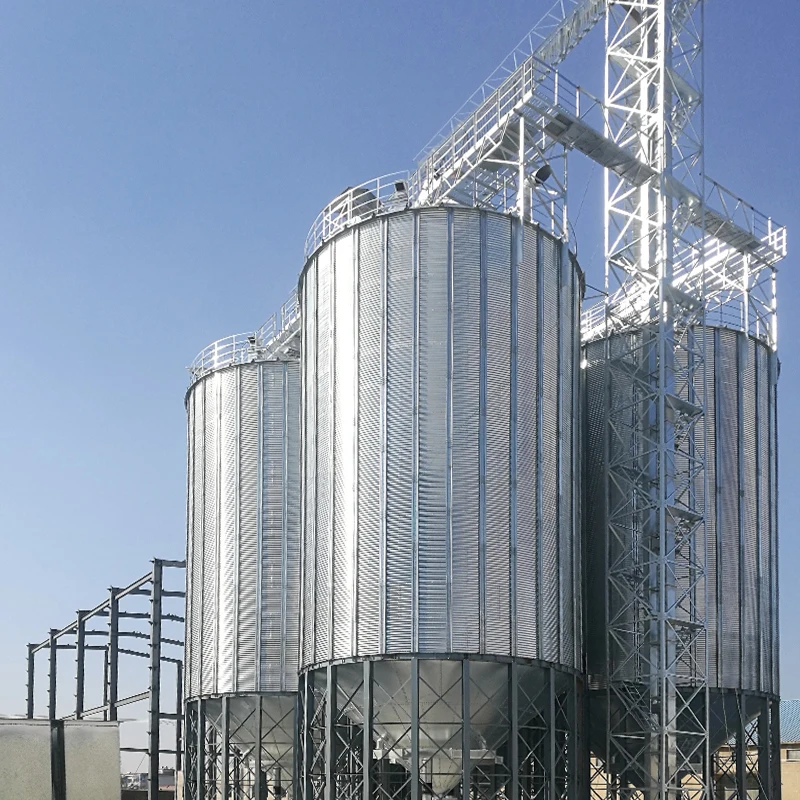

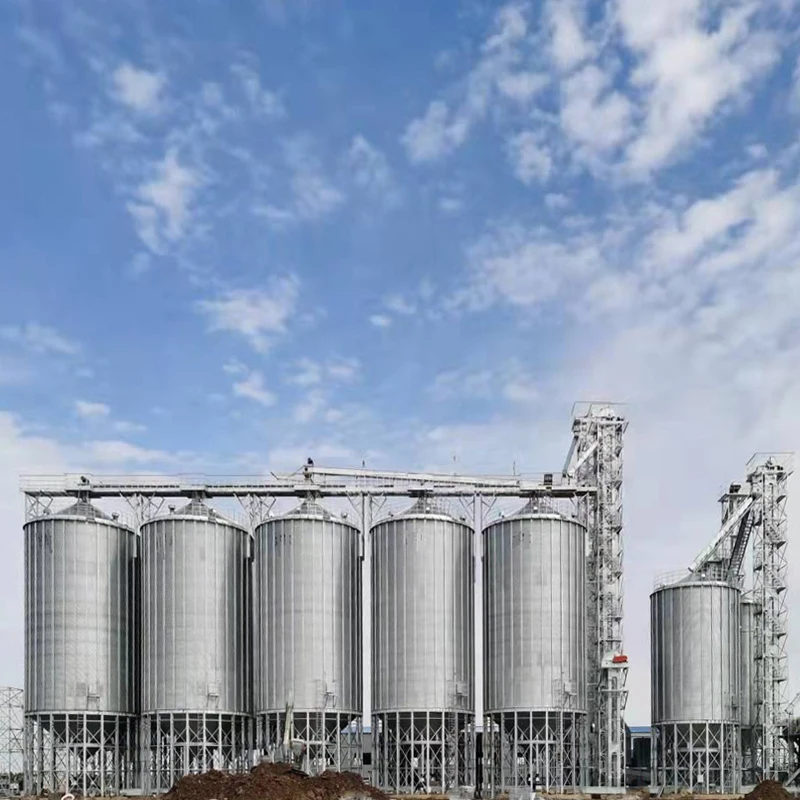

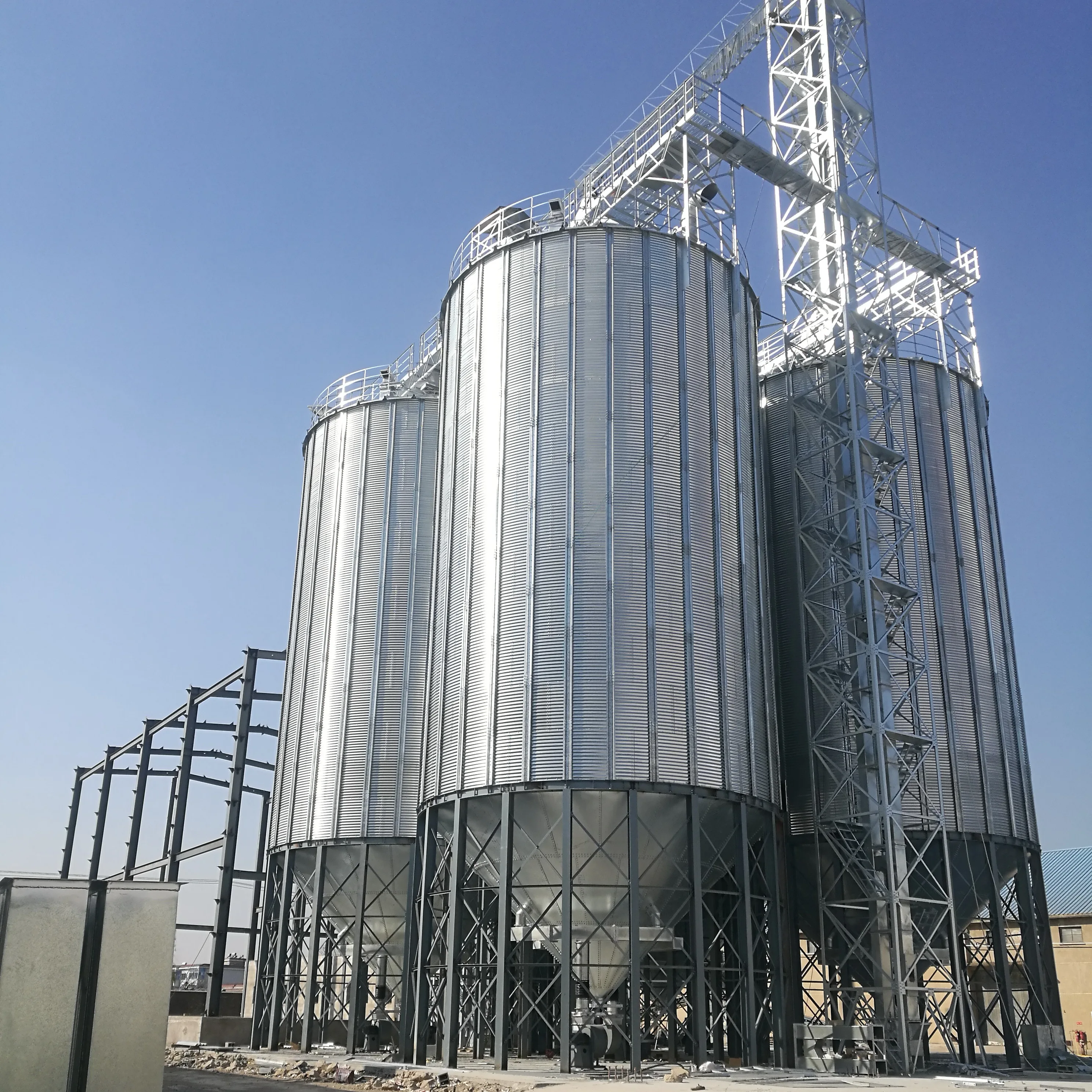

Hopper-bottom silos are free-flow discharging with good cleaning by itself without residue.It's wide used in seed, breed, feed and flour storage.This kind of conical bottom silo has a sturdy support structure and a high strength conical base。The bottom of the conical slope has 40，45 and 60 degrees,among which 60° conical bottom is suitable for storing granular and powdery materials with high viscosity.
free-flow discharging, without manpower, save energy sources, low cost
Product features
*Assembly, easy to ship and save freight.
*Hot-dip galvanized plates (275g/m2 ,450g/m2, 600g/m2).
*Hopper-bottom silos has simple structure and umlti-purpose.
Scientifically speaking, the silo capacity should be measured with volume (m3). Even in the same silo, the storage tons will be different for different grains with different densities. The following table is calculated based on a grain density of 0.75ton/m3, and there must be unique for you.
*Hot-dip galvanized plates (275g/m2 ,450g/m2, 600g/m2).
*Hopper-bottom silos has simple structure and umlti-purpose.
Scientifically speaking, the silo capacity should be measured with volume (m3). Even in the same silo, the storage tons will be different for different grains with different densities. The following table is calculated based on a grain density of 0.75ton/m3, and there must be unique for you.

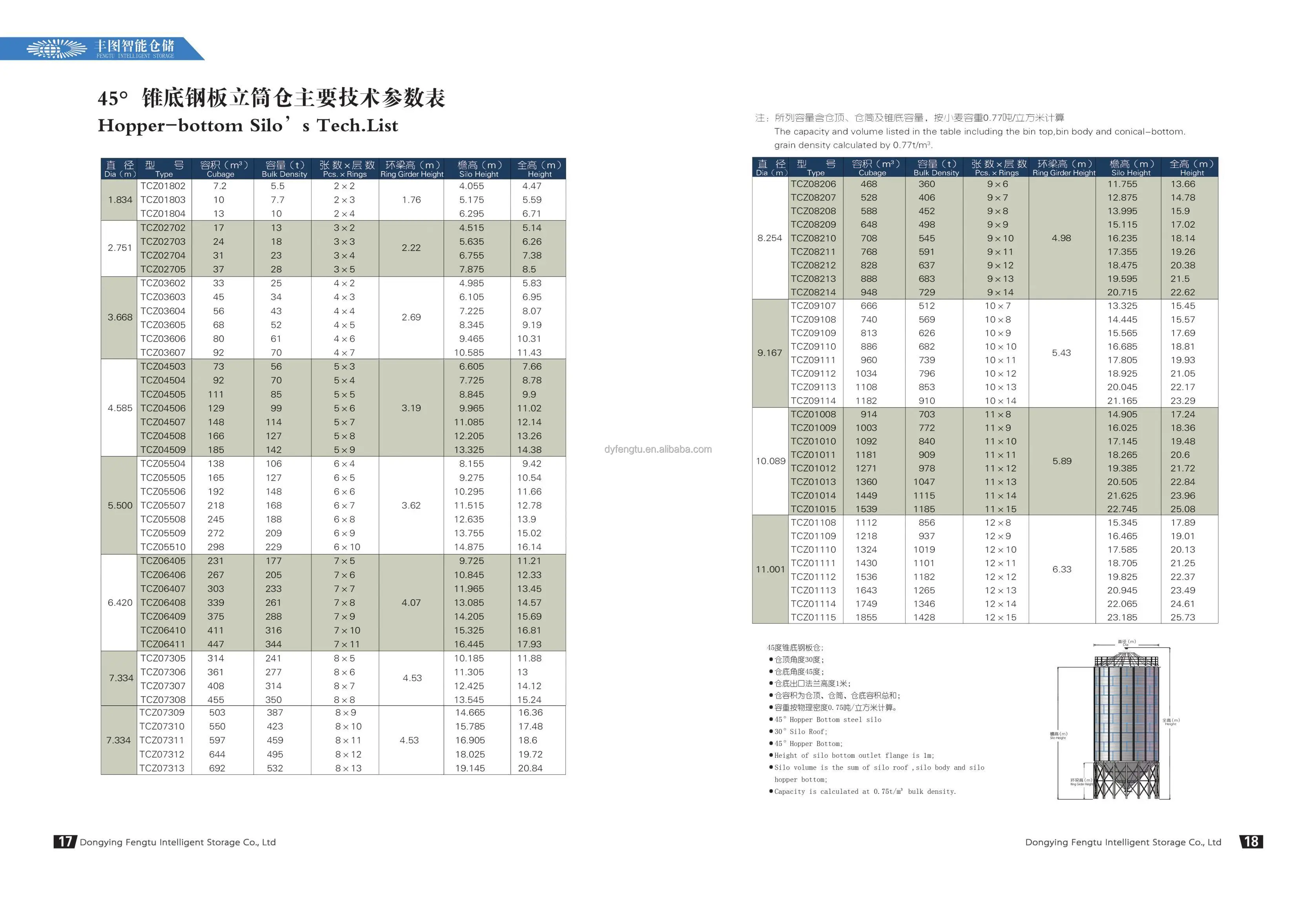

Type | Cubage(m3) | Silo Height(m) | Silo Weight(ton) | Capacity(ton) |
TCZ03605 | 68 | 9.19 | 2.46 | 52 |
TCZ07305 | 314 | 10.19 | 9.65 | 241 |
TCZ07306 | 361 | 13 | 10.18 | 277 |
TCZ07307 | 408 | 14.12 | 10.84 | 314 |
TCZ07308 | 455 | 15.24 | 11.49 | 350 |
TCZ07309 | 503 | 16.36 | 12.2 | 387 |
TCZ07310 | 500 | 17.48 | 12.82 | 423 |
TCZ08210 | 708 | 18.14 | 16.93 | 545 |
TCZ09111 | 960 | 19.93 | 24.13 | 739 |
TCZ01014 | 1449 | 23.96 | 34.27 | 1115 |
TCZ01113 | 1643 | 23.49 | 36.36 | 1265 |
Details

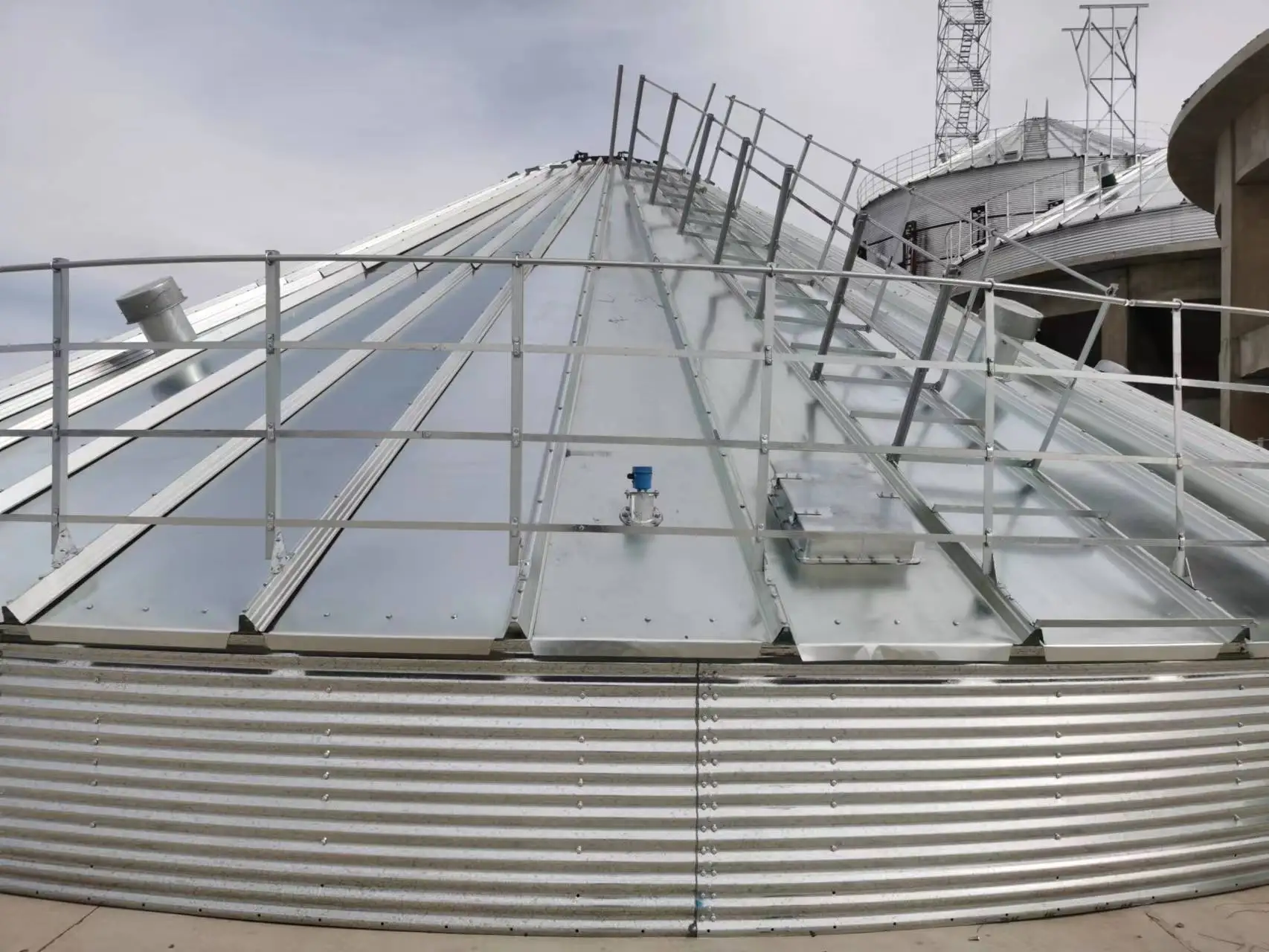

Silo Roof
The special trapezoidal geometry of roof gives high strength and stiffness. The professional sealed technology enables tight connection of roof with the sidewall and keeps stored products from moisture.

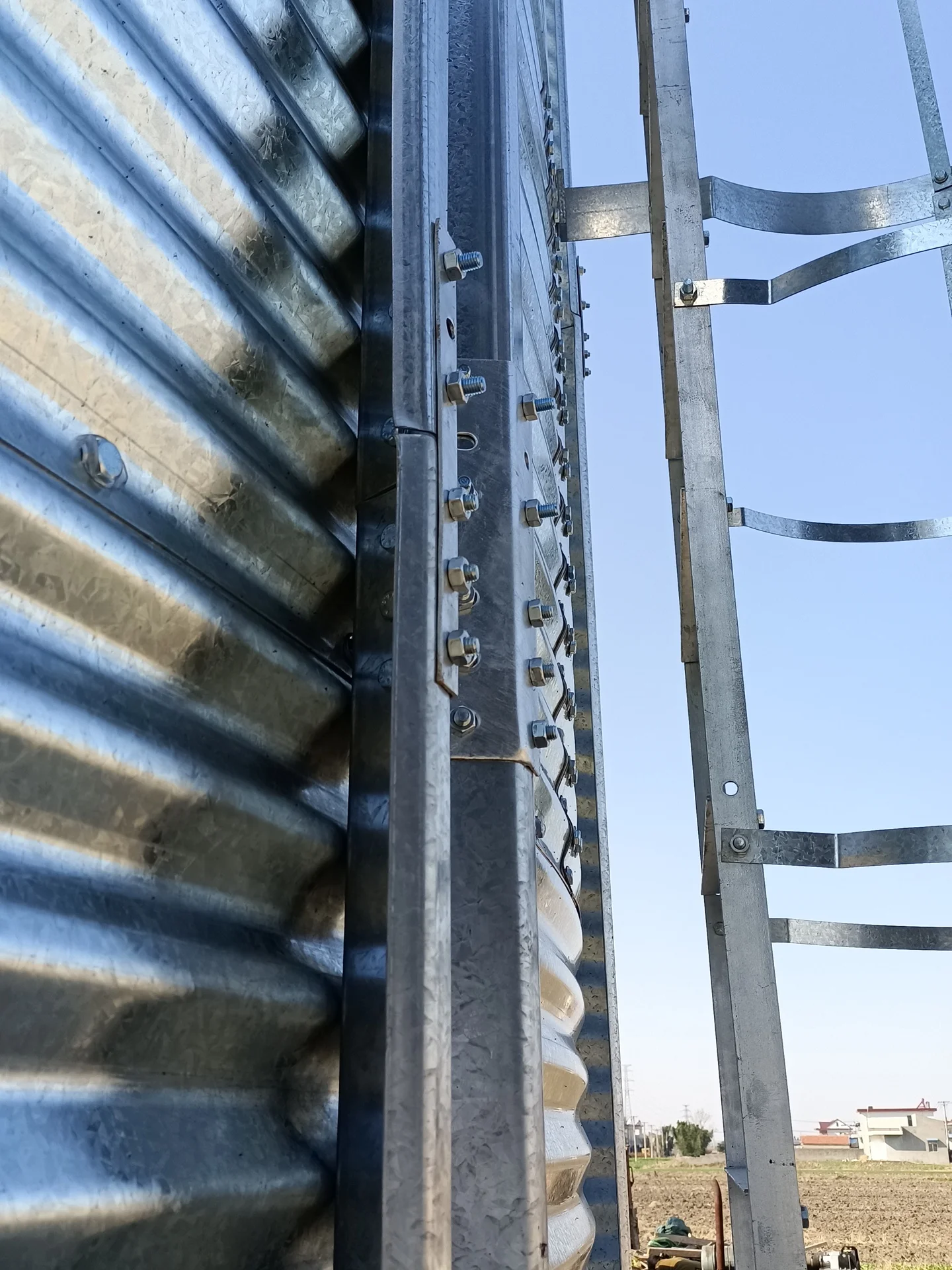

Ladder & Bolts
Famtun high-strength galvanized ladders with good protection for workers have roll-formed sides and stamped rungs to eliminate rung spin for easily climbing.
The high-strength bolts are made of 8.8 and 10.9 hot-dip galvanized bolts, and the bolts are made of domestic big factory brands such as Jinyi and Changshu.
Side door
Ladders

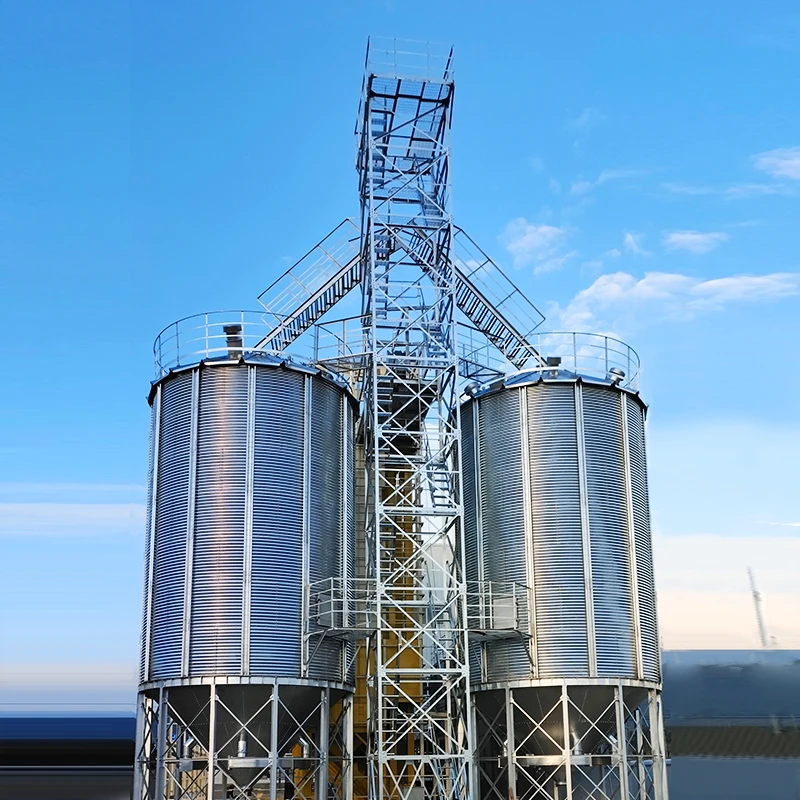

Trestle bridge

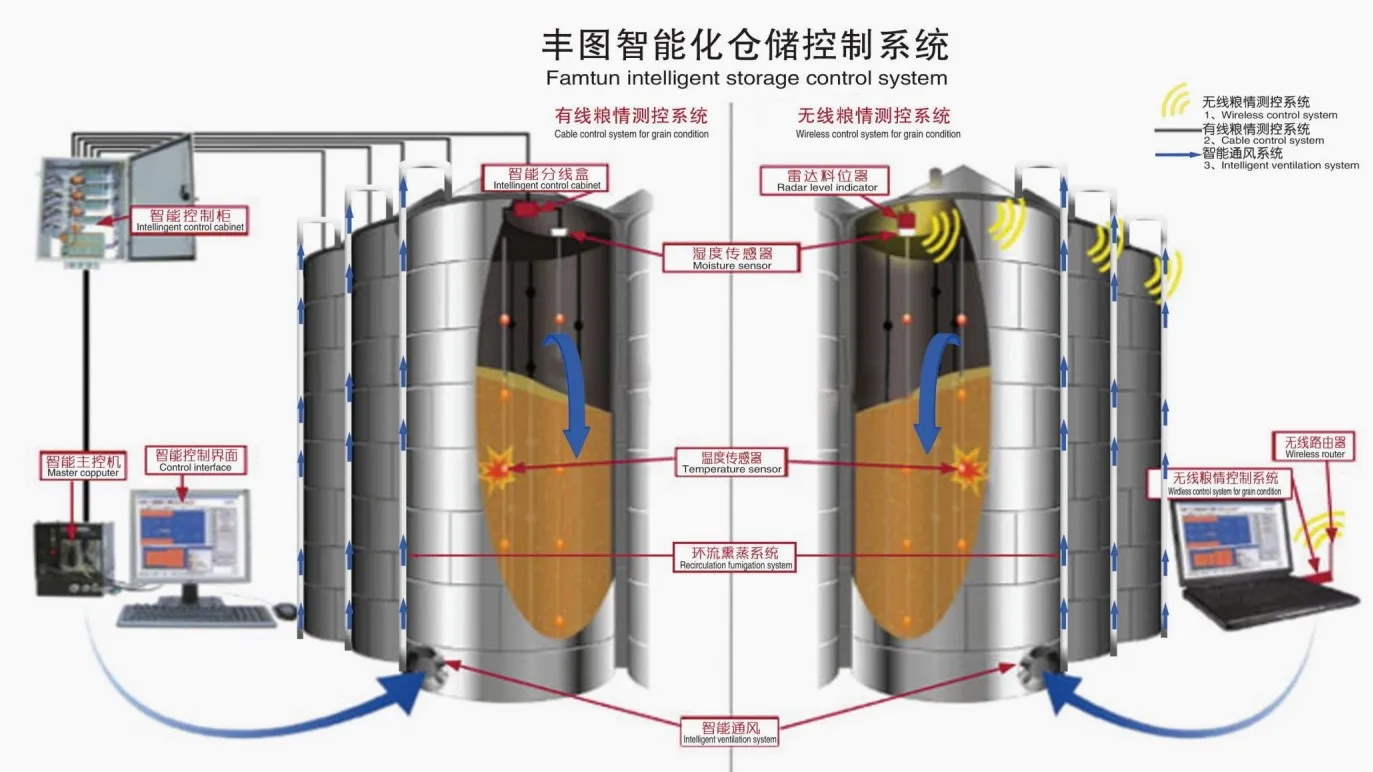

control system
Through 24-hour non-blinded centrilized monitoring and risk warning platform ,the hole process of trace management of grain quantity quality out of stroage business ,intelligent control of ventilation equipment and early warning of grain situation risk.
Accessory Equipment
Dongying Fengtu Intelligent Storage Co., Ltd. specializes in the production of 20-1200 ton hopper-bottom silos. According to various factors such as site, weather, and geology, we provide professional silo design, equipped with elevators, unloading pits, pre-cleaner, conveyors, sweeping auger and other accessories to meet the diverse needs of customers.
Cleaning System
The features like beautiful appearance,compact structure and long srevice life make it popular for factories to widely use, accompanied with Tubular magnet to clean the grain. Precleaner is imple to install, easy to maintain and lower energy consumption.
Ventilate system

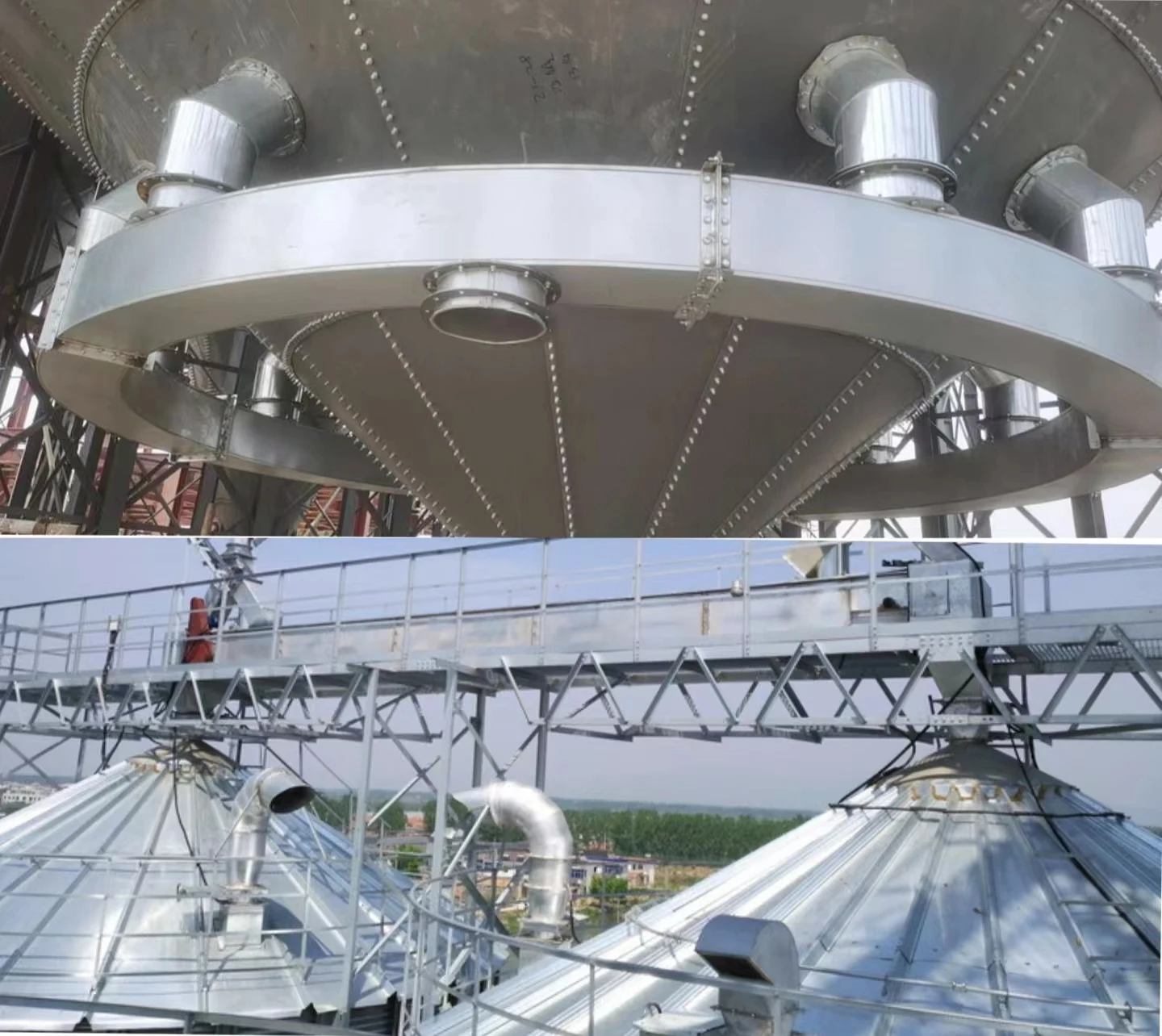

Ventilation ducts are symmetrically located at the top and bottom of the silo，which can take the maximum amount of indoor heat and ensure the quality of grain.

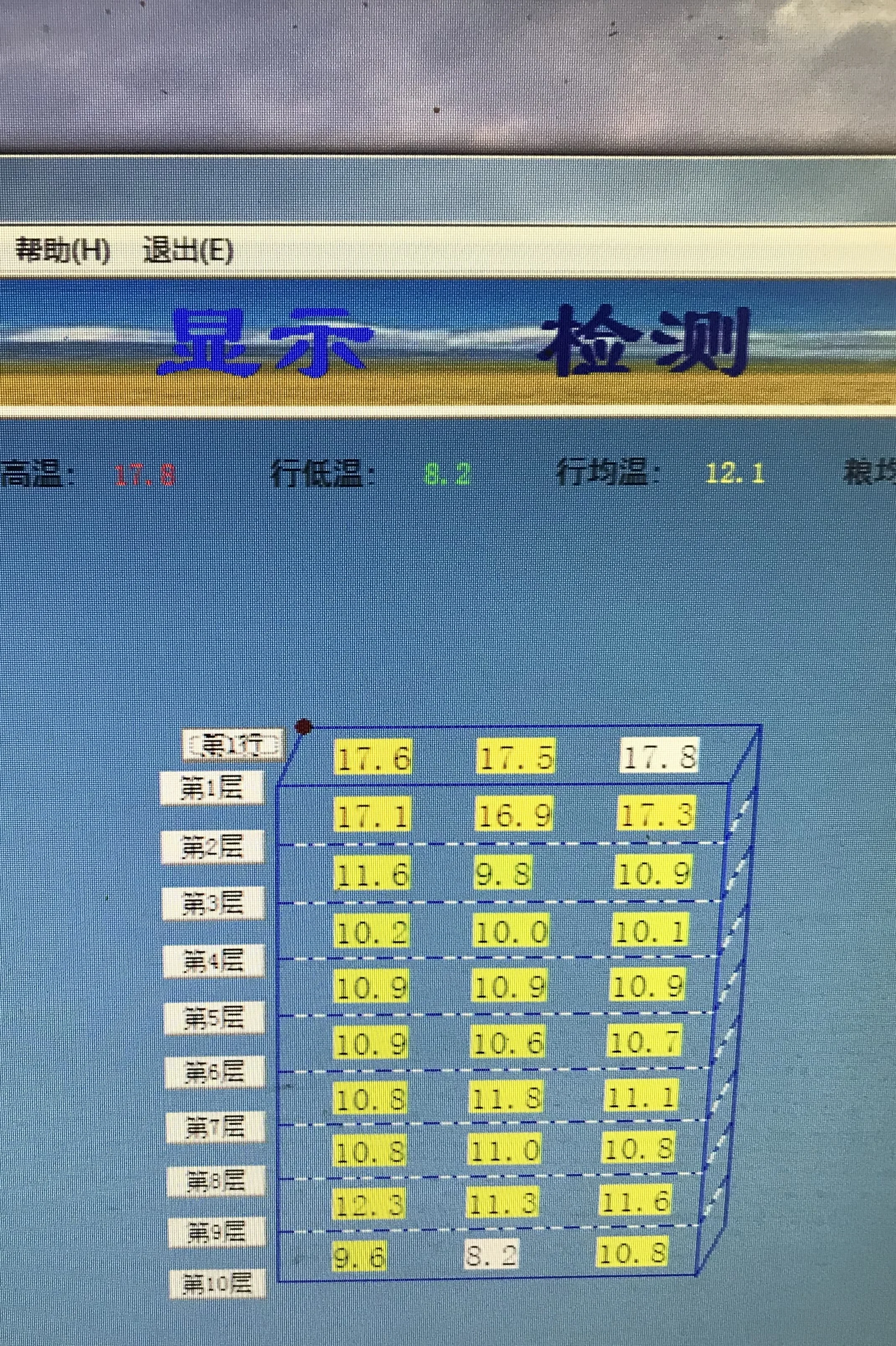

Temperature measure system
Cable cover supported with ropes both sides ,rised strength against rupture, has been designed to easily detect the temperature of grain. With its automatic e-mail notification it provides a mobile application and follow-up support.

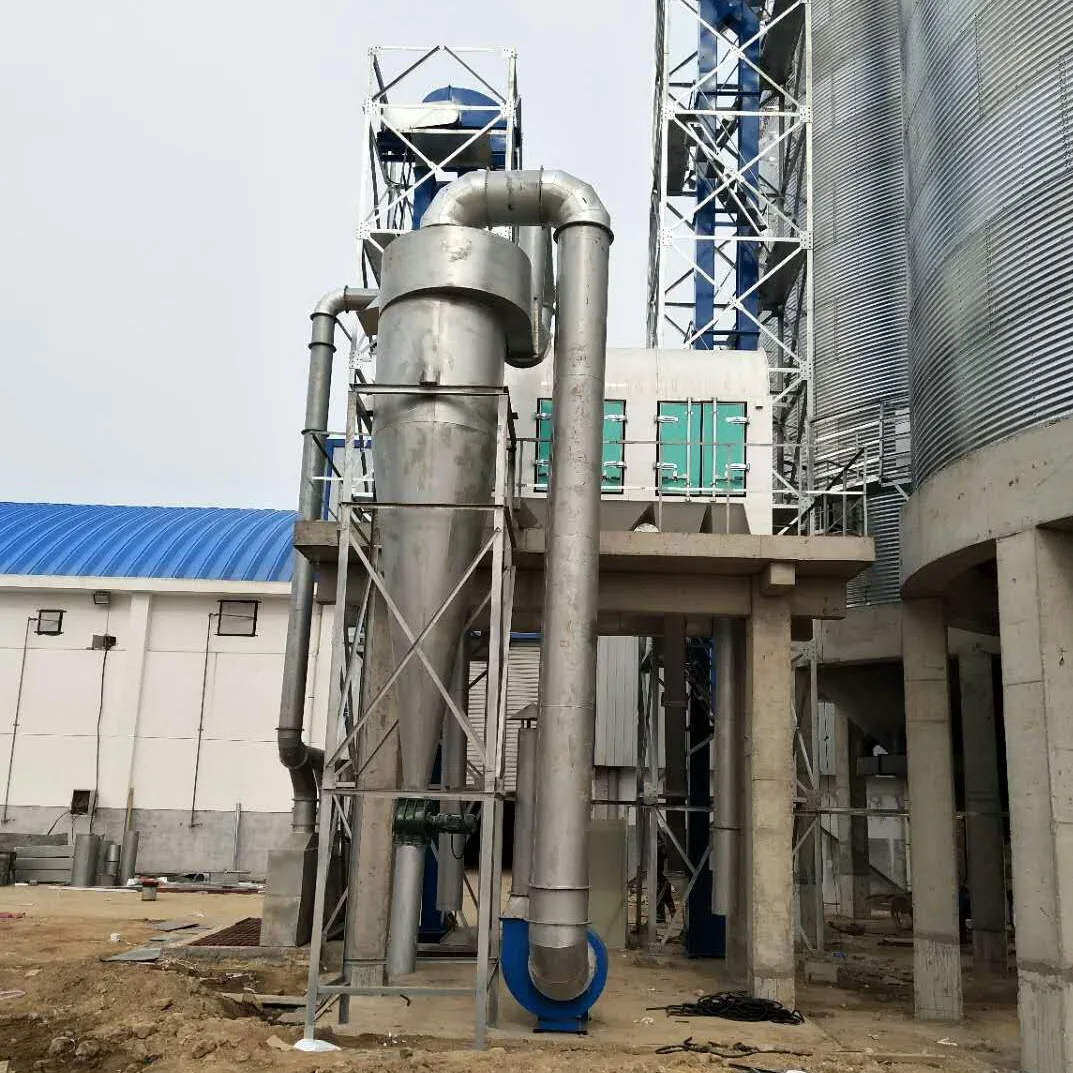

Dedusting System
This is a special process of dust cleaning during the grain was pull into the precleaner,in which gonna be filled with a lot of dust. The dust is not conducive to the quality of grain, further processing and encironmental sanitation. Dust remocal equipment can effective to dust.

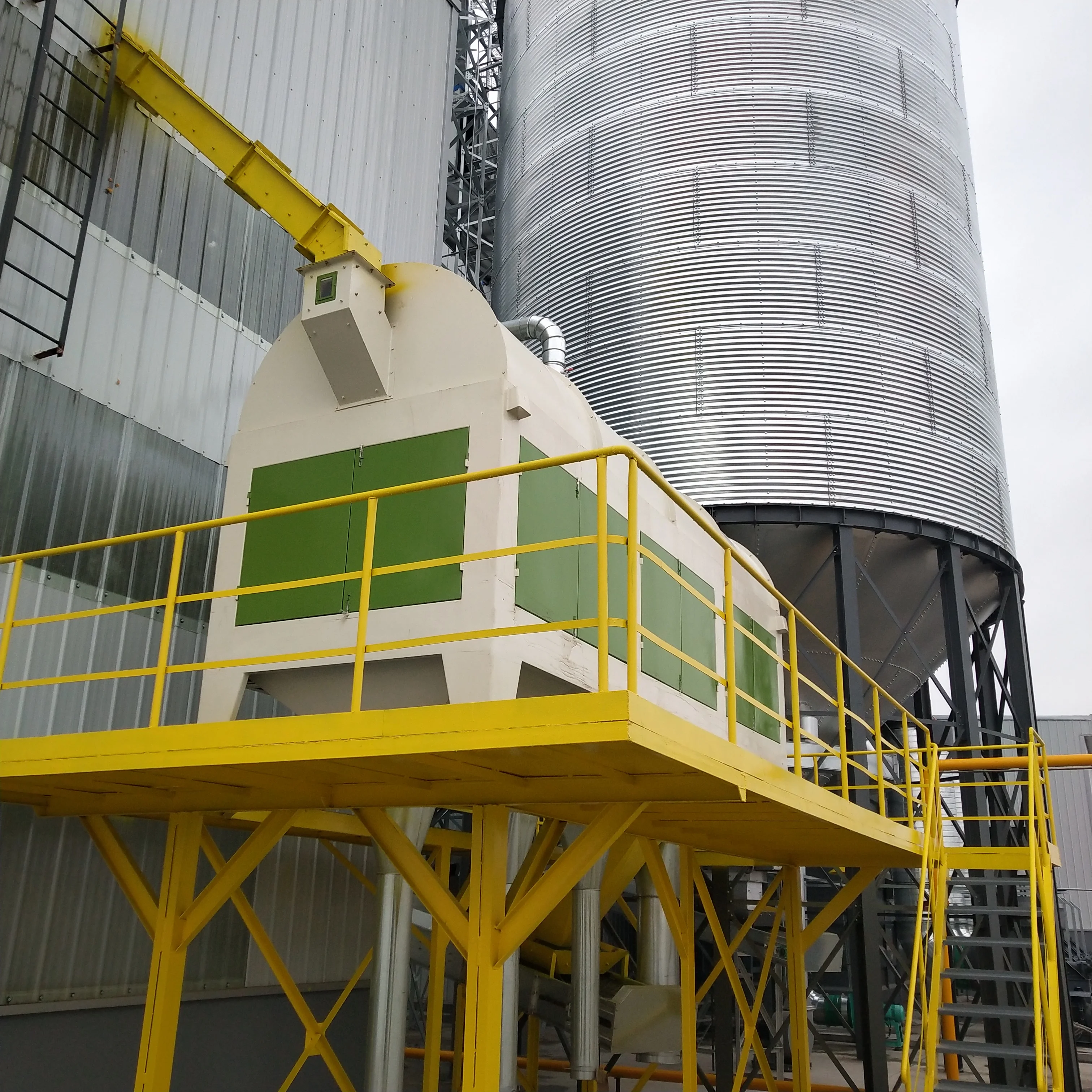

Pre-cleaner
Bucket Elevator
Grain Dryer
Belt conveyor
Discharge scrapper
Flour mill
Company Profile
Our company has a large number of skilled technicians, professional teams and experienced after-sales service teams, which can provide users with solutions and equipment from a single equipment to a complete set of grain cleaning, drying, storage, and selected systems. And professional customized service technical support, reliable spare parts supply and high-quality after-sales service.
Cirtifications
Dongying Fengtu Intelligent Storage Co., Ltd. is a family-owned manufacturer of grain silos and dryers, material handling equipment and pre-engineered metal buildings.
The Fengtu Grain Handling and Storage Solutions line includes silos for grain storage, grain dryers for on-farm and commercial operations, bucket elevators, conveyors and supports. We are problem solvers at heart and leverage communication and collaboration to create storage solutions that work.
The Fengtu Grain Handling and Storage Solutions line includes silos for grain storage, grain dryers for on-farm and commercial operations, bucket elevators, conveyors and supports. We are problem solvers at heart and leverage communication and collaboration to create storage solutions that work.

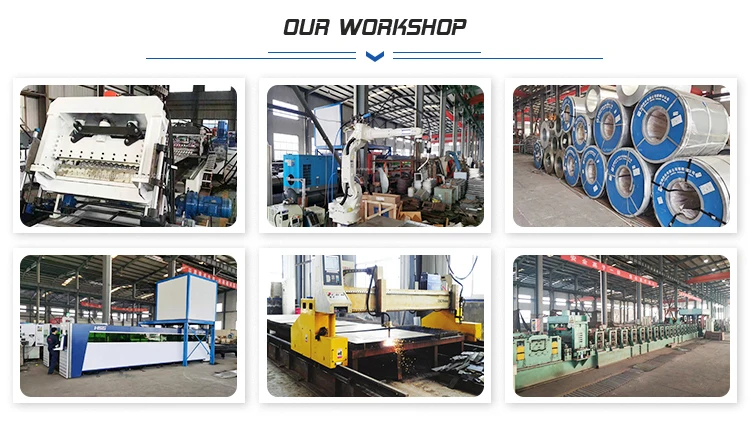

High Automated Workshop

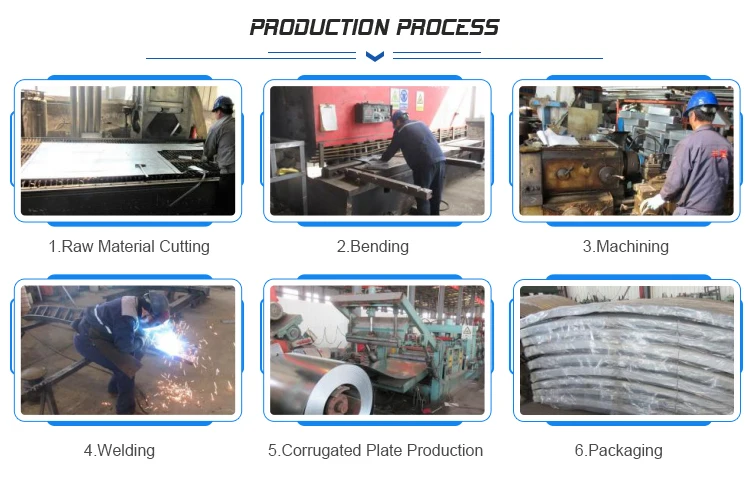

With strong overall solution design capability, Famtun's rich expertise ensures the best workmanship of the entire silo system. The bolted steel plate production line is imported to ensure high accuracy and maximum sealing of bolted joints. The use of advanced laser cutting machines, intelligent robots and silo enclosure forming machines ensures accurate and efficient cutting of steel plates, smooth and beautiful cuts, high silo strength, good seismic performance and long service life.
Why choose us?
1. Factory price and perfect after-sales service.
2. Alibaba Assessed Gold Supplier.
3. Detail Design Thoughtful.
4. 100% QC inspection Before Shipping.
5. Cases in many countries.
6. Foreign 48 hours to provide solutions.
7. From grain cleaning, drying to storage, we can creates one-stop service for you.
2. Alibaba Assessed Gold Supplier.
3. Detail Design Thoughtful.
4. 100% QC inspection Before Shipping.
5. Cases in many countries.
6. Foreign 48 hours to provide solutions.
7. From grain cleaning, drying to storage, we can creates one-stop service for you.
FAQ
1. who are we?
We are based in Shandong, China, start from 2017,sell to Africa(50.00%),Domestic Market(18.00%),South America(10.00%),Mid East(10.00%),Southeast Asia(10.00%),North America(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Grain Silo, Grain Dryer, Grain Conveying System, Water Tank
We are based in Shandong, China, start from 2017,sell to Africa(50.00%),Domestic Market(18.00%),South America(10.00%),Mid East(10.00%),Southeast Asia(10.00%),North America(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Grain Silo, Grain Dryer, Grain Conveying System, Water Tank
Contact me to get more detiles and more discount !!
After sale:24 o'clock online, feel free to answer at any time!!
Click to send inquiry.
Chengzhi
Emil :ruhuxiaogu@famtunsilo.co
Wechat:+86 18706477029
market | Revenue(Previous Year) | total revenue |
North America | Confidential | 2 |
South America | Confidential | 10 |
Southeast Asia | Confidential | 10 |
Africa | Confidential | 15 |
Mid East | Confidential | 10 |
Domestic Market | Confidential | 18 |
