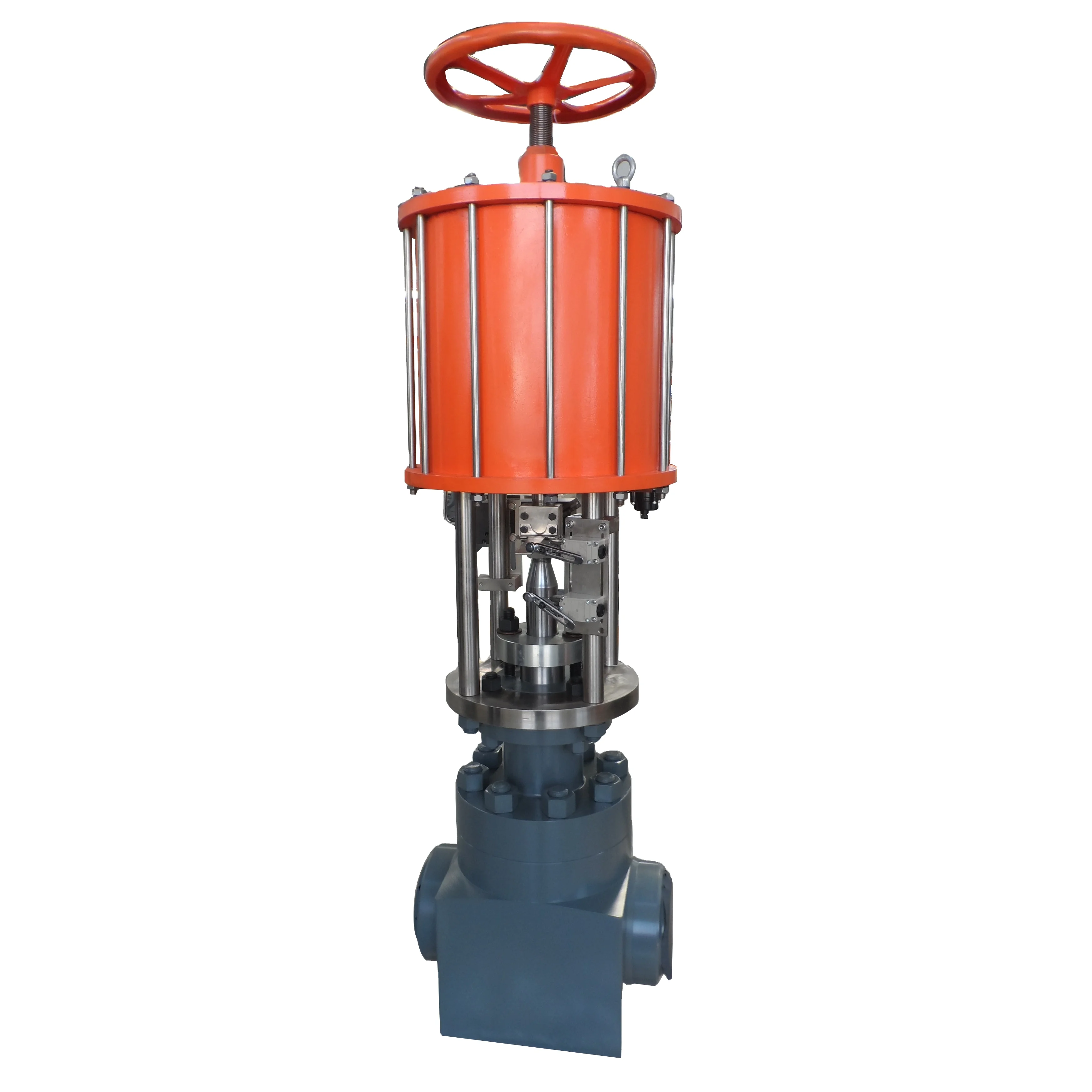

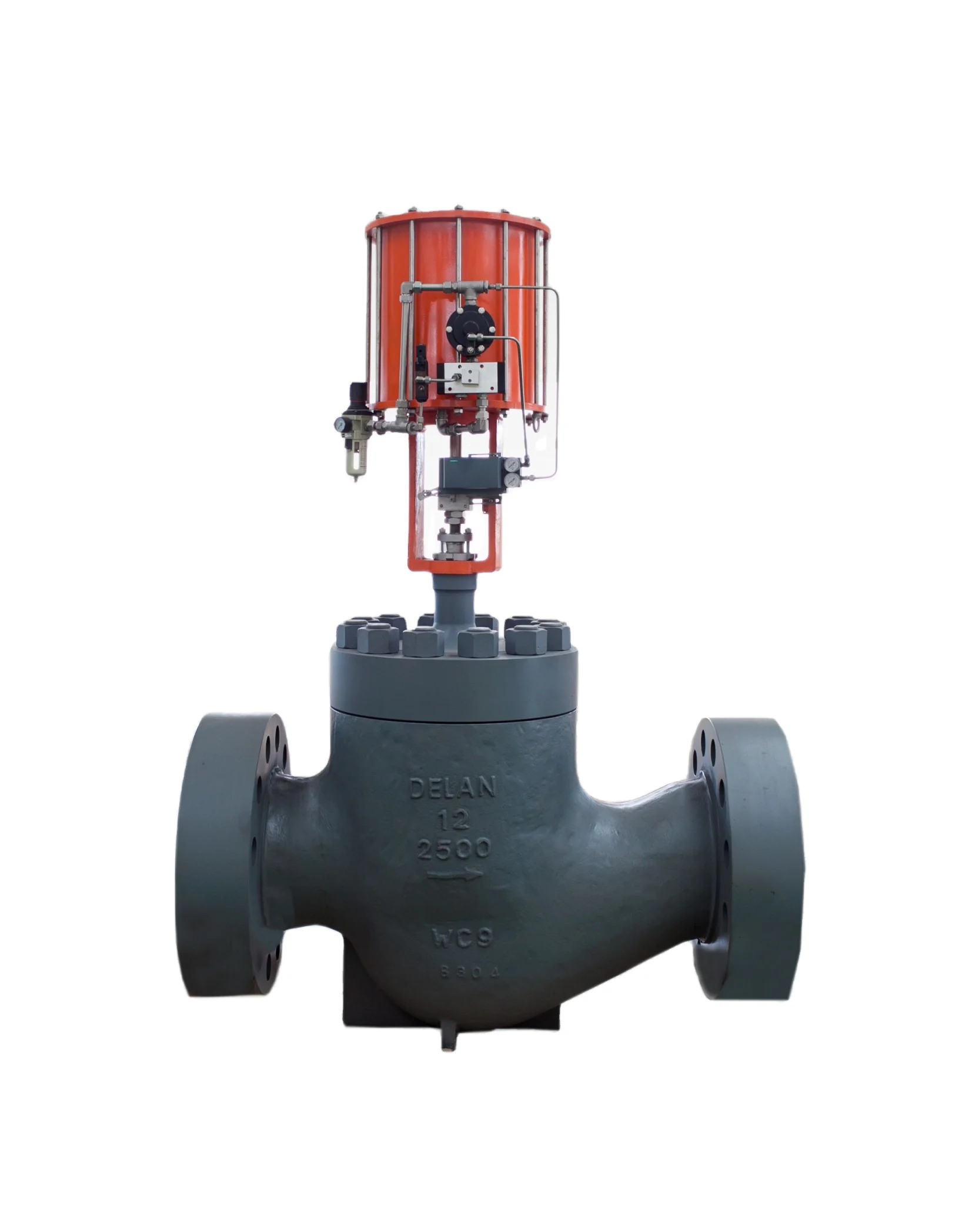

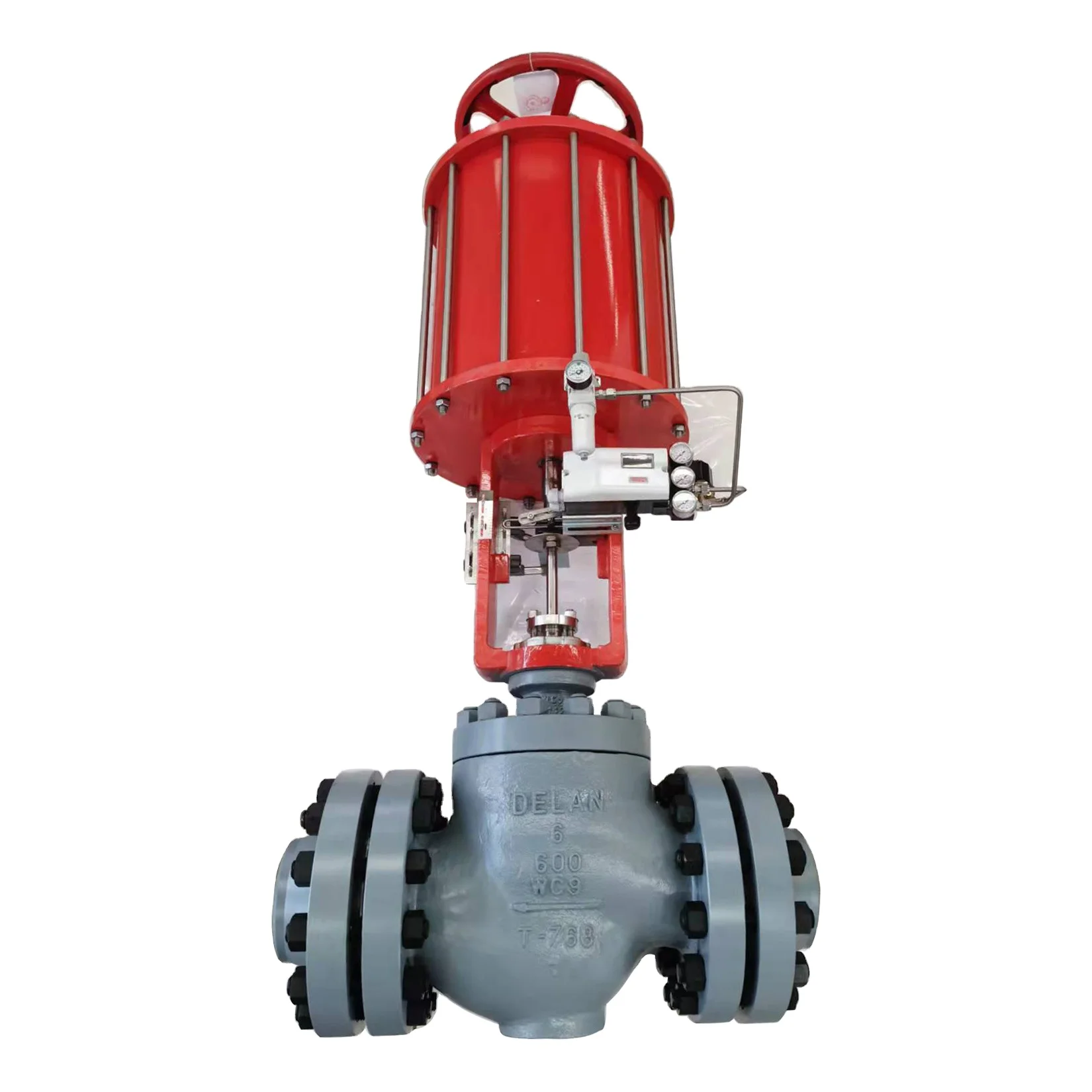

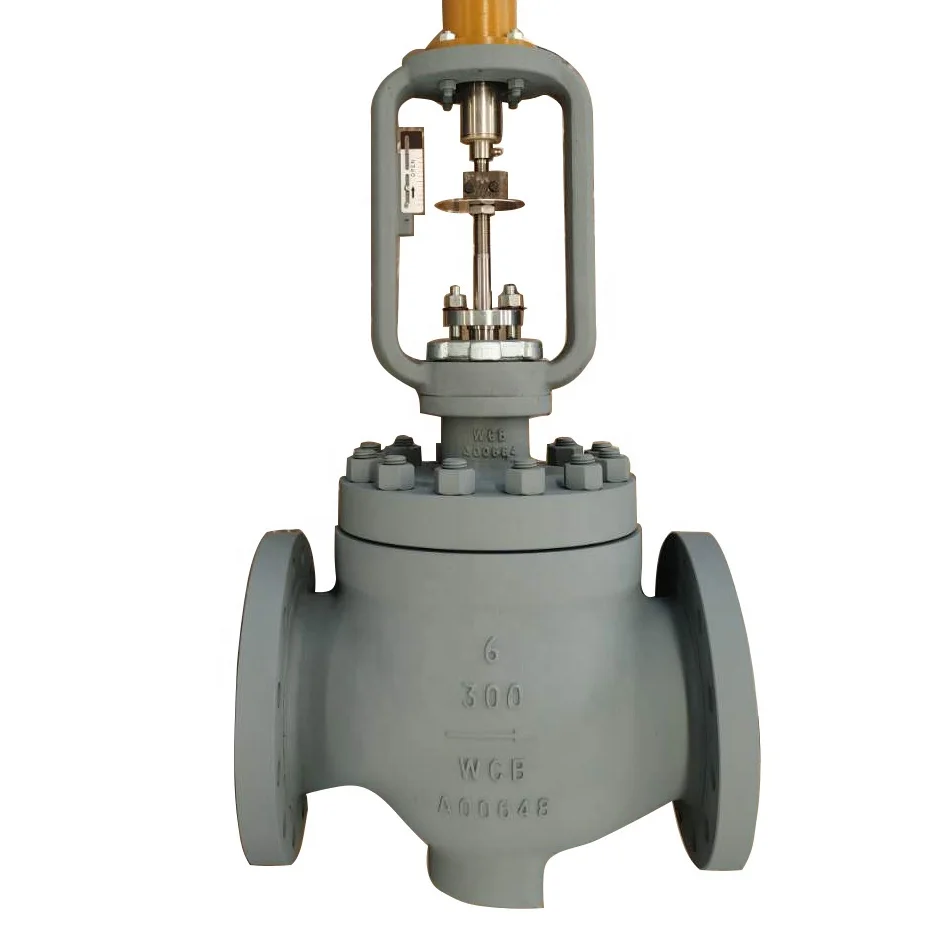

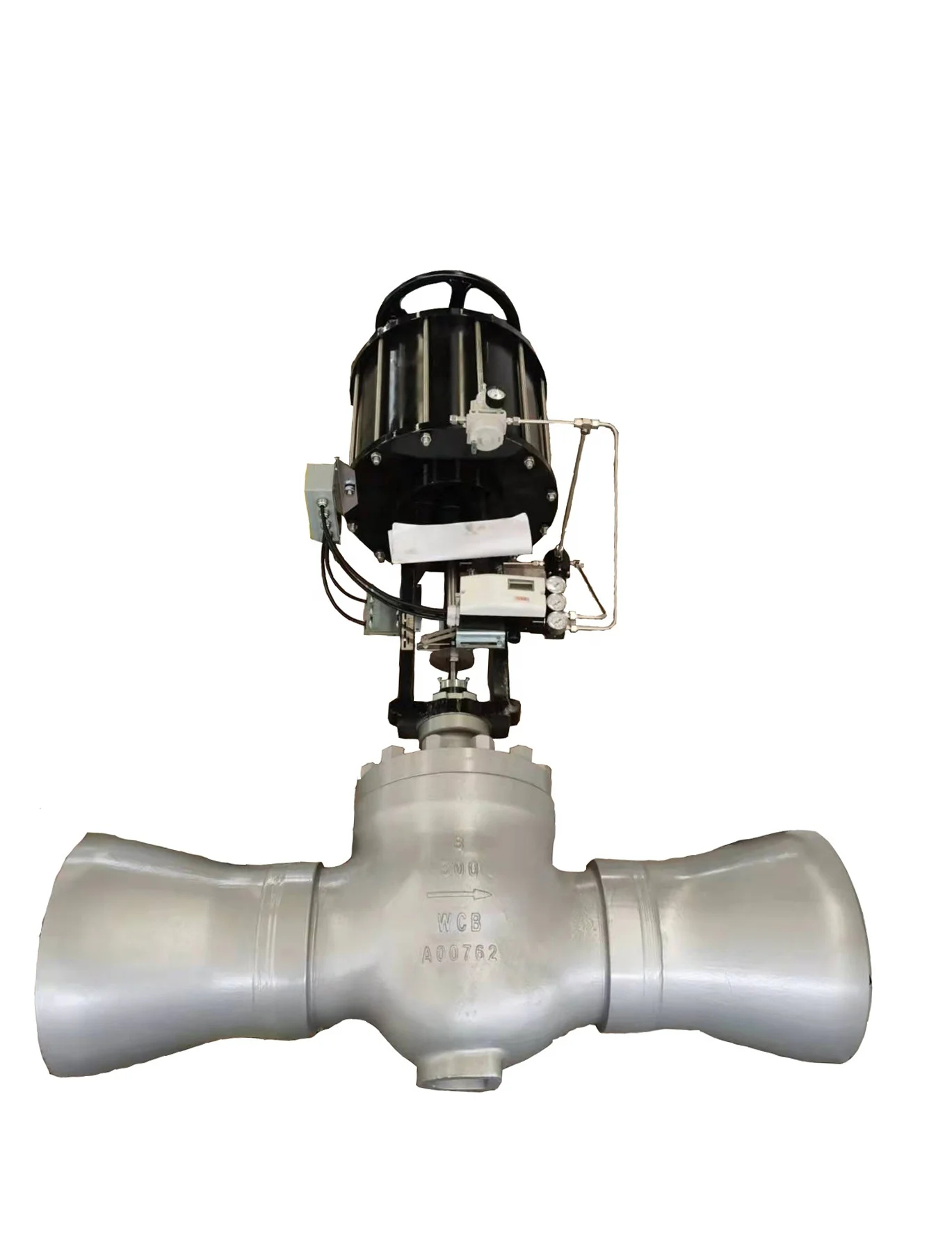

Pneumatic Actuator Stainless Steel Condensate Boiler Feedpump Flow Recirculation Valve
- Category: >>>
- Supplier: Suzhou Delan Energy Science & Technology Co. Ltd.
Share on (1600959502686):
Product Overview
Description
Products Description
MA Series Control Valve
Performance Parameters
◆Diameter：DN15~DN500
◆Pressure：PN16~PN100
◆Flow characteristics：
1、Quick opening
◆Diameter：DN15~DN500
◆Pressure：PN16~PN100
◆Flow characteristics：
1、Quick opening
2、Linear
3、Equal percentage
◆Structure：
1、Single seat
2、Sleeve
◆Body Material：WCB、WC6、WC9、CF8,etc
◆Application：Electric power, petroleum , petrochemical, water & steam flow rate adjustment . extraction system ,HP&LP heater
deaerator, condenser , chemical water
◆Structure：
1、Single seat
2、Sleeve
◆Body Material：WCB、WC6、WC9、CF8,etc
◆Application：Electric power, petroleum , petrochemical, water & steam flow rate adjustment . extraction system ,HP&LP heater
deaerator, condenser , chemical water
Product Paramenters
Item | Size | Operation Temperature | Type | Pressure Class | Body Material | Operation | Leakage Level |
Control Valve | 1/2" ~24" | -29℃ ~628℃ | Globe Angle | 150LB ~4500LB | WCB WC9 CF8 CF8M | Manual/ Pneumatic/ Electric/ Hydraulic | IV/V/VI |
Attemperator Spray Control Valve | 1/2" ~6" | -29℃ ~425℃ | Globe Angle | 150LB ~4500LB | WB36 A105 F22 | Manual/ Pneumatic/ Electric/ Hydraulic | V |
Feedpump Recirculation Valve | 1" ~12" | -29℃ ~425℃ | Globe Angle | 150LB ~4500LB | WB36 A105 F22 | Manual/ Pneumatic/ Electric/ Hydraulic | MSS-SP61 |
Globe Valve | 3/8‘’ ~4'' | -29℃ ~680℃ | Globe Y-type | 150LB ~4500LB | CF8C CF8M 316H 347H | Manual/ Pneumatic/ Electric/ Hydraulic | |
Check Valve | 3/8‘’ ~4'' | -29℃ ~680℃ | Globe Y-type | 150LB ~4500LB | CF8C CF8M 316H 347H | Manual/ Pneumatic/ Electric/ Hydraulic | |
Forged Steel Gate Valves | 1/2" ~30" | -29℃ ~628℃ | Parallel double gate | 150LB ~4500LB | WB36/A105/F22/F91/F92 | Manual/ Pneumatic/ Electric/ Hydraulic |
Installation site view
Pneumatic control valve in Indonesian chemical plant
Feedpump Recirculation Valve in Power plant(2*660MW)
Packing & Delivery
Generally packed in export wooden boxes ,and also can be packed according to customer's requirements .
Contact Us Now
Warmly welcome to call or write to consult and negotiate details.
Company Profile
● History: Since 1991, rich experience of manufacturing regulating valves, pneumatic high-pressure traps, and forged steel globe valves
● Scale: 19000m² working area , 120 employees, 5000pcs monthly capacity
● Management: ISO9001 quality management system, ERP production system
● Technology: Sufficient patents, professional technical team, strict QC system, R&D capability for customization
● Manufacturing: CNC center, Horizontal machining centre; Milling machines; Internal grinding machine etc.
● Scale: 19000m² working area , 120 employees, 5000pcs monthly capacity
● Management: ISO9001 quality management system, ERP production system
● Technology: Sufficient patents, professional technical team, strict QC system, R&D capability for customization
● Manufacturing: CNC center, Horizontal machining centre; Milling machines; Internal grinding machine etc.
● Testing facilities : Large-scale fluid laboratory, test range : 25-400mm diameter valves; 4 sets Hydraulic valves pump test desk; Handheld Spectrometer; Ultrasonic fault detector; Tensile testing machine; Shock testing machine etc.
● Certification: ISO14001, OHSAS18001, CE, Serbia 3A professinal certifications and approvals
● Guarantee: 18 months guarantee, and provide free parts during warranty period
● Service: DELAN brand agent, ODM, OEM
● Certification: ISO14001, OHSAS18001, CE, Serbia 3A professinal certifications and approvals
● Guarantee: 18 months guarantee, and provide free parts during warranty period
● Service: DELAN brand agent, ODM, OEM
FAQ
Q1: Are you a factory or trading company?
Q4: What is your hot items?
A1: We are a family business integrating manufacturing and trading, and our headquarters are in Suzhou, China
Q2: How long is your product warranty?
A2: All valves from DELAN are covered with a 12 Months warranty from the date of installation or 18 Months warranty from the shipment date.
Q2: How long is your product warranty?
A2: All valves from DELAN are covered with a 12 Months warranty from the date of installation or 18 Months warranty from the shipment date.
Q3: How can we guarantee quality?
A3: Always a pre-production sample before mass production; final Inspection before shipment;
A3: Always a pre-production sample before mass production; final Inspection before shipment;
Q4: What is your hot items?
A4: The most popular are globe type control valves. We provide confidential production agreements for many brands and distributors, which can replace the valves on-site FISHER, FLOWSERVE, KOSO, MASONEILAN and other international brands.
Q5: How about the shipping method?
Q5: How about the shipping method?
A5: By sea by air or express all possible. DHL/UPS/TNT/FedEx and other air shipments and sea shipments are all workable. In one words, we could do any shipments you wanted.
Q6: How about the label and the logo?
Q6: How about the label and the logo?
A6: DELAN provides customized branding services, and the specific cost is based on different order quantities.
Q7: Why should you buy from us not from other suppliers?
Q7: Why should you buy from us not from other suppliers?
A7: DELAN created the original circulation convection structure to control valve, and this structure is of cavitation resistance, erosion resistance, and can meet the requirements of low noise.
