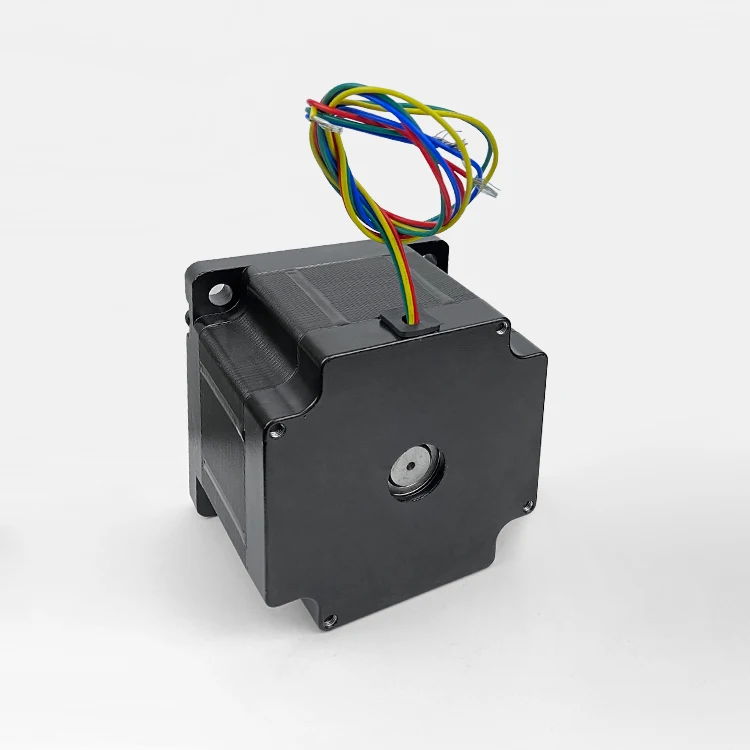

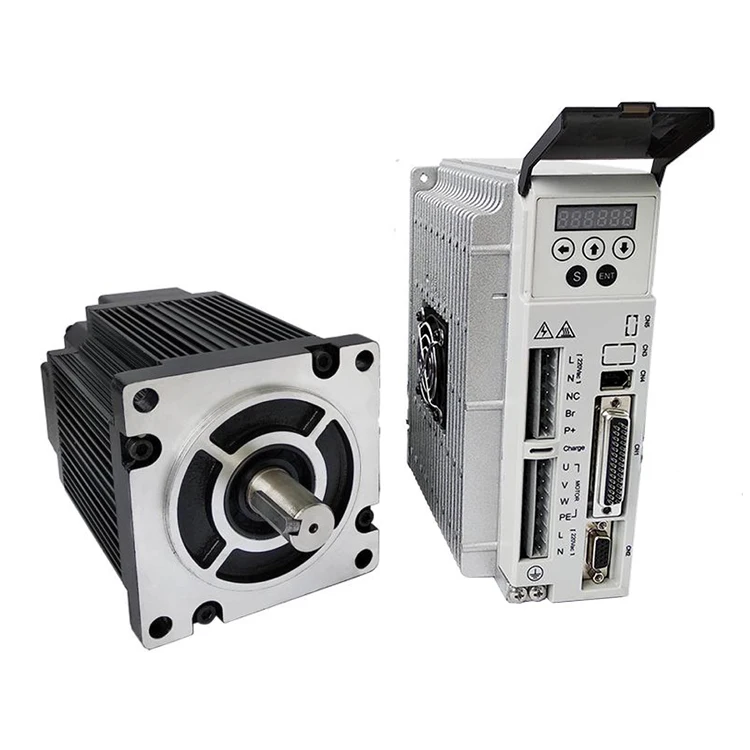

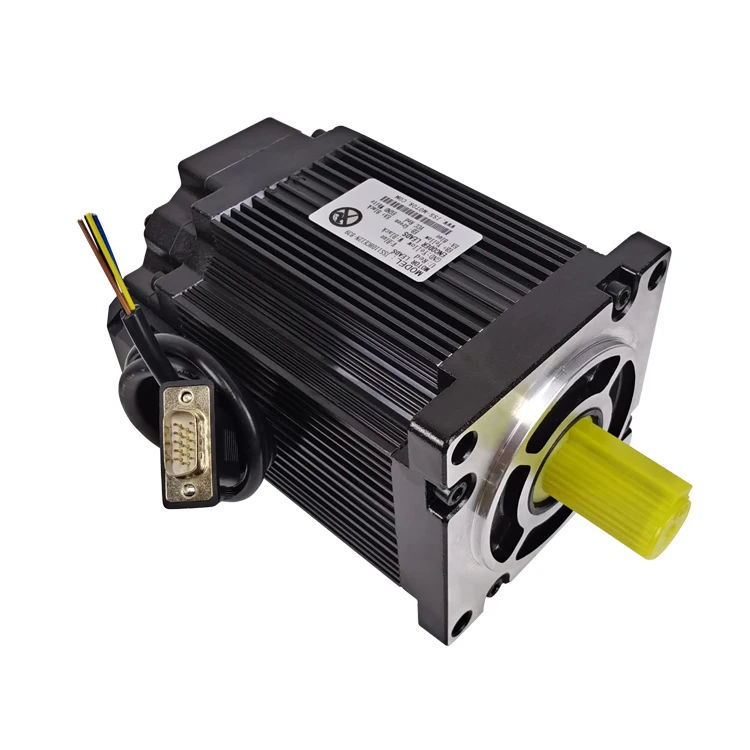

110mm 16N.m 110HCE16N-B39 HSS2206 cnc nema 42 stepper motor
Product Description
You will receive

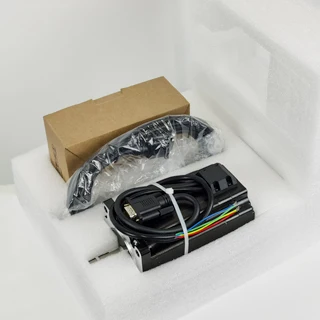

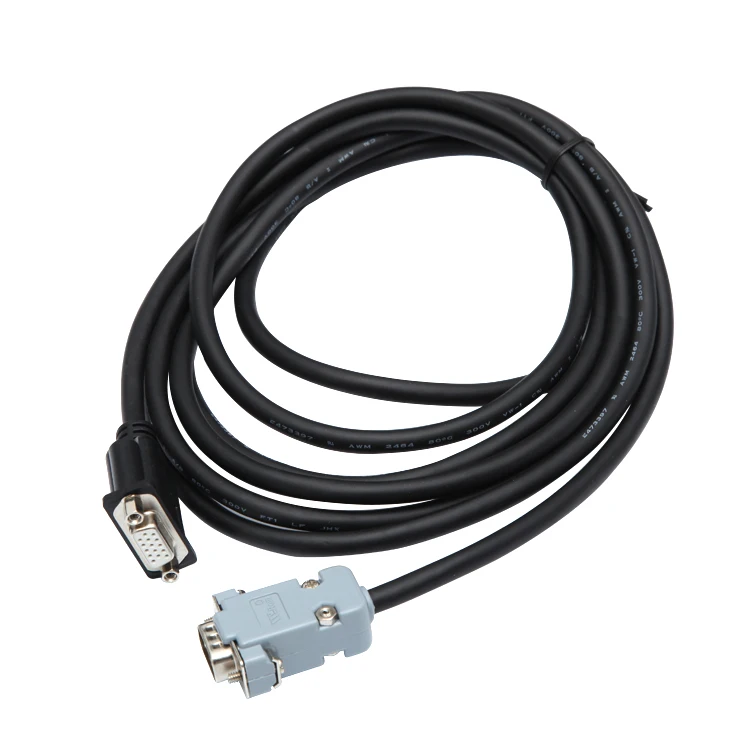

1Pcs Nema 42 16N.m Closed Loop Stepper Motor + 1PCS 3HSS2260 Driver + 1PCS Cable
1Pcs Nema 42 16N.m Closed Loop Stepper Motor + 1PCS 3HSS2260 Driver + 1PCS Cable
Noted: If you need other motor combinations, please send inquiry to us or contact us directly.

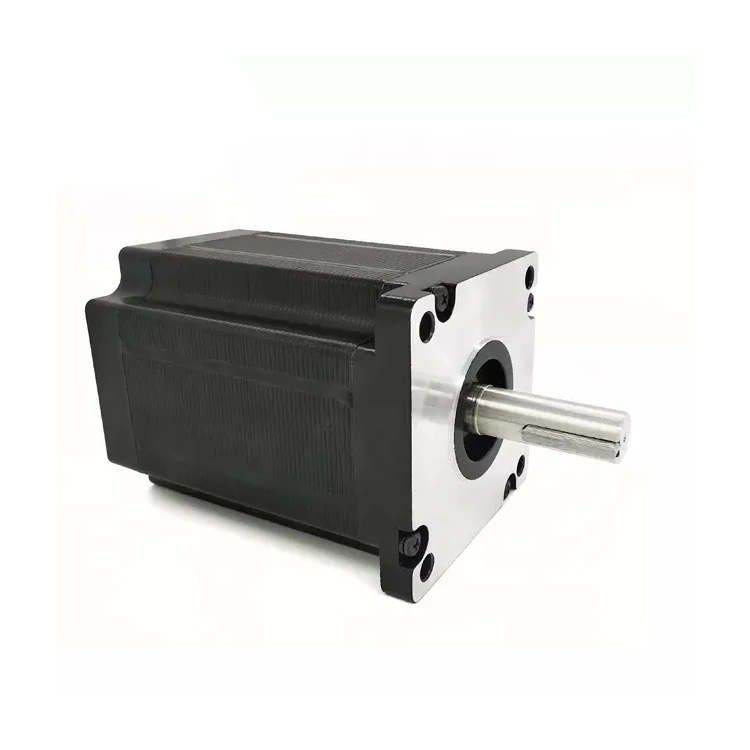

Model | 110HCE16N-B39 |
Step Angle | 1.2 degree |
Phase | 3 |
Current | 4.2A |
Holding Totque | 16N.m |
Resistance | 1.9±10%Ω |
Inductance | 18±20%mH |
Frame Size | 110*110mm |
Shaft Diameter | 19mm |
Shaft Length | 39mm |
Motor Length | 180mm |
Encoder Resolution | 1000PPR |
Weight | 9.8Kg |
OEM Service | Accept |
Warranty | 3 months - 1 year |
NEMA42 Closed Loop Stepper Motor
Motor Specification
Temperature Rise | 80℃max |
Ambient Temperature | -20℃~+50℃ |
Insulation Resistance | 100 MΩ Min. ,500VDC |
Dielectric Strength | 500VAC for 1minute |
Shaft Radial Play | 0.02Max. (450g-load) |
Shaft Axial Play | 0.08Max. (450g-load) |
Max. radial force | 220N (20mm from the flange) |
Max. axial force | 60N |
Model No. | Step Angle | Current | Resistance | Inductance | Holding Torque | No. of Leads | Encoder | Motor Length | Weight |
( °) | (A) | (Ω±10%) | (mH±20%) | (N.m) | No. | (PPR) | L(mm) | (Kg) | |
110HCE12N-B39 | 1.2 | 4.2 | 1.2 | 13 | 12 | 3 | 1000 | 139 | 7.5 |
110HCE16N-B39 | 1.2 | 6.4 | 0.9 | 9.5 | 16 | 3 | 1000 | 180 | 10 |
110HCE20N-B39 | 1.2 | 4.2 | 1.88 | 18 | 20 | 3 | 1000 | 221 | 12 |

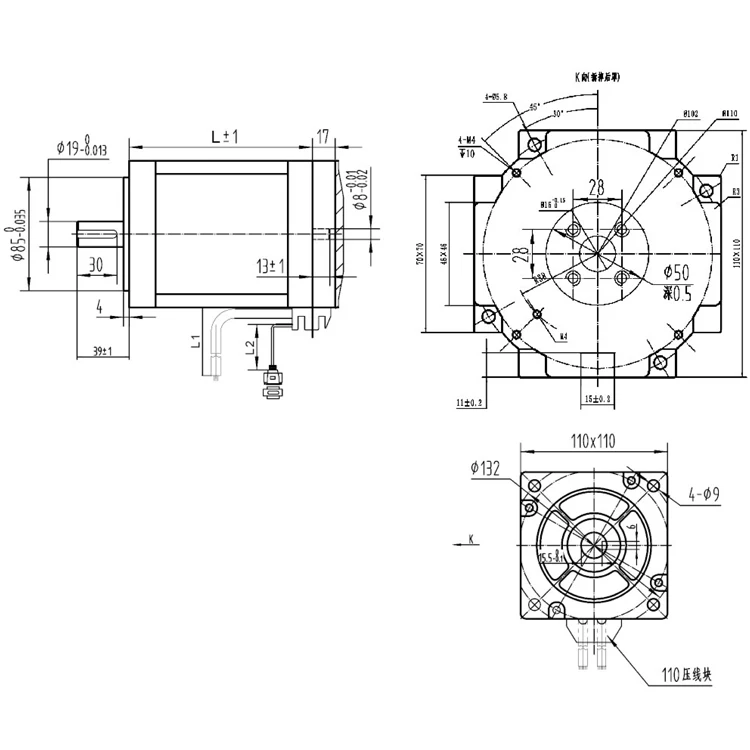

Motor Dimension (mm)
Motor Application:
Stepper motors are widely used in engraving machine, cutting plotter, textile machine, 3D printer, medical devices,stage lighting equipment, robot, CNC machine, music fountain and other industrial automatic equipment.
Stepper motors are widely used in engraving machine, cutting plotter, textile machine, 3D printer, medical devices,stage lighting equipment, robot, CNC machine, music fountain and other industrial automatic equipment.

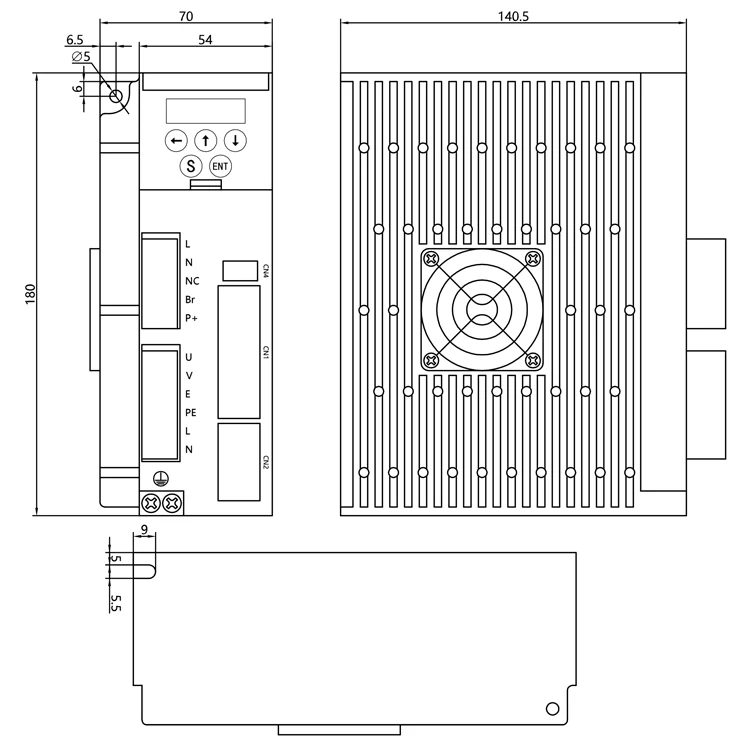

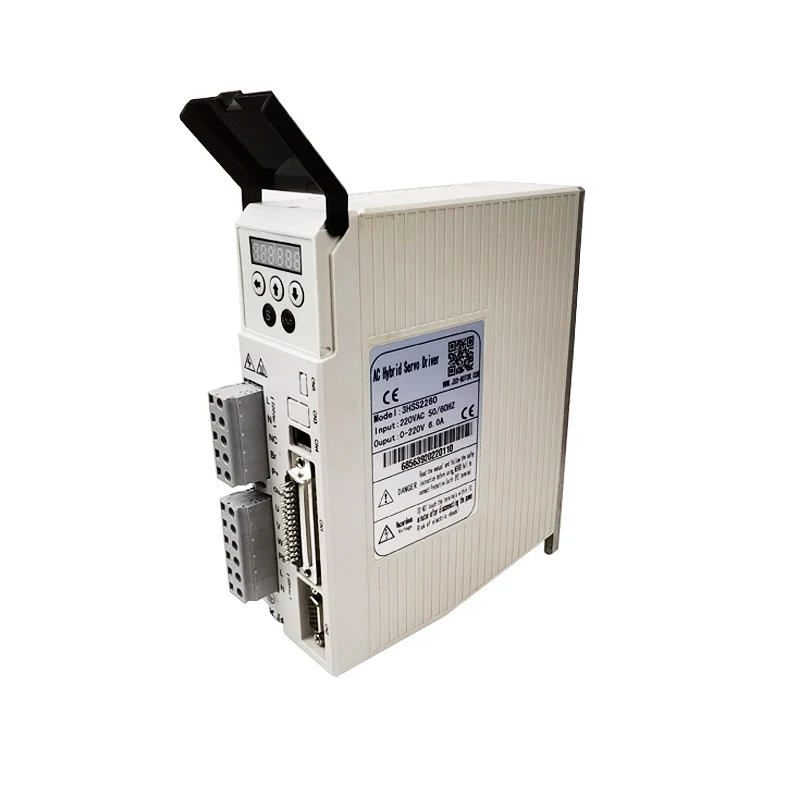

3HSS2260 Stepper Motor Driver:
Input voltage | AC150~220V |
Peak current | Peak 6.0A(current variable based on load) |
Pulse frequency | 0~200KHz |
Suitable motor | 3-phase NEMA34 and NEMA42 hybird servo motor |
Encoder Resolution | 1000 |
Using environment | 0~50℃, avoid dust, oil, corrosion gas |
Storage environment | -20℃~65℃，avoid direct sunlight |
Motor Driver Features
★ 32-bit DSP and vector closed-loop control technology★ Without losing step, high accuracy in position
★ Improve the motor output torque and working speed
★ Variable current control technology, restrain motor temperature rise
★ Adapt to variety of mechanical load conditions(including low-rigidity pulleys), no need to adjust the gain parameter
★ Smooth and reliable moving, low vibration, great improvement in accelerate and decelerate
★ The ability of zero speed static without vibration
★ Adapt to 3-phase 86(NEMA34) and 110(NEMA 42) hybrid servo motor
★ Maximum step-pulse frequency 200KHZ
★ Micro step 200-65535 pulse/rev
★ Voltage range AC150-220V
★ Over current, over voltage and over position protection
★ Six digital tube display, easy to set parameters and monitor the motor running state

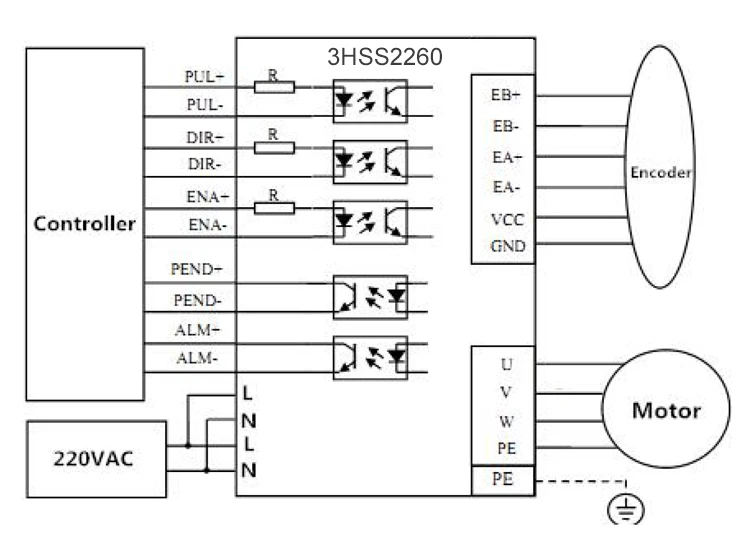

Wiring Diagram
Other Parts
Packing & Delivery

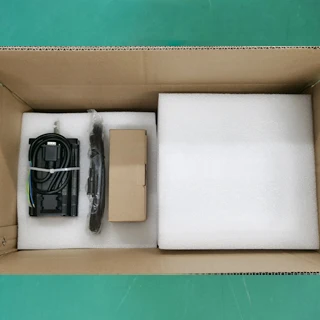

Packing
Layers of packaging are more secure and faster, strict packing to ensure the safety and integrity of the motor.
Delivery
Shipping can be arranged as per your requirements. Air and sea transportation are both acceptable.
