Intelligent Crawler Drill Truck Drilling Rig Manufacturer Special for Coal Mine Underground Wide Variety of Models

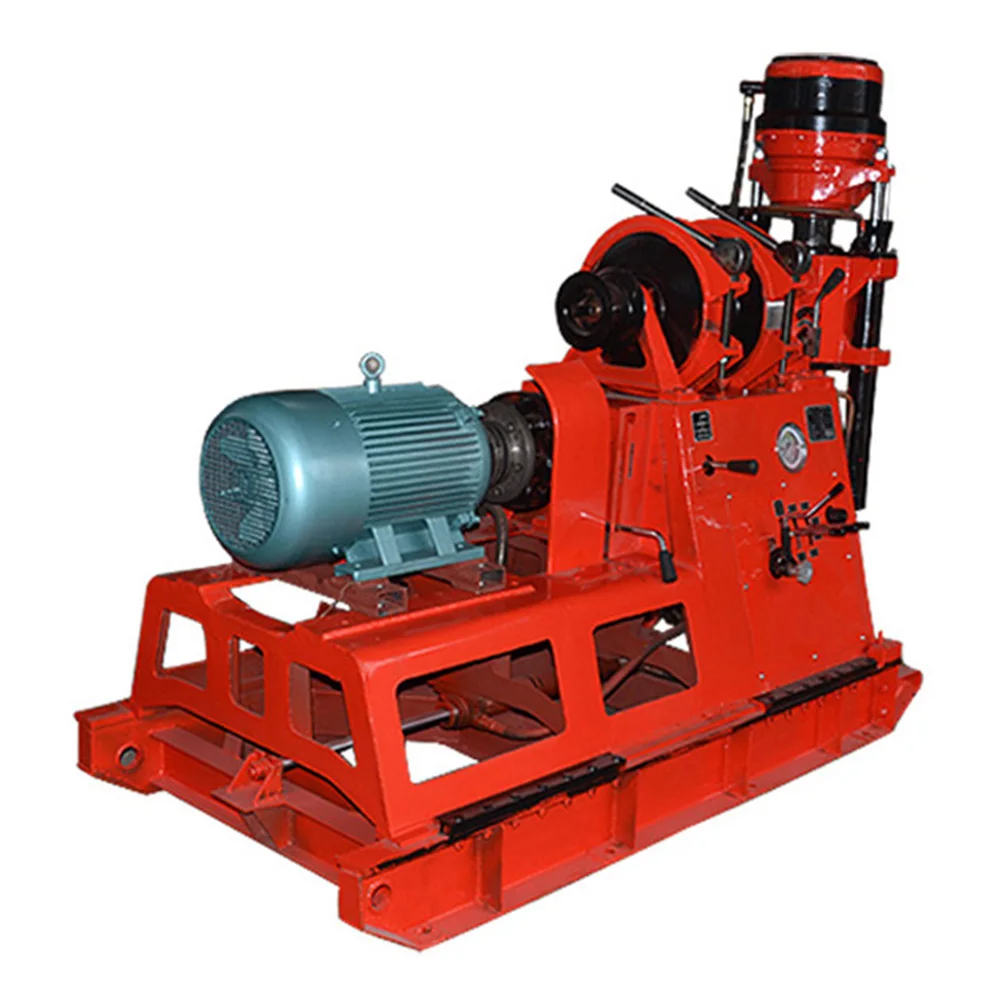

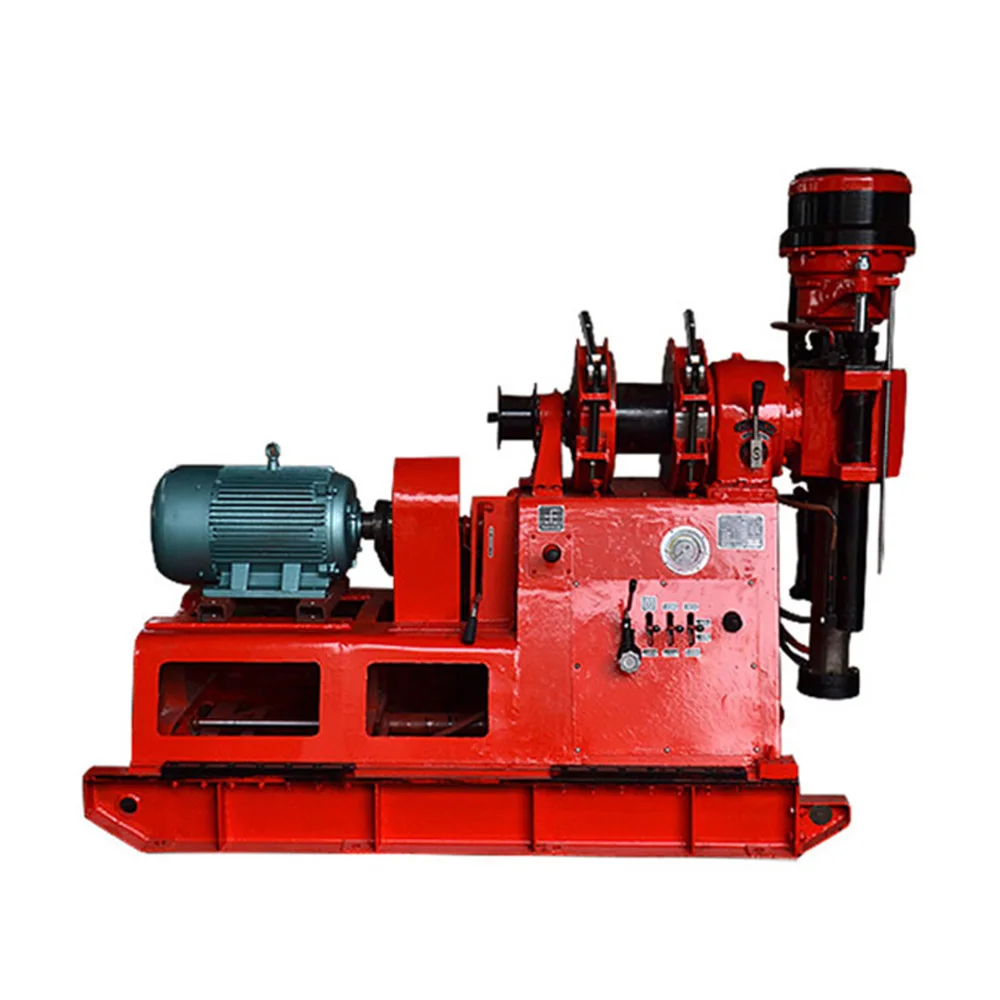

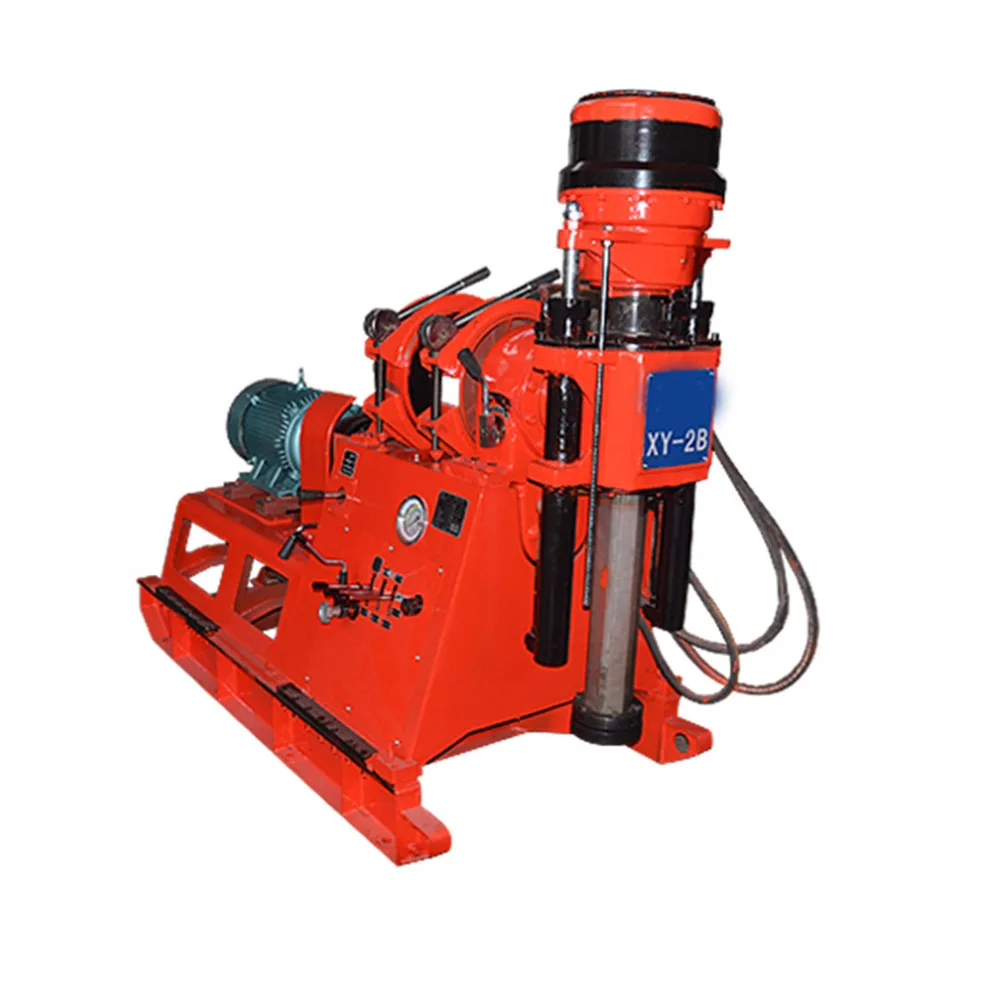

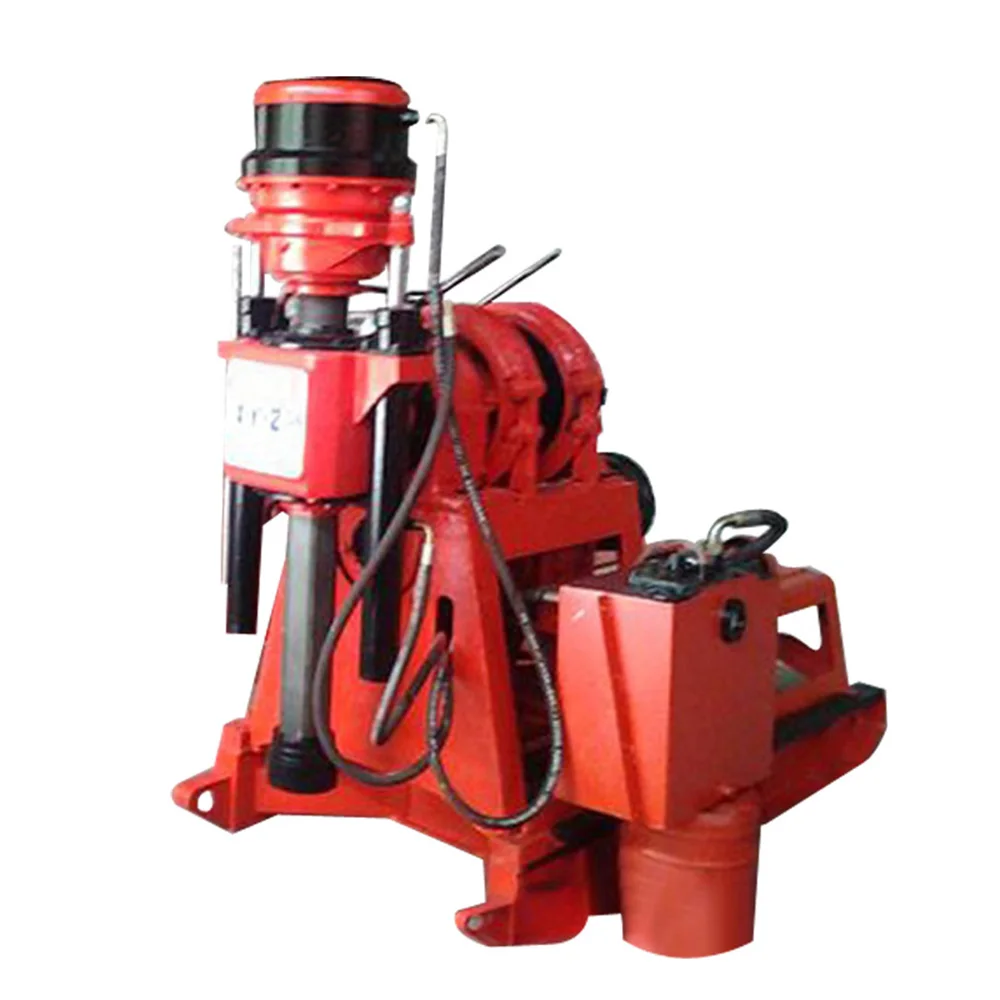

1. XY-2 Rotary Borehole Water Well Drilling Rig Equipment for the general exploration and investigation of solid mineral deposit, engineering geotectonic survey and concrete structure inspection holes.
2.Diamond drill bit, alloy drill bit and steel roller drill bit and so on are available for drilling according to different geological structures.
3.When the final holes are respectively 75mm and 46mm in diameter, the rated hole depths are separately 100m and 180m. The maximum of depth may not exceed 110% of that drilled in each hole. The maximum allowable hole diameter is 150 mm.
2.Diamond drill bit, alloy drill bit and steel roller drill bit and so on are available for drilling according to different geological structures.
3.When the final holes are respectively 75mm and 46mm in diameter, the rated hole depths are separately 100m and 180m. The maximum of depth may not exceed 110% of that drilled in each hole. The maximum allowable hole diameter is 150 mm.
Product Paramenters
Drilling capacity(m) | 73 rod | 100 | |||
60 rod | 200 | ||||
50 rod | 380 | ||||
42 rod | 530 | ||||
Spindle speed(r/min) | Forward | 65;114;180;248; 310;538;849;1172 | |||
Reverse | 51;242 | ||||
Max torque (Nm) | 2760 | ||||
Angle range | 0-90° | ||||
Spindle max pull force(KN) | 60 | ||||
Spindle stroke (mm) | 600 | ||||
Hoist max life capacity with single rope (KN) | 30 | ||||
Spindle inner dia (mm) | 76 | ||||
Oil pump | SCB32/12 | ||||
Power unit | Electric motor | Y180L-4,22Kw | |||

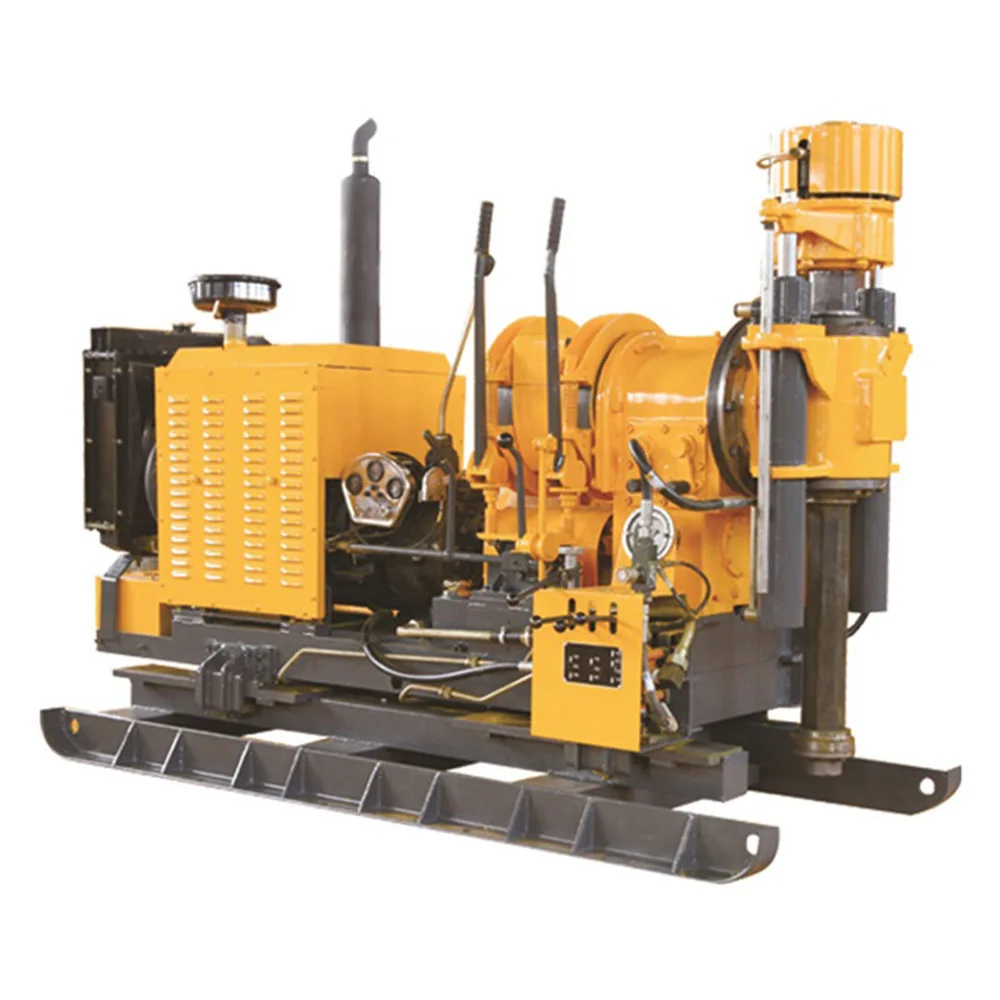

Diesel engine | 395K2,19.85Kw | ||||
Inner dia of spindle (mm) | 2150×900×1690 | ||||
Drill body weight (excluding power)(kg) | 950 | ||||
