Factory Supply 9 Motor Glass Beveling Machine Mirror Polishing Machine
- Category: >>>
- Supplier: Liaoda (LAD) Glass Machinery Co. Ltd.
Share on (1600959690238):
Product Overview
Description
YD-BM-9-Manual

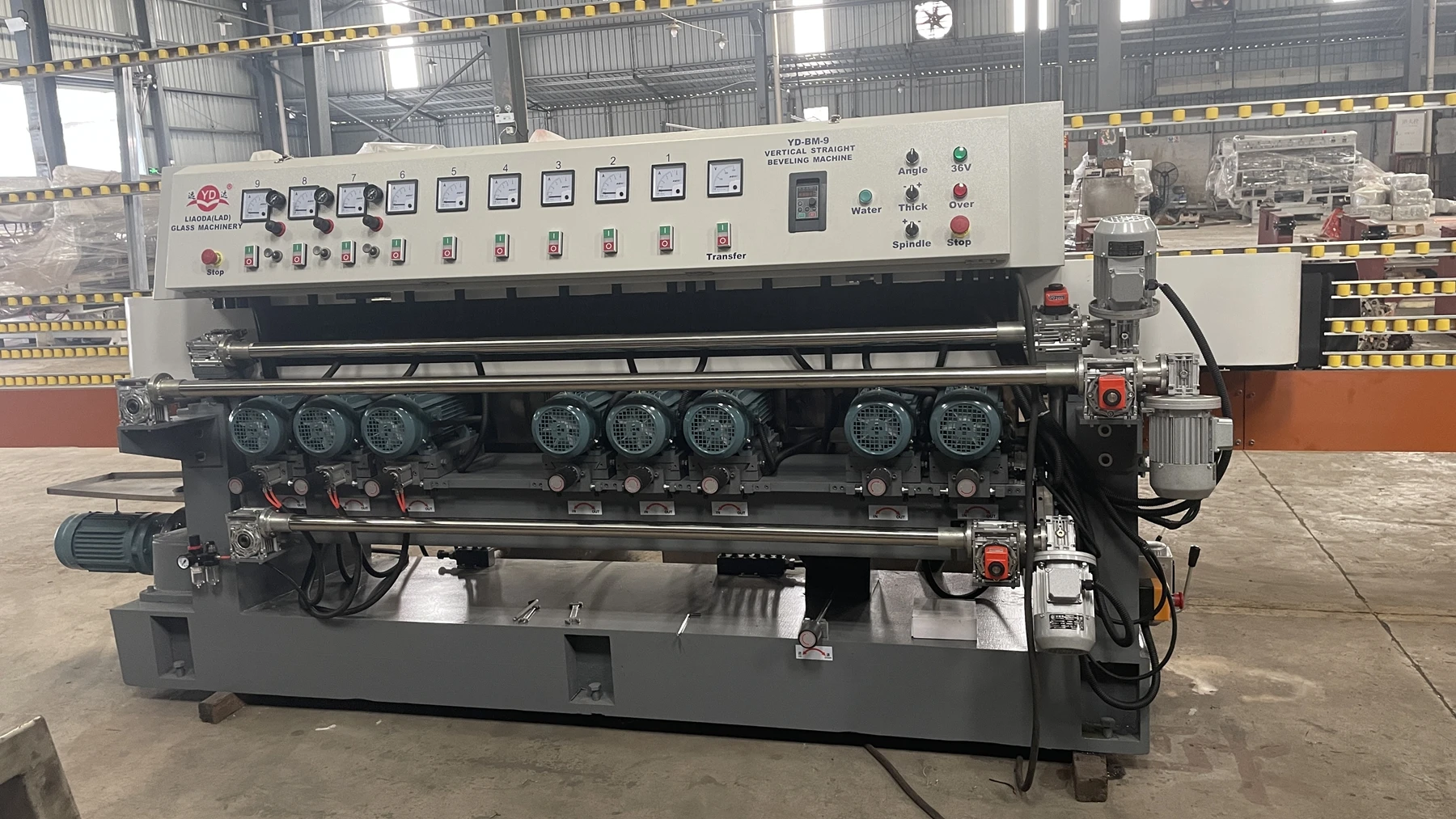

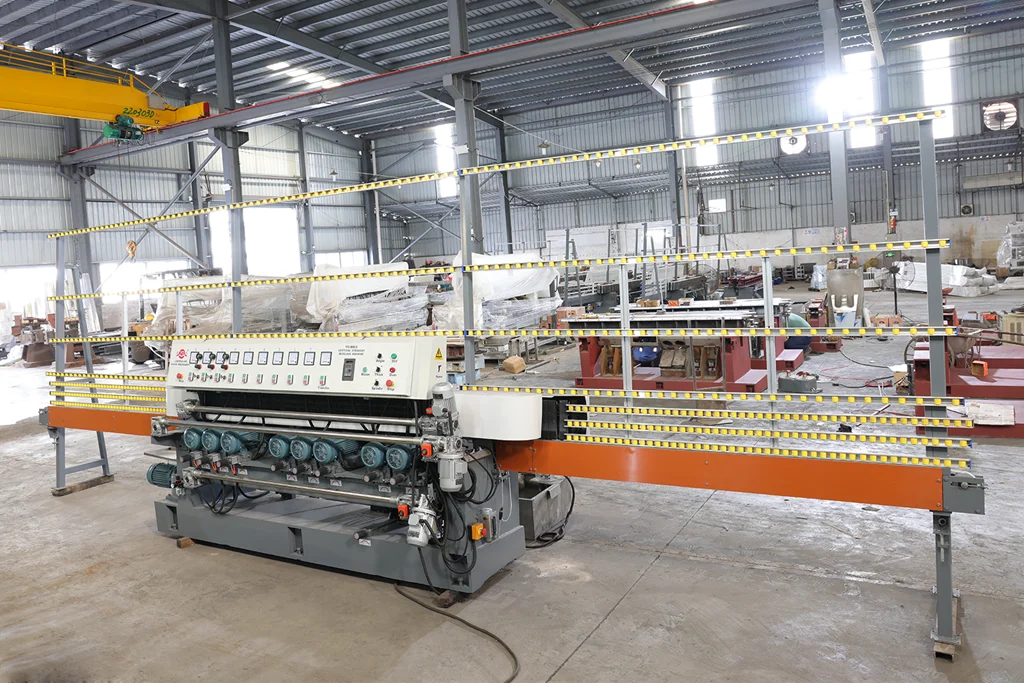

Vertical Glass Straight-Line Beveling Machine
Vertical Glass Straight-Line Beveling Machine

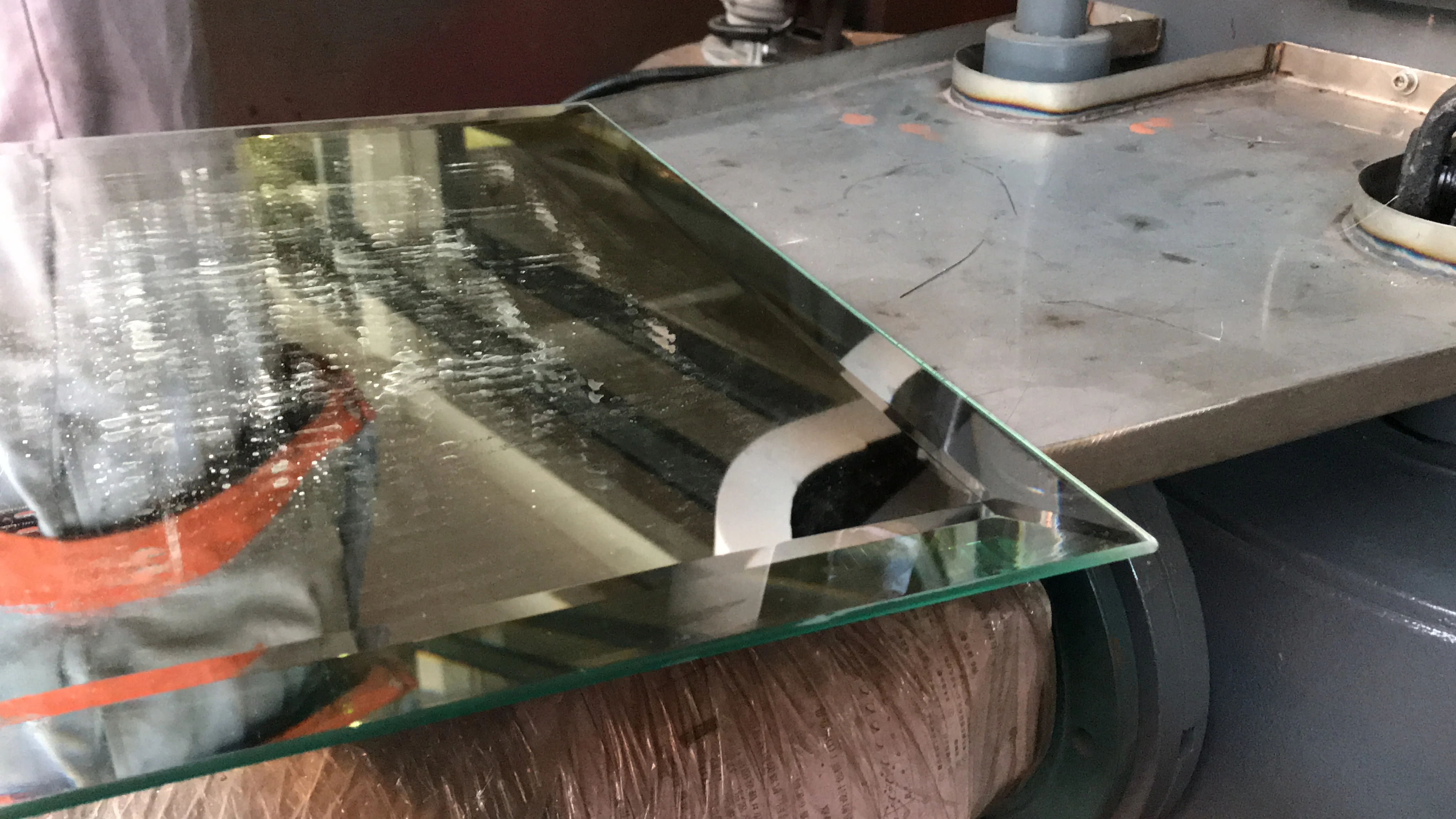

YD-BM series Glass Beveling Machine is used to grind and polish the bevel edge for rectilinear glass sheets and mirror with various size and thickness.
This machine is a must for most of the glass processing factory as a supplementary for small batch production and it is widely used in the glass processing factory for producing glass furniture, shower room glass and glass window, etc.
Product Description
Specification
Model | YD-BM-9 |
Quantity of wheel | 9 |
Min. glass size | 150x150mm |
Glass thickness | 3-19mm |
Max. beveling width | 40mm |
Beveling angle | 3-30° |
Processing speed | 0.8-3m/min |
Compressed air consumption | <1 Lt/min |
Control mode | Manual |
Power | 21kw |
Outer dimension | 7.0x1.2x2.6m |
Weight | 3000kg |
Wheel Arrangement
Position | Wheel type | Position | Wheel type | |
NO.1 | Diamond wheel for preliminary grinding | NO.2 | Diamond wheel for preliminary grinding | |
NO.3 | Diamond wheel for flat edge grinding | NO.4 | Resin wheel for accurate grinding | |
NO.5 | Resin wheel for accurate grinding | NO.6 | Resin wheel for accurate grinding | |
NO.7 | Woolen wheel for polishing | NO.8 | Woolen wheel for polishing | |
NO.9 | Woolen wheel for polishing | |||
