OEM ODM Ethernet Fiber Switch 4 2 RJ45 Injector Switcher POE 48V 100Mbps Wifi Smart IP Switch Poe Switch 4 Port
- Category: >>>
- Supplier: Shenzhen Mosslink Technology Co. Limited
Share on (1600959798316):
Product Overview
Description
Products Specification
Main Feature:
- 4 100M PoE ports and 2 100M uplink ports.
- Compliant with IEEE 802.3, IEEE 802.3u, IEEE802.3x standards.
- Ethernet ports support 10/100 auto-negotiation.
- Flow control method: Full duplex uses IEEE 802.3x standard, half duplex uses Back pressure standard.
- Store-and-forward switching mechanism.
- Compliant with IEEE 802.3af/at PoE power supply standard.
- 2-level intelligent toggle switch (customizable switch function):

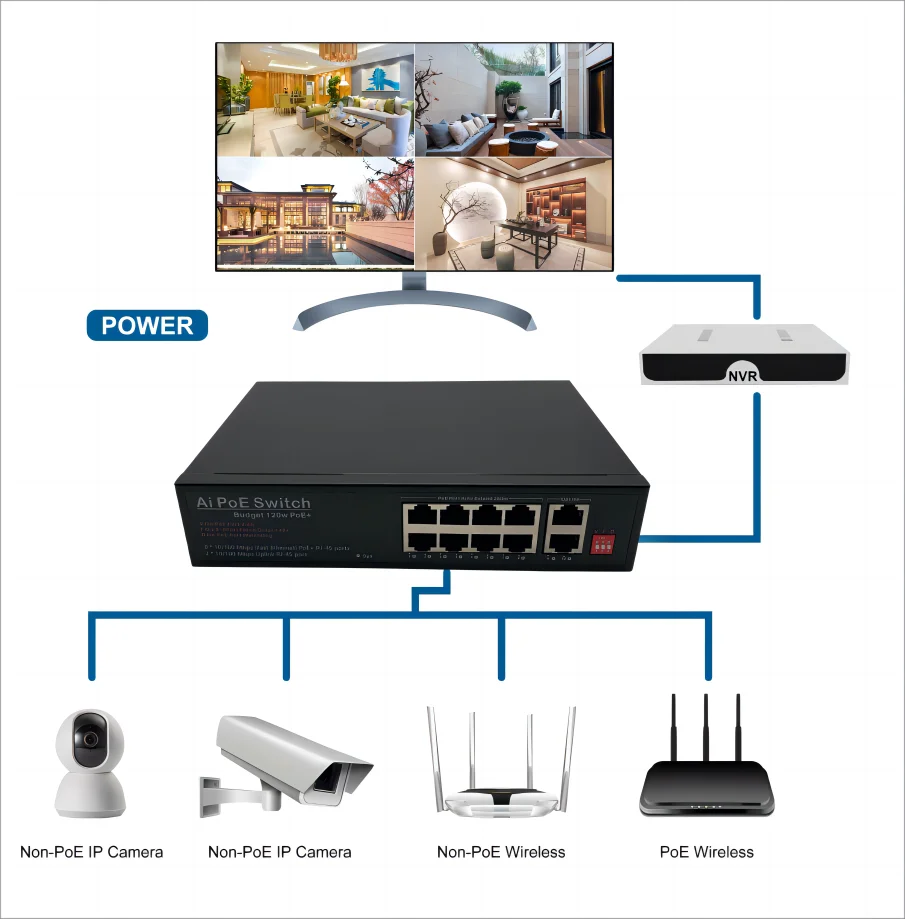

- VLAN: Port isolation mode, isolating the downlink ports of the monitoring network on ports 1-4 and allowing communication with the uplink ports, effectively suppressing broadcast storms and protecting intranet security.
- Extend: Enables 10M long-distance mode on ports 1-4, extending the PoE power supply and data transmission distance up to 250 meters.
- PoE port supports priority mechanism. High-priority port is given priority when remaining power is insufficient, avoiding device overload.
- Ports 1-4 support PoE watchdog function. If port communication fails, the corresponding port's PoE will automatically restart, reducing on-site maintenance costs.
- Compliant with IEEE 802.3, IEEE 802.3u, IEEE802.3x standards.
- Ethernet ports support 10/100 auto-negotiation.
- Flow control method: Full duplex uses IEEE 802.3x standard, half duplex uses Back pressure standard.
- Store-and-forward switching mechanism.
- Compliant with IEEE 802.3af/at PoE power supply standard.
- 2-level intelligent toggle switch (customizable switch function):
- VLAN: Port isolation mode, isolating the downlink ports of the monitoring network on ports 1-4 and allowing communication with the uplink ports, effectively suppressing broadcast storms and protecting intranet security.
- Extend: Enables 10M long-distance mode on ports 1-4, extending the PoE power supply and data transmission distance up to 250 meters.
- PoE port supports priority mechanism. High-priority port is given priority when remaining power is insufficient, avoiding device overload.
- Ports 1-4 support PoE watchdog function. If port communication fails, the corresponding port's PoE will automatically restart, reducing on-site maintenance costs.

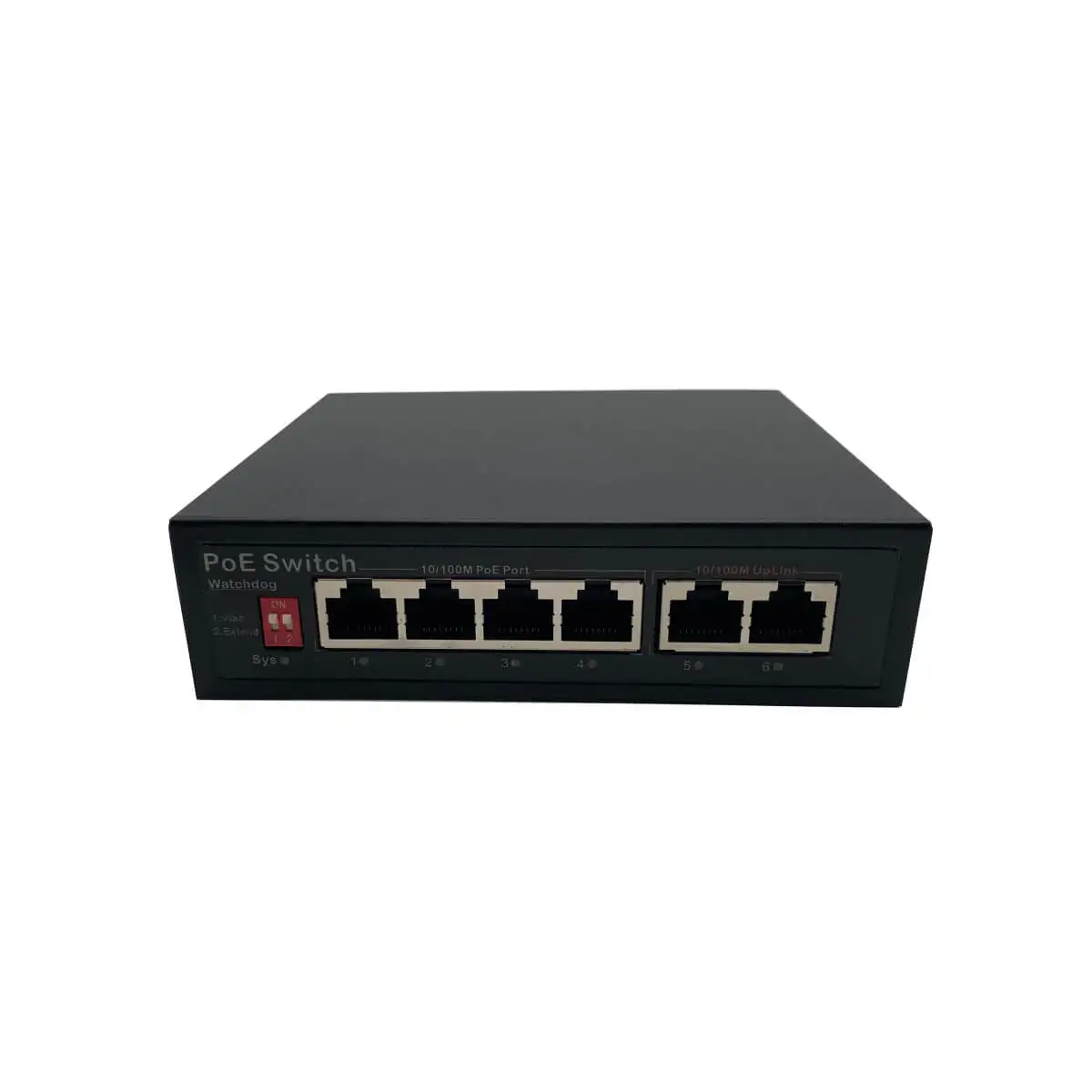

Product Name | 6 port 10/100Mbps RJ45 unmanaged industrial poe switch |
Network protocol | IEEE802.3 IEEE802.3u IEEE802.3x |
Number of Ports | 4 10/100Base-TX POE ports (Data/Power) 2 10/100Base-TX uplink RJ45 ports (Data) |
Network port characteristics | 1-6 ports 10/100BaseT (X) automatic detection, full/half duplex MDI/MDI-X adaptive |
Backplane Bandwidth | 1.6 Gbps |
Packet forwarding rate | 0.89Mpps |
Packet Buffer | 768K |
MAC Address Table | 1K |
Forwarding mode | Store-and-Forward |
Network Media (Cable) | 10BASE-T ： Cat3,4,5 UTP(≤250 meter) 100BASE-TX ： Cat5 or later UTP(≤100 meter) |
LED indicator light | Running indicator light: Sys (green); Network indicator light: Link (green) |
Function switch (customizable) | SW1: VLAN |
SW2: Extend | |
PoE power supply standard | 1-4 ports support IEEE802.3af/at standard PoE power supply |
Power Pin Assignment | 1/2(+)，3/6(-) |
Power Consumption | 48W |
Overall Power Consumption | Standby power consumption: ＜ 3WFull load power consumption: ＜ 48W |
IP Grade | Port lightning protection: 4kV 10/700us Protection level: IP30 |
Environment | Working temperature: -20~55 ° C Storage temperature: -40~75 ° C Working humidity: 10%~90%, non condensing Storage humidity: 5%~90%, non condensing |

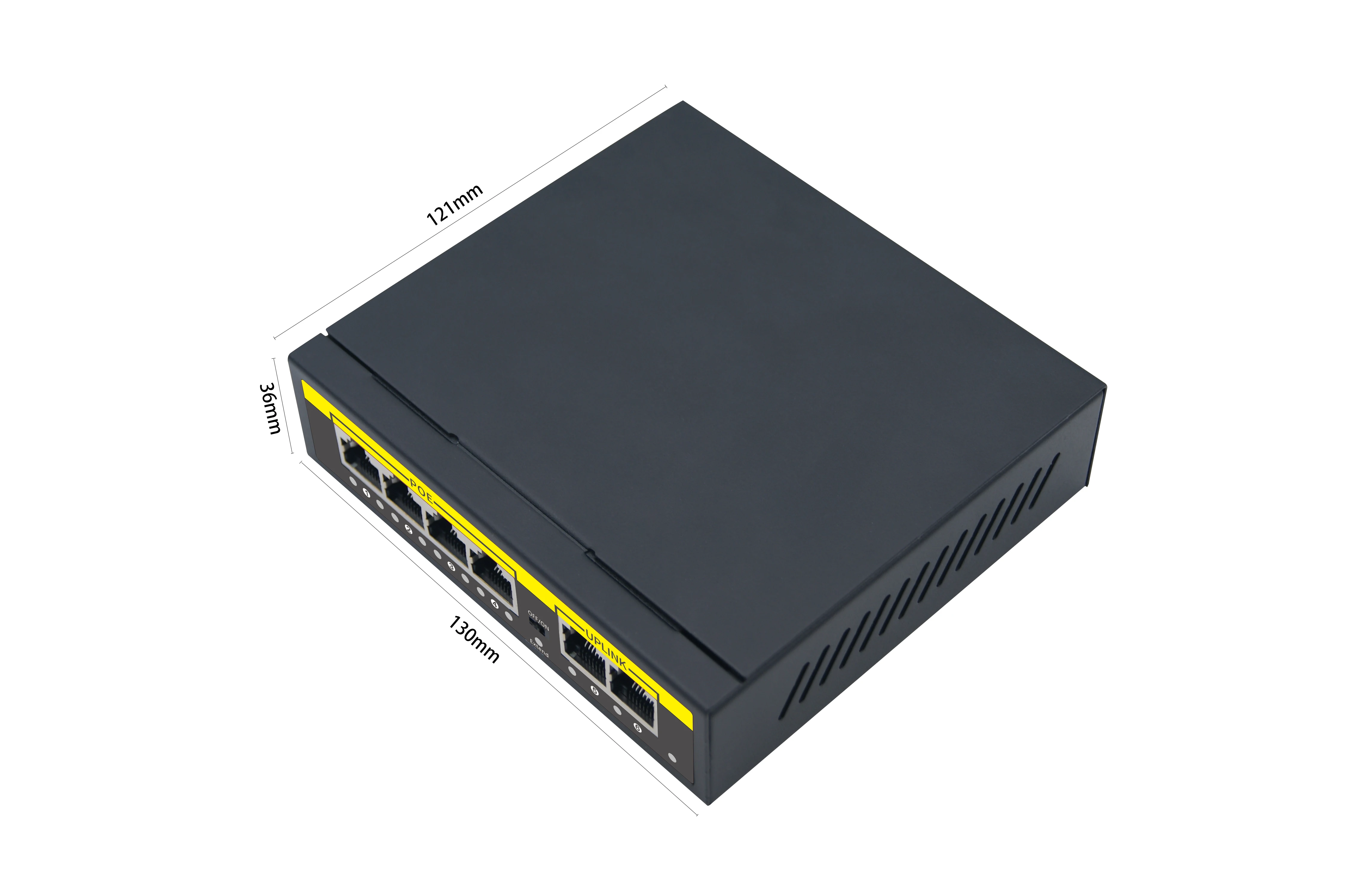

Size | 130*120*36mm |
Net weight/Gross weight (Kg) | 0.35Kg/0.55Kg |

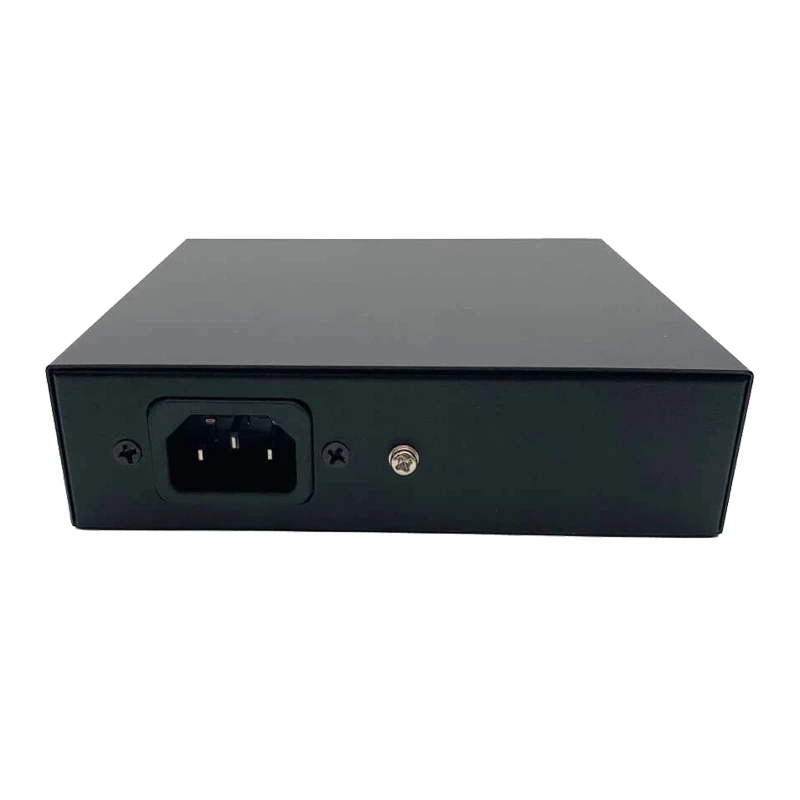

supply voltage | Power input voltage: AC 100~240V 50/60Hz Power output power: 52V/0.92A |
packing list | 1 POE switch 1 AC power cord 1 product manual 1 warranty card and certificate of conformity |
