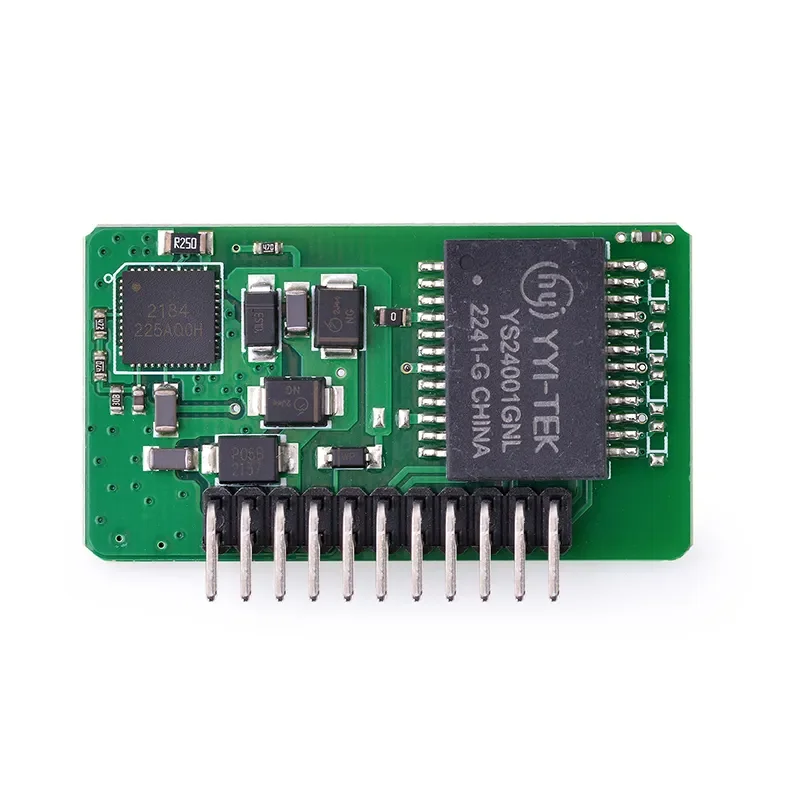

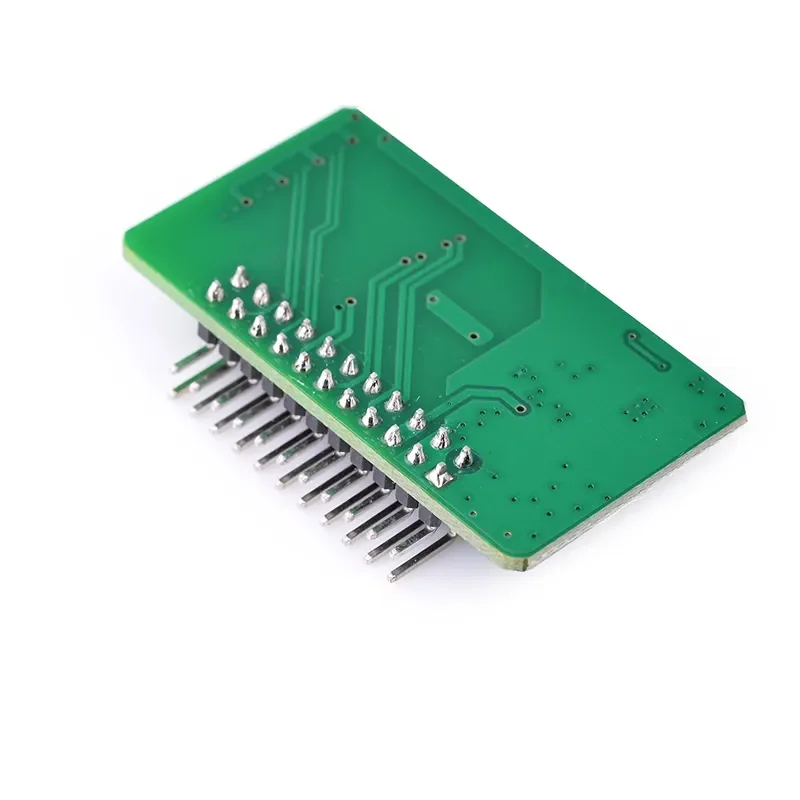

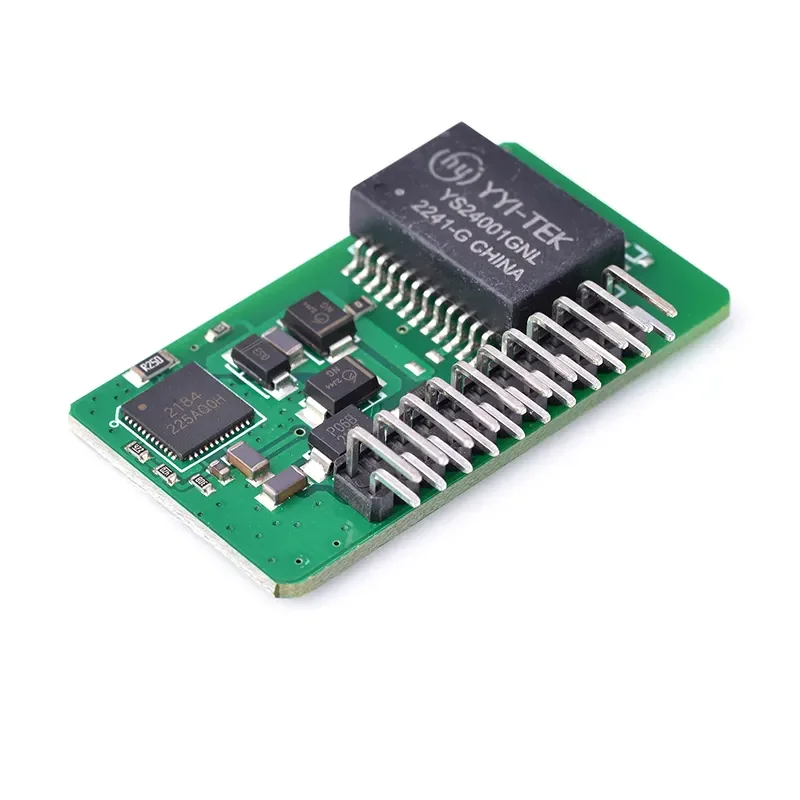

High quality support 1G 2.5G one port PSE module SDAPO PSE802G PSE module
- Category: >>>
- Supplier: Shenzhen Dapo Communication Co. Ltd.
Share on (1600959800328):
Product Overview
Description
Products Description
You are welcome to customize the POE modules of various sizes and appearances and function.The layout is required to receive the initial research and development expenses.After ordering a certain number of modules (usually 5000 pieces), the r&d cost can be deducted.After the sample is qualified, batch production.
we also have 60W 90W PSE module please ask sales for details
Product name: Gigabit PSE module
Product model: PSE802G plug-in board
Production Company:SDAPO
POE protocol: IEEE802.3at, compatible with af
Port rate: 10/100/1000Mbps, 2.5G
POE power: 30W
POE foot: 1,2+/3,6-
Chip scheme: Dahua (standard POE chip, no MCU)
Lightning protection can be added 4KV common mode + differential mode
Pin definition
Product name: Gigabit PSE module
Product model: PSE802G plug-in board
Production Company:SDAPO
POE protocol: IEEE802.3at, compatible with af
Port rate: 10/100/1000Mbps, 2.5G
POE power: 30W
POE foot: 1,2+/3,6-
Chip scheme: Dahua (standard POE chip, no MCU)
Lightning protection can be added 4KV common mode + differential mode
Pin definition
Foot position | 1 | 3 | 5 | 7 | 9 | 11 | 13 | 15 | 17 |
19 | 21 | definition | PGND | GND | 52V | POE1 | POE3 | POE5 | POE7 |
RJ1 | RJ3 | RJ5 | RJ7 | Foot position | 2 | 4 | 6 | 8 | 10 |
12 | 14 | 16 | 18 | 20 | 22 | definition | LED | GND | 52V |
