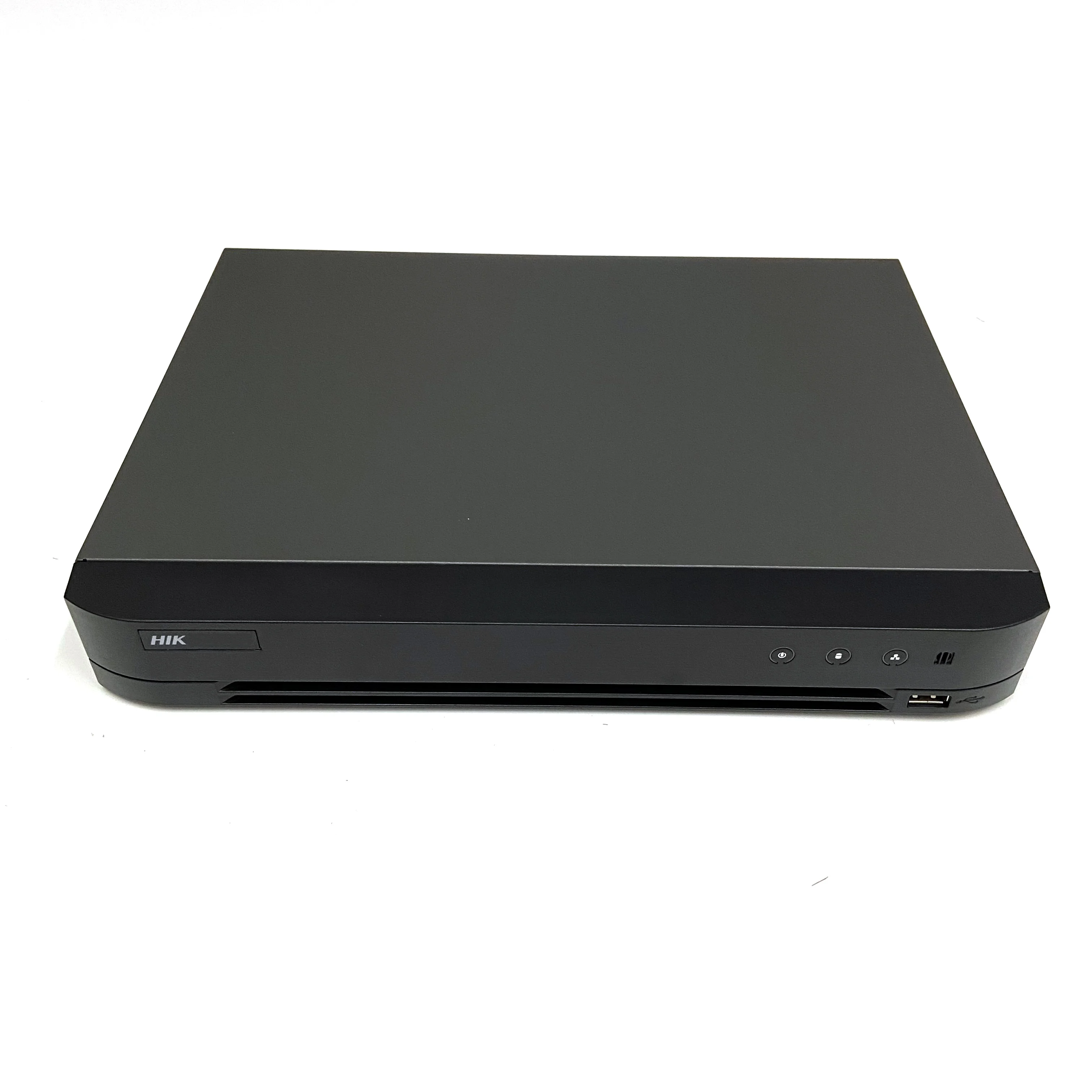

Hik 4 ch 5MP 1U H.265 AcuSense DVR iDS 7204HUHI M1/S TVI CVI AHD CVBS IP 5 in 1 CCTV DVR
- Category: >>>
- Supplier: Shenzhen Bomi Vision Technology Limited
Share on (1600959812475):
Product Overview
Description

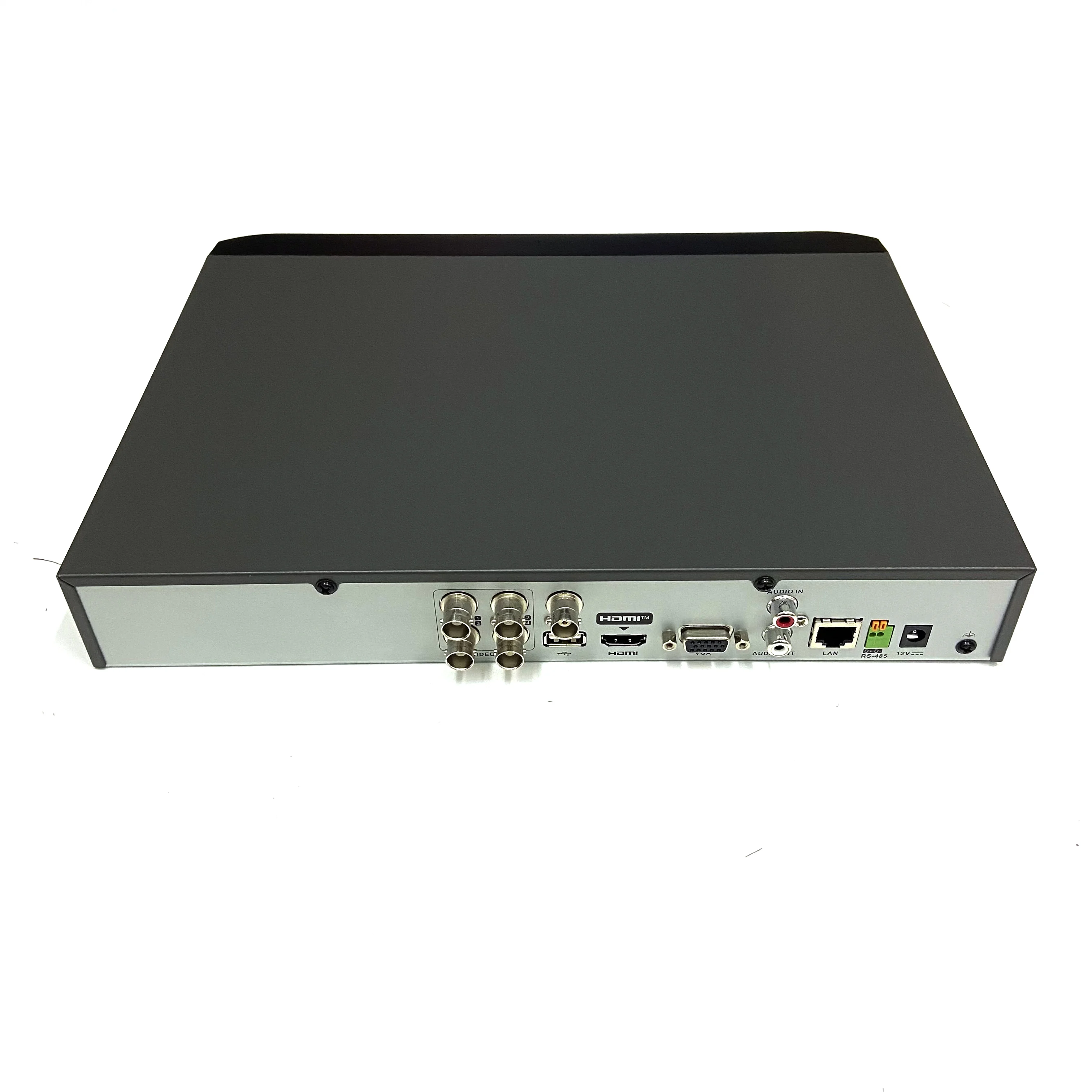

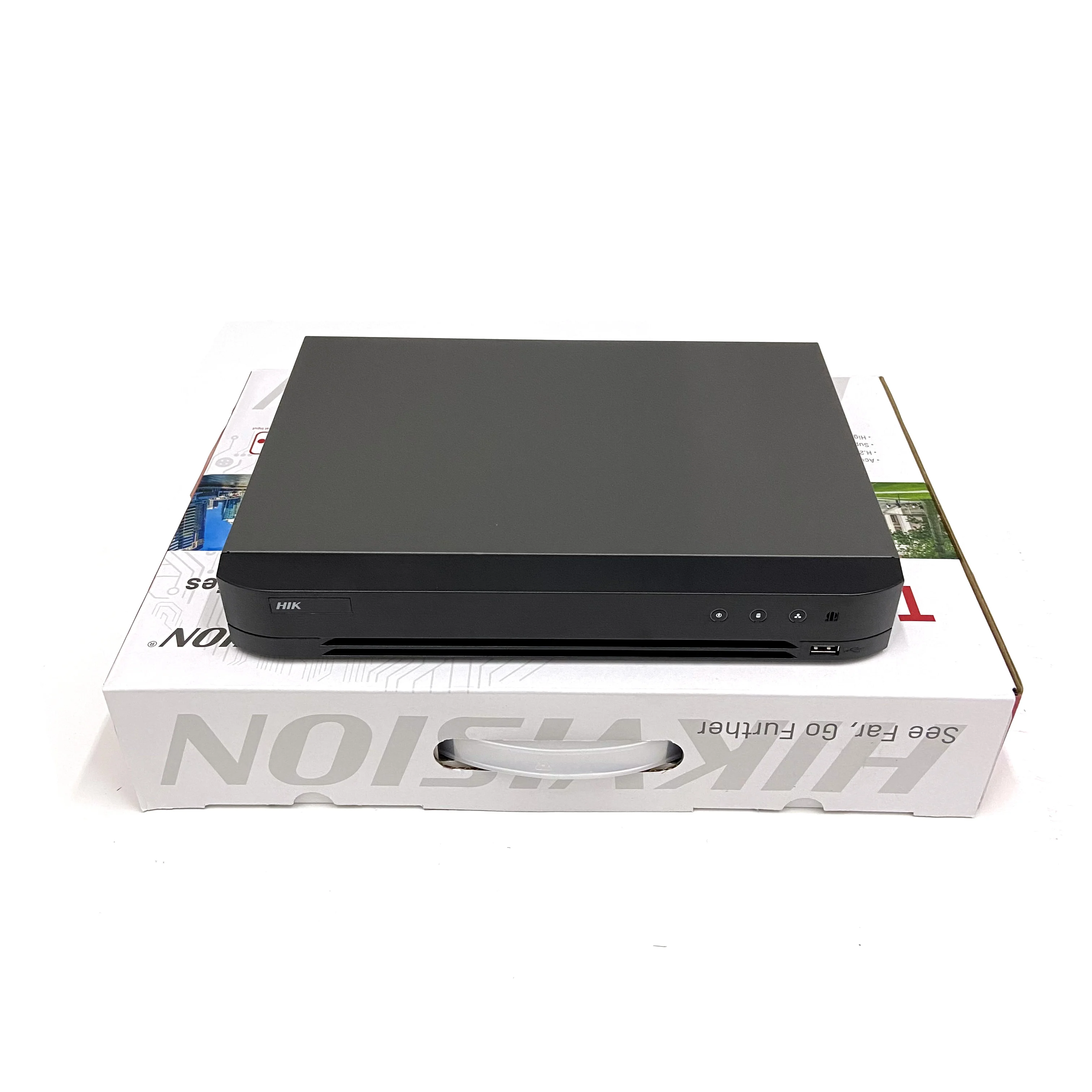

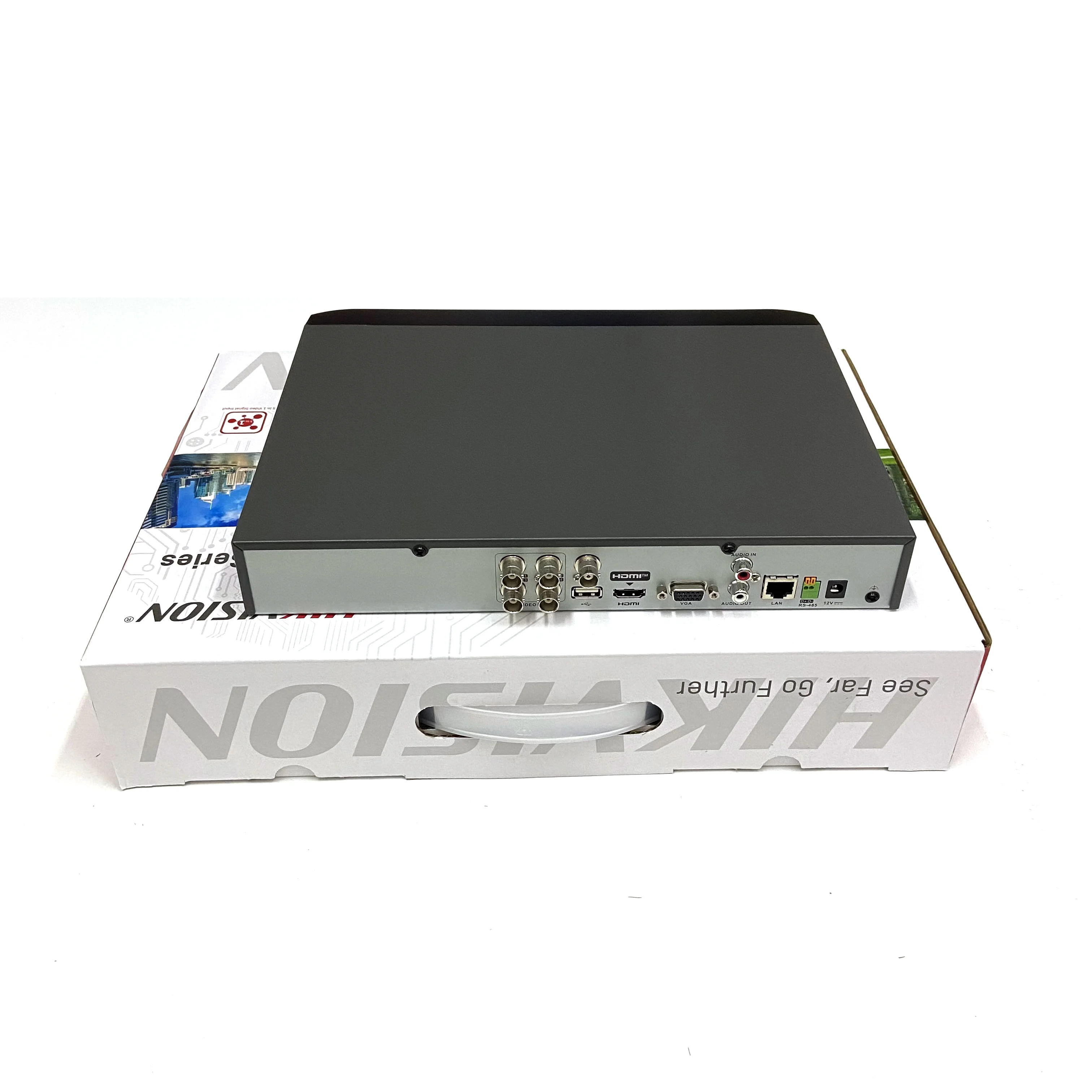

Hik 4-ch 5MP 1U H.265 AcuSense DVR iDS-7204HUHI-M1/S TVI CVI AHD CVBS IP 5 in 1 CCTV DVR
If you are Wholesalers/Contractors/Retailers/Installers, please feel free to contact us for Special Discount!
Products Description
4-ch 5 MP 1U H.265 AcuSense DVR
* 4 channels and 1 HDD 1U AcuSense DVR
* False alarm reduction by human and vehicle target classification based on deep learning
* Efficient H.265 pro+ compression technology
* Encoding abilty up to 8 MP lite @ 15 fps, 5 MP @ 12 fps
* 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
* Up to 8 network cameras can be connected.
* 4 channels and 1 HDD 1U AcuSense DVR
* False alarm reduction by human and vehicle target classification based on deep learning
* Efficient H.265 pro+ compression technology
* Encoding abilty up to 8 MP lite @ 15 fps, 5 MP @ 12 fps
* 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
* Up to 8 network cameras can be connected.
- Motion Detection 2.0
- Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
- Perimeter Protection
- Human/Vehicle AnalysisUp to 4-ch
- Facial Detection
- Facial Detection And CaptureFace picture detection, face picture search
- Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
- Frame Rate
Main stream:
8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
*: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4.
Sub-stream:
WD1/4CIF/CIF@25 fps (P)/30 fps (N)
- Video Bitrate32 Kbps to 10 Mbps
- Dual-StreamSupport
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
- Video And Audio
- IP Video Input
2-ch (up to 6-ch)
Up to 8 MP resolution
Enhanced IP mode on:
4-ch (up to 8-ch), each up to 4 Mbps
Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input4-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDMI Output
HDMI:
1-ch, 2K (2560 × 1440)/60Hz,
1920 × 1080/60Hz,
1280 × 1024/60Hz,
1280 × 720/60Hz
VGA:
1-ch, 1920 × 1080/60Hz,
1280 × 1024/60Hz,
1280 × 720/60Hz
HDMI/VGA simultaneous output
- CVBS InputPAL/NTSC
- CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
- Synchronous Playback4-ch
- HDTVI Input8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
- AHD Input5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- HDCVI Input8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Network
- Total Bandwidth96Mbps
- Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Remote Connection32
- Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface
- Auxiliary Interface
- SATA1 SATA interface
- CapacityUp to 10 TB capacity for each disk
- Serial InterfaceRS-485 (half-duplex)
- USB Interface
Front panel: 1 × USB 2.0
Rear panel: 1 × USB 2.0
- Alarm In/OutN/A
- General
- Power Supply12 VDC
- Consumption≤ 10 W
- Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
- Weight≤ 1.16 kg (2.6 lb)
