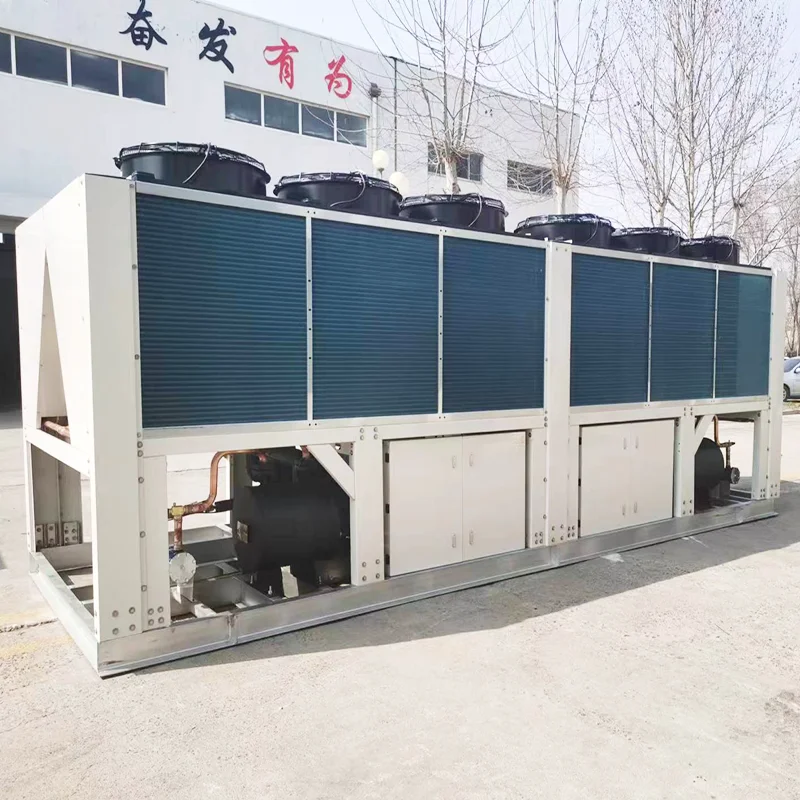

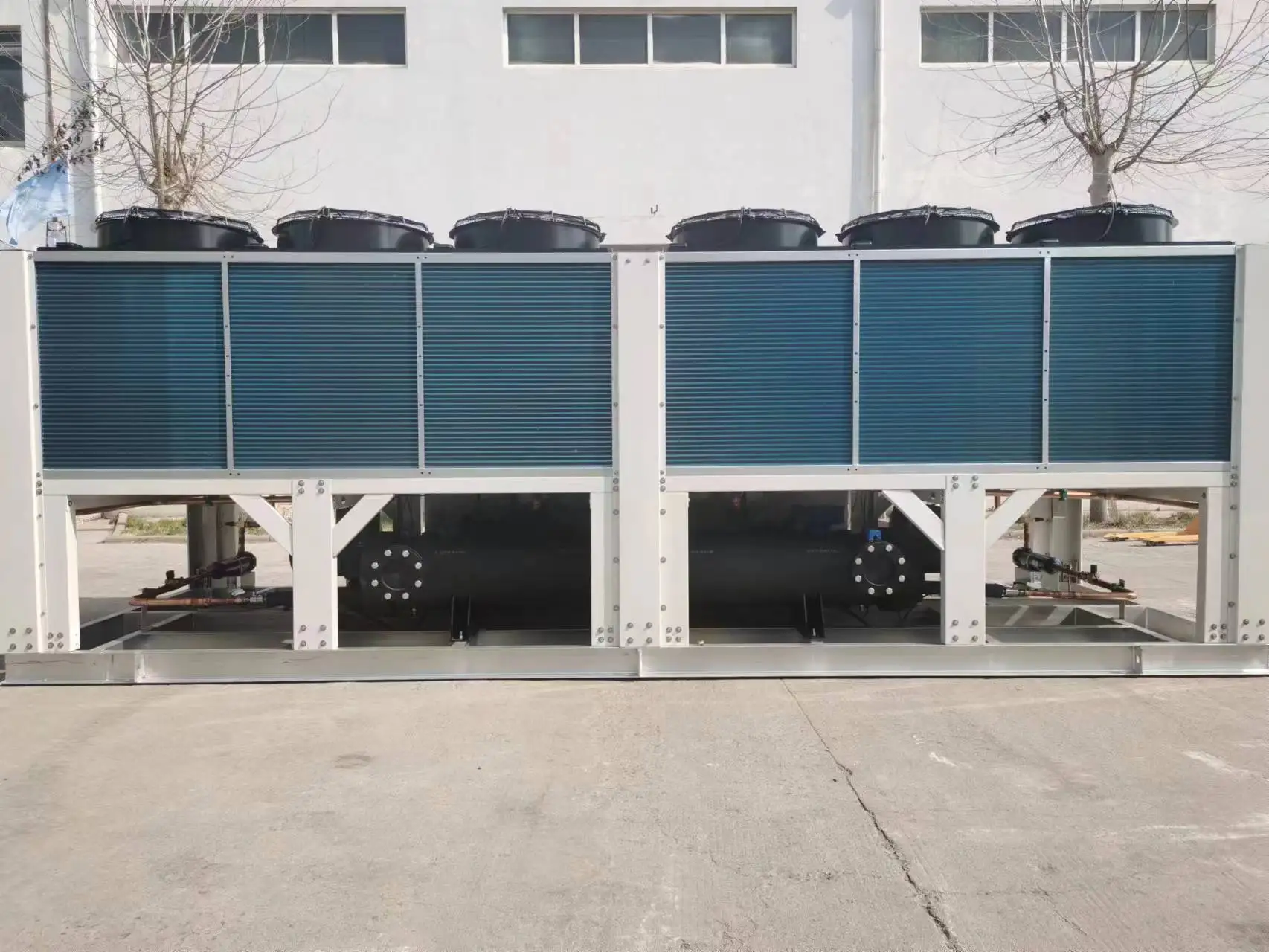

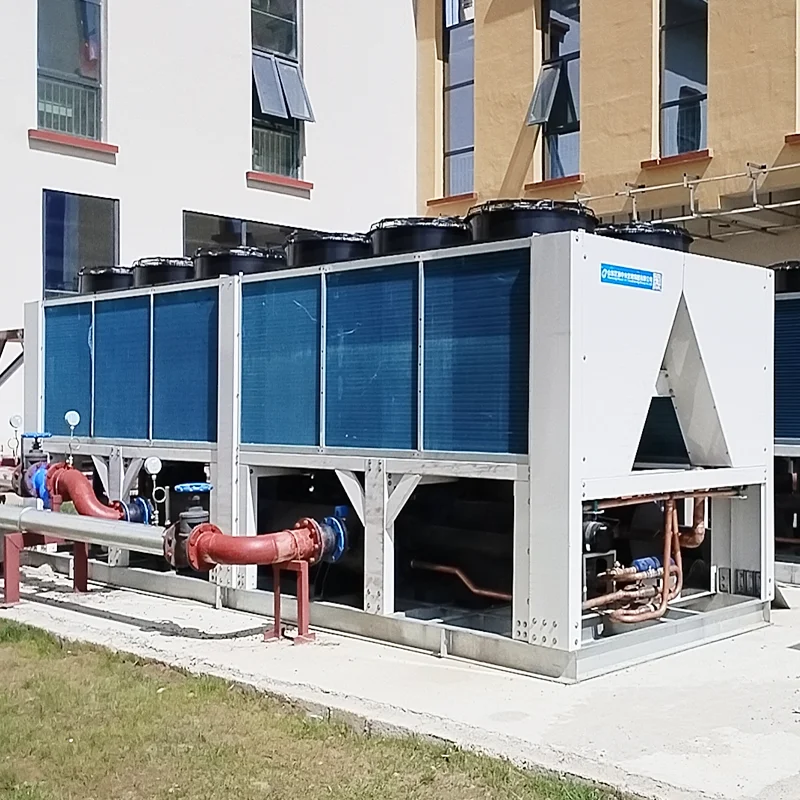

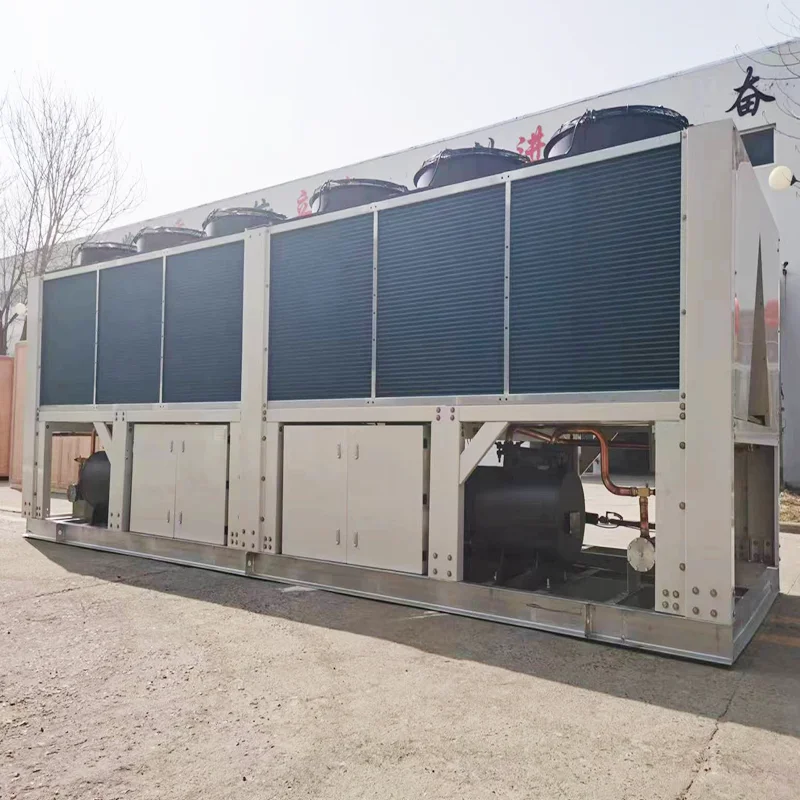

90C High Temperature Air to Water Monoblock Industrial Air Source Heat Pump Floor Standing with PLC Core Components
90C High-Temperature Air to Water Monoblock Industrial Air Source Heat Pump Floor Standing with PLC Core Components
90C High-Temperature Air to Water Monoblock Industrial Air Source Heat Pump Floor Standing with PLC Core Components
90C High-Temperature Air to Water Monoblock Industrial Air Source Heat Pump Floor Standing with PLC Core Components
90C High-Temperature Air to Water Monoblock Industrial Air Source Heat Pump Floor Standing with PLC Core Components
90C High-Temperature Air to Water Monoblock Industrial Air Source Heat Pump Floor Standing with PLC Core Components
90C High-Temperature Air to Water Monoblock Industrial Air Source Heat Pump Floor Standing with PLC Core Components

90C High Temperature Air to Water Monoblock Industrial Air Source Heat Pump Floor Standing with PLC Core Components

Share on (1600960228317):


Price:

Quantity:

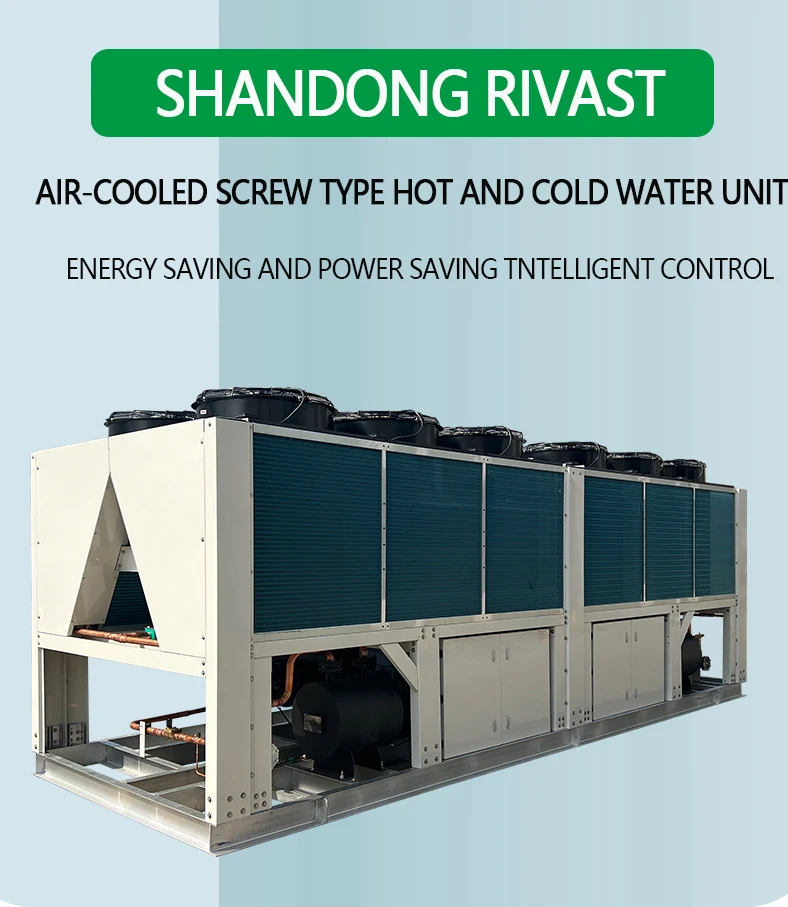

Product Overview

Description



Product Description




1、Easy installation and space saving: No need to equip auxiliary equipment such as cooling water pumps and cooling towers, which can save a lot of material and engineering installation costs.
2、Intelligent adjustment: the unit can realize automatic energy adjustment according to the change of load, saving electricity and energy.
3、Excellent performance, safety and reliability:

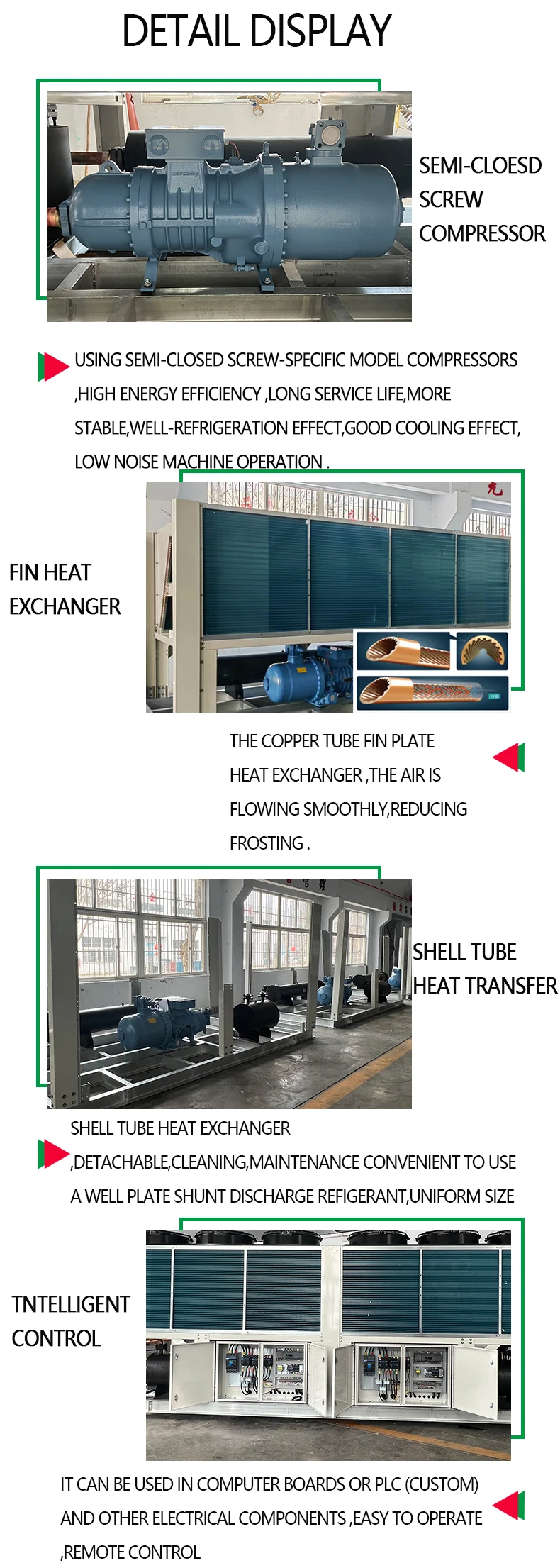

- International well-known brand semi-hermetic screw compressor, stable performance.
- Inverted M-type structure design of finned condenser, with good heat dissipation.
- Microcomputer control, with multiple protection functions, equipped with RS485 communication interface, can accept remote start and stop signals.




Specification


Unit type
LSBLGRF
180
250
320
430
500
570
Refrigerating capacity(KW)
184.9
247.6
315.6
432.5
495.6
563.2
Heat production capacity(KW)
174.1
260
331.4
454.1
520.4
591.4
Refrigerating power(KW)
58.4
73.4
97.2
125.1
154.2
170.3
Heating power(KW)
47.3
72.8
96.3
123.9
152.7
169.1
Partial heat recovery(KW)
37
49.5
63.1
86.5
99.1
112.6
Total heat recovery(KW)
207.7
278.2
354.6
485.9
556.8
632.8
Use power
3PH/380V/50HZ
Maximum operating current(A）
107.9
134.6
178.9
228.8
282.5
313.6
Maximum starting current(A）
619.9
729.9
907.3
1089.3
1459.7
1001.2
Compressor
Quentity
1
1
1
1
1
2
Energy regulation
Four-stage adjustment for a single compressor 25%-100%
Condensing fan
Quantity
4
4
6
6
8
10
Air volume(m3/h)
96000
96000
144000
144000
192000
240000
Water discharge (m3/h)
Evaporator
31.8
42.6
54.3
74.4
85.2
96.9
Partial heat recovery unit
6.4
8.5
10.9
14
17.1
19.4
Full heat recovery unit
35.7
47.9
61
83.6
95.8
108.8
Water side resiaatance (KPa)
Evaporator
41
42
42
42
45
43
Partial heat recovery unit
46
46
47
48
48
50
Full heat recovery unit
43
43
44
44
44
45
Nozzle specification（DN ）
Evaporator
80
80
100
125
125
125
Partial heat recovery unit
40
40
40
50
50
50
Full heat recovery unit
80
80
100
125
125
125
Noise index dB（A）
Normal form
76
76
77
77
78
80
Low noise type
70
70
71
71
72
74
tips：
1)Unit refrigeration calibration condition: ambient temperature 35℃; evaporator inlet/outlet water temperature 12/7℃.
2)Unit refrigeration calibration condition: ambient temperature 7℃;evaporator inlet/outlet water temperature 40/45℃.
3）Partial heat recovery calibration condition: ambient temperature 35℃, evaporator inlet/outlet water temperature 12/7℃, heat
recovery inlet/outlet water temperature 45/50℃.
4）Full heat recovery calibration condition: ambient temperature 20℃, heat recovery inlet/outlet water temperature 45/50℃. Recovery
inlet and outlet water temperature 45/50℃.




Company Profile

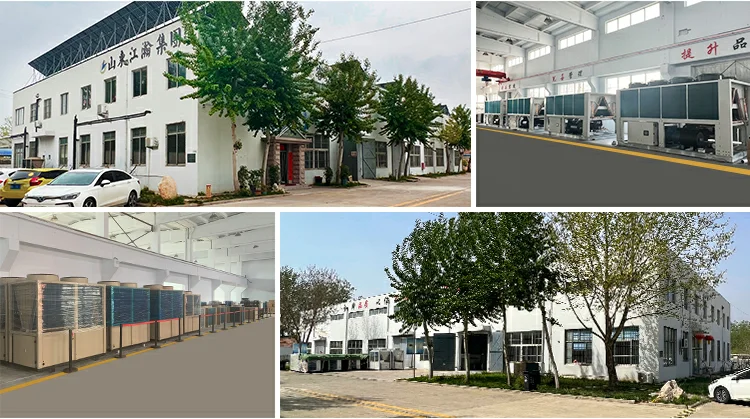

Shandong Rivast Air Conditioning Co.,Ltd. is established in 2014.It is a modern high-tech enterprise which commitment to air conditioning,ventilation and smoke exhaust equipment,combined type water tank and FRP products research and design,manufacturing,sales,installation and after-sales service. The company is located in Dezhou city,Shandong province,the traffic is very convenient.
Our group company registered capital of RMB100 million ,covers an area of 300,000 square meters,construction area of 180,000 square meters.
Our group main business scope include:
1.Air conditioning host series:
Water-cooled series:centrifugal cold(hot) water units,screw chillers,screw ground source heat units, scroll ground source heat units,
Air-cooled series:screw cold water units,module cold water units,villa-use cold water units,VRV series units.
Unitary units:constant temperature humidity units,air(water) cooling unitary air conditioning units,dehumidification units.
2.Air conditioning series:purify air conditioning,combined type air conditioning,roof-top air conditioning,fresh air handling units,fan coil series.
3.Air conditioning parts:all kinds of fire dampers,regulation valves,tuyeres.
4.Water tanks series:stainless steel water tank,hot dip galvanizing water tank,FRP water tank etc.
Our R&D team will continually introduce new products,the advanced production equipment,sophisticated testing instrument and ISO 9001 quality management system is the most powerful guarantee for product quality.
We adhering to the concept of "quality management of zero error,product quality of zero defect",Rivastaircon look forward to working with you to create a better tomorrow.

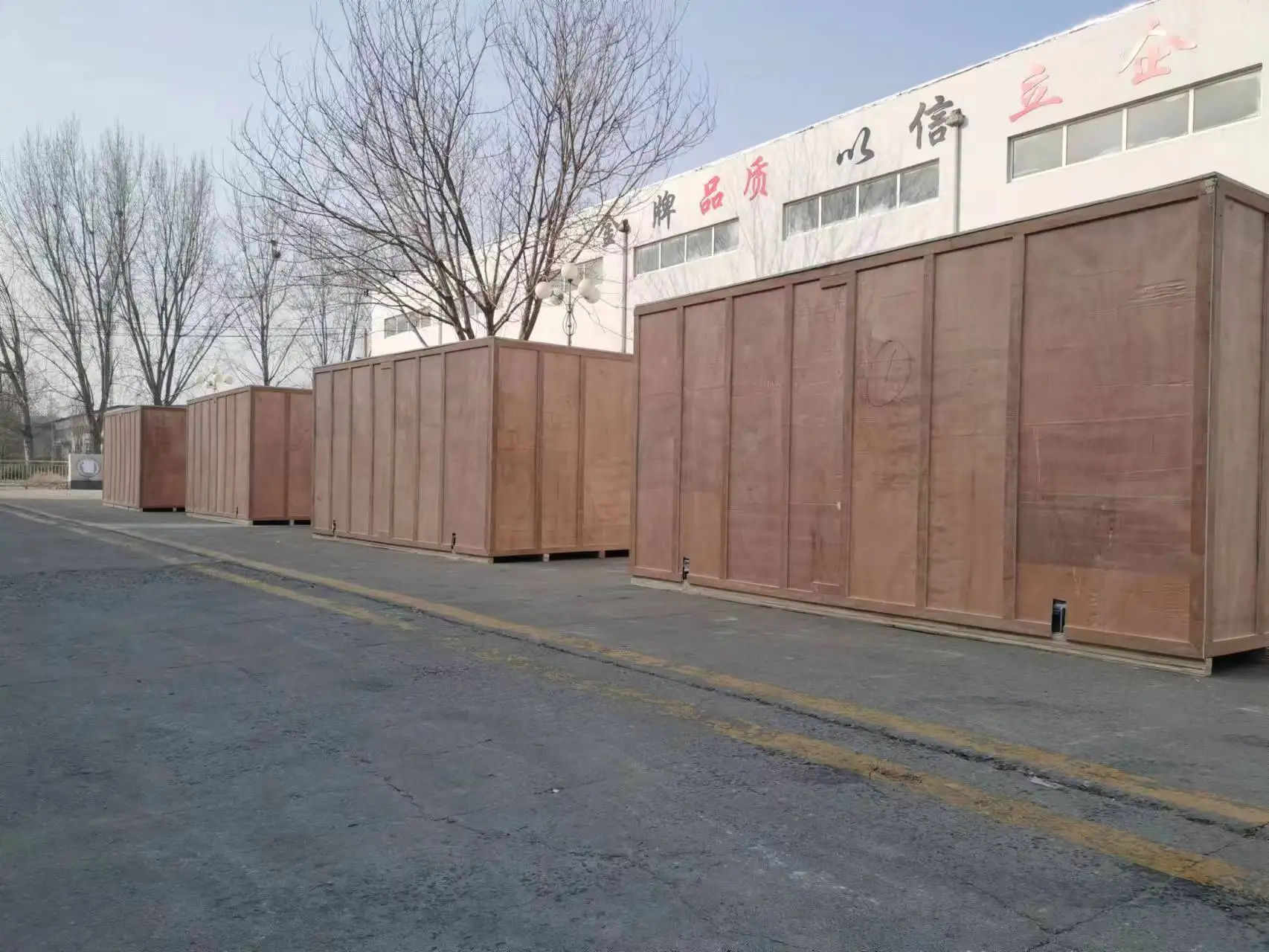

Packing & Delivery






FAQ


1. who are we?
We are based in Shandong, China, start from 2014,sell to Domestic Market(50.00%),Eastern Europe(20.00%),South America(10.00%),Southeast Asia(10.00%),South Asia(1.00%),Eastern Asia(1.00%),North America(1.00%),Oceania(1.00%),Western Europe(1.00%),Southern Europe(1.00%),Central America(1.00%),Northern Europe(1.00%),Africa(1.00%),Mid East(1.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Modular Air Cooled Chiller, Scroll Water-cooled Unit, Ceiling Fan Coils, Rooftop Air Condition Unit, Fresh Air Ventilation Unit

4. why should you buy from us not from other suppliers?
our main products: water source heat pump; ground source heat pump; air source heat pump; modular air-cooled water chiller/heat pump; scroll type water (ground) source chiller and heat pump; fresh air ventilator; air handling unit; cooling towers;

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
